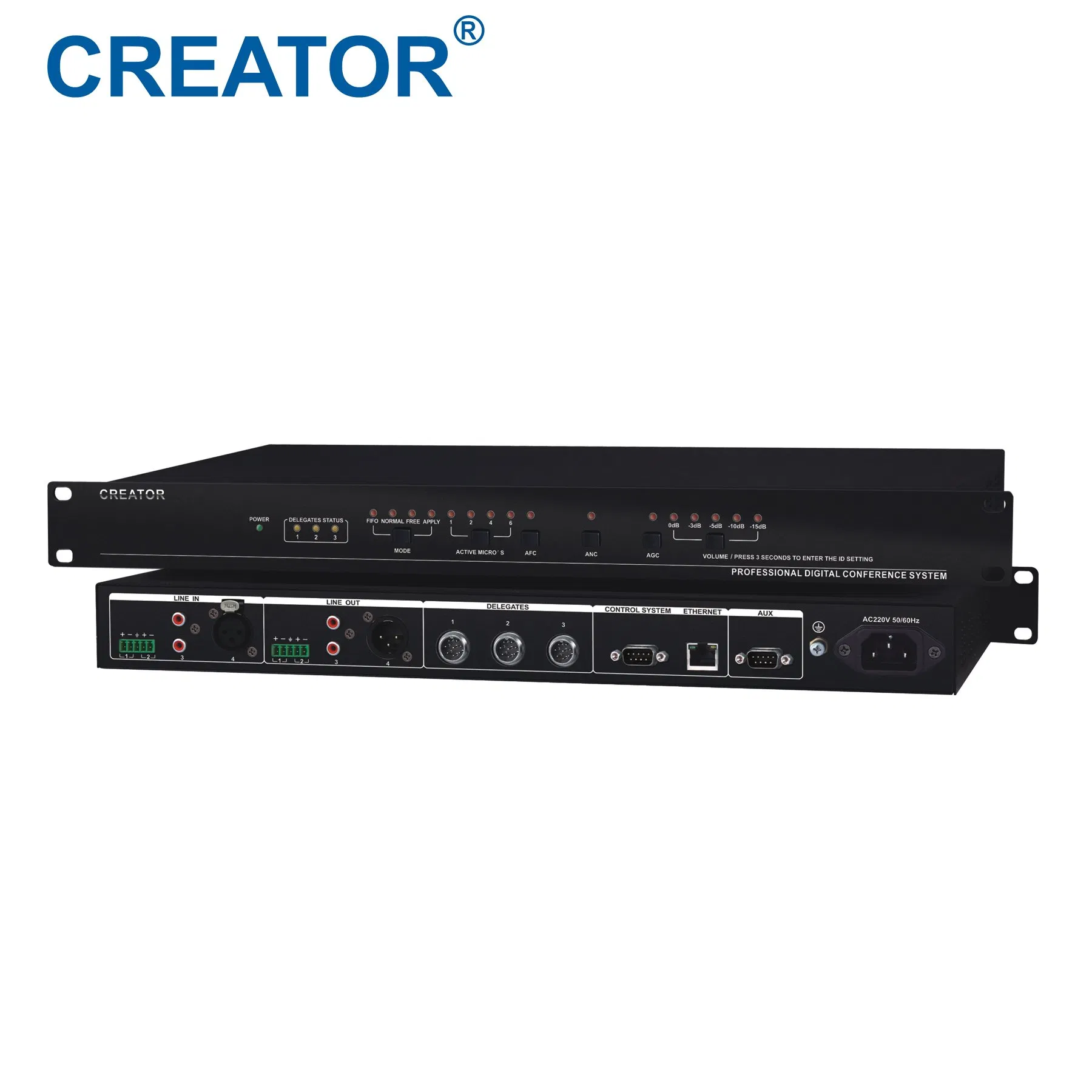

Wireless Conference Microphone System Management Controller Microphone Controller

Customization: Available
Color: Black
Type: Voice Conferencing System

Product Description

📋 Basic Information
Model NO.
CR-WiFi6301
Video
Without Video
Communication
Wired/Wireless
Composition
DSP
HS Code
8537109090
Capacity
100,000 Pieces/Year
💻 Product Overview

CR-WiFi6301 is a full digital encryption WiFi conference controller and camera auto-tracking conference controller, designed to support both wireless and wired conference environments seamlessly.

🎛 Key Features
Support WPA/WPA2 wireless security technology to ensure conference confidentiality and avoid wiretapping or malicious interference.
The system can open up to 8 microphones simultaneously (6 wireless) and supports 31+1 channel wired simultaneous interpretation.
Uncompressed audio transmission with 48K sampling rate and 20Hz~20KHz bandwidth for perfect sound quality.
Built-in high-performance CPU integrating translation, discussion, attendance, voting, and electronic plate, supporting up to 4000 units.
DAFS Digital Acoustic Feedback System with 32-bit high-speed DSP floating-point processing for noise elimination.
Advanced camera tracking supporting VISCA, PELCO-D, and SAMSUNG protocols for automated mobile and preset tracking.
Multiple audio interfaces (RCA, Phoenix, XLR) supporting balanced/unbalanced input and 4-speaker partition output.
📊 Technical Specifications
Model No.CR-WiFi6301
Frequency Response20Hz-20KHz
Signal to Noise Ratio>80dB
Channel Crosstalk>80dB
Total Harmonic Distortion<0.05%
Power Supply110V/220V AC
Maximum Power Consumption150W
ColorDark Grey
📈 Design & System Layout

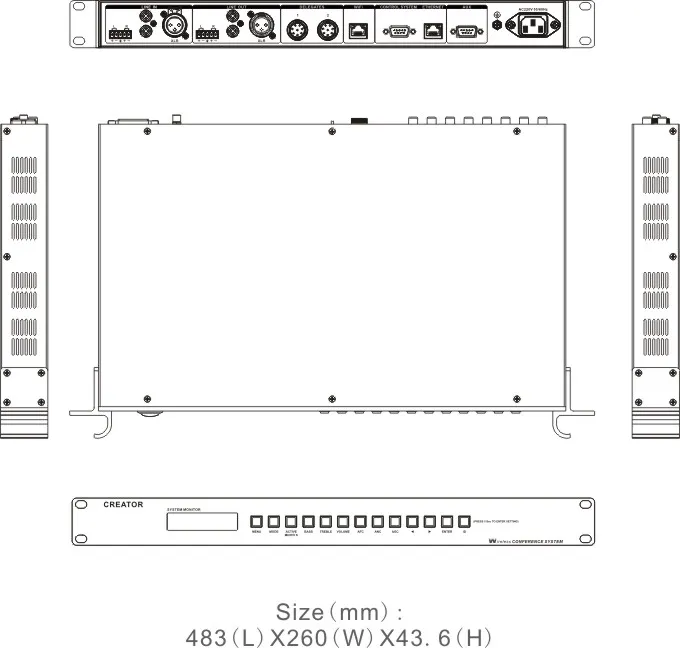

Panel Drawing

Panel Drawing

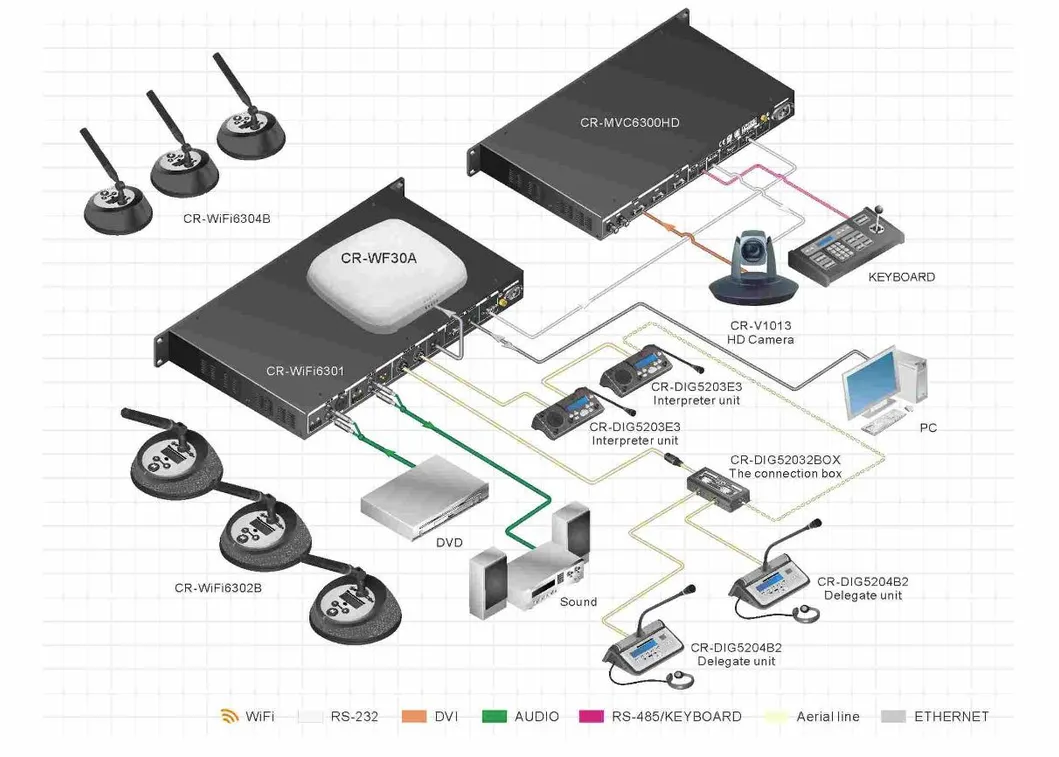

System Diagram

System Diagram
🌍 Global Case Studies

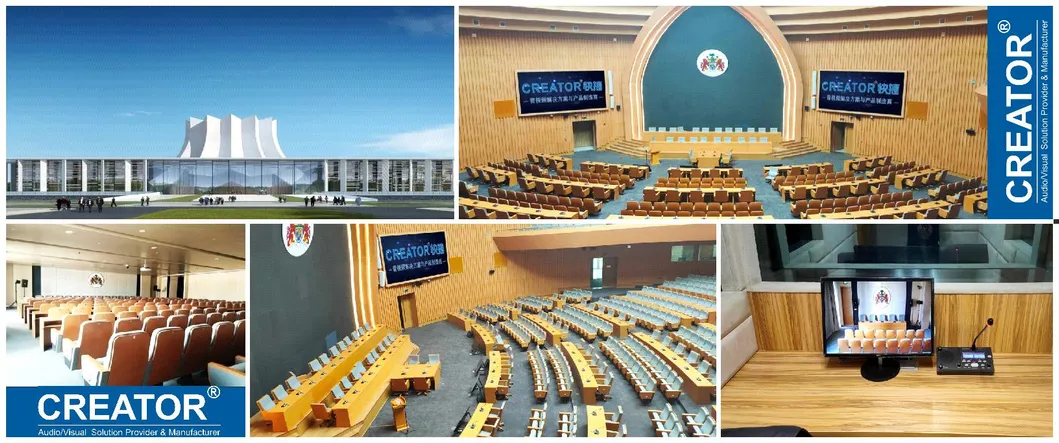

Gambia International Convention Center

Equipped with 1,500 sets of infrared simultaneous interpretation systems and over 200 sets of full digital conference units.

Gambia Case
United Nations Conference

1200 sets of full digital conference systems including matrix switchers and multimedia controllers.

UN Conference

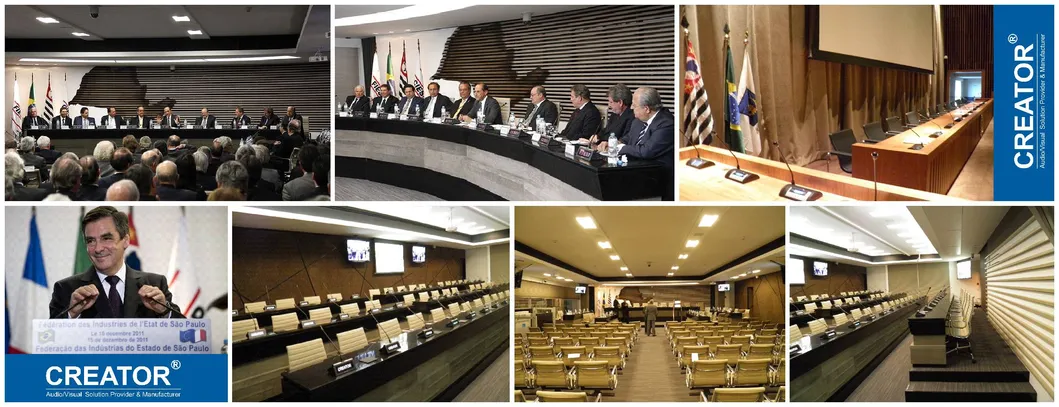

Brazil Federation of Industries (FIESP)

Over 500 sets of digital discussion systems with auto camera tracking and seamless matrix switching.

Brazil FIESP Case
🎖 Honors & Certificates
Certificates
Frequently Asked Questions
Q1: Does the CR-WiFi6301 support secure wireless communication?
Yes, it utilizes WPA/WPA2 wireless security technology to ensure conference confidentiality and protect against malicious interference.
Q2: How many microphones can be used at the same time?
The system can open up to 8 microphones simultaneously. In a purely wireless setup, it supports a maximum of 6 microphones.
Q3: What is the maximum capacity of conference units supported?
The controller is highly scalable and can support up to 4,000 conference units in a single system.
Q4: Does the system support automatic camera tracking?
Yes, it supports various protocols like VISCA, PELCO-D, and SAMSUNG. It can achieve automatic tracking for both wired and wireless units.
Q5: Can it handle simultaneous interpretation?
Absolutely. The wired system supports 31+1 channels of simultaneous interpretation for international multilingual meetings.
