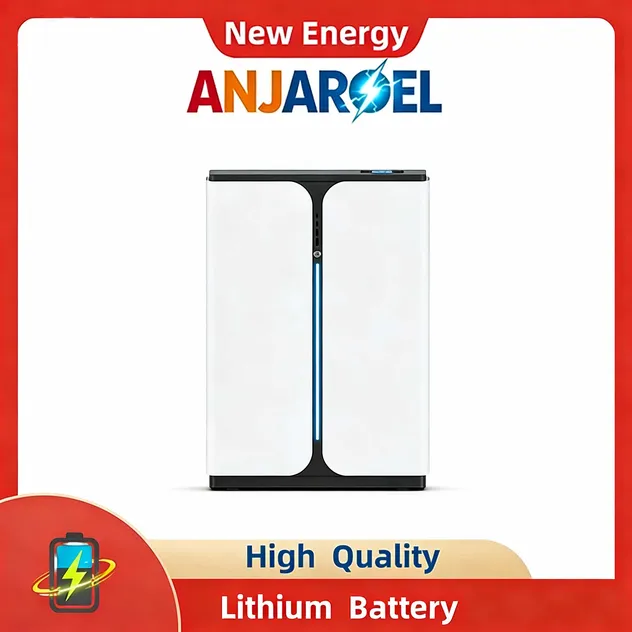

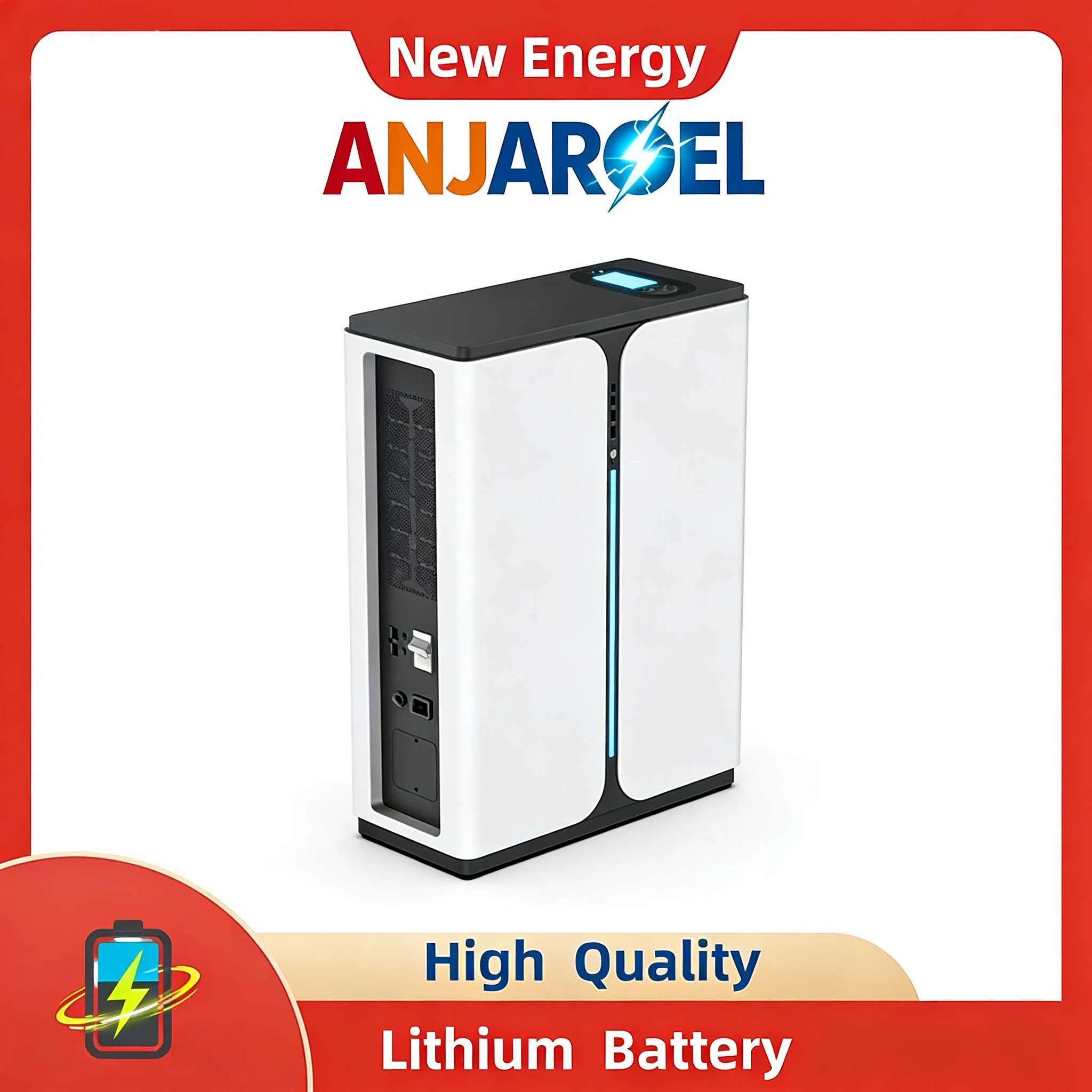

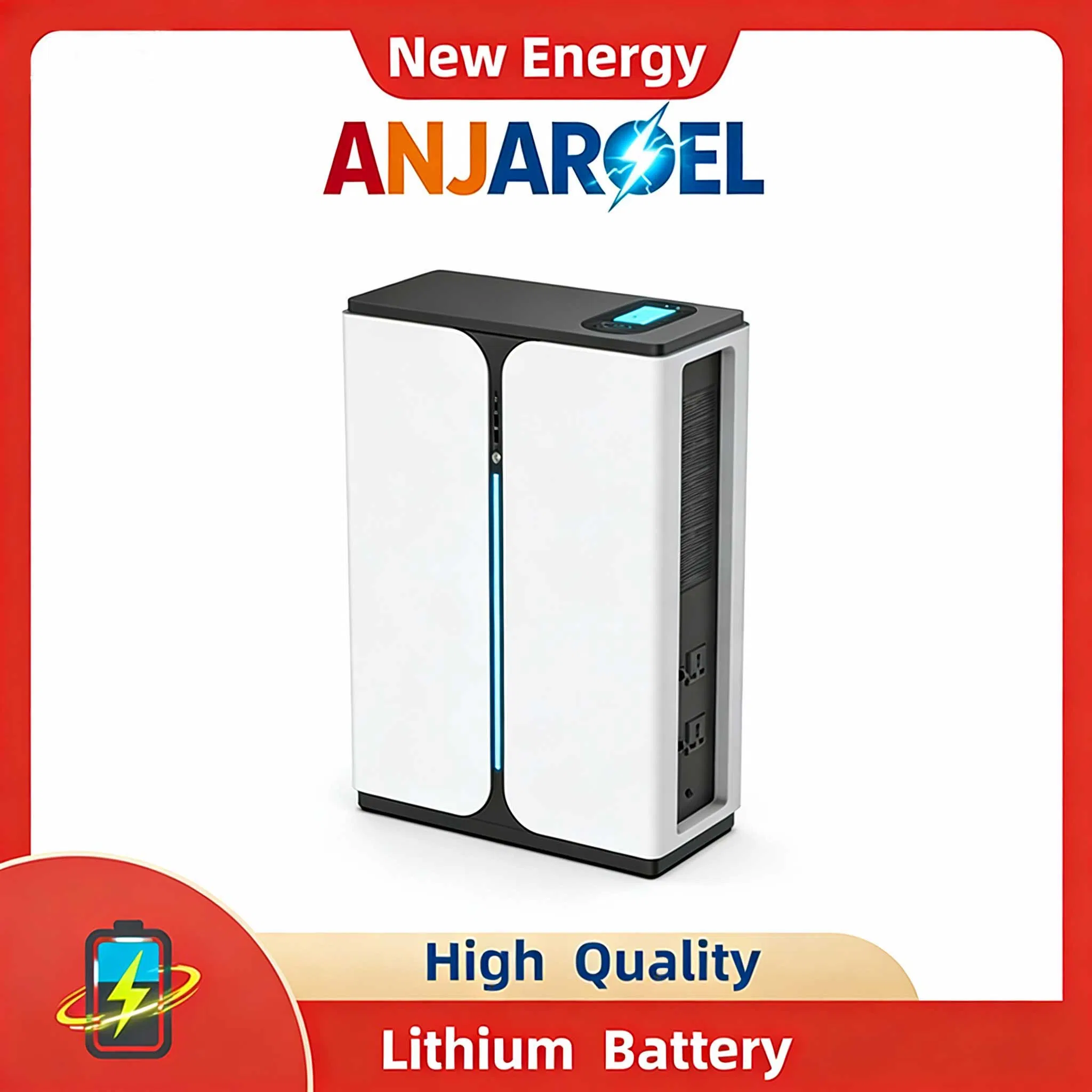

The all-in-one home energy storage system is a plug-and-play residential energy storage solution integrating lithium iron phosphate batteries, bidirectional inverters, and an intelligent BMS management system.
Featuring a vertical integrated design, it requires no complex installation and can be used simply by plugging in. Supporting dual charging from the grid and solar energy, it provides households with stable backup power, peak-valley arbitrage, and off-grid power supply services.
LiFePO4 cells engineered for deep cycling and long lifespan, ensuring predictable performance.
Hot-swappable modules allow seamless capacity expansion without system downtime.
IP65-rated enclosure with integrated BMS for real-time monitoring and layered safety protections.
| TECHNICAL PARAMETERS | |
|---|---|
| Product Name | 3kw 5.12kwh All-in-one Lithium Home Energy Storage |
| Module Number (stackable) | 1 – 5 PCS |
| Single Module Capacity | 100 Ah |
| Total Capacity Options | 5.12 kWh |
| Battery Type | LiFePO4 (LFP) |
| Standard Voltage | 51.2 V |
| Working Voltage Range | 43.2 – 57.6 V |
| Max Discharge/Charge Current | 100 A |
| Suggested DoD | 80% |
| Protection Level | IP65 |
| Operating Temperature | -10℃ ~ +50℃ |
| Management System | Integrated BMS |
| Dimensions | L480*W279*H872mm |
| Package Gross Weight | 75.00kg |

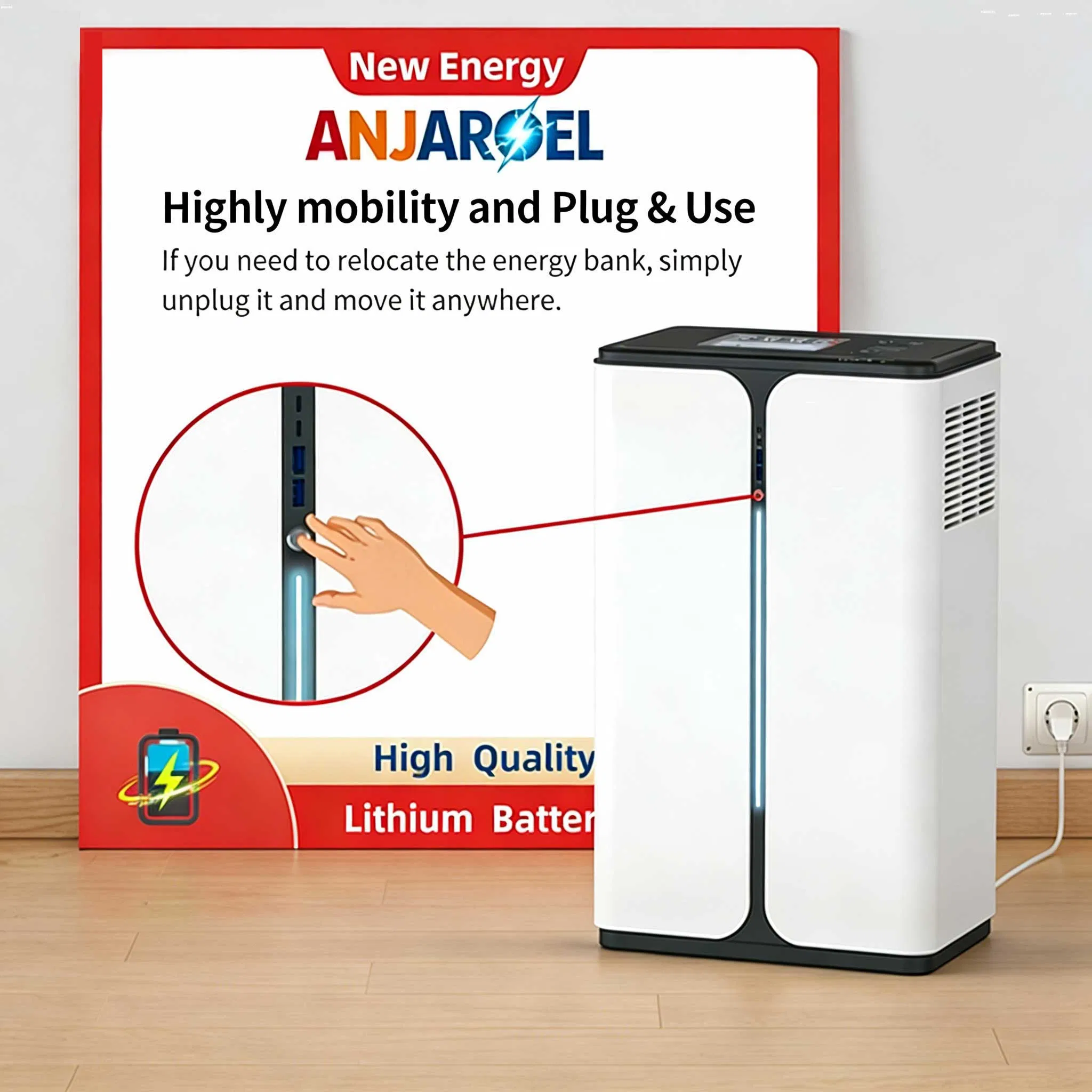

No professional installation required; simply plug in to use. Hot-swap capability and uniform electrical connections enable fast service without lengthy outages.

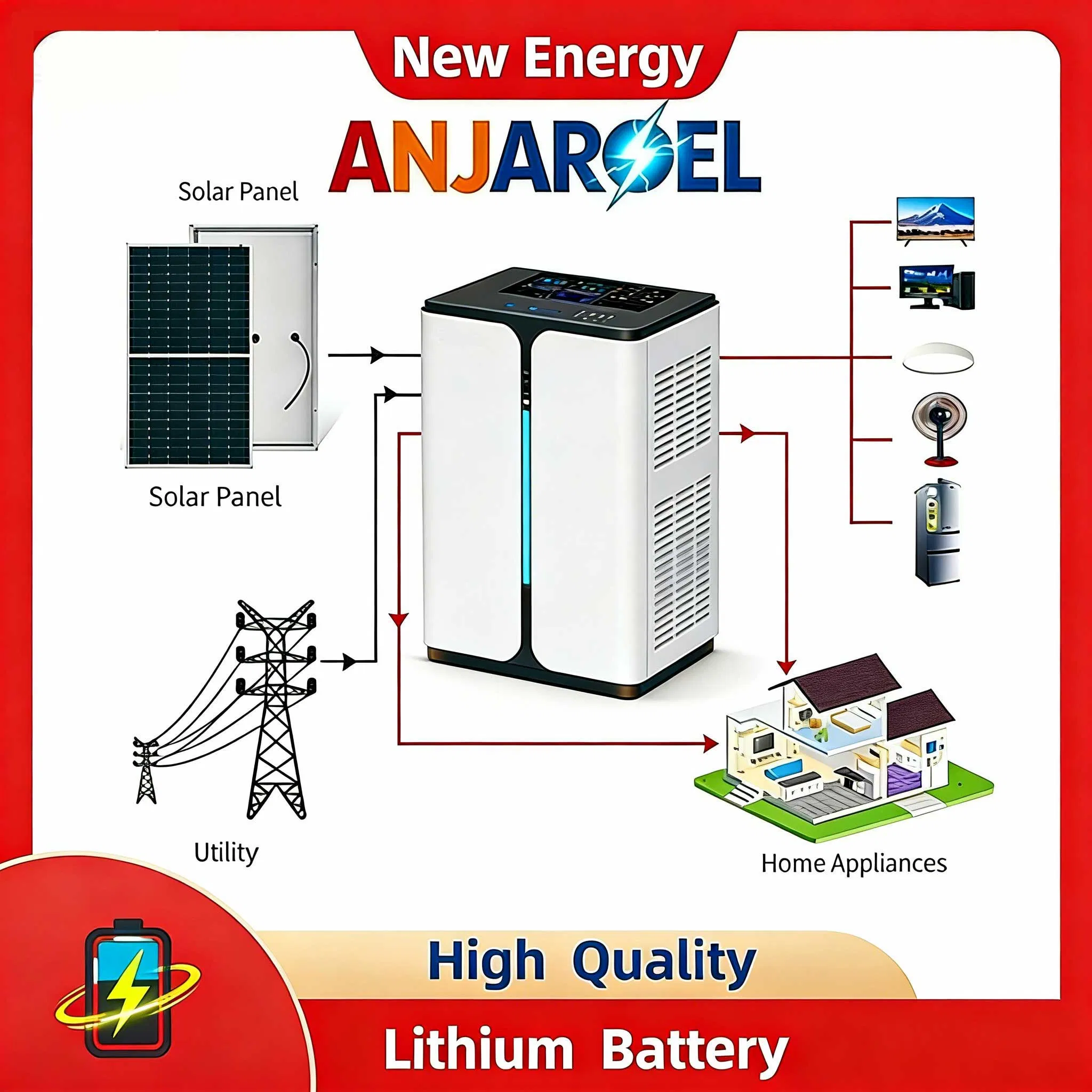

Supports both grid power and solar photovoltaic panel dual-input. Automatically switches to the optimal mode to maximize clean energy use and reduce costs.
Grade A LFP cells with cycle life exceeding 6,000 cycles. Built-in protections for overcharge, short circuit, and high temperatures ensure total peace of mind.
