| Model NO. | AJ-QZ-6KW16KWH01 |
| Product Name | Home Energy Storage Battery System |
| Battery Type | LiFePO4 (LFP) - A Grade Cells |
| Nominal Capacity | 16 kWh |
| Standard Voltage | 51.2 V |
| Operating Current | 314 Ah |
| Protection Level | IP20 / IP65 Support |
| Application | Home, Industrial, Commercial |
| Operating Temp | -10℃ to +50℃ |

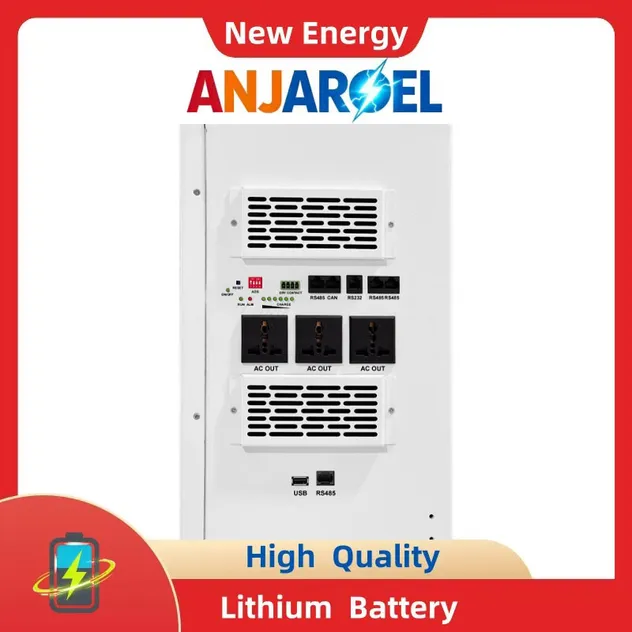

| Communication | RS232, RS485 |

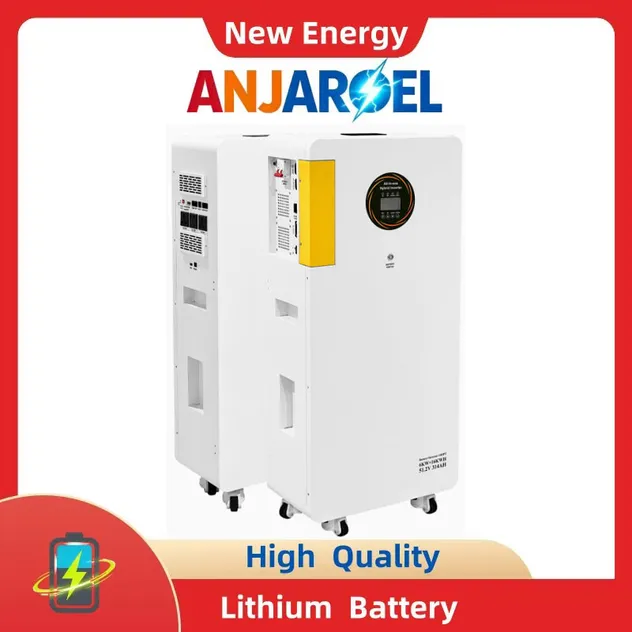

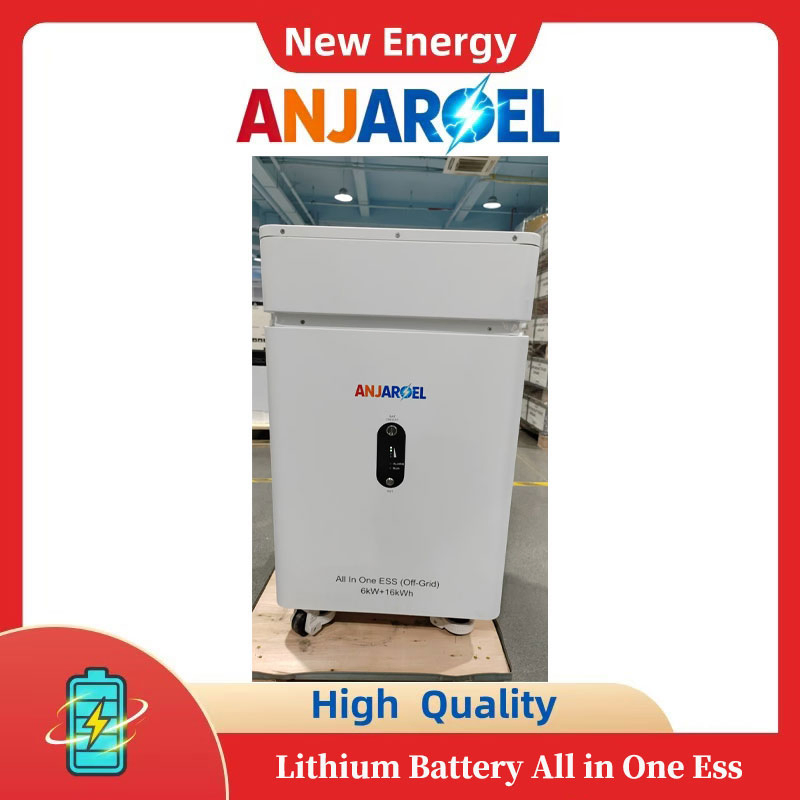

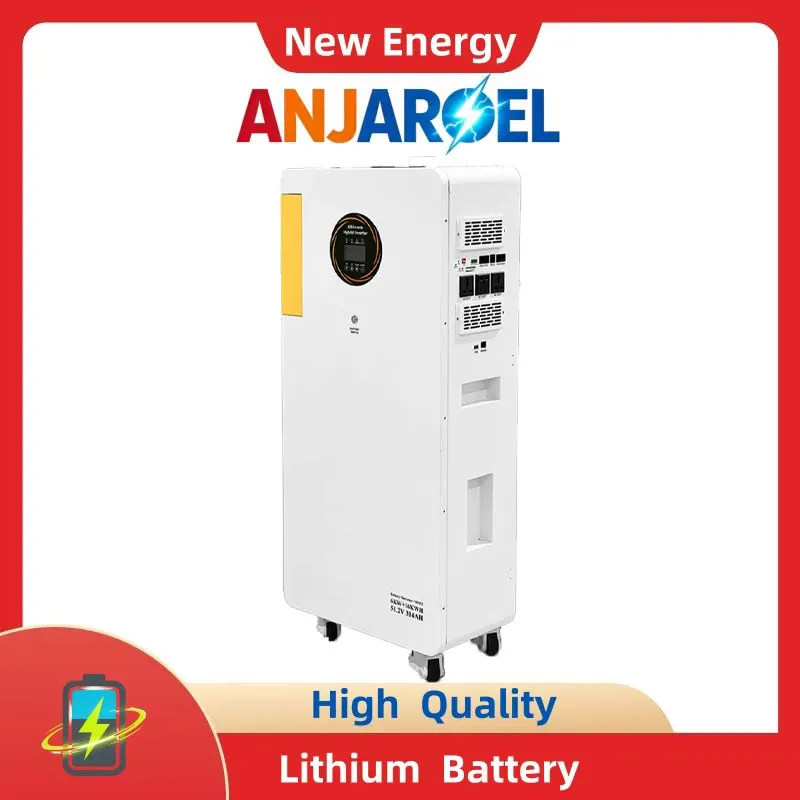

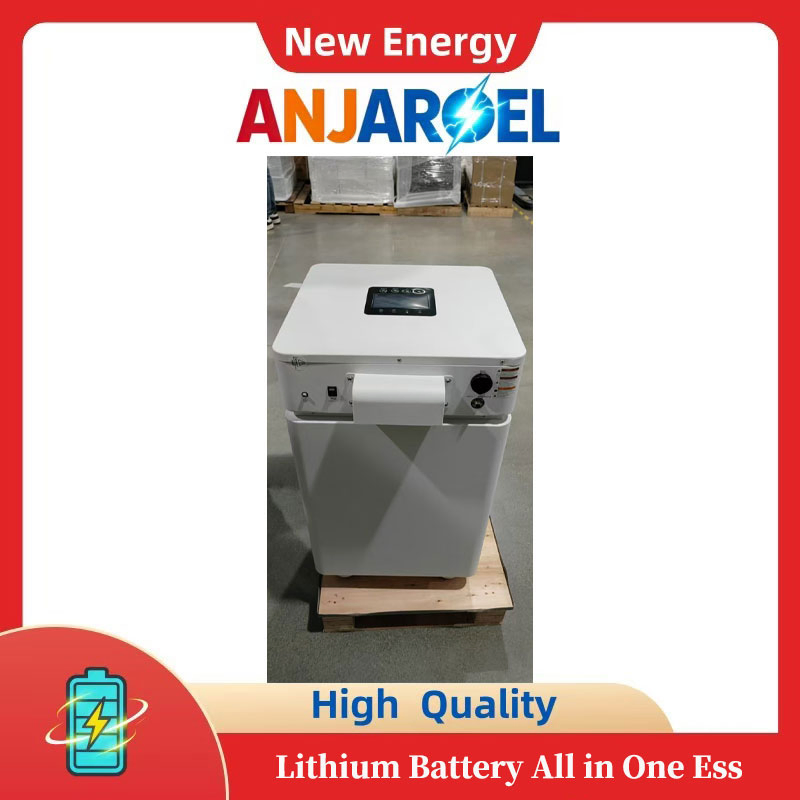

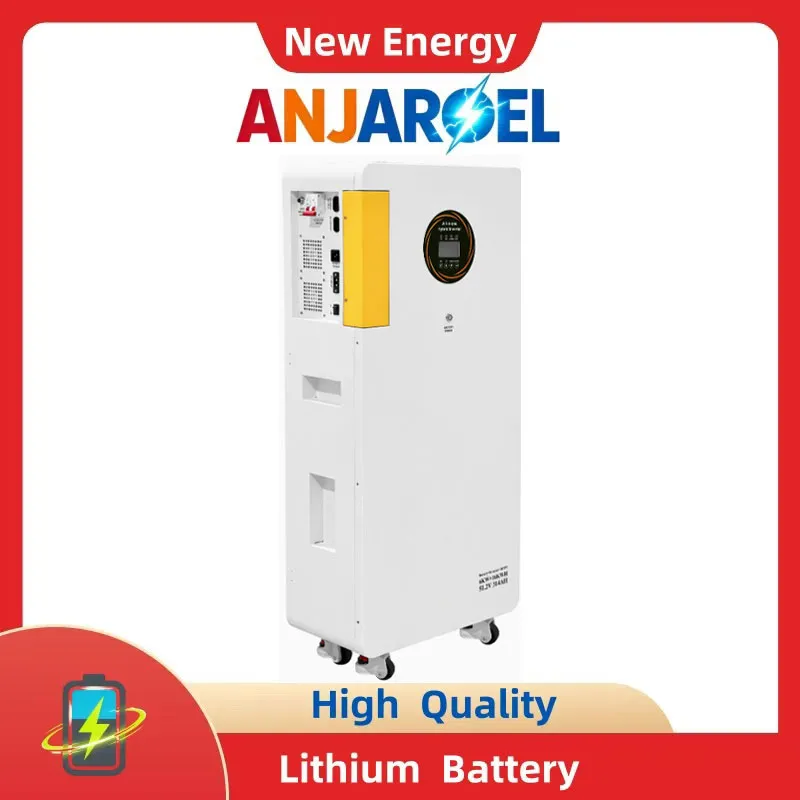

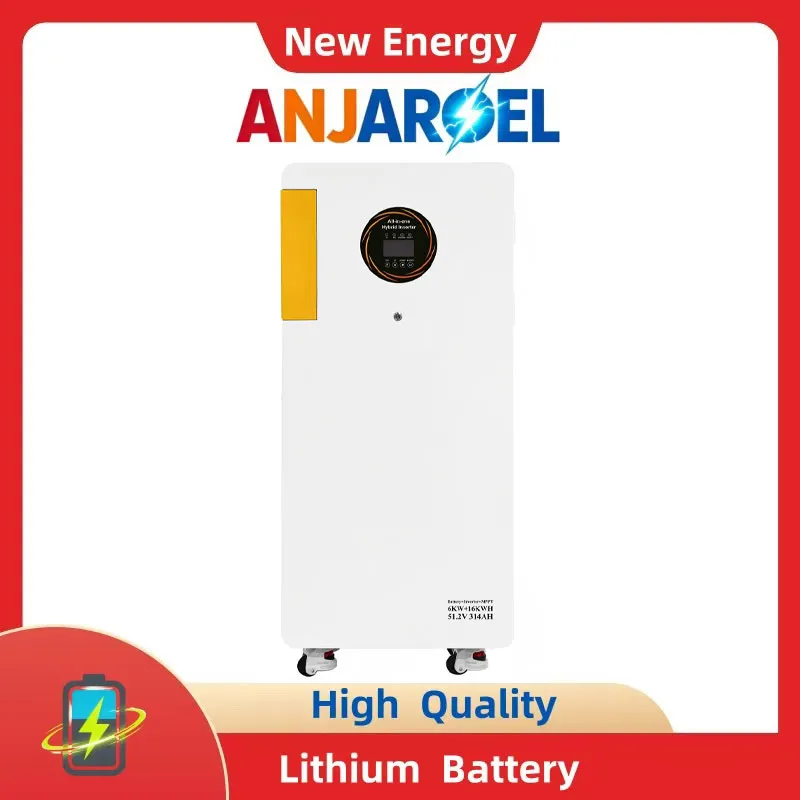

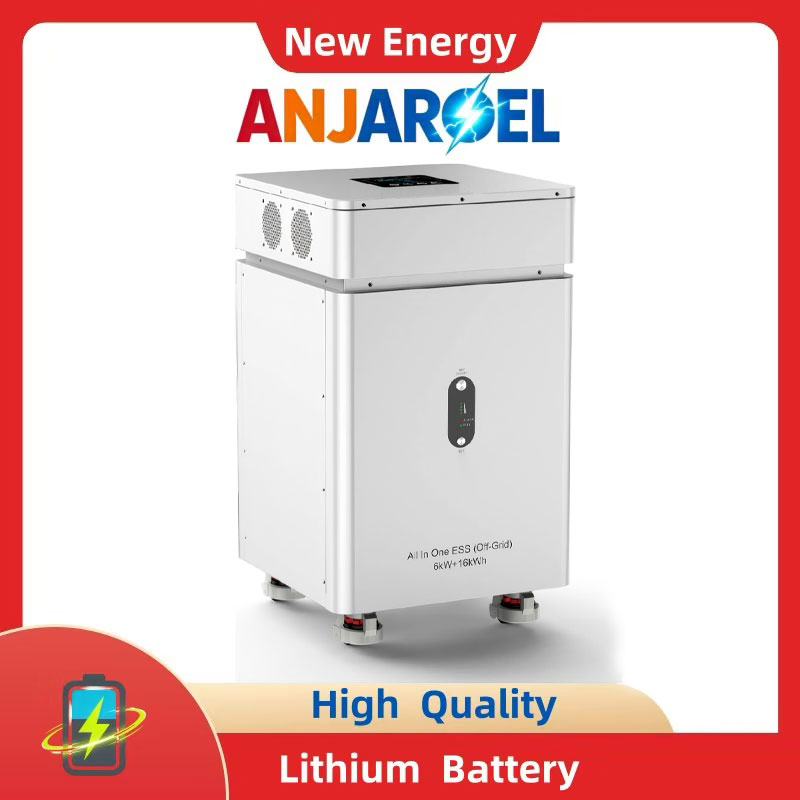

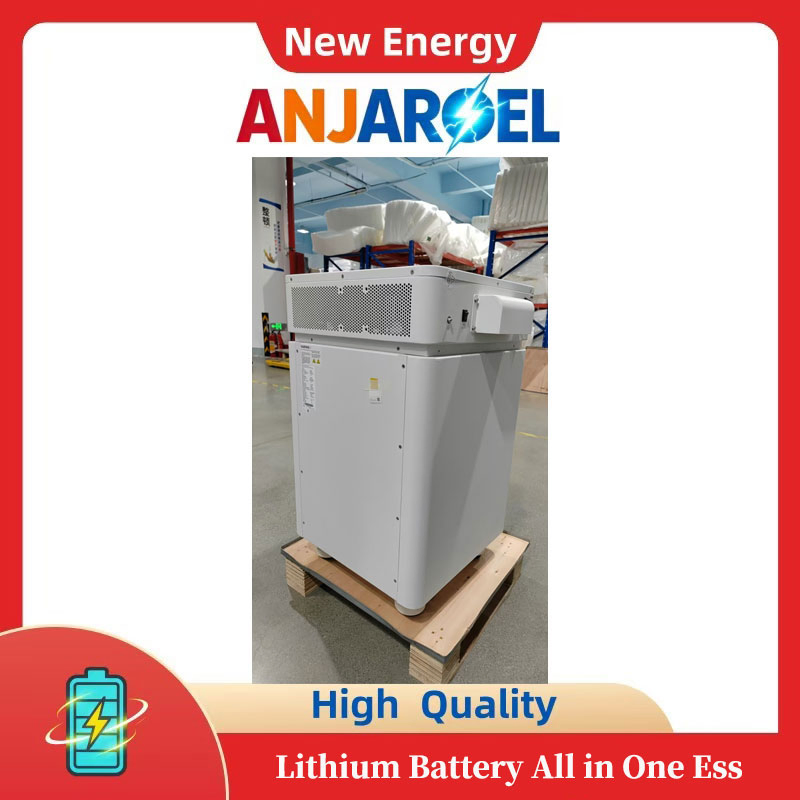

ALL-IN-ONE ENERGY STORAGE SYSTEM
The all-in-one home energy storage system is a plug-and-play residential energy storage solution. It integrates lithium iron phosphate (LiFePO4) batteries, bidirectional inverters, and an intelligent BMS management system into a single sleek unit.
Featuring a vertical integrated design, it requires no complex installation. Supporting dual charging from the grid and solar energy, it provides households with stable backup power, peak-valley arbitrage, and off-grid power supply services.
Engineered with LiFePO4 cells for deep cycling and long lifespan, ensuring predictable performance and low lifecycle costs.
Hot-swappable modules allow for capacity expansion without system downtime or complex on-site reconfiguration.
Integrated smart BMS with RS232/RS485 provides real-time monitoring, cell balancing, and layered safety protections.
| Rated Power | 51.2V 6kW |
| Standard Capacity | 16kWh |
| AC Input Voltage | AC220-240V |
| PV Open Circuit Voltage | 60V-500V |
| Max MPPT Current | 160A |
| Suggested DoD | 80% |
| Cycle Life | > 6,000 Cycles |
| Dimensions | L460*W240*H1040mm |
| Net Weight | Approx. 115kg |
| Packaging | Wooden Box (106cm * 48cm * 26cm) |
PLUG-AND-PLAY MOBILITY
No professional installation required; simply plug in to use. Unplug and relocate at any time, adapting to flexible power supply needs in different rooms or temporary scenarios.

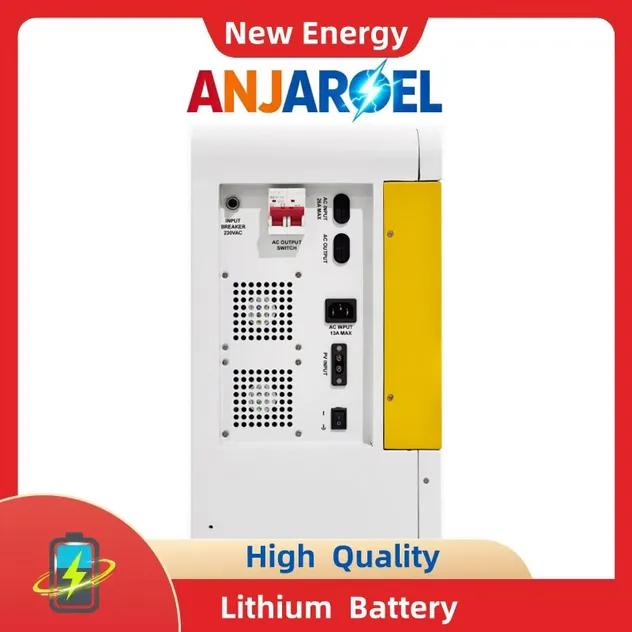

DUAL-INPUT COMPATIBILITY
Supports both grid power and solar PV panel inputs. Automatically switches to the optimal charging mode to maximize clean energy use and reduce costs.
