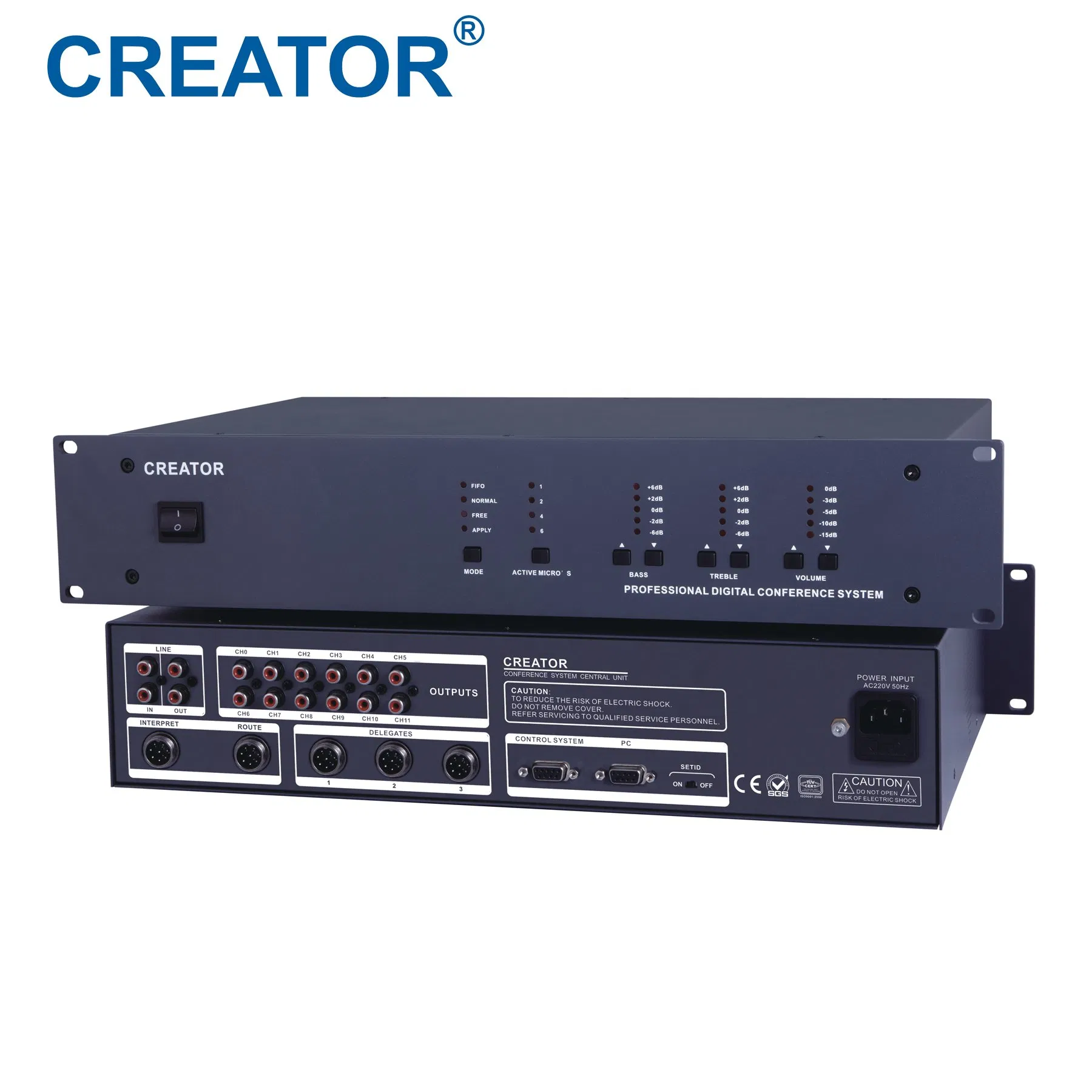

The CR-M4101 intelligent digital meeting control controller serves as a vital bridge for conference unit and PC management. Equipped with a navigation panel keyboard and comprehensive conference management software, it enables centralized control of essential functions, including camera auto-tracking. It offers versatile conference mode selections (adjustable speaking numbers and modes) and robust extension capabilities. The integrated DSP sound processing utilizes equalizer modules and environmental noise suppression technology to ensure crystal-clear audio quality.
| Parameter Name | CR-M4101 Details |
|---|---|
| Power Supply | 110V / 220VAC |
| Static Power Consumption | 10W |
| Maximum Power Dissipation | 350W |
| Output Power | ≤110W / 24V per interface |
| Audio Output | Impedance: 100Ω, Unbalanced |
| Audio Input | Impedance: 100Ω, Unbalanced |
| Frequency Response | 60Hz - 18kHz |
| Signal-to-Noise Ratio (S/N) | > 80dB |
| Harmonic Distortion | < 0.5% |
| Carrier Distortion | < 1% |
| Crosstalk Attenuation (1kHz) | > 50dB |
| Weight | Approx. 6.5kg |
| Color | Dark Grey |

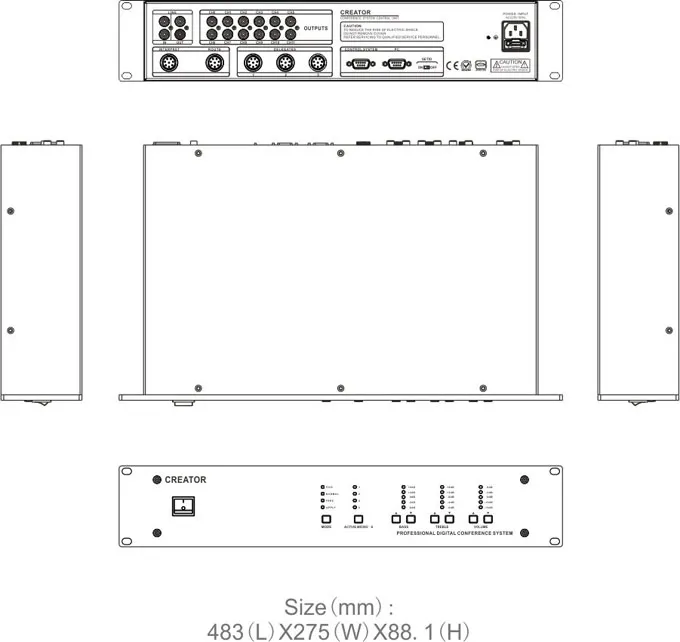

Panel Drawing

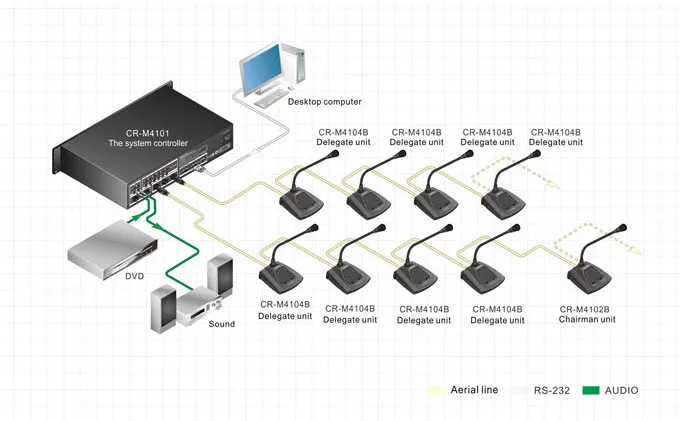

System Diagram

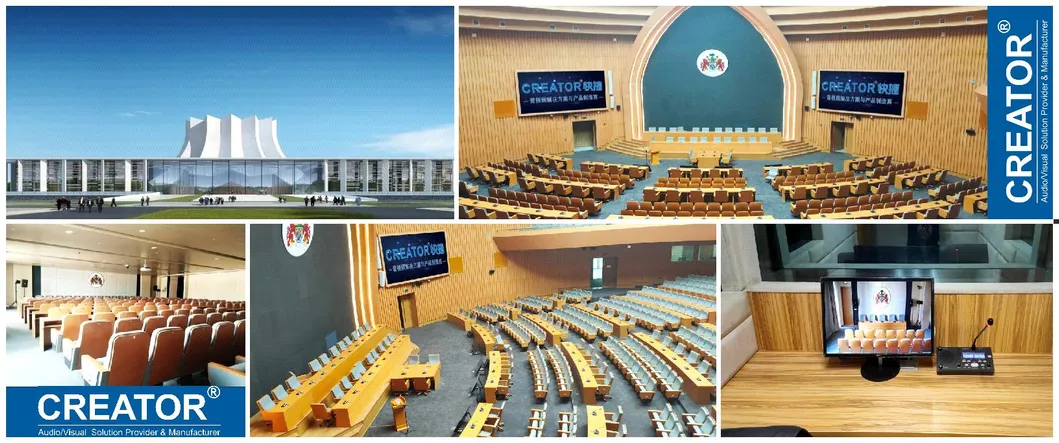

Application: 1,500 sets of infrared simultaneous interpretation systems, 200+ sets of digital conference units, 19 sets of visual interaction systems, and 5 hybrid matrix switchers.

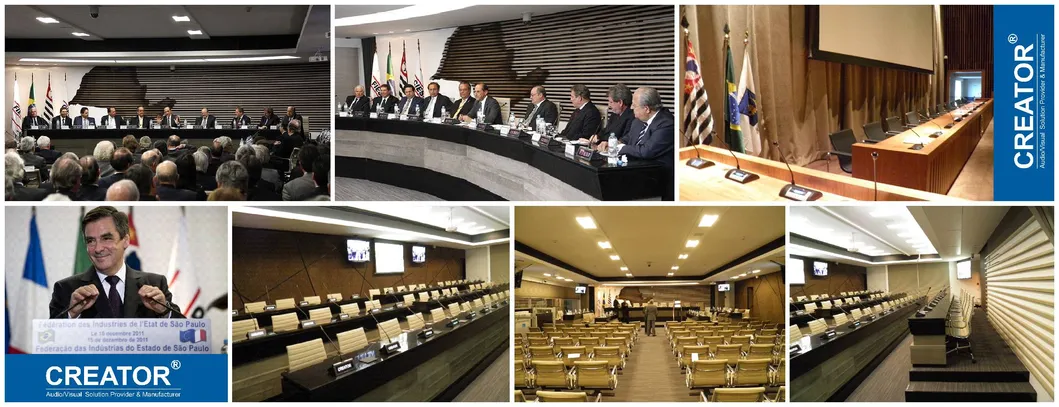

Application: 1,200 sets of full digital conference systems, matrix switchers, and multimedia controllers.

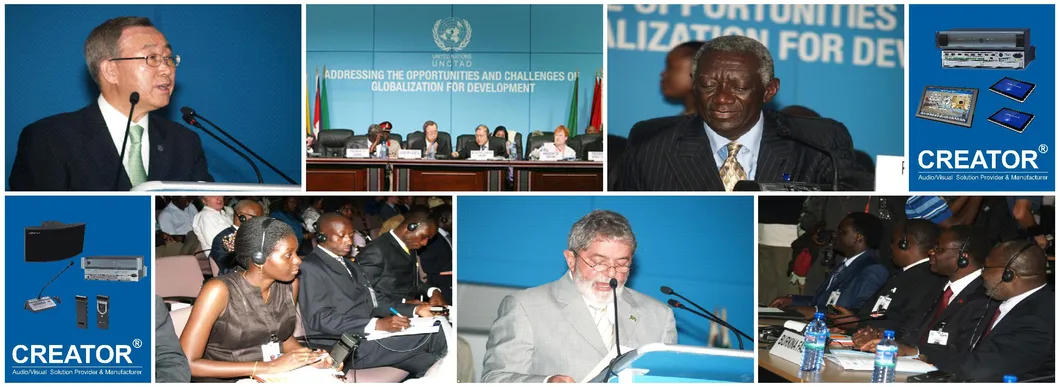

Application: Over 500 sets of digital discussion conference systems, automatic camera tracking, and seamless switching matrix switchers.
