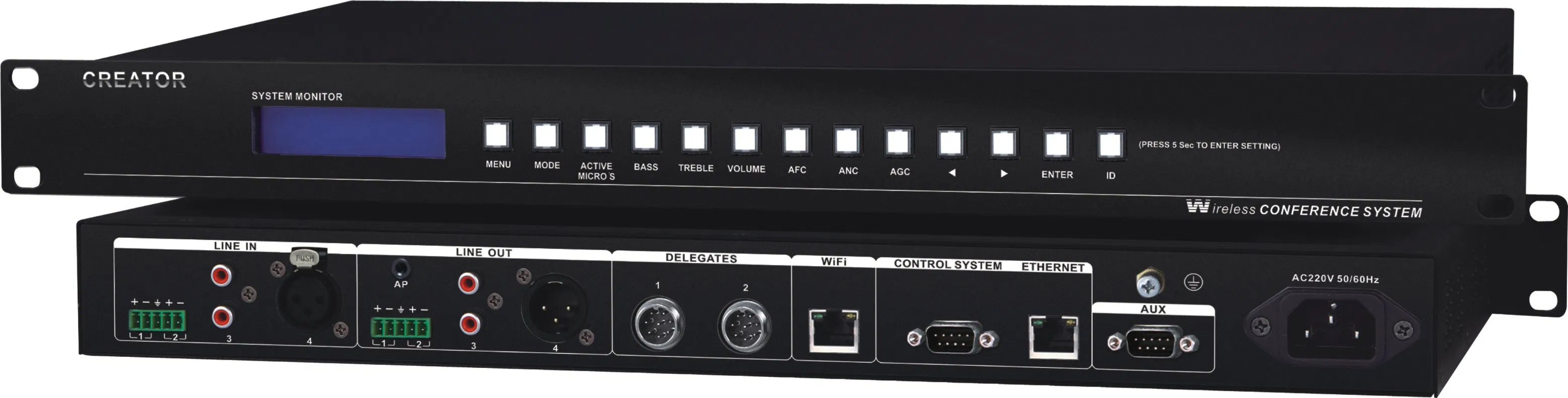

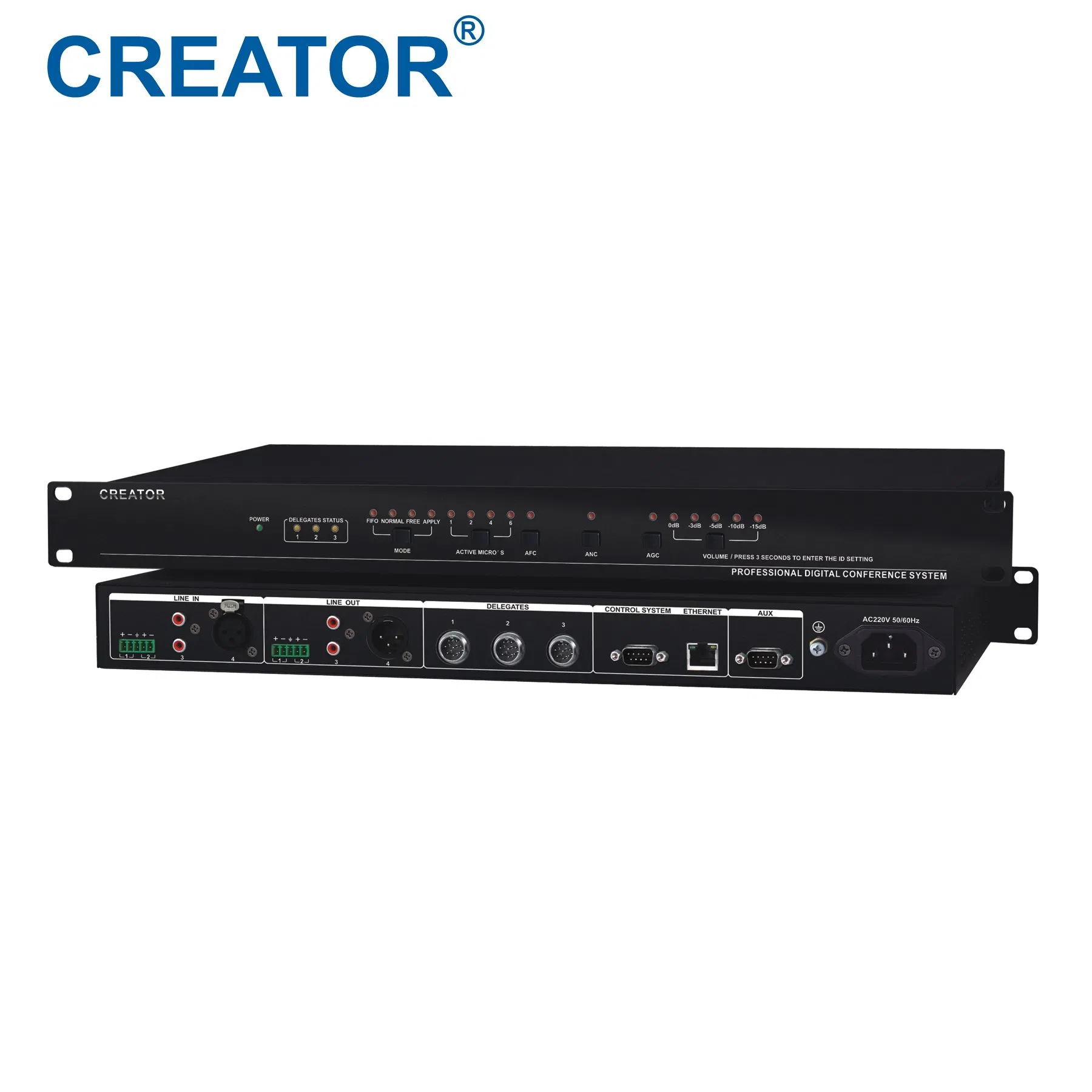

Creator Full Digital Wireless Conference System Microphone Controller Conference Host

Customization: Available
Color: Black
Type: Voice Conferencing System

Product Description

i

Basic Information

Model NO.
CR-WiFi6301
Communication
Wired / Wireless
Composition
DSP
Origin
China
HS Code
8537109090
Production Capacity
100,000 Pieces/Year
P

Product Overview

The CR-WiFi6301 is a full digital encryption WiFi conference controller and camera auto-tracking conference controller. It is designed to support both wireless and wired conference environments, ensuring flexibility and high-quality audio management for modern meeting spaces.

F

Key Features

Support WPA/WPA2 wireless security technology to ensure conference confidentiality and prevent wiretapping.
Supports up to 8 active microphones simultaneously (6 wireless) and 31+1 channel wired simultaneous interpretation.
Uncompressed audio transmission with 48K sampling rate and 20Hz~20KHz bandwidth for perfect sound quality.
Fully compatible with IEC 60914 and GBT15381-94 standards.
Digital audio and control signal transmission via Cat5e (100M network) for long-distance stability.
High-performance CPU handling discussion, attendance, voting, and electronic plates; supports up to 4000 units.
Built-in DAFS (Digital Acoustic Feedback System) with 32-bit high-speed DSP for noise elimination.
Advanced camera tracking supporting VISCA, PELCO-D, and SAMSUNG protocols.
Versatile audio interfaces: RCA, Phoenix, and XLR for balanced and unbalanced input/output.
Individual volume adjustment for line inputs, remote conferencing, and 4-speaker partition outputs.
S

Technical Specifications

ParameterDetails
Model No.CR-WiFi6301
Frequency Response20Hz-20KHz
Signal to Noise Ratio>80dB
Channel Crosstalk>80dB
Total Harmonic Distortion<0.05%
Power Supply110V/220V AC
Max Power Consumption150W
Static Power Consumption12W
ColorDark Grey
D

Panel & System Diagrams

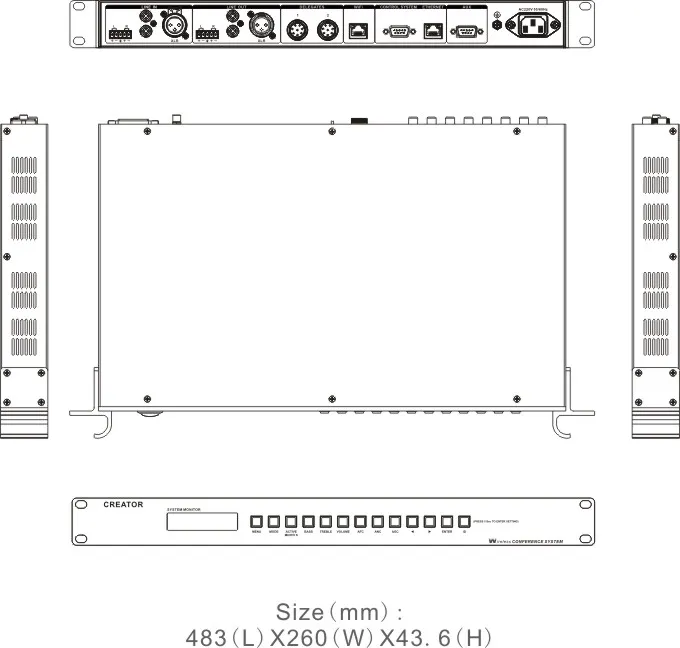

Panel Drawing

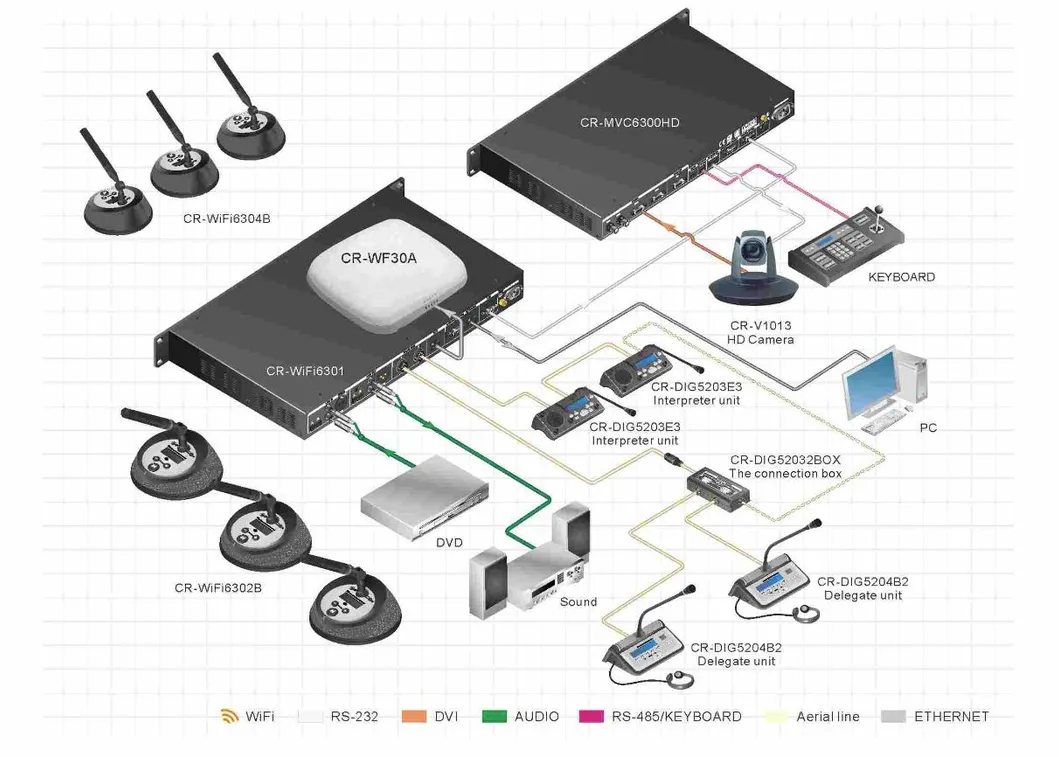

System Diagram
C

Global Case Studies

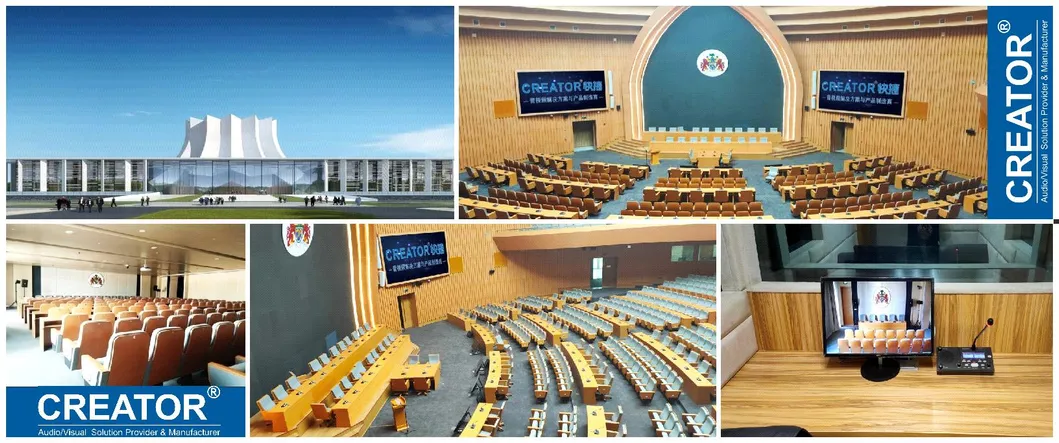

Gambia International Convention Center

Application: 1,500 sets of infrared simultaneous interpretation system, over 200 sets of full digital conference system, and visual interaction systems.

Gambia Project
United Nations Conference on Trade and Development

Application: 1200 sets of full digital conference system, matrix switchers, and multimedia controllers.

UN Project

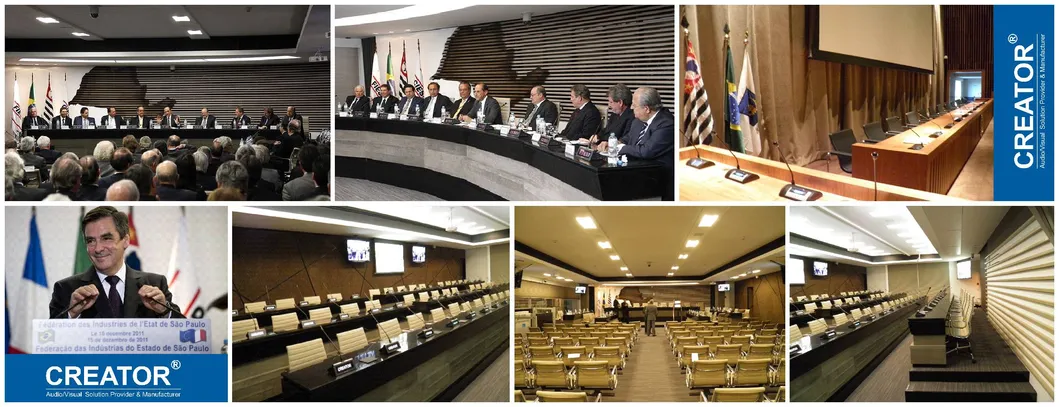

Brazil Federation of Industries of Sao Paolo (FIESP)

Application: Over 500 sets of full digital discussion systems and auto camera tracking systems.

Brazil Project
H

Honors & Certificates

Certificates
?

Frequently Asked Questions

How does the system ensure conference security?
The system utilizes WPA/WPA2 wireless security technology to provide full digital encryption, effectively avoiding wiretapping and malicious interference.
How many conference units can the controller support?
The built-in high-performance CPU allows the system to support a maximum of 4,000 conference units.
What is the audio sampling rate of the CR-WiFi6301?
It uses a 48K sampling rate with uncompressed audio transmission, providing a 20Hz to 20KHz bandwidth for high-fidelity sound.
Does it support automatic camera tracking?
Yes, it supports multiple camera control protocols including VISCA, PELCO-D, and SAMSUNG for seamless automatic tracking.
Can wired and wireless units be used together?
Yes, by connecting to an AP, the system supports both digital wired units and WiFi conference units simultaneously.
How does the system prevent audio feedback or howling?
The controller features a built-in DAFS (Digital Acoustic Feedback System) and 32-bit DSP processing to suppress feedback and eliminate noise across 2 channels.
