Containerized RO System for Wastewater Treatment

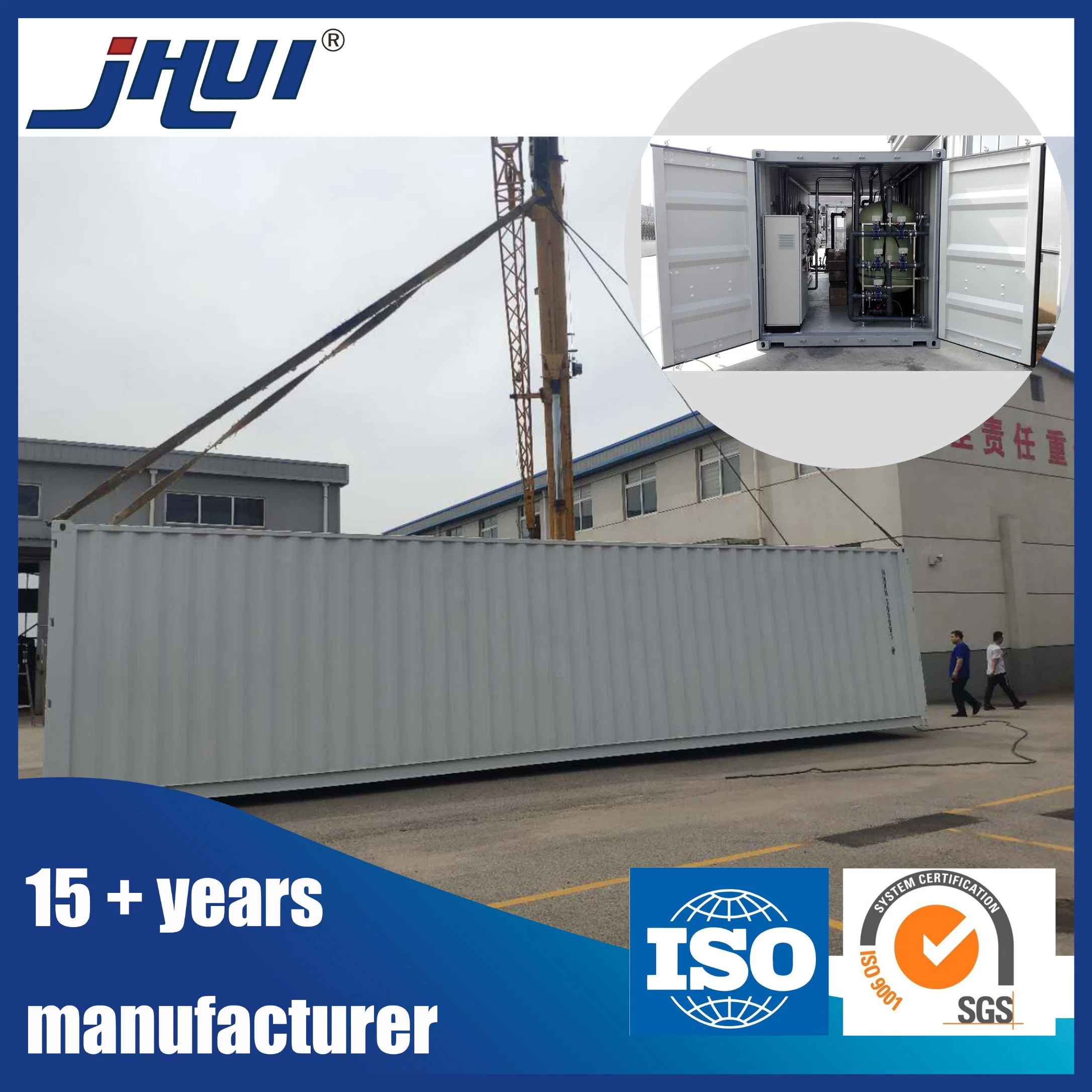

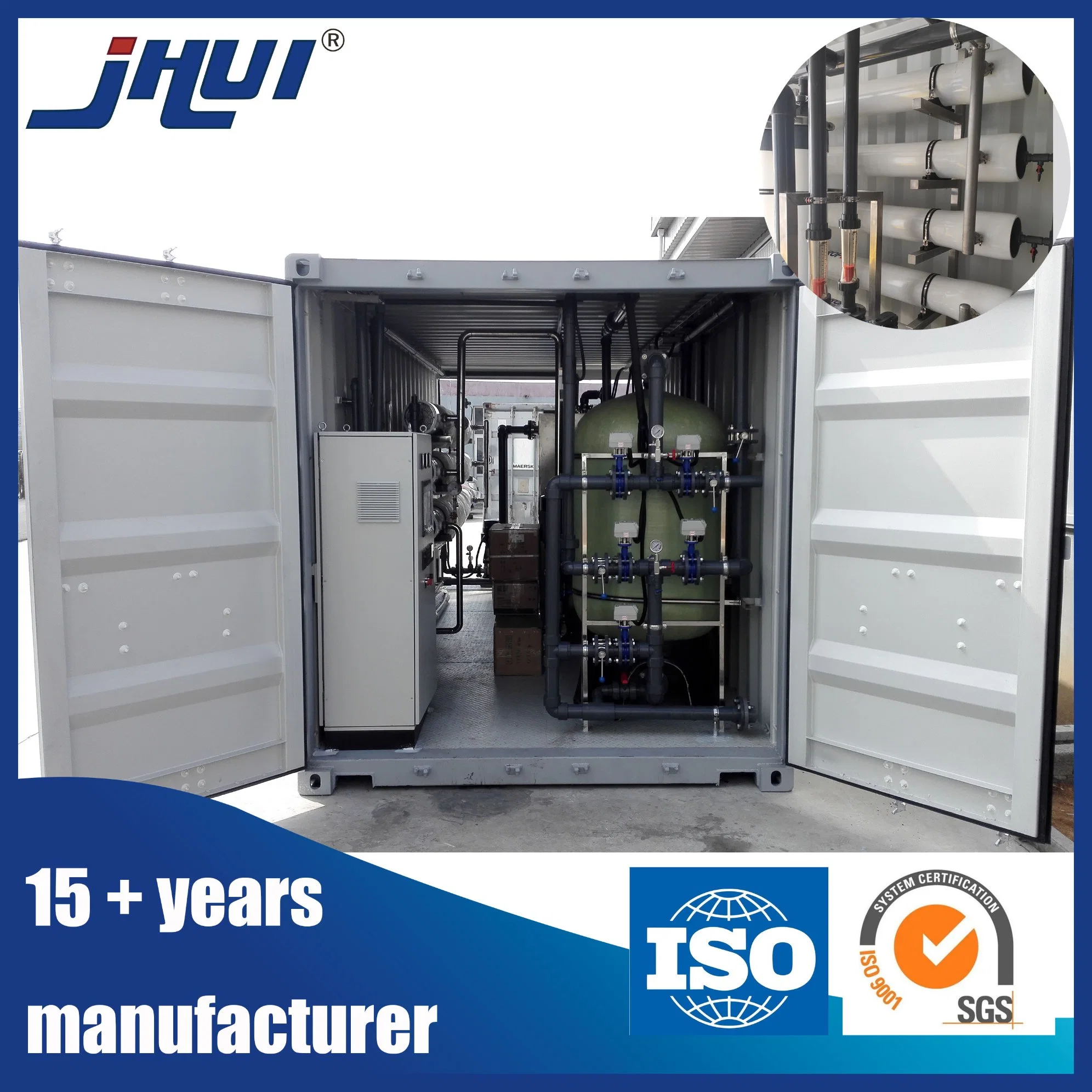

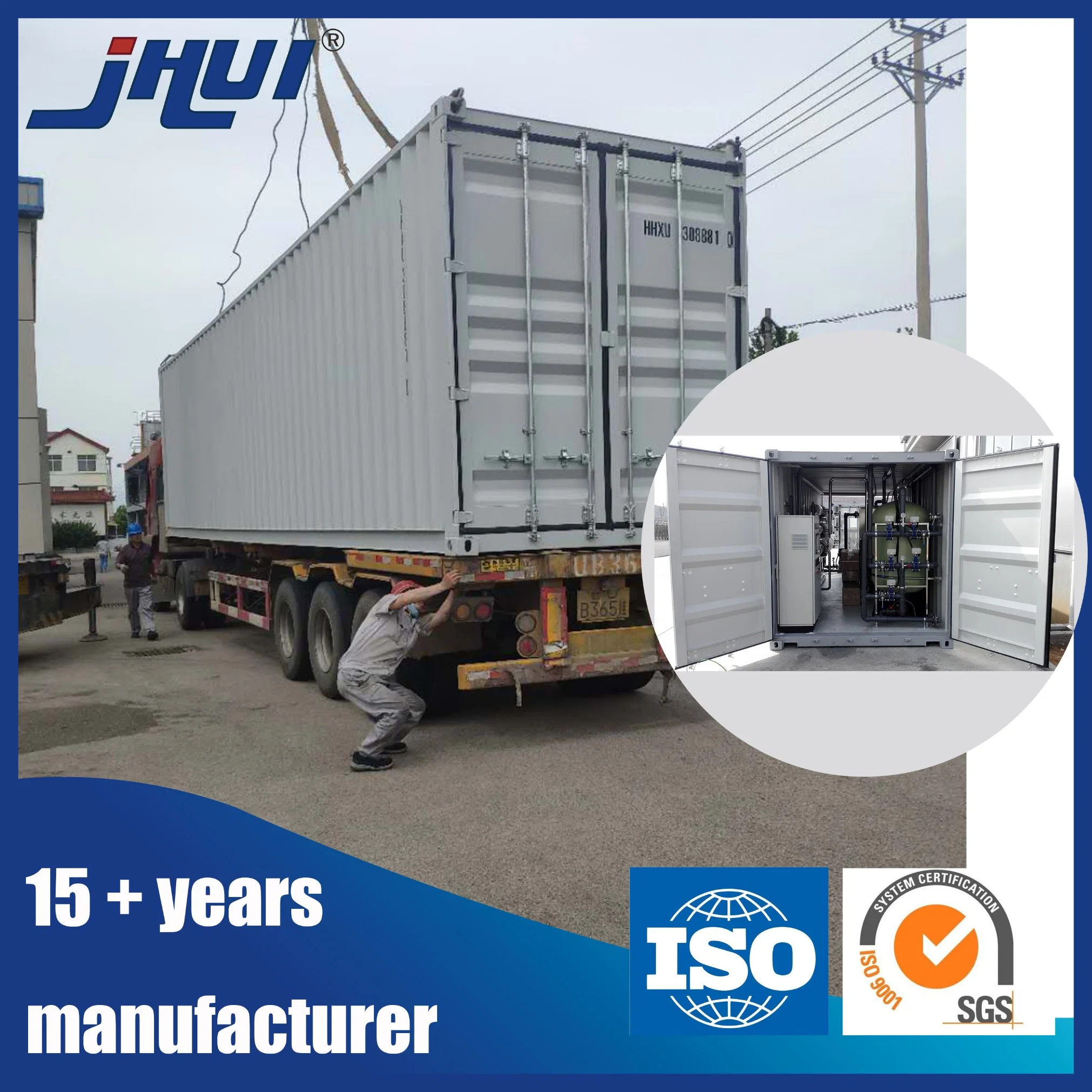

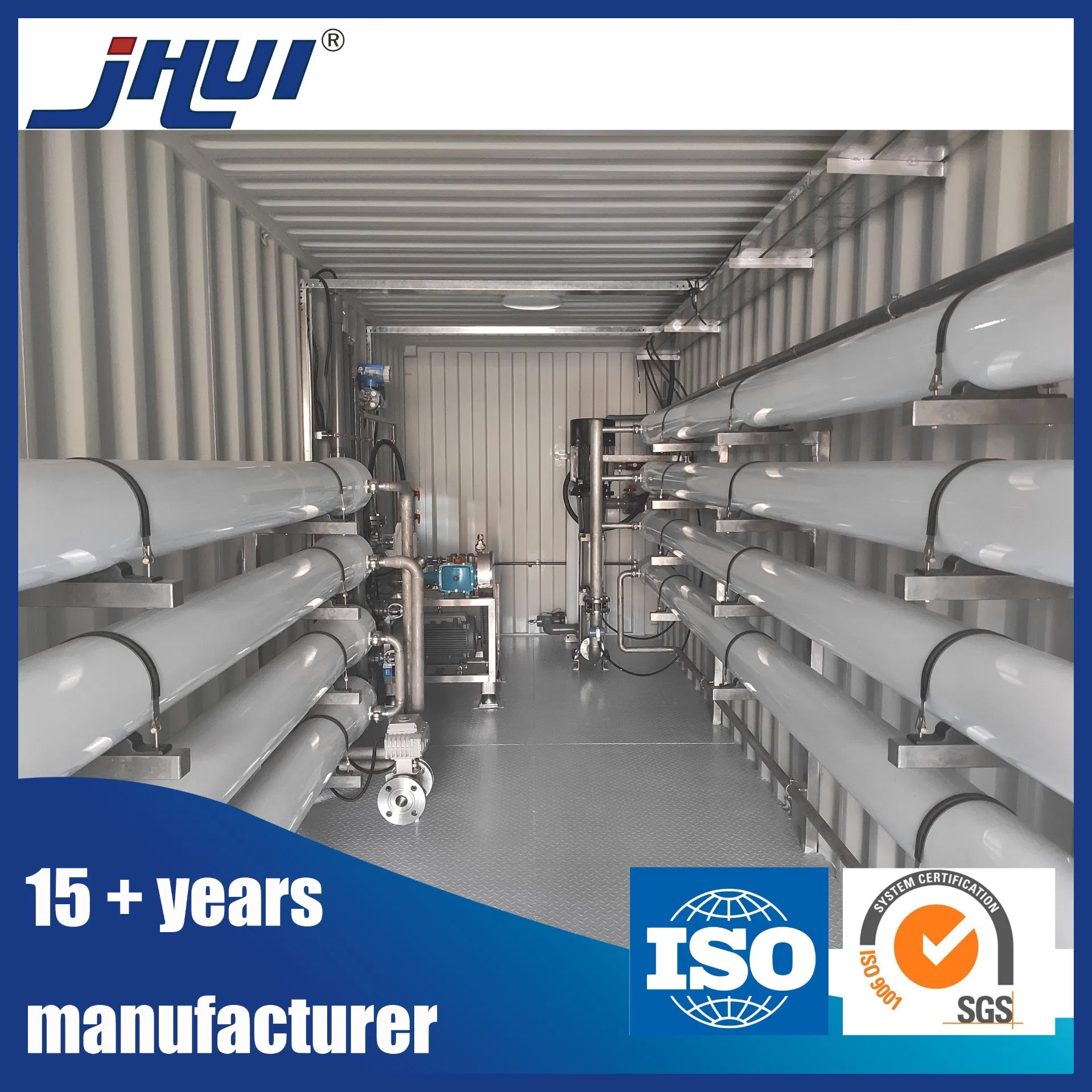

The reverse osmosis or Ultrafiltration drinking water purification equipment fits exquisitely in 20' or 40' containers. This design is not only conducive to transport but also facilitates field hoisting, placement, and rapid deployment. The integrated operation management greatly simplifies equipment running.
A key advantage is the elimination of complex piping and device installation, significantly reducing civil works. This lowers investment costs, particularly for remote areas or island regions. The system is suitable for fixed installation, mobile installation, field operations, and disaster relief emergency use.
| Model | Usage | Salt Rejection | Avg. Produced Water (m³/d) | Test Pressure (MPa) | Test Condition | Recovery |
|---|---|---|---|---|---|---|
| SLE-1810-50 | Household | 97% | 0.2 | 0.4 | NACI: 250mg/l | 20% |
| SLE-1812-50 | Household | 97% | 0.2 | 0.4 | ||
| SLE-2012-100 | Household | 96% | 0.4 | 0.4 | ||
| SLE-2812-200 | Commercial | 96% | 0.8 | 0.7 | ||
| SLE-3213-600 | Commercial | 92% | 2.3 | 0.7 | NACI: 250mg/l | 20% |
| Model | Membrane Type | Salt Rejection | Average Produced Water | Effective Area | Suitable Raw Water |
|---|---|---|---|---|---|
| BW-4040 | Brackish Water | 99.5% | 9.1 m³/d | 90ft² | High concentration water |
| BW-8040 | Brackish Water | 99.5% | 37.9 m³/d | 380ft² | High concentration water |
| FR-4040 | Fouling Resistant | 99.5% | 8.3 m³/d | 90ft² | Water with pollutants |
| LE-4040 | Low Pressure | 99% | 9.5 m³/d | 90ft² | Low salinity/tap water |

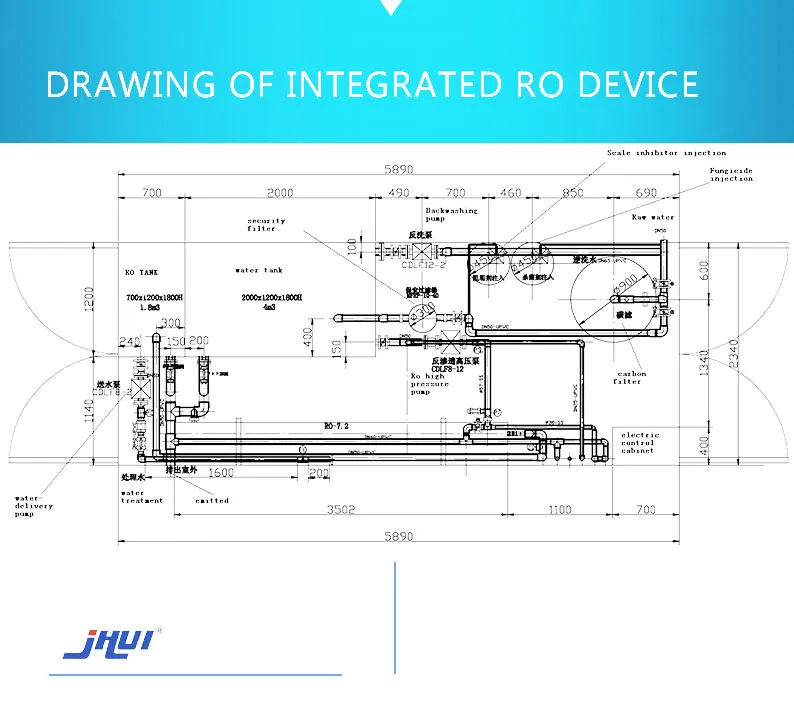

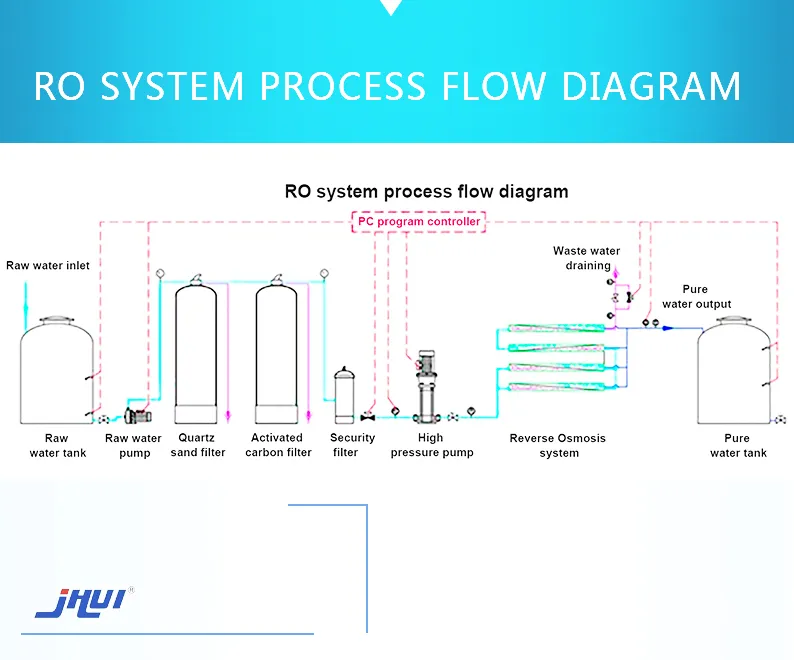

Our professional technician department studies and designs UF systems based on specific requirements. Below are the process layouts for the Integrated RO systems:
We have participated in international water exhibitions across Russia, Malaysia, Vietnam, Thailand, Pakistan, Indonesia, and India to share our membrane technologies.
The system is highly portable, easy to transport, and requires minimal civil works for installation, making it ideal for remote or emergency use.
Yes, we provide fully customized designs and specifications based on your specific water quality and volume requirements.
Our hollow fiber membranes are primarily constructed from high-quality Pes, Pan, and PVDF materials.
Absolutely. The mobile installation capability allows for rapid deployment in disaster-stricken areas to provide clean drinking water.
It is widely used in food and beverage production, pharmaceutical preparation, chemical wastewater recycling, and power plant cooling systems.
Our standard production capacity reaches up to 50,000 PCS per month, ensuring a stable supply for large-scale projects.
