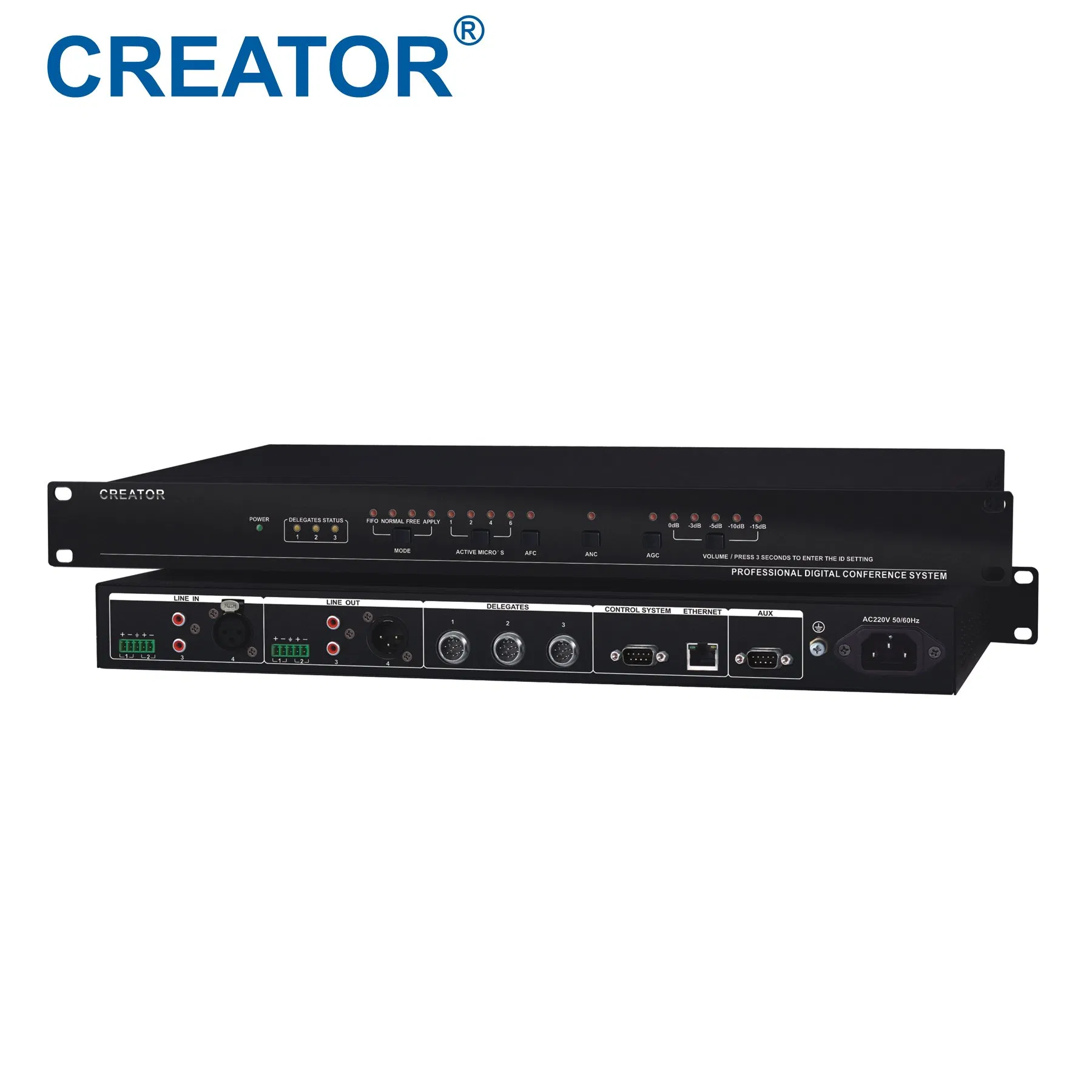

Wireless Conference Management Controller Microphone Controller Conference Host for Wireless Microphone System

Customization: Available
Color: Black
Type: Voice Conferencing System

Product Description

Basic Information
Model NO.CR-WiFi6301
VideoWithout Video
CommunicationWired/Wireless
CompositionDSP
OriginChina
HS Code8537109090
Production Capacity100,000 Pieces/Year
Product Overview

The CR-WiFi6301 is a high-performance, full digital encryption WiFi conference controller. It is designed to support both wireless and wired conference modes, providing seamless camera auto-tracking and secure audio management for professional environments.

Core Features
Advanced WPA/WPA2 wireless security technology ensures conference confidentiality and prevents malicious interference.
Supports up to 8 simultaneous microphones (6 wireless) and 31+1 channels for wired simultaneous interpretation.
Uncompressed audio transmission with a 48K sampling rate and 20Hz~20KHz bandwidth for crystal-clear sound.
Fully digital audio and control signal transmission via Cat5e/100M network, ensuring long-distance quality.
High-speed DSP floating-point processing with built-in DAFS Digital Acoustic Feedback System and noise elimination.
Comprehensive management for attendance, voting, and electronic plate display, supporting up to 4000 conference units.
Compatible with multiple camera protocols (VISCA, PELCO-D, PELCO-P) for automated mobile tracking.
Technical Specifications
Frequency Response20Hz - 20KHz
Signal to Noise Ratio> 80dB
Channel Crosstalk> 80dB
Total Harmonic Distortion< 0.05%
Power Supply110V/220V AC
Max Power Consumption150W
ColorDark Grey

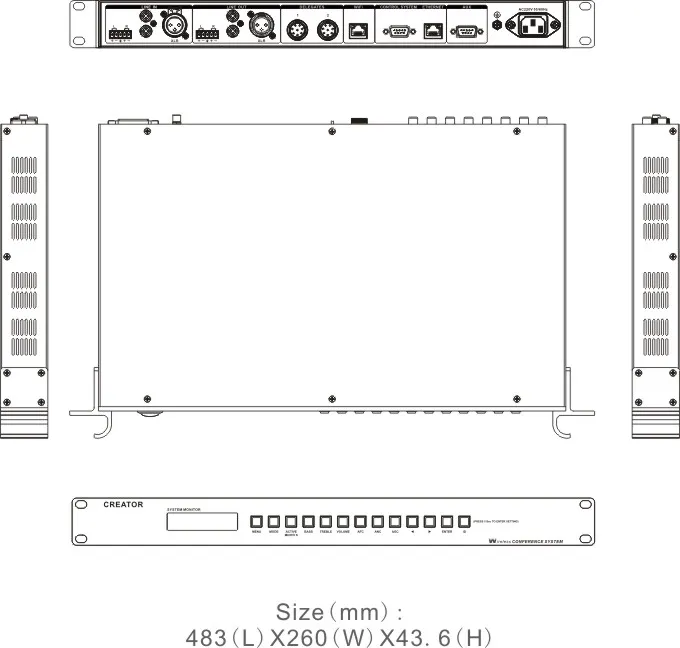

Panel Drawing
Panel Drawing

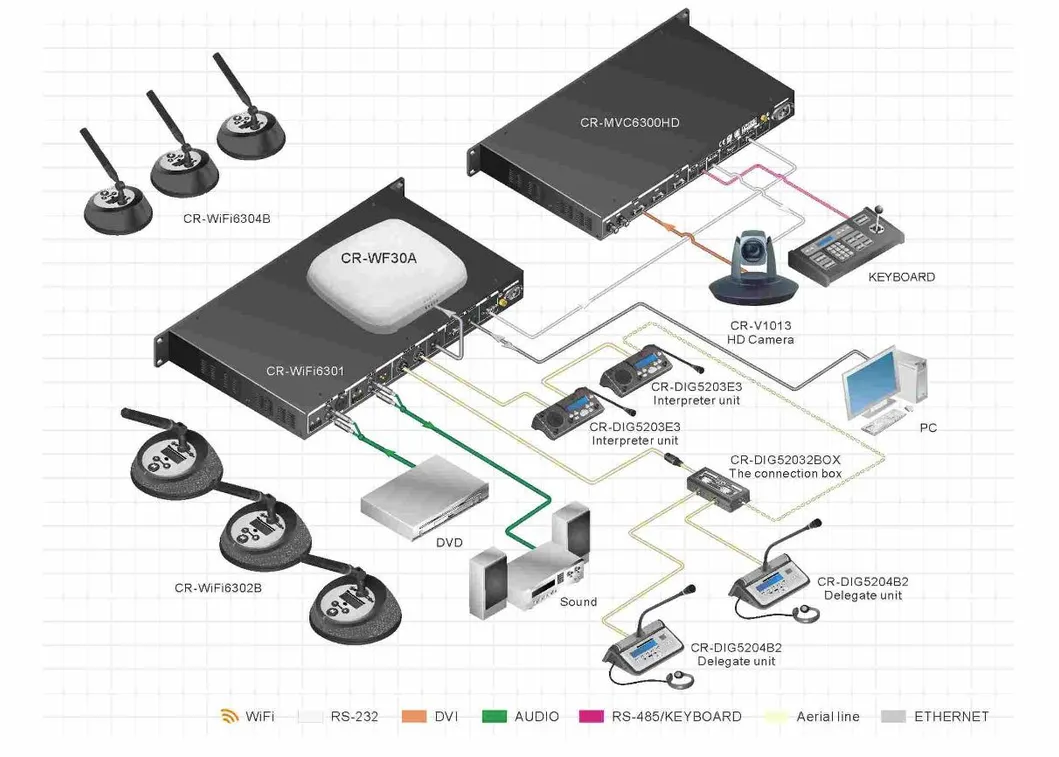

System Diagram
System Diagram
Global Case Studies

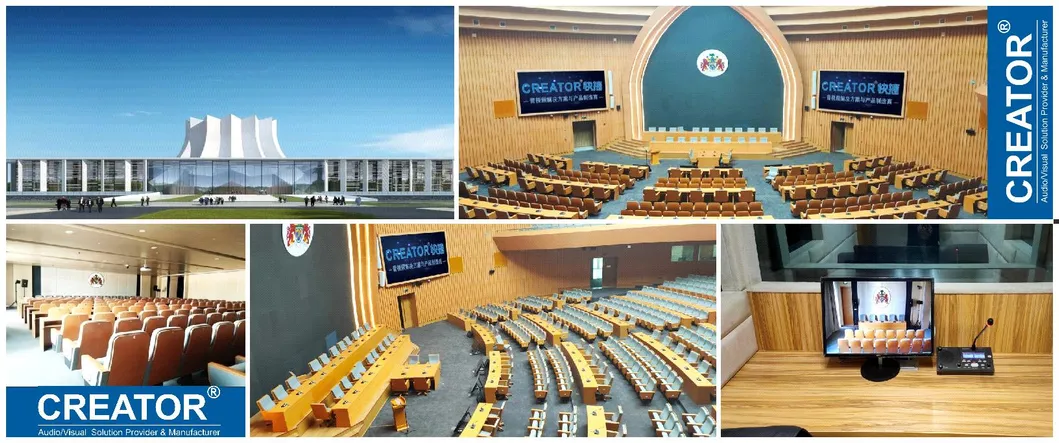

Gambia International Convention Center
Includes 1,500 sets of infrared simultaneous interpretation systems and over 200 sets of full digital conference units.
Gambia Case
United Nations Conference on Trade and Development
Features 1,200 sets of full digital conference systems integrated with matrix switchers and multimedia controllers.
UN Case

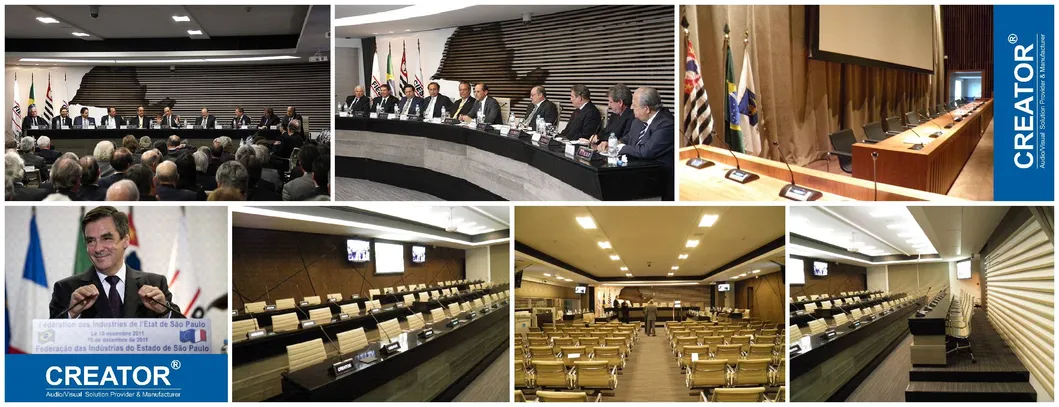

Brazil Federation of Industries of Sao Paolo (FIESP)
Over 500 sets of digital discussion conference systems with auto camera tracking and seamless switching.
Brazil Case
Honors & Certificates
Certificates
Frequently Asked Questions
Q1: Does the CR-WiFi6301 support secure wireless connections? A: Yes, it utilizes WPA/WPA2 wireless security technology to ensure conference confidentiality and prevent wiretapping.
Q2: How many microphones can be active at the same time? A: The system supports opening up to 8 microphones simultaneously, with the wireless mode supporting up to 6 units.
Q3: What is the audio quality of the transmission? A: It offers uncompressed audio transmission with a 48K sampling rate and a frequency response of 20Hz to 20KHz.
Q4: Can the system be managed via a computer? A: Yes, it supports PC software management and TCP/IP control for reliable and safe system configuration.
Q5: Is camera auto-tracking supported? A: Absolutely. It supports VISCA, PELCO-D, and other protocols to realize automatic camera tracking for both wired and wireless units.
Q6: What is the maximum capacity of the conference system? A: The central controller can support up to 4,000 conference units in a single system configuration.
