Product Description

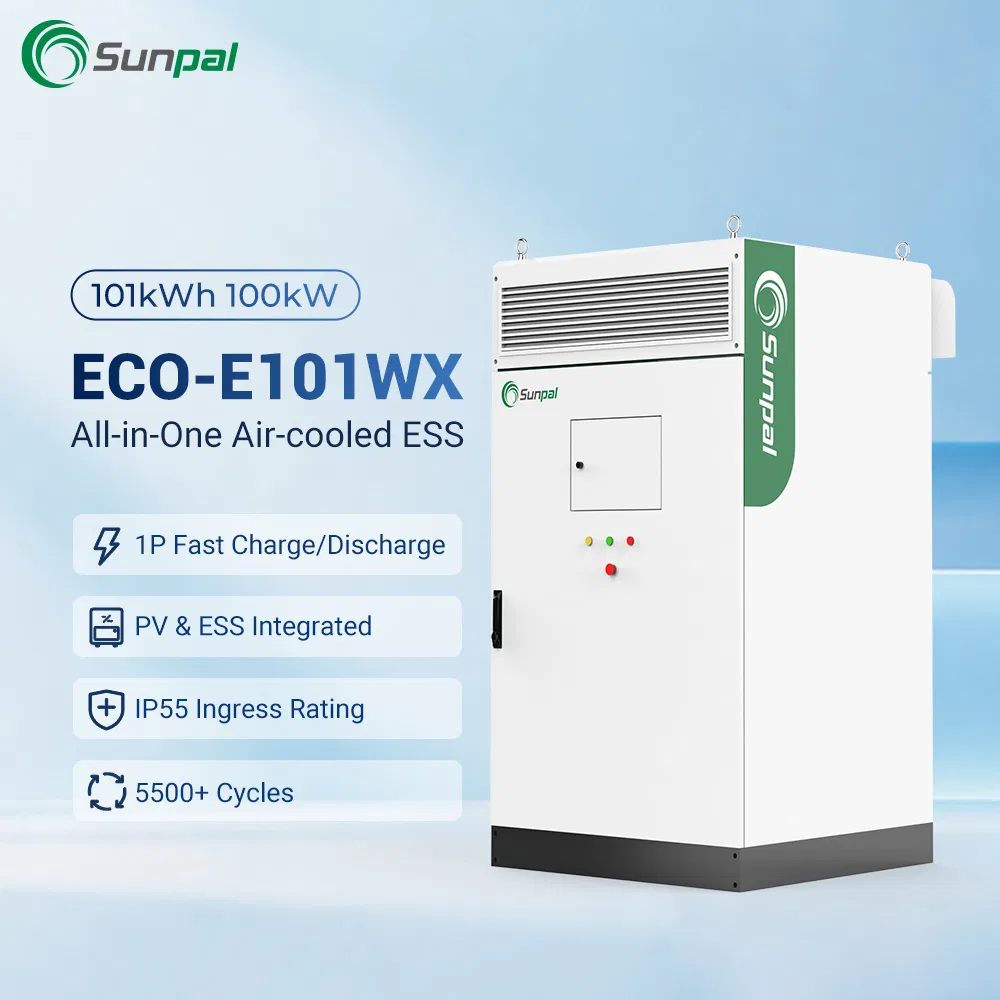

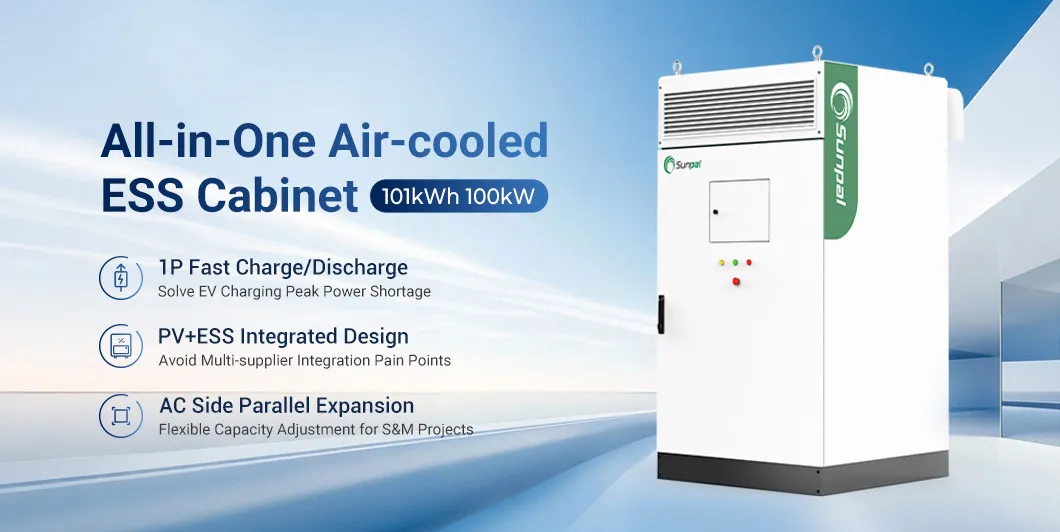

The ECO-E101WX is a comprehensive all-in-one energy storage solution designed for commercial and industrial efficiency.

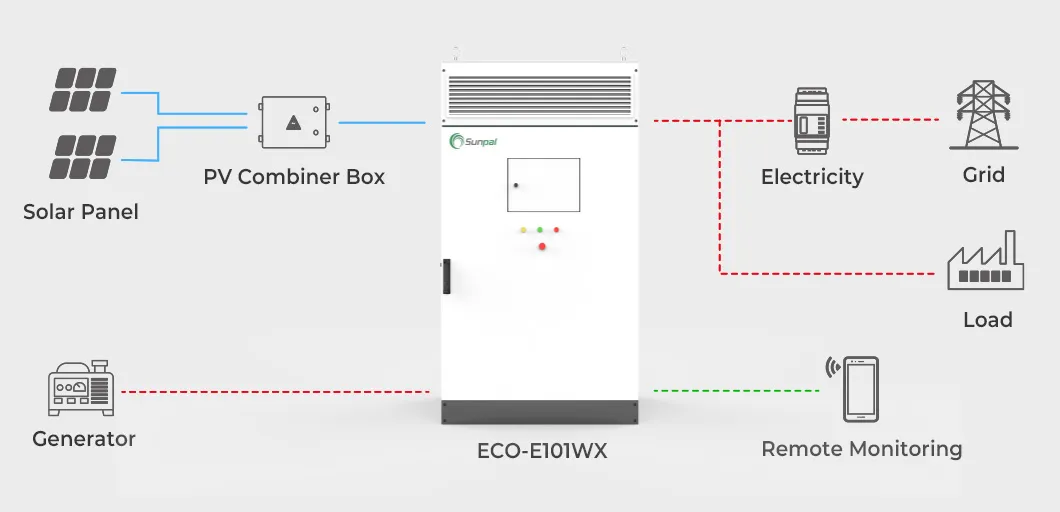

System Connection Diagram

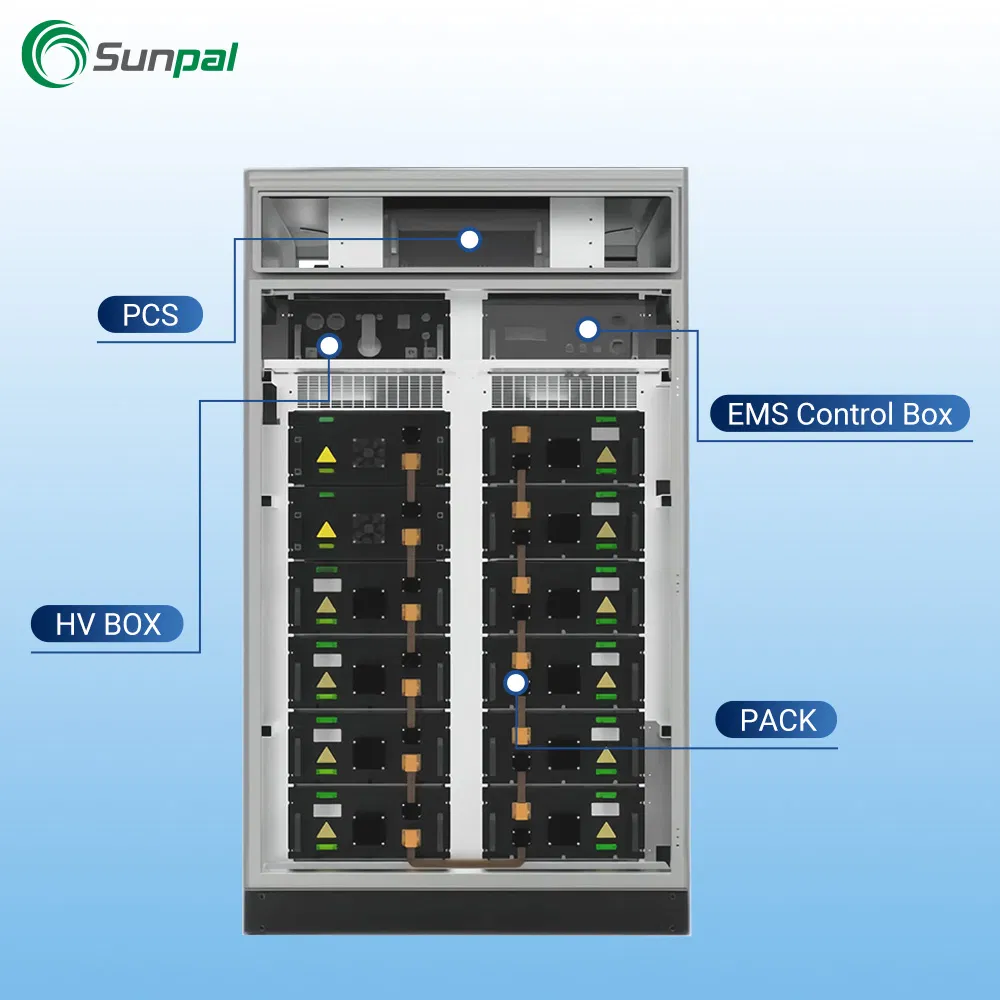

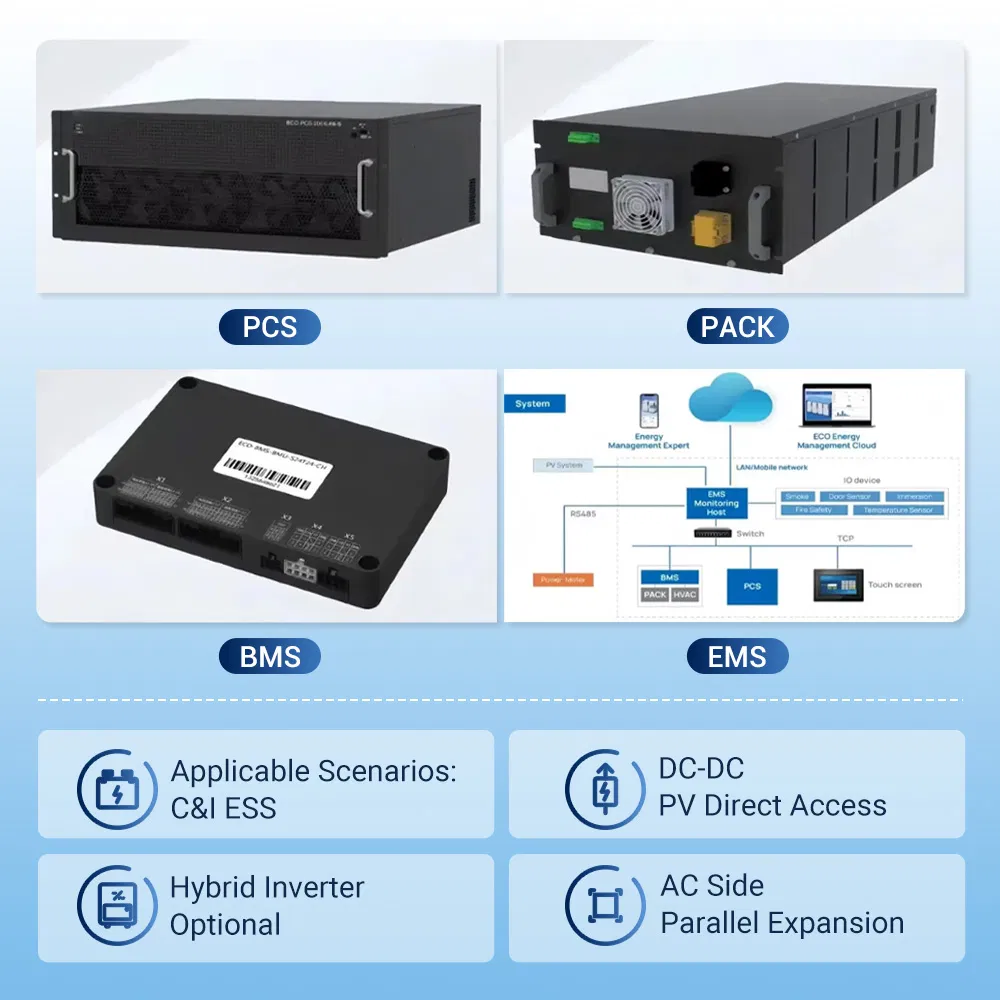

Angle Details

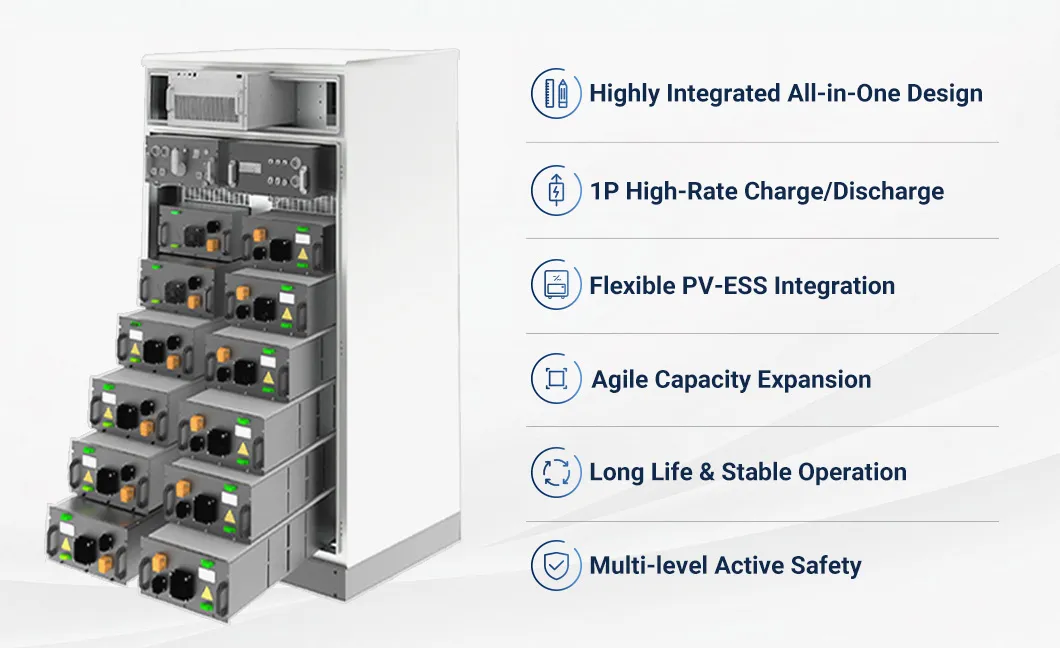

ESS Core Advantages
- All-in-One Design: Plug & Play system, significantly lowering installation costs.
- 1P High-Rate C/D: High ROI suitable for multiple operational scenes.
- PV-ESS Integration: No extra gear needed, reducing overall project expenditure.
- Agile Expansion: AC Parallel support for scalable capacity as needs grow.
- Long Cycle Life: Robust performance in wide temperature ranges, IP55 rated.
- Active Safety: Full global certifications for risk-free operation.
Why Choose This Solution
We deliver end-to-end full-lifecycle services for global PV & ESS projects, covering pre-project consulting, feasibility study, custom engineering design, equipment integration, global logistics, on-site guidance and full-cycle after-sales O&M.
1. Certified engineer team for 1-on-1 custom solutions
2. Full QC & compliance support for fast global customs clearance
3. 7/24 all-time tech support, up to 10-year extended warranty
Technical Specifications
| Model | ECO-E101WX |
| Battery rated capacity | 101kWh |
| Battery rated voltage | 844.8V |
| Battery voltage range | 739.2V~950.4V |
| Battery Cell Type | Lithium iron phosphate battery(LFP) |
| Battery cell capacity | 120Ah |
| Rated AC power | 100kW |
| Rated AC voltage | 400Vac/3P+N+PE |
| Rated AC frequency | 50/60Hz |
| THDI | ≤ 3% |
| Power Factor | -1 lagging~1 leading |
| Ingress Rating | IP55 |
| Efficiency | ≥89% |
| Charge/Discharge Rate | 1P |
| DoD | 95%(25±2℃) |
| Cycle Life | ≥5500 Cycles |
| Operating Temperature | -25~55℃ |
| Dimension (W * D * H) | 1,250*1,200*2,150 (mm) |
| Weight | 2,000kg |

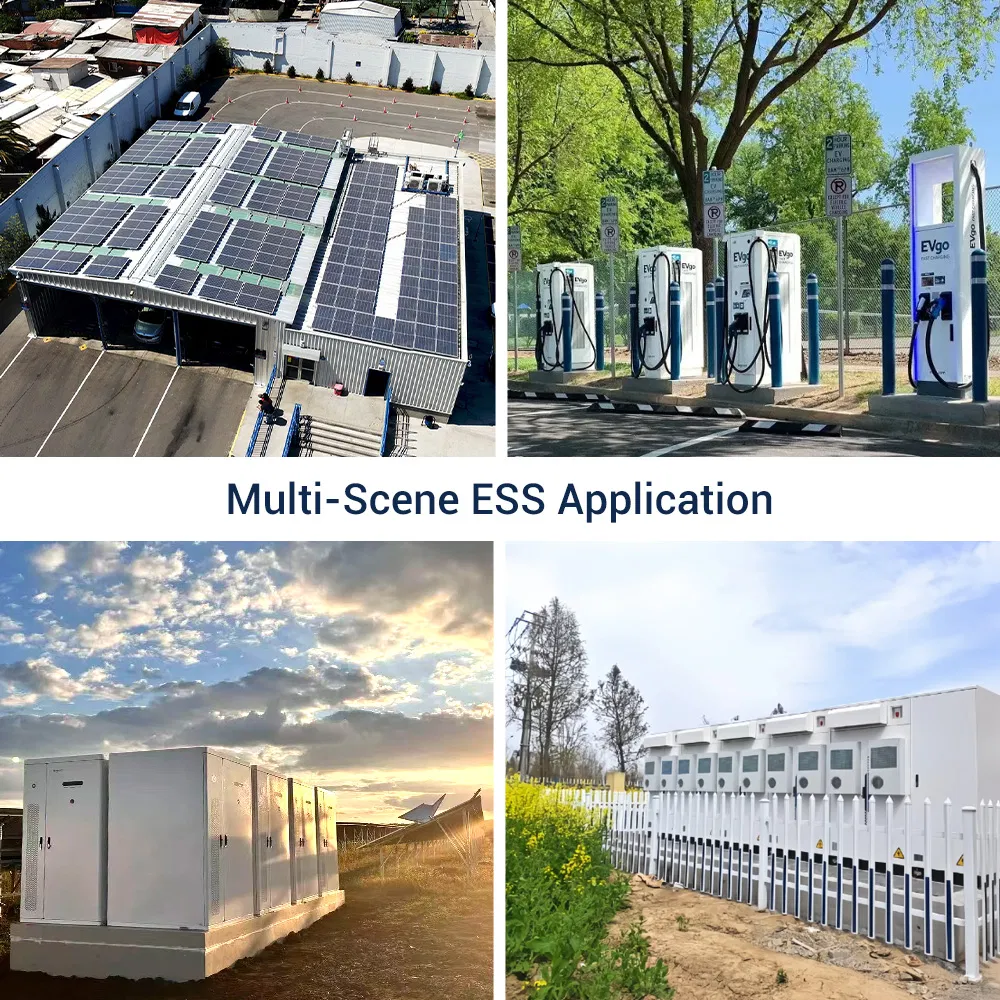

Applications

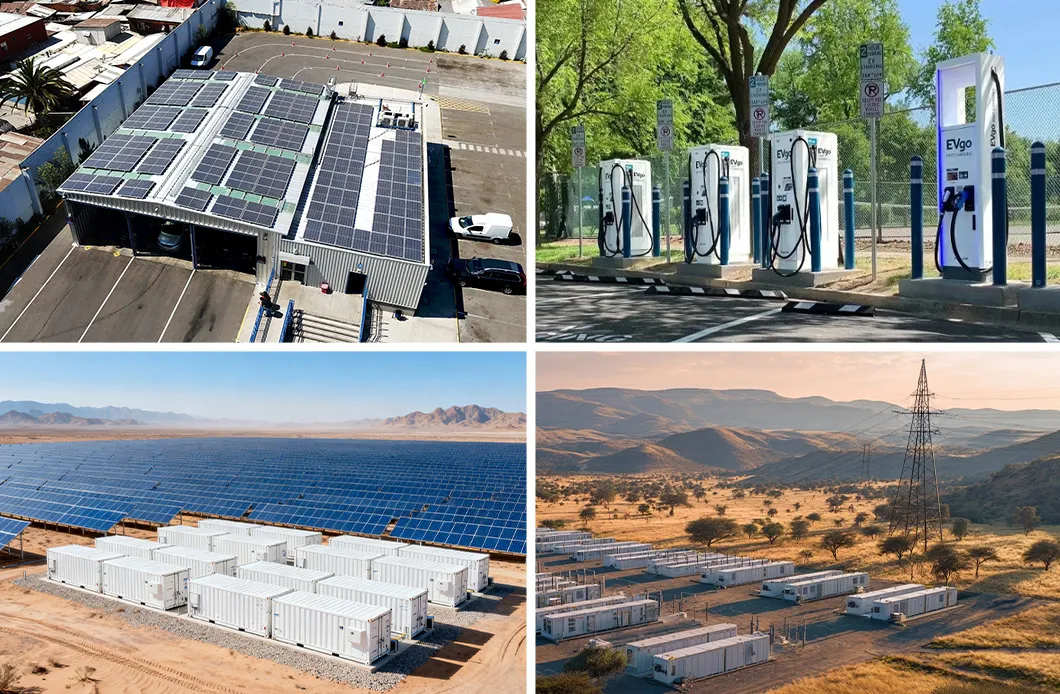

The E101WX all-in-one ESS fits global core scenarios: small C&I sites for peak arbitrage, cost reduction & backup; EV fast charging stations, cutting grid investment by 60%+; off-grid PV microgrids for remote areas, and data center critical load backup with active safety protection.
About Our Expertise
With 18+ years of deep-rooted experience in the photovoltaic and energy storage industry, we specialize in the full industrial chain of R&D, production, sales and professional service. Driven by the core belief that innovation fuels industry advancement, we provide a complete product portfolio covering solar modules, inverters, and energy storage batteries.
Global Project Cases

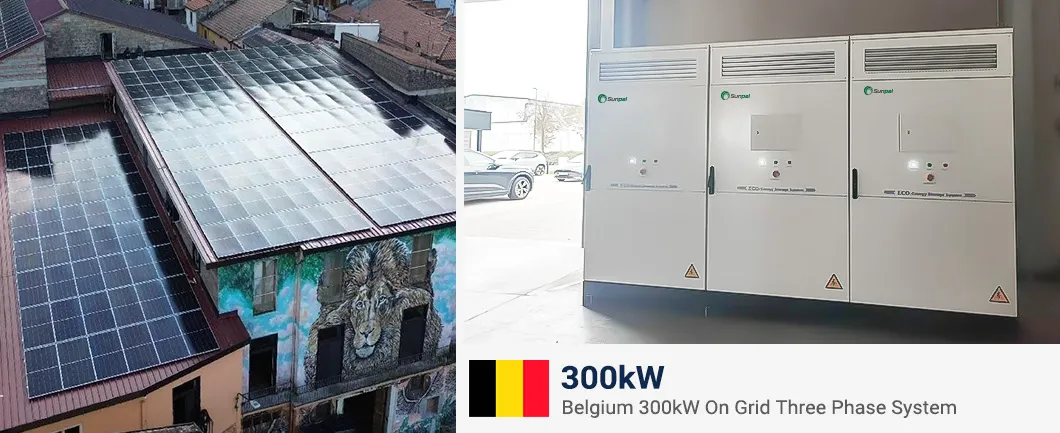

Belgium 300KW Project: Focused on peak shaving & PV self-consumption. Successfully integrated EMS with existing systems for remote monitoring.

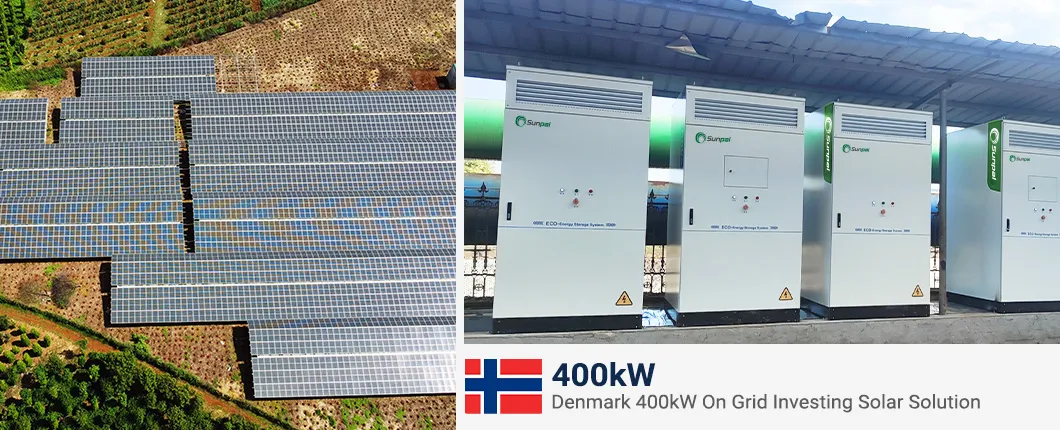

Denmark 400kW Solution: Built for tariff arbitrage and peak shaving, maximizing investment returns via grid-connected generation.

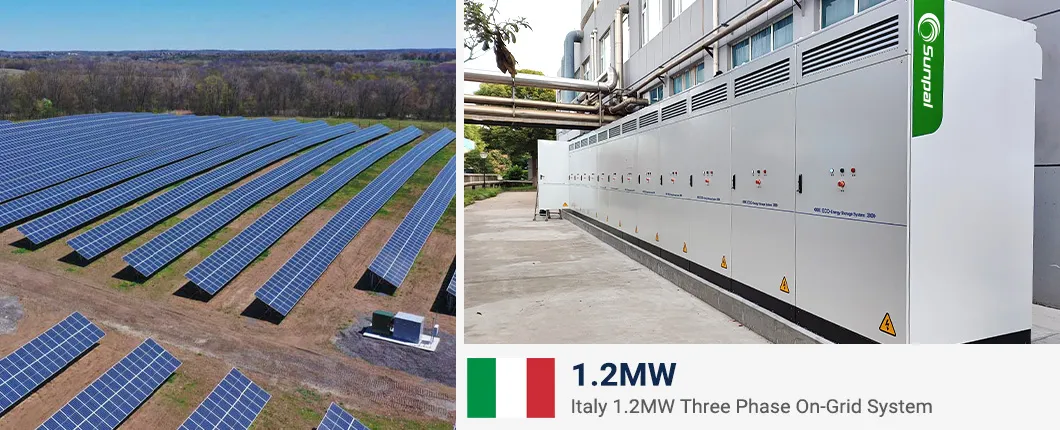

Italy 1.2MW System: Optimized PV utilization and peak shaving. Delivers stable, compliant grid-connected operation.
Certifications
• UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, EN50549
• Global Markets: Country-specific Grid & Safety Certifications
Procurement & Policy
- MOQ: 1 unit, support sample order.
- Delivery Cycle: 10 days for spot goods, 30-45 days for bulk orders.
- Payment: T/T, L/C and other international methods.
- Warranty: 10 years for core equipment, full life cycle technical support.
- Customization: OEM/ODM for system solutions, packaging, and logos.
