Basic Information
Cooling Method
Air Cooling System
Nominal Voltage
400Vac/3P+N+PE
Nominal Frequency
50Hz/60Hz
Battery Cell Type
LFP 120Ah
Application
ESS Solar Storage
🔋

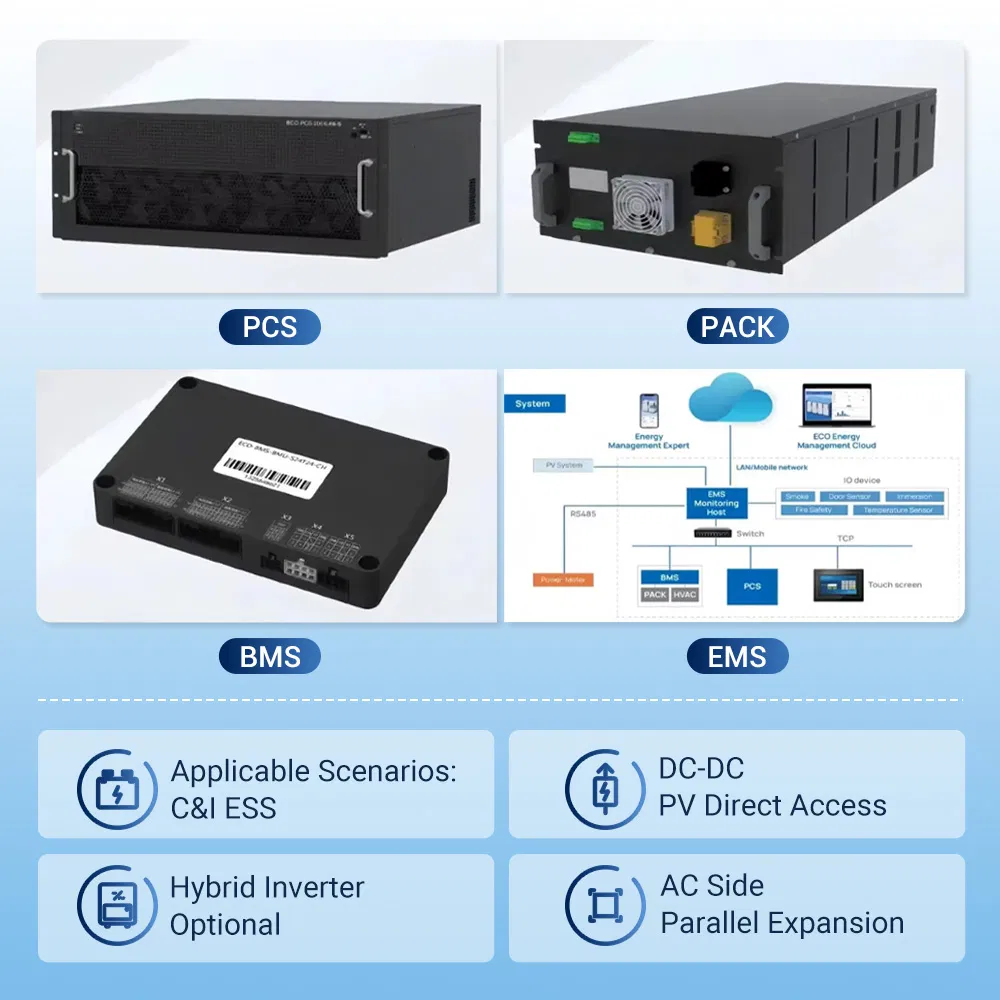

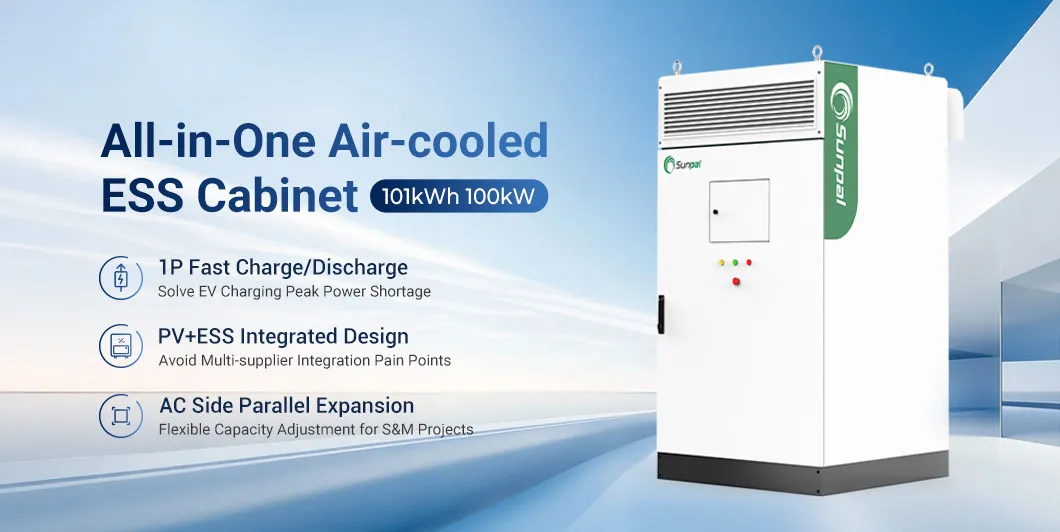

Product Description

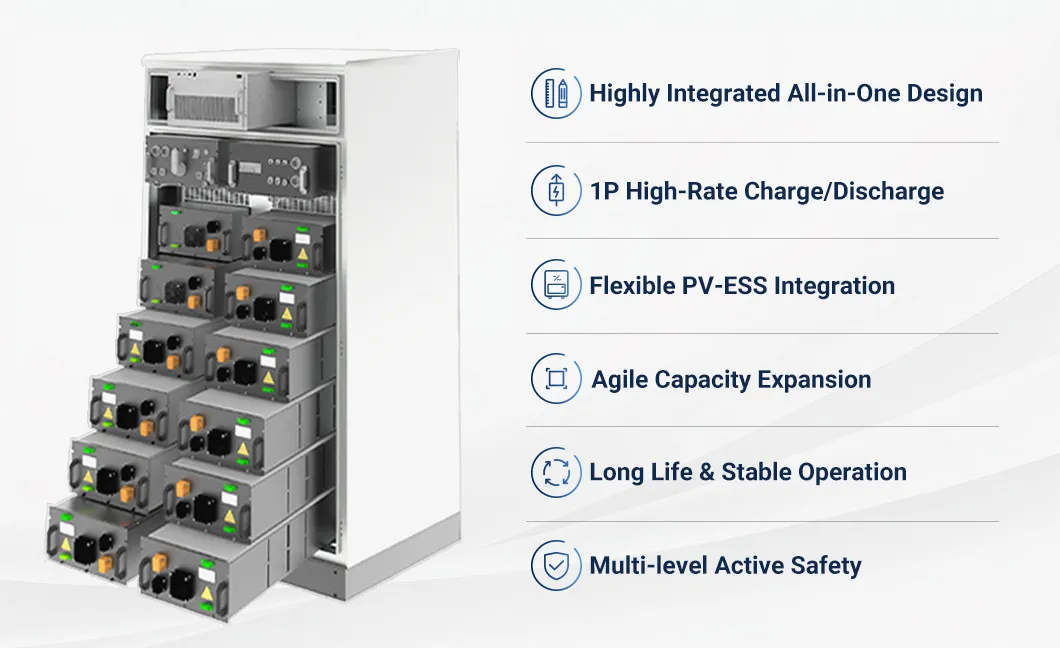

ESS Core Advantages
- ✔ All-in-One Design: Plug & Play, Low Install Cost
- ✔ 1P High-Rate C/D: High ROI, Multi-Scene Fit
- ✔ PV-ESS Integration: No Extra Gear, Lower Cost
- ✔ Agile Expansion: AC Parallel, Scalable Capacity
- ✔ Long Cycle Life: Wide Temp Range, IP55 Rated
- ✔ Active Safety: Full Global Certifications, Risk-Free
⚙️

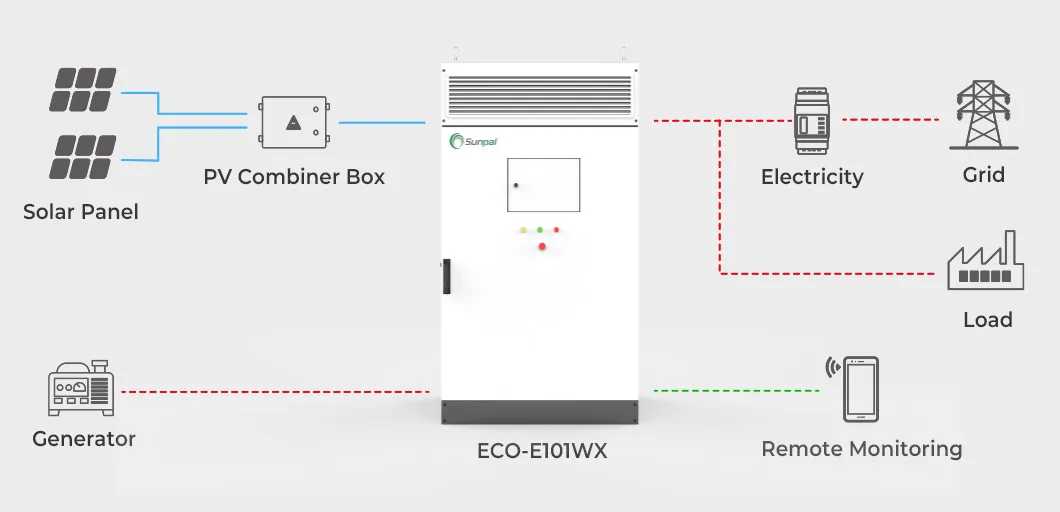

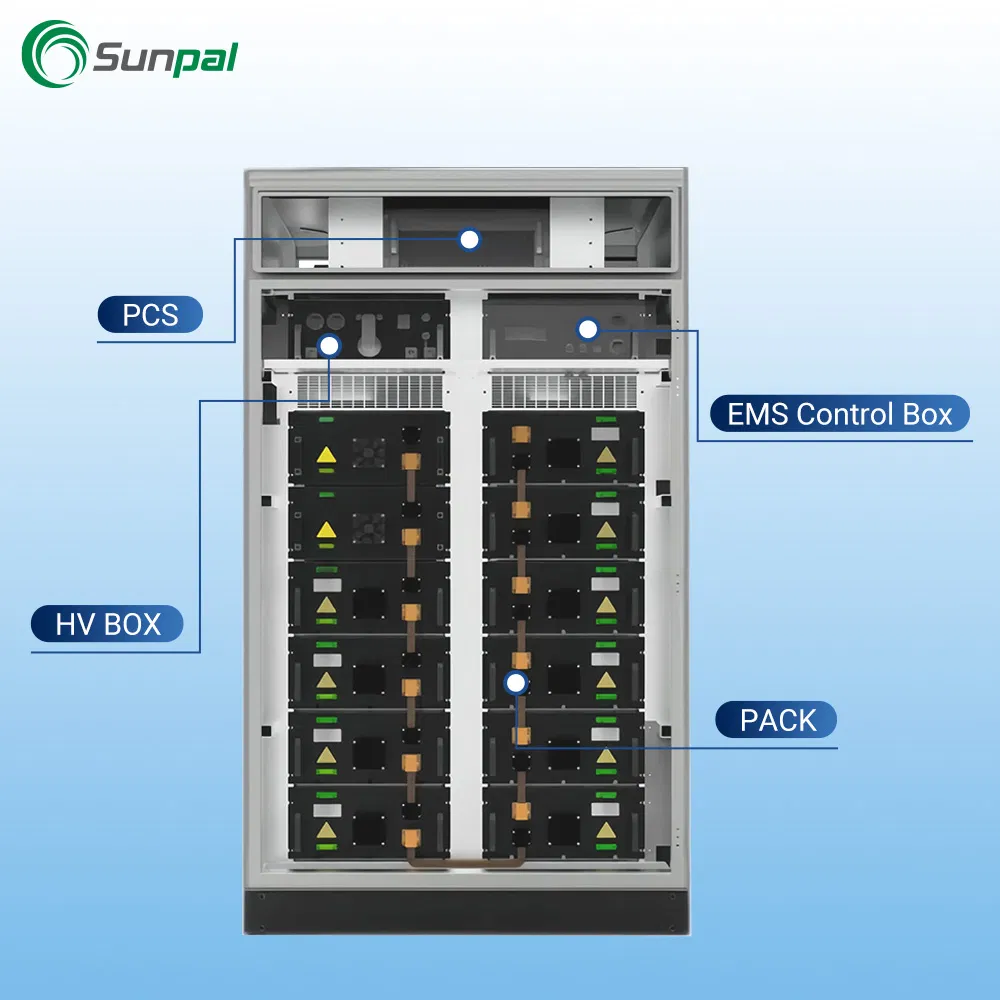

System Connection Diagram
⭐
Why Choose Us
We deliver end-to-end full-lifecycle services for global PV & ESS projects, covering pre-project consulting, feasibility study, custom engineering design, equipment integration, global logistics, on-site guidance and full-cycle after-sales O&M.
1. Certified engineer team for 1-on-1 custom solutions
2. Full QC & compliance support for fast global customs clearance
3. 7/24 all-time tech support, up to 10-year extended warranty
📊
Technical Specification
| Parameter |
Specification Details |

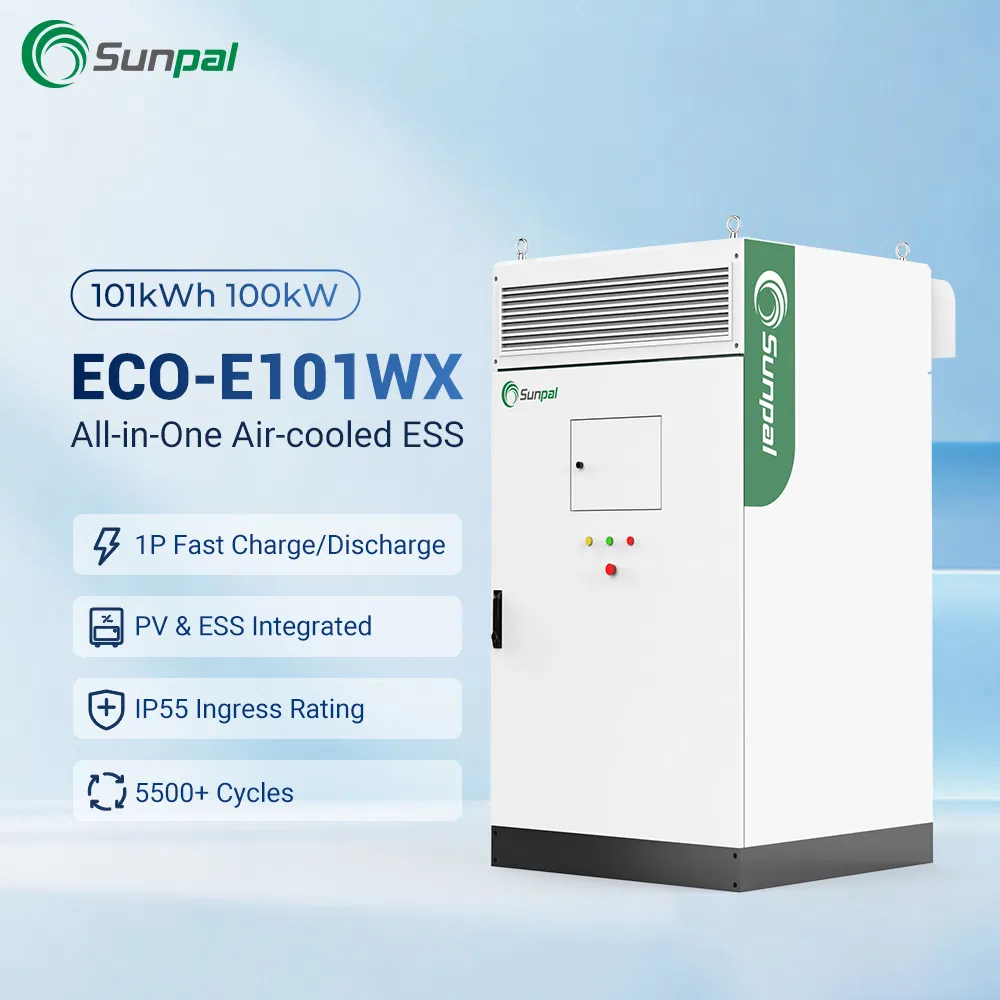

| Model | ECO-E101WX |
| Battery rated capacity | 101kWh |
| Battery rated voltage | 844.8V |
| Battery Cell Type | Lithium iron phosphate battery (LFP) |
| Rated AC power | 100kW |
| Rated AC voltage | 400Vac/3P+N+PE |
| Ingress Rating | IP55 |
| Efficiency | ≥89% |
| Cycle Life | ≥5500 Cycles |
| Operating Temperature | -25~55℃ |
| Dimension (W * D * H) | 1,250*1,200*2,150 (mm) |
| Weight | 2,000kg |
💡

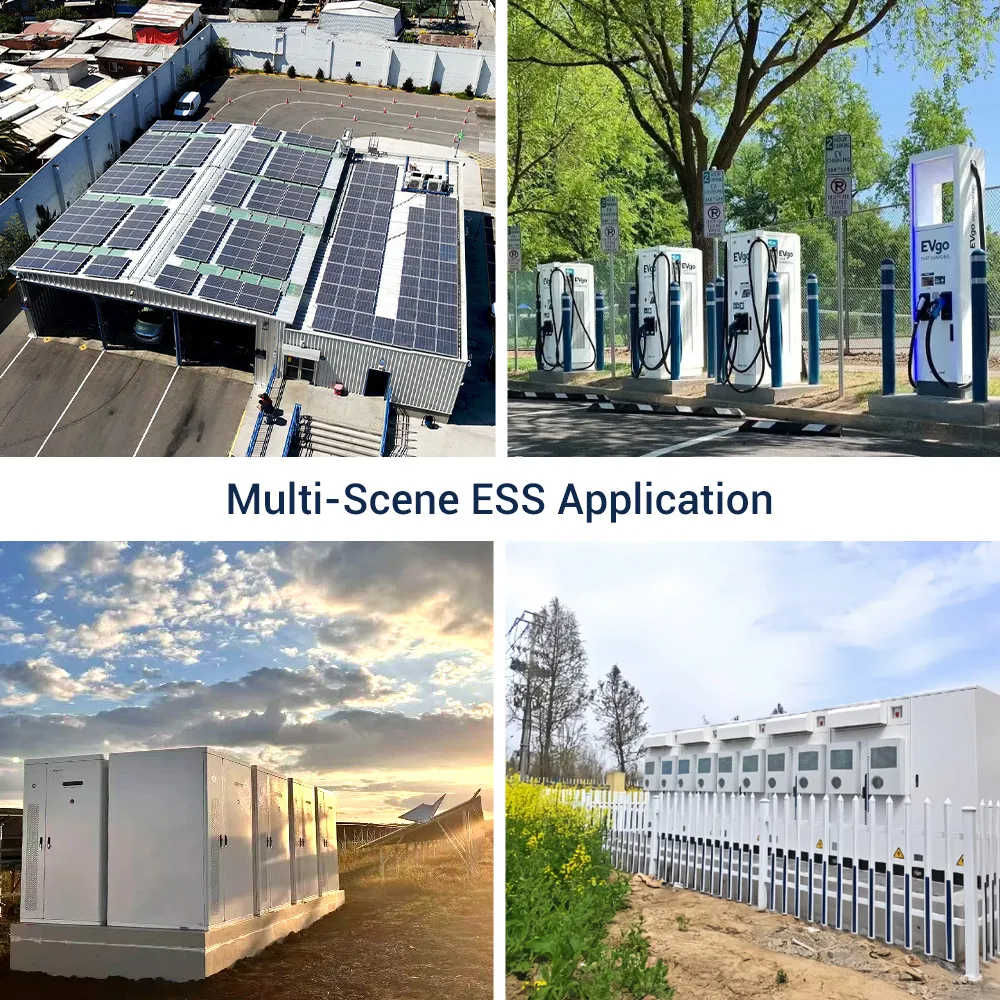

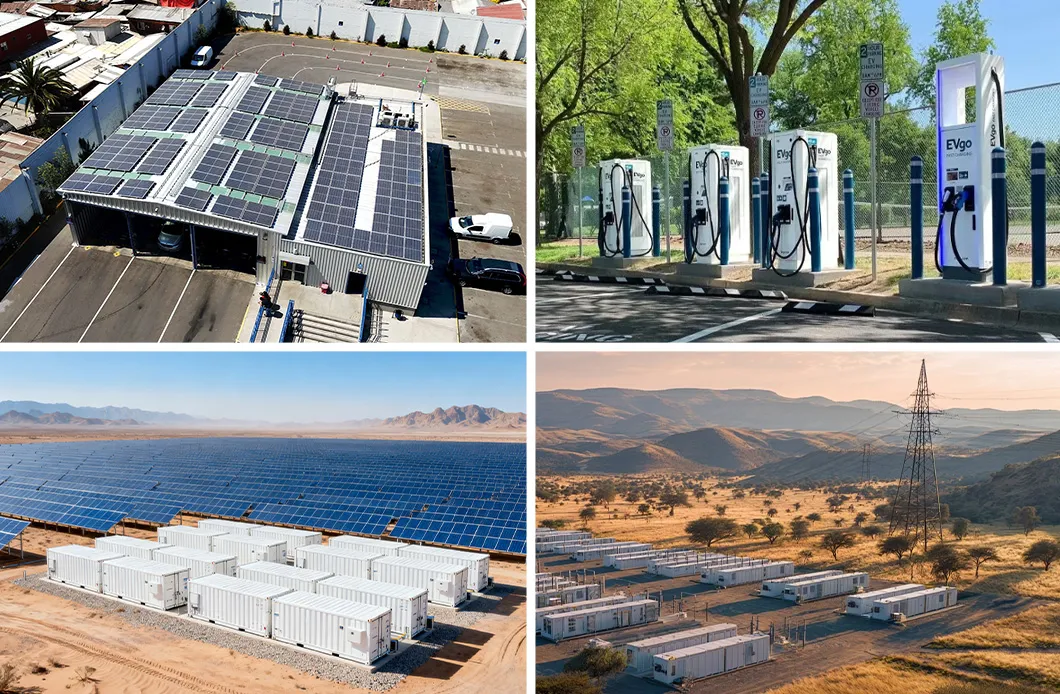

Applications
The all-in-one ESS fits global core scenarios: small C&I sites for peak arbitrage, cost reduction & backup, 1-10 parallel PV+ESS cuts annual cost by 35%+; EV fast charging stations with 1P fast C/D, cutting grid investment by 60%+; off-grid PV microgrids for remote areas, grid peak shaving & frequency regulation with ms-level response, plus data center critical load backup with active safety protection.
🏢
About Our Expertise
With 18+ years of experience in the photovoltaic and energy storage industry, we specialize in the full industrial chain of R&D, production, sales, and professional service. We have built a leading in-house R&D team with self-developed core PACK/BMS/EMS systems and innovative design capabilities. We serve EPCs, contractors, and distributors across 150+ countries worldwide.
🌍
Global Project Cases

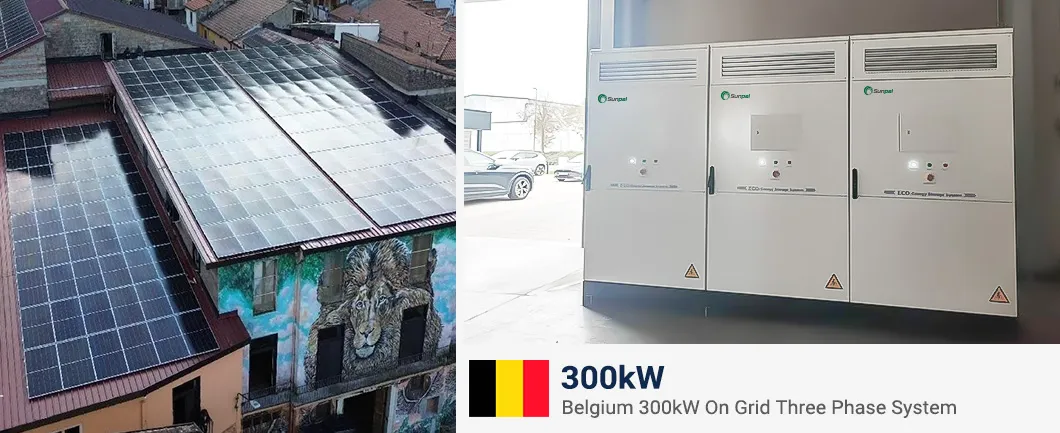

Belgium: 300KW ESS project for peak shaving & PV self-consumption. Remote monitoring achieved via custom PLC software.

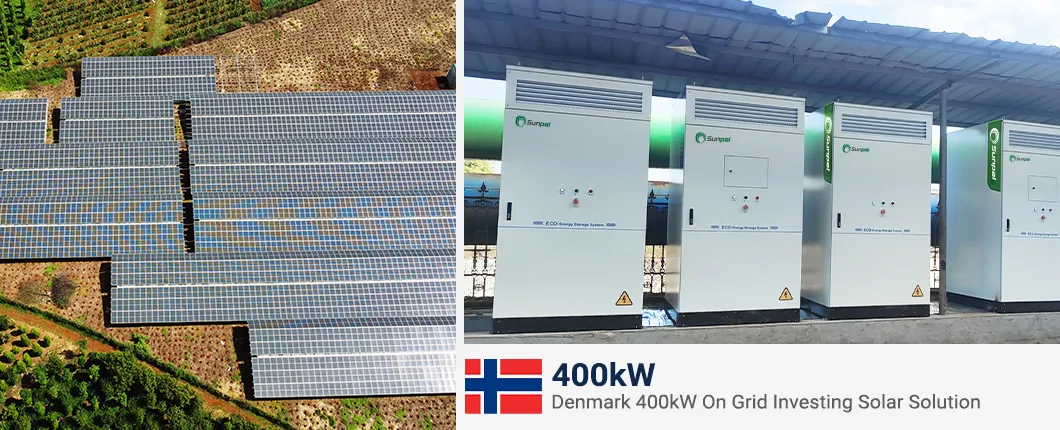

Denmark: 400kW on-grid solar solution for peak shaving & tariff arbitrage, maximizing investment returns.

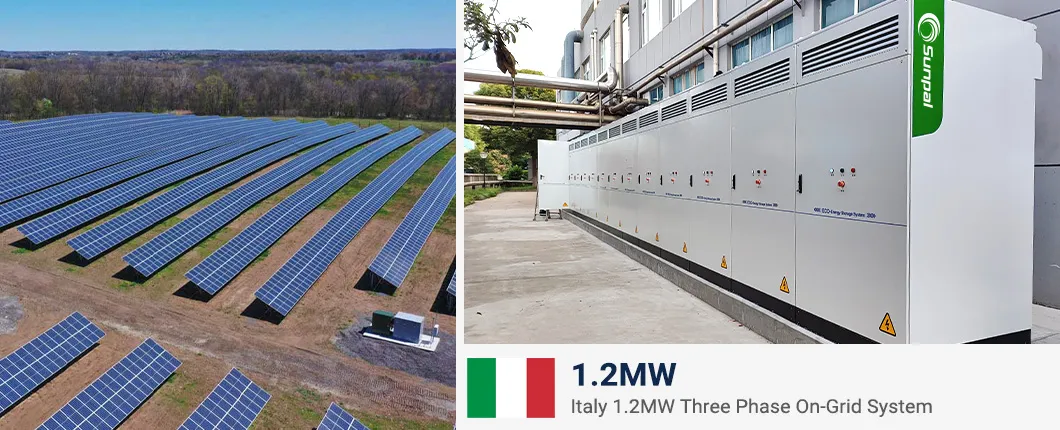

Italy: 1.2MW three-phase on-grid energy storage system optimized for PV utilization and peak shaving.
📜
Certifications & Policy
Procurement & Service Policy:
MOQ: 1 unit | Delivery: 10 days (spot), 30-45 days (bulk)
Warranty: 10 years for core equipment
Support: 24-hour professional technical support team
❓
Frequently Asked Questions
What is the expected cycle life of the battery?
The system utilizes high-quality LFP cells with a cycle life of ≥5500 cycles.
Is the system suitable for outdoor installation?
Yes, the cabinet features an IP55 ingress rating, making it suitable for various environmental conditions.
What is the cooling method used in this ESS?
It uses a force air cooling system to maintain optimal operating temperatures between -25℃ and 55℃.
Can the capacity be expanded in the future?
Yes, the system supports agile expansion via AC parallel connection for scalable capacity needs.
What kind of warranty is provided?
We offer a 10-year warranty for core equipment and full life cycle technical support.
What are the main applications for this 101kWh system?
It is ideal for commercial and industrial (C&I) peak shaving, EV fast charging stations, and remote off-grid microgrids.
