| Model NO. | AJ-ES-3.6KW+3.84KWH |
| Product Name | Home Energy Storage Battery System |
| Battery Type | LiFePO4 (LFP) - A Grade |
| Nominal Capacity | 3.84kwh / 7.68kwh / 11.52kwh |
| Inverter Power | 3.6kw 220V-240V 50Hz/60Hz |
| MPPT Power | 5000W (PV Voltage: 60V-500V) |
| Operating Temperature | -10℃ ~ +50℃ |
| Certification | ISO, CB, CE |
| Application | Home, Industrial, Commercial |
| Communication Port | RS485 / Bluetooth Available |

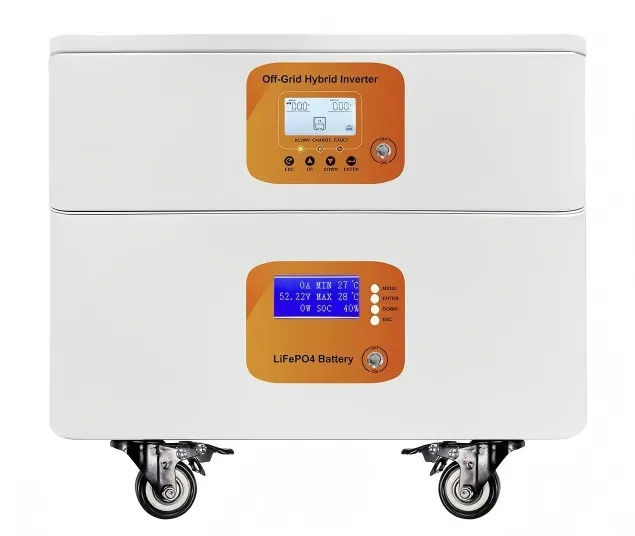

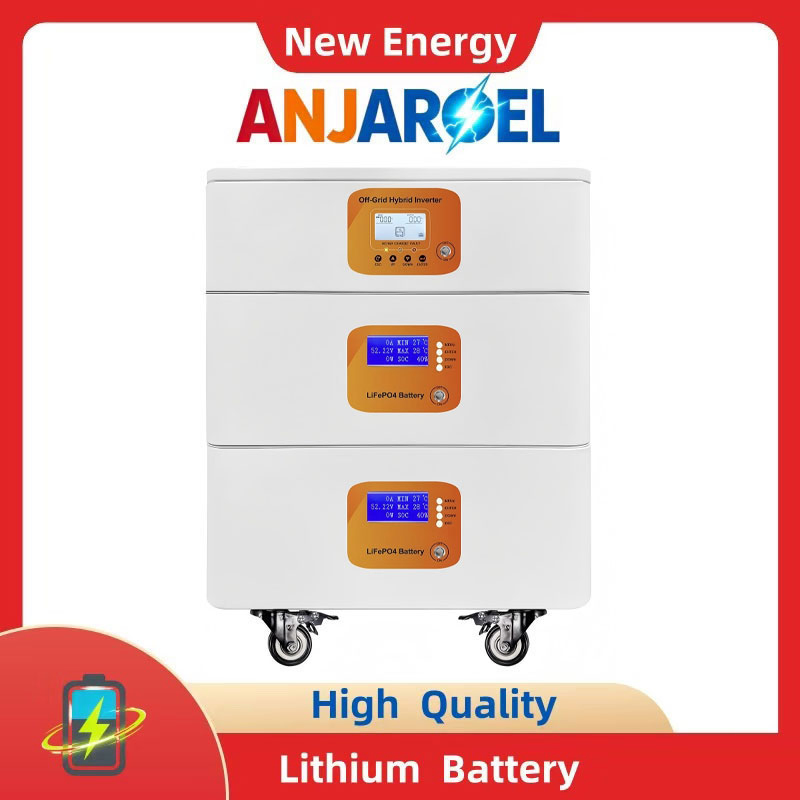

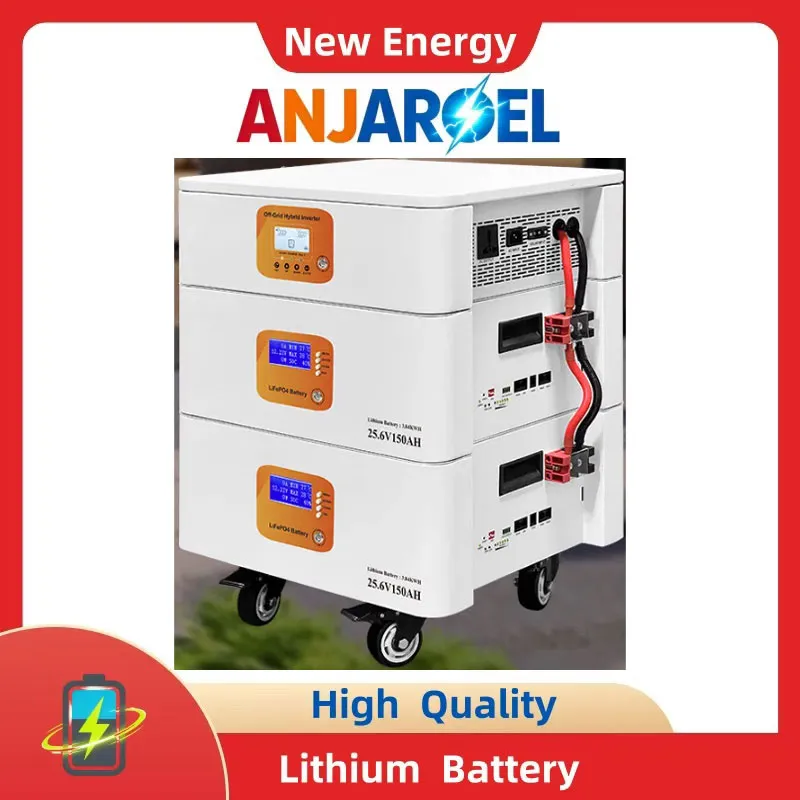

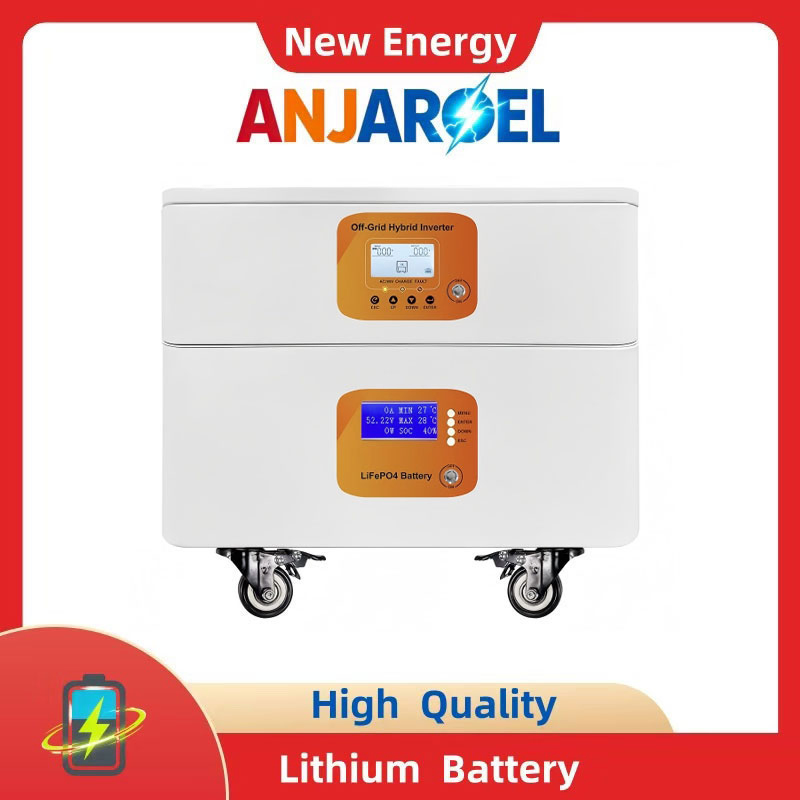

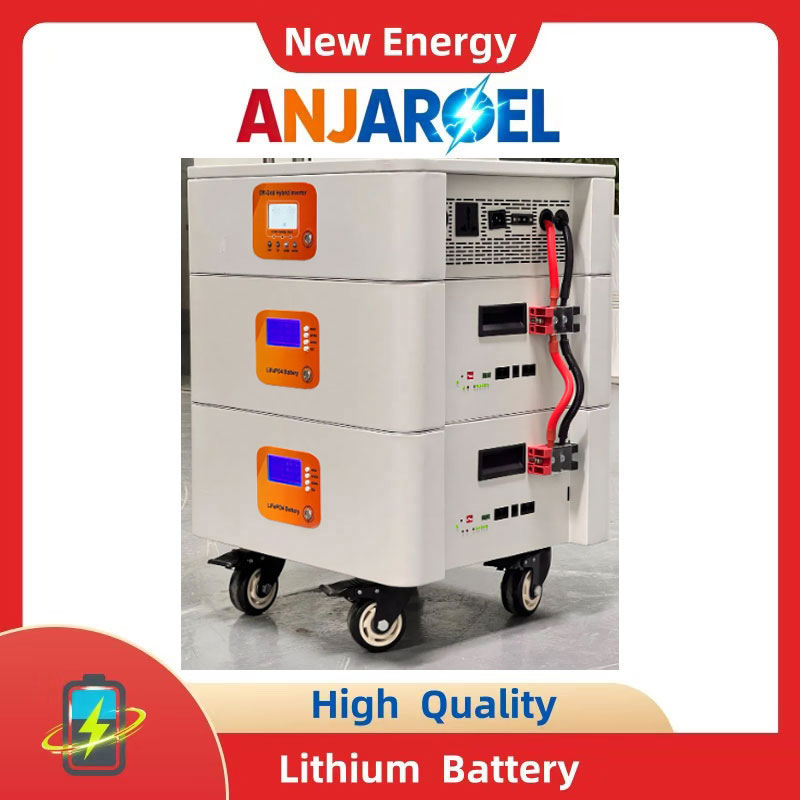

The all-in-one home energy storage system is a plug-and-play residential energy storage solution integrating lithium iron phosphate batteries, bidirectional inverters, and an intelligent BMS management system.
Featuring a vertical integrated design, it requires no complex installation and can be used simply by plugging in. Supporting dual charging from the grid and solar energy, it provides households with stable backup power, peak-valley arbitrage, and off-grid power supply services, serving as a core device for green energy management in modern homes.
Long Lifespan: High-performance LiFePO4 cells engineered for deep cycling and long lifespan, ensuring predictable performance and low lifecycle cost.

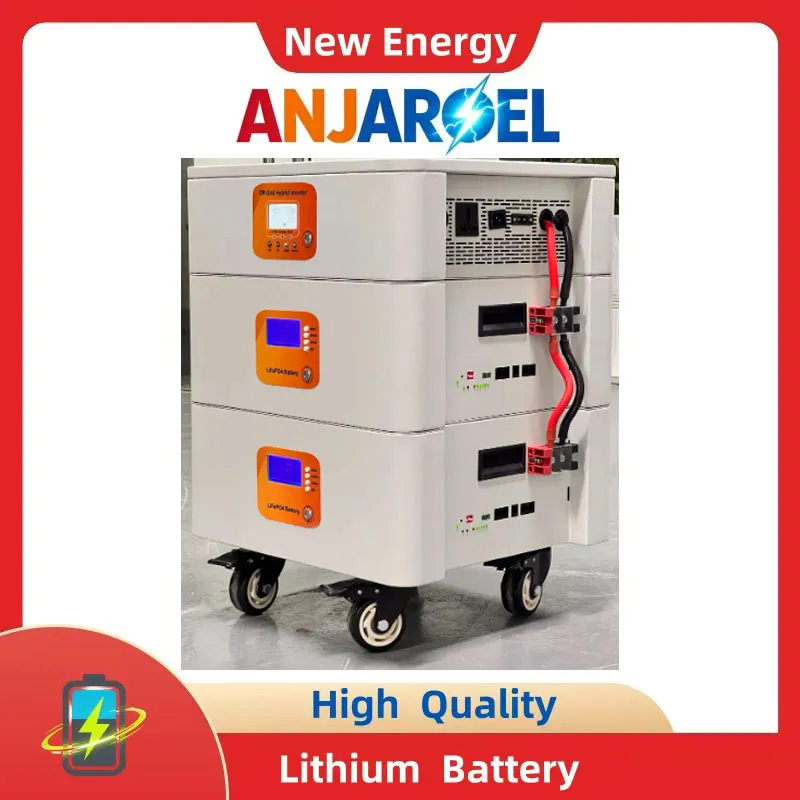

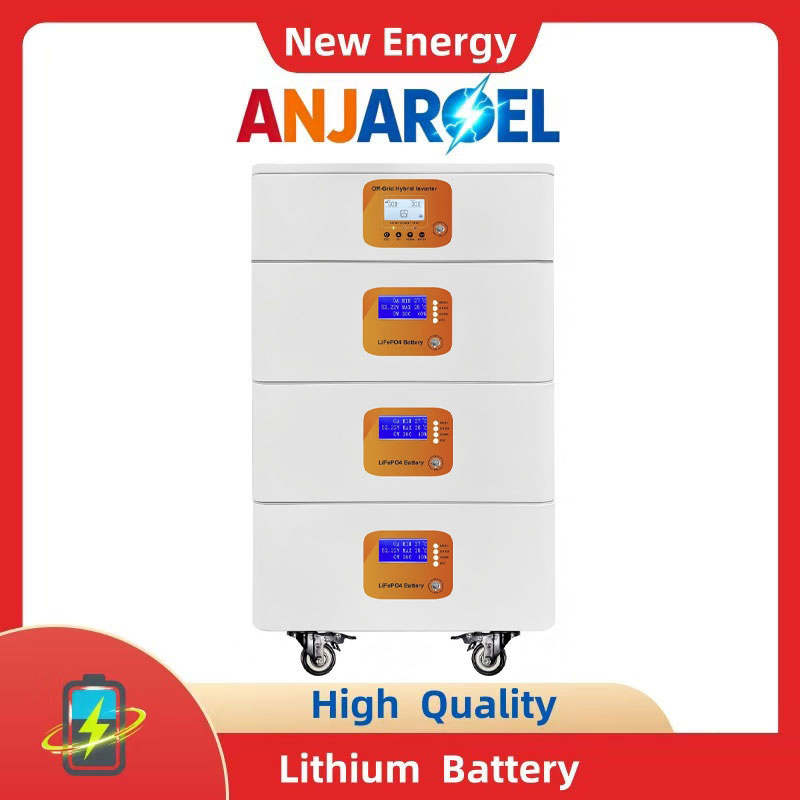

Seamless Expansion: Hot-swappable modules allow seamless capacity expansion without system downtime or complex on-site reconfiguration.
Robust Design: IP65-rated enclosure with rugged mechanical design supports indoor or sheltered outdoor installation in varied climates.
Smart Monitoring: Integrated smart BMS with RS232, RS485 communication provides real-time monitoring and layered safety protections.
| TECHNICAL PARAMETERS | |
|---|---|
| Battery Cycle Times | ≥6000 times |
| Optimal PV Voltage | 300V-400V |
| Management System | Integrated Smart BMS |
| Net Weight | 49kg |
| Gross Weight | 63.950kg |
| Product Size | L515*W265*H675mm |
| Package Size | 71.00cm * 55.00cm * 40.00cm |
| Transport Package | UN Wooden Carton |
No professional installation required; simply plug in to use, unplug and relocate at any time, adapting to flexible power supply needs.
Hot-swap capability enables fast service without lengthy outages, minimizing labor costs.
Supports both grid power and solar photovoltaic panel dual-input, automatically switching to the optimal charging mode to maximize clean energy use.

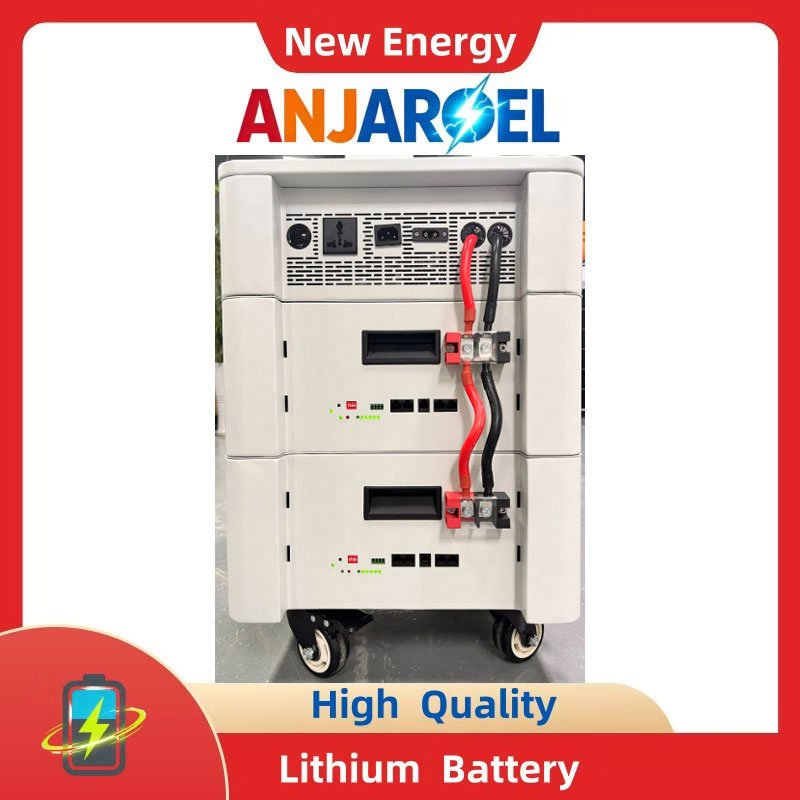

Equipped with AC outlets and USB fast-charging ports, compatible with refrigerators, TVs, and air conditioners.
Adopts Grade A LiFePO4 cells with over 6,000 cycles. Built-in protections for overcharge, over-discharge, short circuit, and high-temperature.
Ultra-quiet design allows placement in living rooms or studies without noise disturbance.
