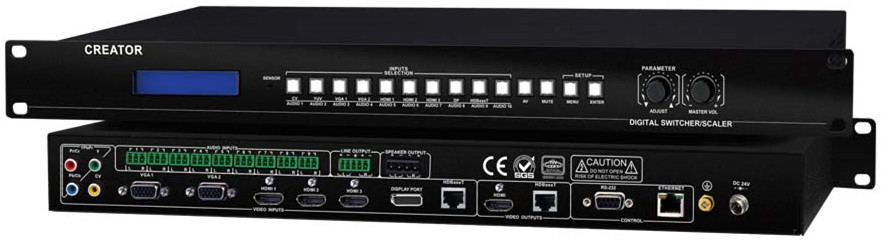

The CR-iMAX901HD-B is a professional-grade scaler equipped with 9 video input interfaces, including CV, YPbPr, VGA, DisplayPort, HDMI, and HDBaseT. It is designed to switch or scale signals to HDMI/HDBaseT outputs flawlessly. With user-defined resolutions up to WUXGA (1920x1200), it serves as a high-performance solution for educational institutions, command centers, and modern conference environments.
| Parameter | Details |
|---|---|
| Common-mode rejection | >75dB @ 20 Hz ~ 20 kHz |
| Signal Type | Stereo |
| Impedance | Input: >10 kΩ (Unbalanced) |
| Max Input Level | +19.5dBu |
| Gain Error | ±0.1dB @ 20 Hz ~ 20 kHz |
| Serial Interface | RS-232, 9-pin female D-type |
| Baud Rate | 115200 (8 bits, 1 stop, No parity) |
| Ethernet Control | TCP/IP via RJ-45 (10M/100M) |
| Chassis Size | 483(L) x 230(W) x 44mm(H) |
| Environment | Temp: -20° to +70°C | Humidity: 0 to 95% |
Includes infrared simultaneous interpretation and digital conference systems.
Deployment of matrix switchers and multimedia controllers.
Discussion systems with auto camera tracking and seamless switching.
