Creator Wireless Conference System with Wpa/Wpa2 Wireless Security Technology

Send Inquiry

Product Description

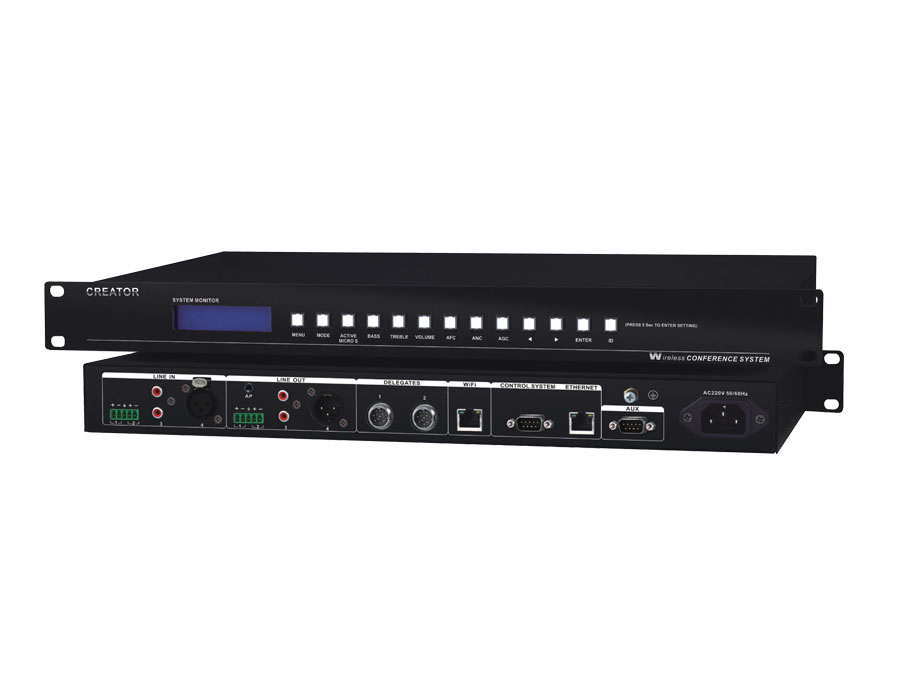

CR-WiFi6301 is a full digital encryption WiFi conference controller and camera auto-tracking conference controller, supports both wireless and wired conference.

Product Overview

The system integrates wired and wireless technology to provide high-fidelity audio, robust security, and advanced conference management features. It is designed for versatile applications ranging from standard discussions to large-scale international conventions.

Key Features

Support WPA/WPA2 wireless security technology to ensure the conference confidentiality, and to avoid wiretapping and malicious interference.

The system can open up to 8 microphones at the same time, the wireless system maximumly supports 6 microphones, 31+1 channel wired simultaneous interpretation.

The wired or wireless uncompressed audio transmission, 48K sampling rate, 20Hz~20KHz bandwidth perfect sound.

Circular hand-in-hand connection function.

Compatible with IEC 60914, GBT15381-94 standards.

Cat5e, 100M network fully digital audio and control signal transmission, the long distance transmission quality is not affected.

Built-in high performance CPU sets translation, discussion, attendance, voting, electronic plate as a whole, providing high speed vote and message transmission. It maximumly supports 4000 conference units.

Built-in DAFS Digital Acoustic Feedback System. Support 32 bit high speed DSP floating-point processing, support 2 channel audio acoustic feedback suppression at the same time, and noise elimination.

Support PC software management, TCP/IP control, provide reliable control and safety management.

Support a variety of camera control protocols of VISCA, PELCO-D, SAMSUNG. It can realize camera automatic tracking with matrix or HD controllers for both wired and WiFi units.

PC software unified management unit and intelligent fault analysis can analyze meeting unit type, quantity, distribution, fault etc.

Connect the AP, support DIG conference unit and WIFI conference unit to use at the same time.

With RCA, phoenix head, XLR head three different audio input interfaces, supporting balanced and unbalanced input, 4 audio mixer inputs, or 3 mixer inputs and 1 channel remote video conference input.

With RCA, phoenix head, XLR head three different audio output interfaces, supporting 4 speakers partition output to effectively improve microphone gain and avoid howling.

Can individually adjust line, remote video conferencing input, 4 audio output interfaces, and the conference unit volume size (mute, -40dB to 0dB).

Specifications

Model No.	CR-WiFi6301
Frequency Response	20Hz-20KHz
Signal to Noise Ratio	>80dB
Channel Crosstalk	>80dB
Total Harmonic Distortion	<0.05%
Power Supply	110V/220V AC
Maximum Power Consumption	150W
Static Power Consumption	12W
Color	Dark Grey

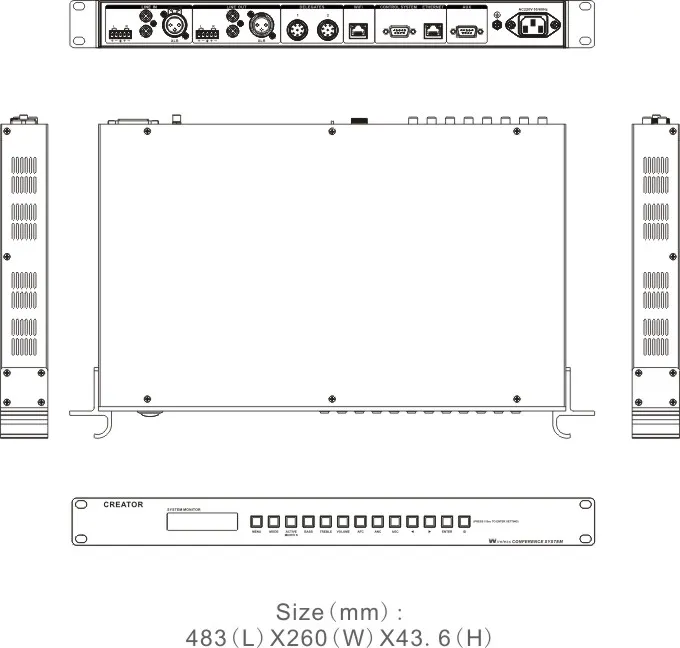

Panel Drawing

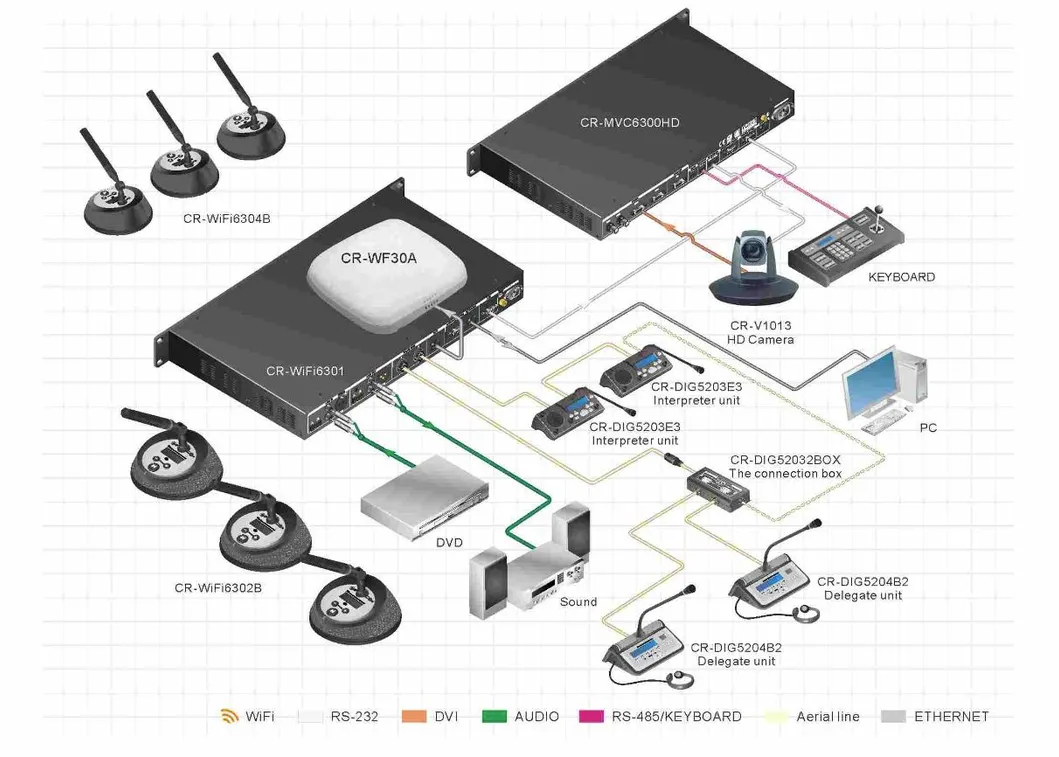

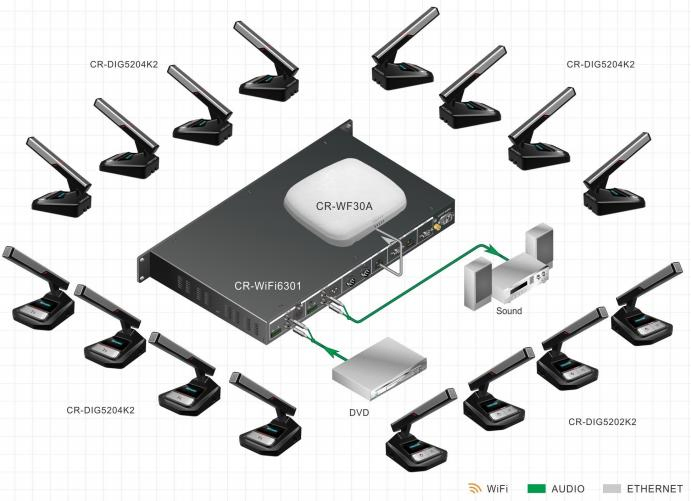

System Diagram

Case Studies

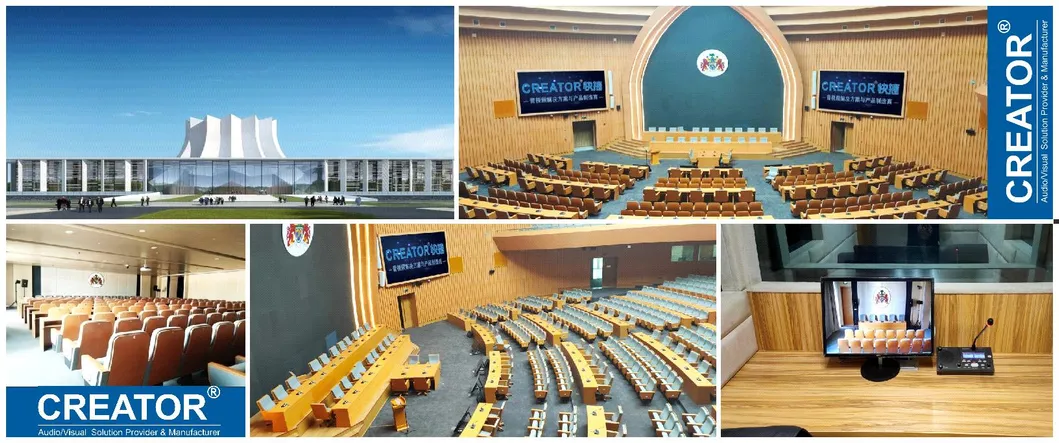

Gambia International Convention Center

Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.

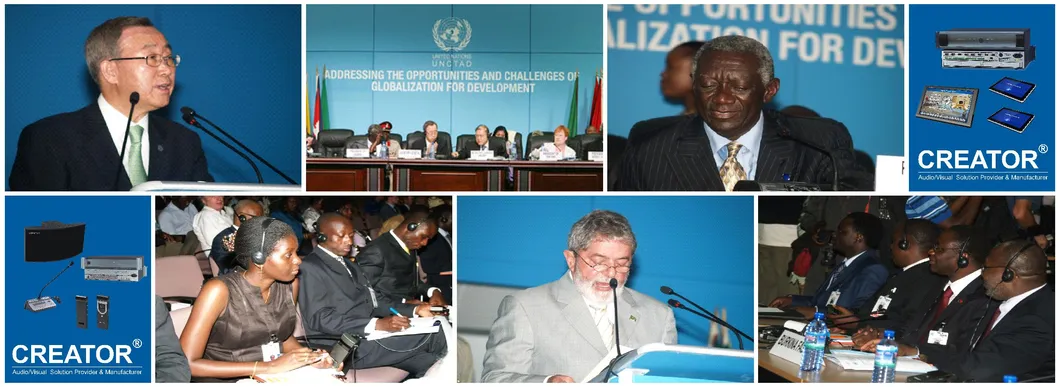

United Nations Conference on Trade and Development

Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.

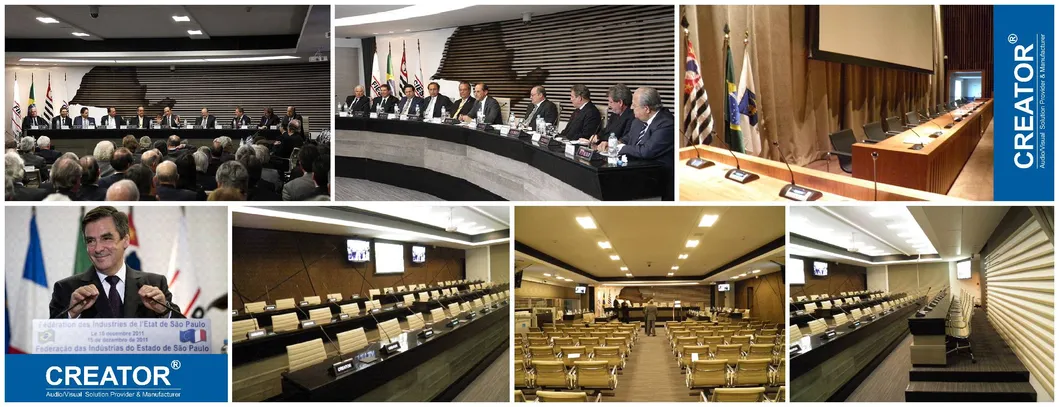

Brazil Federation of Industries of Sao Paolo (FIESP)

Application products: over 500 sets of full digital discussion conference system, auto camera tracking system, and seamless switching matrix switcher.

Honors & Certificates

FAQ

1. How does the CR-WiFi6301 ensure conference security? The system utilizes WPA/WPA2 wireless security technology to provide full digital encryption, effectively avoiding wiretapping and malicious interference during sensitive meetings.

2. How many microphones can be used at the same time? The system can open up to 8 microphones simultaneously. In a wireless setup, it supports up to 6 active microphones, while the wired side supports 31+1 channel simultaneous interpretation.

3. What kind of audio quality does the system provide? It offers uncompressed audio transmission with a 48K sampling rate and a frequency response range of 20Hz to 20KHz, ensuring crystal-clear sound quality.

4. Can I combine wired and wireless units in one session? Yes, by connecting an Access Point (AP), the controller supports the simultaneous use of both digital wired conference units and WiFi wireless units.

5. Does the controller support automatic camera tracking? Yes, it supports several camera control protocols, including VISCA, PELCO-D, and SAMSUNG, enabling automatic tracking for both fixed and mobile conference units.

6. What is the maximum number of units the system can manage? The controller is equipped with a high-performance CPU that can support up to 4000 conference units in total.
