| Model NO. | AJ-ES-6KW16KWH |
| Product Name | Home Energy Storage Battery System |
| Battery Type | LiFePO4 (LFP) - A Grade |
| Nominal Capacity | 16 Kwh / 314 Ah |
| Standard Voltage | 51.2 V |
| Condition | New |
| Certification | ISO, CB, CE |
| Application | Home, Industrial, Commercial |
| Protection Level | IP65 |
| Operating Temp | -10℃ to +50℃ |
| Communication | RS232, RS485 |

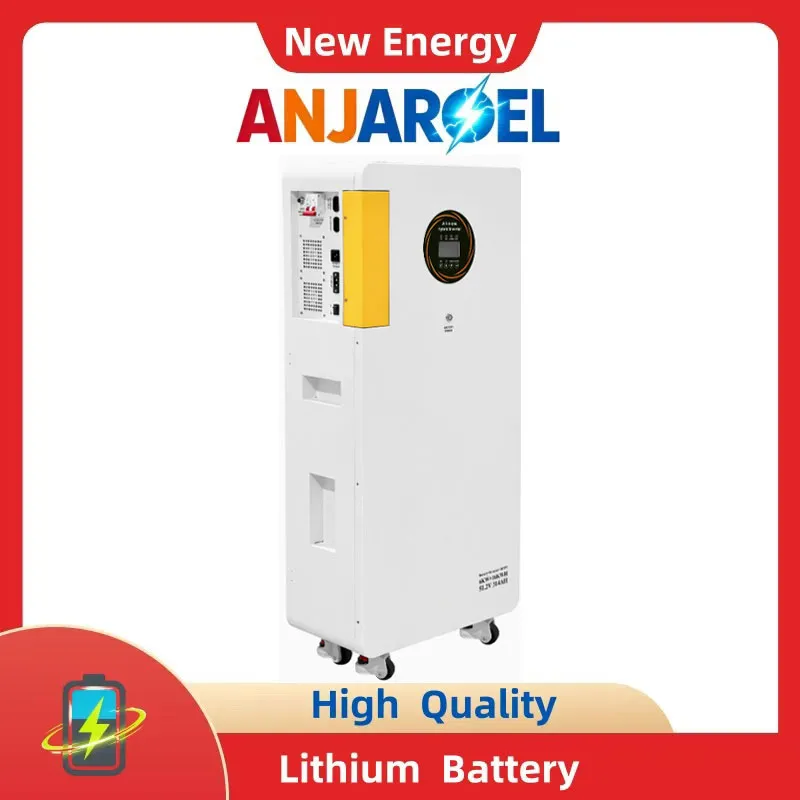

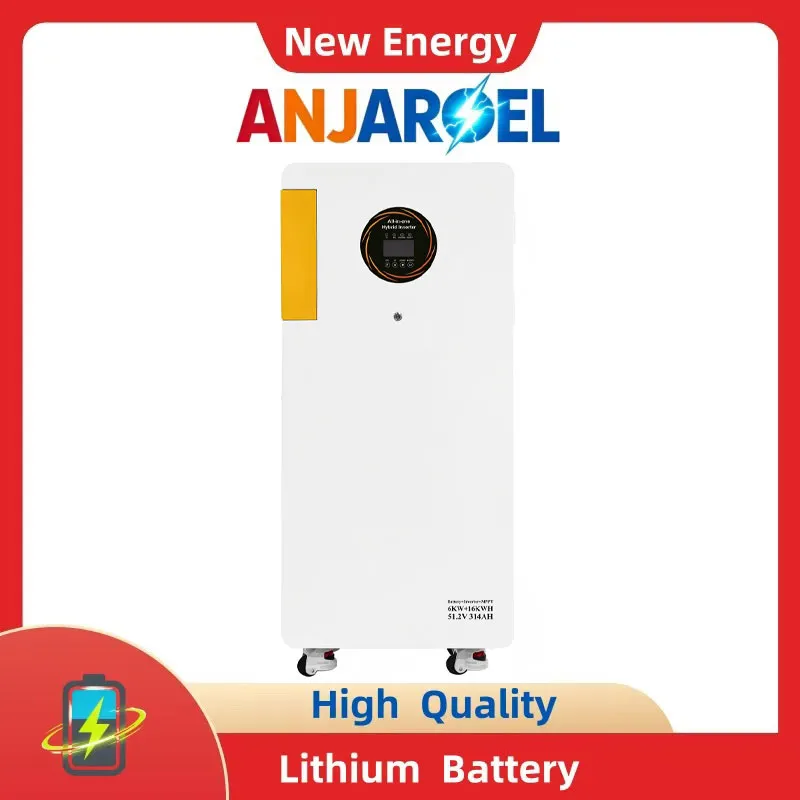

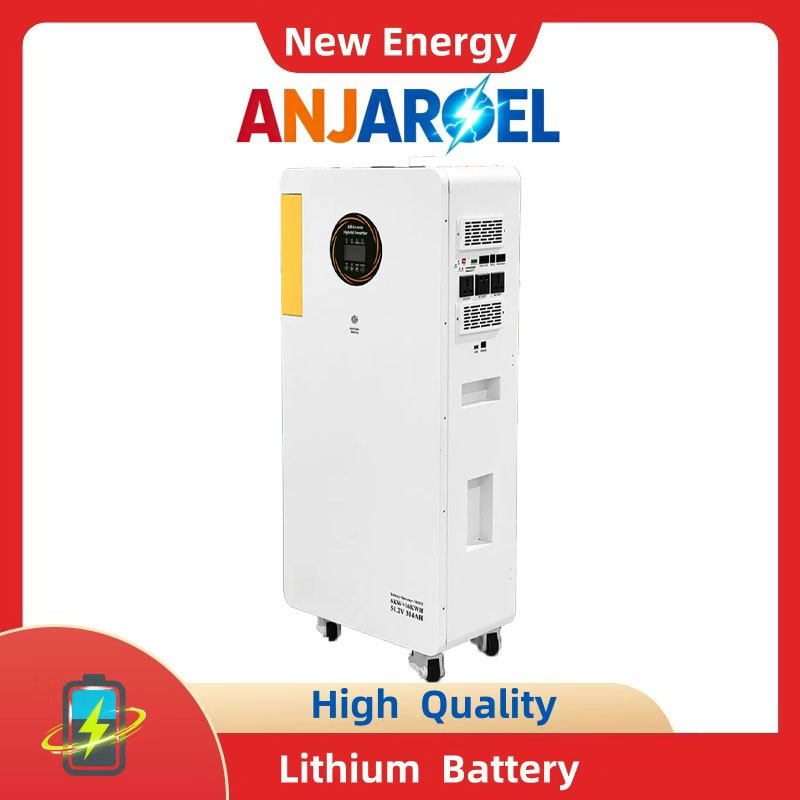

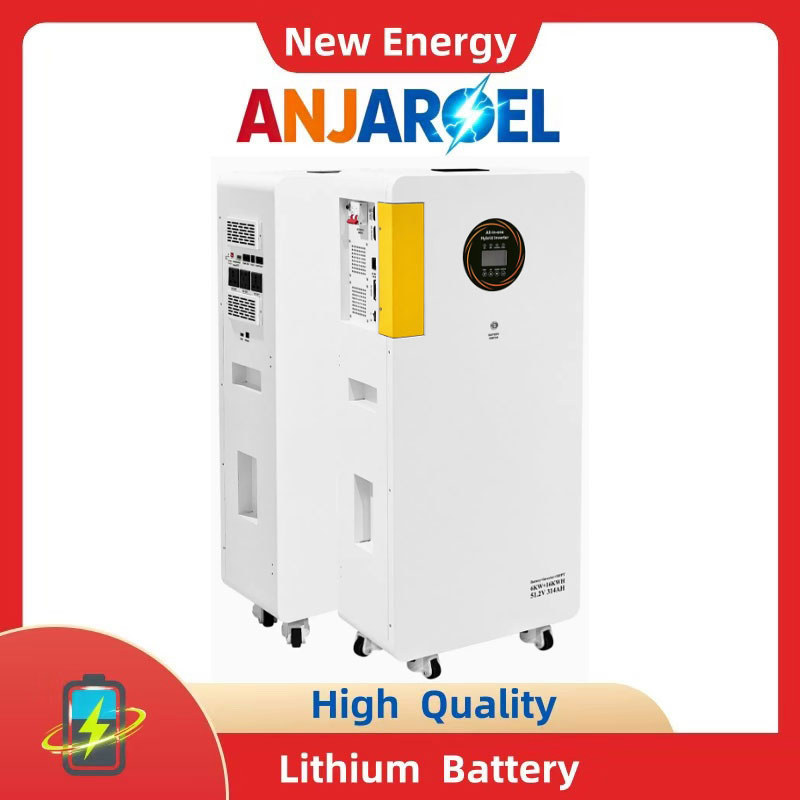

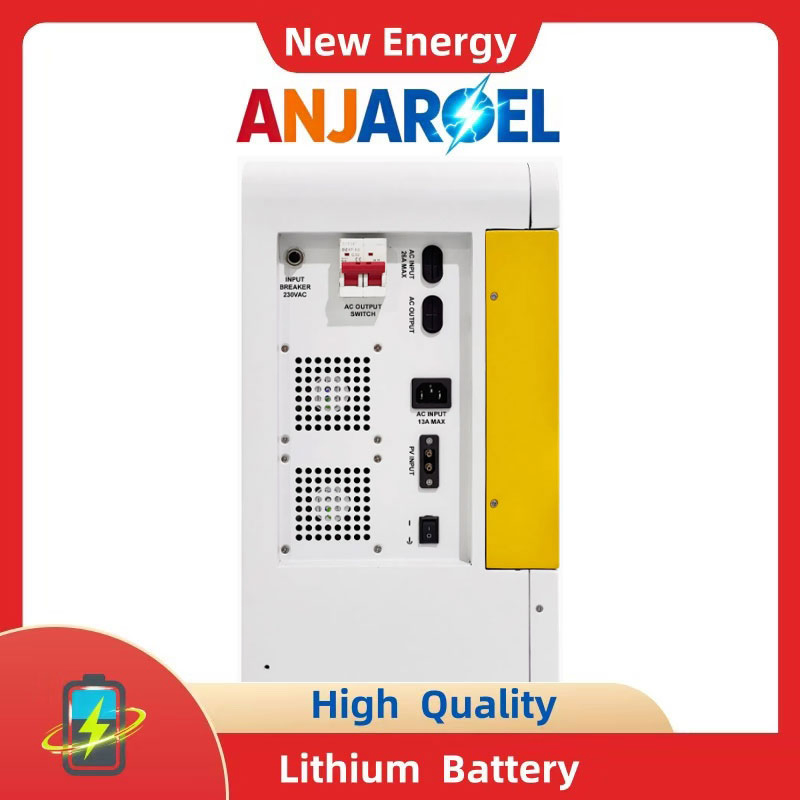

The all-in-one home energy storage system is a plug-and-play residential energy storage solution integrating lithium iron phosphate batteries, bidirectional inverters, and an intelligent BMS management system.
Featuring a vertical integrated design, it requires no complex installation and can be used simply by plugging in. Supporting dual charging from the grid and solar energy, it provides households with stable backup power, peak-valley arbitrage, and off-grid power supply services.
LiFePO4 cells engineered for deep cycling and long lifespan, ensuring predictable performance and low lifecycle cost.
Seamless capacity expansion without system downtime or complex on-site reconfiguration.
Robust enclosure design supports indoor or sheltered outdoor installation in varied climates.

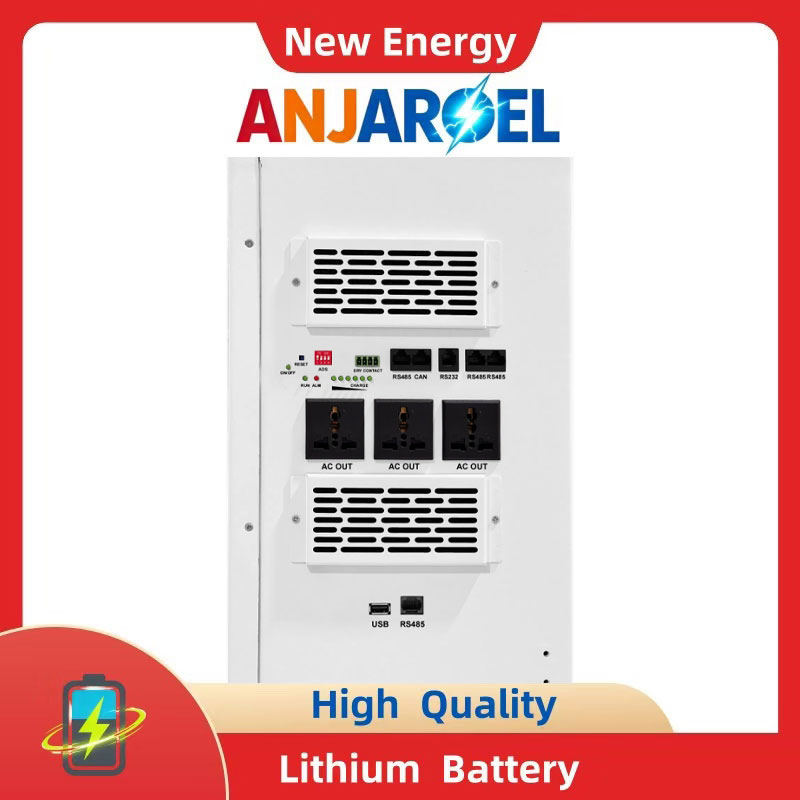

Integrated BMS with RS232/RS485 provides real-time monitoring, cell balancing, and safety protections.
| AC Input | AC 220-240V |
| PV Open Circuit Voltage | 60V - 500V |
| Rated Power | 51.2V 6kW |
| MPPT Current | Max 160A |
| Suggested DoD | 80% |
| Management System | Integrated Smart BMS |
| Product Size | 460 * 240 * 1040 mm |
| Net Weight | Approx. 115kg |
| Gross Weight | 124kg |
| Transport Package | Wooden Box |
No professional installation required; simply plug in to use. Hot-swap capability and uniform electrical connections enable fast service without lengthy outages.
Supports both grid power and solar PV panels. Automatically switches to the optimal charging mode to maximize clean energy use.
Adopts Grade A LiFePO4 cells with a cycle life exceeding 6,000 cycles. Integrated multiple safety protections (overcharge, short circuit, etc.).
Ultra-quiet heat dissipation design ensures low operating noise, suitable for living rooms and studies.
