Product Description

Product Description

Quad core 64 bit AV1 4K HDR Android TV Box

Android base TV system
H.264 1080p 60fps Video encoding
AV1/VP9/H.264/H.265 10bit HDR decoding up to 4K@60fps
HDMI 2.1 max to 4K60 output

Technical Specifications

System Parameters
SoC	Amlogic 905X4
CPU	Quad-core ARM Cortex-A55
GPU	Mali-G31MP2
DRAM	DDR3 4GB
FLASH	EMMC 64GB
OS	Android R (14.0)
Network & Connectivity
Ethernet	RJ45 Interface 10M/100M/1000M adaptive
WiFi	Build in MIMO WiFi 2T2R 2.4GHz/5GHz 802.11 a/b/g/n/ac
Bluetooth	BT 4.2

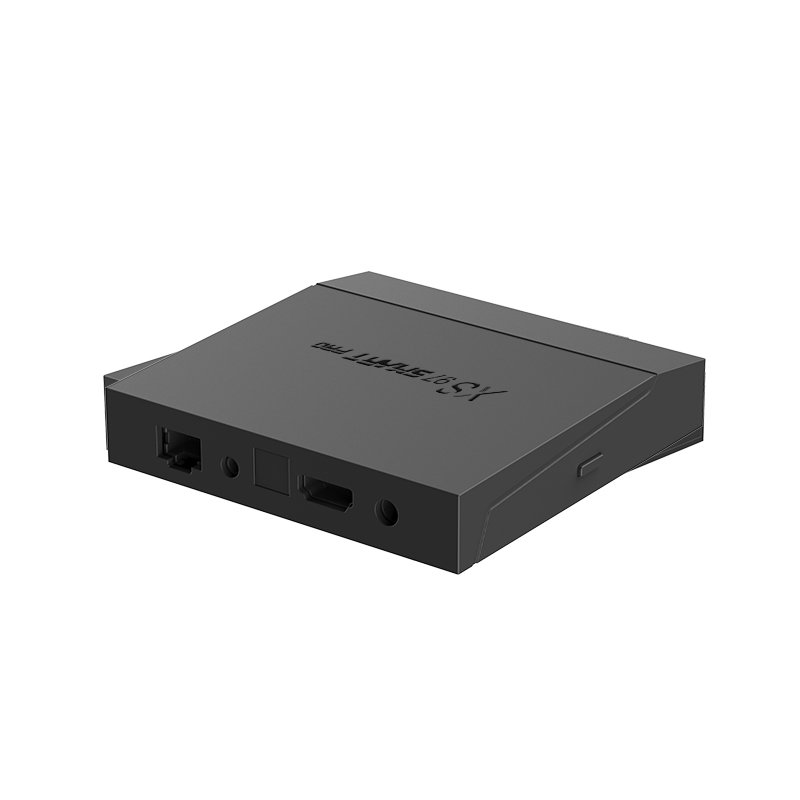

I/O Interfaces
Video Output	HDMI 2.0 (4K60), AV
USB	USB 2.0, USB 3.0
Storage	TF card slot, USB storage up to 2TB
Audio	SPDIF, DC 5V/2A Power Interface

Media Capability

Video Decoder

AV1 up to 4Kx2K@60fps, VP9 Profile-2 up to 4Kx2K@60fps, H.265 HEVC up to 4Kx2K@60fps, AVS2-P2 Profile, H.264 AVC, MPEG-4, WMV/VC-1, AVS+, MPEG-2, MPEG-1.

Audio Support

MPEG 1/2/2.5, Audio Layer 1/2/3, WMA, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC, Real Audio, AC-3/DD+/DTS, MPEG-H.

Smart Features

Miracast, DLNA and Airplay support. Pre-loaded with Google Play (TV version), Google Voice Assistant, and Prime Video (1080P).

Additional Info

Supported Formats: MKV, WMV, MPG, AVI, MOV, ISO, MP4, JPG. Photo: HD JPEG, BMP, GIF, PNG, TIFF.

Frequently Asked Questions

1. What are the core hardware specifications of this TV Box?

The device is powered by an Amlogic 905X4 Quad-core ARM Cortex-A55 CPU, with 4GB DDR3 RAM and 64GB EMMC Flash storage, running on Android 14.0.

2. Does it support 4K resolution and high-quality video decoding?

Yes, it supports AV1/VP9/H.265 10bit HDR decoding up to 4K@60fps and features HDMI 2.1 output for maximum 4K60 performance.

3. What wireless connectivity options are available?

It features built-in MIMO Dual-Band WiFi (2.4GHz/5GHz) supporting 802.11 a/b/g/n/ac and Bluetooth 4.2 for connecting peripherals.

4. Can I use voice commands and stream from my phone?

Absolutely. It supports Google Voice Assistant and multi-screen interactive features like Miracast, DLNA, and Airplay.

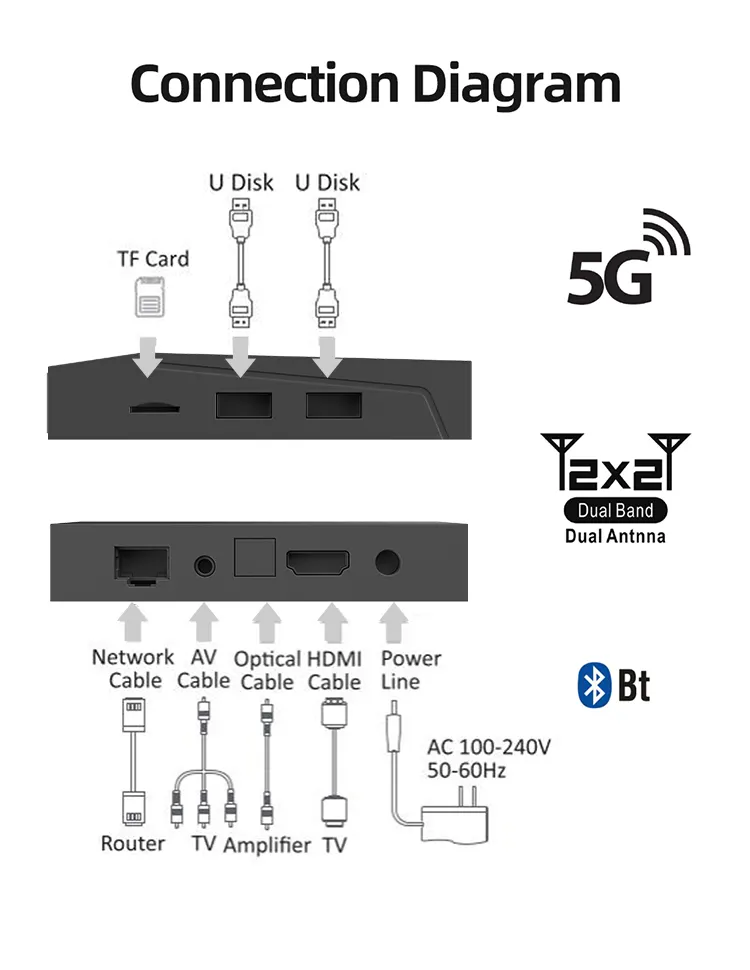

5. What external storage and I/O ports does it have?

The device includes USB 3.0 and USB 2.0 ports, a TF card slot, RJ45 Ethernet, SPDIF, and HDMI 2.0. It supports external USB storage up to 2TB.

6. How is the quality of the products guaranteed?

Quality is maintained through pre-production samples before mass production and a rigorous one-by-one final inspection before shipment.
