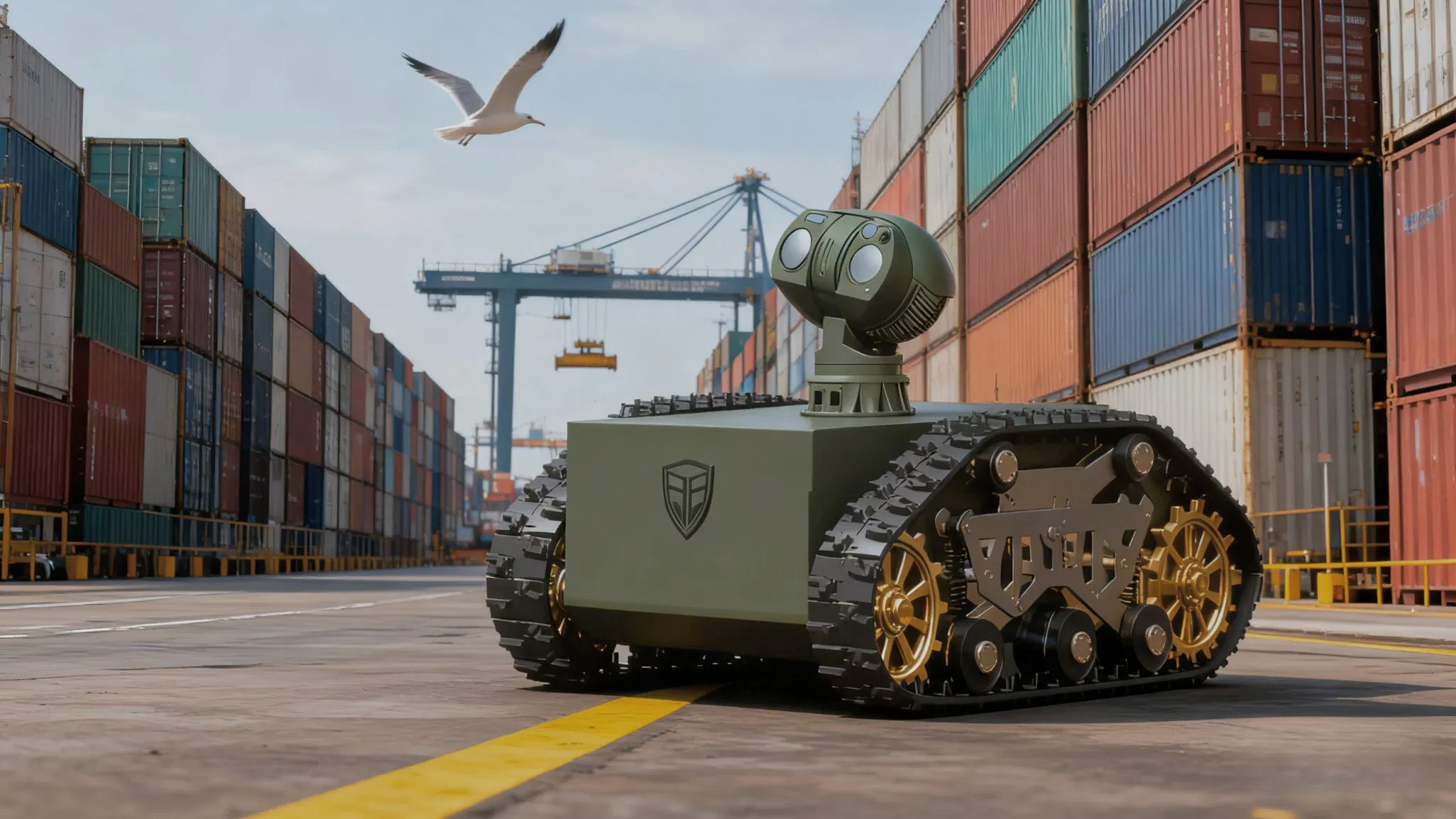

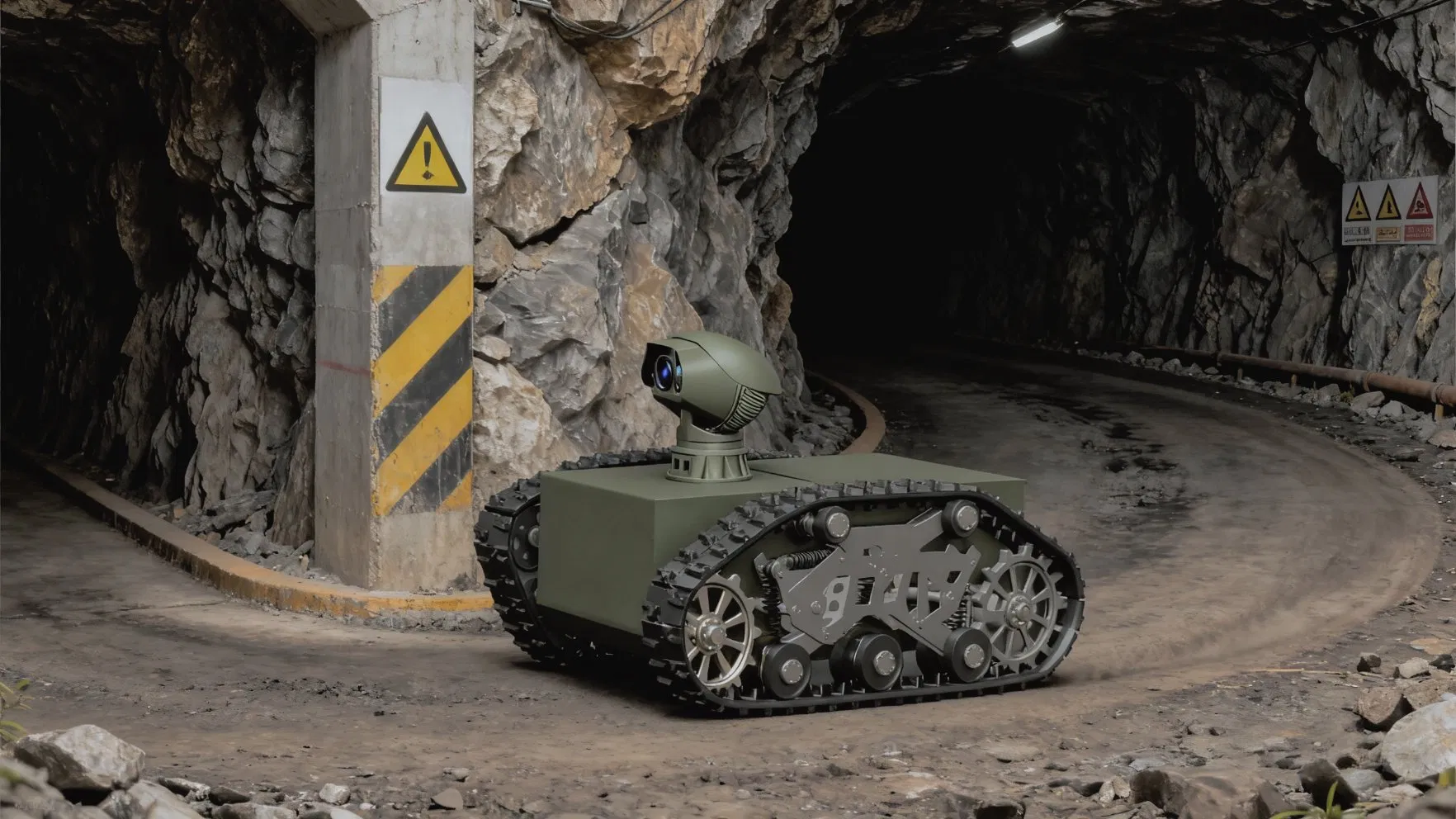

Advanced Autonomous Ugv for Critical Infrastructure Surveillance and Remote Monitoring

Customization:	Available
Load or Not:	100 Kg
Size:	Small

📊

Basic Specifications

Model NO.

WR52

Usage

Industrial

Chassis Weight

290 Kg

Ground Clearance

130 mm

Gap Crossing

200 mm

Maximum Gradeability

30°

Travel Speed

0-10 Km/H

Protection Level

IP64

Detection Range

2500-6500 M

Remote Control Range

200 M (External Antenna)

🛡️

Product Description

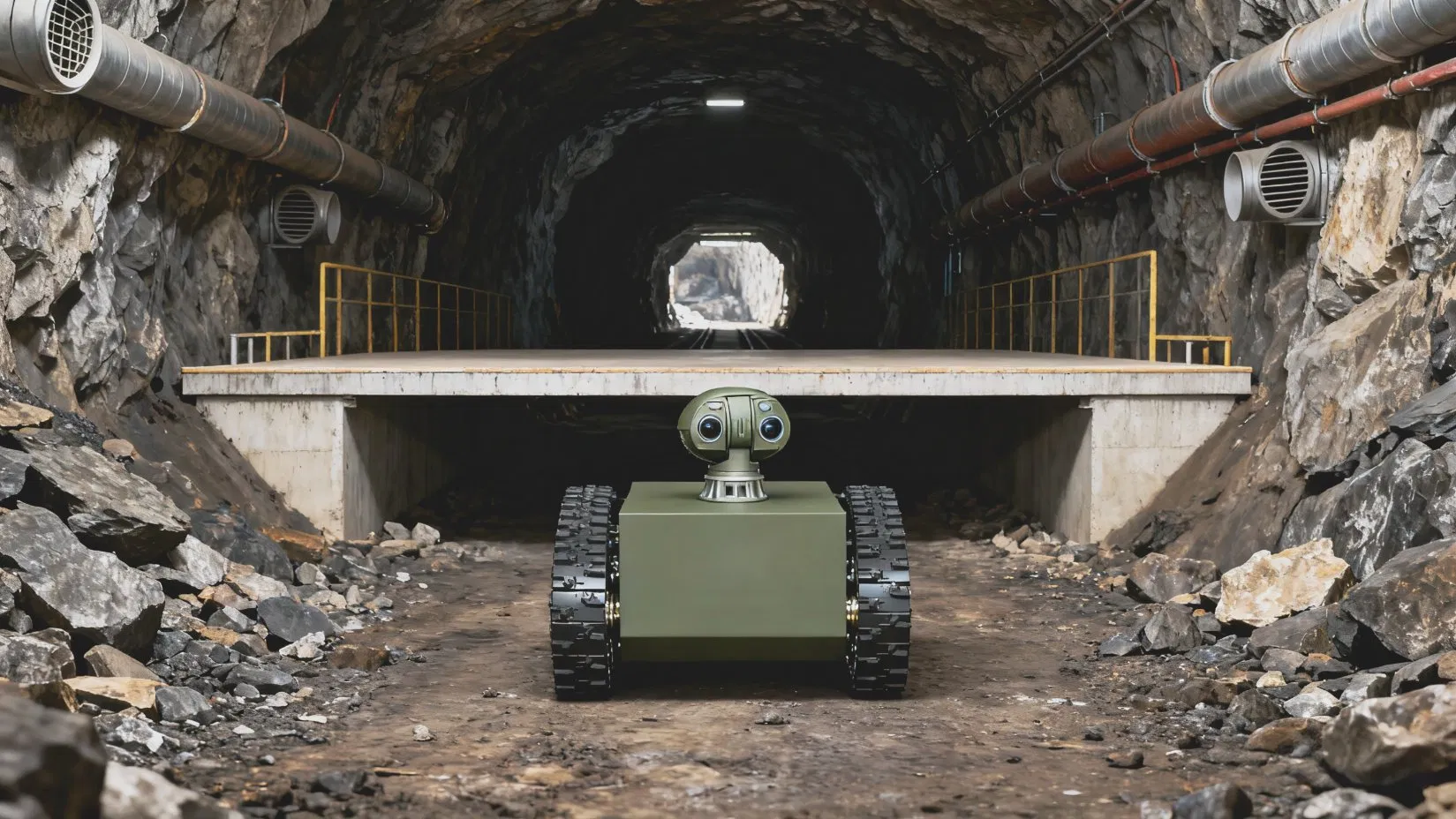

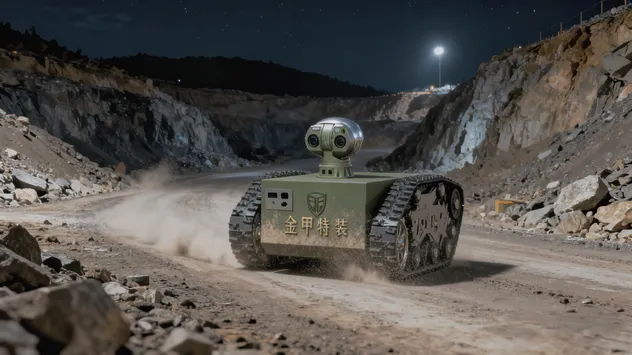

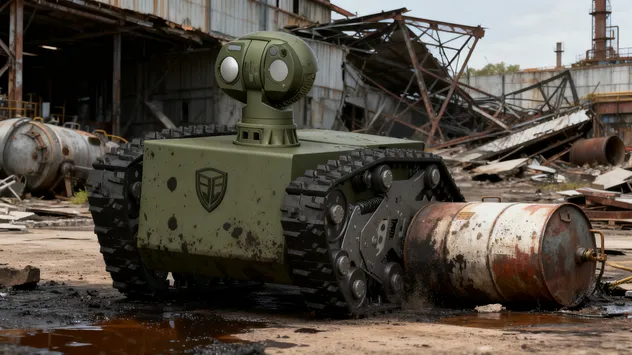

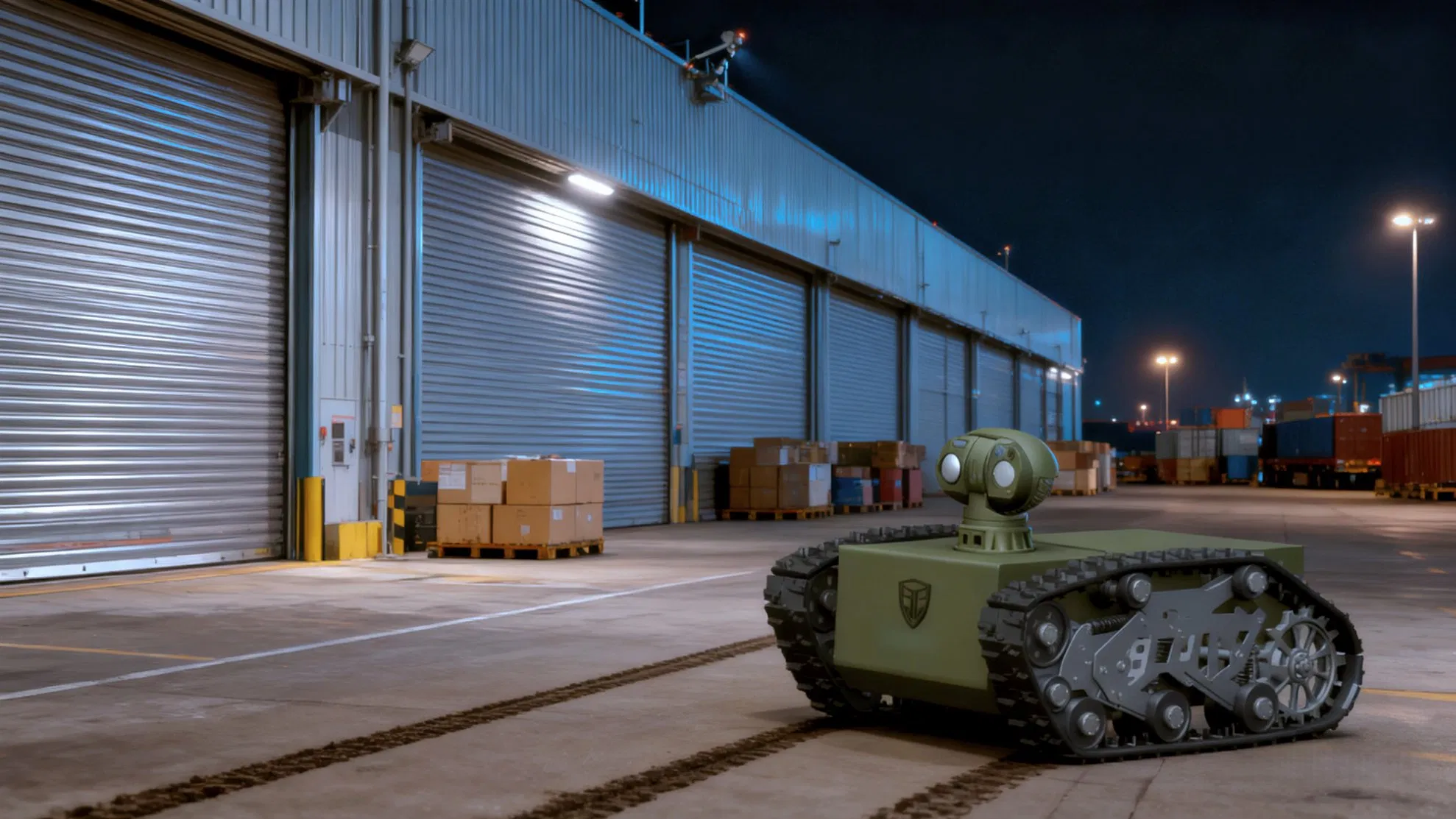

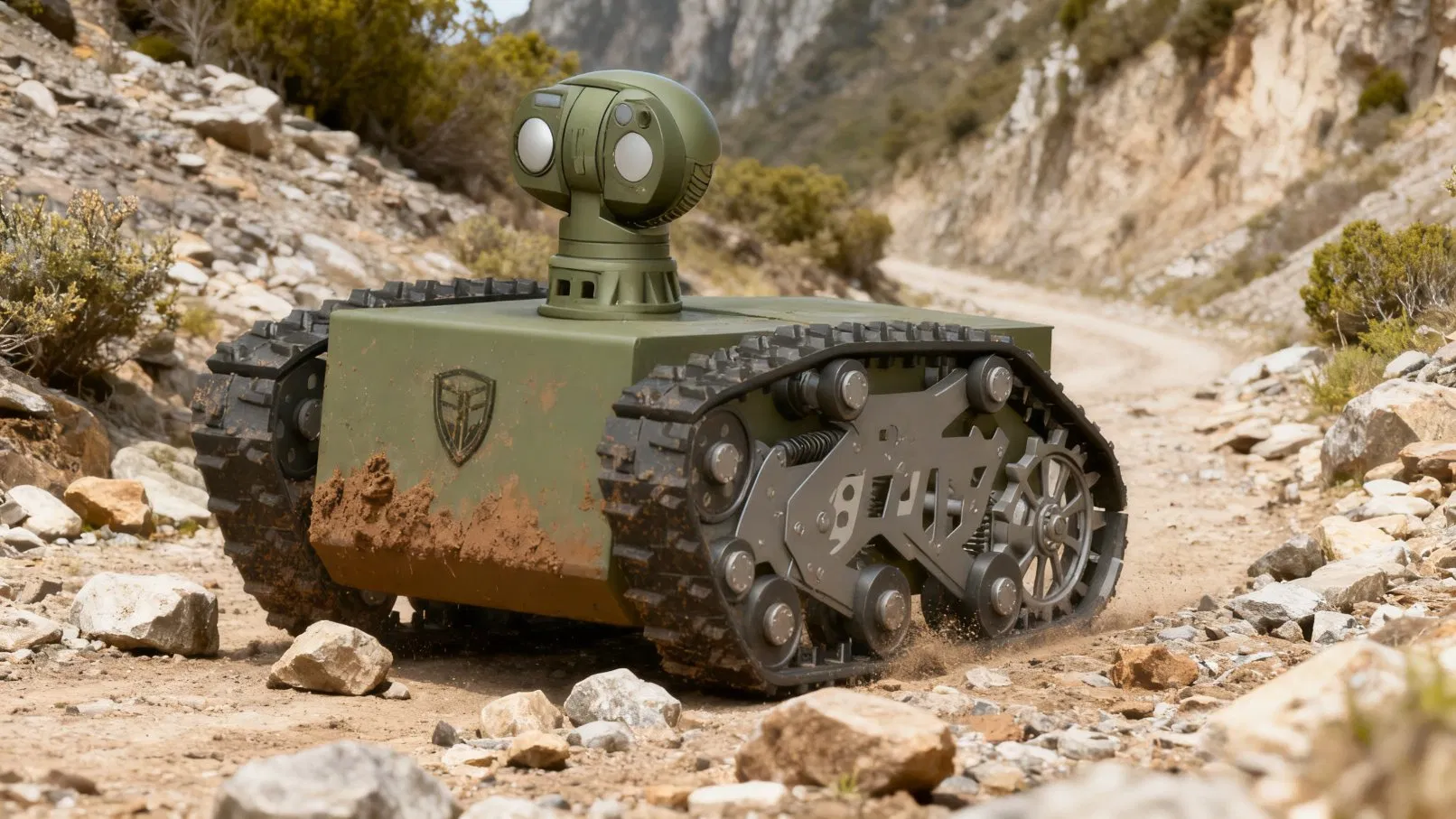

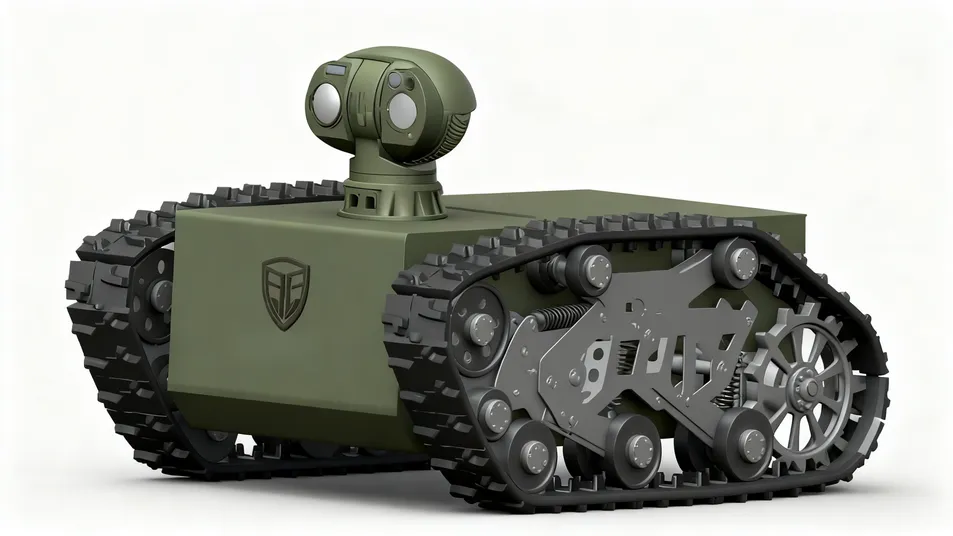

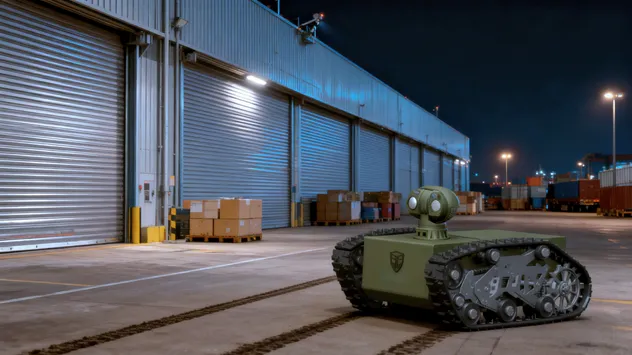

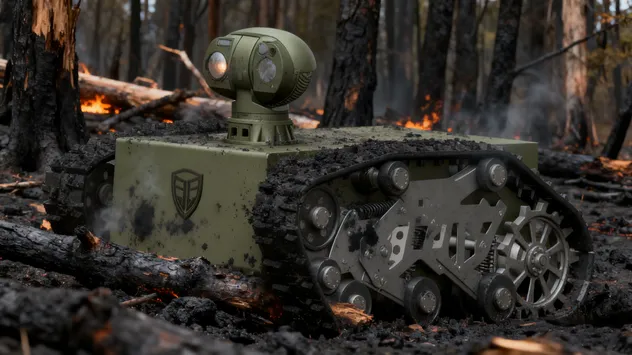

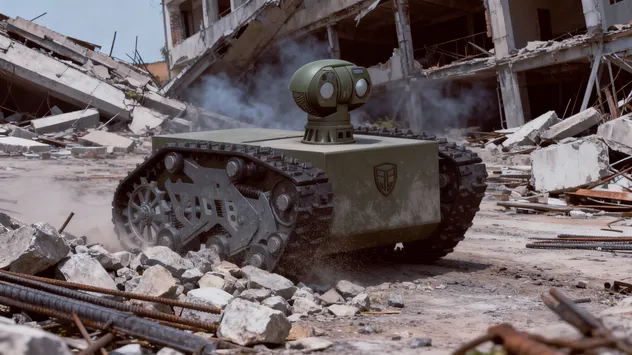

WR52 unmanned reconnaissance vehicle adopts a high-performance tracked robot chassis, with a Christie independent suspension design throughout the vehicle. It is equipped with high-torque brushless motor, benefiting from its well-designed chassis structure and power configuration, the vehicle exhibits exceptional mobility, a low center of gravity, smooth operation, and high transmission efficiency, enabling it to traverse a wide range of complex terrains with ease.

The WR52 is equipped with an Electronic Sentinel System, which integrates day and night surveillance, intelligent analysis, and active defense capabilities. It features broad application, flexible deployment, unmanned operation, high levels of intelligence, and strong environmental adaptability.

🚀

Key Features

24/7 Operation

Employing a multi-mode composite detection approach with intelligent thermal imaging and laser night vision for target search around the clock.

High Intelligence

Supports hotspot detection, smoke/fire alarms, area intrusion detection, and identification of vehicles or persons.

Multidimensional Perception

Supports image scaling, laser rangefinding, and compatibility with various sensors for deterrent capabilities.

📋

Technical Parameters

Chassis Parameters
Design Dimensions	1270×904×530 mm	Internal Dimensions	1070×490×314 mm
Chassis Weight	290KG	Travel Speed	0-10km/h
Ground Clearance	130mm	Protection Level	IP64
Gap Crossing	200mm	Maximum Payload	100Kg
Suspension System	Christie ×6 Shock Absorbers	Main Materials	Alloy Steel / Aluminum

Electronic Sentinel System
Detection Range	6500m (Vehicles) / 2500m (People)	Recognition Range	800m - 1800m
Laser Range	500m	Operating Temp	-40℃ to 60℃
Rotation Angle	360° Continuous	Rotation Speed	0.01°/s - 100°/s

🏭

Manufacturing & Capabilities

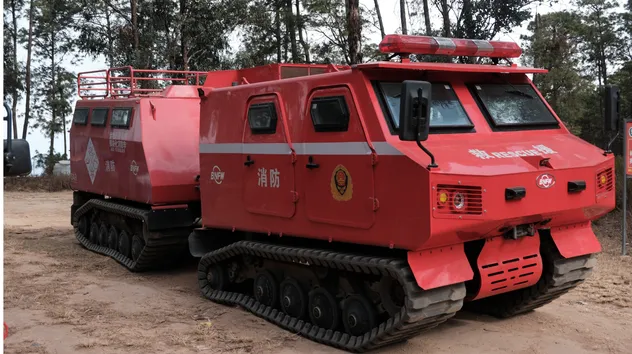

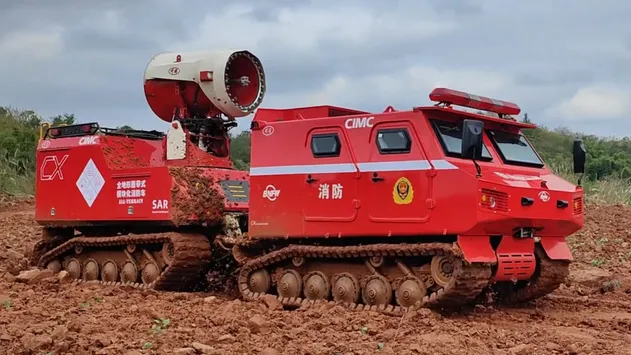

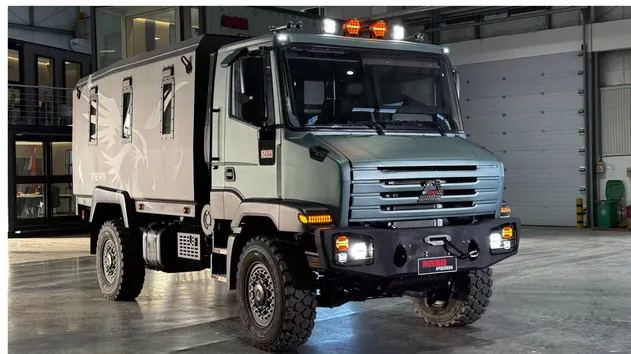

Specializing in the R&D, manufacturing, and service of all-terrain special equipment. Providing systematic solutions for logistics support, emergency rescue, and field operations under harsh conditions. Products cover manned and unmanned tracked vehicles, serving fire protection, petroleum exploration, mining, and scientific research.

Why Choose Us?

Comprehensive mobility solutions, OEM/ODM capabilities, competitive pricing, and fast shipping support with turnkey project options.

After Sales Service

Global support including 24/7 technical assistance, spare parts supply, and remote or on-site operation training.

❓

Frequently Asked Questions

How soon can I receive a response after submitting an inquiry?

We will reply within 24 hours on working days.

Are you a direct manufacturer or a trading company?

We have our own factory and an independent international sales department, integrating production and sales directly.

How to proceed with OEM/ODM customization?

If you have product drawings or samples, please provide them to us. We will customize according to your requirements and offer professional advice to maximize design performance.

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions to ensure global technical assistance.

What documents do you provide for export?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

How do I place an order?

Please contact us via email or phone to request a quote. Once terms are agreed upon, the order can be confirmed with a formal Purchase Order (PO).
