Product Overview
| Model NO. | G01NET-3F |
| Analog Input Channels | 8 Channels (Default Single-Ended Input, Supports Differential) |
| Input Range and Resolution | -10~10V / 0.005mv |
| Sampling Frequency | Configurable From 1~10547Hz (Fully Synchronous) |
| Storage Capacity | Standard 16G SD Card (Binary Format) |
| Remote Transmission | UDP, TCP/IP Client, TCP/IP Server |
| Transmitted Data Type | Real-Time Raw Data |
| Dynamic Range | ≥120dB |
| Power Supply | 4W / DC12V |
| Operating Conditions | -35℃ to +70℃; Humidity ≤90% |

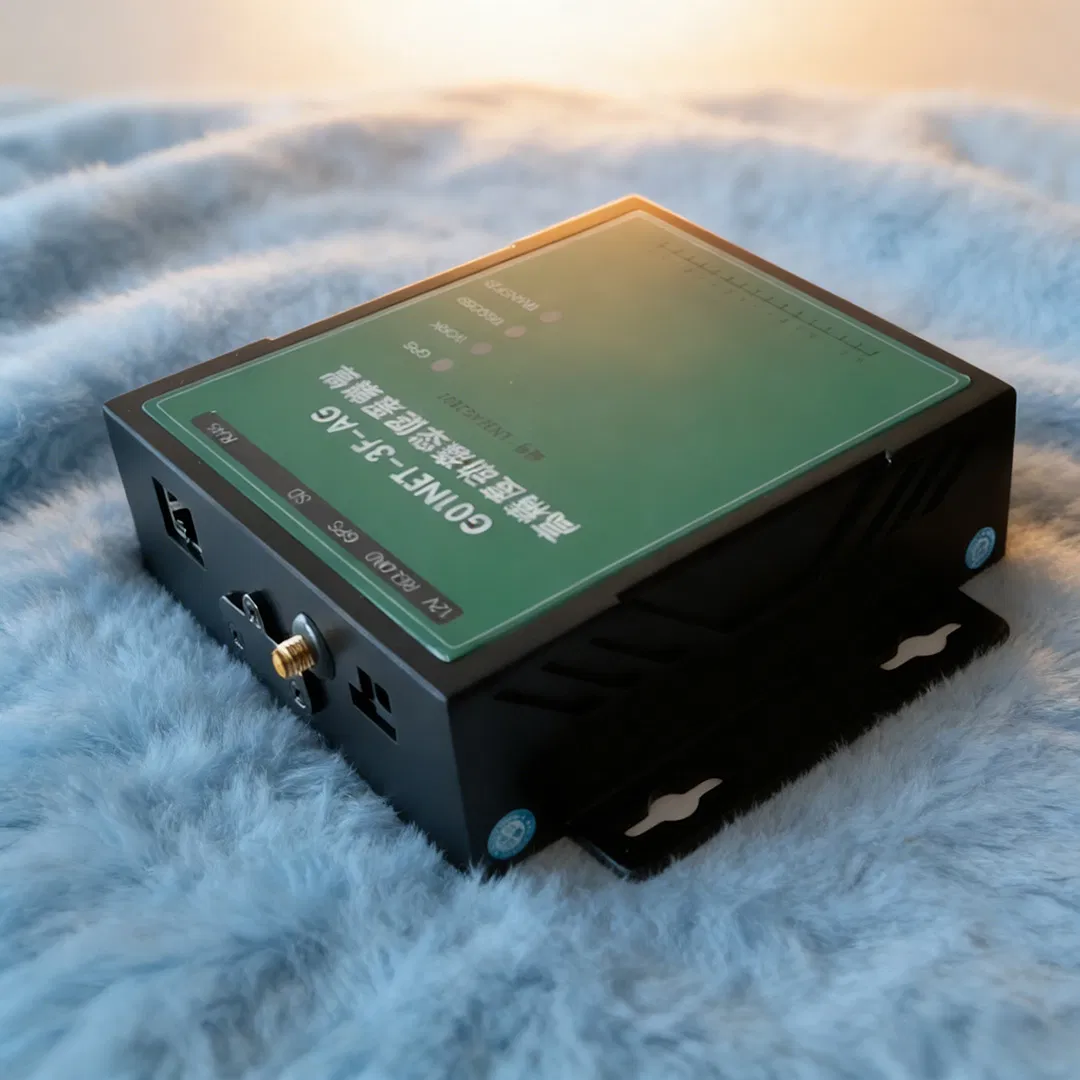

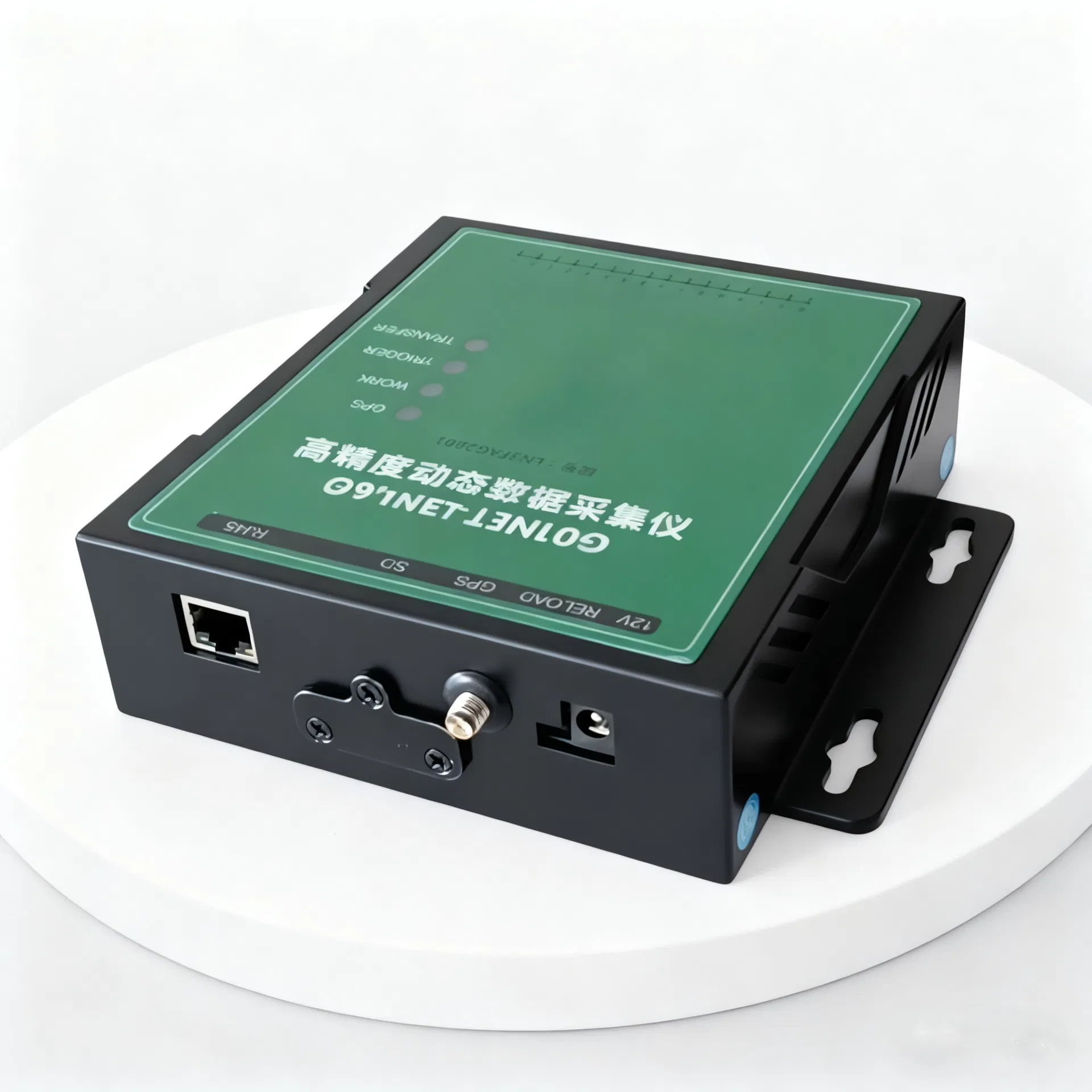

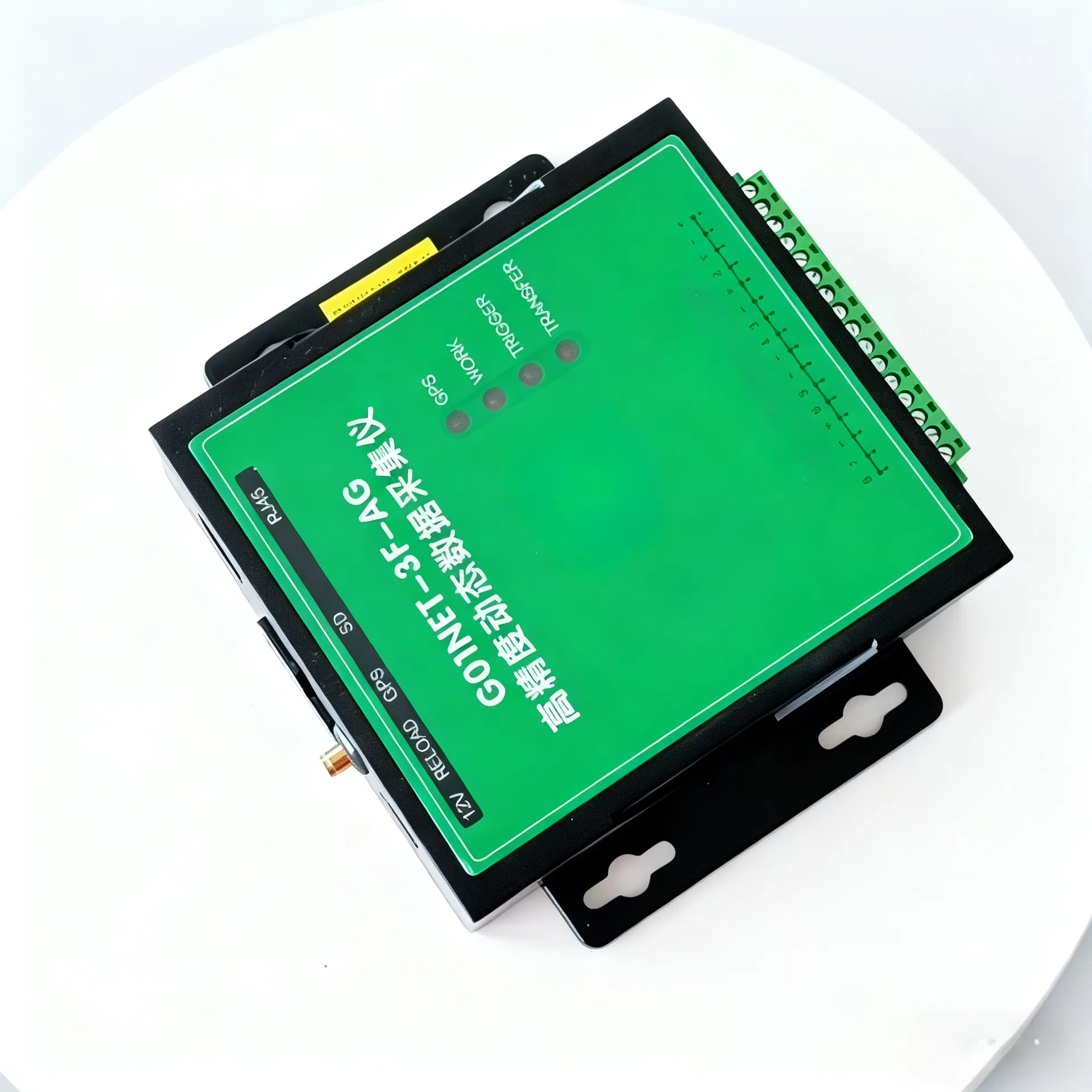

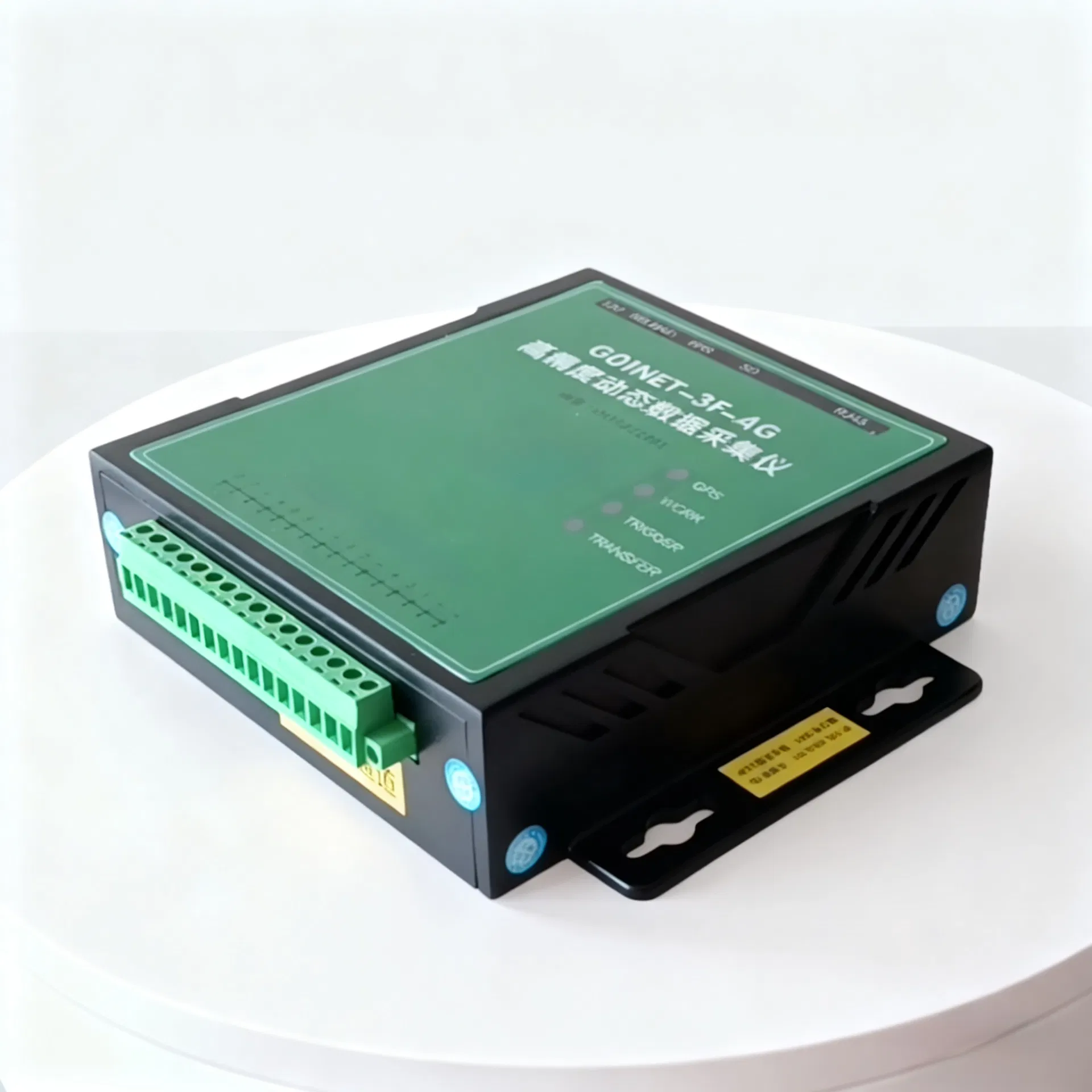

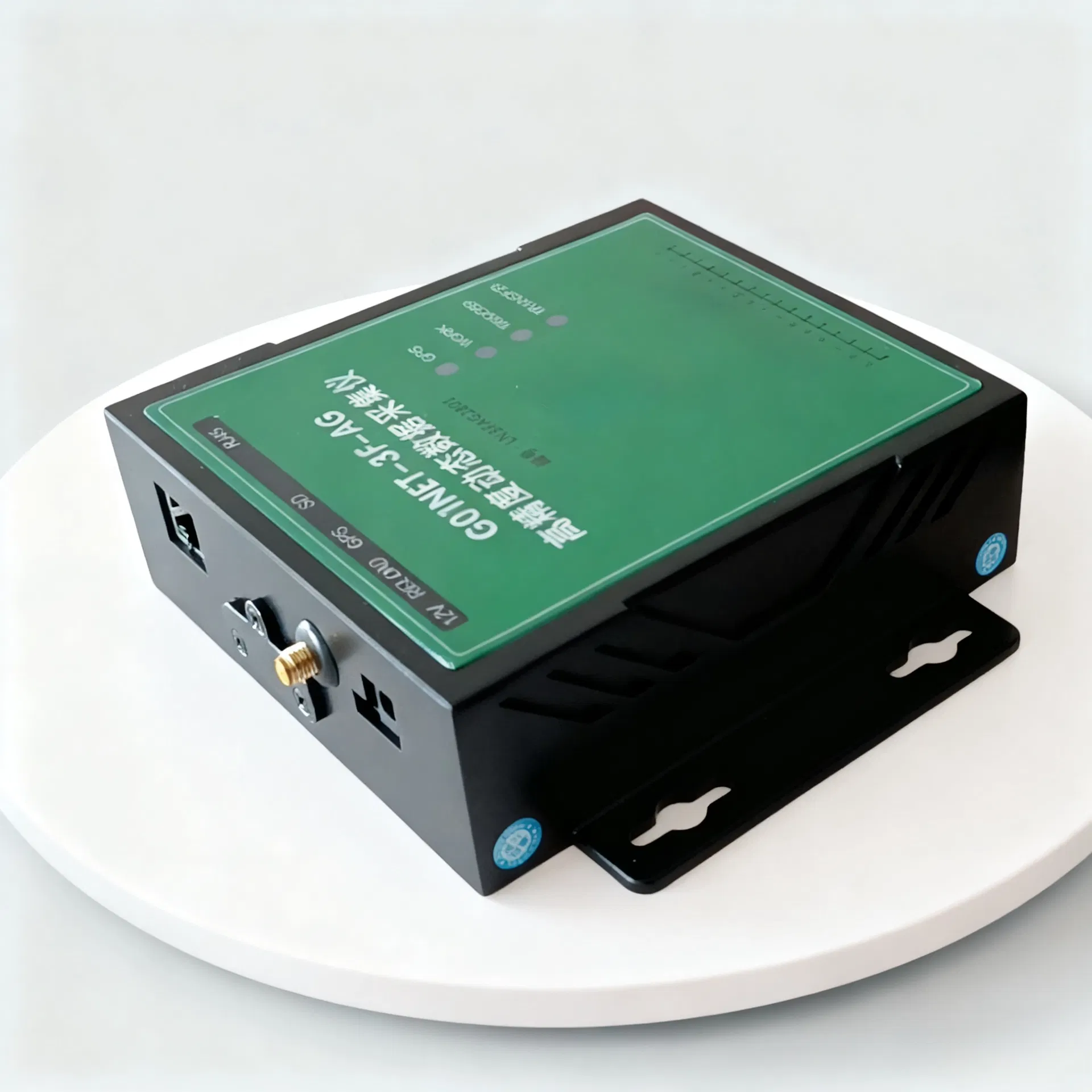

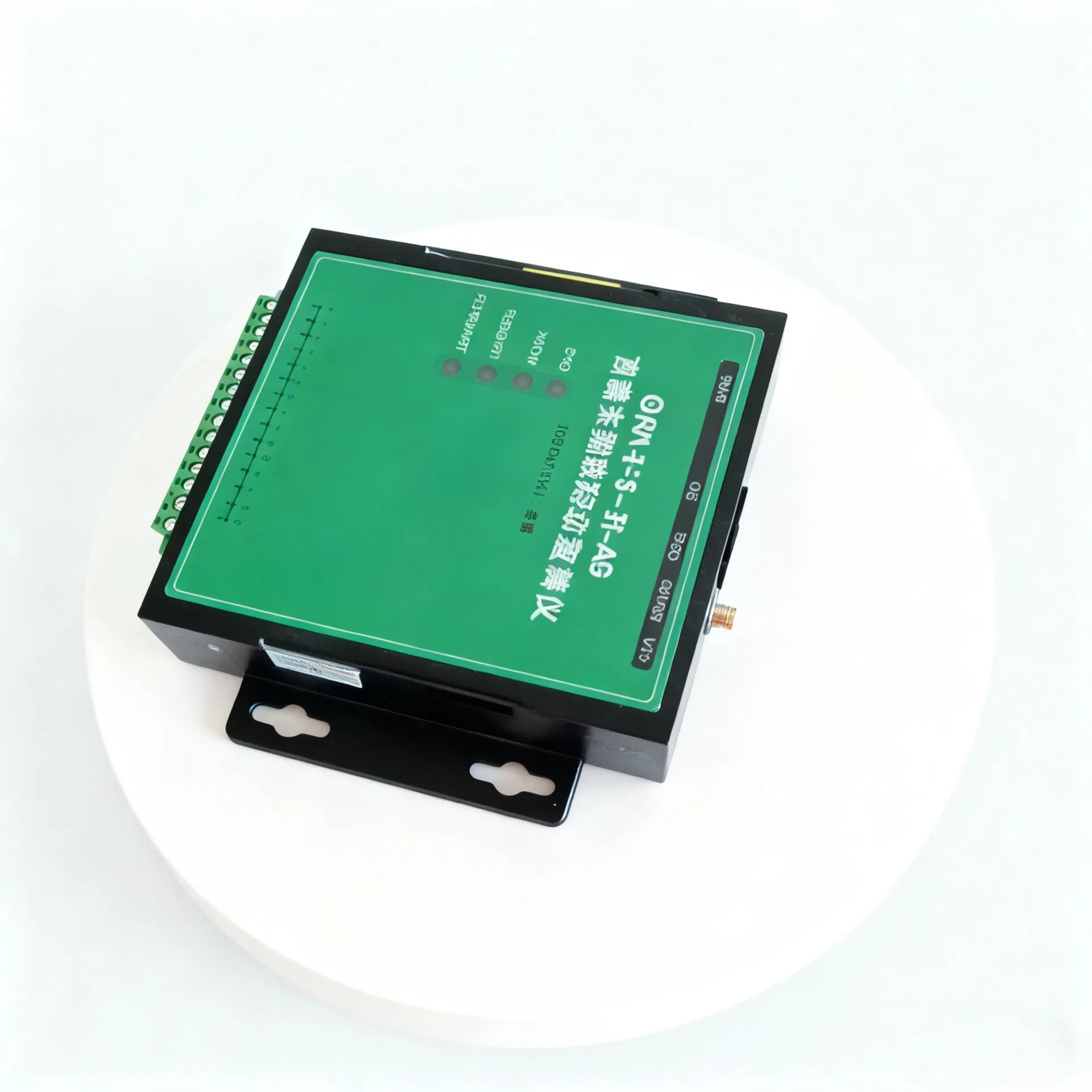

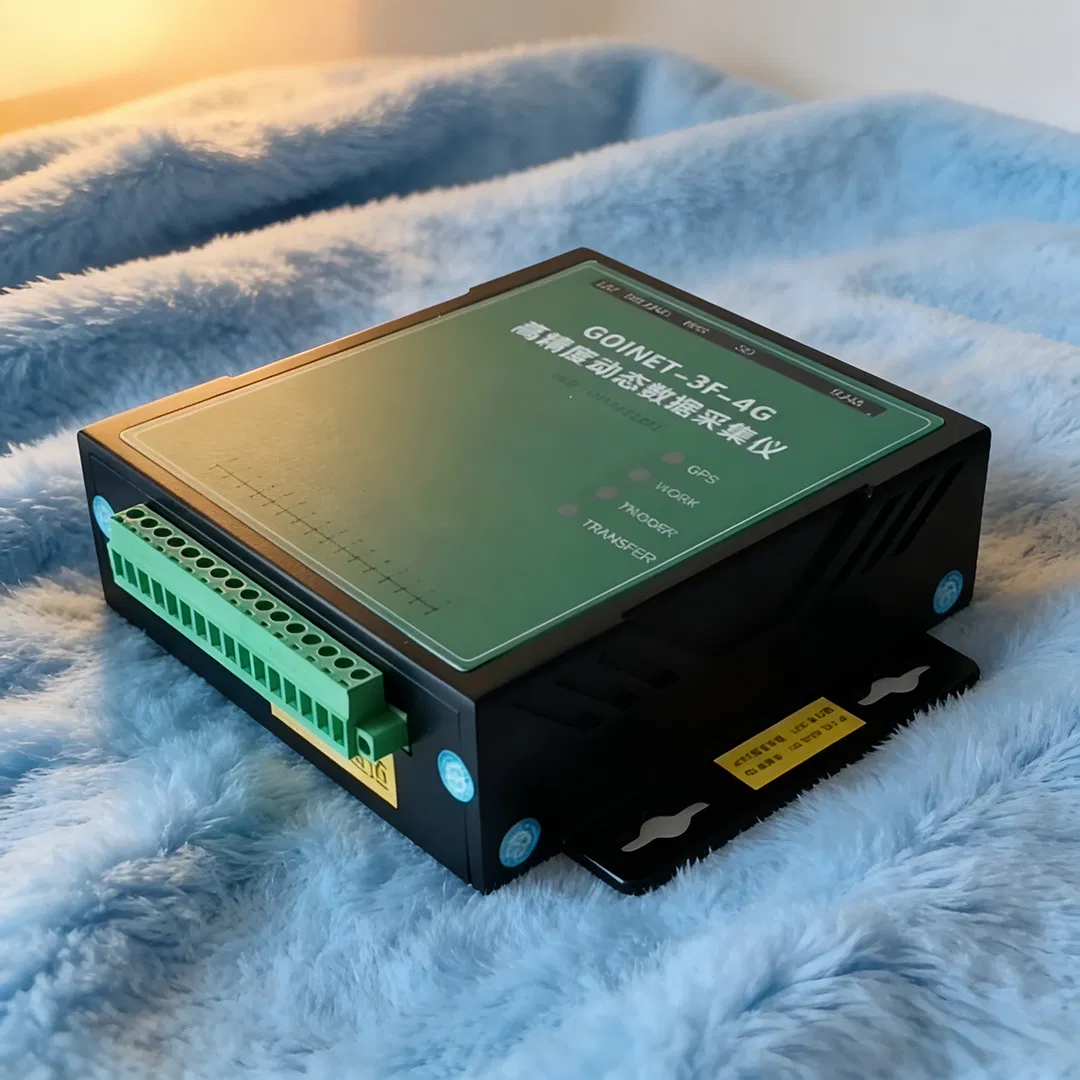

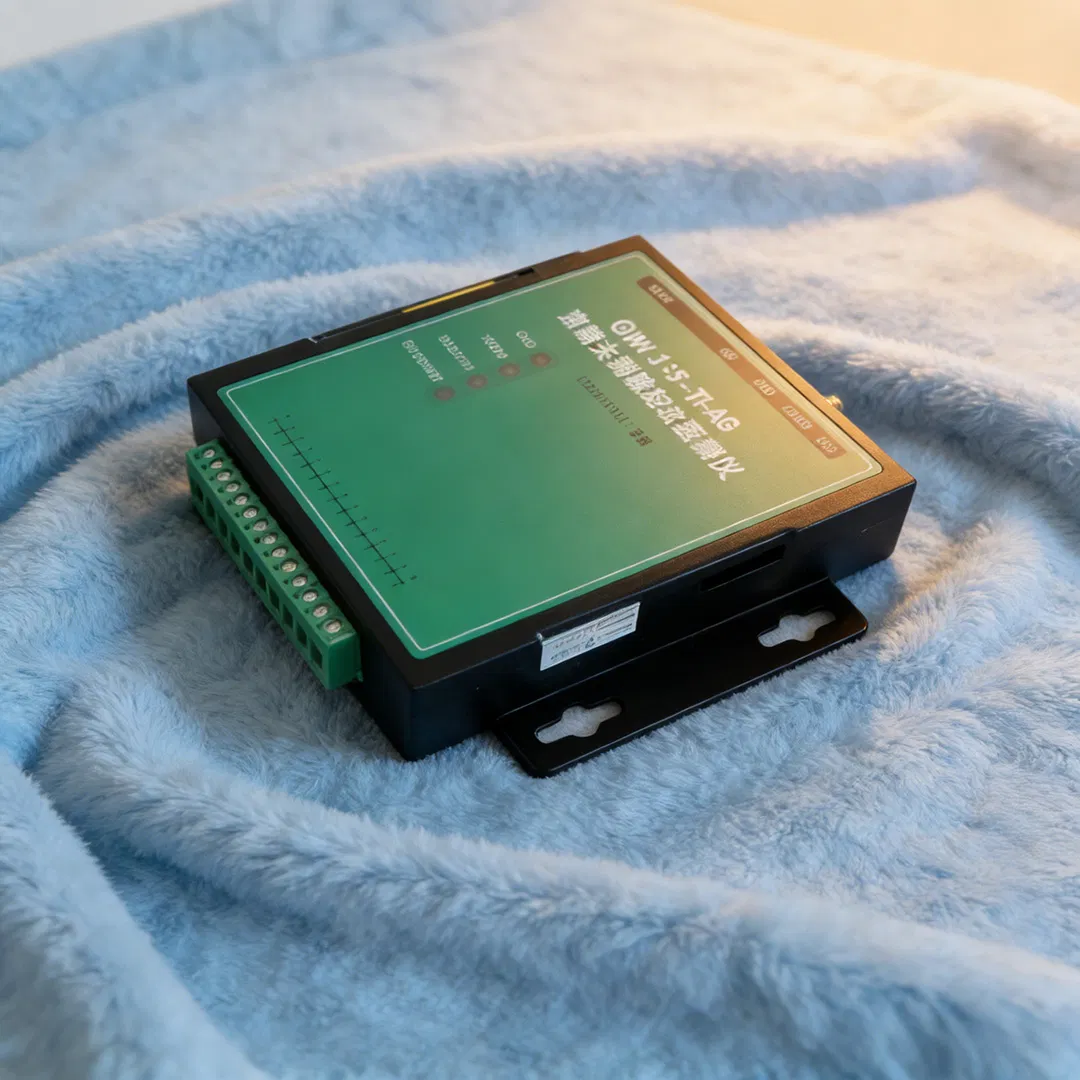

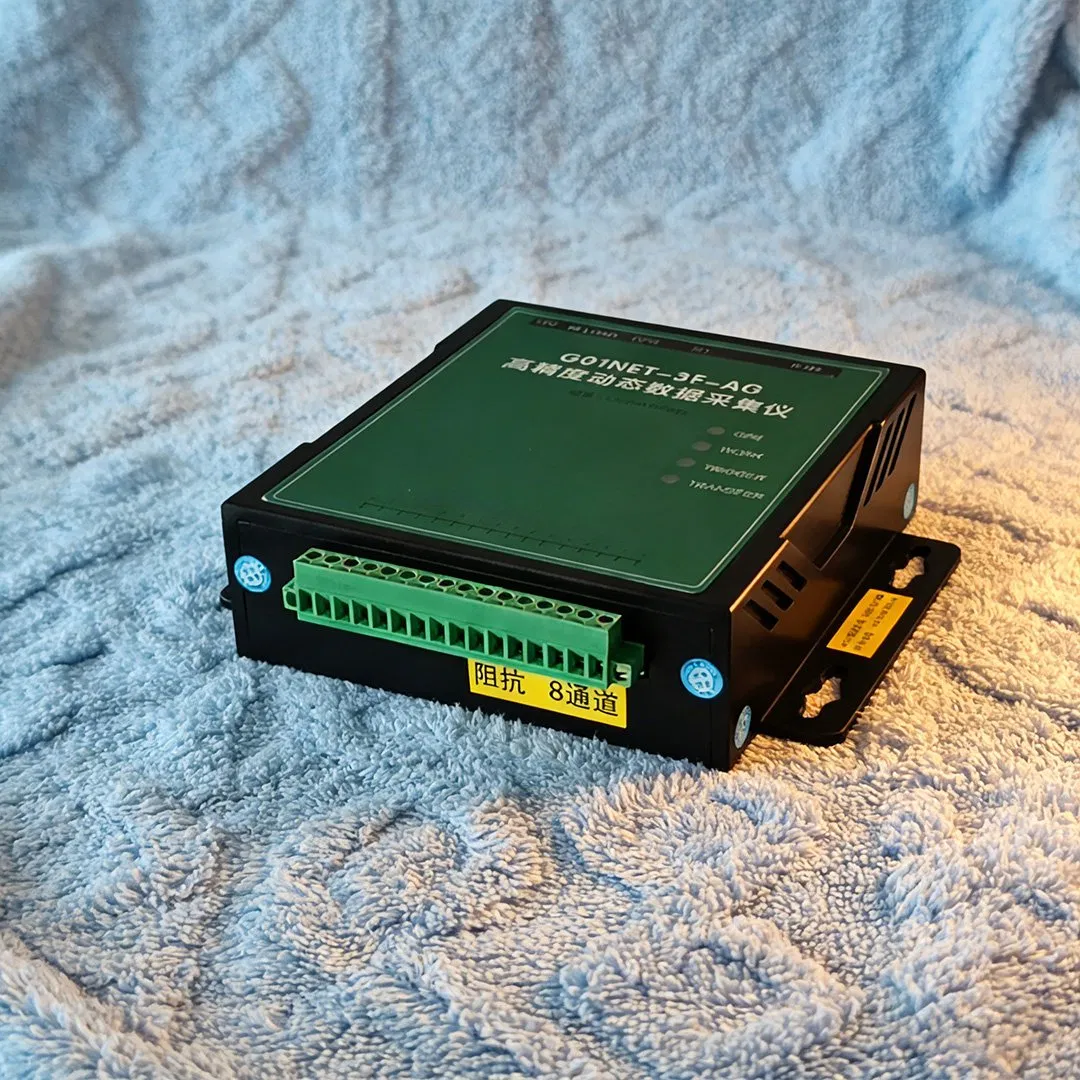

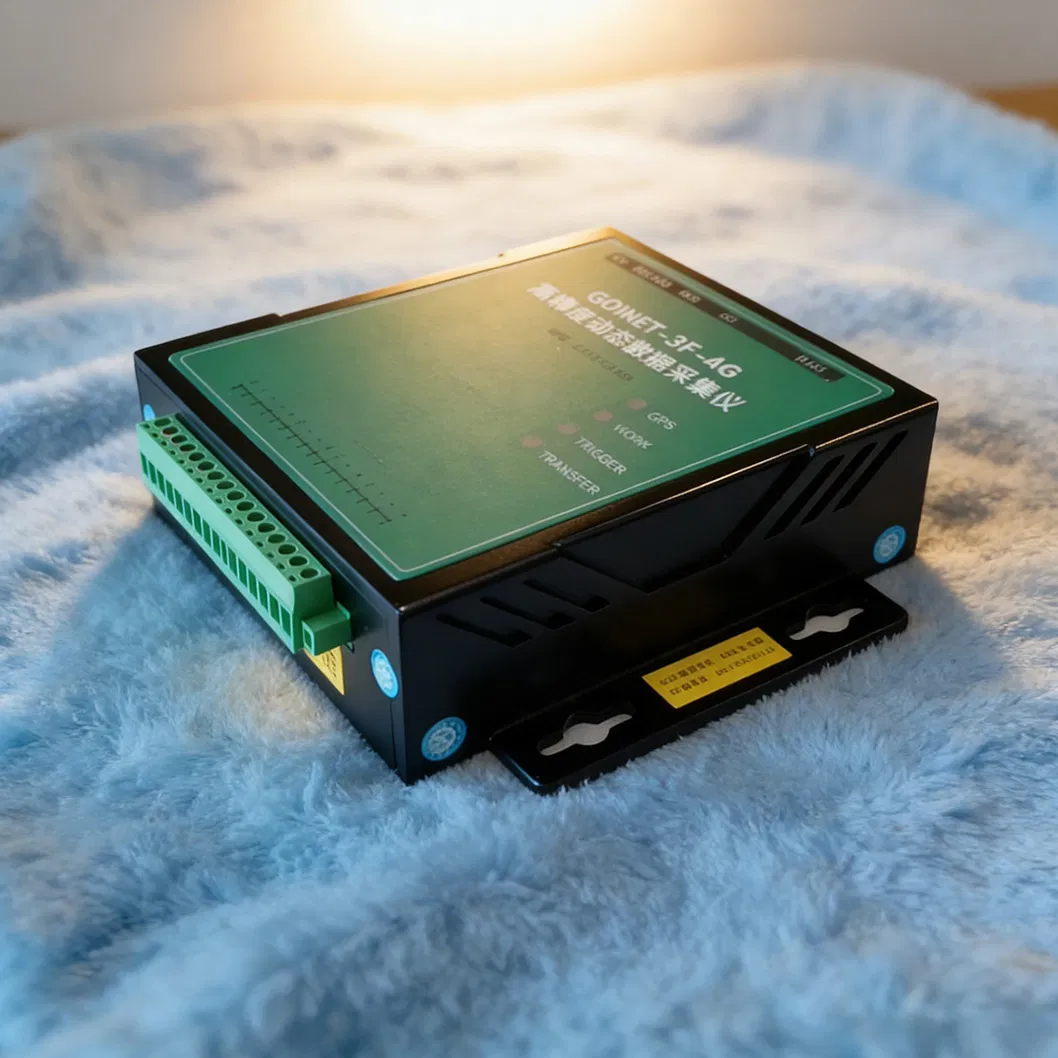

Product Display
Key Features & Advantages
Technical Specifications
Applications: Blasting monitoring, seismic monitoring, microseismic monitoring, and structural safety monitoring of buildings such as wind turbine towers.
| Packaging Size | 20.00cm * 20.00cm * 10.00cm |
| Gross Weight | 1.500kg |
| Dimensions (mm) | 172*160*44 (Mounting Hole Spacing: 153*68mm) |
| Input Impedance | 1MΩ |
| Storage Trigger | Amplitude-based trigger |

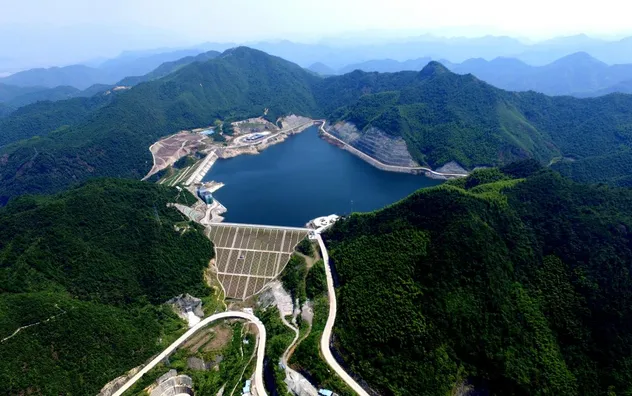

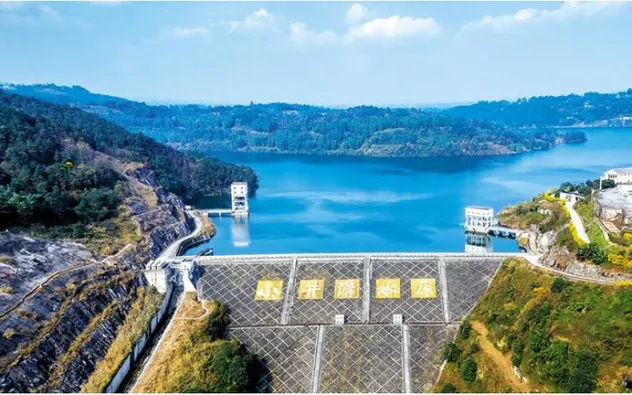

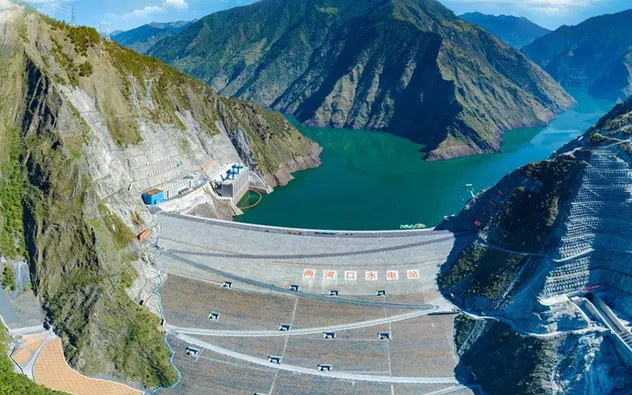

Project Cases
Professional Technical Support
Our team specializes in earthquake monitoring and structural safety monitoring. Integrating R&D, production, and sales, we provide professional solution design, objective selection consultation, stable product supply, and continuous technical support to ensure every solution is accurately implemented and operates stably.
