Application Overview:
The RDF series surge protector is suitable for low-voltage AC power distribution system. The AC power supply is connected in parallel with the requirement. It protects the equipment from the external environment (such as lightning and electromagnetic interference) or the system (such as the switching effect of the system, the start of inductive and capacitive loads, or shutdown) caused by the impact of surge and transient overvoltage.

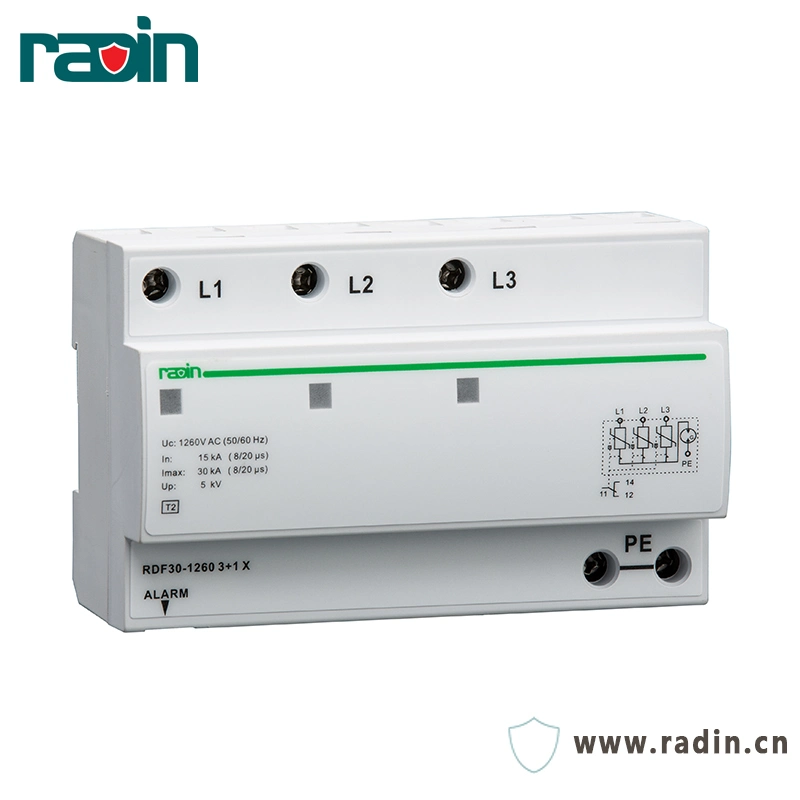

RDF30-1260-3+1 is mainly composed of three MOV power modules and one GDT module. It provides L-PE protection and can remotely monitor its operating status.
Key Features:
- Large discharge current capacity and low residual voltage
- Equipped with common mold/differential mold and reliable thermal trip protection device
- With fault indication and optional centralized remote signal alarm dry contact
- Fast response time, action within 20 nanoseconds
- Module design, easy to install and replace

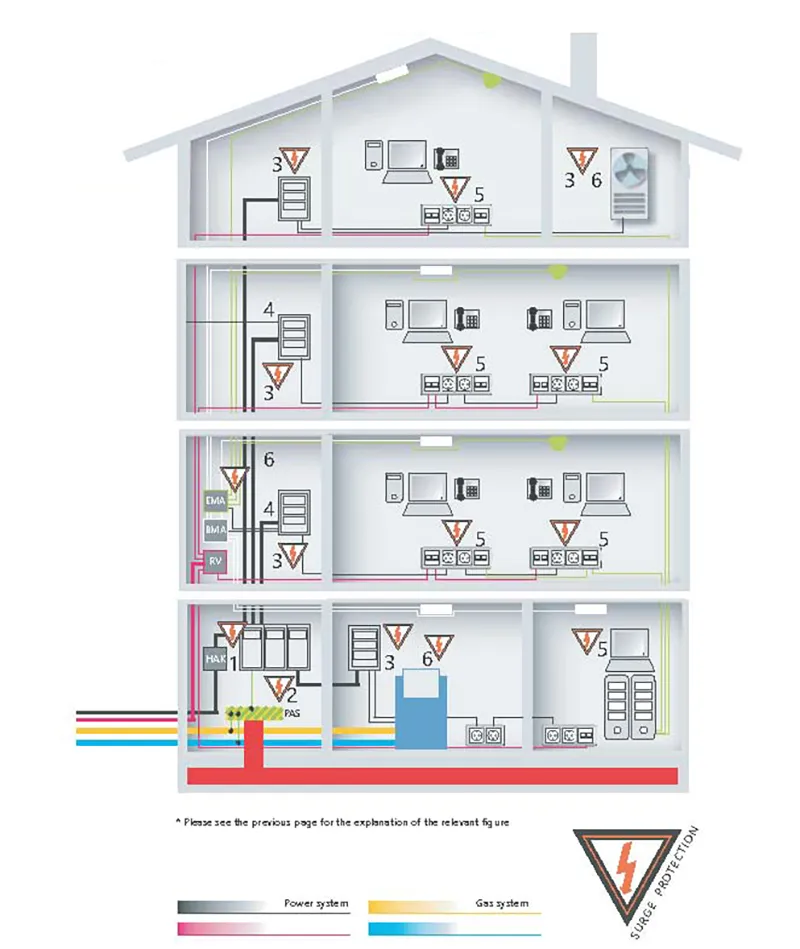

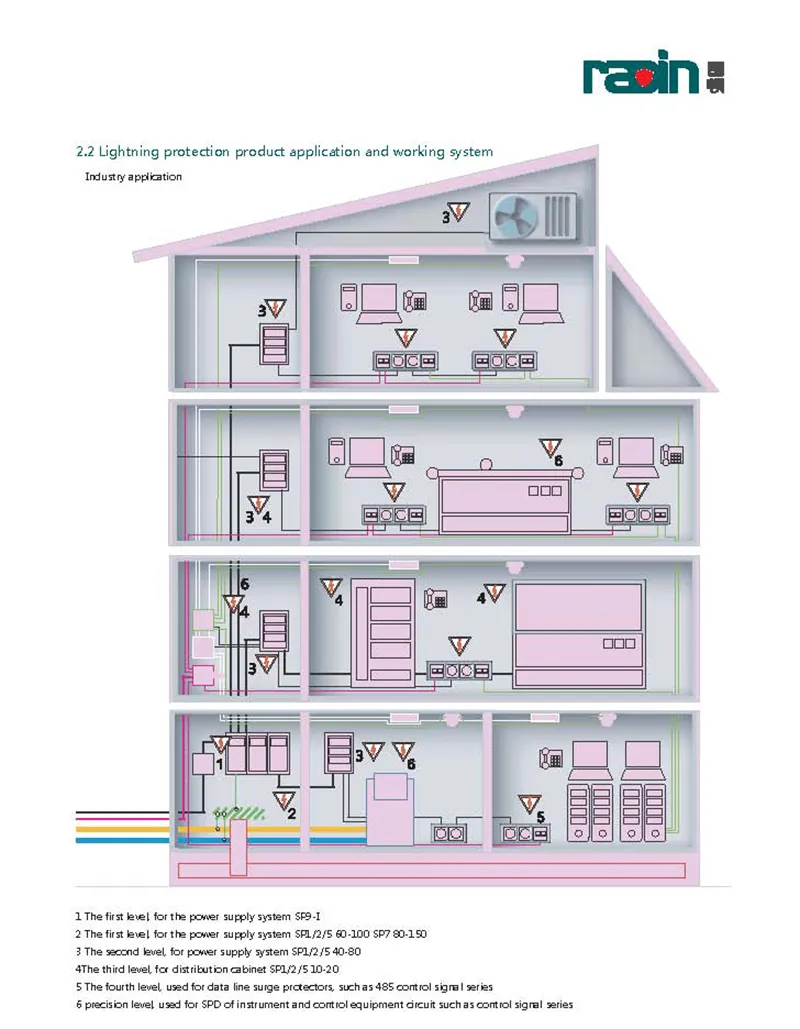

Industrial Application:
| Item |
RDF30-1260-3+1 |
| Nominal discharge current In(8/20us) | 5kA/10kA/15kA/20kA/25kA/30kA/40kA/50kA/60kA |
| Max discharge current In(8/20us) | 10kA/20kA/30kA/40kA/50kA/60kA/80kA/100kA/120kA |
| Max. continuous operating voltage Uc (V) | 600V/620V/660V/690V/760V/850V/1000V/1260V |
| Protection level Up (kV) | 5kV |
| Protection mode | L-PE |
| IP protection class | IP20 |
| Flame class | V0 |
| Case material | PBT/PA66 |
| Recommended fuse or circuit breaker (A) | 40-60 |
| Installation method | 35mm Rail mounting |
| Standards | IEC61643-11 |

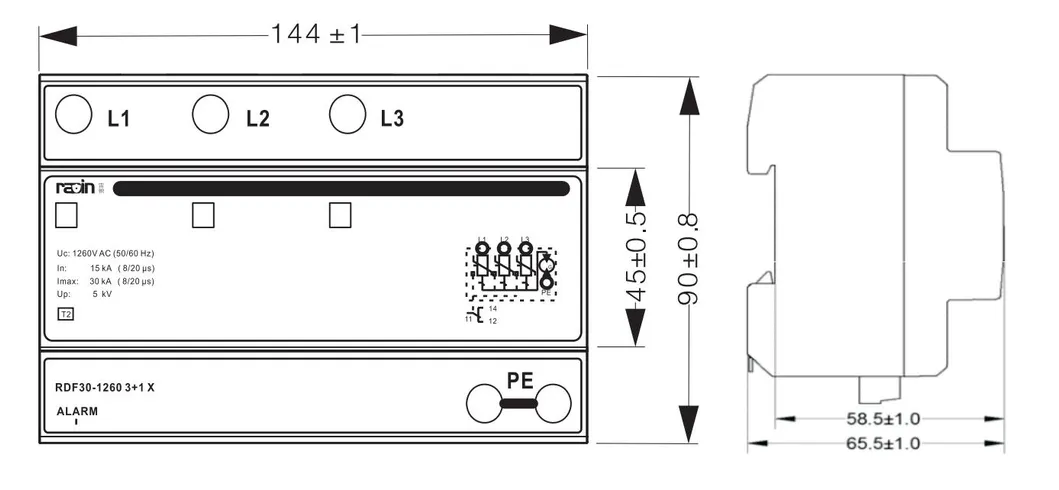

Dimensions Detail:
?
Frequently Asked Questions
What is the primary function of the RDF series surge protector?
It is designed to protect low-voltage AC power distribution systems from transient overvoltage caused by lightning, electromagnetic interference, or system switching operations.
How fast does the device respond to a surge?
The RDF30-1260 features a very fast response time, acting within 20 nanoseconds to ensure equipment safety.
What is the benefit of the modular design?
The modular design allows for easy installation on standard 35mm rails and simplifies the replacement process without requiring extensive rewiring.
Can this surge protector be monitored remotely?
Yes, the RDF30-1260-3+1 includes options for centralized remote signal alarm dry contacts for remote status monitoring.
What protection mode does this model use?
This specific model provides L-PE (Line to Protective Earth) protection mode.
What is the maximum discharge current capacity?
Depending on the specific configuration, it can handle a maximum discharge current (8/20us) ranging from 10kA up to 120kA.
