Basic Information
Weight
0.9kg (with Microphone)
Connection
Cat5 / CAT6 Cable + Snap
Specification
120W*140L*22H mm
Production Capacity
3000PCS/Month

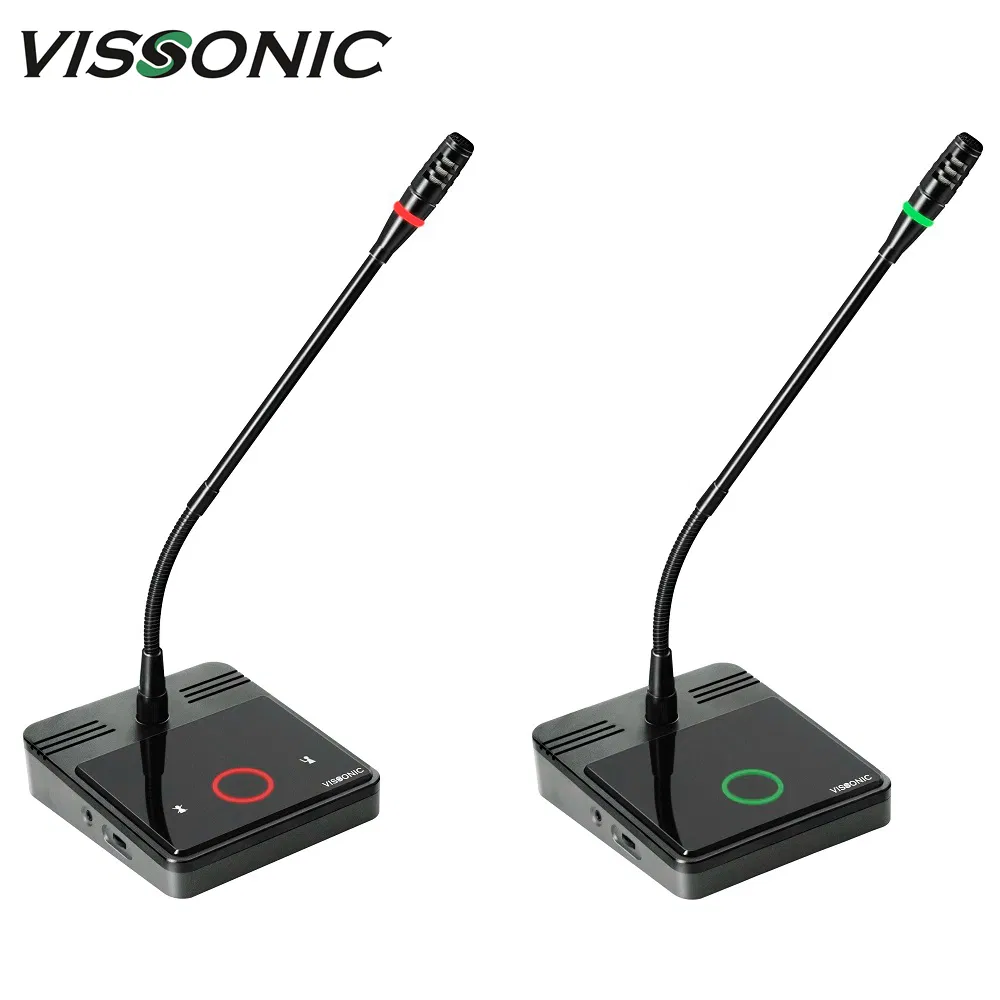

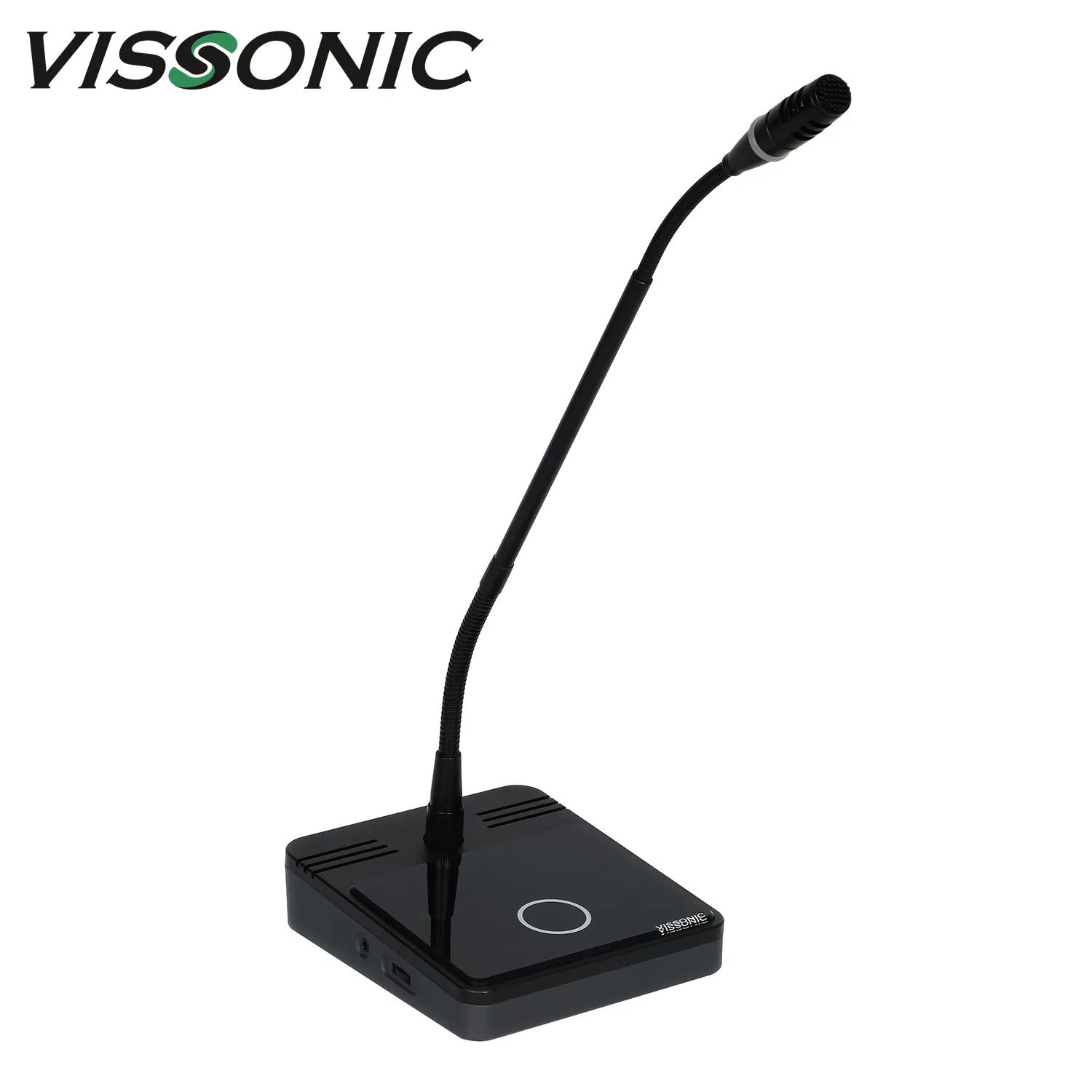

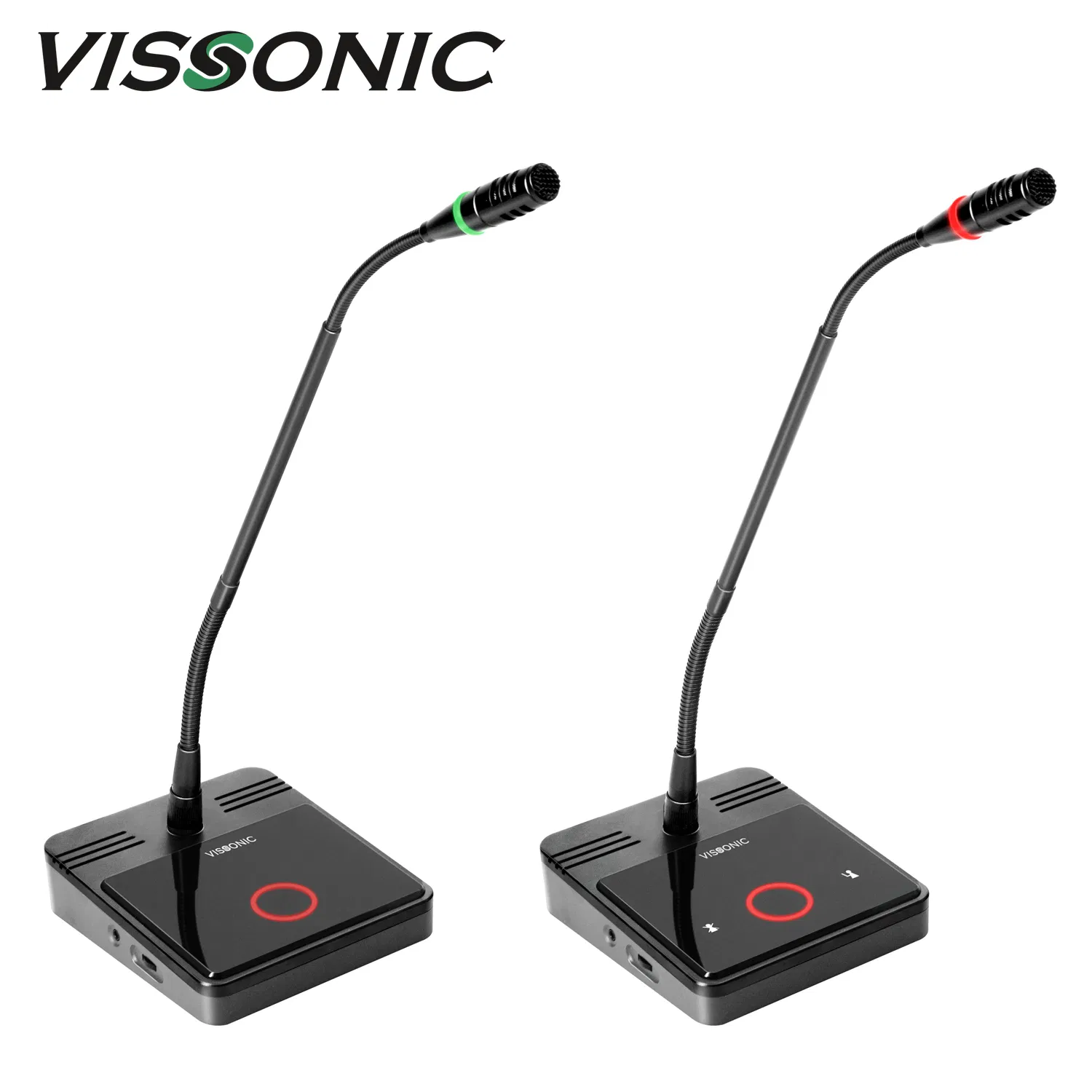

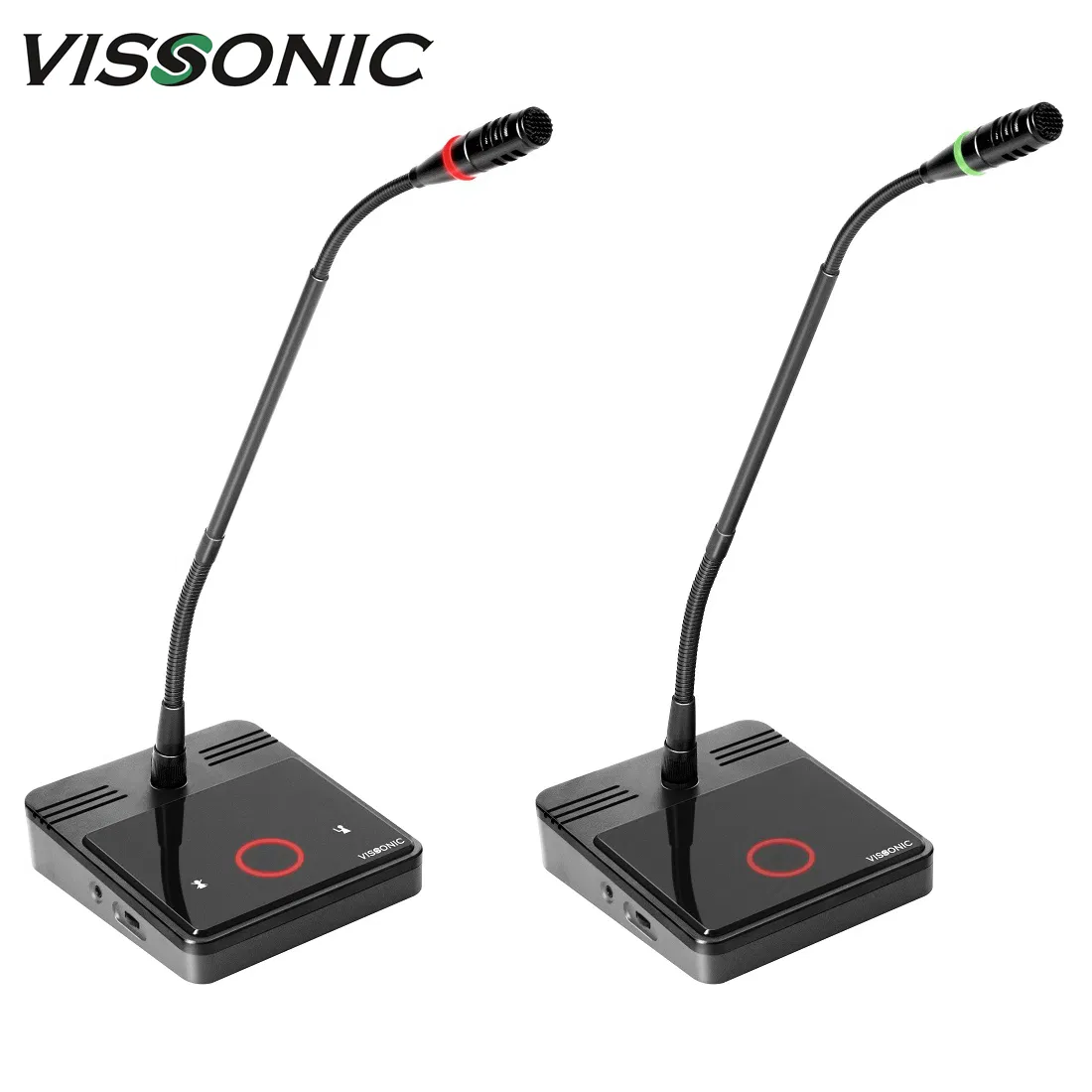

Full Digital Network Audio Conference System with Touch Button
Product Features
1
Stylish, low profile design with touchable interface.
2
Standard CAT5e and RJ45 connectors for convenient installation and maintenance.
3

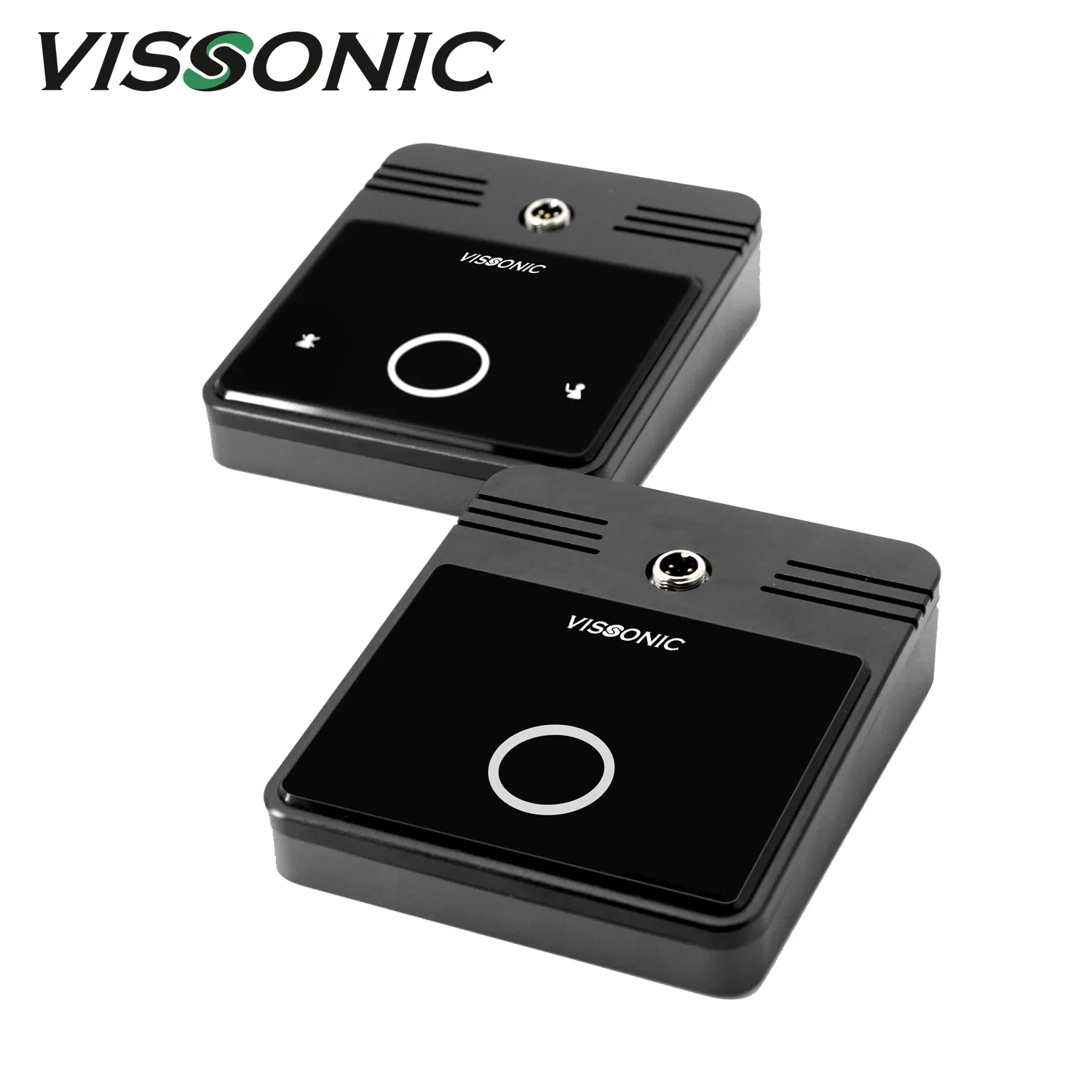

Hidden connection design (underneath or rear) for versatile mounting options.
4
Internal high-fidelity loudspeaker for clear audio reproduction.
5
Dual head-set interfaces with volume adjustment on both sides.
6
Line-in interface for external devices like cell phones and laptops for teleconferencing.
7
AUDIO-LINK digital ring network technology for interference-free transmission.
8

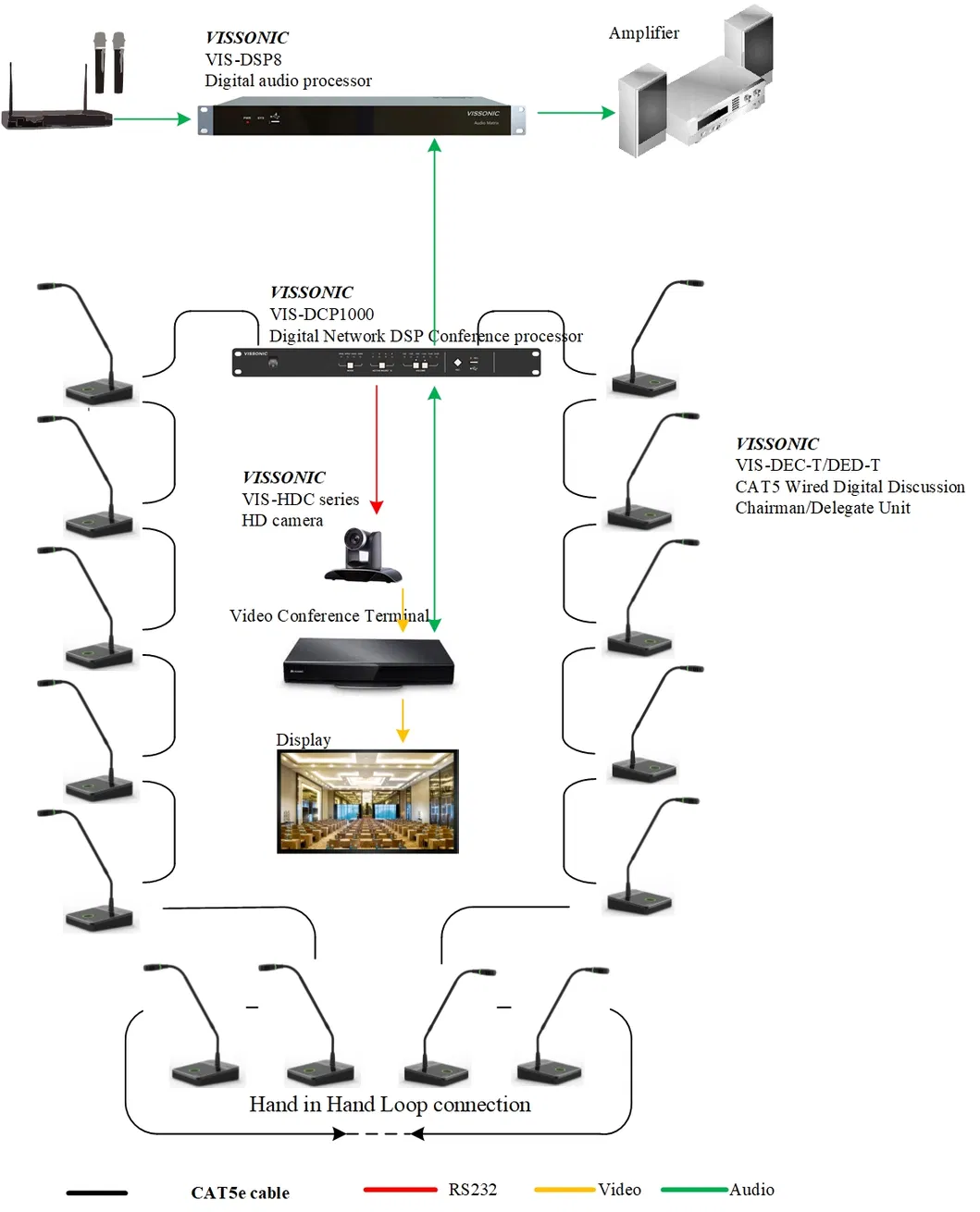

Hand-in-Hand-Loop-Network connection for enhanced system robustness.
9
Independent 16-level equalizer (EQ) and sensitivity adjustment for each unit.
10
VIP delegate support (up to 32 units) with free-speaking capabilities.
Technical Parameters
| Button | Touchable interface, no physical buttons |
| Sound Pickup | Heart type capacitance |
| Sensitivity | -46 dBV / Pa |
| Max Power Consumption | 2.0W |
| Directivity | 0 ° / 180 ° > 20 dB (1 kHz) |
| Headphone Load / Vol | 16Ω / 10mW |
| Headphone Jack | 3.5mm stereo |
| SNR | 70dB |
| Frequency Response | 20 ~ 20000Hz |
| Equivalent Noise | 20dBA (SPL) |
| Operating Temp | 0 ºC to + 55 ºC |
| Color | Black |
| Max Sound Pressure | 125dB (THD < 3%) |
| Dimension | 120W × 140L × 22Hmm (without mic) |

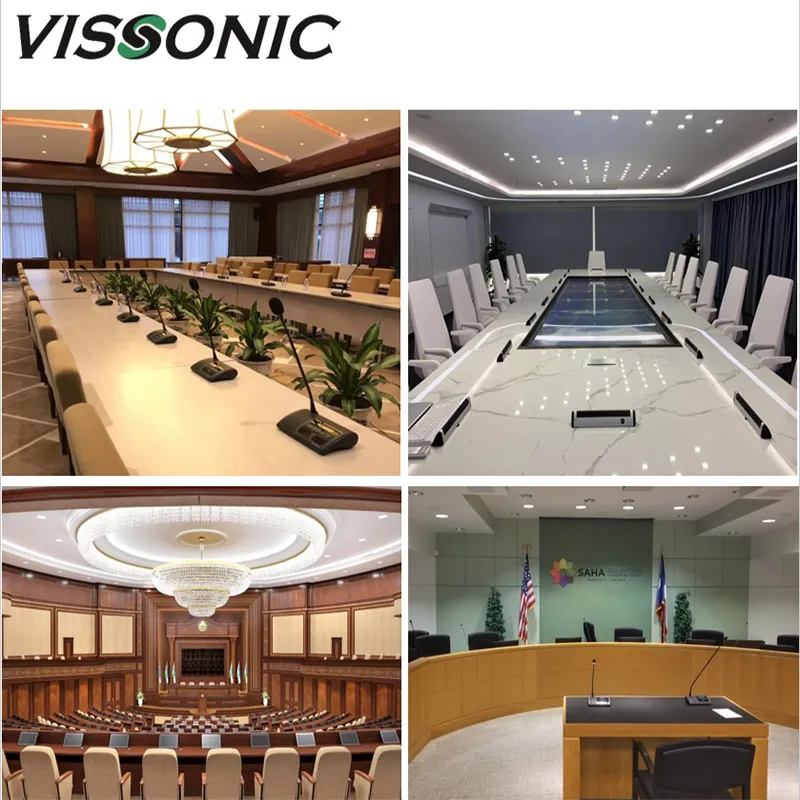

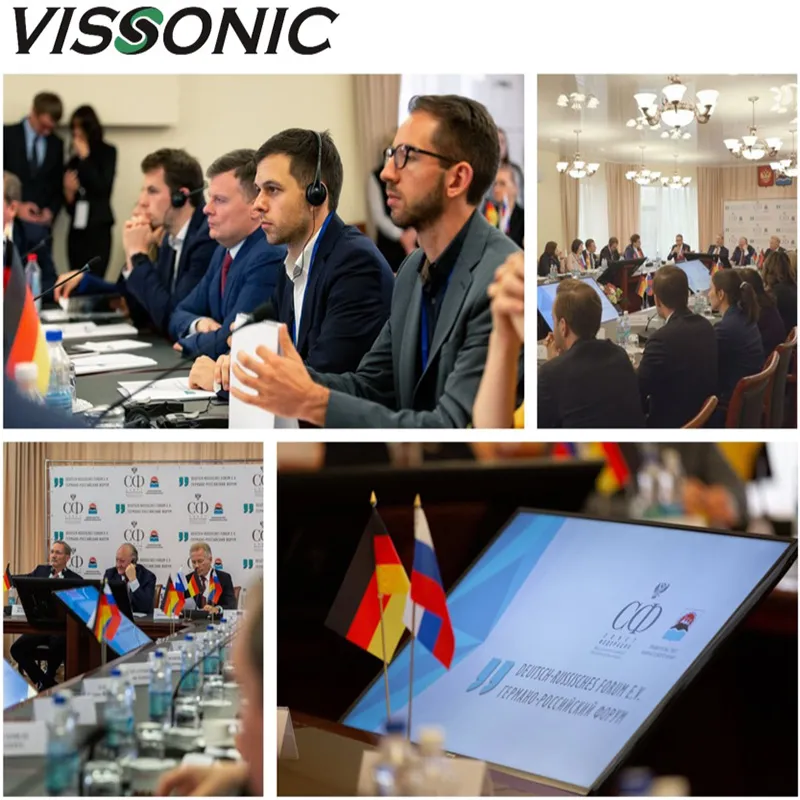

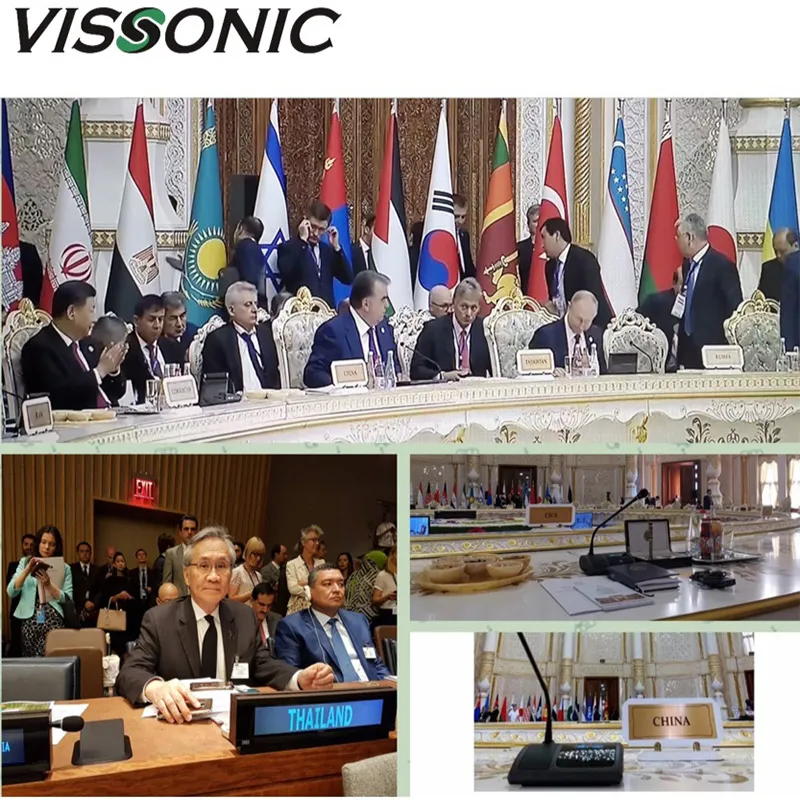

Applications
Frequently Asked Questions
What type of cabling is required for this conference system?
The system uses standard CAT5e or CAT6 cables with RJ45 connectors, making it easy to install and maintain for various project scales.
Does the unit support external audio input?
Yes, it features a Line-in interface that allows audio from cell phones or laptops to pass through, which is ideal for remote teleconferencing.
How does the system prevent interference from mobile phones?
It utilizes unique AUDIO-LINK digital ring network technology for full-digital signal transmission, effectively avoiding RF interference from mobile devices.
Can I adjust the audio settings for individual microphone units?
Yes, the microphone sensitivity of each unit and a 16-level equalizer (EQ) can be adjusted independently to ensure optimal sound quality.
What is the VIP delegate feature?
You can designate up to 32 units as VIP delegates. These units can open their microphones to speak freely as long as no more than 8 units are active simultaneously.
Are there physical buttons on the microphone unit?
No, the unit features a stylish, low-profile design with a completely touchable interface, enhancing durability and aesthetics.
