Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
1 / 5
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)
Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)

Medical Digital Ward Wired Nurse Call System for Patient Health Care (THR-NW860)

Customization: Available
Customized: Customized
Certification: CE, ISO13485
Send Inquiry

Product Description

📋

Basic Information

Model NO.
THR-NW860
Scale
Medium
Type
Medical Call System
Host Capacity
40PCS/50PCS/60PCS
Max Communication
Not Less Than 400m
Host Dimensions
570*420*35mm
Weight
2.6kg
Wire Connection
Two-Wire
Two-Way Duplex Calls
Yes
Volume Adjustable
Yes
Three Level Setting
Yes
Broadcasting Functions
Available
Date & Time Display
Yes
Production Capacity
50000 pieces / Year
🏥

Product Description

Hospital Nursing Products Nurse Calling System

Model: THR-NW860

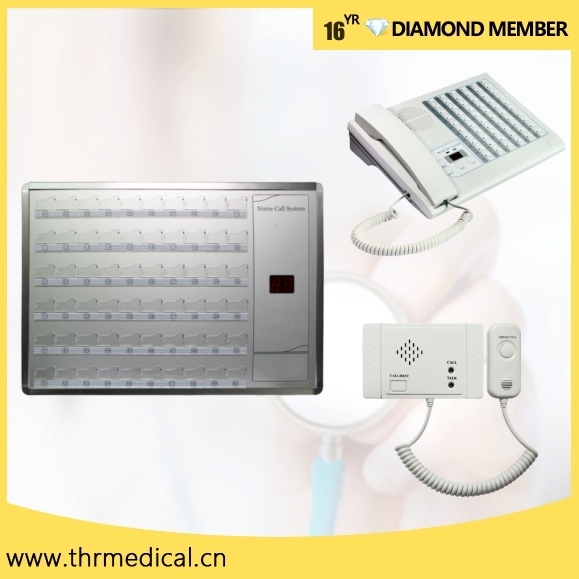

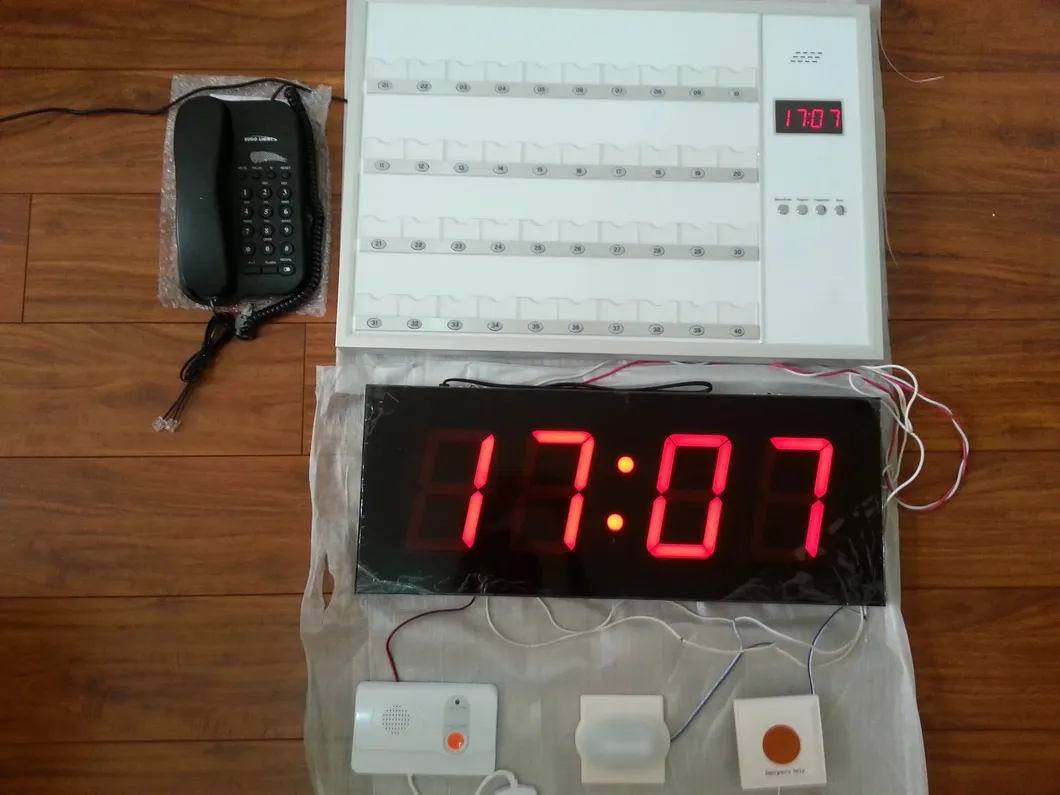

Nurse Call System Master Machine
  • When a patient calls the nurse, the Master Machine provides audible and visible notice. The calling room indication lamp lights up with a music alarm, and the screen displays the calling extension number.
  • If installed with a door lamp and corridor display, the ward room's door lamp turns on and the corridor display shows the extension number simultaneously.

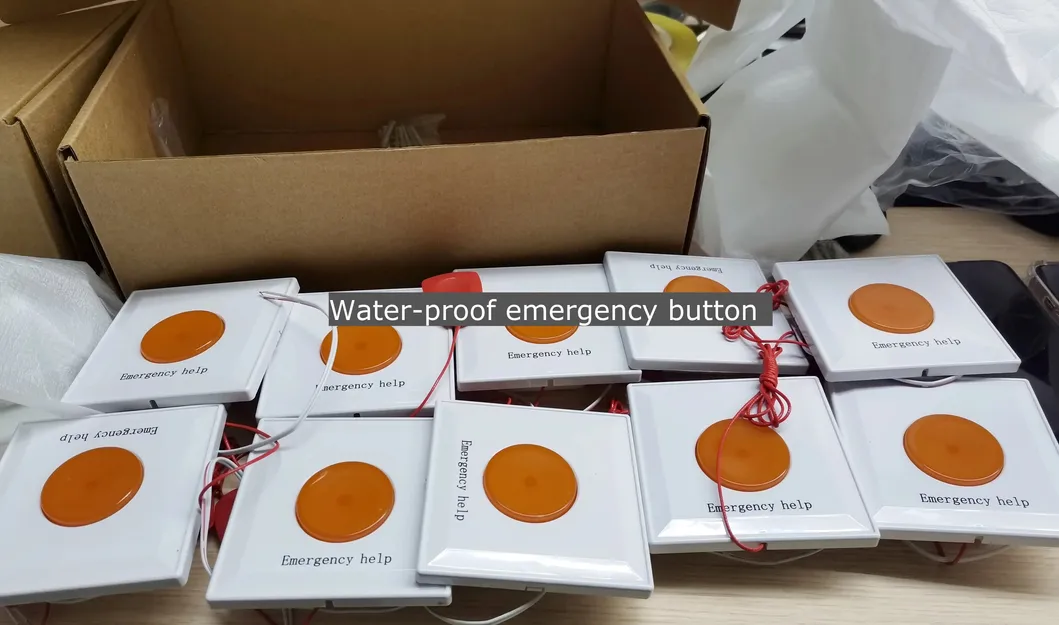

  • Standard configuration includes the Nurse Master and Bedside Extension. Optional additions include Emergency Extensions, Door Lamps, Corridor Displays, and Management Systems.

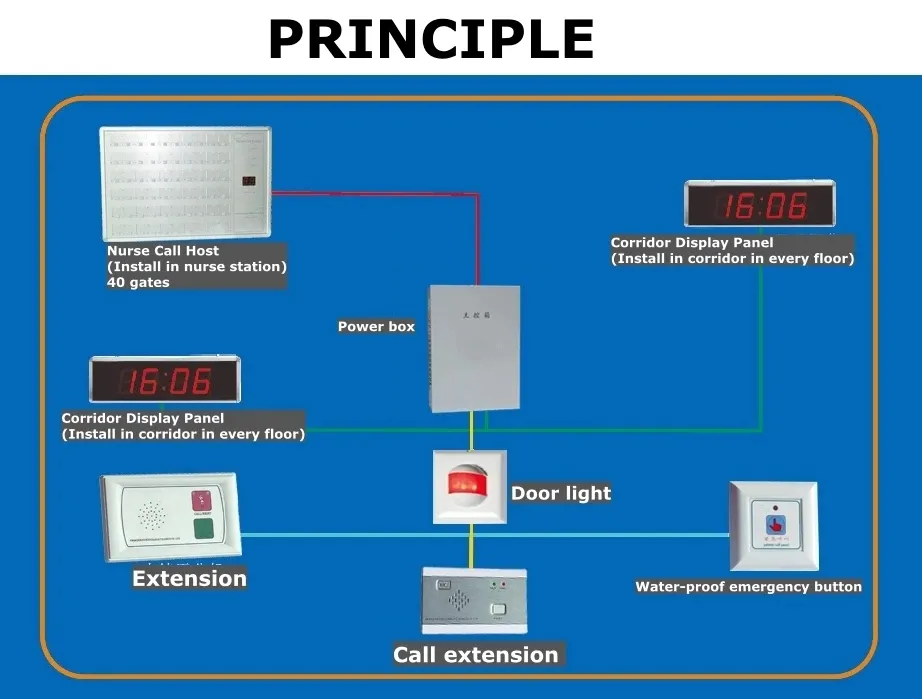

System Interface
System Panel

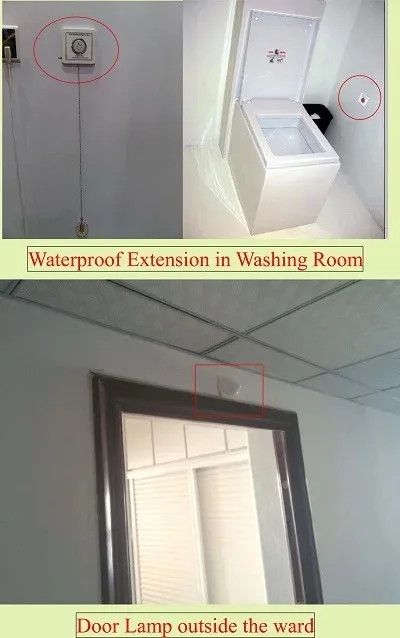

Extension Unit 1
Extension Unit 2

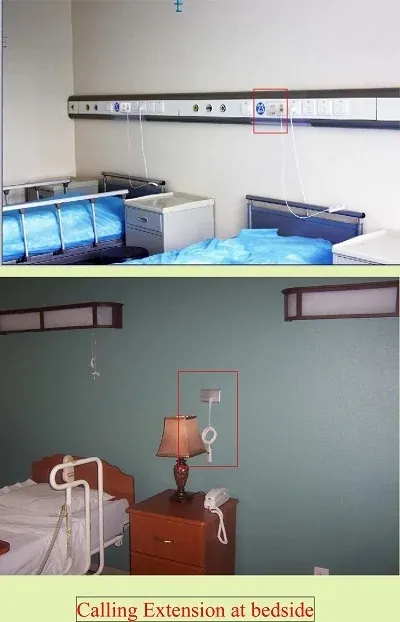

Extension Unit 3

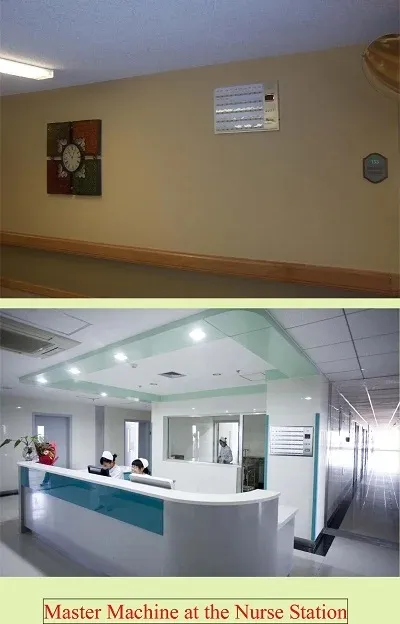

Extension Unit 4
⚙️

Core Functions

Two-way Calling: Supports duplex communication between host and extensions.
Multifunctional Display: Shows nursing class, time, and bed serial numbers.
3-Class Care Settings: High (Red light), Medium, and Low-level settings.
High Priority: Urgent calls interrupt standard calls automatically.
Volume Adjustment: 16 adjustable levels with day/night auto-switching.
Chord Music: Different extensions can have unique musical ringtones.
Call Storage: Reserves up to 1500 call records for later review.
Self-Test Alarm: Automatic system diagnosis for voltage and digital display errors.

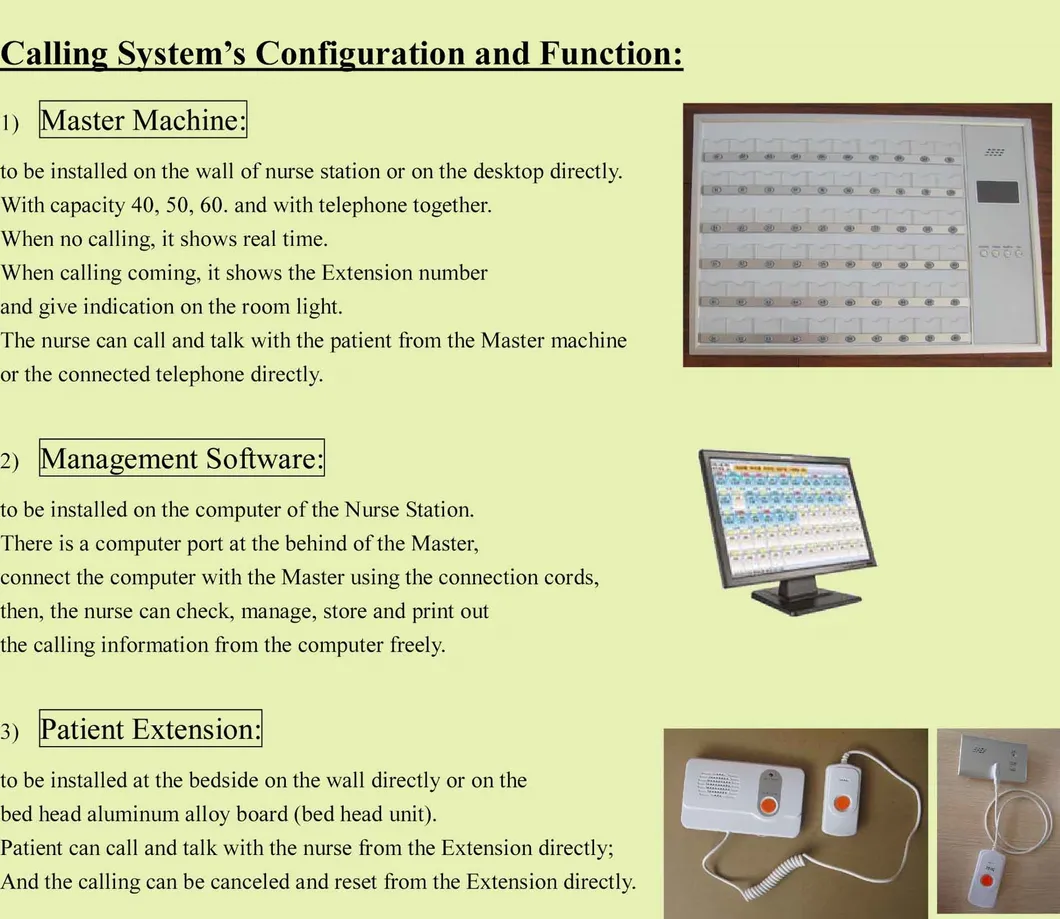

System Overview
System Layout
🔌

System Components

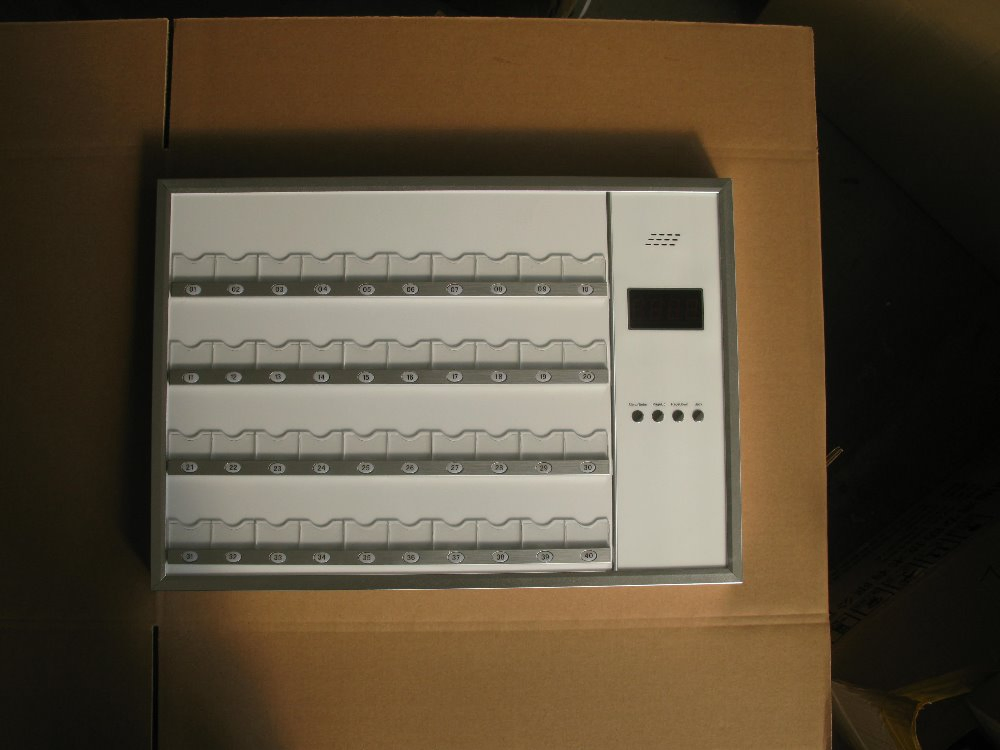

Nurse Call Host (40 Gates Configuration)

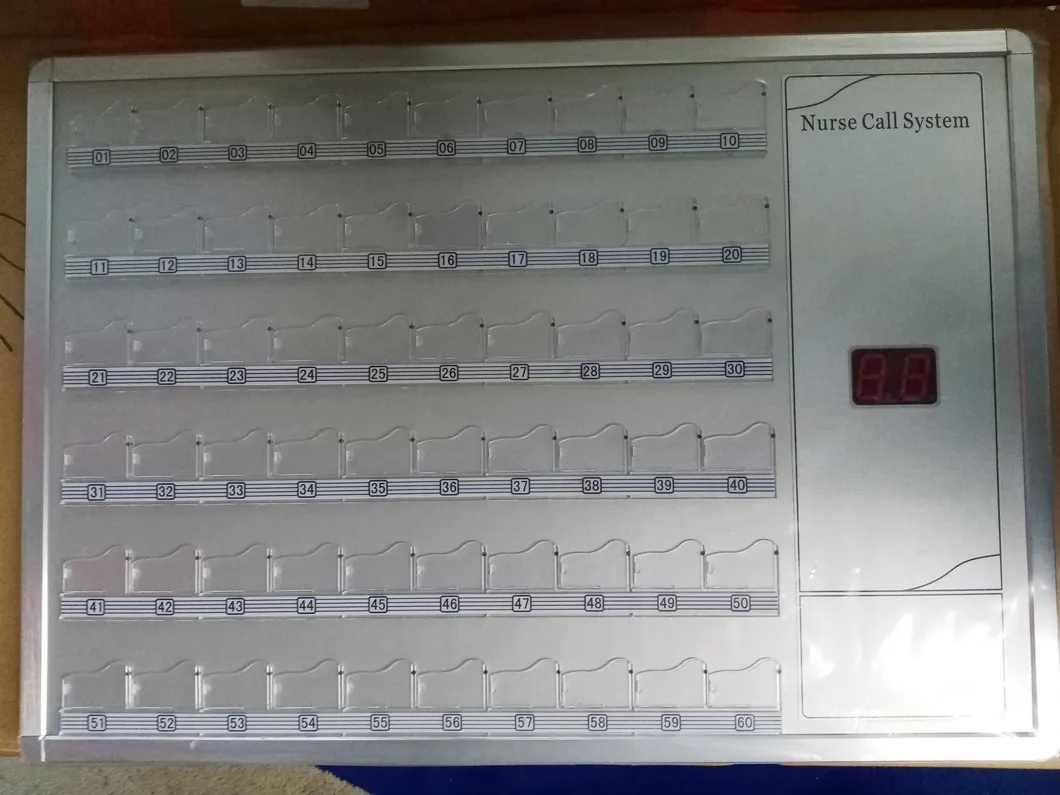

Host Front

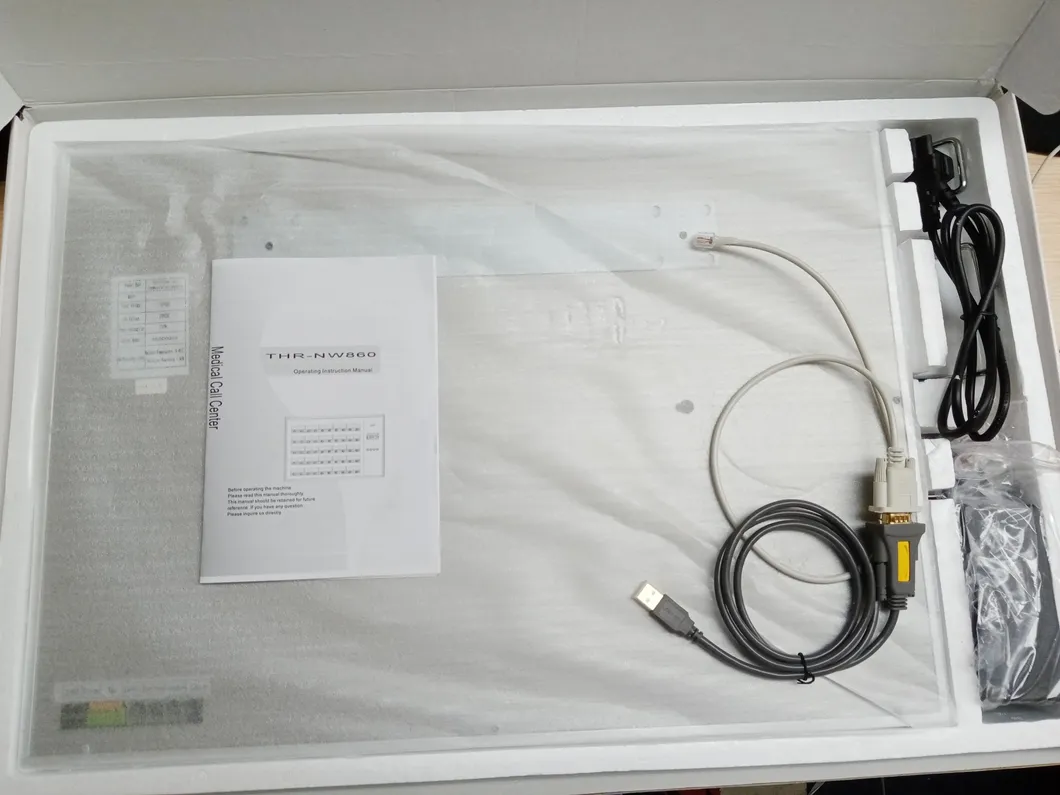

Host Back

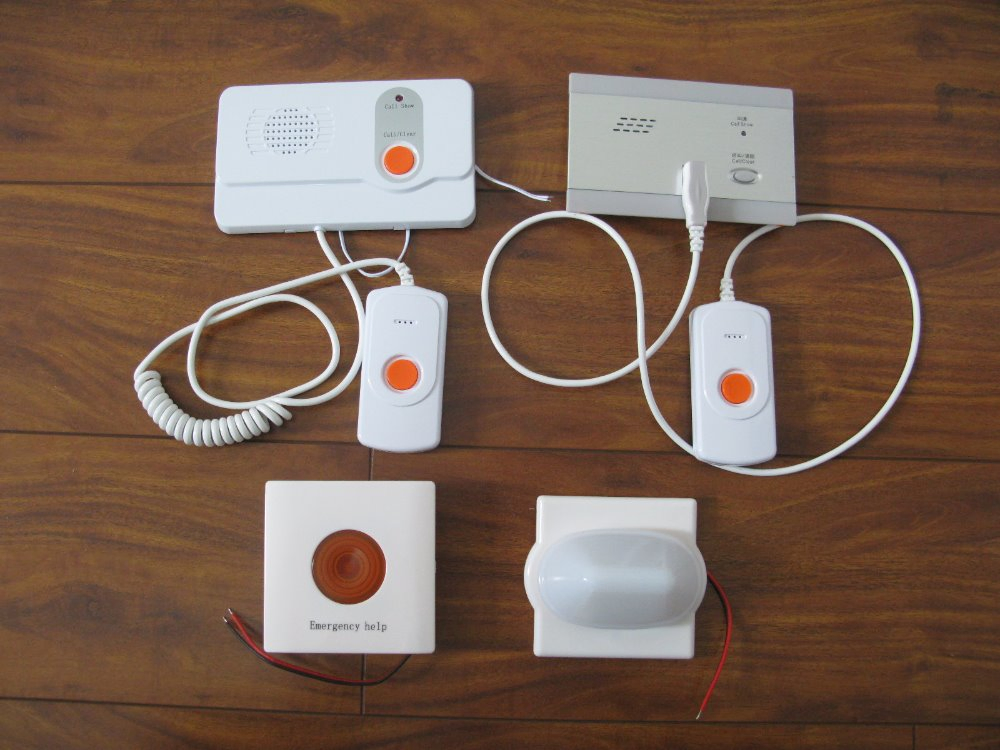

Bedside Extension (70cm Cord)

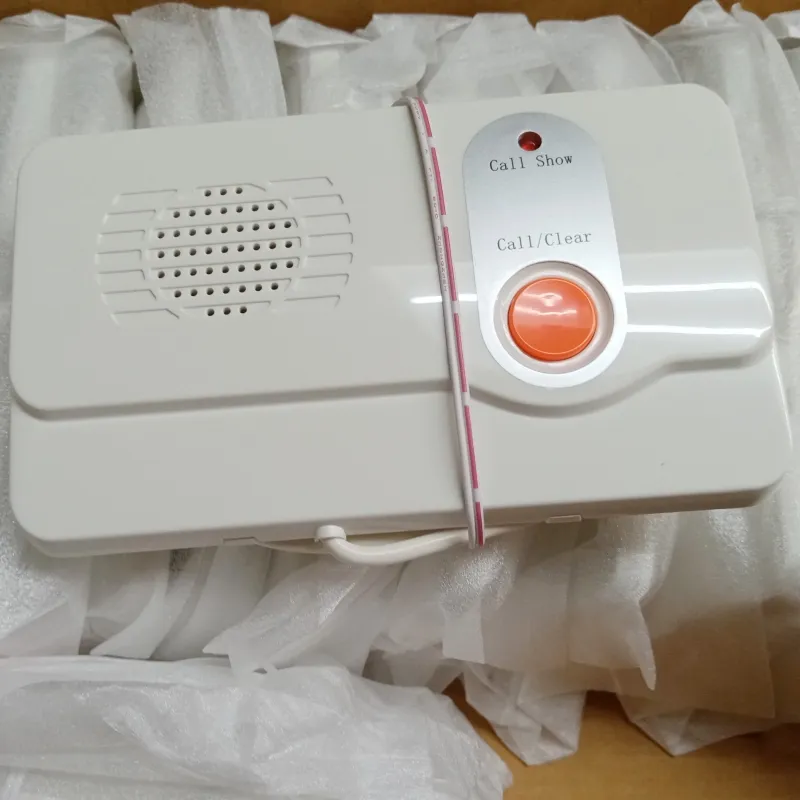

Extension Front

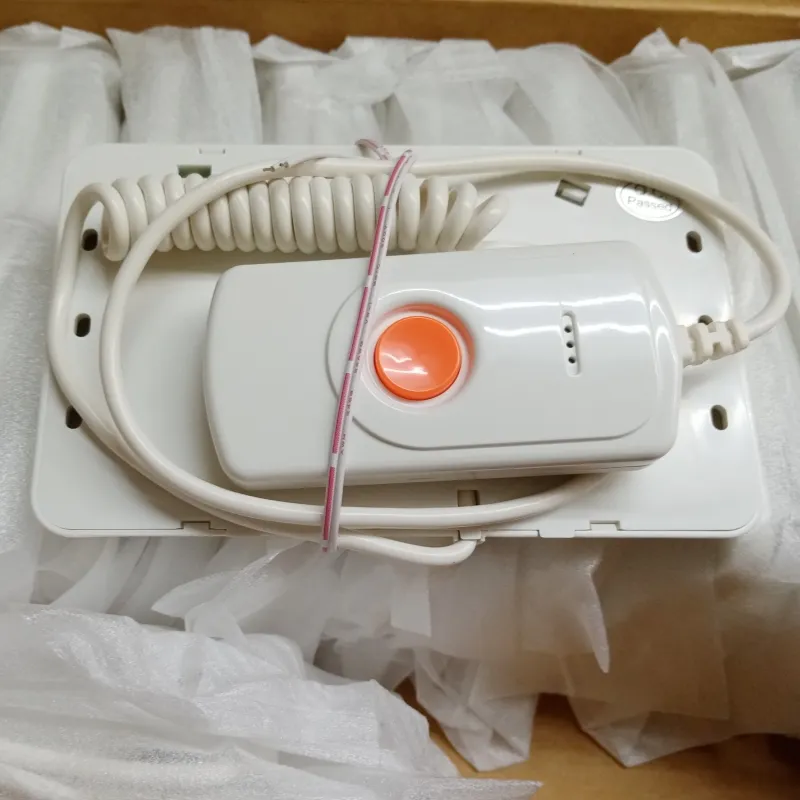

Extension Details

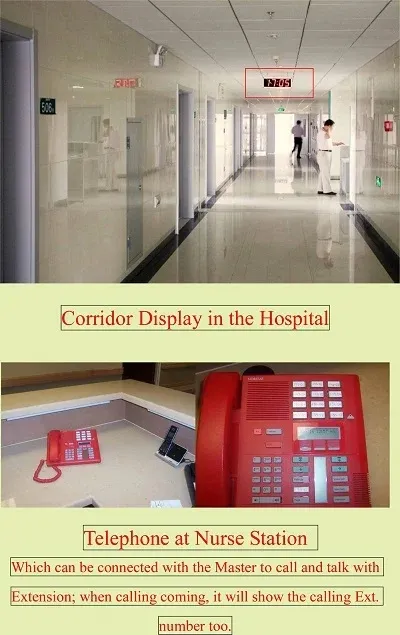

Corridor Display Panels

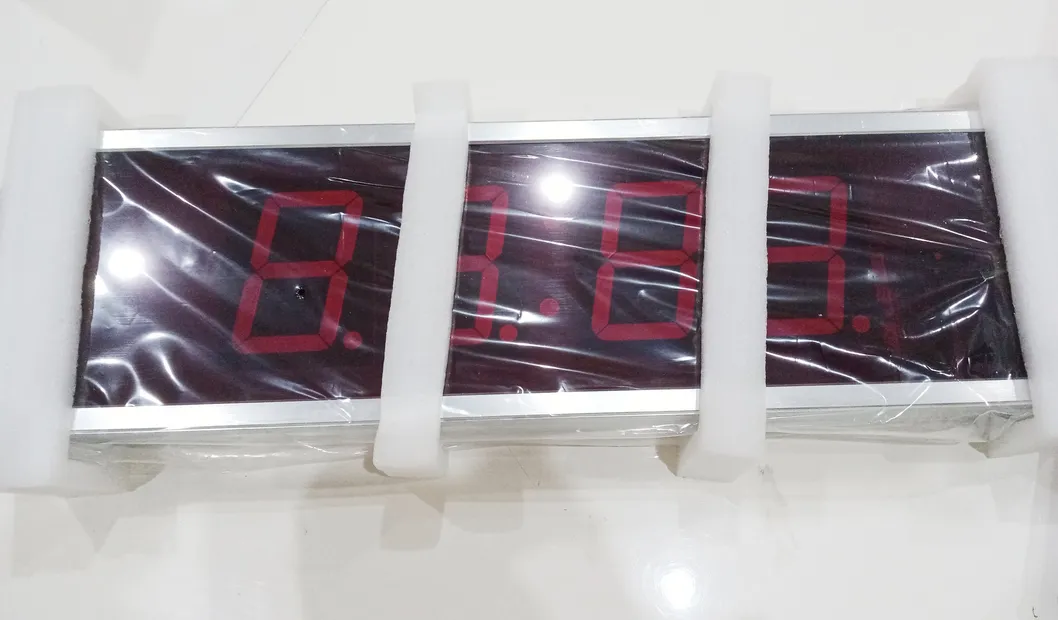

Corridor Display 1

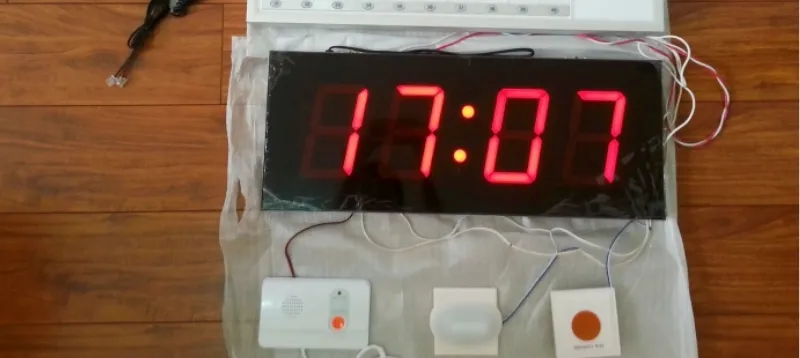

Corridor Display 2
🏢

Application Showcase

Installation 1

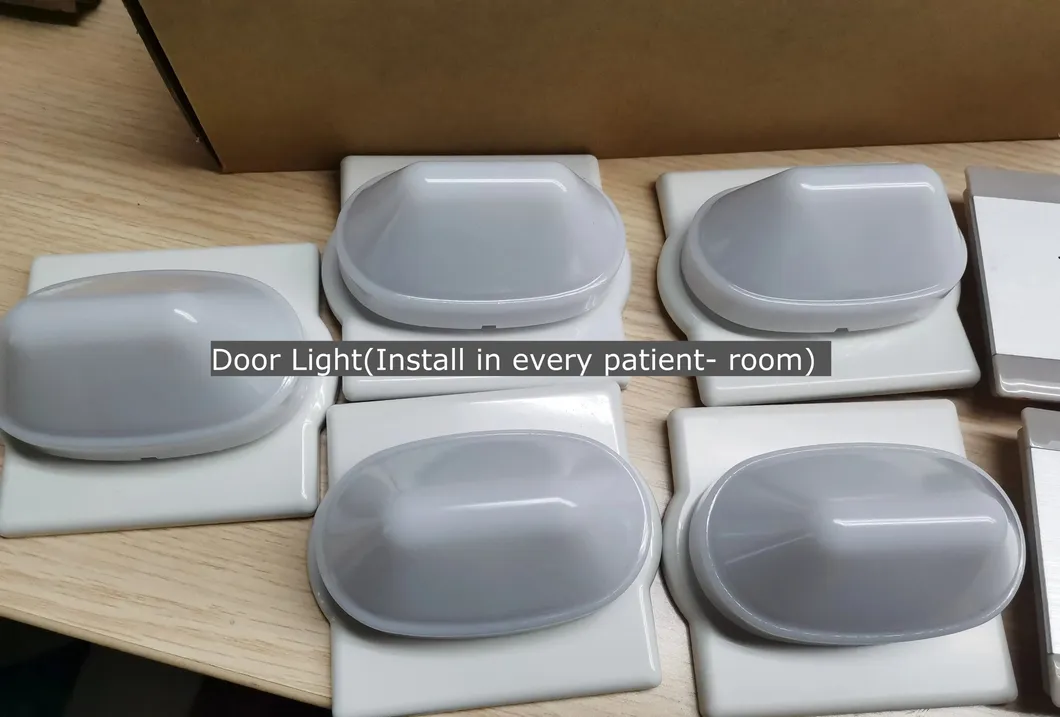

Installation 2
Installation 3

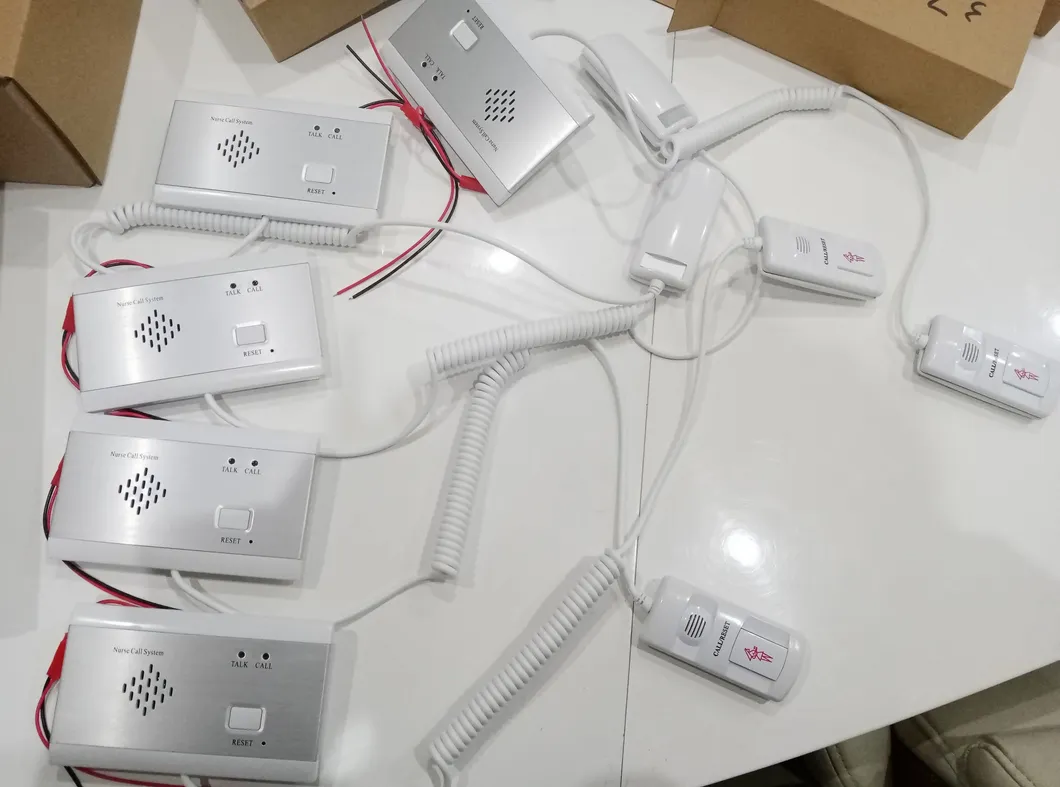

Installation 4
🏭

Facility Overview

Facility 1
Facility 2
Facility 3
Facility 4
❓

Frequently Asked Questions

What is the maximum capacity of the nurse call host?
The system supports different host capacities including 40, 50, and 60 extensions to suit various hospital ward sizes.
How far can the extensions communicate with the master host?
The system ensures a stable communication distance of not less than 400 meters, suitable for large medical facilities.
Does the system support prioritized calling for emergency patients?
Yes, it features a 3-level nursing care setting. High-priority (emergency) calls will interrupt low-level calls and trigger a specific red light warning.
Can nurses communicate back to the patient bedside?
Absolutely. The system supports two-way duplex calling, allowing for hand-free voice communication between the nurse station and the patient.
Is there a record of missed calls?
Yes, the host machine includes a call storage function that can reserve up to 1500 call records if a nurse is unable to pick up immediately.
How easy is it to troubleshoot system errors?
The system performs self-tests for bus current and voltage. If an error occurs, the host displays a digital code accompanied by an aural warning for easy troubleshooting.
