GONSIN Tl-4200 Versatile Digital Conference System
1 / 1
GONSIN Tl-4200 Versatile Digital Conference System

GONSIN Tl-4200 Versatile Digital Conference System

Customization: Available
Color: Silver
Type: Voice Conferencing System
Send Inquiry

Product Description

📊 Basic Specifications
Model NO.
TL-VX4200
Mobile Interference Resistance
Highly Resistant
Discussion
Yes
Translation
Yes
Voting
Yes
Anti-Feedback
Yes
Camera Tracking
Supported
Recording
Supported
Communication
Wired
Pointing Feature
Omni-Directional
Origin
China
Capacity
2000 set/Month
🎙️ Product Description
TL-VX4200 Digital Conference System offers versatile conferencing solutions featuring:
Microphone discussion, interactive voting, simultaneous interpretation, language distribution, video tracking, digital recording and software control.

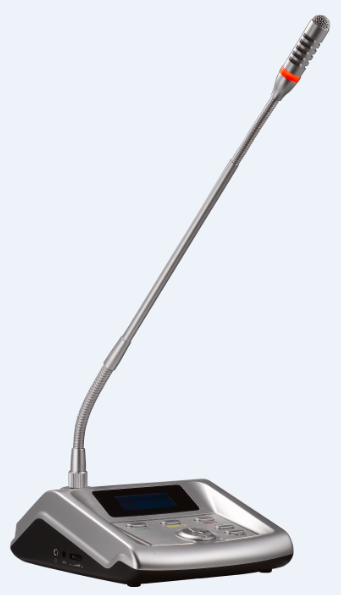

Digital Conference System Unit
Main Features
Highly resistant to mobile phone interference
Channel selectors for interpretation listening
Pluggable gooseneck microphone stem
Long microphone pick up range
Low profile built-in loudspeaker
5 buttons for voting and election
Built-in Chipcard reader
White on blue backlit LCD
Red Ring Luminant for active mic indication
Basic Functions
Microphone management: Push to talk or Request to talk
Modes: Auto/Fifo/Operator/Vox
Adjustable VOX sensitivity and mic time-out
Language interpretation: 1+5 channel display on LCD
Attendance registration: By IC card or MIC key press
Voting: YES/ABST/NO with automatic counting via PC
Supports automatic video tracking with preset positions
⚙️ Technical Specifications
Mounting TypeFixed or portable tabletopFrequency Response50HZ - 18KHZ
Interpretation1+5 ChannelsSensitivity-46db
Pick-up RangeUp to 600mmPower Input24V DC
Stem Length410mmHeadphone JackMini 3.5mm
Dimensions173*145*57mmWeight0.8kg
💻 Central Control Unit TC-Z4
Complies with IEC60914 international standard
High-speed CPU and DSP digital audio processor
Supports 48KHz audio sample rate
OLED panel for system status display
Accommodates 60-70 microphones per unit
Expandable up to 4096 conference units
USB auto recording support
TCP/IP PC communication for remote diagnosis
Built-in 4×1 SD video matrix
🏢 Project Display & Workshop

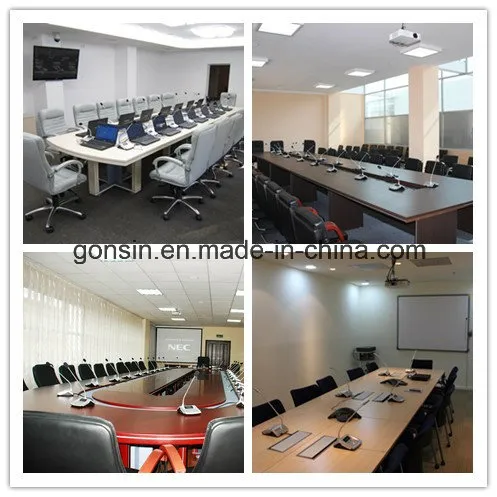

Successful Project Sharing

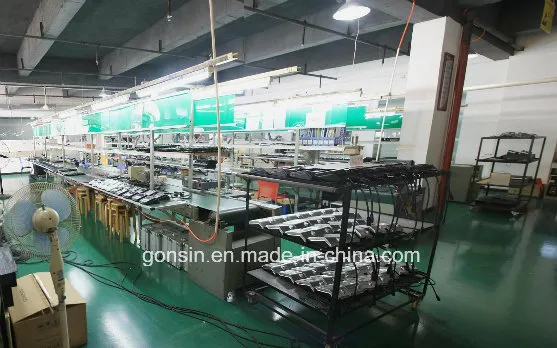

Production Workshop
❓ Frequently Asked Questions
Q: What is the maximum pickup range of the TL-VX4200 microphone? A: The microphone features a long pickup range of up to 600mm.
Q: Does the system support language interpretation? A: Yes, it supports 1+5 channels for simultaneous language interpretation and distribution.
Q: Can I use the system for voting and elections? A: Yes, the unit includes 5 buttons for voting and elections, supporting single-choice, multiple-choice, and quick election modes.
Q: How many microphones can the central control unit manage? A: A single central control unit accommodates 60-70 microphones, but the system can be expanded to support up to 4096 units through cascading.
Q: Is the system resistant to mobile phone interference? A: Yes, the TL-VX4200 is designed to be highly resistant to interference from mobile devices.
Q: Does it support automatic video tracking? A: Yes, the system supports automatic video tracking (SD and HD) with preset panoramic positions.
