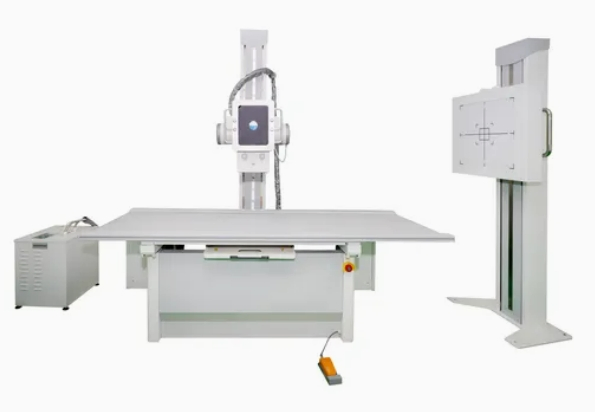

Digital Radiography System with Two Motorized Upright Columns for Patient Positioning

Customization: Available
Customized: Non-Customized
Certification: CE

Product Description

i

Basic Information

Model NO.
HXDCDR-100
Scale
Medium
Machine
Double Column
X-ray
Digital
Certification
ISO13485
Output Power
25kw / 32kw / 40kw / 50kw
Max Cartridge Size
432mm * 432mm
Origin
China

Product Description

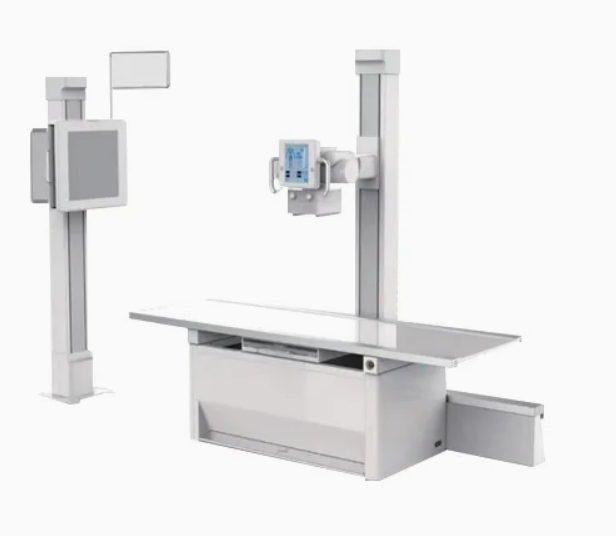

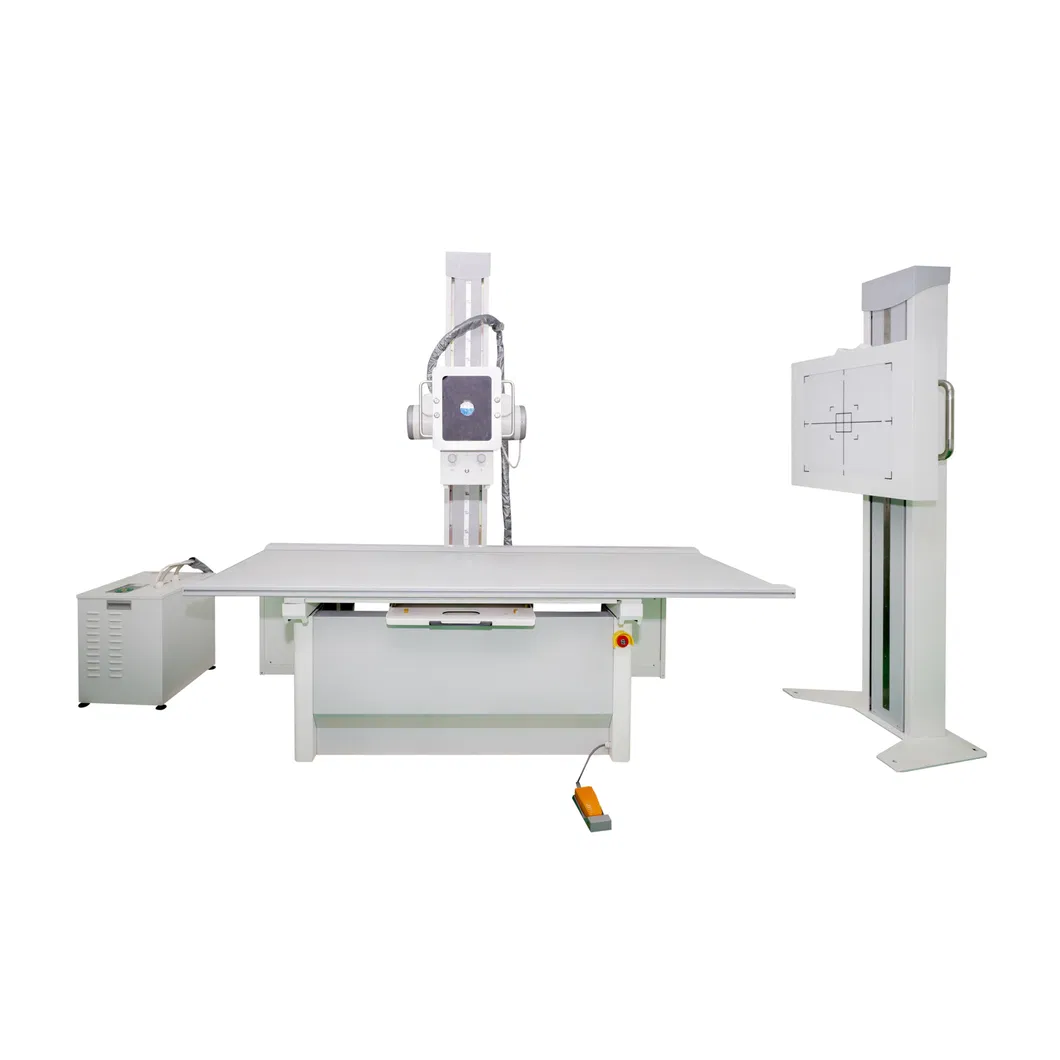

The mechanical structure of "column type ball tube + chest film frame + fixed floating photography bed" supports a single and double board system, fully supporting the emergency photography needs of standing, lying, side, full freedom angle, and stretcher wheelchair.

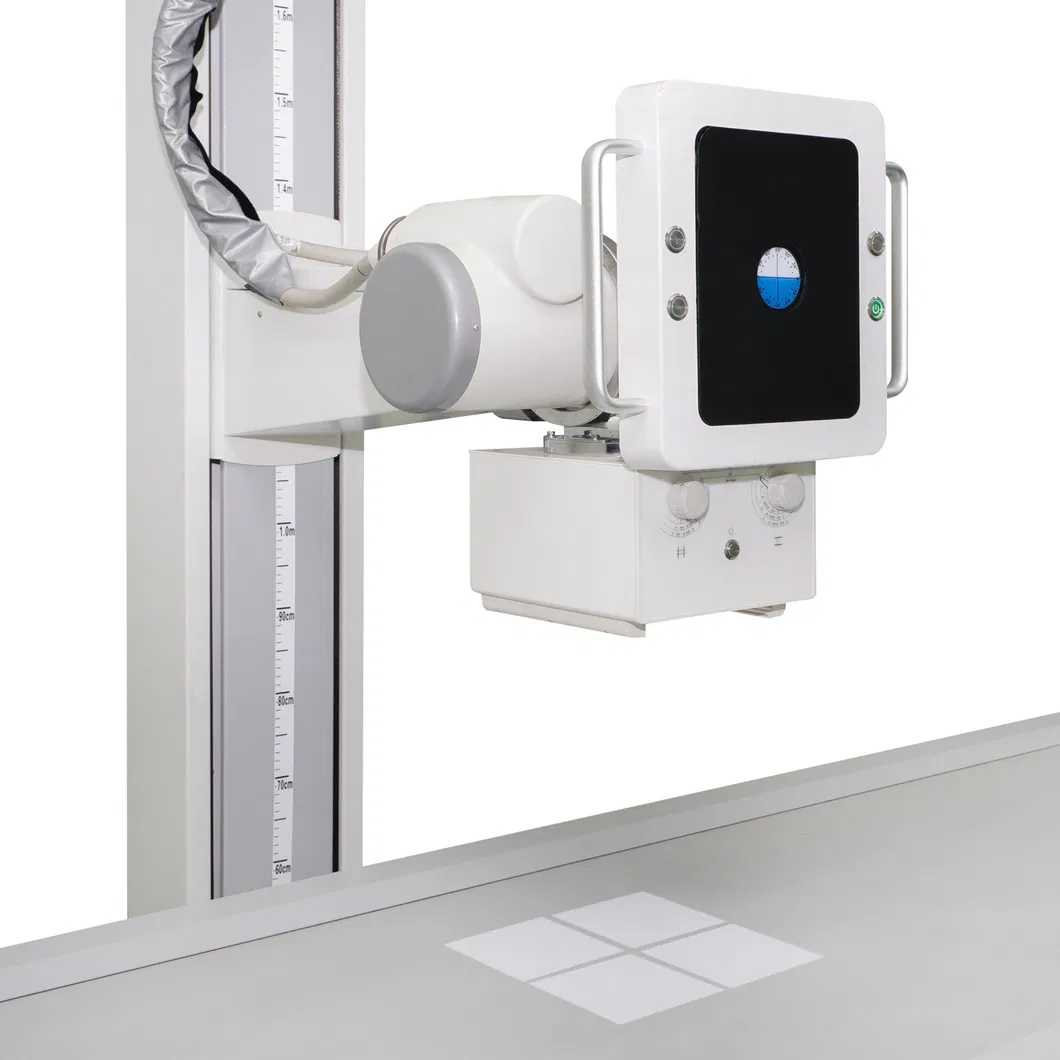

The ball tube and detector are interlocked in both vertical and horizontal positions, automatically tracking, which greatly reduces positioning time. The column ball tube can rotate at all angles for easy off-bed photography.
The unique and innovative design of the portable ultra-light and thin tablet box brings users a brand new professional experience.
📷

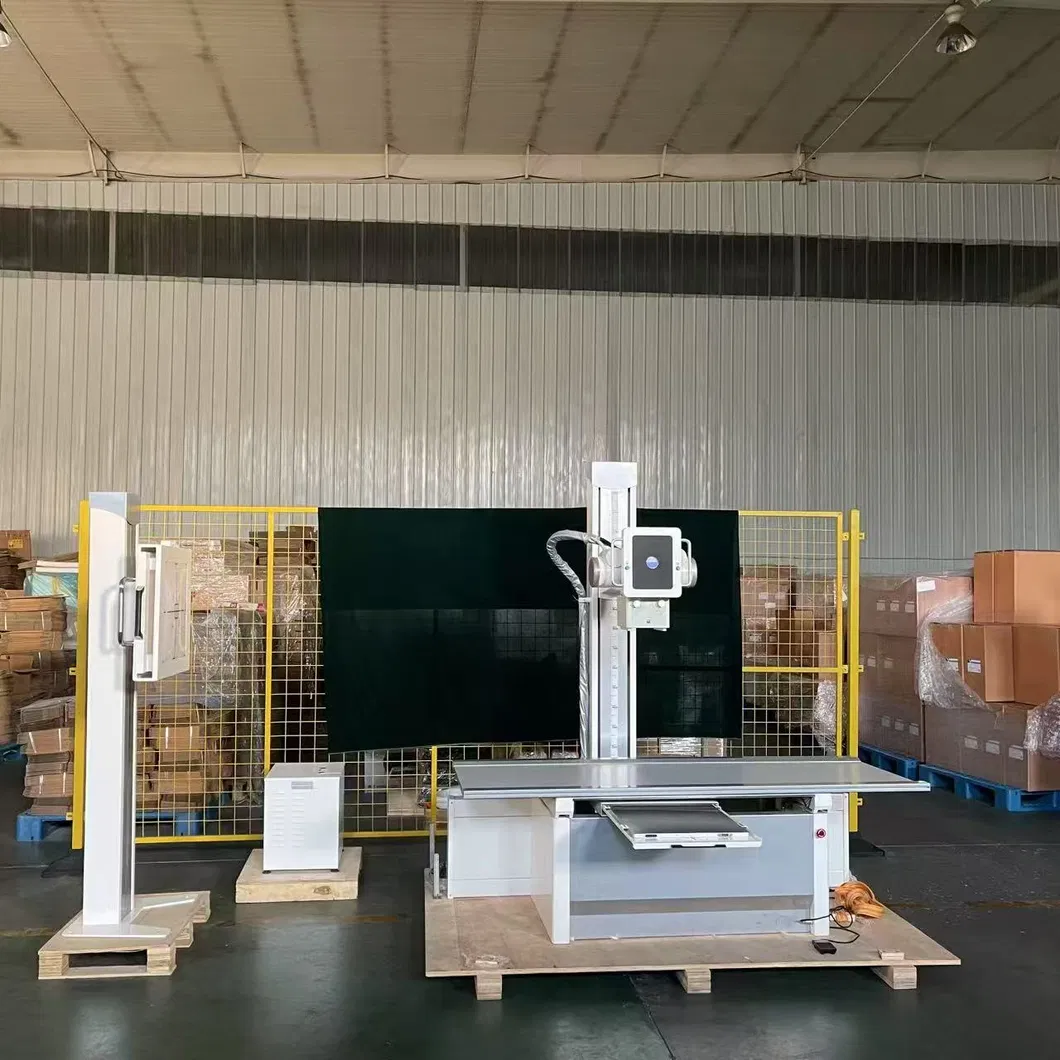

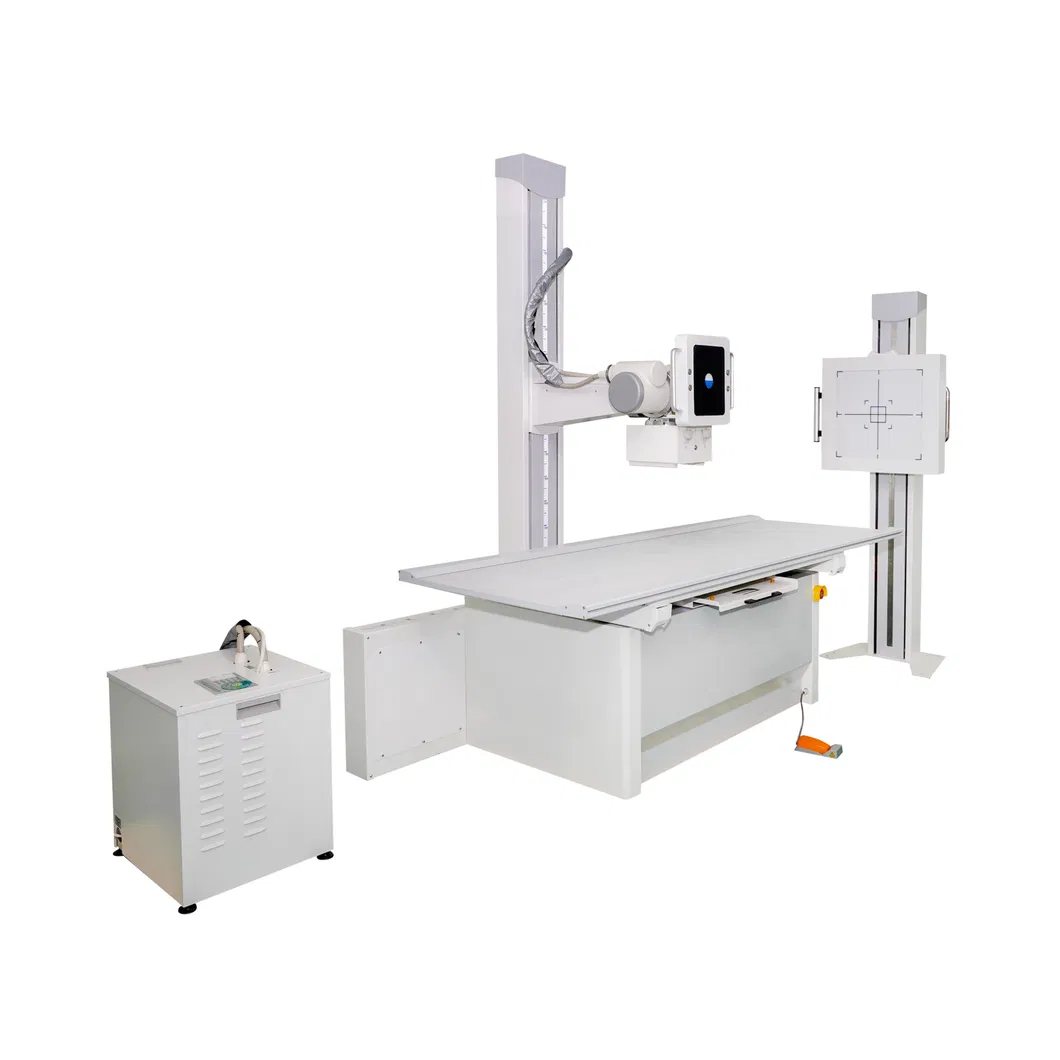

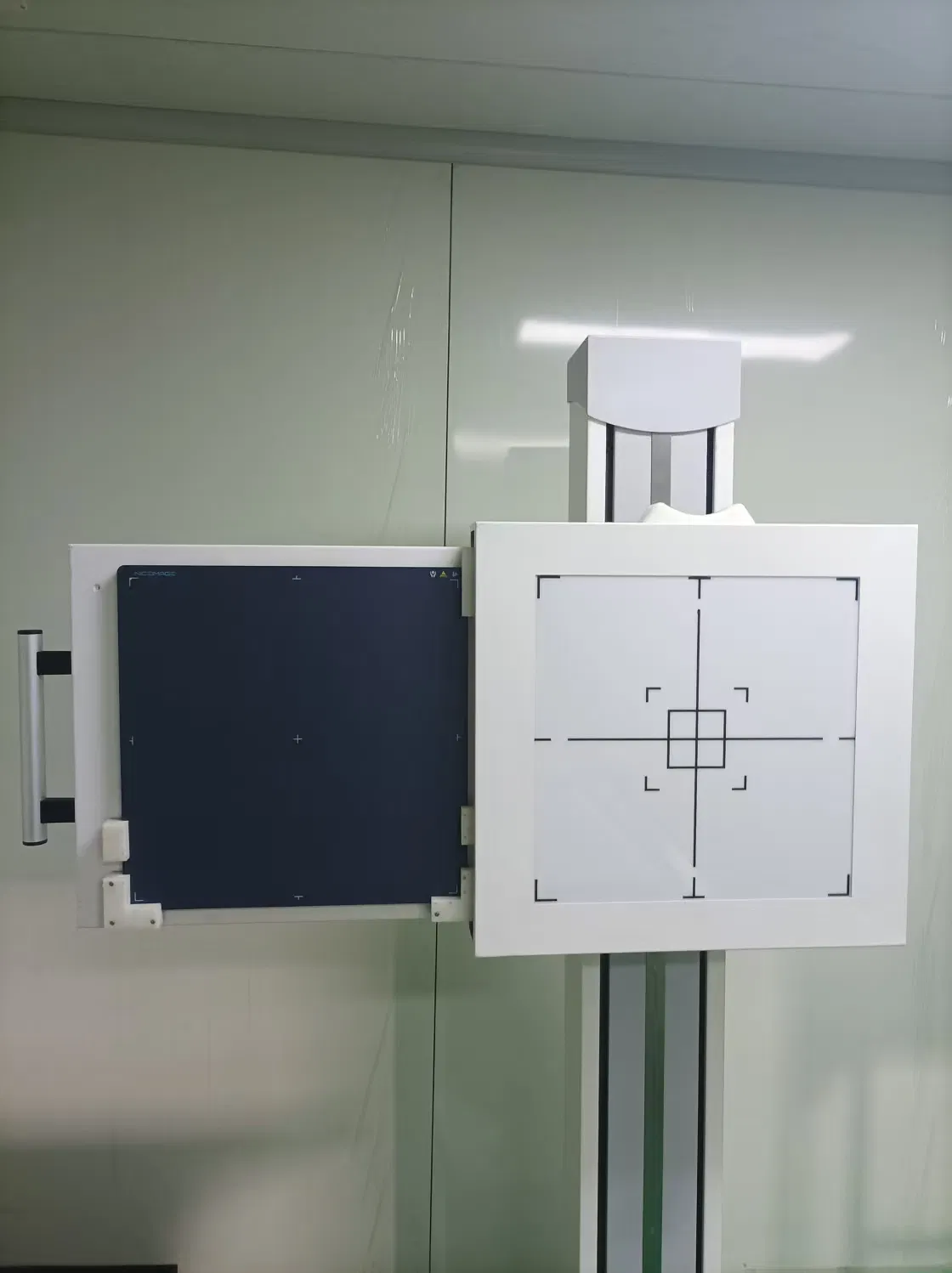

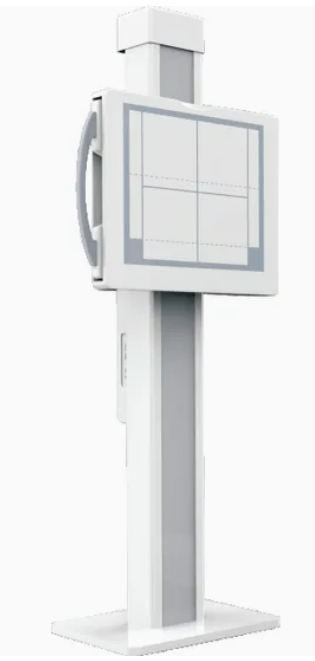

Detailed Photos

📋

Product Parameters

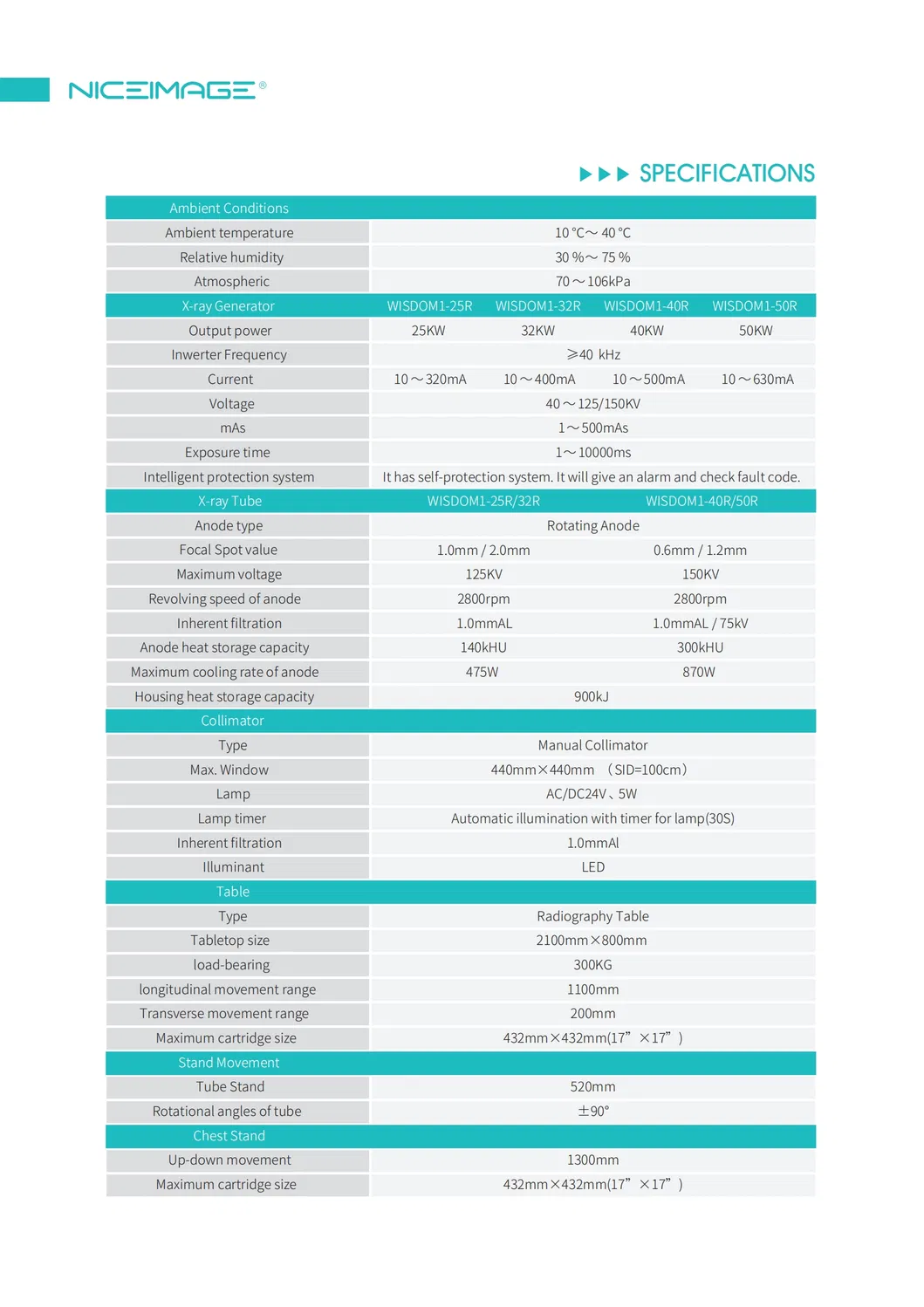

Technical Specifications Table
🏢

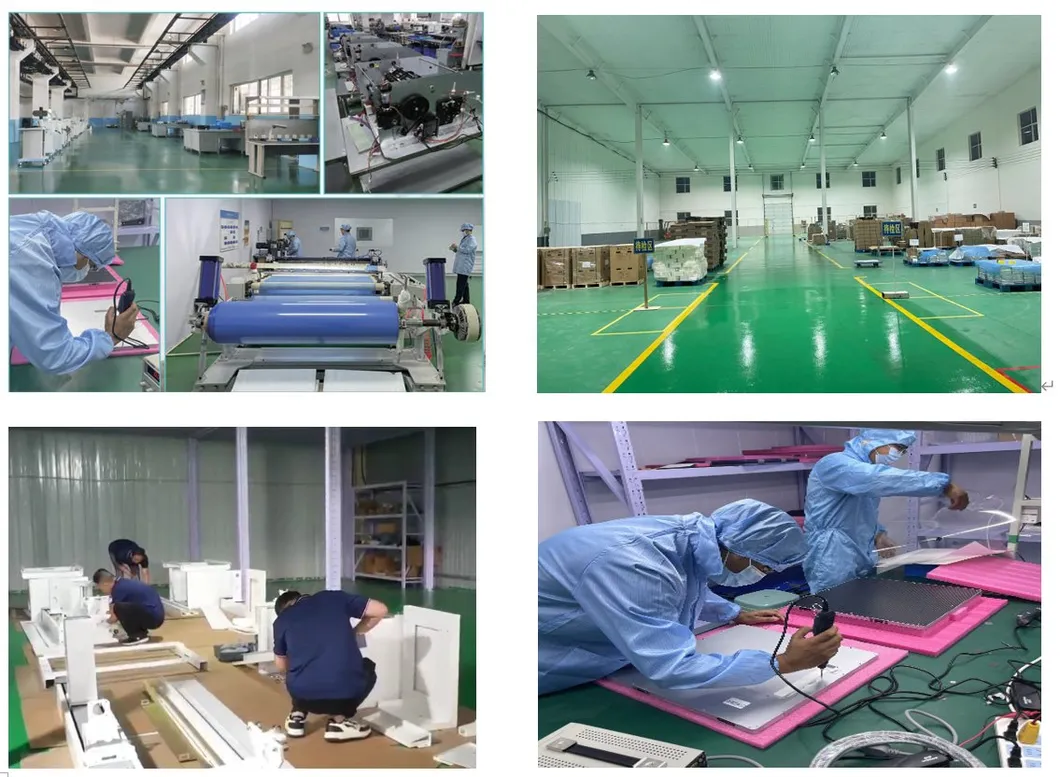

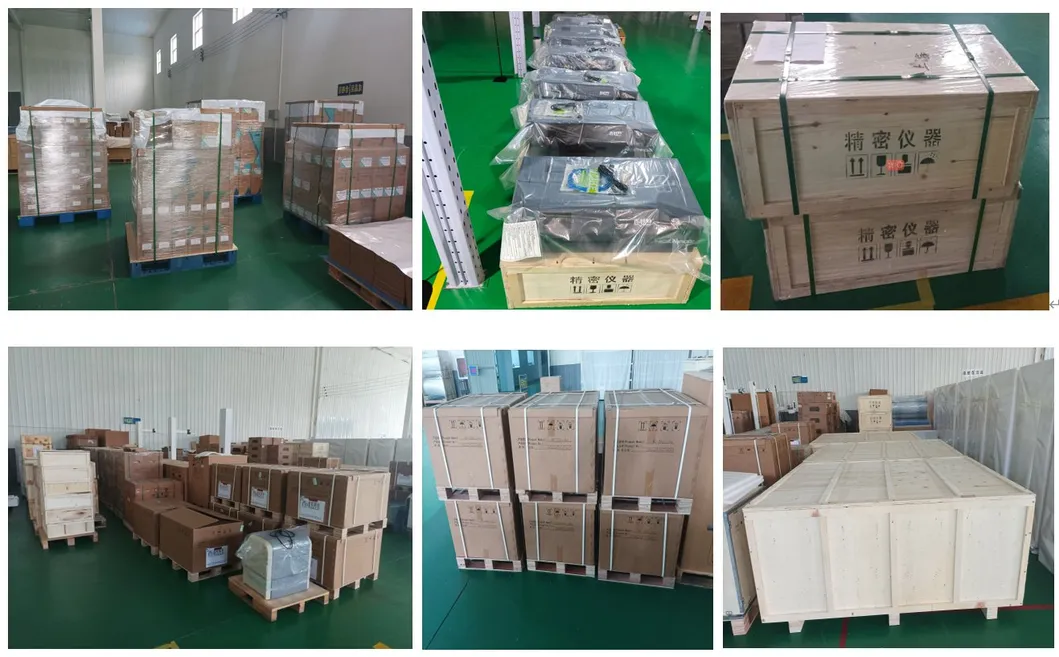

Company Profile

The company is a professional supplier of one-stop solutions for X-ray equipment. Products are widely used in medical, dental, veterinary, and industrial imaging applications. With research and development laboratories in Shanghai and Chongqing, the focus has expanded to offer a wide range of X-ray products including flat panel detectors, generators, scintillators, X-ray tubes, X-ray stands, and DR assembly solutions, as well as DR software and cloud PACS systems. The goal is to provide valuable, cost-effective solutions and services compatible with global market requirements.

Certifications

?

Frequently Asked Questions

Q1: What are the main applications for the HXDCDR-100 system?
A: It is designed for medical digital radiography, supporting standing, lying, side-view, and stretcher-based photography for general clinical needs.
Q2: Does the system support automatic tracking?
A: Yes, the ball tube and detector are interlocked in both vertical and horizontal directions for automatic tracking, which significantly improves positioning efficiency.
Q3: What power configurations are available?
A: The system offers multiple power options including 25kw, 32kw, 40kw, and 50kw to suit different imaging requirements.
Q4: Can the column rotate for off-bed imaging?
A: Yes, the column ball tube features all-angle rotation, making it easy to perform photography for patients on stretchers or wheelchairs outside the main bed.
Q5: What is the maximum cartridge size supported?
A: The system supports a maximum cartridge size of 432mm * 432mm (approx. 17 x 17 inches).
Q6: Is the detector tablet box portable?
A: Yes, the system features a unique portable ultra-light and thin tablet box design for enhanced mobility and user experience.
