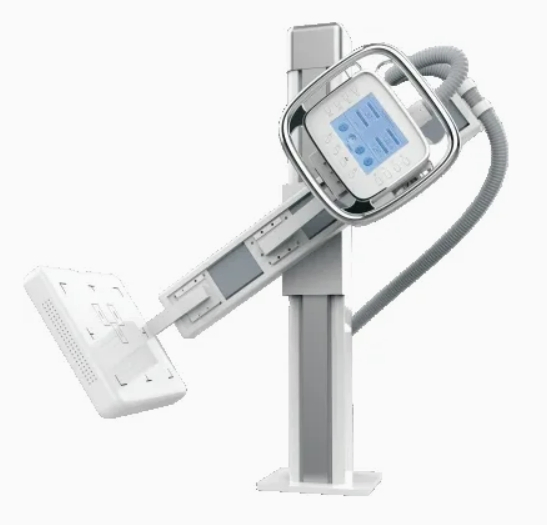

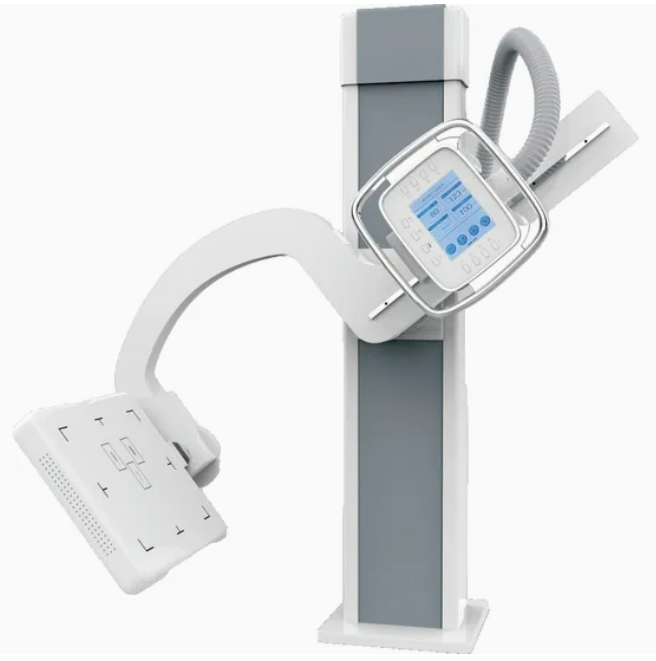

UC Arm Digital Radiography X-ray Imaging Medical Diagnostic System

Customization: Available
Customized: Non-Customized
Certification: CE

Product Description

Basic Information

Model NO.
HXDR-50U
Scale
Medium
Transport Package
Carton
Specification
HXDR-50U
Trademark
Nice
Origin
China

Key Features

  • Flexible System: Exquisite and flexible UC-arm System with a large movement range and angle to meet clinical needs.
  • Sharp Detection: High sensitivity full-size detector with intelligent control for precision imaging.
  • Precision Ray: High-quality, high-frequency X-ray generator providing high image quality in a small volume.
  • Dead-Angle Free: Full electric control and full angle rotation for shooting without dead angles.
  • DICOM Support: Full support for DICOM protocol, seamless connection with RIS / HIS / PACS systems.
Digital Radiography System
X-ray Imaging Diagnostic

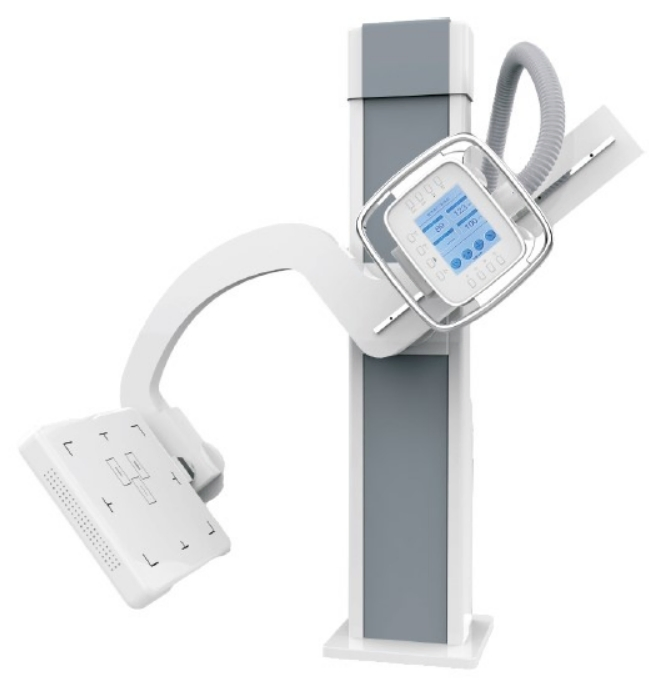

UC Arm Detail
System Components

Technical Specifications

I. High-frequency High-voltage Generator
  • Output: 50kW | Input: 380VAC three-phase
  • Voltage Range: 40~150kV | Tube Current: 10~800mA
  • Exposure Time: 1ms-10000ms | mAs Range: ≥0.1~1000mAs
  • Features: Support AEC and APR Automatic Exposure, Fault self-diagnosis
II. X-ray Ball Tube Assembly
  • Focus Design: 0.6mm/1.2mm
  • Nominal Electric Power: 22kW/54kW
  • Maximum KV: 150kV | Anode Target Angle: 12°
III. Frame UC
  • Rotation Angle (ROT): -30° ~ 120° (±2°)
  • Vertical Movement (FID): 430 ~ 1700mm
  • SID Horizontal Movement: 1000 ~ 1800mm
  • Detector Rotation: -30° ~ +30°

Company Profile

The supplier is a provider of one-stop solutions for X-ray equipment. Products are widely used in medical, dental, veterinary, and industrial imaging applications. Founded in 2019, the organization maintains R&D labs focused on advanced imaging technology. Originally specializing in film and printer solutions, the range has expanded to include flat panel detectors, generators, scintillators, X-ray tubes, stands, and cloud PACS systems. The goal is to provide cost-effective, high-value solutions compatible with global market needs.

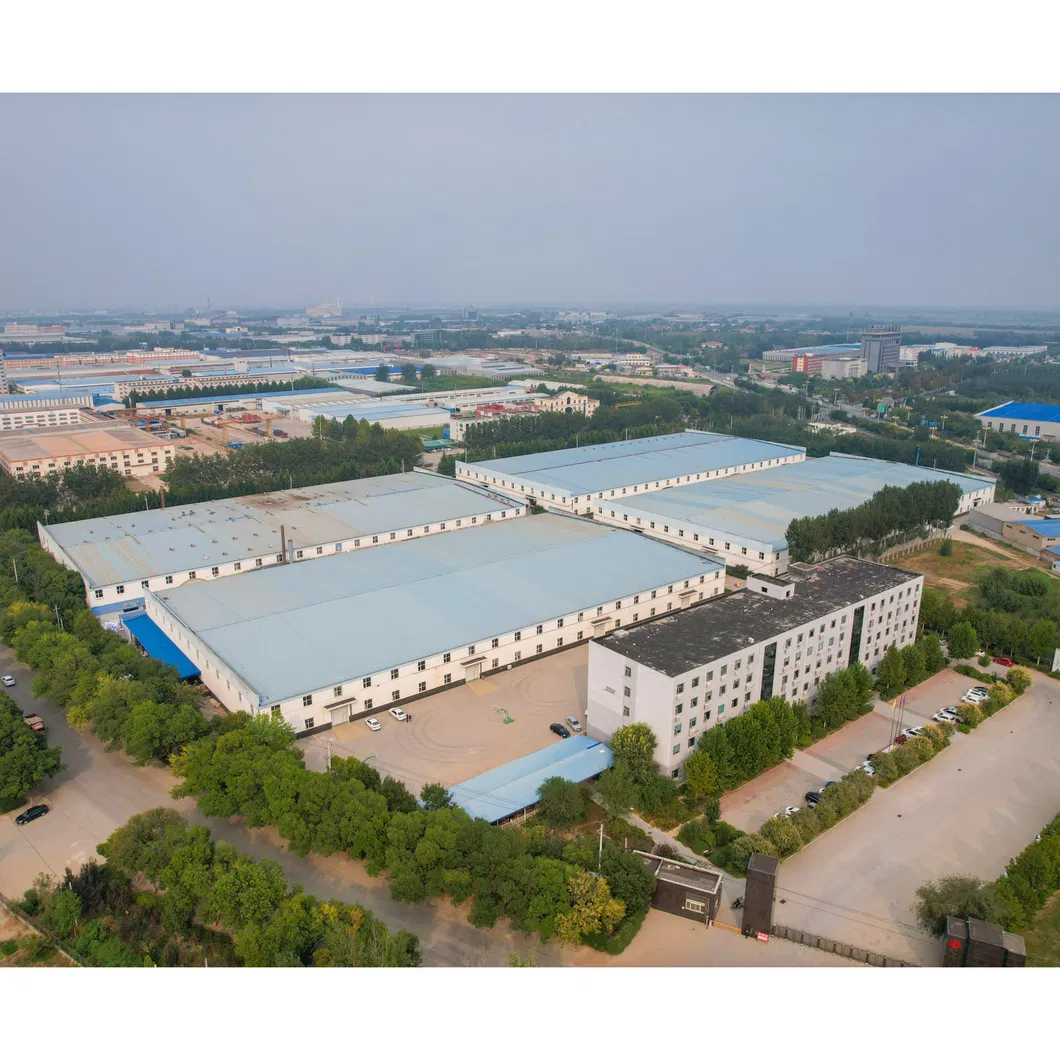

Facility 1

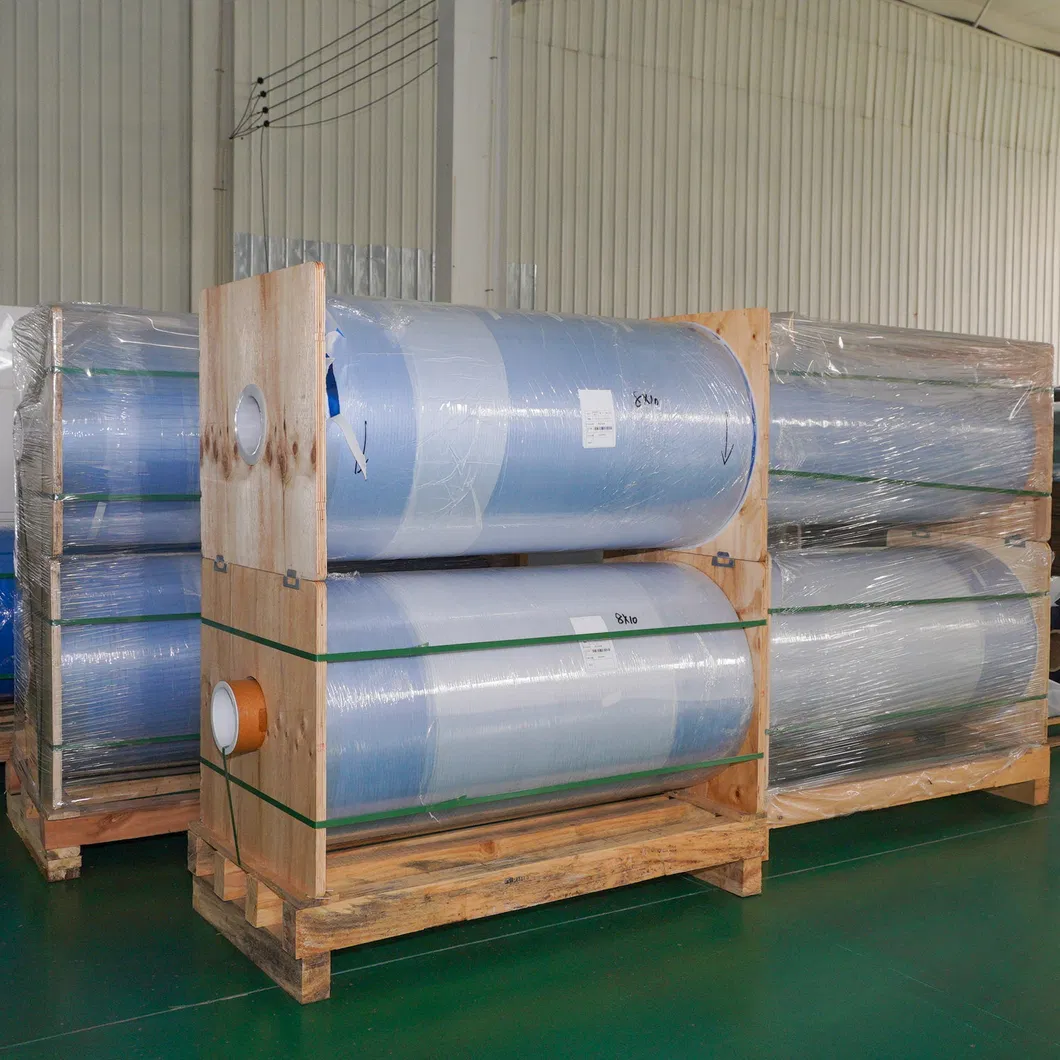

Facility 2

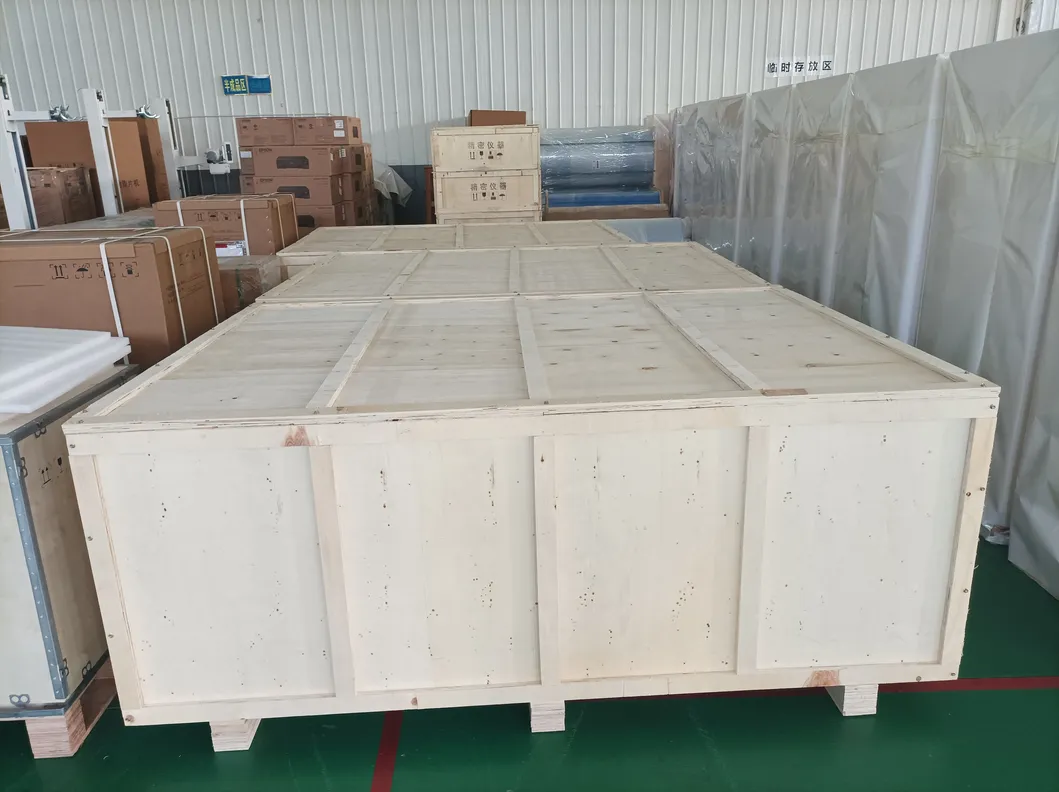

Production
Equipment Check
Assembly
Testing

Certifications

Cert 1
Cert 2
Cert 3

Frequently Asked Questions

What is the maximum output power of the HXDR-50U?
The system features a high-frequency high-voltage generator with a maximum output power of 50kW.
Can this system connect to existing hospital networks?
Yes, it fully supports the DICOM protocol for seamless connection with RIS, HIS, and PACS systems for image storage and browsing.
What is the movement range of the UC Arm?
The UC Arm rotation angle ranges from -30° to 120°, and the vertical movement range is between 430mm and 1700mm.
Does the system support automatic exposure control?
Yes, the system supports both AEC (Automatic Exposure Control) and APR (Anatomical Programmed Radiography) for optimized imaging.
What are the focus sizes for the X-ray tube?
The X-ray ball tube assembly is designed with dual focus options: 0.6mm and 1.2mm.
What imaging applications is this product suitable for?
The HXDR-50U is versatile and widely used in medical diagnostic imaging, offering high sensitivity and high production accuracy.
