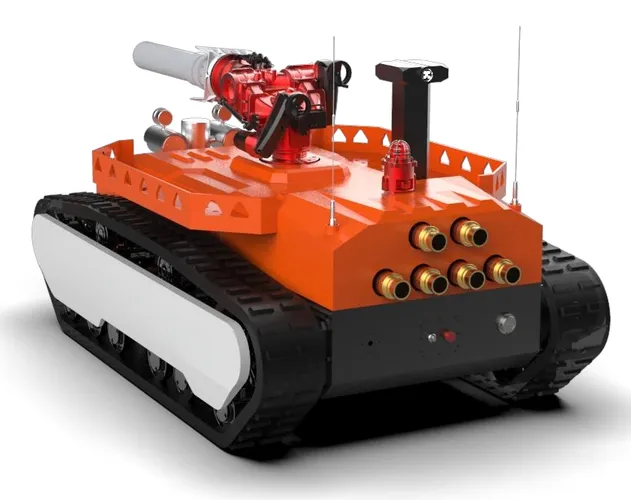

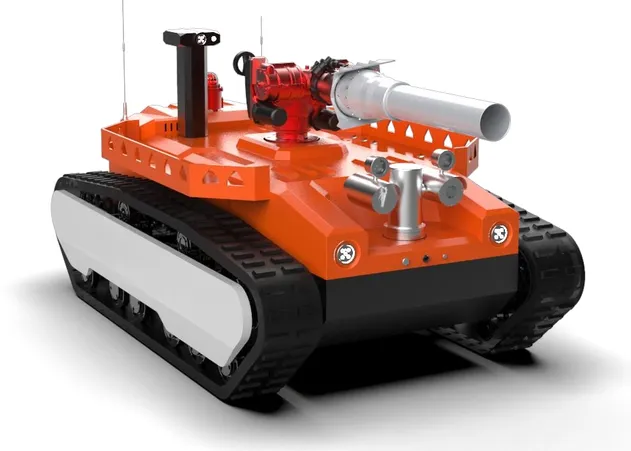

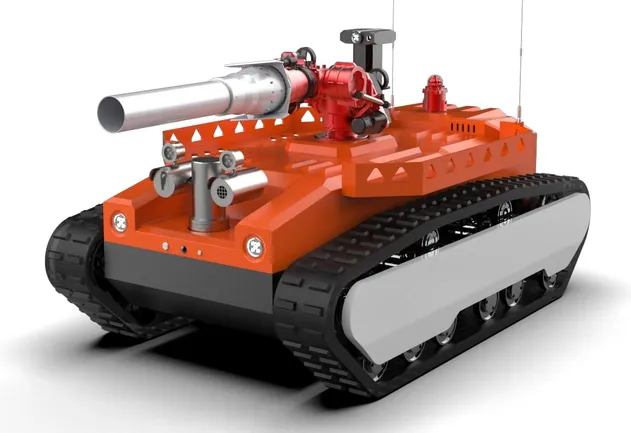

The tracked explosion-proof robot chassis uses a lithium battery as the power source. Long-range wireless remote control enables stand-off operation. It supports multiple configurations, and the zero-radius turning design improves maneuverability.

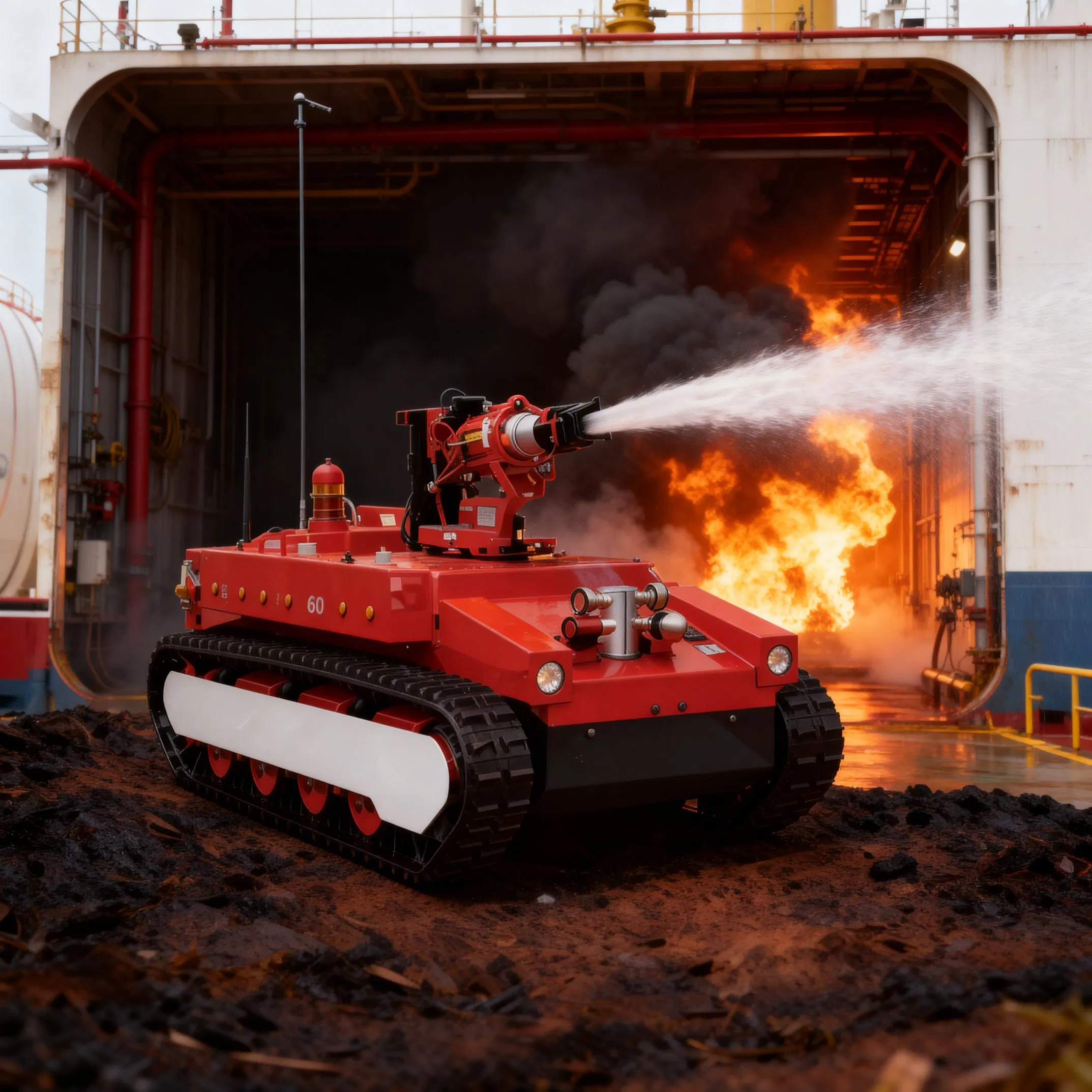

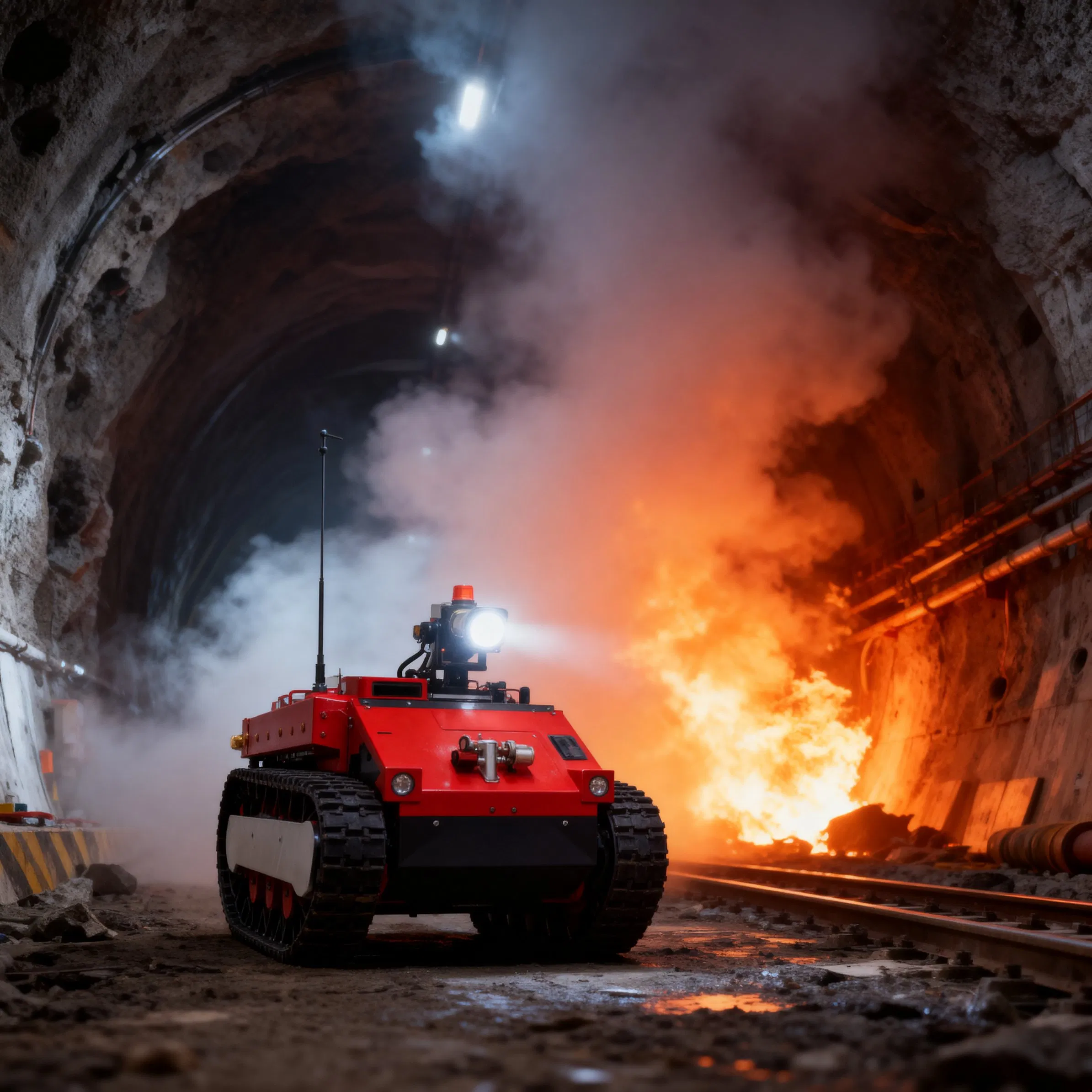

The whole machine is explosion-proof and can be used in large petrochemical facilities, tunnels, subways and other high-risk areas with potential oil, fuel gas or toxic-gas leaks and explosion hazards, as well as disaster-prone sites such as tunnel or subway collapses.

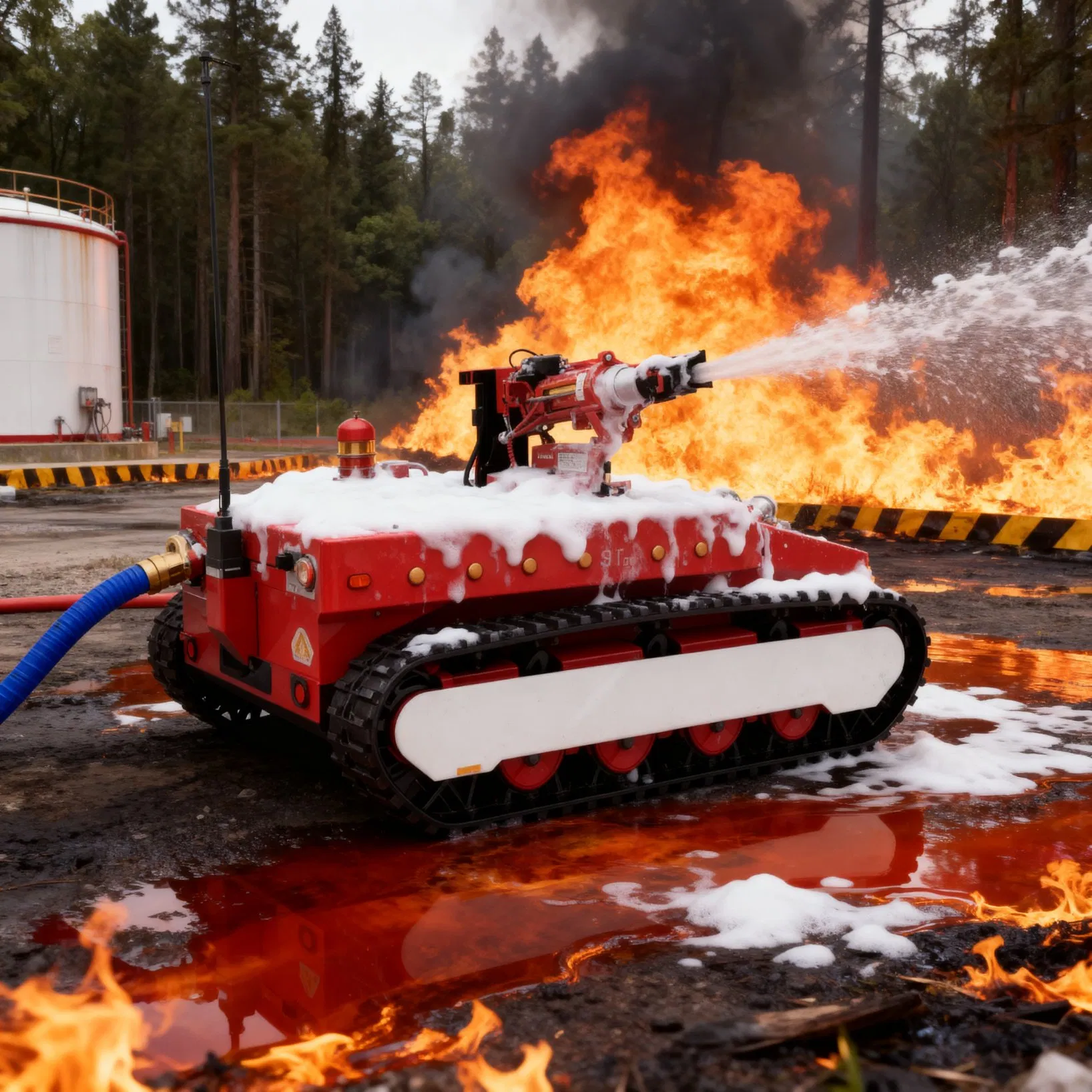

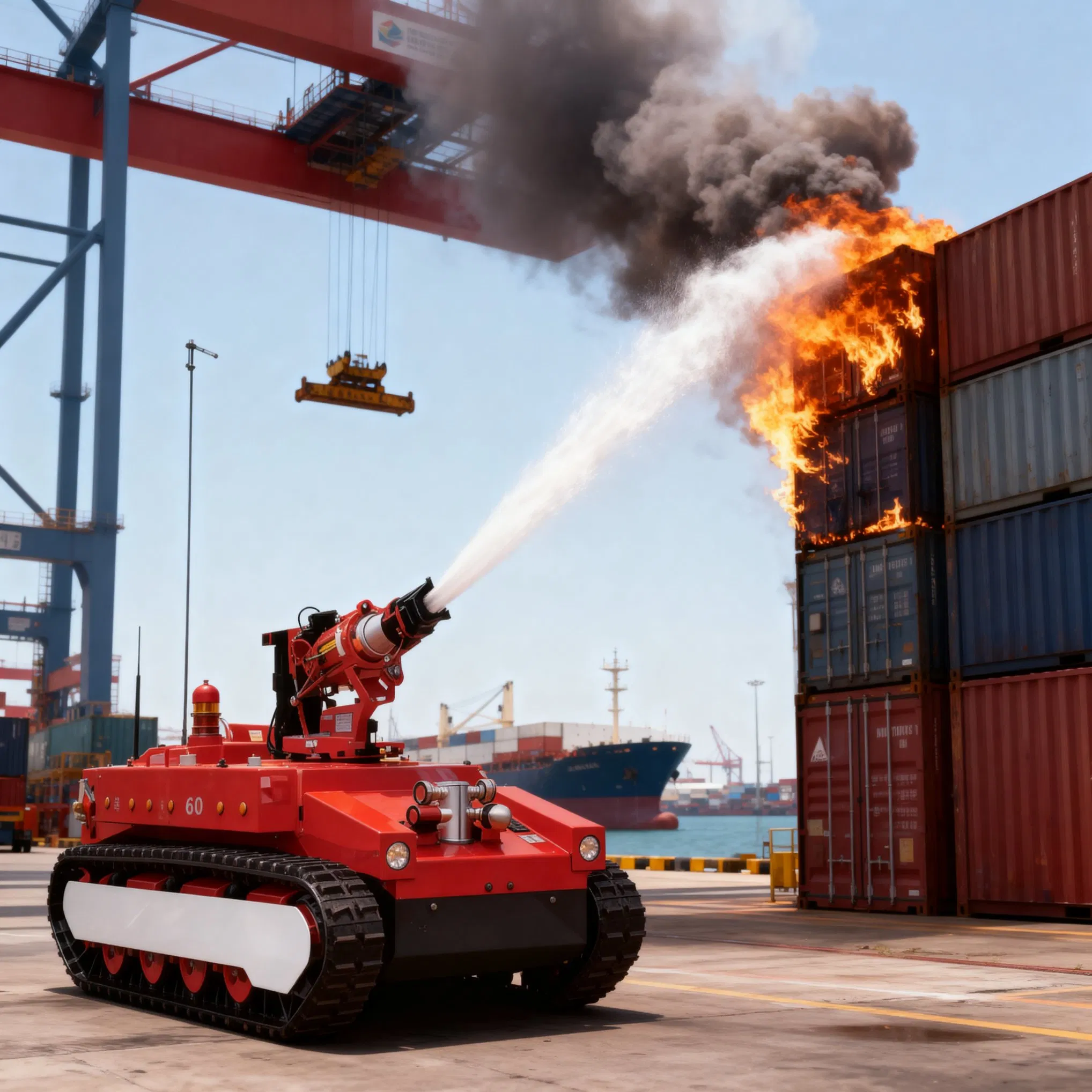

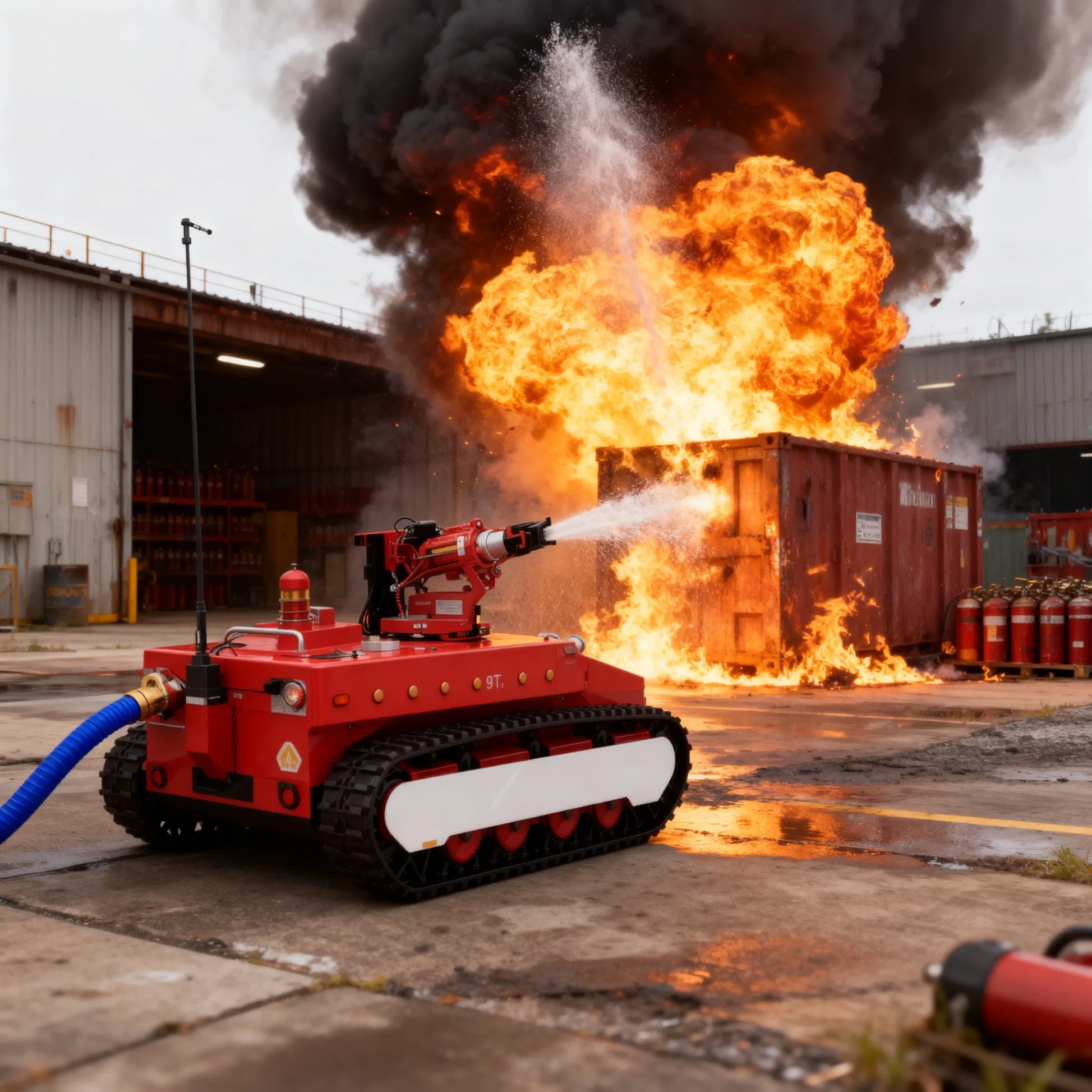

Strong Firefighting Capability: Large-flow duckbill-type water cannon design supports multiple spray patterns; adjustable flow and long range for large-space fire suppression.
High Protection Rating: Overall ingress protection IP67; chassis ingress protection IP68.
Multi-gas Detection: Detects 8 types of gases plus 2 environmental parameters.
Powerful Drive: Strong hose-dragging capability; can tow up to six '80' fire hoses simultaneously.
Multi-mission Use: Firefighting, reconnaissance, and transport; delivers rescue supplies such as hoses, gas masks, SCBA, and breaking tools.
| Parameter | Detail |
|---|---|
| Explosion-proof Rating | Exd [ib] IIB T4 Gb |
| Ingress Protection | Robot body IP68; Superstructure IP67 |
| Power | Lithium battery, 100Ah |
| Dimensions (mm) | 2772 x 1695 x 1540 |
| Weight | 3190 kg |
| Traction Force | 22.3 kN |
| Max Straight Speed | ≥1.43 m/s (stepless control) |
| Gradeability | 83.9% (40 degrees) |
| Remote Control Range | 1000 m |
| Autonomous Obstacle Avoidance | Slows within 2 m; stops within 1 m |
| Feature | Specification |
|---|---|
| Water Cannon | Imported fire cannon |
| Extinguishing Agent | Water or foam |
| Working Pressure | 1.18 MPa |
| Water/Foam Flow | 200 L/s (Adjustable) |
| Range | ≥128 m (water); ≥125 m (foam) |
| Rotation | Horizontal -90° to 90°; Vertical -10° to 69° |
Global Support: 24/7 technical assistance and spare parts supply. On-site or remote operation/maintenance training available.

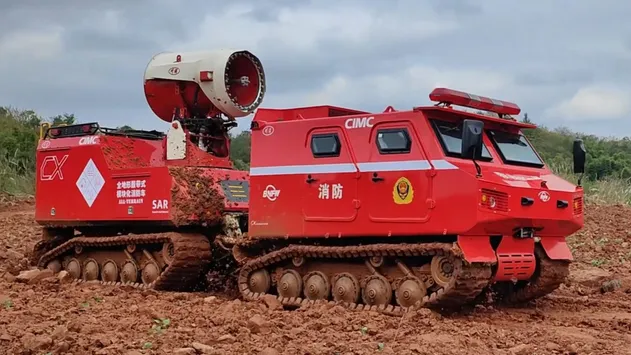

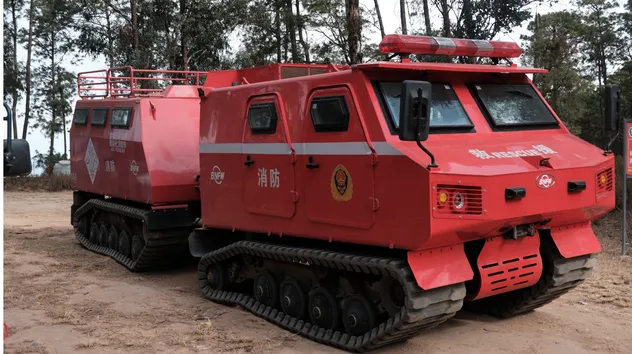

Our focus is on the R&D, manufacturing, sales and service of all-terrain special equipment. We provide systematic solutions for logistics support, civil emergency rescue and field operations under harsh environmental conditions. Products cover manned and unmanned tracked vehicles serving fire protection, petroleum exploration, and polar research.
