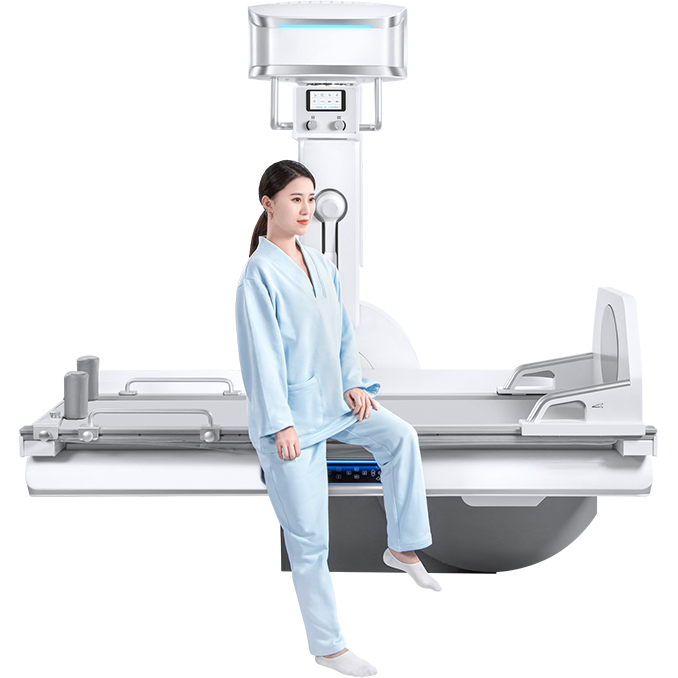

Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
1 / 5
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System
Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System

Portable X-ray Machine Digital Foinoe Portable X Ray Camera Price Mobile X Ray Dynamic Radiography System

Customization: Available
Customized: Non-Customized
Certification: CE, ISO13485
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.: FNX-1000MA
Scale: Medium
Package: Wooden Carton
Origin: China
Capacity: 5000 pieces/Month
📋

Product Description

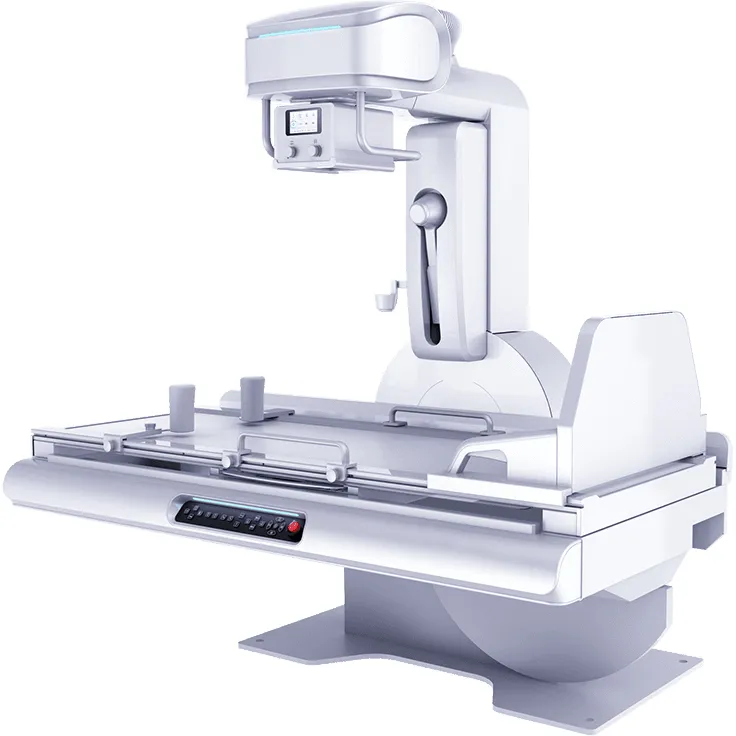

Digital Medical X-ray Radiographic System FNX-1000MA
Digital Medical X-ray System
⚙️

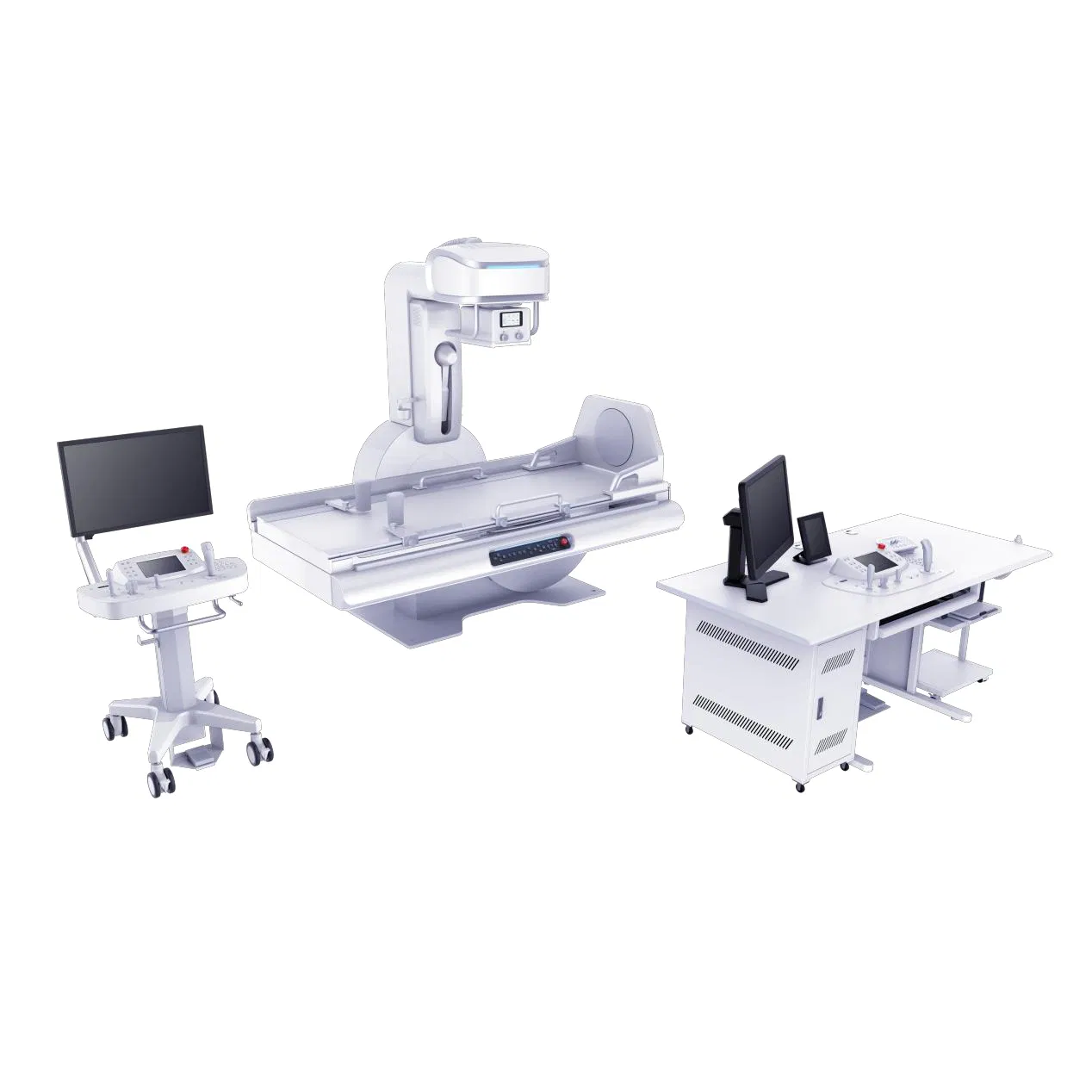

System Configurations

No. Component Model Quantity
1Dynamic Flat Panel DetectorFoinoe-DR-CP1
2DXRay Diagnostic WorkstationTS-51
3High Frequency GeneratorXDRP801
4X-Ray TubeE7254FX1
5CollimatorXS-F1
6Remote Control BedDC-DT-41
7Remote-Control ConsoleYKT-41
8Movable Console with Monitor (Optional)YKT-4M1
9GridJPI GRID-10001
10Report Printer/1
🛠️

Technical Specifications

High Frequency Generator (XDRP80)
  • Output power: 80kW
  • Radiography Voltage: 40kV-150kV
  • Fluoroscopy Voltage: 40kV-125kV
  • mAs Range: 0.1~1000mAs
  • Support ABS and AEC functions
Dynamic Flat Panel Detector (Foinoe-DR-CP)
  • Technology: a-Si Flat Panel Detector (CsI Scintillator)
  • Image Size: 430mm x 430mm
  • Static Matrix: 3072 x 3072 pixels
  • Max Frame Rate: 30f/s
  • Spatial Resolution: 3.5lp/mm
Remote Control Bed (DC-DT-4)
  • Bed Size: 2106 x 2042 x 1636mm
  • Rotate Range: -15° to +90°
  • SID: 1.15m - 1.8m
  • Load Bearing: 200kg
  • One-click positioning for Standing/Lying positions
📷

Detailed Product Gallery

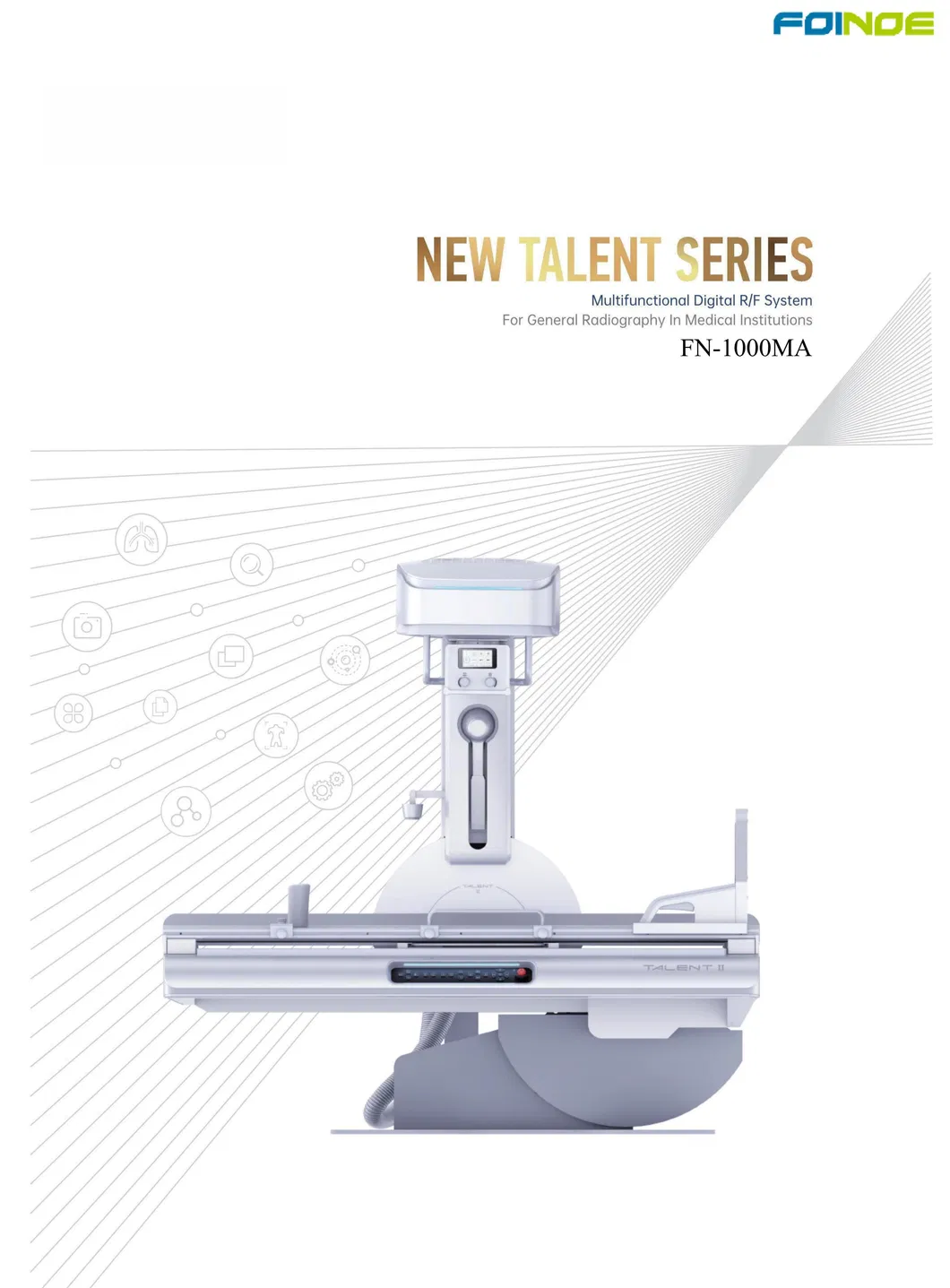

X-ray Detail 1

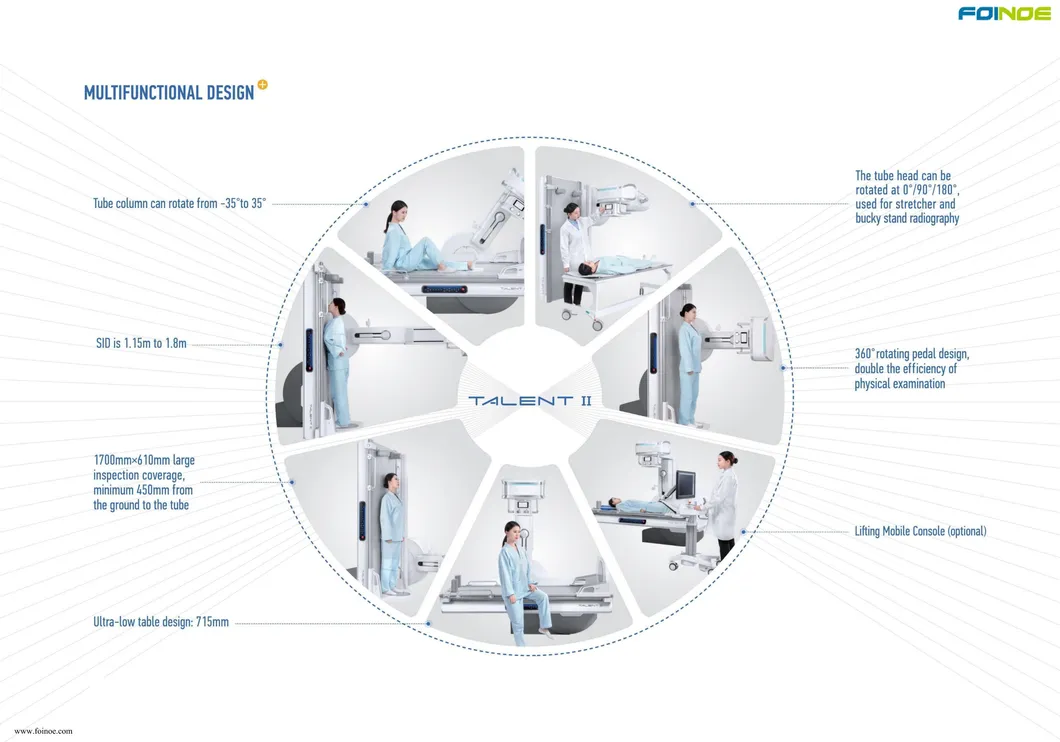

X-ray Detail 2

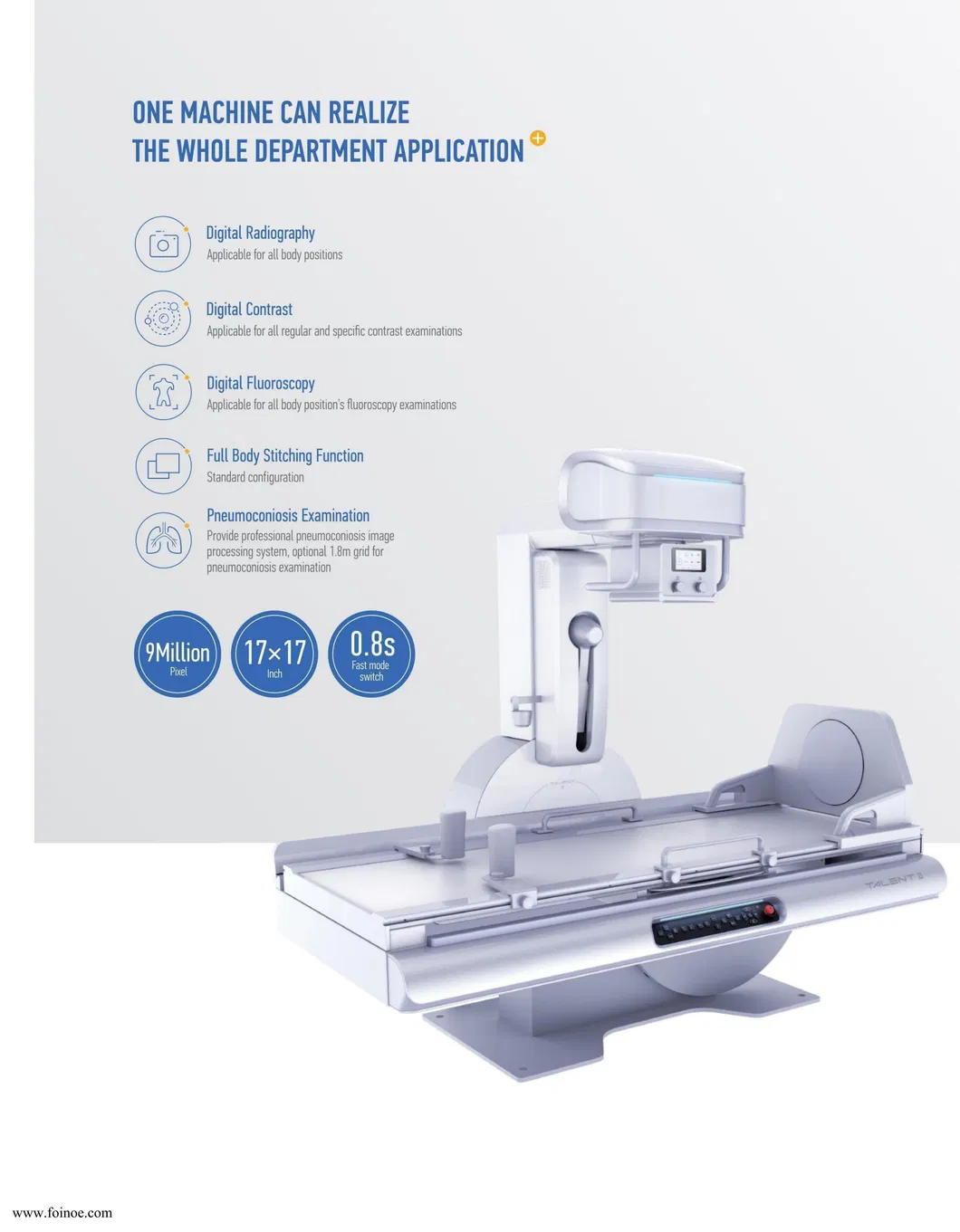

X-ray Detail 3

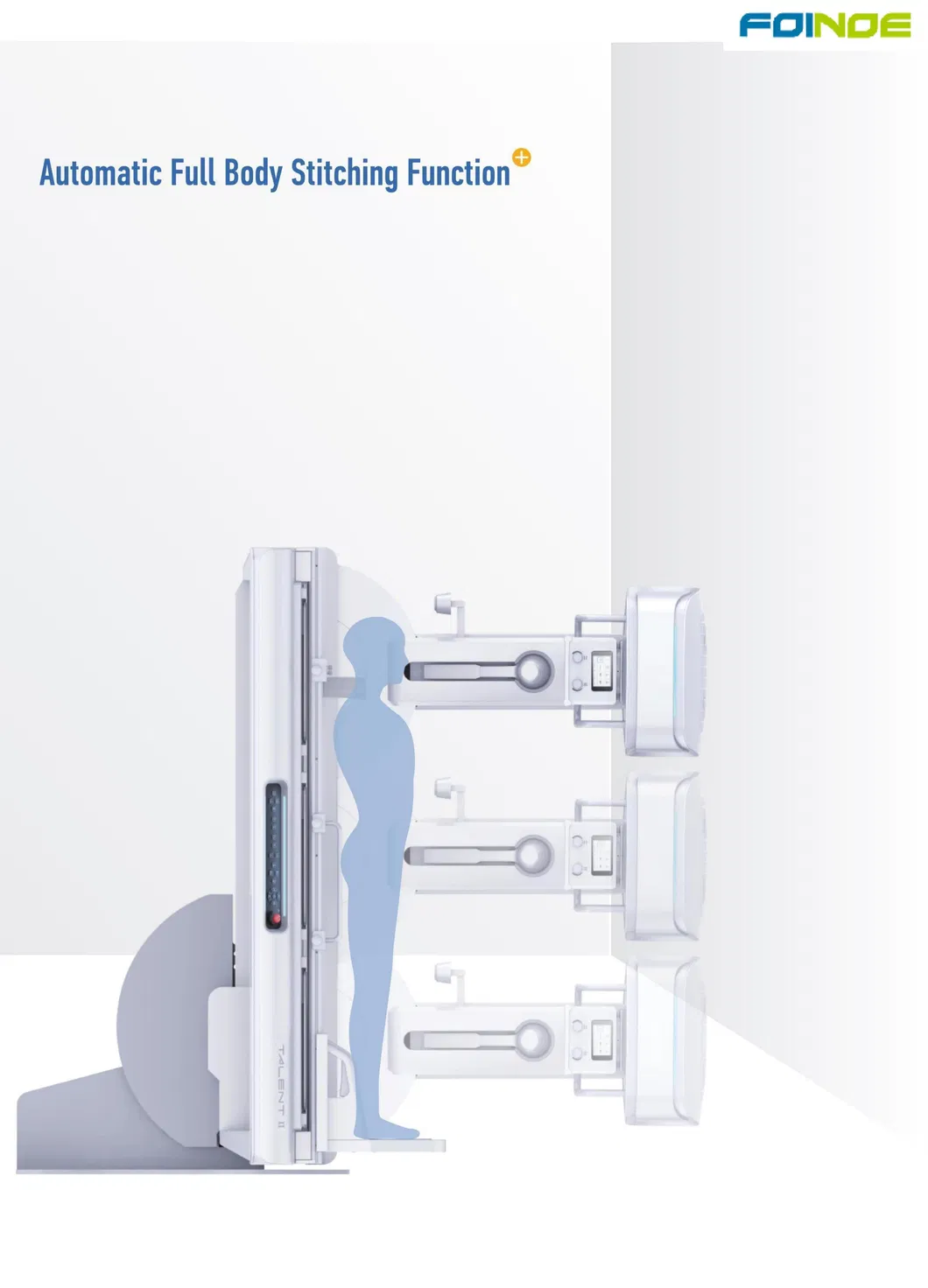

X-ray Detail 4

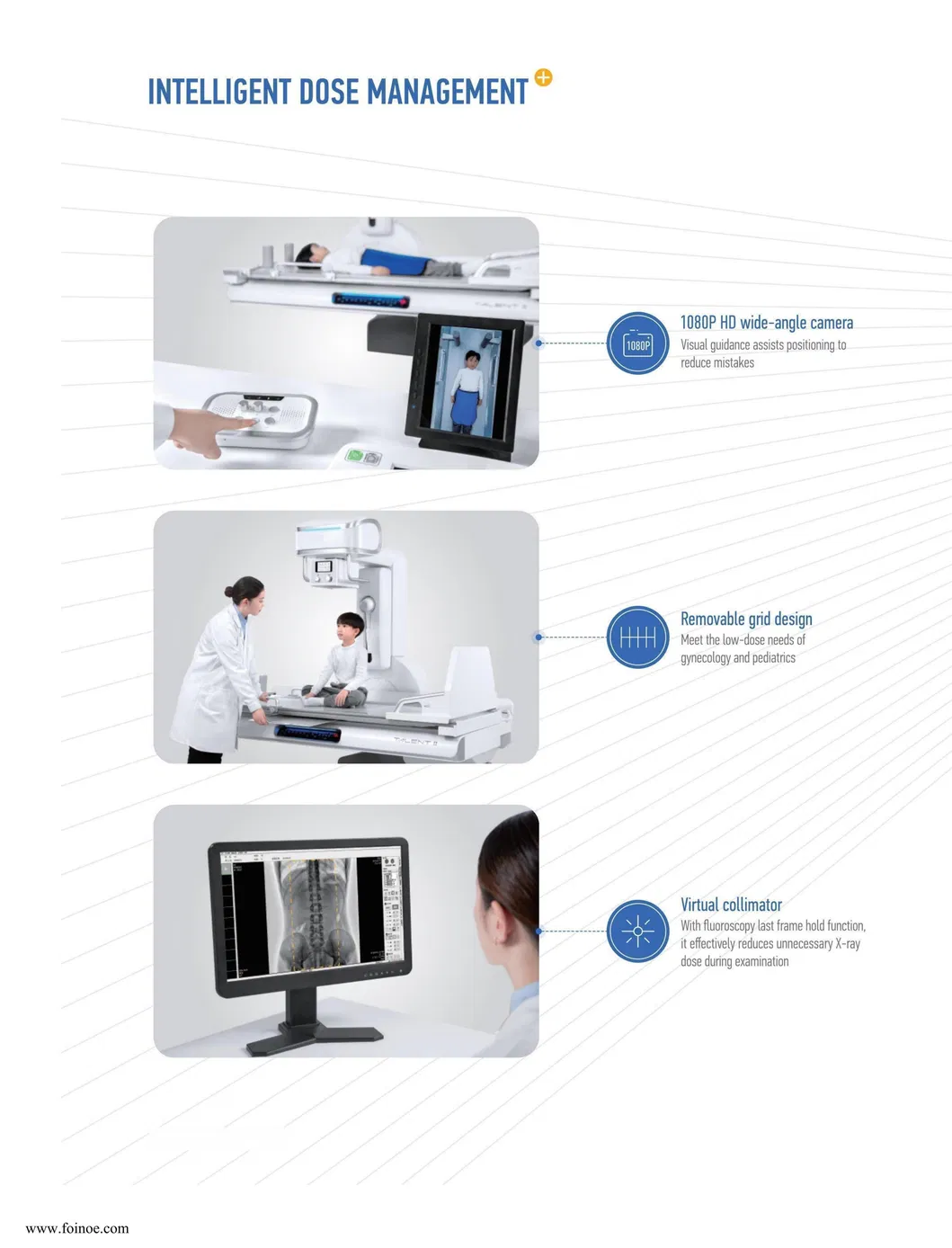

X-ray Detail 5

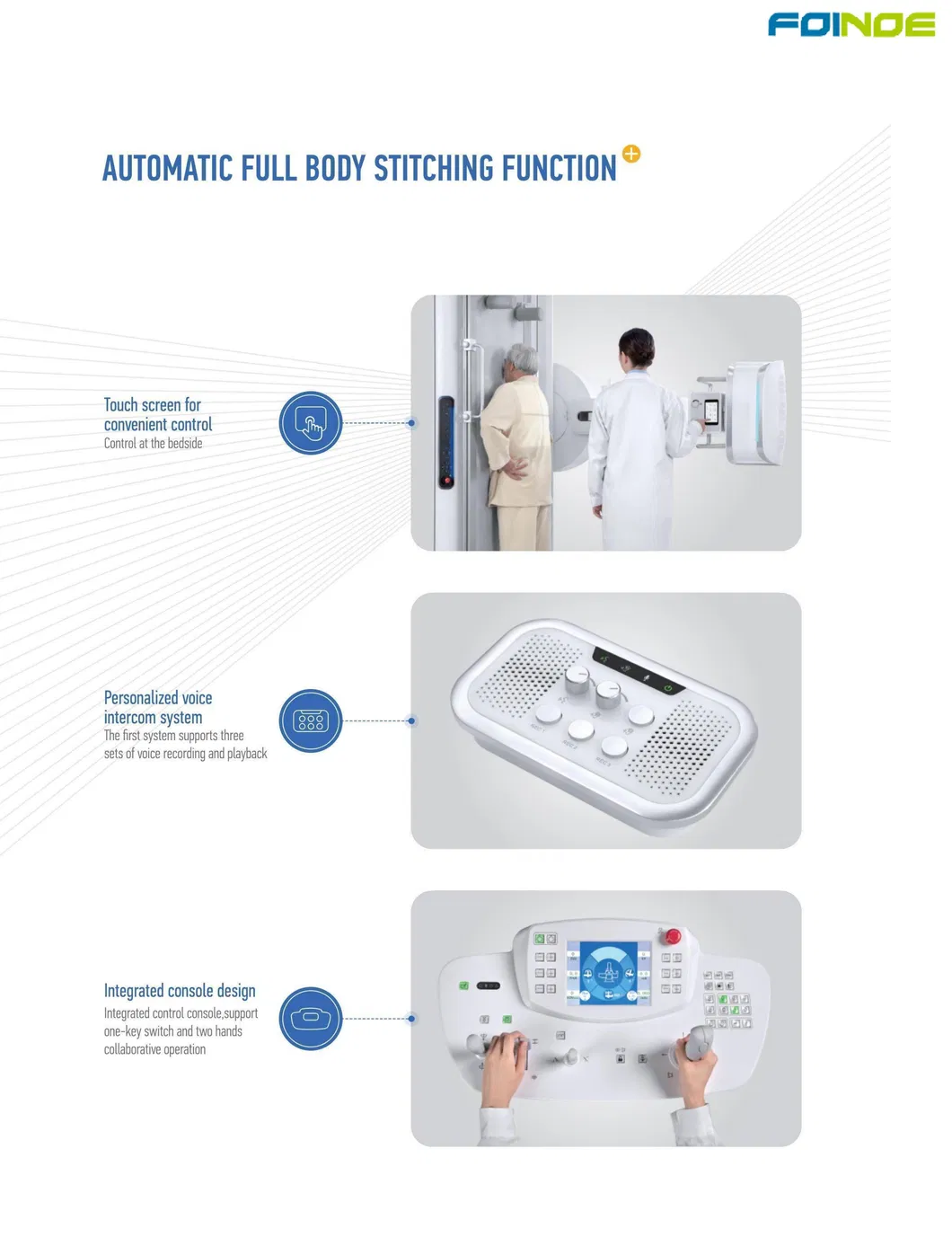

X-ray Detail 6
🏢

Professional Manufacturing

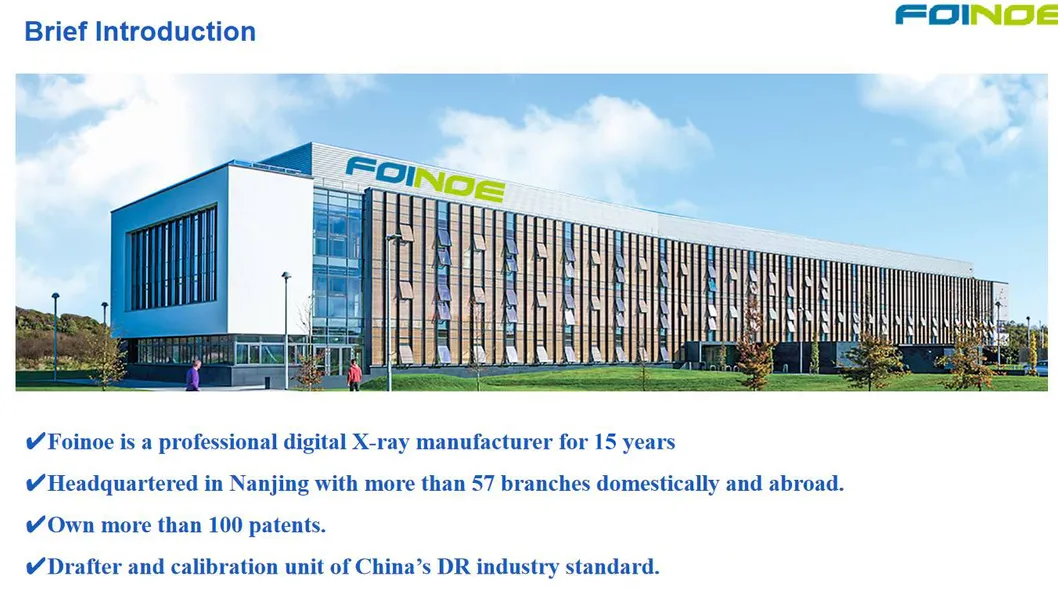

Factory Overview
Certifications
❓

Frequently Asked Questions

Q: What is the main application of the FNX-1000MA system?
A: It is a multifunctional digital radiographic system designed for both high-quality digital radiography and dynamic fluoroscopy.
Q: What is the power capacity of the high-frequency generator?
A: The system is equipped with a high-performance 80kW generator, ensuring stable and powerful output for various clinical needs.
Q: Does the system support remote operation?
A: Yes, it features a remote-control bed and a remote-control console to minimize radiation exposure for medical staff.
Q: What type of detector technology is used?
A: It utilizes an a-Si (Amorphous Silicon) Dynamic Flat Panel Detector with a CsI scintillator for high-resolution imaging.
Q: Can the bed handle bariatric patients?
A: Yes, the remote control bed has a load-bearing capacity of up to 200kg.
Q: Is the system compatible with existing PACS?
A: Yes, the TS-5 workstation complies with standard DICOM 3.0 for seamless transmission to PACS and other workstations.
