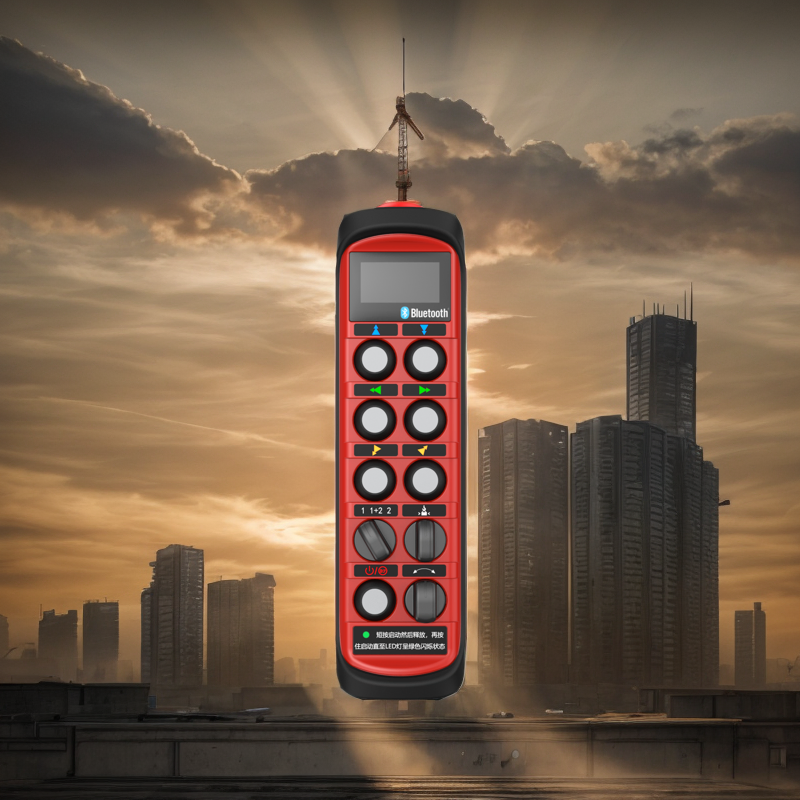

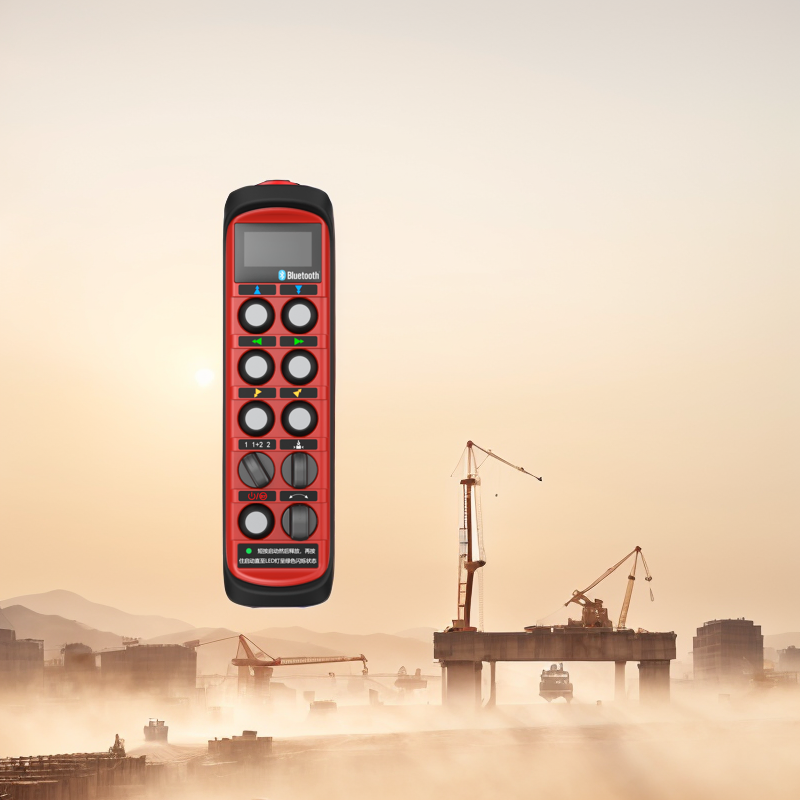

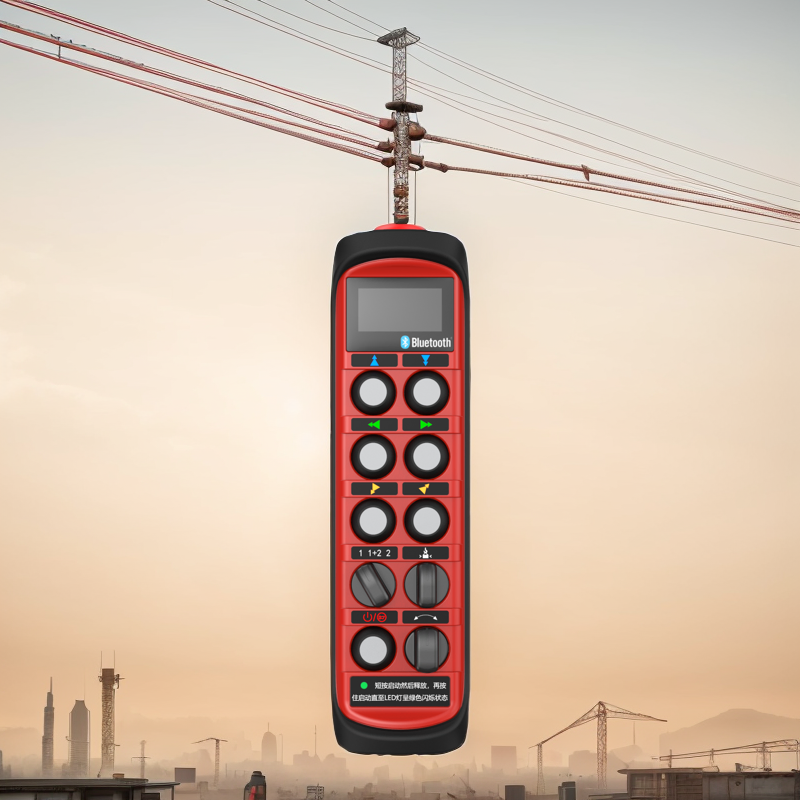

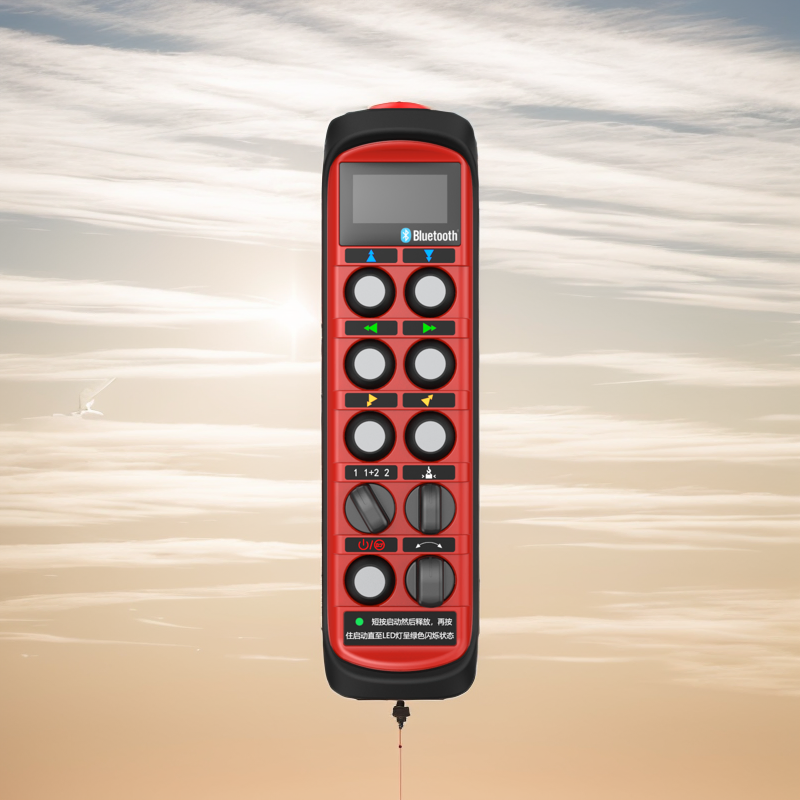

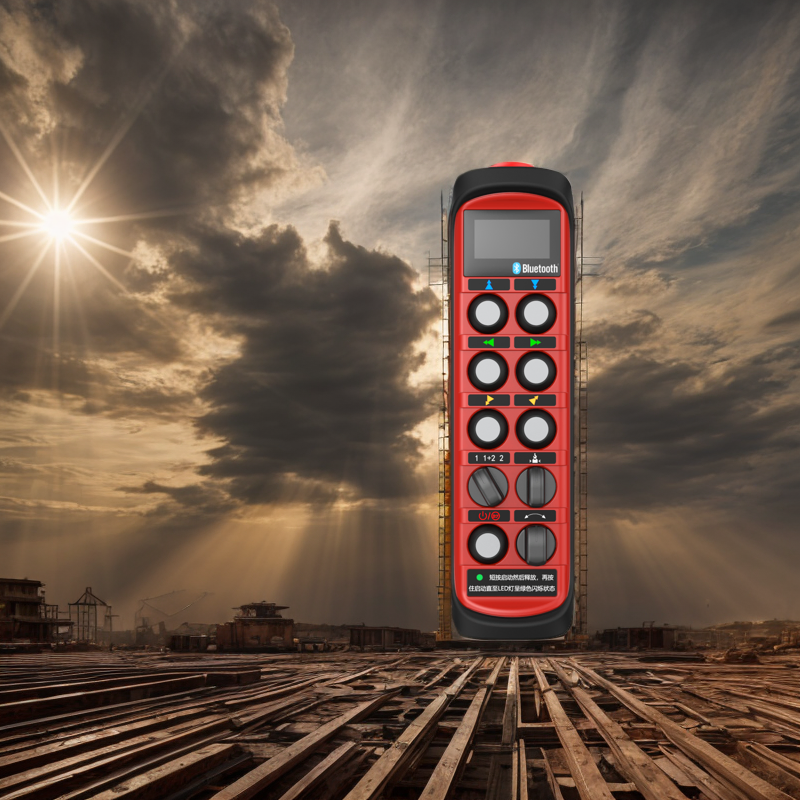

Ohm B16 Advanced Bluetooth RF Remote for Construction Equipment

Customization: Available
Application: Industrial Machinery, Led Products
Battery Type: Aa Battery

Product Description

Basic Specifications
Model NO. B16 Bluetooth
Certification CE, FCC, ISO9001, RoHS
Color Red
Material Engineering Plastic
Transmission Distance >100m
Signal Transmission RF Remote Control / Bluetooth
Protection Level IP66
Dimensions 223mm x 62mm x 54mm
Technical Parameters

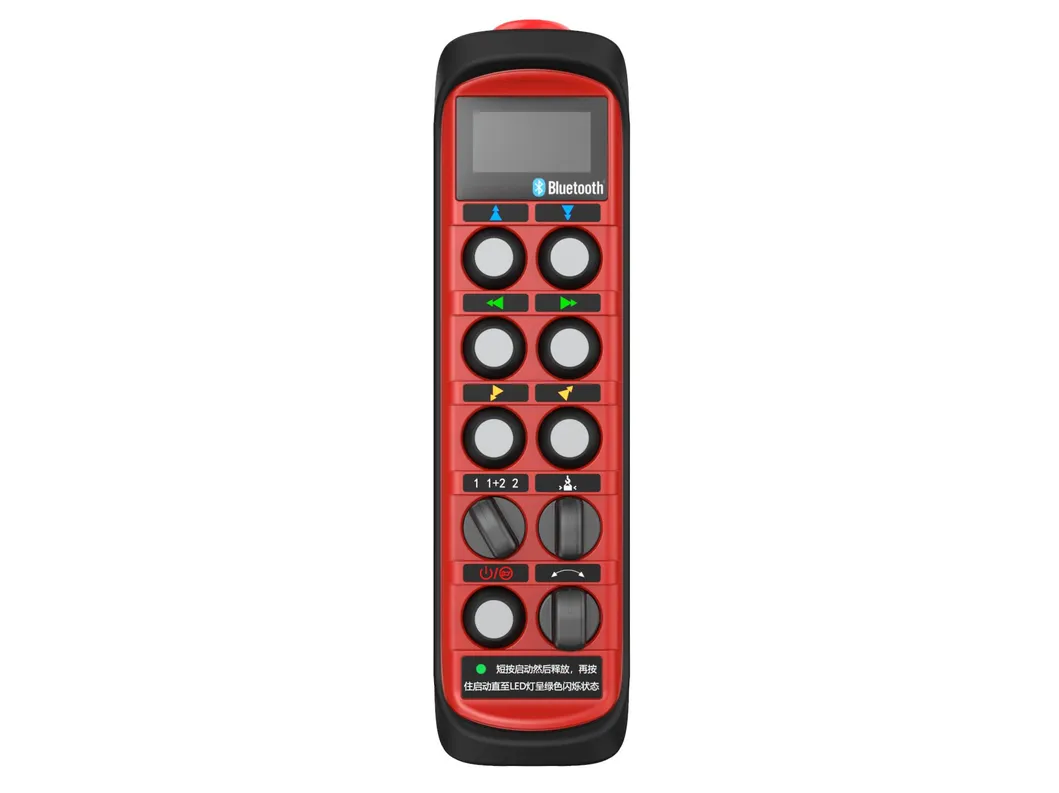

Operating Elements ≤10 dual-speed buttons; ≤3 rotary switches; ≤1 potentiometer; 1 emergency stop switch
Standard Functions Smart key; OLED display; automatic shutdown; button self-test; parameter setting
Optional Functions ID card; 1 to N function; N to 1 function; N to N function (N≤8); OLED feedback
Working Frequency 416MHz-419MHz (S); 433MHz-434MHz (S); 2.4GHz (BT)
Working Temp -25ºC ~ +70ºC
Weight ≈360g
Battery Type Li2400 Adapter battery
Key Characteristics
Frequency hopping anti-interference & switch zero position detection
Automatic setting for frequency, energy saving, and other parameters
Real-time feedback display of weight, signal status, and more
OLED highlight display for clear visibility in various environments
Ergonomic design with exceptionally long button service life
Frequently Asked Questions
What is the maximum effective range of the B16 remote control?
The B16 Bluetooth/RF remote control supports a transmission distance of greater than 100 meters, ensuring safe operation at a distance.
What kind of environments can this remote control be used in?
With an IP66 protection rating and an operating temperature range of -25ºC to +70ºC, it is designed for harsh industrial environments including construction, mining, and forestry.
Does the device provide real-time feedback?
Yes, the device features an OLED highlight display that provides feedback on signal strength, weight data, and other critical parameters.
What safety features are included in the B16 model?
It includes an emergency stop switch, switch zero position detection, and a button self-test function to ensure operational safety.
Can multiple remotes operate in the same area without interference?
Yes, the device utilizes frequency hopping technology and anti-interference measures to allow reliable operation even in high-frequency environments.
What is the battery compatibility for this unit?
The B16 is designed to work with the Li2400 adapter battery, which is optimized for industrial use and long-lasting performance.
