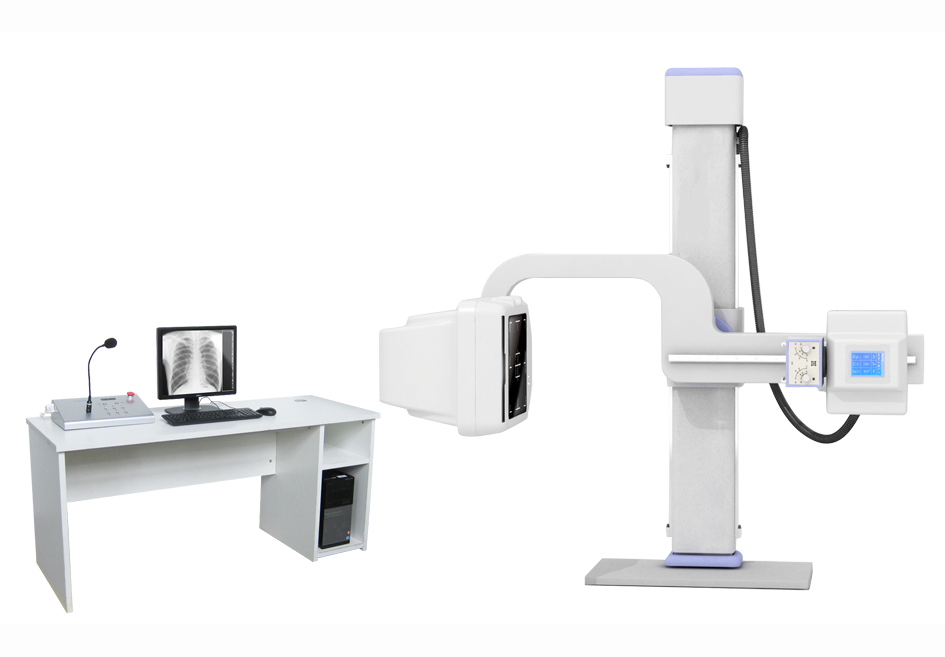

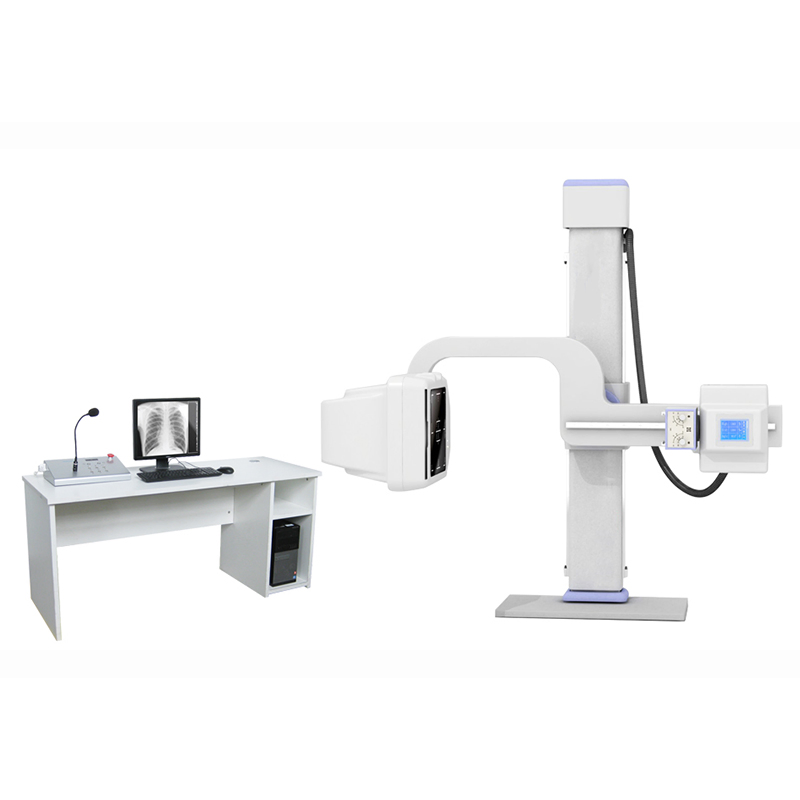

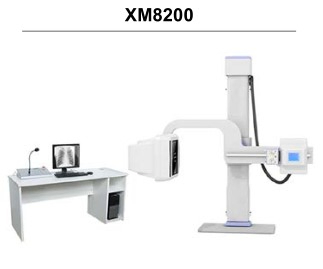

| High Frequency X-ray Machine | Digital Detector | ||
|---|---|---|---|
| Power Output | 26kW | Detector Type | CCD |
| Inverter Frequency | 60kHz | Field of View | 17*17 Inch |
| X-Ray Tube | XD56-11 32/130 | Pixel | 3K*3K |
| Dual-focus | Small: 0.6, Large: 1.3 | Spatial Resolution | ≥ 3.0LP/mm |
| Thermal Capacity | 900kJ (1200 kHU) | Resolution Limit | 4.6LP/mm |
| Tube Voltage | 40~130kV | Grayscale | 14bit |
| Imaging Time | 7 seconds | ||
| Mechanical & Control System | |
|---|---|
| U-shaped Arm Vertical Travel | 450mm-1700mm (motorized) |
| Anode to Screen Range | 1000mm-1800mm (motorized) |
| Rotation Range | -40°~+130° (motorized) |
| Bed Size | 2000mm*650mm |
| Image Post-processing | Tissue equilibrium, W/L adjustment, Gamma correction, noise reduction, sharpening, edge extraction, zooming, measurement tools. |
Founded in 2003, we are one of the leading manufacturers and exporters of medical equipment. We specialize in providing one-stop solutions for medical equipment needs, helping clients plan and develop procurement programs globally. We are a comprehensive integrated supplier of medical diagnosis and treatment solutions.
With over 15 years of industry experience and a dedicated manufacturing base, we have established long-term partnerships with numerous domestic manufacturers, positioning us as a leader in the medical supply industry.
Our diverse product range includes surgical equipment, clinical laboratory devices, X-ray generators, ultrasounds, and hospital furniture. Most products carry ISO and CE certifications, reflecting our commitment to quality-driven service innovation.
