Dual-Band Uav Digital Video Transmission System 1080P60 Long-Range

📋Basic Information

Model NO.

Q4

Usage

Radio, Satellite, Plane, Ship, Car

System Type

Uav Digital Video Transmission System

Communication Frequency

2.7GHz - 7GHz

Communication Bandwidth

5 MHz

Number of Channels

36

Video Resolution

1080P60 / 720p60

Operating Temperature

-20°C to 60°C

🚀Product Introduction

The Q4 dual-band UAV digital video transmission system is designed for stable, long-range HD video transmission in complex environments. Supporting 2.7–7 GHz dual-band operation, the system ensures reliable connectivity with adaptive anti-interference capability.

With 1080p60 HD video, low latency performance, and wide voltage input (8–40V), Q4 is suitable for a wide range of industrial UAV applications. It consists of an airborne VTX and a ground-based RBox receiver, enabling real-time video monitoring and recording.

💎Core Advantages

Dual-band 2.7–7 GHz operation for flexible frequency selection
Stable HD video transmission up to 1080p60
Wide voltage input (8–40V) for multi-platform compatibility
Strong anti-interference capability in complex environments
Industrial-grade design for harsh operating conditions
Supports large-capacity storage up to 1TB

🛠️Functional Modules

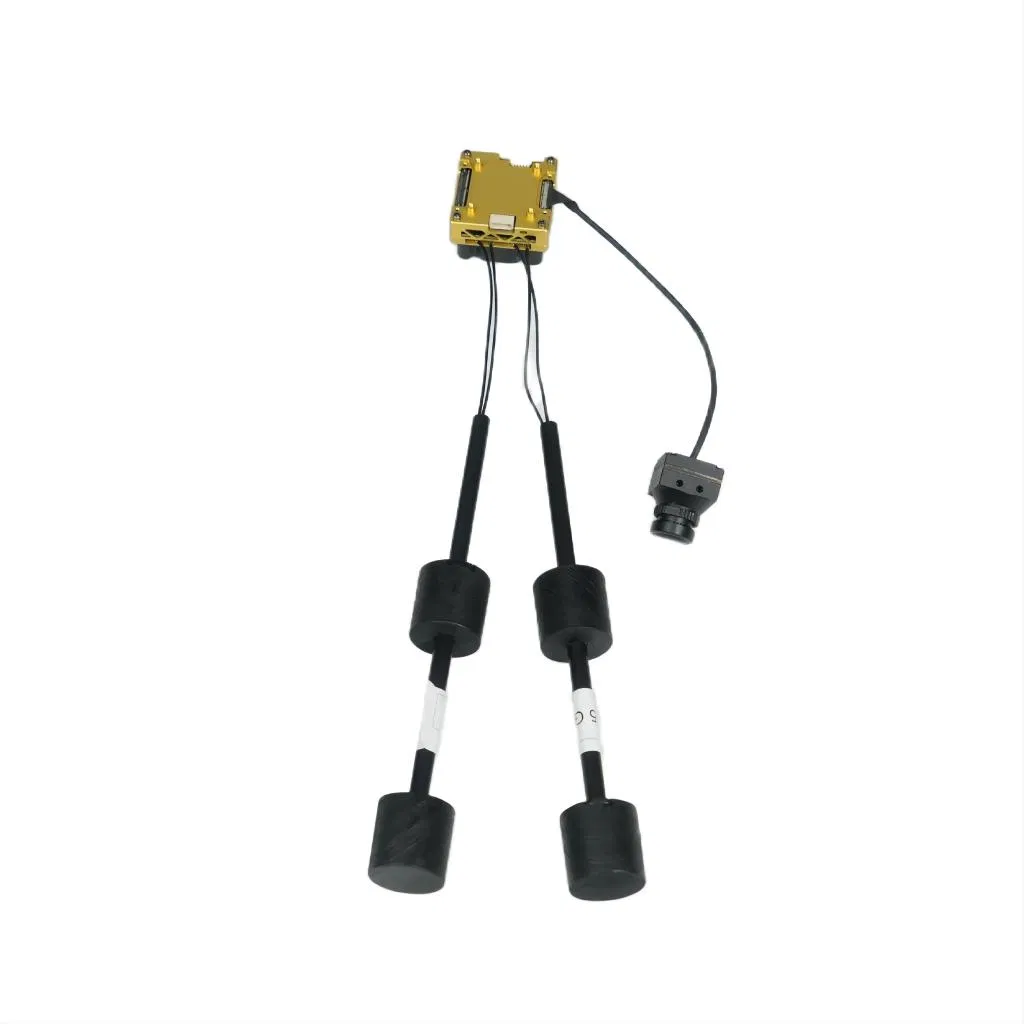

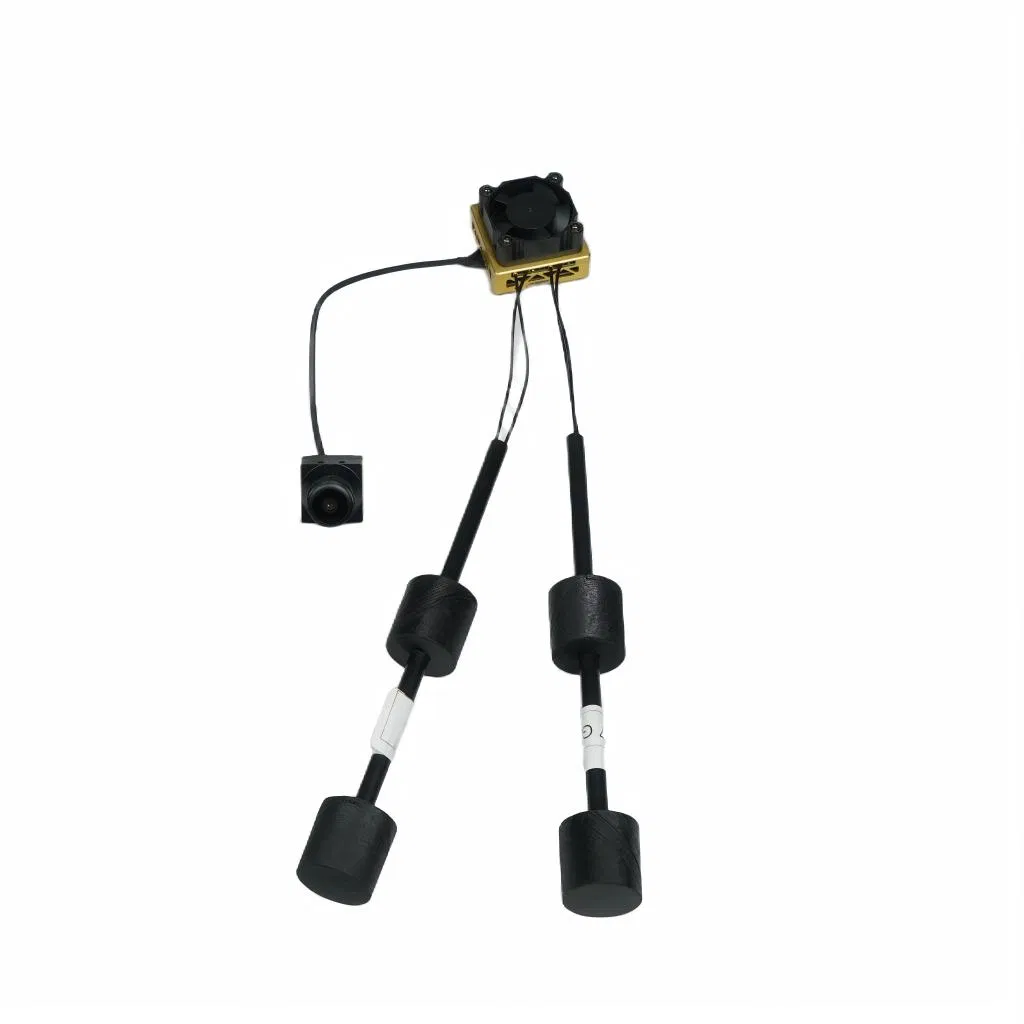

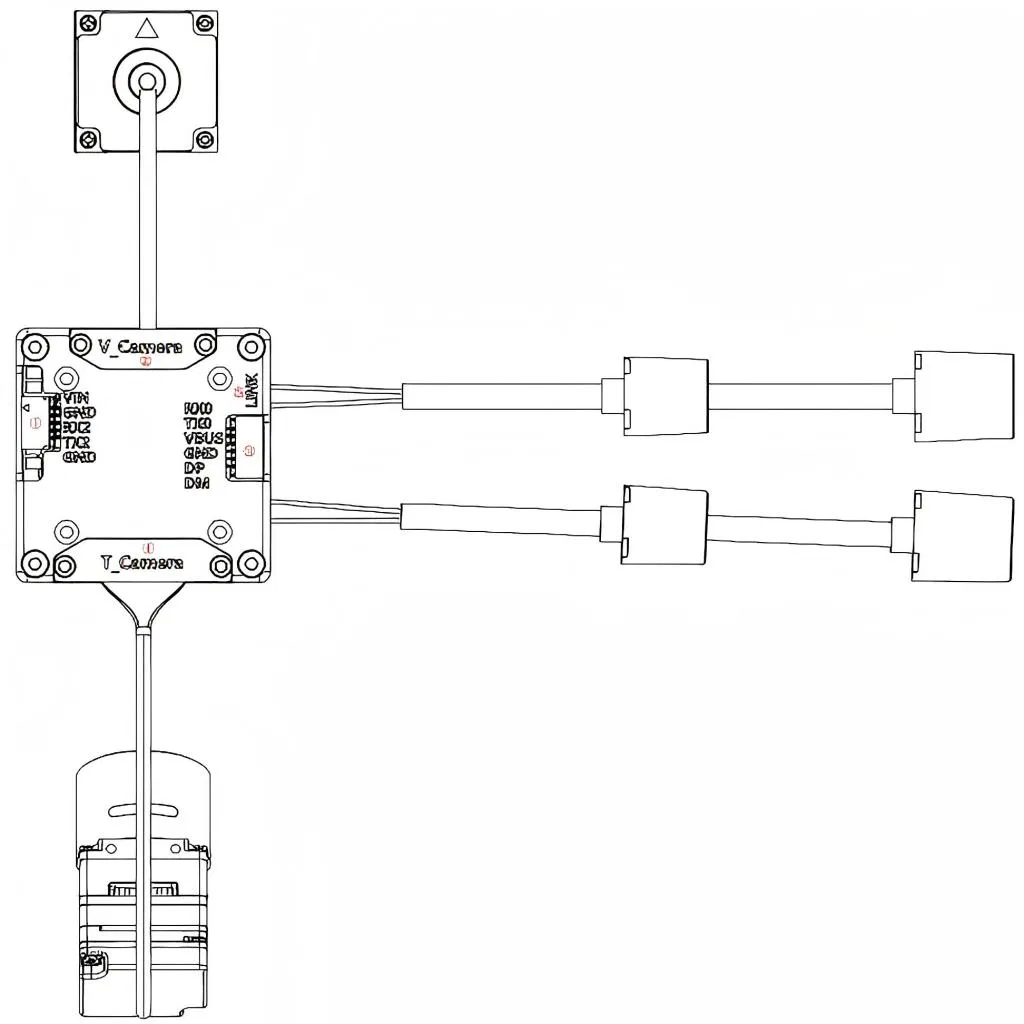

VTX Air Unit (Video Transmitter)
Real-time video capture, MIPI camera support, UART integration with flight controller, dual-band antenna.

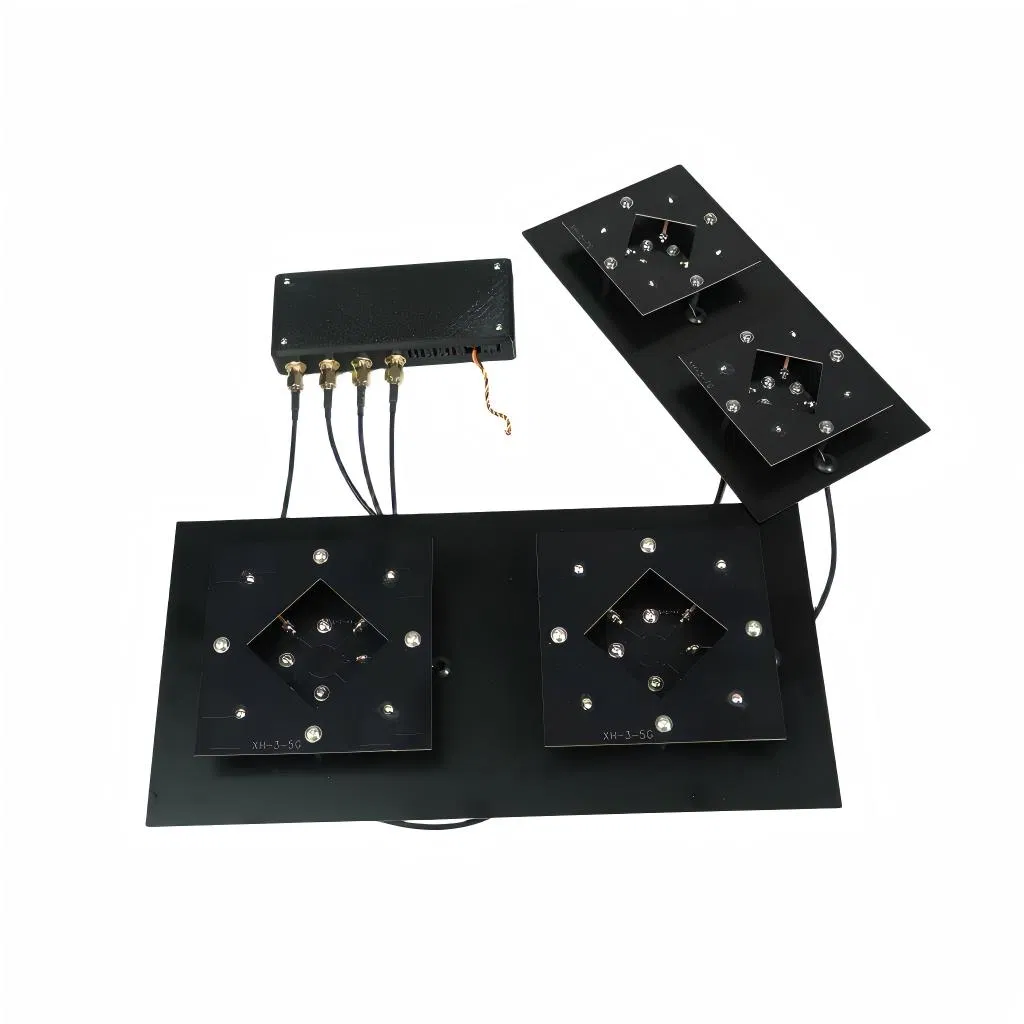

RBox Ground Receiver
Real-time video decoding, HDMI and Type-C output, TF card recording (up to 1TB), keypad configuration.

🌍Application Scenarios

Infrastructure inspection (powerline, pipeline)
Security monitoring and site observation
Surveying and mapping operations
Environmental monitoring
Long-range UAV data collection missions

📊Technical Specifications

System Type	UAV Digital Video Transmission	Video Resolution	1080p60 / 720p60
Frequency	2.7–7 GHz	OSD	Canvas Mode
Bandwidth	5 MHz	Flight Controllers	Betaflight, INAV
Channels	36	VTX Power Input	8–40 V

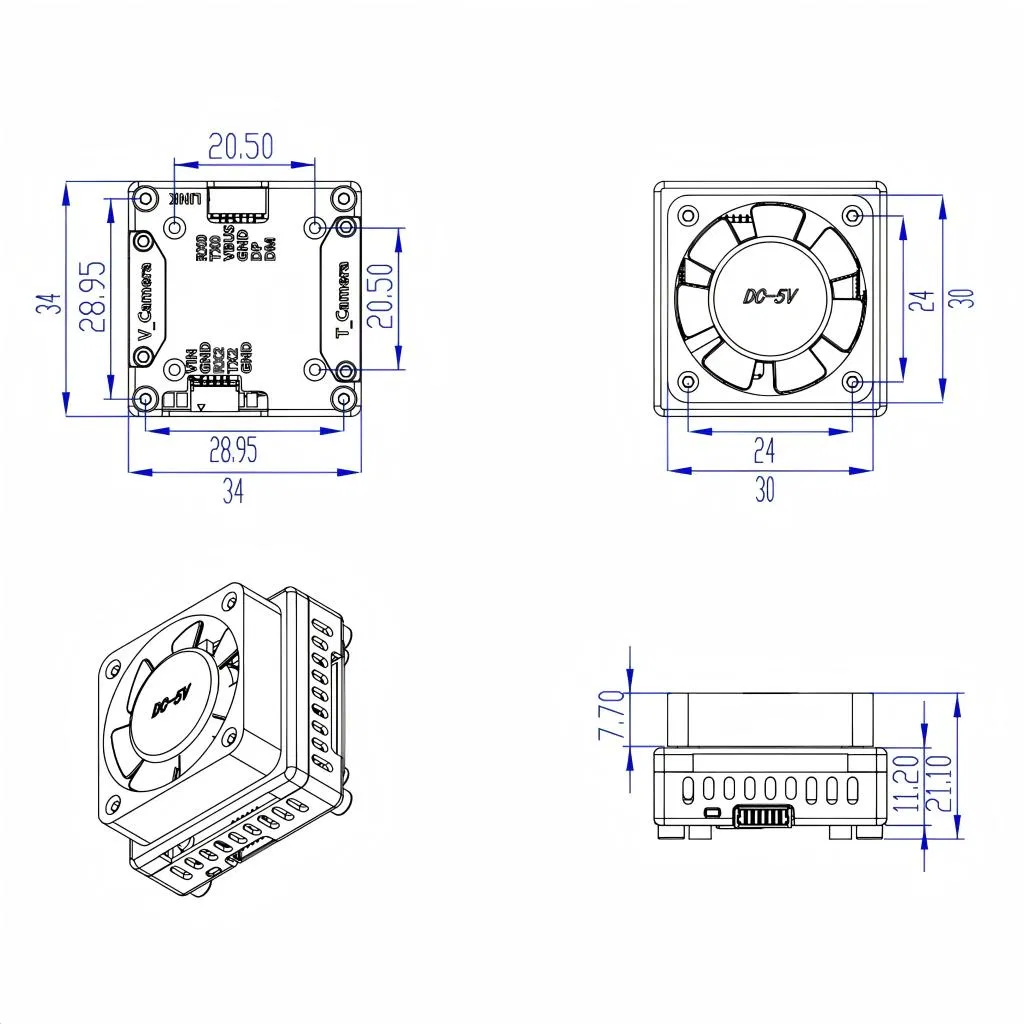

VTX Dimensions	34 × 34 × 18 mm	VTX Weight	22.41 g
RBox Power Input	9–30 V, 2A	Video Output	HDMI / Type-C
SD Card Support	Up to 1 TB	Temperature	-20°C to 60°C

📦Product Showcase

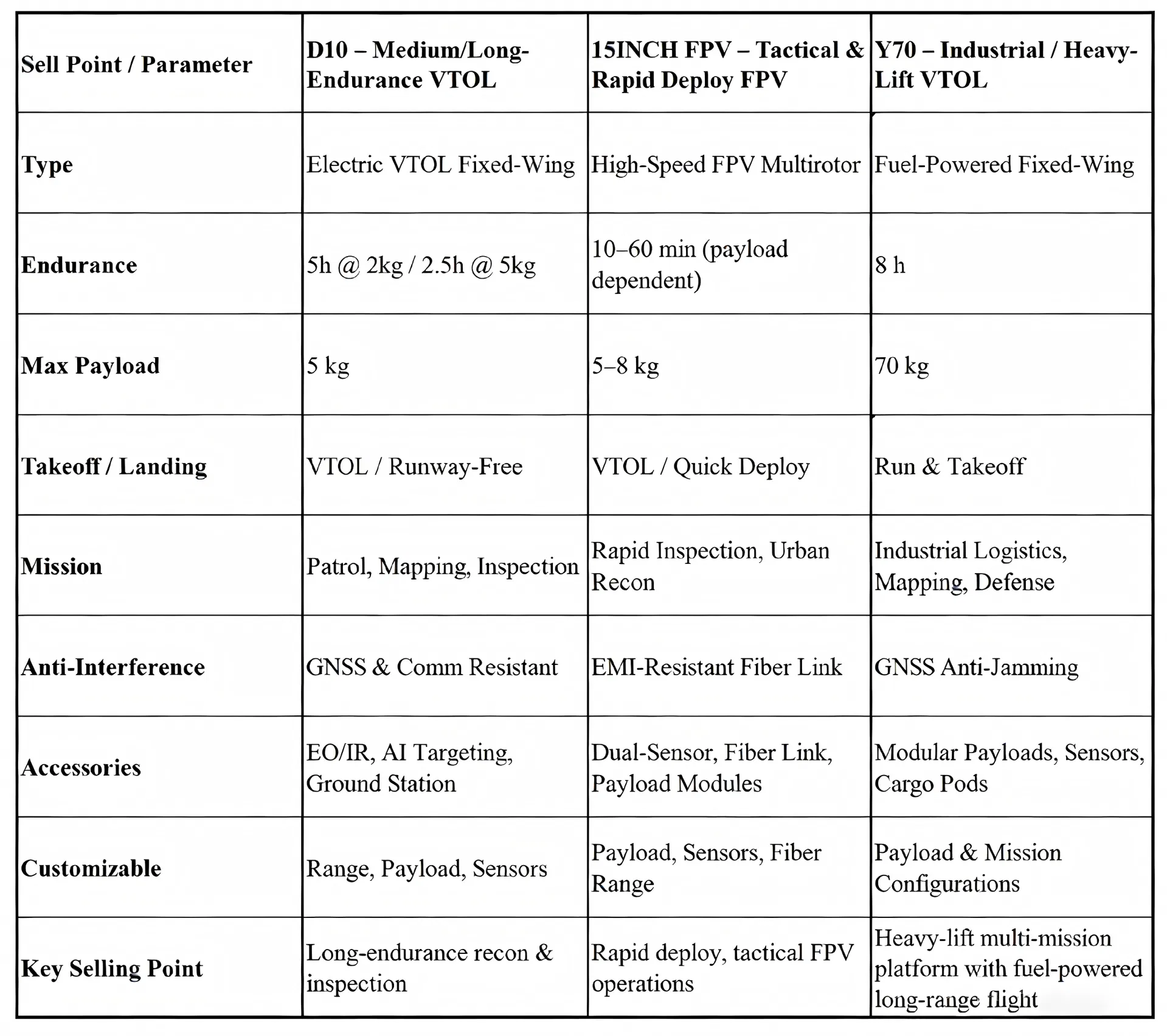

Our technology focuses on high-performance UAV platforms including FPV drones, VTOL fixed-wing UAVs, and multi-rotor systems. These platforms are widely used in aerial surveillance, industrial inspection, and security operations.

🏅Certifications & Exhibition

✈️Packaging & Shipping

Standard export packaging with protective foam and anti-static materials. Each unit is packed securely to prevent damage during transportation. Supports air, sea, and express shipping.

❓Frequently Asked Questions

Q1: What is the maximum transmission range of the Q4 system?

The transmission range depends on the environment, antenna configuration, and regulatory limits. Open-area performance is significantly better than in complex urban environments.

Q2: Does the system support different UAV platforms?

Yes, the Q4 supports a wide voltage range (8-40V) and standard interfaces, making it compatible with various industrial UAV systems.

Q3: What video formats and resolutions are supported?

The system supports high-definition 1080p60 and 720p60 video transmission for real-time monitoring.

Q4: Is the system resistant to signal interference?

Yes, the dual-band (2.7-7 GHz) architecture allows for flexible frequency selection to maintain stable connectivity in complex RF environments.

Q5: Can the ground receiver record video locally?

Yes, the RBox ground receiver supports TF card recording with a maximum capacity of up to 1TB.

Q6: What are the operating temperature limits for the equipment?

The system is designed for industrial use and operates effectively within a temperature range of -20°C to 60°C.
