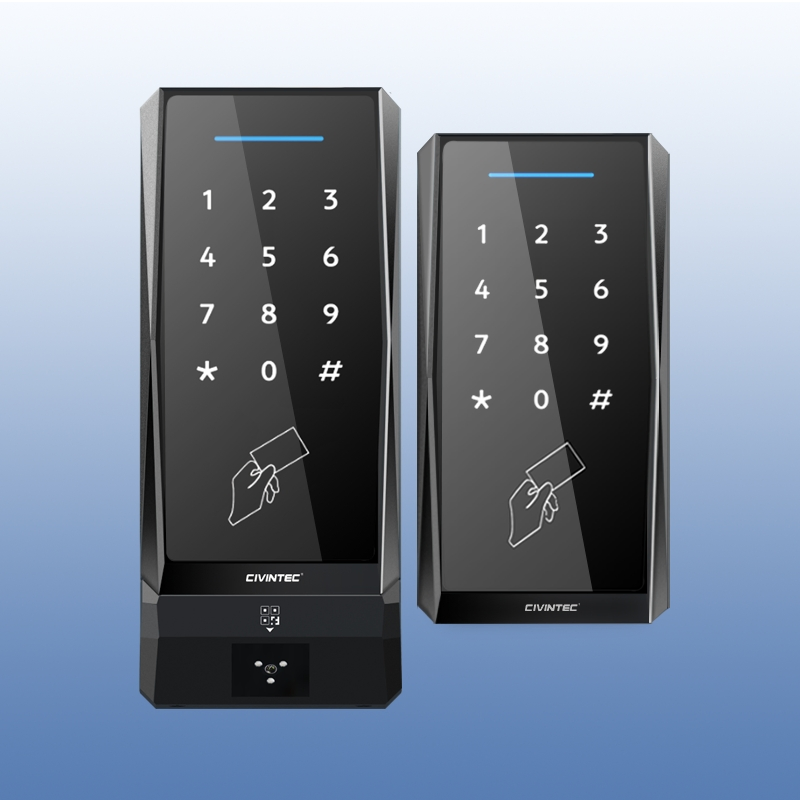

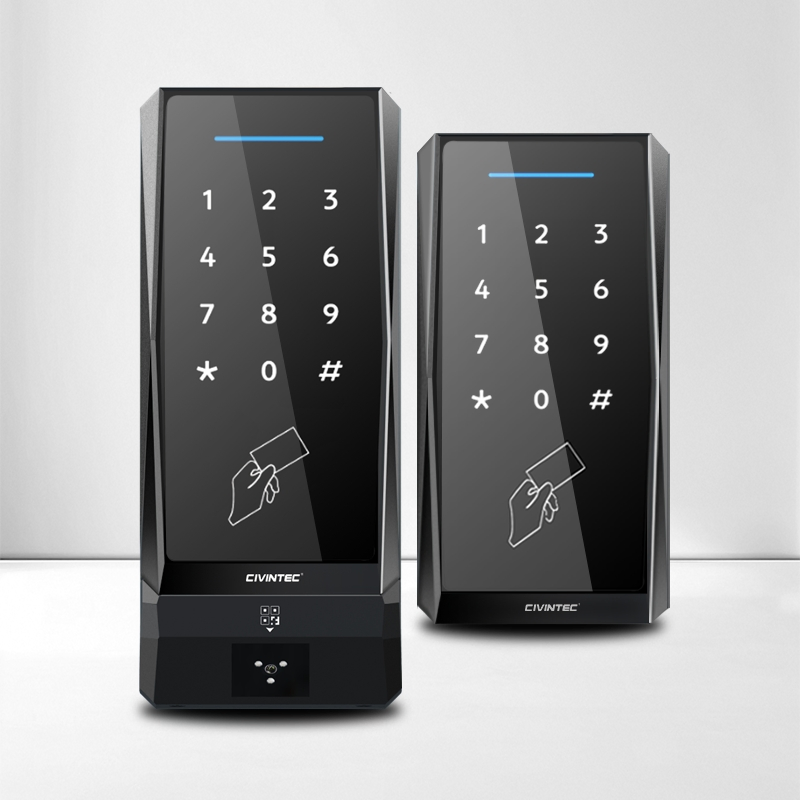

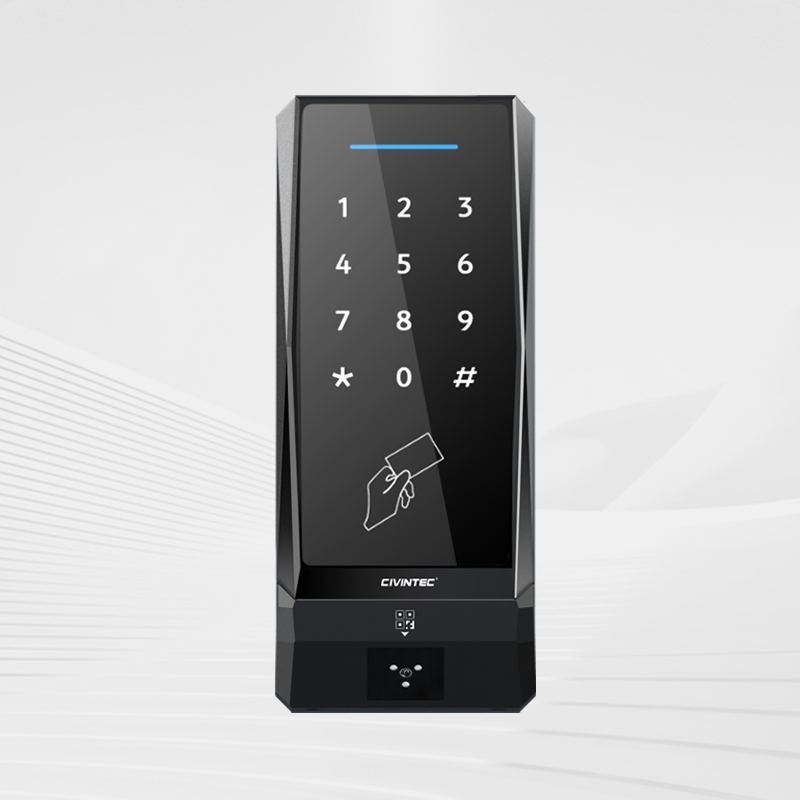

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless WiFi, 4G, and TCP/IP Ethernet. It is perfectly suited for both LAN and Internet cloud server software communication. With its embedded relay, it allows for the construction of versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.
| FAMILY | CT9 E |
| IDENTIFICATION TECHNOLOGIES | |
| RFID Contactless Cards | - 125KHz PROx, 125KHz EM - 13.56MHz Mifare® Classic, Ultralight®, Plus, DESFire® EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |
| Barcode / QR scanner | 1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 |
| INTERFACE | |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand input |
| I/O Port | Door contact, Door exit, Buzzer, Fire alarm, Tamper switch, 1~2 relay outputs |
| GENERAL | |
| OS / Display | LINUX / 3.5" Touch Screen (on supported models) |
| Keypad | 12-digit Touch keypad with backlit |
| Offline Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 electric epoxy potted, UV resistant |
* Specifications are subject to change without notice.

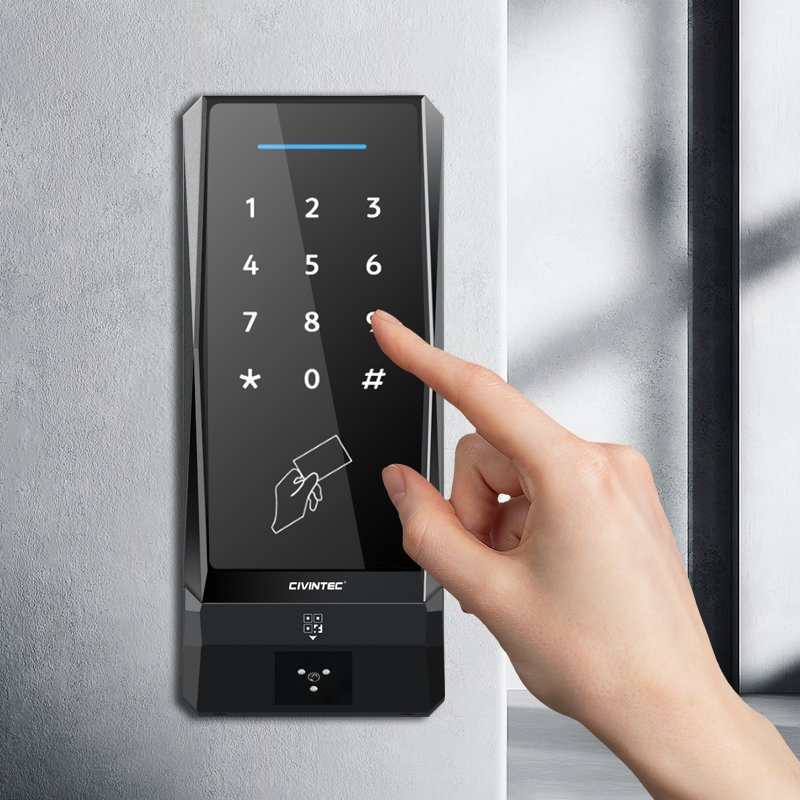

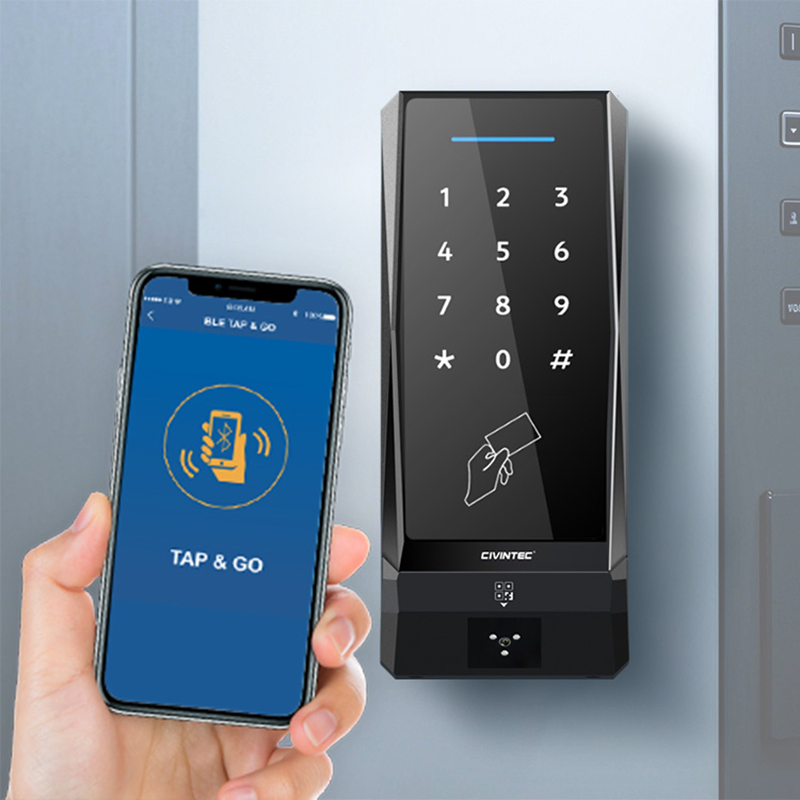

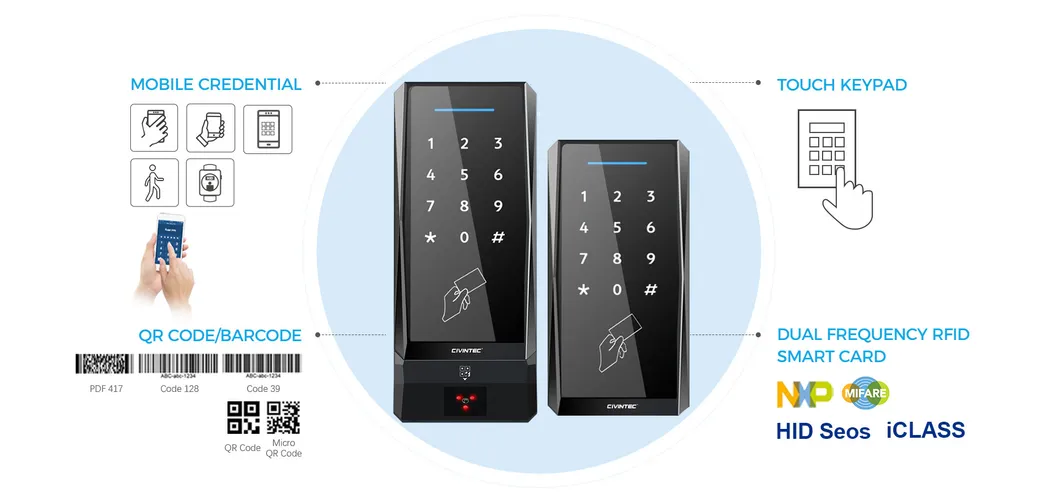

Incorporates 5-in-1 technology: touch keypad, RFID dual frequency, BLE & NFC mobile access, and QR code scanning for comprehensive visitor management.

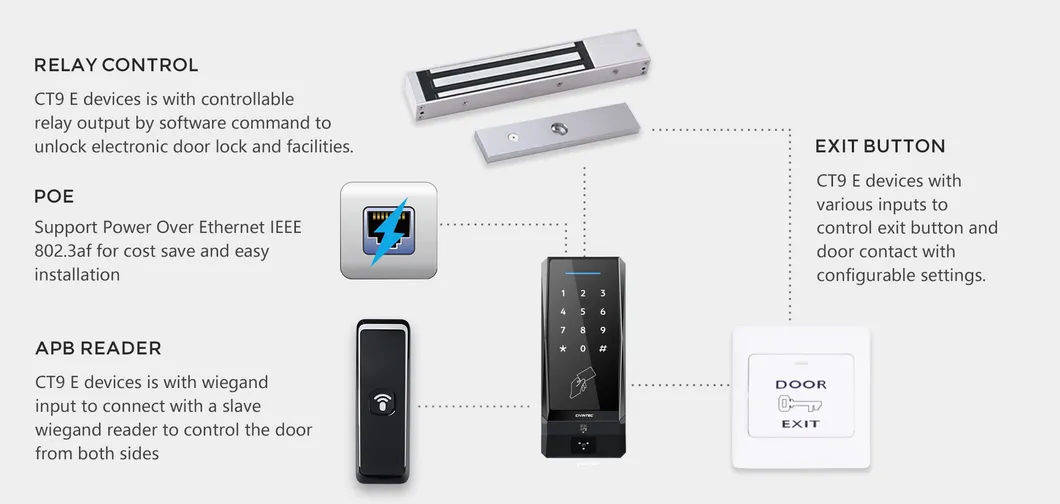

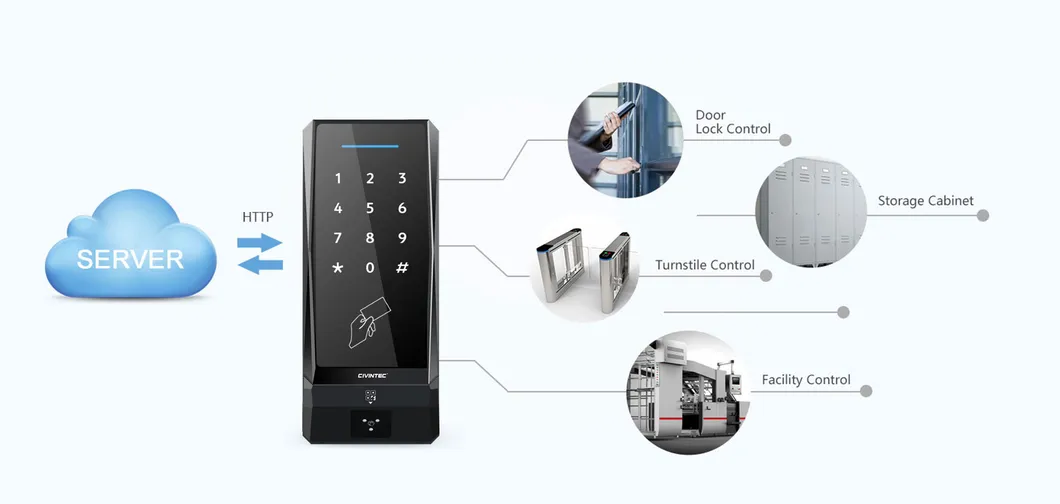

Bi-directional communication via standard HTTP & HTTPs protocols allows for remote control of door locks and various IoT facility management tools.
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.
We offer comprehensive customization options including hardware, housing, firmware, and software design services. Users can program and display their own logos on the 3.5" touch screen.
