| Product Model | MADR001 |
| Generator System | |
| Type | CPI High Frequency High Voltage (Canada) |
| Power / Frequency | 32KW / 100KHZ |
| Photography Range | 40-150KV / 0.1-500mAs |
| X-Ray Tube Options | |
| Standard Configuration | Toshiba (Japan), Focus 0.6/1.5MM, 125KV, 200KHU |
| Optional Configuration | VARIAN RAD-14 (U.S.A), Focus 0.6/1.2MM, 150KV, 300KHU |
| CCD Detector | |
| Imaging Size | 17 x 17 inch |
| Chip & Screen | Kodak CCD Chip (U.S.A) with CsI Blinding Screen |
| Resolution | ≥ 9 Megapixel / ≥3.4 LP/MM |
| Processing Time | Imaging ≤ 10 S / Transmission ≤ 2 S |

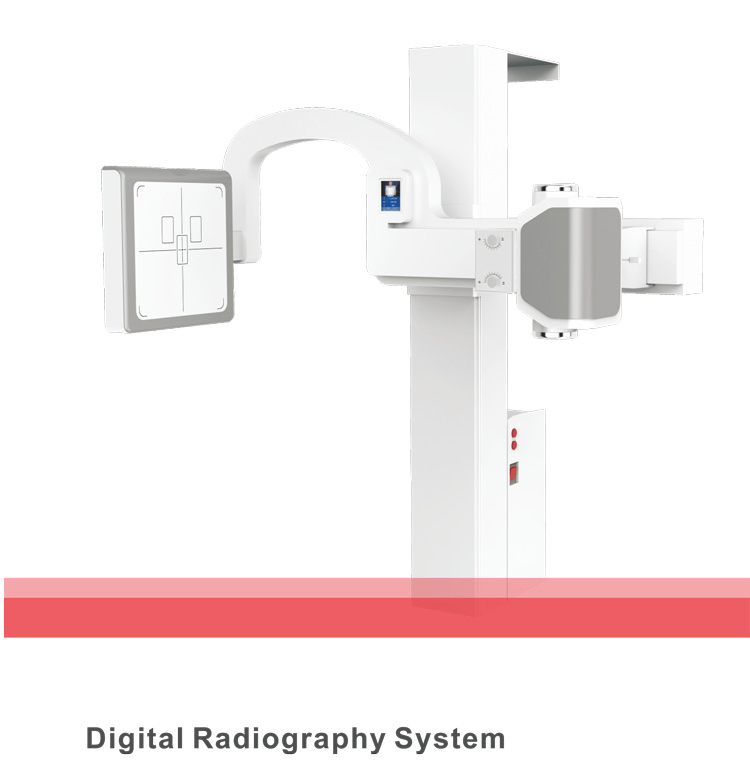

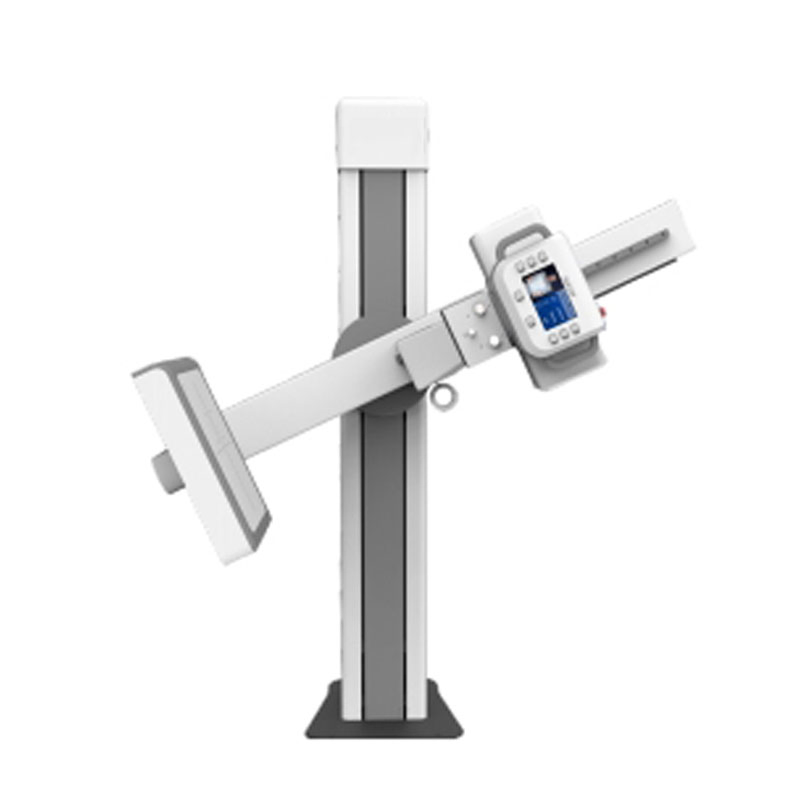

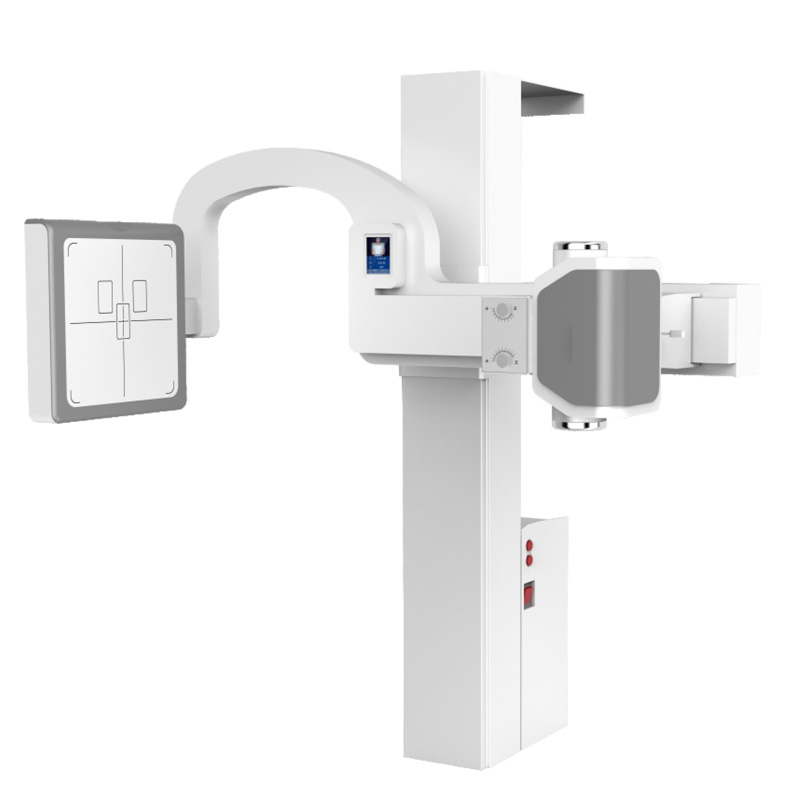

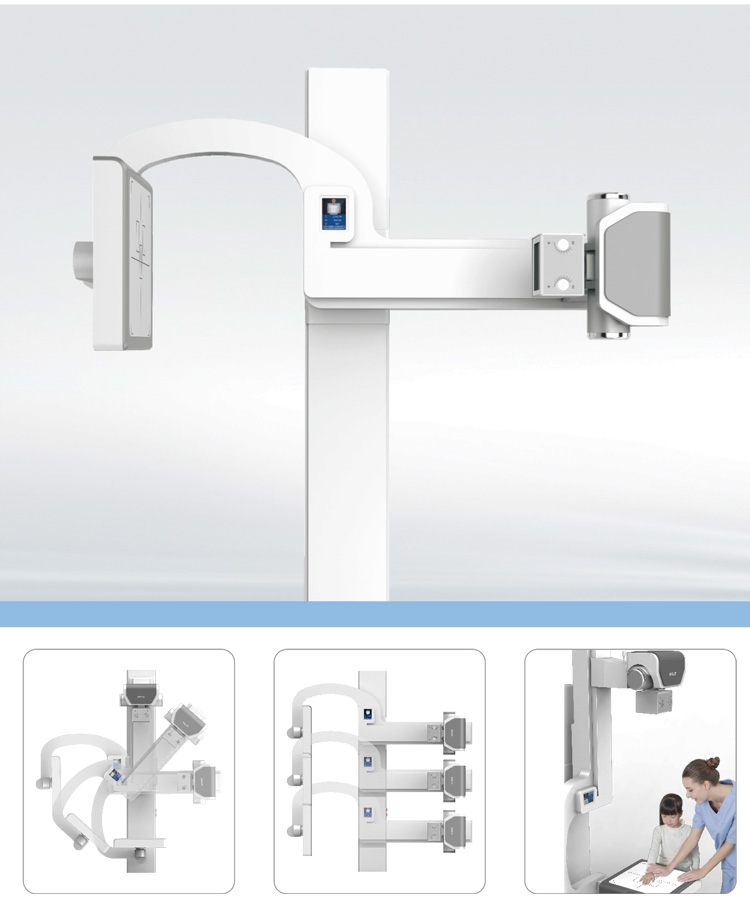

| Mechanical Movement (U-Arm) | |
| Vertical Movement | (70-170)cm continuously adjustable |
| Rotation Range | (0-90)° ± 2° |
| Focus Screen Distance | (100-180)cm adjustable |

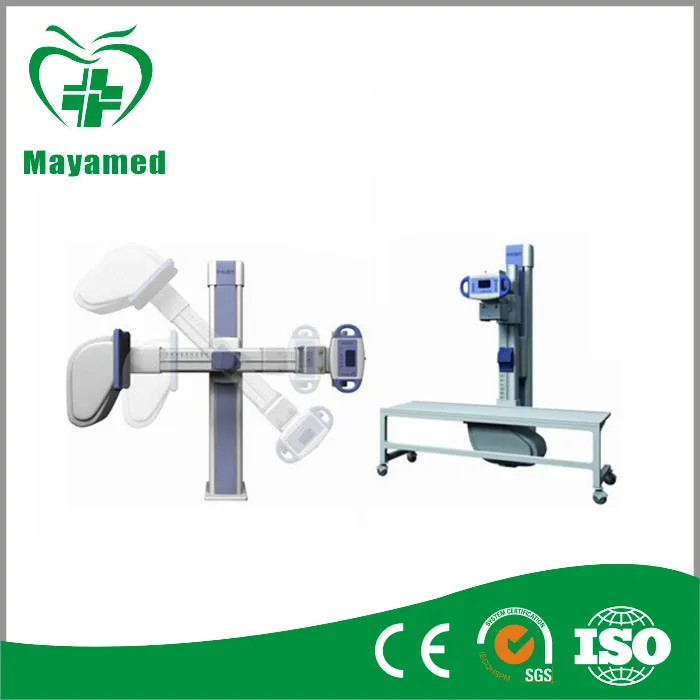

| Radiography Table | |
| Dimensions | 200cm (L) x 65cm (W) x 70cm (H) |
| Locking / Equivalent | Mechanical locking / < 1.7mmAl |
Multifunctional Operation: Manual/automatic window width and level, positive/negative image turning, rotation, amplification, roaming, labeling, splitting, and automatic electronic cutting.
Advanced Techniques: • Dynamic scope optimization • High frequency enhancement • Automatic noise suppression • Edge enhancement
Workstation Configuration: Dell Core Duo 2.5GHz, 2GB RAM, 320GB HDD, 19 inch LED monitor, DICOM 3.0 compatible.
