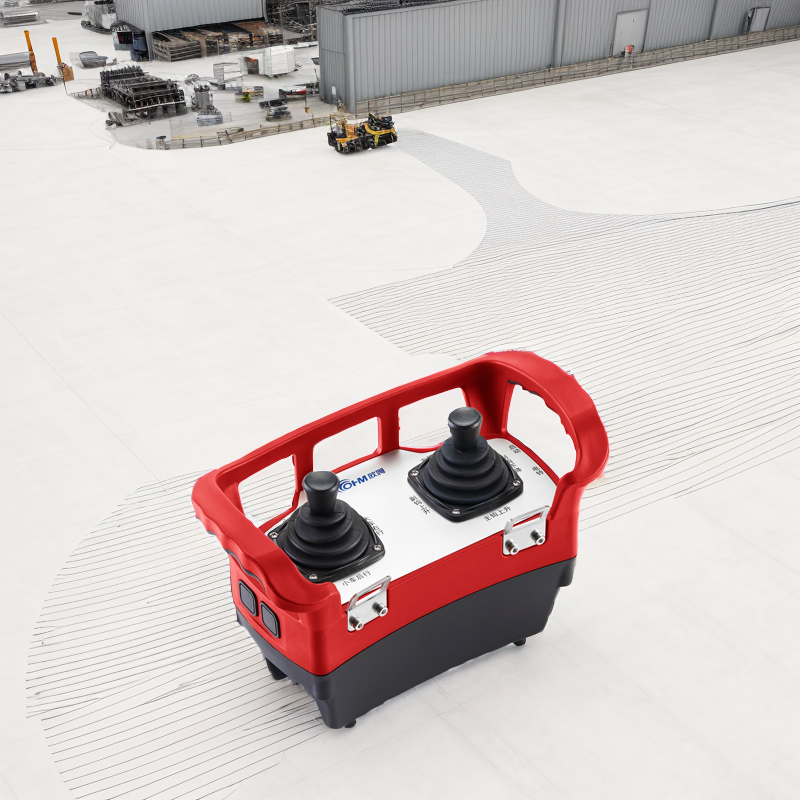

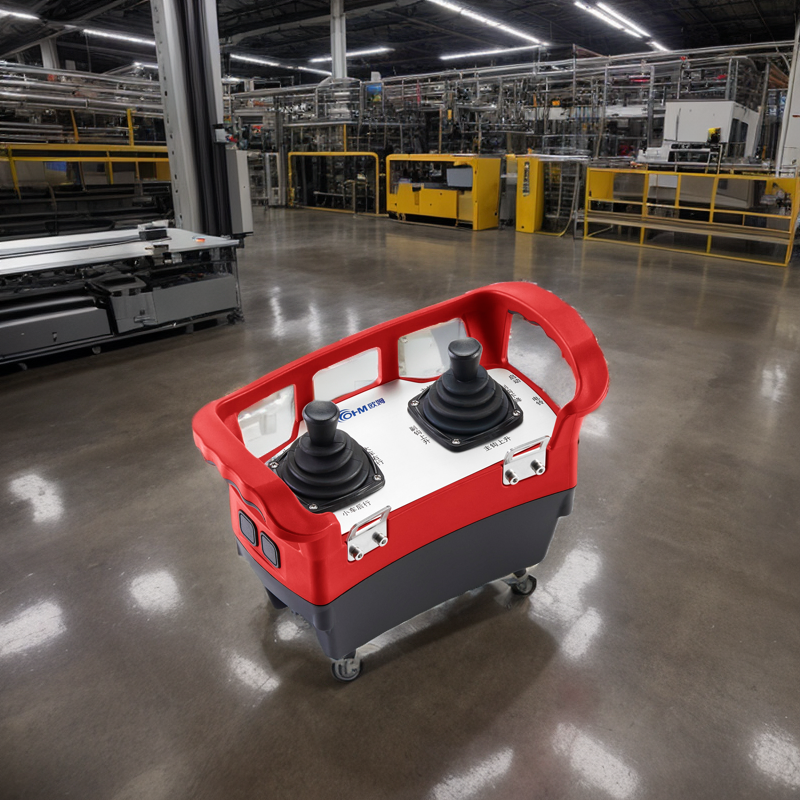

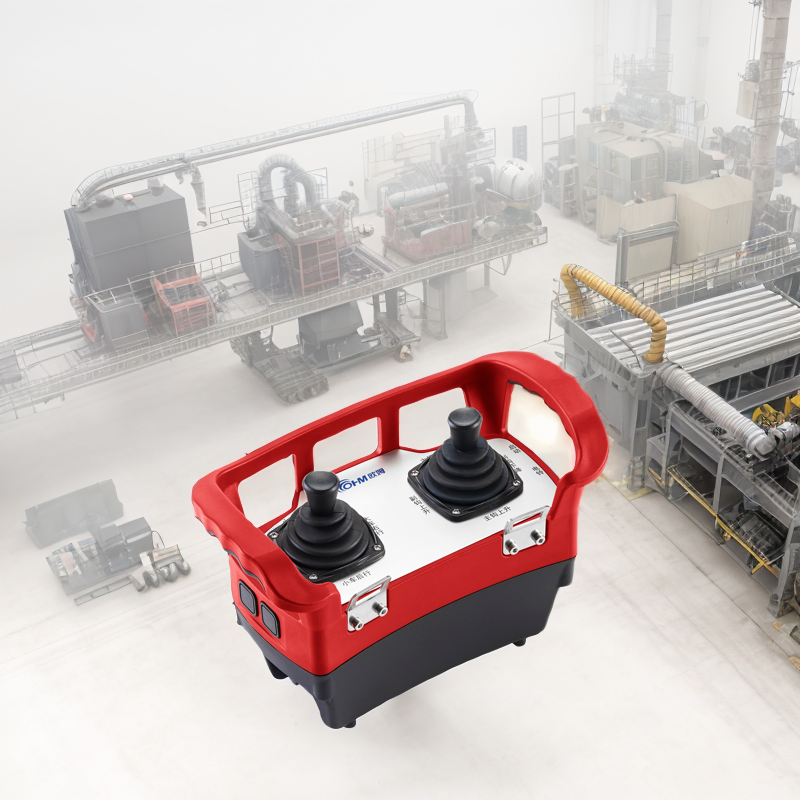

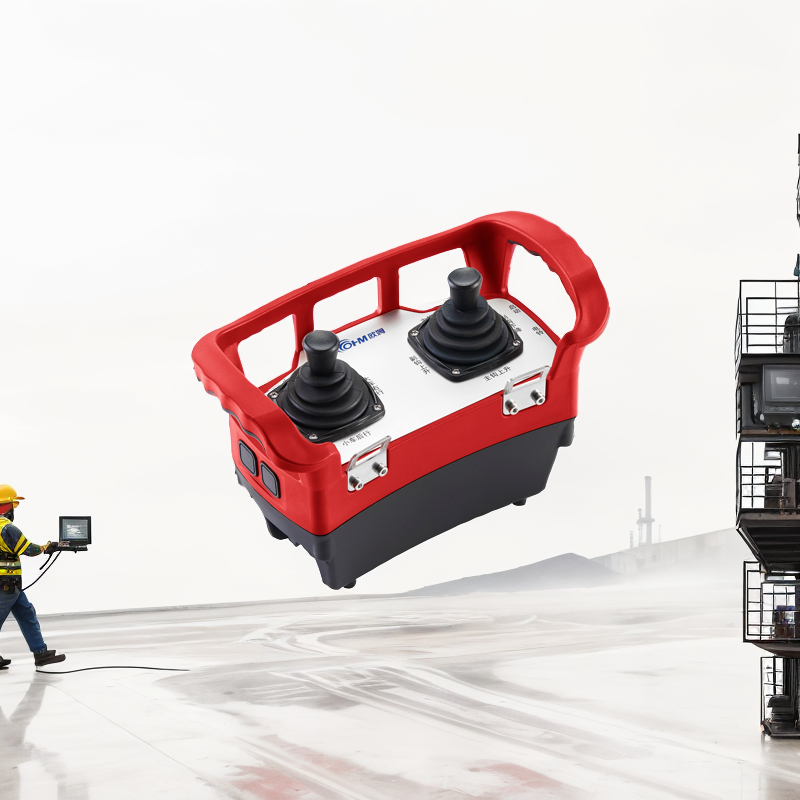

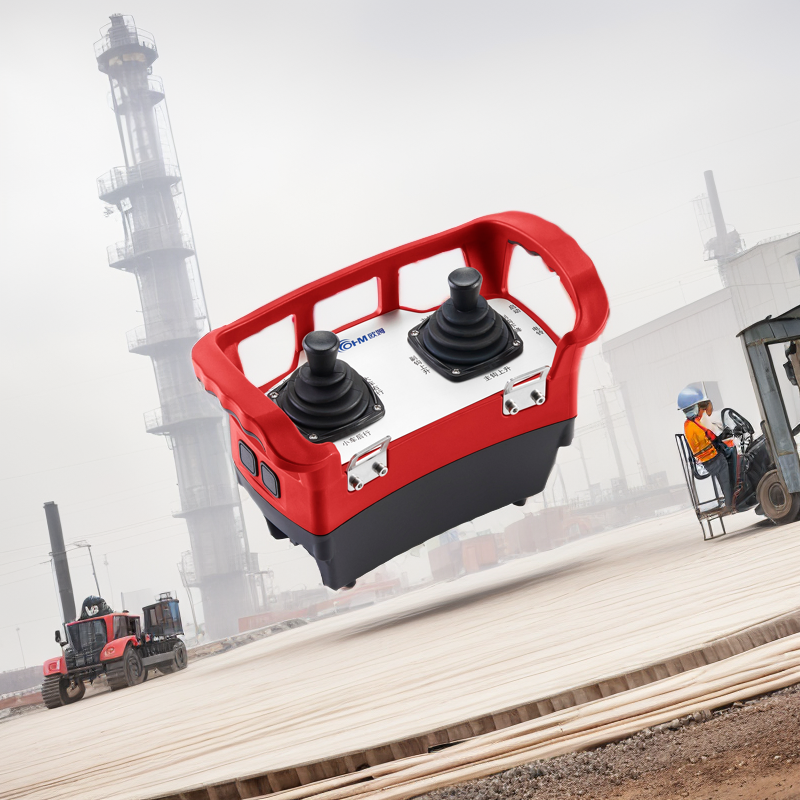

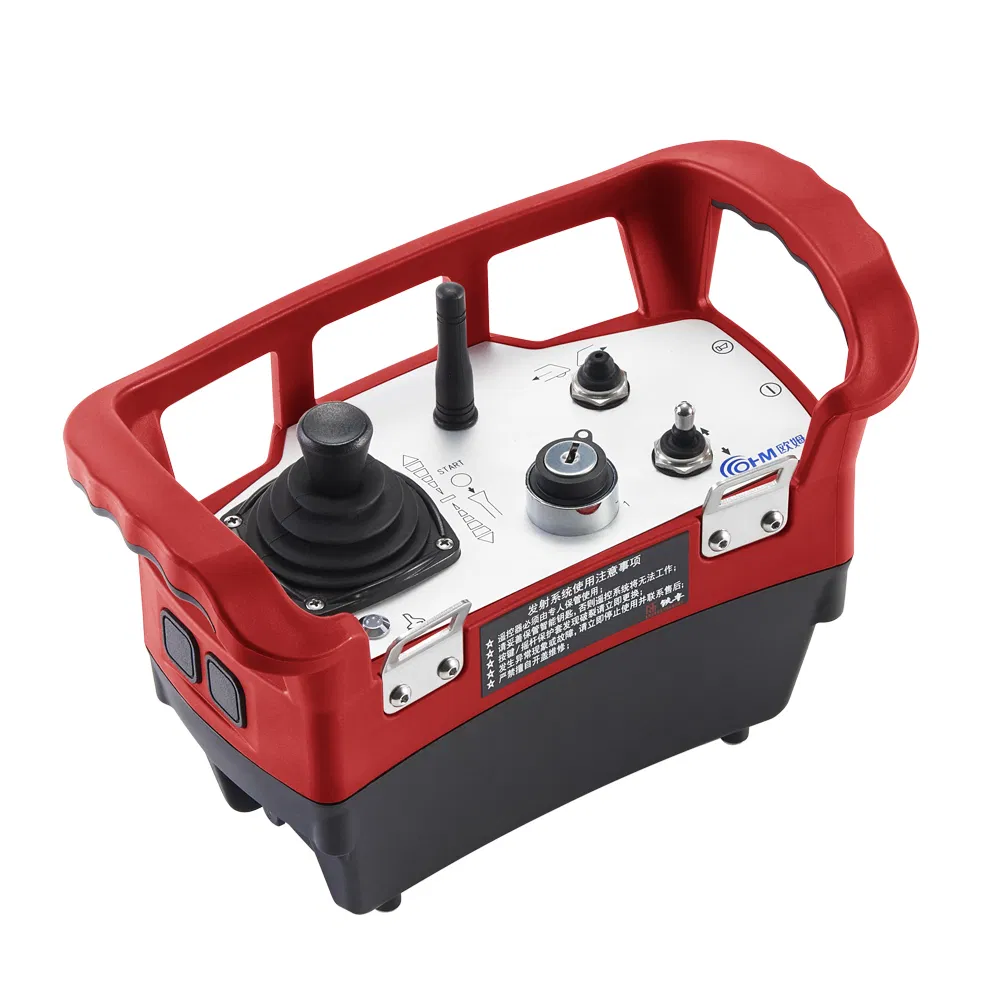

The C18 industrial remote control is crafted with a robust and durable build, ensuring long-lasting use in demanding environments. Its ergonomic design provides maximum comfort and efficiency for operators.
Dual CPU Architecture
Equipped with dual CPU encoding and decoding to guarantee reliable and redundant data communication.
Ultra-Durable Joystick
Expertly designed joystick with an impressive lifespan of over 1 million operations.
Advanced Safety
Real-time active control aligning with stringent EN ISO standards for maximum operational safety.
Smart Frequency Control
Automatically selects the optimal channel upon startup to prevent signal interference.
Technical Specifications
Frequency Range
400-470MHz
Transmission Rate
9600 bit/s
Transmitting Power
≤10mW
Modulation Mode
GFSK (Gaussian Frequency Shift Keying)
Receiving Sensitivity
-115dBm
Transmitter Power Supply
7.4VDC (3600mAh Lithium Battery)
Working Temperature
-25ºC to +70ºC
Address Code
32-bit (>4.2 Billion Unique Codes)
Advantages of Industrial Remote Control
Slash Manufacturing and Maintenance Expenses
Replacing traditional cabins with remote systems is now an industry standard, significantly lowering production and upkeep costs.
Enhance Safety and Reliability
Eliminates miscommunication by allowing operators to work from the best vantage point, avoiding hazardous weather or visual obstructions.
Optimize the Operating Environment
Operators can steer clear of zones with limited visibility, heat, or pollution, ensuring a healthier and safer workspace.
Maximize Human Resource Efficiency
Tasks such as hoisting and unloading can be managed by a single person, reducing the need for extra command personnel.
FAQ
What is the control range of the C18 remote control?
The standard transmission distance is between 50-100 meters, with a specialized control distance capable of reaching over 100 meters depending on environmental conditions.
Is the C18 suitable for outdoor use in rain?
Yes, the device is rated IP65, making it dust-proof and highly water-repellent, suitable for various harsh outdoor industrial environments.
What type of battery does the transmitter use?
The transmitter is powered by a 7.4VDC 3600mAh lithium battery, ensuring long operational hours. It also features a low voltage alarm at 6.6V.
How many unique address codes are available to prevent interference?
The system uses a 32-bit address code, providing over 4.2 billion unique combinations to ensure no two systems interfere with each other.
Which industrial standards does the C18 comply with?
The C18 complies with high safety standards including EN ISO 945-1 Category 3 and EN ISO 13849 Class D, and it is CE, FCC, and RoHS certified.
What is the expected lifespan of the joystick?
The joystick is designed for heavy-duty industrial use with a rated lifespan of approximately 1 million operations.
