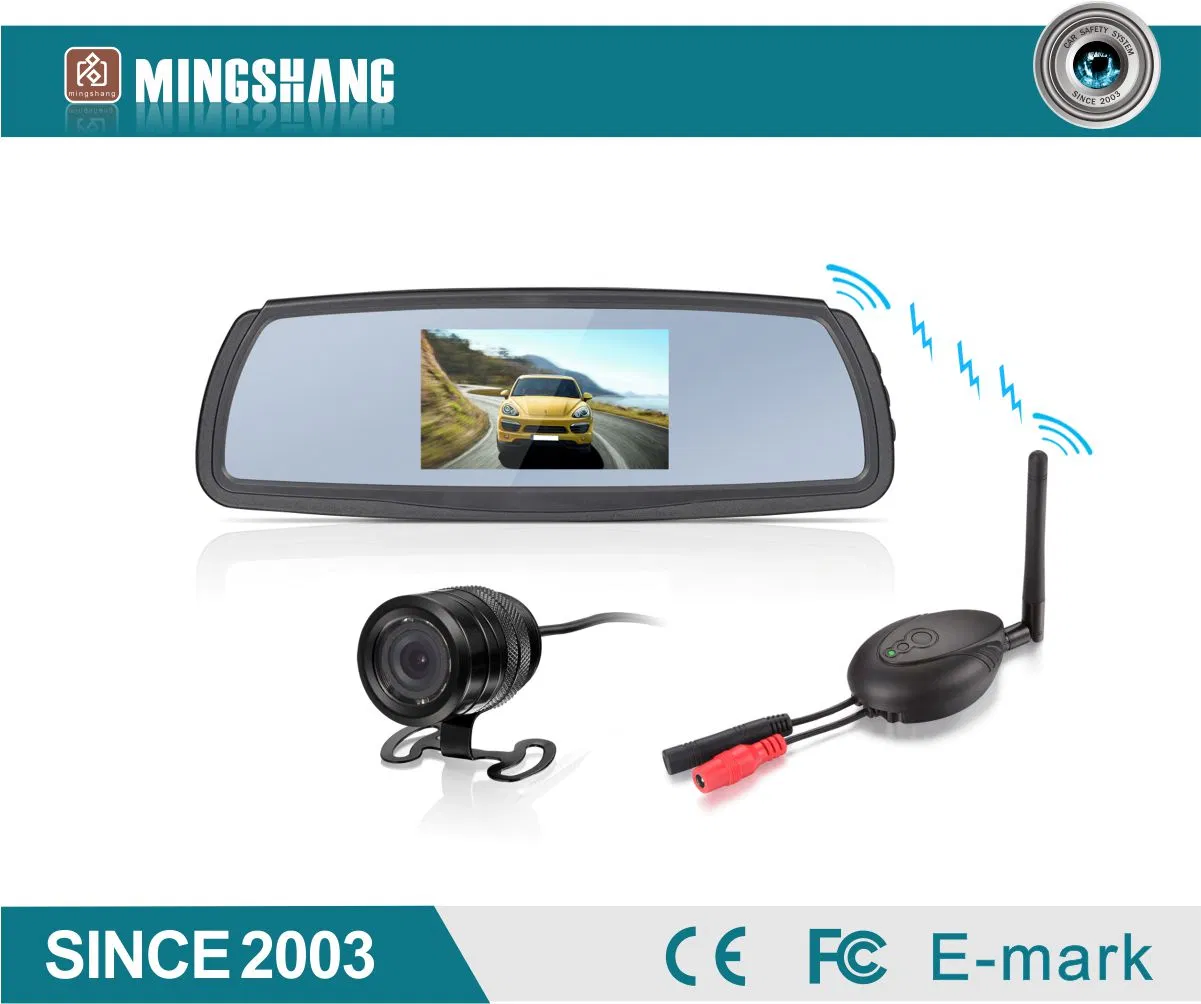

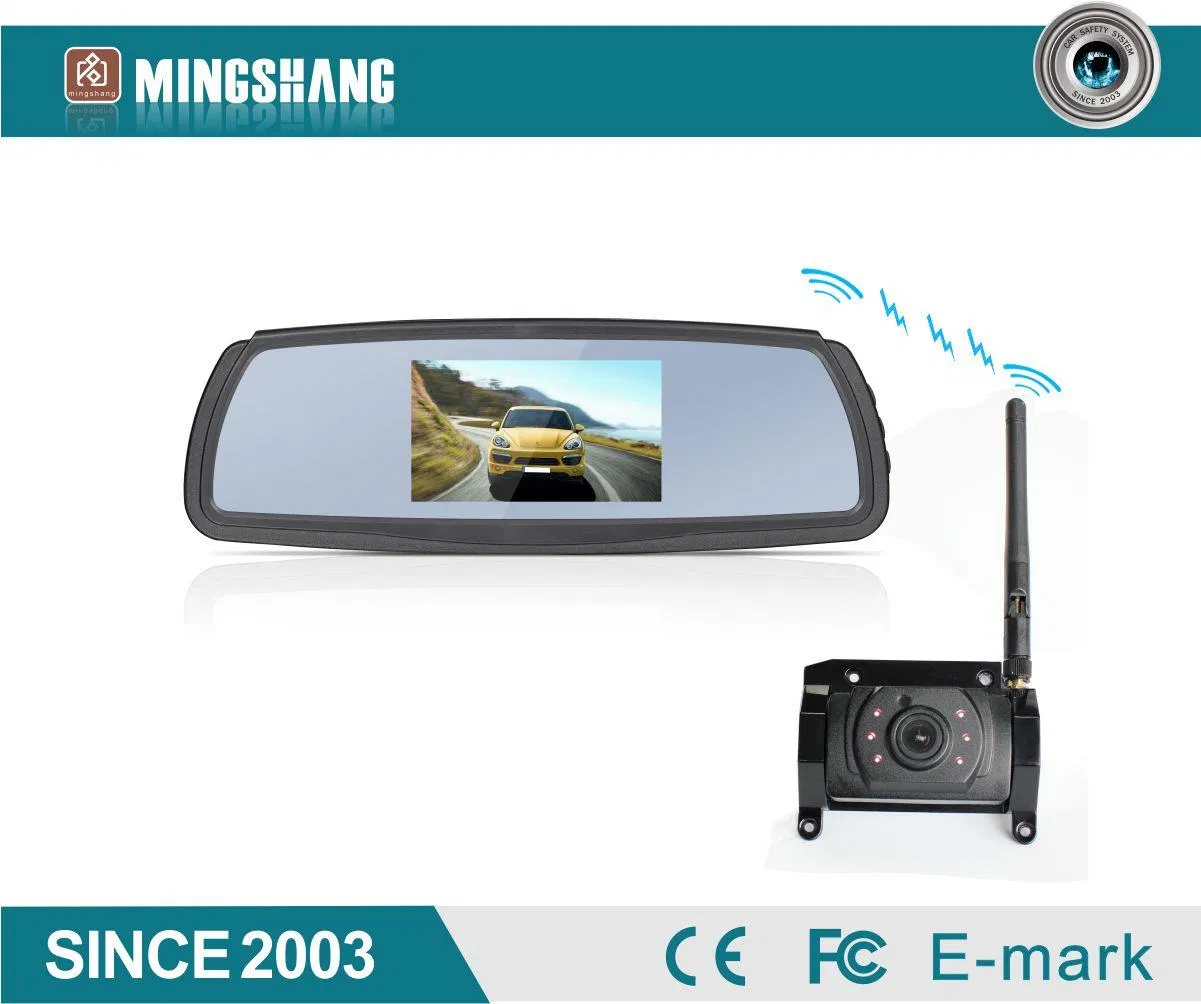

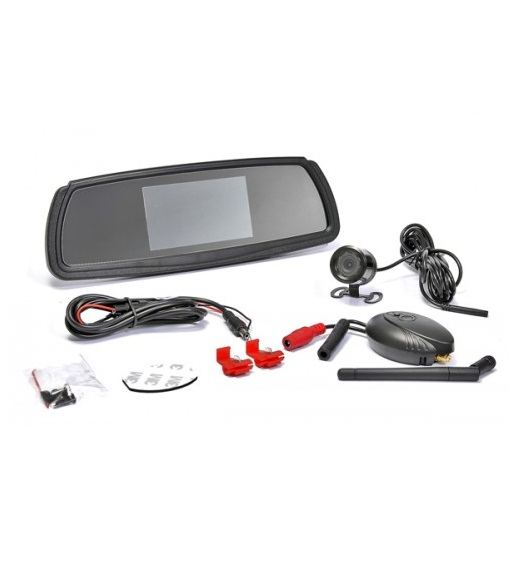

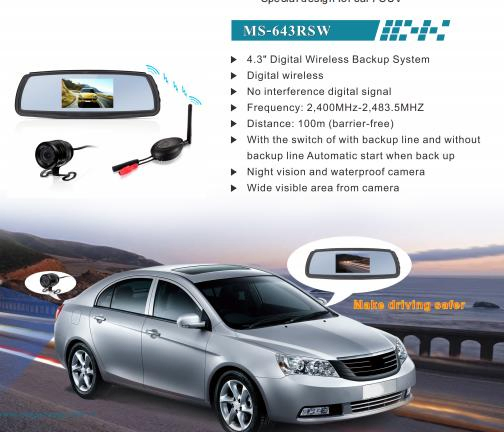

MS-643RSW Digital Wireless System
📡
Digital wireless technology with no interference signal.
📏
Long distance transmission up to 100m (barrier-free).
🌙
Enhanced night vision and IP69K waterproof rating.
🛡️
Switchable backup line settings for flexible parking assistance.
4.3 Inch Monitor Specifications
- Display: 4.3 inch digital TFT LCD (16:9)
- Resolution: 480 * RGB * 272
- Brightness: 400cd/m2
- Contrast Ratio: 300:1
- Video System: PAL/NTSC compatible
- Power Input: DC12V +/- 10%
- Feature: Full mirror finish when not in use
Camera MS-759 Specifications
- Sensor: PC3089 Sensor
- Waterproof Level: IP69K
- Resolution: 540 TV Lines
- Viewing Angle: 120 Degrees
- Min Illumination: 0.02 Lux (LED ON)
- Voltage: DC 12V / 3A
- S/N Ratio: More than 48 Db
Wide Range of Applications
This professional visual safety system is designed to eliminate blind spots for various vehicle types:
🚌 Commercial and School Buses
🚐 Cargo and Delivery Vans
🚛 Trucks and Semi-Trailers
🚜 Agricultural & Industrial Equipment
🏠 RVs and Motorhomes
Product Presentation
Certifications & Quality

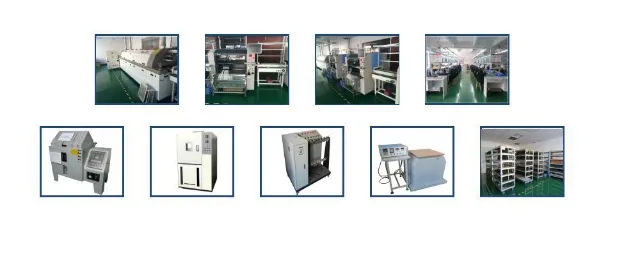

Our systems are manufactured under strict quality management systems including IATF16949:2016 and ISO9001:2008. The products are fully compliant with international standards such as CE, FCC, E-MARK, and RoHS requirements to ensure reliability and safety on the road.
Frequently Asked Questions
1. What is the wireless range of the MS-643RSW system?
The system supports a barrier-free digital wireless transmission distance of up to 100 meters, ensuring a stable signal without interference.
2. Is the camera suitable for extreme weather conditions?
Yes, the MS-759 camera features an IP69K waterproof rating, making it highly resistant to water, dust, and harsh weather.
3. Does the system support night vision?
Absolutely. The camera is equipped with night vision capabilities and can operate in light levels as low as 0.02 Lux when the LEDs are on.
4. How is the monitor installed in the vehicle?
The 4.3-inch monitor is versatile; it can be mounted using a clip-on method over the existing mirror or by replacing the original bracket.
5. Does the monitor automatically turn on when reversing?
Yes, the system is designed to start automatically when the vehicle is put into reverse, providing immediate visual assistance.
6. Can I toggle the parking guidelines on the screen?
Yes, the system includes a switch to enable or disable the backup lines (parking guidelines) according to your preference.
