Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
GD
Type
Ultrasonic Pulse Velocity Testing Equipment
Product Name
Ultrasonic Testing Instrument
Screen
Full Touch Screen
Software
English Software
Channels
1 Transmitter+1 Receiver, 1 Transmit + 2 Receive
Trigger Mode
Signal Triggering
Origin
China
📝 Product Overview

This equipment utilizes the ultrasonic transmission method for rapid and continuous detection across various applications, including foundation piles, continuous wall integrity, and structural concrete health assessment.

Primary Applications:
  • Rapid detection of foundation pile and continuous wall integrity.
  • Concrete compressive strength and mechanical property testing.
  • Precise detection of concrete crack depth and width.
  • Concrete pavement bending resistance detection.
  • Non-metallic material testing (rock mass and concrete).
⭐ Key Features
  • Wireless cloud transmission function (optional).
  • 6-in-1 integration: pile, strength, defect, width, depth, and road bending measurements.
  • 10.1-inch high-brightness TFT color LCD touch screen.
  • Long-lasting battery life exceeding 10 hours.
  • Compatible with digital rebound testers for comprehensive strength measurement.
  • USB-based data transfer and easy software upgrades.
  • Powerful dedicated analysis software for professional report generation.
📊 Technical Specifications
Main control unitBuilt-in A9 industrial control motherboard
Screen10.1 inch, high brightness, TFT color LCD capacitive screen
Operation modeTouch screen
StorageBuilt-in electronic hard disk (≥4GB) + large capacity USB flash disk
Channel1 transmitting and 2 receiving
Trigger modeSignal
Sampling term0.05~409.6μs multi-gears for option
Acoustic time accuracy0.05μs
Dynamic range146dB
Band width1~500kHz
Emission voltage65, 250, 500, 1000 four gears adjustable
Communication portUSB, Bluetooth, WiFi
Work time≥8h
Working environmentTemperature: -10ºC ~ +40ºC; Humidity: <90%
📷 Detailed Photos

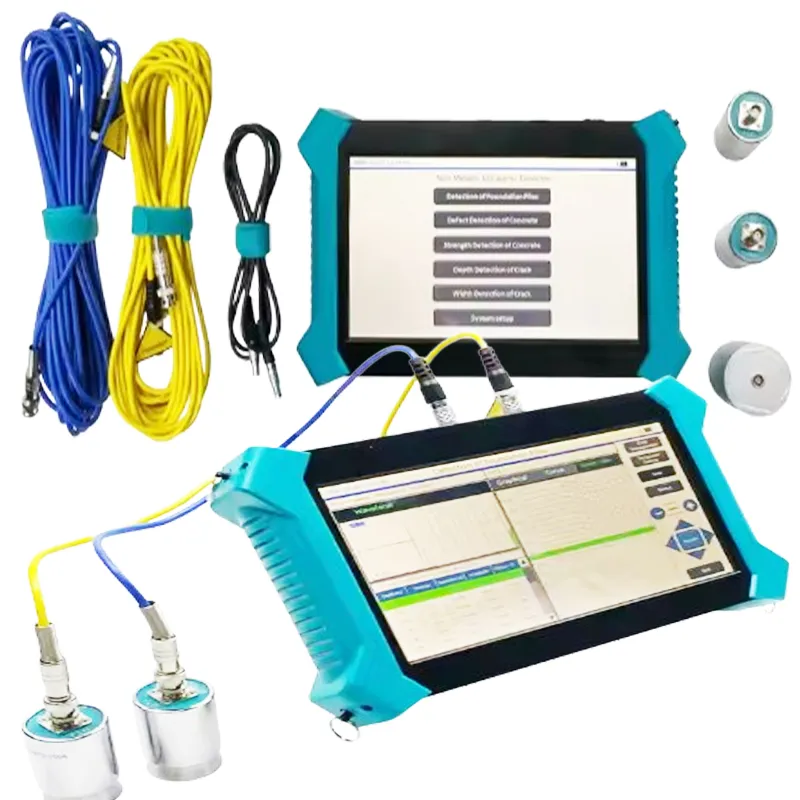

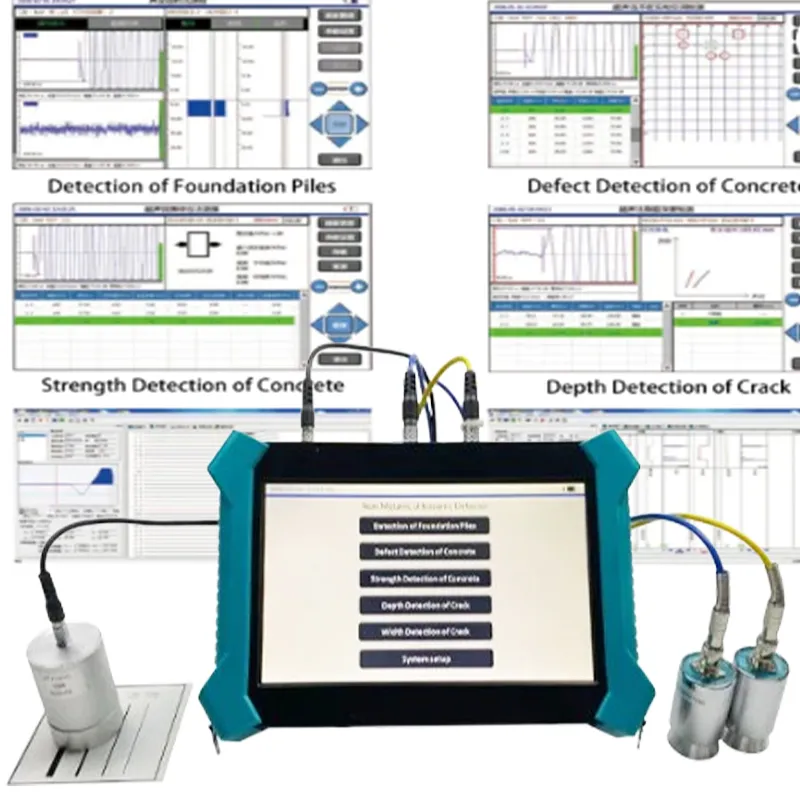

Ultrasonic Pulse Velocity Testing Equipment 1 Ultrasonic Pulse Velocity Testing Equipment 2 Ultrasonic Pulse Velocity Testing Equipment 3 Ultrasonic Pulse Velocity Testing Equipment 4 Ultrasonic Pulse Velocity Testing Equipment 5
❓ Frequently Asked Questions (FAQ)
Q1: What are the main uses of this Ultrasonic Pulse Velocity Equipment?
It is designed for rapid detection of foundation pile integrity, concrete compressive strength, crack depth and width, and mechanical properties of rock mass.
Q2: Does the device support wireless data transfer?
Yes, the equipment features a newly upgraded wireless cloud transmission function as an optional feature, alongside standard USB and Bluetooth ports.
Q3: How long can the device operate on a single charge?
The built-in high-capacity Li-battery provides more than 8 to 10 hours of continuous working time.
Q4: Is the software available in English for international users?
Yes, the instrument comes equipped with professional English software for data analysis, processing, and report generation.
Q5: Can this equipment measure both crack width and depth?
Absolutely. The device integrates dedicated functions for measuring both the width (range 0-10mm) and the depth of cracks in structural concrete.
Q6: What kind of display does the unit have?
It features a 10.1-inch high-brightness TFT color LCD capacitive touch screen, ensuring clear visibility and easy operation in various field conditions.
