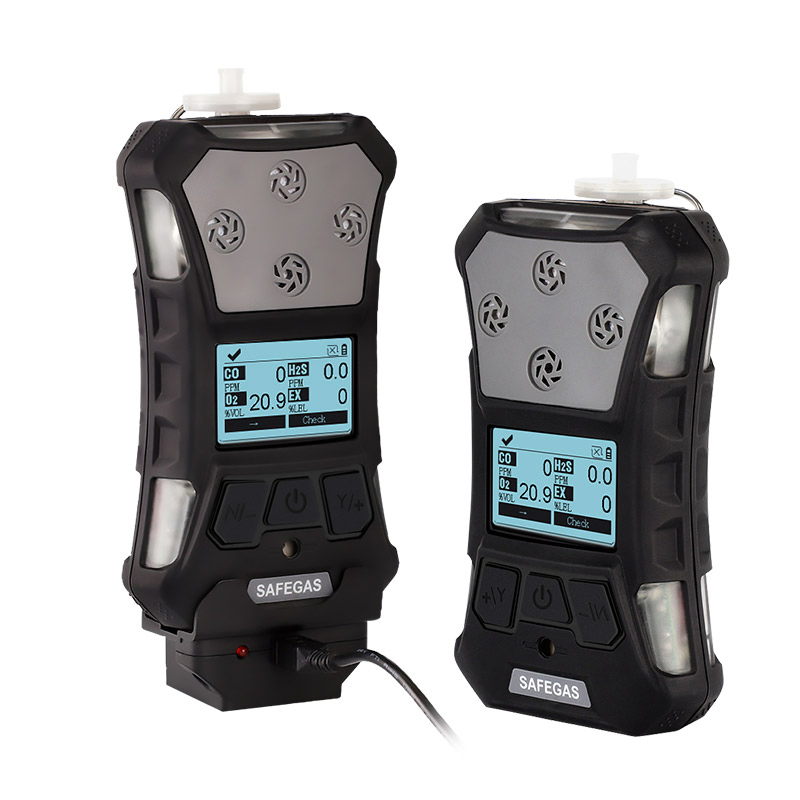

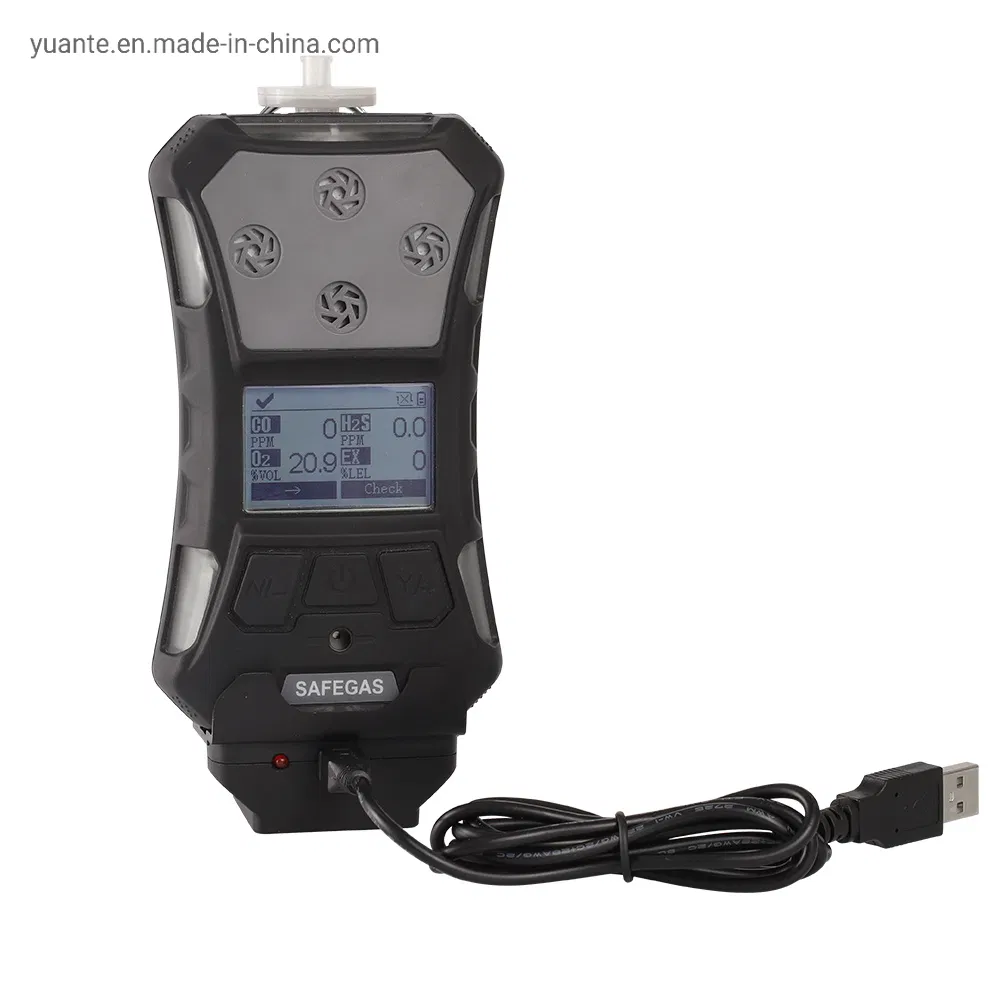

Portable Multi Gas Concentration Detector Alarm Device

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SKY3000

Customized

Available

Portable

Handheld

Certification

CE, IECEx, ATEX

Gas Detected

CO, H2S, O2, CH4

Type

Electrochemical & Catalytic

Protection

IP67

Sampling Type

Pump and Diffusion

Gross Weight

2 Kg

Package Size

34.00cm * 24.00cm * 14.00cm

Why Choose This Device?

✔

Professional Experience: Over 10 years focused on gas detection devices with a rich history of providing professional solutions.

✔

R&D Innovation: Strong engineering team with 5% revenue reinvested into research ensures advanced market positioning.

✔

Premium Quality: International top-brand sensors and IC components with 100% production testing.

✔

Full Certification: ATEX, CE, RoHs, and ISO9001 compliant, meeting strict safety standards.

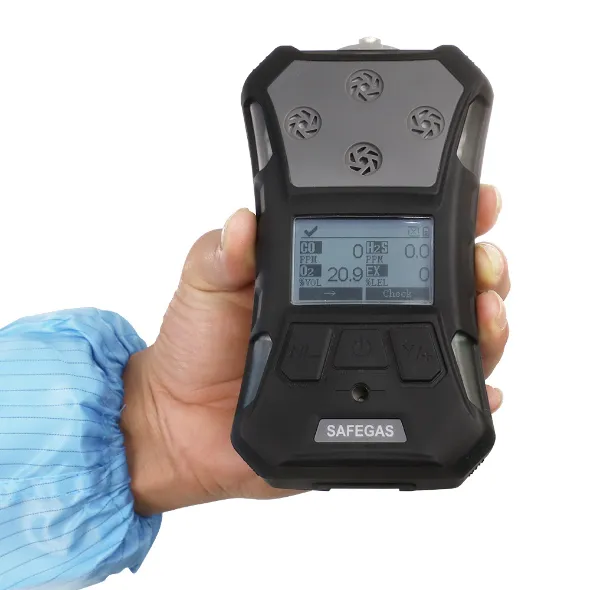

Product Overview

The SKY3000 series is a portable gas detector featuring real-time data display and suction/diffusion dual-purpose sampling. When the pump is inactive, it automatically switches to diffusion mode. The device is IECEX and ATEX explosion-proof certified with an IP67 protection level. It includes a datalog function for storing and transferring data to a PC via USB.

Key Advantages

● Protection level IP67, 3-meter drop test passed.

● Man down alarm and password protection for operator safety.

● Simultaneous monitoring of up to 4 gases.

● 180-degree auto-flipping screen for flexible viewing.

● Built-in sampling pump with 20m long-distance detection capability.

● Water trap filter to block oil, dust, and impurities.

● Stores 100,000 sets of data with one-click export.

● Supports PPM and mg/m³ unit switching and multiple languages.

Technical Specifications

Sampling Method	Pump suction & diffusion dual-use type
Gases Detected	CO, H2S, O2, CH4
Measurement Range	CO:0-1000ppm, H2S:0-100ppm, O2:0-30%VOL, CH4:0-100%LEL
Response Time	≤30 seconds
Data Storage	100,000 sets of data
Alarm System	95dB buzzer, vibration, flashing LED, Man Down alarm
Battery Life	>15 hours (continuous pumping mode)
Explosion-proof	IECEX / ATEX (Ex ia IIC T4 Ga)
Weight	365g (including battery and filter)

Detailed Photos

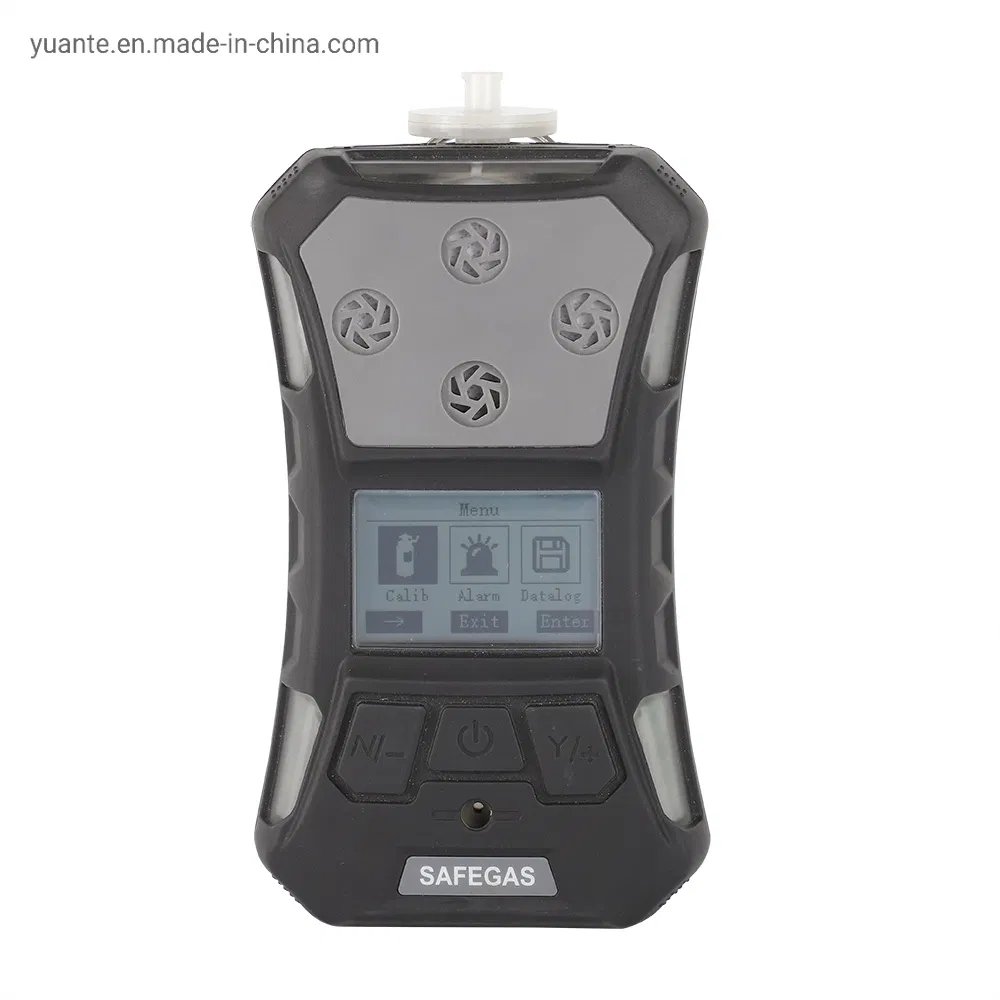

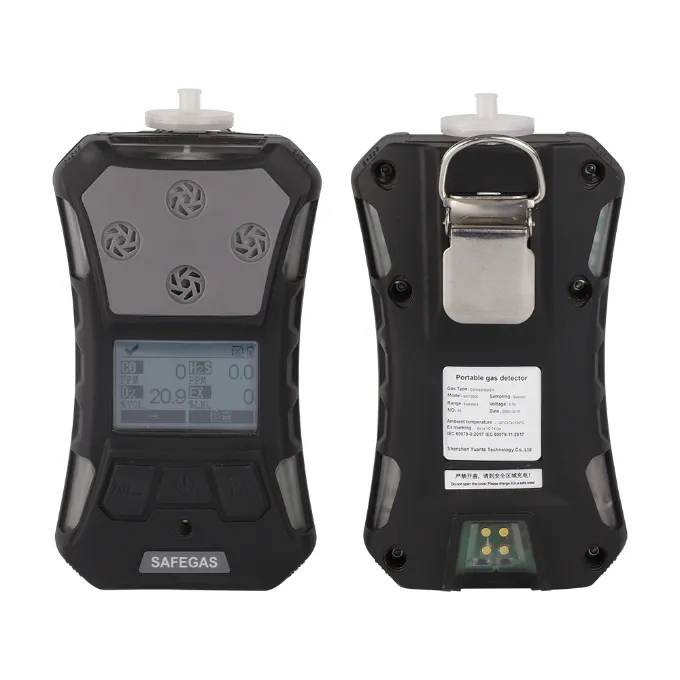

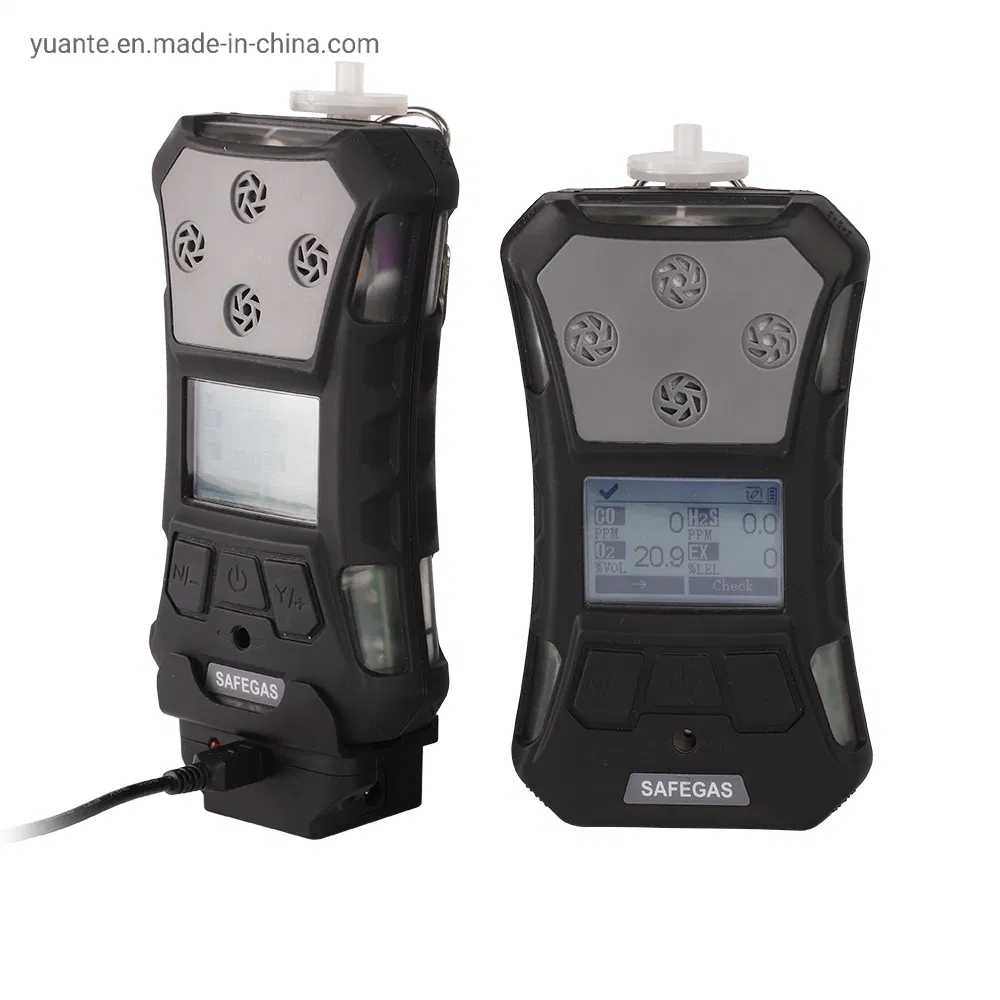

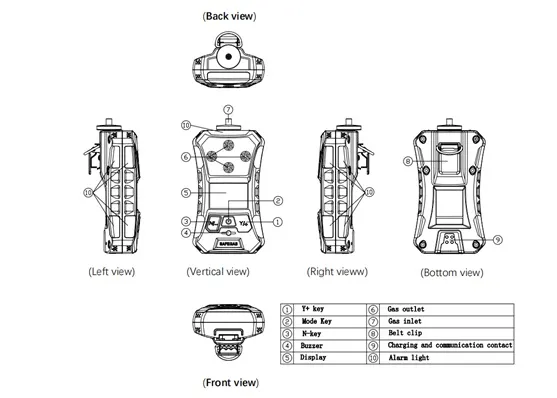

Product Detail View

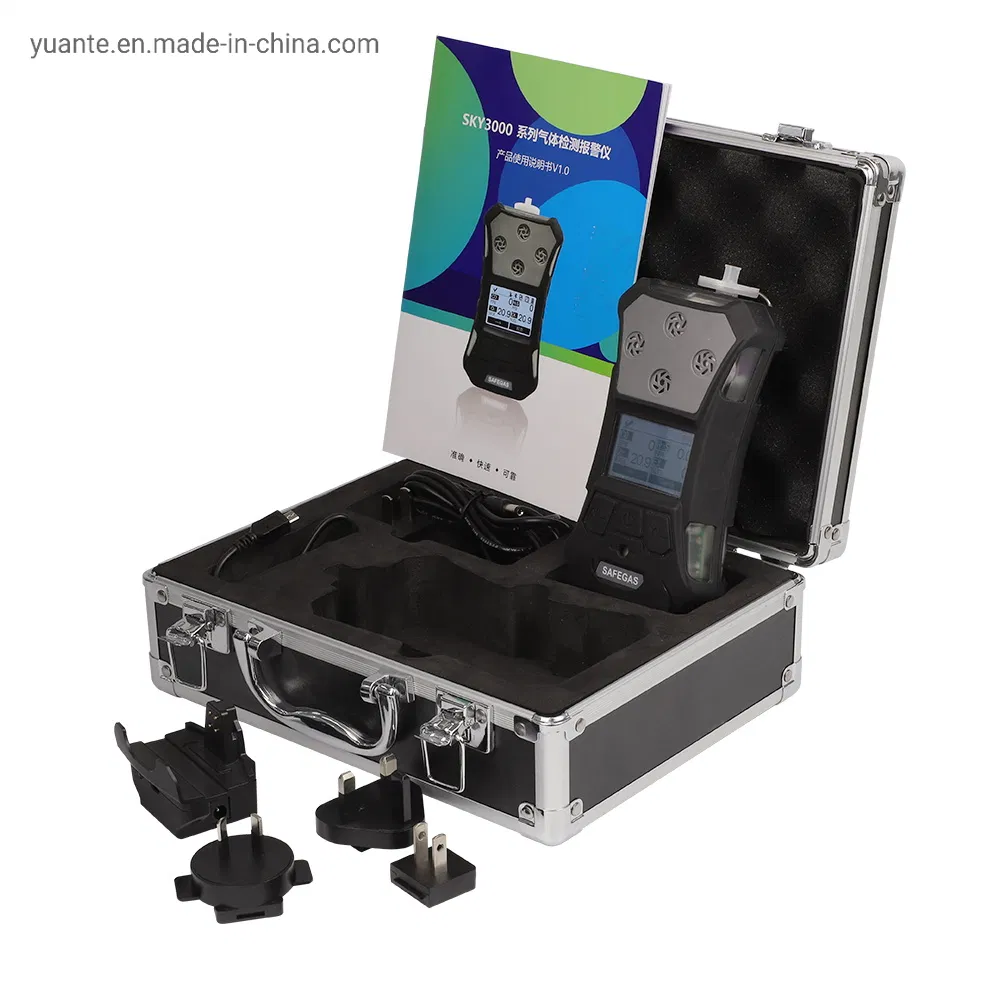

Standard Packaging

Company & Quality Control

Frequently Asked Questions

Q1: How does the dual-sampling mode work? The SKY3000 series features both pump suction and diffusion sampling. If the built-in pump fails or is not required, the device can automatically switch to diffusion mode for continuous monitoring.

Q2: What is the protection level of the device? The device is rated at IP67, making it highly resistant to dust and water. It has also passed a three-meter drop test and EMC anti-static interference tests.

Q3: Can I export the stored data to a computer? Yes, the device can store up to 100,000 sets of data. You can export this data easily via a USB connection to a PC for further analysis.

Q4: What types of alarms are included? The detector includes a 95dB buzzer, vibration alerts, and flashing red LEDs. It also features a "Man Down" alarm which sends notifications if an operator becomes unresponsive.

Q5: How long does the battery last? The 2200mA rechargeable lithium battery provides over 15 hours of continuous operation in pumping mode. A full charge typically takes about 4 hours.

Q6: Is it certified for use in hazardous environments? Yes, it is IECEX and ATEX certified with an explosion-proof grade of Ex ia IIC T4 Ga, suitable for various high-risk industrial applications.
