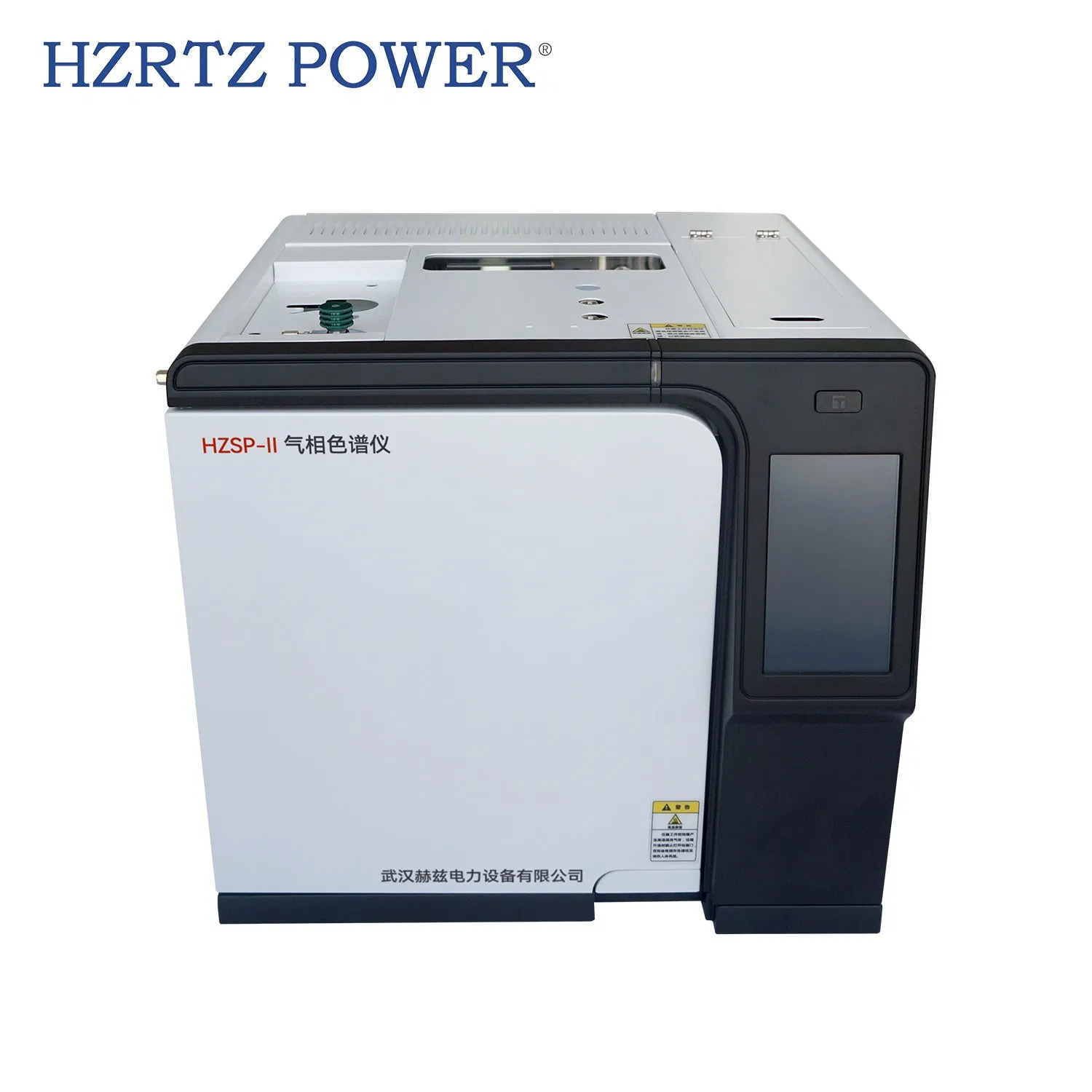

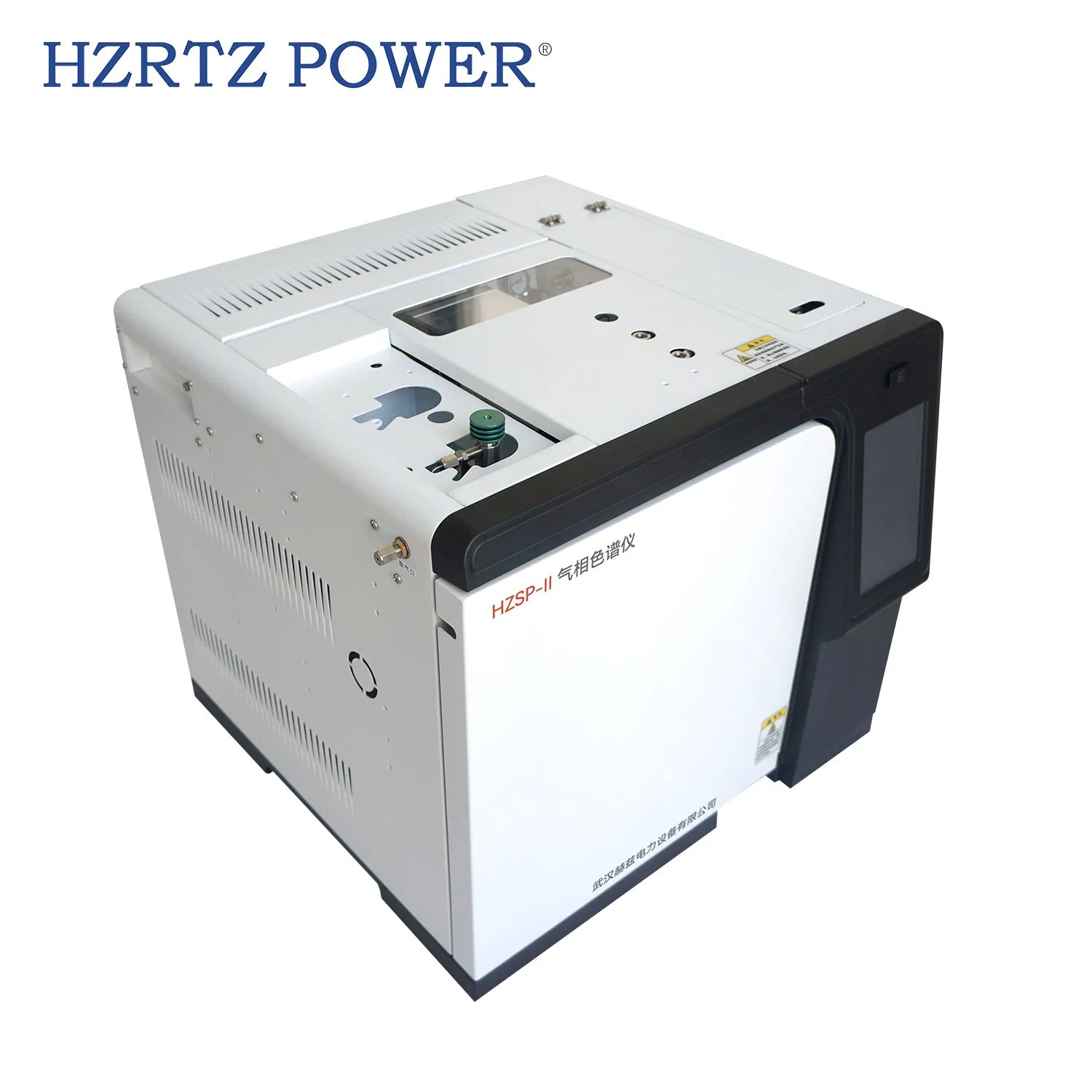

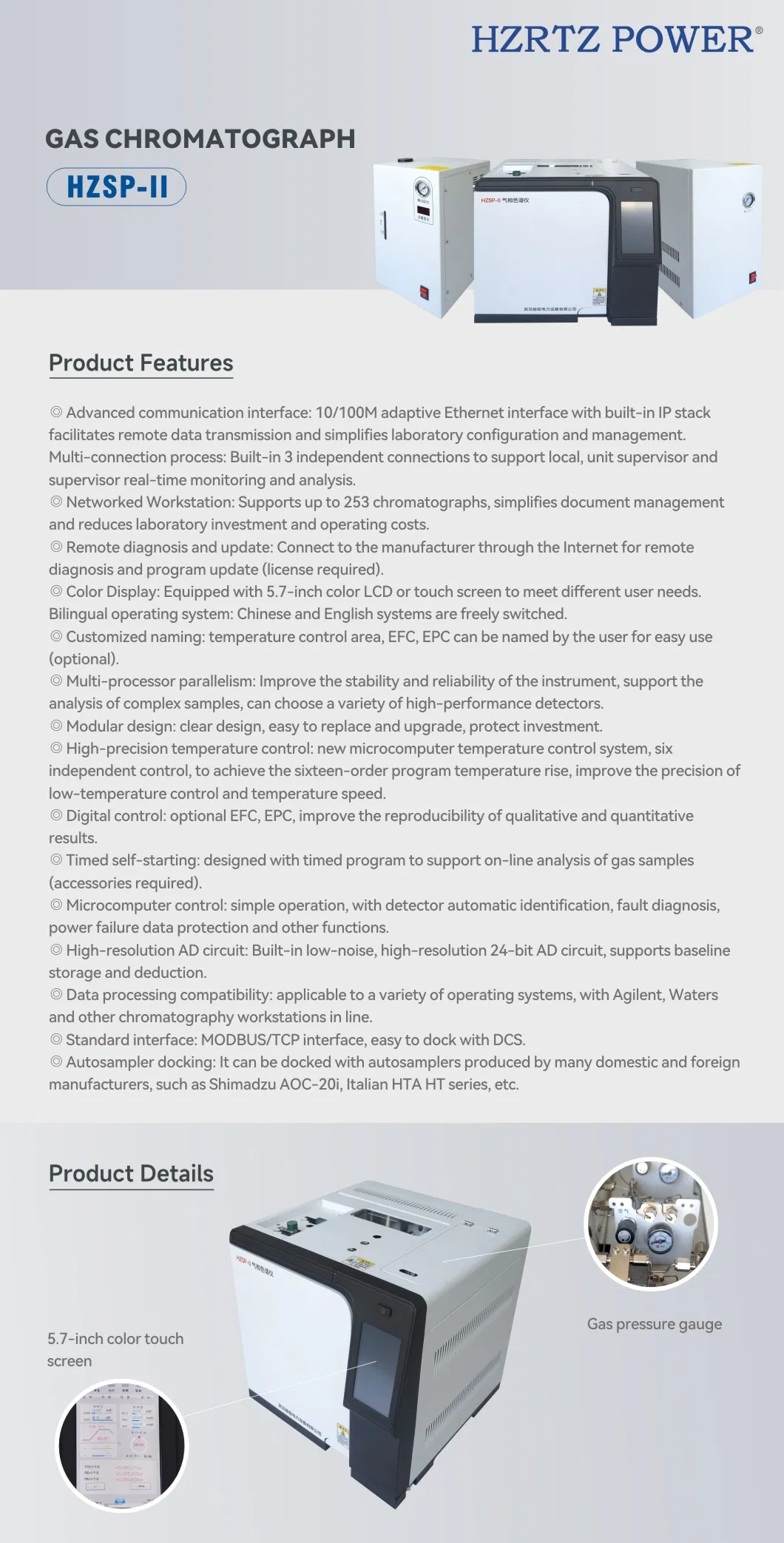

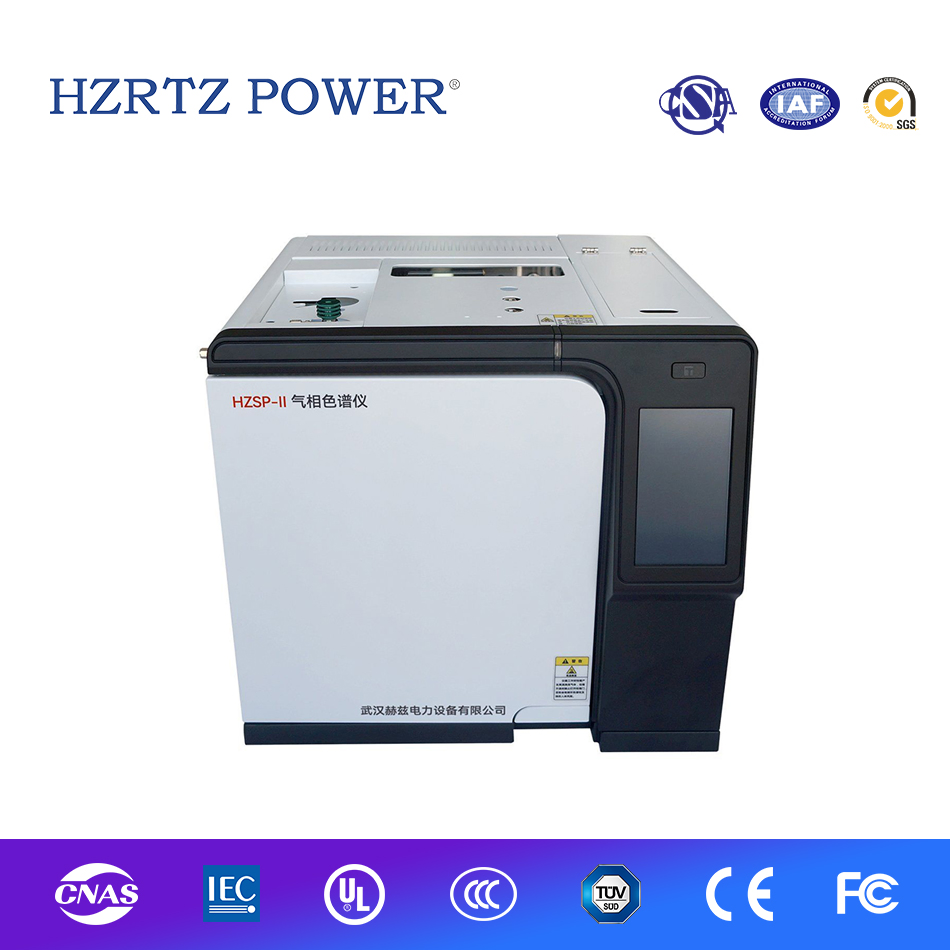

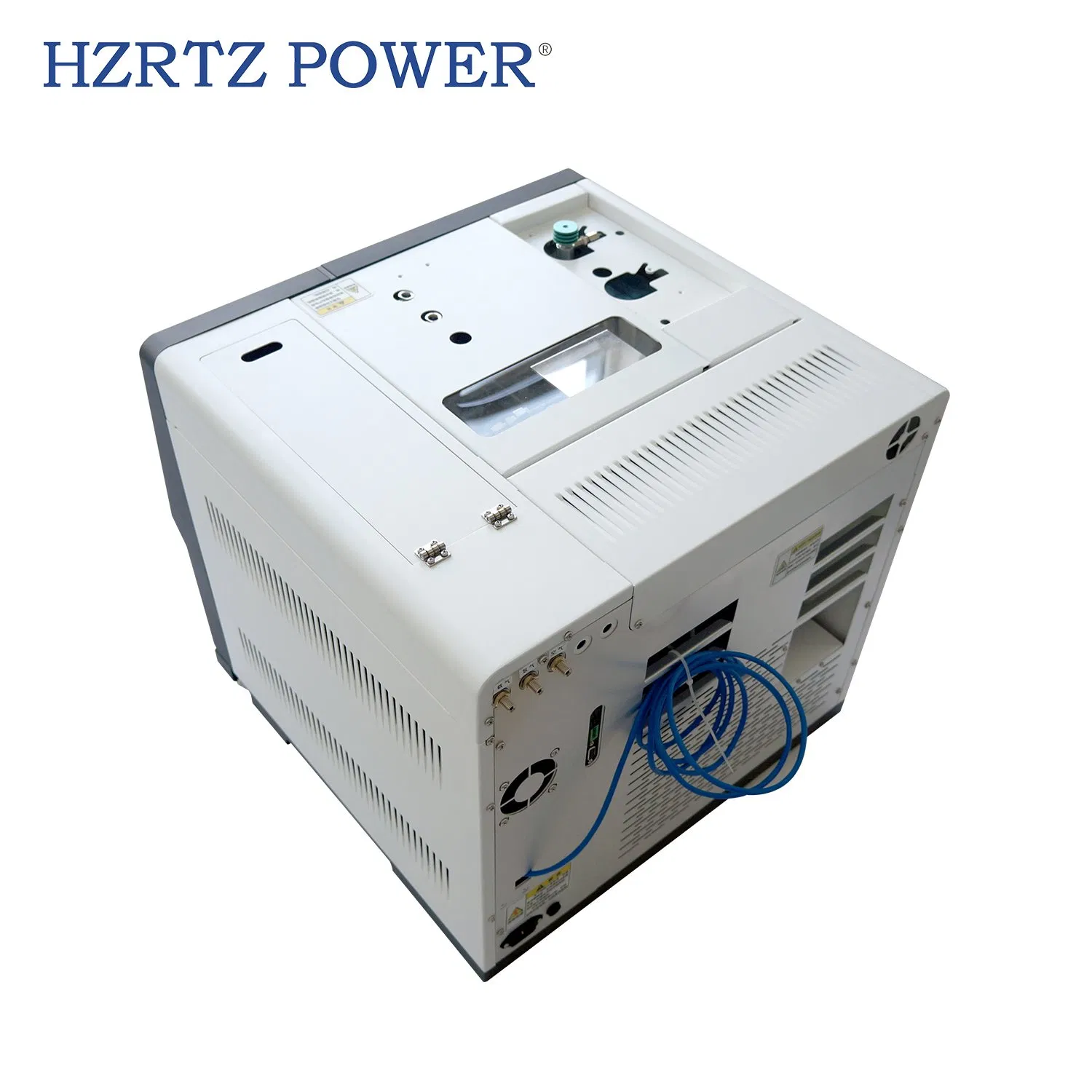

The HZSP-II Gas Chromatograph is a specialized laboratory instrument featuring a 7-inch color touch screen and professional chromatography UI design. It provides real-time monitoring of the inlet, column box, and detector temperatures, along with individual detector values and running time. Designed for simplicity and intuition, it includes a one-key temperature reduction function.
This instrument is widely utilized in scientific research, biochemistry, petroleum industries, food safety, environmental monitoring, and medical health fields, offering high testing precision and excellent repeatability.
New production process with redesigned gas source pathways to reduce signal interference and improve detection accuracy.
7-inch touch screen with professional UI for intuitive operation and user-defined detection conditions.
Six independent temperature control systems with 21-order program rise and accuracy of 0.05 ºC.
Supports multi-processor parallel work and various injection ports (capillary/packed) and detectors (FID, TCD, ECD, FPD, NPD).
| Parameter Item | Specifications |
|---|---|
| Network Inverse Control | Internal CAN method with network output interface |
| Signal Output Bits | 24-bit |
| Communication Interface | Network interface (Category 6 cable) |
| Circuit Design | ARM embedded design for remote/wireless control |
| Temp Control Range | RT - 450ºC (Optional liquid nitrogen: -80ºC-450ºC) |
| Control Accuracy | ±0.02ºC |
| Program Rise Rate | 0-80ºC/min (Adjustable increment 0.1ºC/min) |
| TCD Sensitivity | S value ≥ 8000mv.ml/mg (benzene) |
| FID Detection Limit | ≤ 5.0 × 10-12g/s (cetane) |
| Baseline Noise | ≤ 10uv (TCD) / ≤ 2× 10-14A (FID) |
