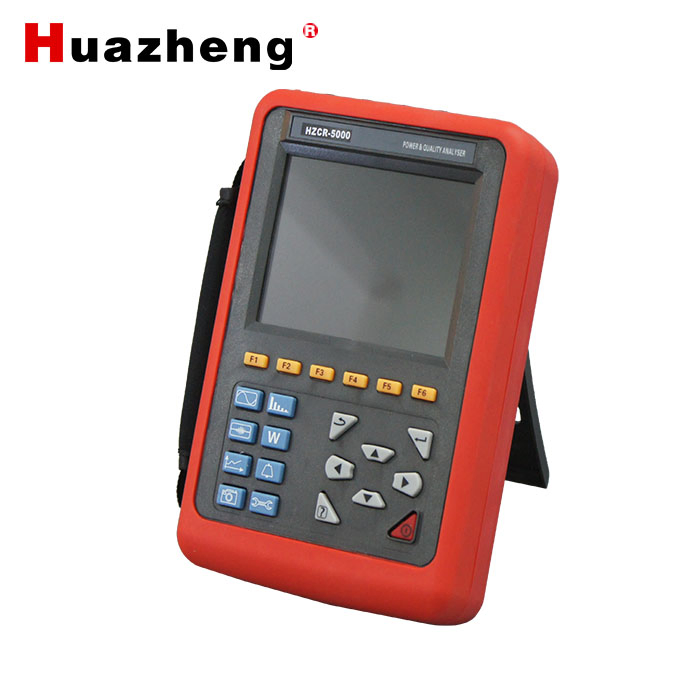

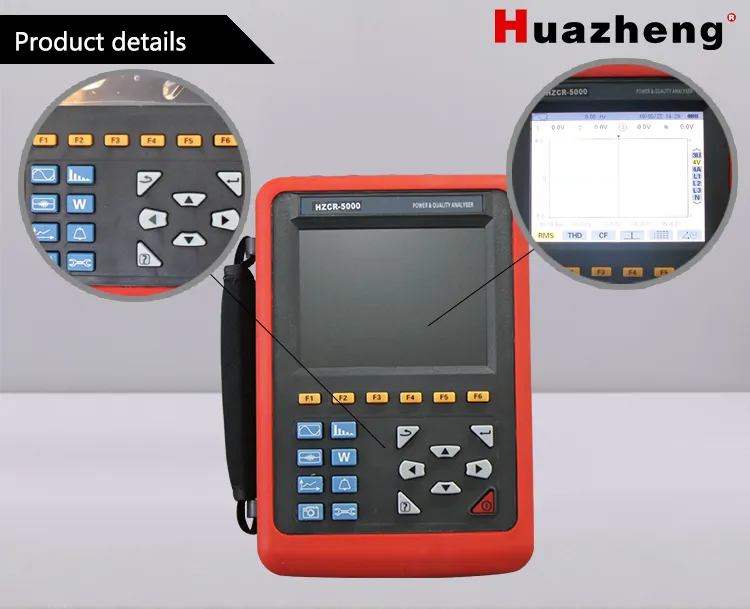

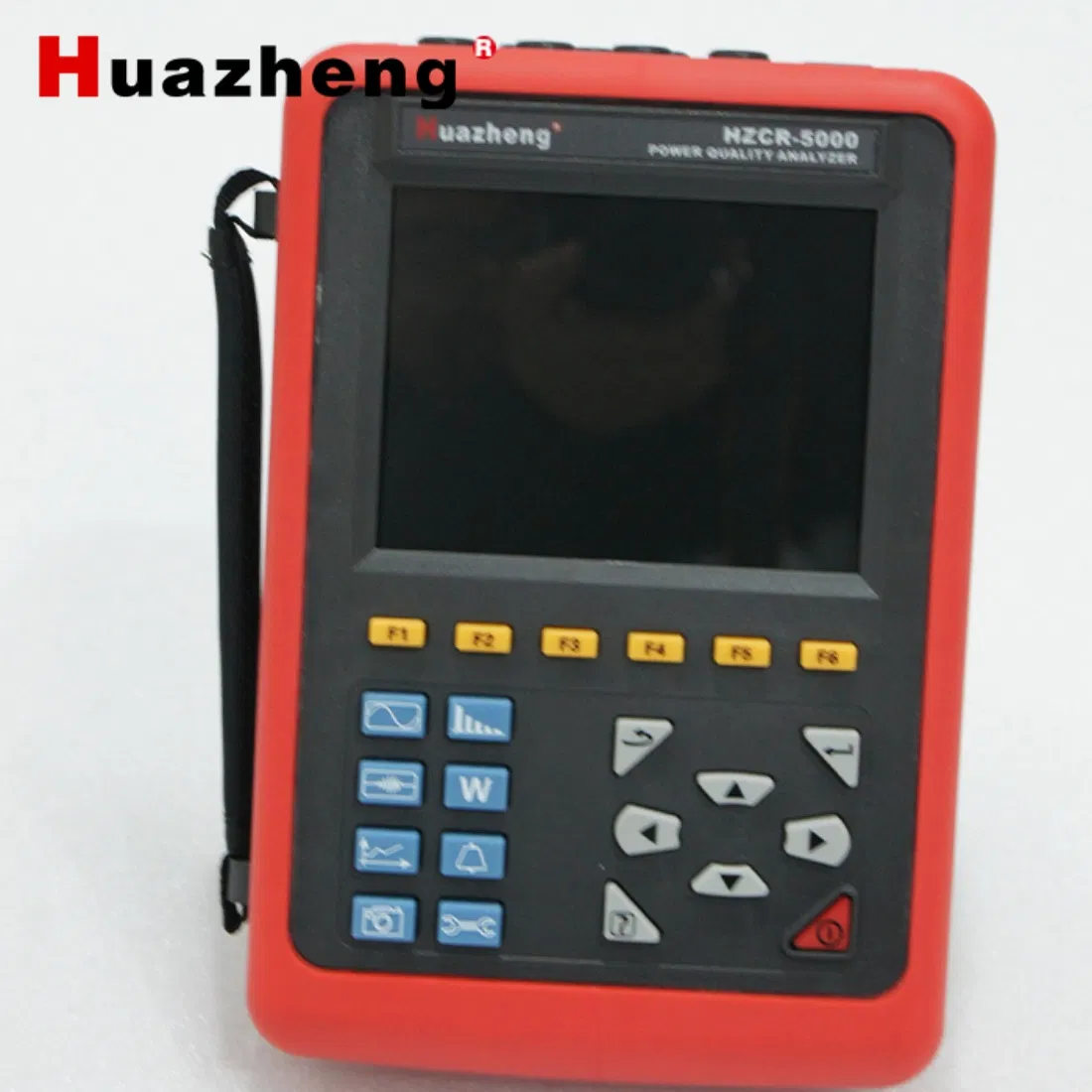

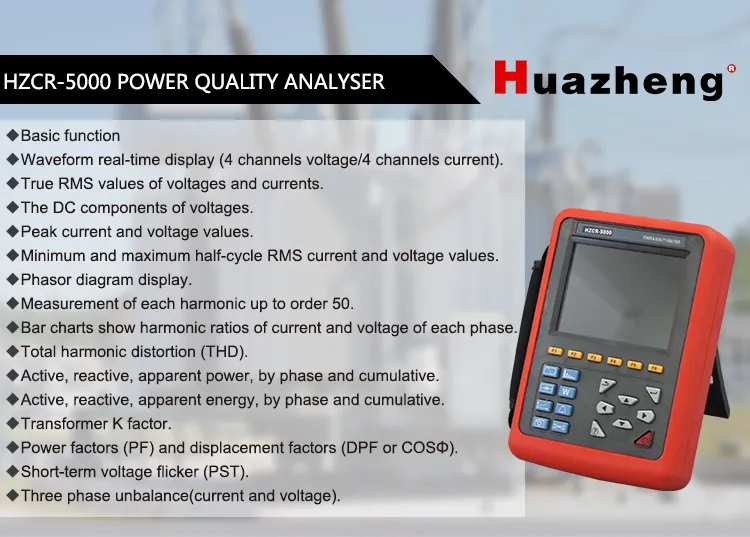

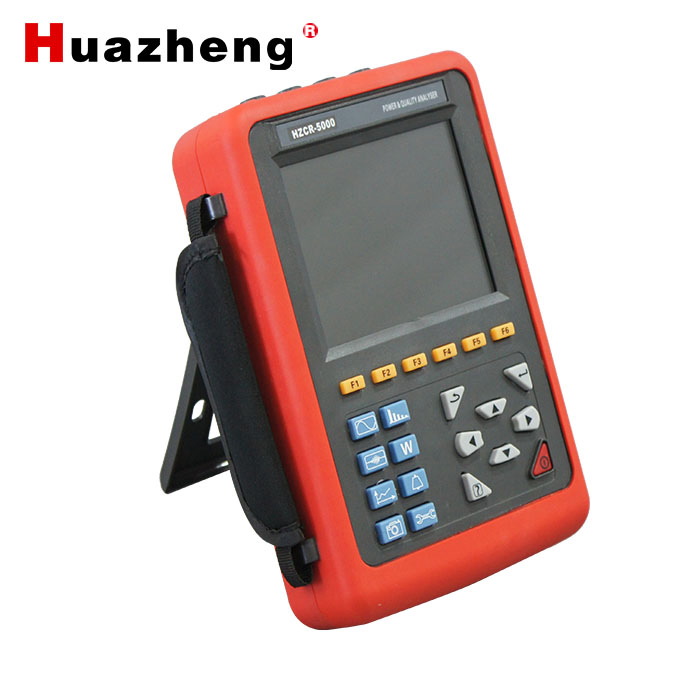

The HZCR5000 Power Quality Analyzer is a comprehensive, multifunctional, and intelligent test instrument developed for field testing of three phases. It features a large LCD color screen with high resolution, offering a concise man-machine interface available in both English and Chinese. Designed with a shock-proof shell structure, it is built for durability and precision in complex power grid environments.
This device adopts a DSP + ARM double processor architecture. The DSP handles high-speed data collection and algorithmic processing, while the ARM manages communication protocols and user interface tasks. With two 16-bit AD7655 synchronous sampling chips, it achieves a sampling rate of up to 1 MSPS, ensuring that no transient changes or interruptions in the grid are missed.
| Parameter | Details |
|---|---|
| Power Supply | Rechargeable lithium-ion battery pack 9.6V, backup charger |
| Power Consumption | Normal test 490 mA, continuous working for 8 hours |

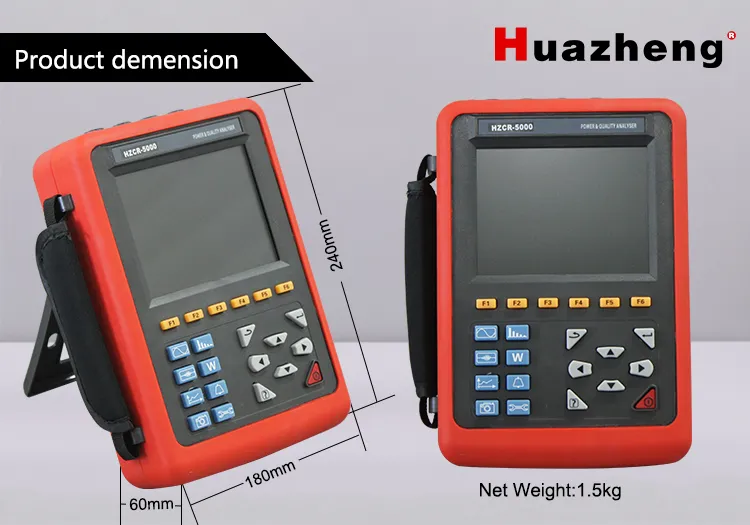

| Display Mode | LCD color screen, 640 x 480 dots, 5.6 inches |

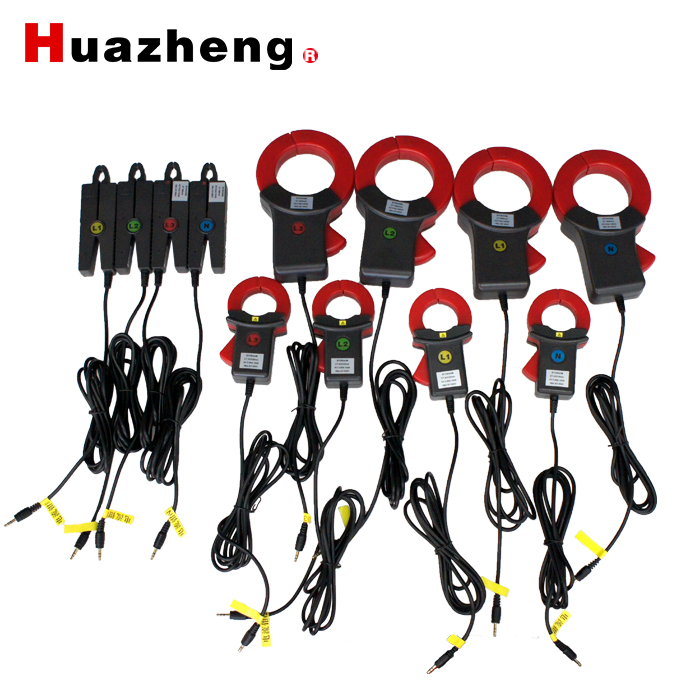

| Channels | 4 Voltage (U) / 4 Current (I) |
| Frequency Range | 40Hz ~ 70Hz |
| Storage Capacity | 2G memory card for trend records (up to 300 days) |
| Transient Records | 150 sets |
| Alarm Logs | 12,800 sets with 40 parameter types |
| Safety Rules | IEC 61010 1000V Cat III / 600V CAT IV, IEC61326 |
Our instruments are widely used in the electricity industry, petrochemicals, metallurgy, railways, and mining enterprises. We specialize in providing high-precision equipment for troubleshooting complex power systems and monitoring power quality parameters. Our product line includes Insulation Oil Testers, Cable Fault Locators, High Voltage Generators, and Testing Transformers.
