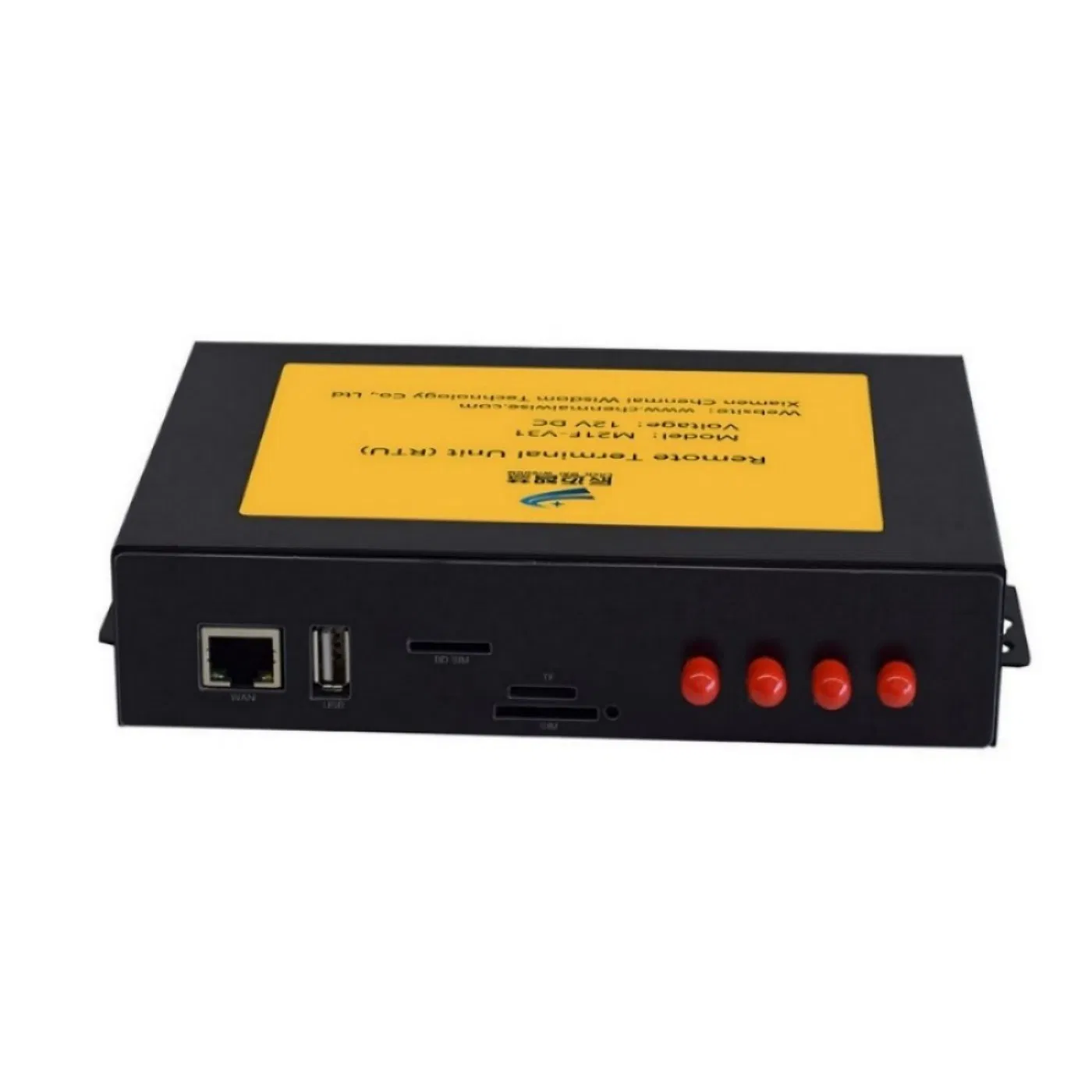

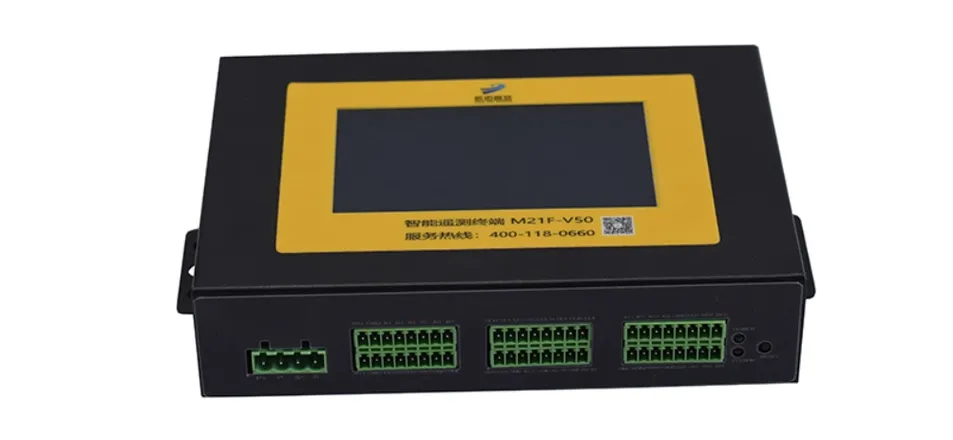

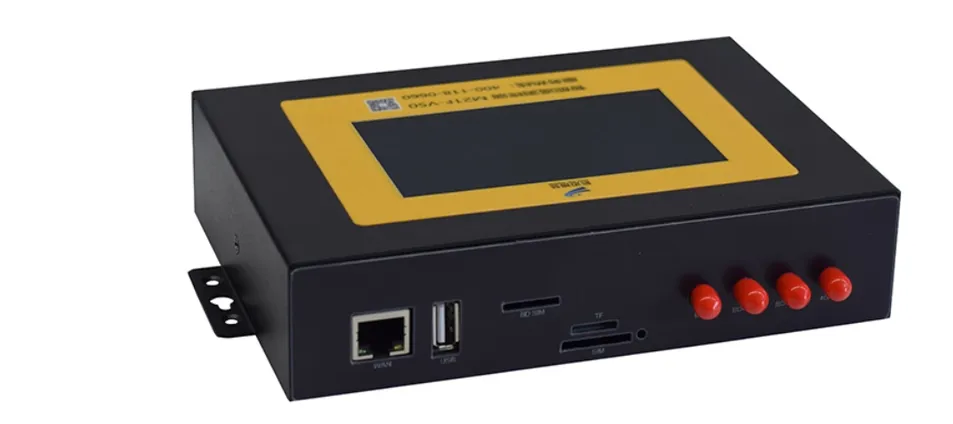

The M21F-V50 Telemetry Terminal integrates the functions of a traditional hydrological telemetry terminal, wireless long-distance transmission via 2G/3G/4G full-network compatibility and NB-IoT short message, and wireless short-distance transmission via LoRa. It delivers comprehensive capabilities including data collection, storage, transmission, display, control, and alarm for hydrology, water resources, geological disaster monitoring, and meteorology.
Equipped with a high-performance industrial-grade 32-bit communication processor, it provides a complete set of interfaces: tipping bucket rain gauge, RS232, RS485, SDI, Ethernet, 4~20mA, 0~5V analog inputs, digital I/O, and relay outputs.

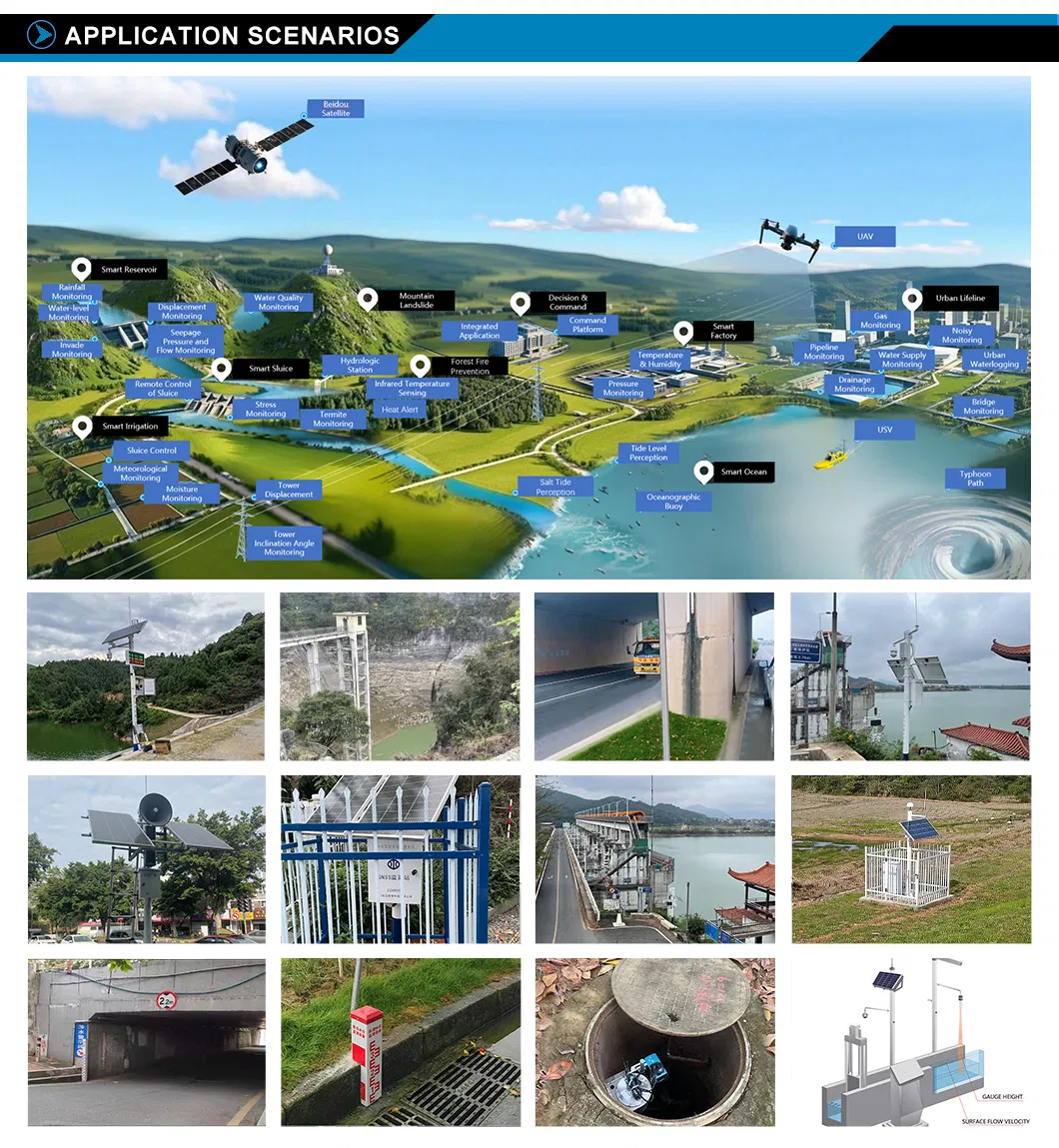

Water conservancy informatization, hydrology measurement, water environment monitoring, flash flood disaster prevention, reservoir and dam safety monitoring.
| Wireless Parameters | |
|---|---|
| Standards | FDD-LTE, TD-LTE, WCDMA, TD-SCDMA, CDMA, GPRS/EDGE |
| Bandwidth | LTE: 100Mbps Down / 50Mbps Up; WCDMA: 42Mbps Down |
| Sensitivity | < -109 dBm |
| LoRa Parameters | |
| Frequency Band | 410 MHz – 441 MHz (Default 433.0 MHz) |
| Distance | Urban: 1km; Line-of-Sight: 3.5km |
| Hardware System | |
| CPU | Industrial-grade 32-bit communication processor |
| Storage | 32 MB Flash (Expandable); TF Card up to 64 GB |
| LCD Screen | 4.3-inch LCD touchscreen |
| Interfaces | |
| Serial Ports | 2×RS232, 3×RS485 (15KV ESD protection) |
| I/O Ports | 8×Analog Input, 4×Digital Input, 3×Digital Output, 2×Relay |
| Network | 1×RJ45 Ethernet, 1×USB, 1×Solar charging interface |
