High-Precision Intelligent Telemetry Device for Instant Data Analysis
High-Precision Intelligent Telemetry Device for Instant Data Analysis
High-Precision Intelligent Telemetry Device for Instant Data Analysis
High-Precision Intelligent Telemetry Device for Instant Data Analysis
High-Precision Intelligent Telemetry Device for Instant Data Analysis
1 / 5
High-Precision Intelligent Telemetry Device for Instant Data Analysis
High-Precision Intelligent Telemetry Device for Instant Data Analysis
High-Precision Intelligent Telemetry Device for Instant Data Analysis
High-Precision Intelligent Telemetry Device for Instant Data Analysis
High-Precision Intelligent Telemetry Device for Instant Data Analysis

High-Precision Intelligent Telemetry Device for Instant Data Analysis

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
M21F-V60
Support Network
GSM
Information content
Data
Certification
CE
Condition
New
Wireless Module
Industrial-Grade
Transmit Power
< 24 dBm
Sensitivity
< -109 dBm
Indoor Distance
1 Km
Outdoor Distance
3.5 Km
Receiver Type
50 Channels; GPS L1
Origin
China

Packaging & Logistics

Package Size
50.00cm * 50.00cm * 50.00cm
Gross Weight
2.000kg
Transport Package
Carton

Product Description

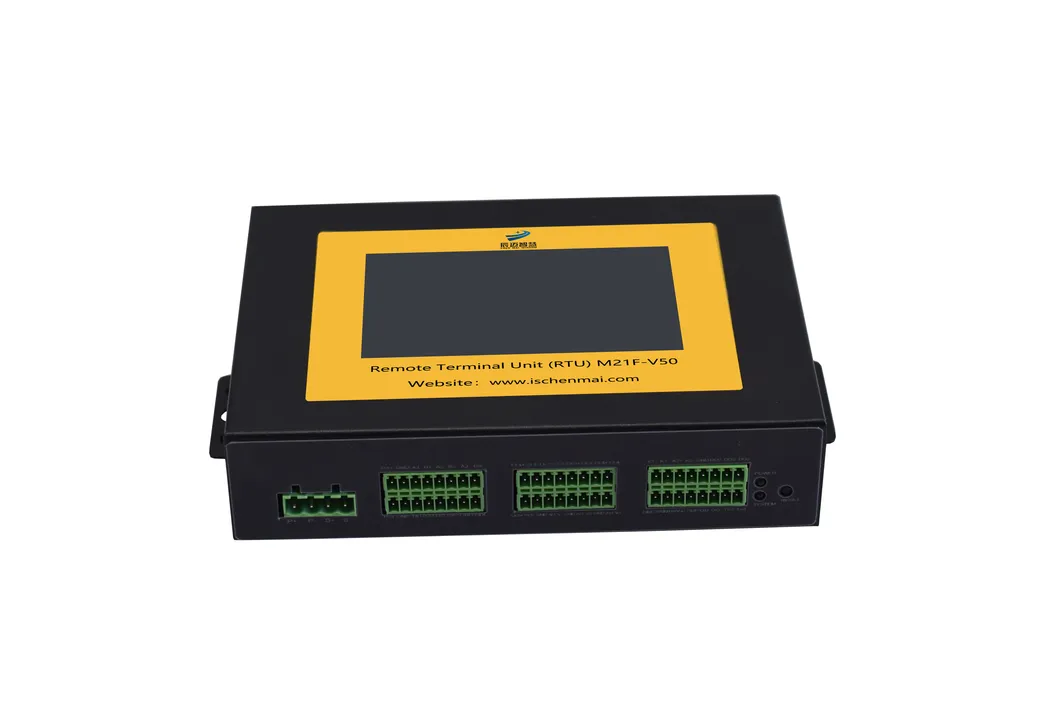

Telemetry Device 1

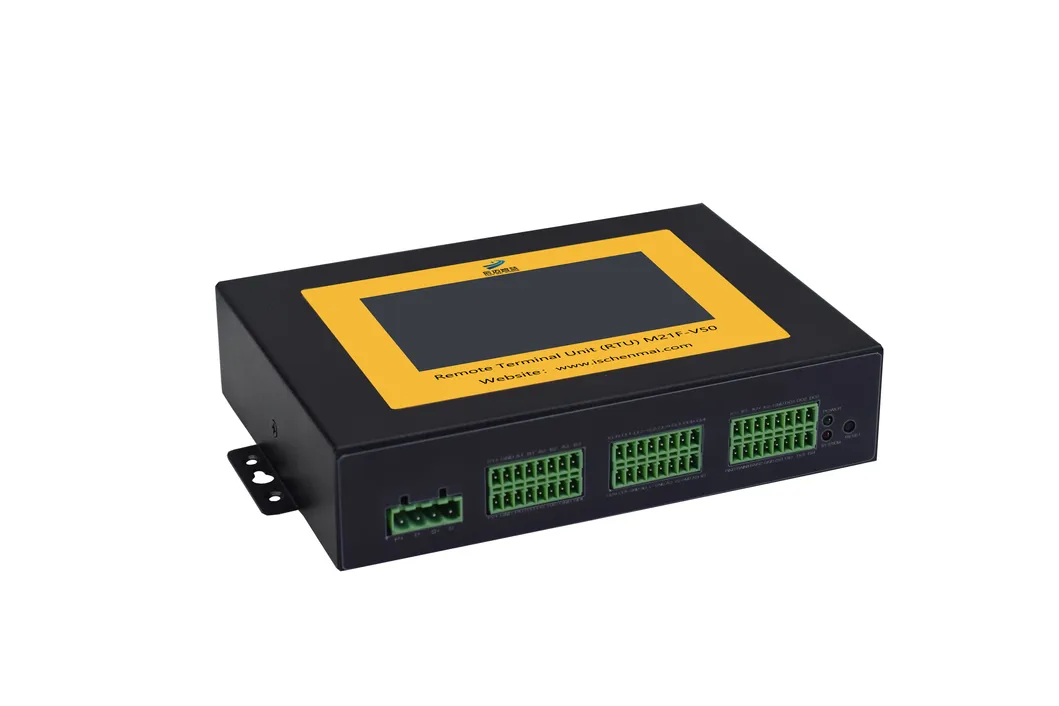

Telemetry Device 2
Telemetry Device 3

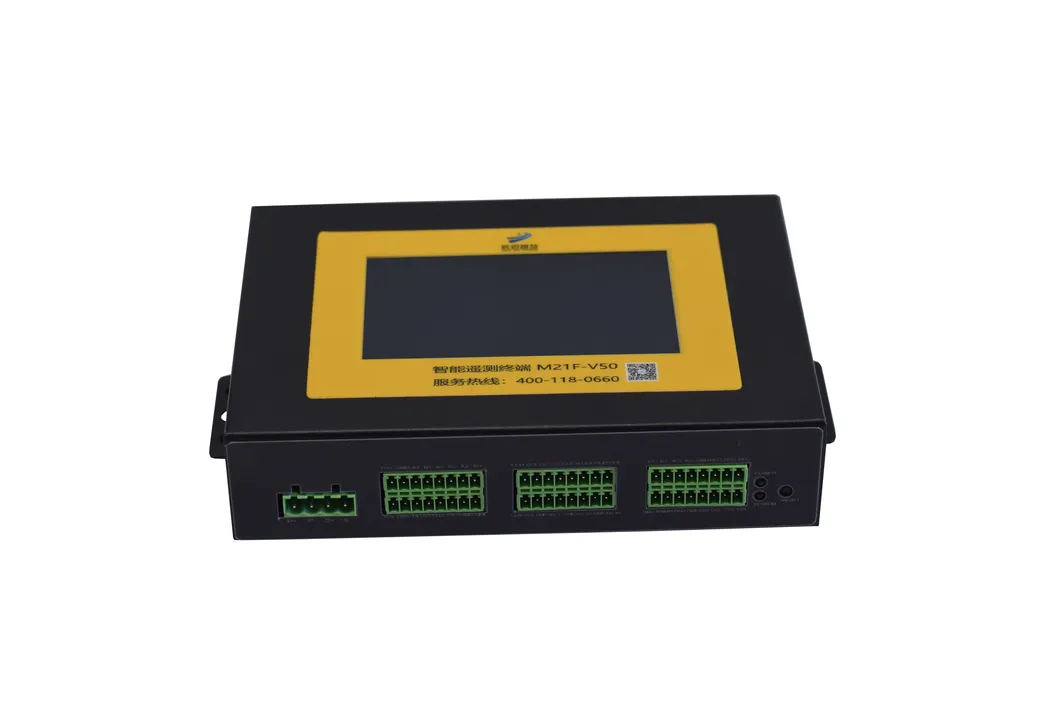

Telemetry Device 4

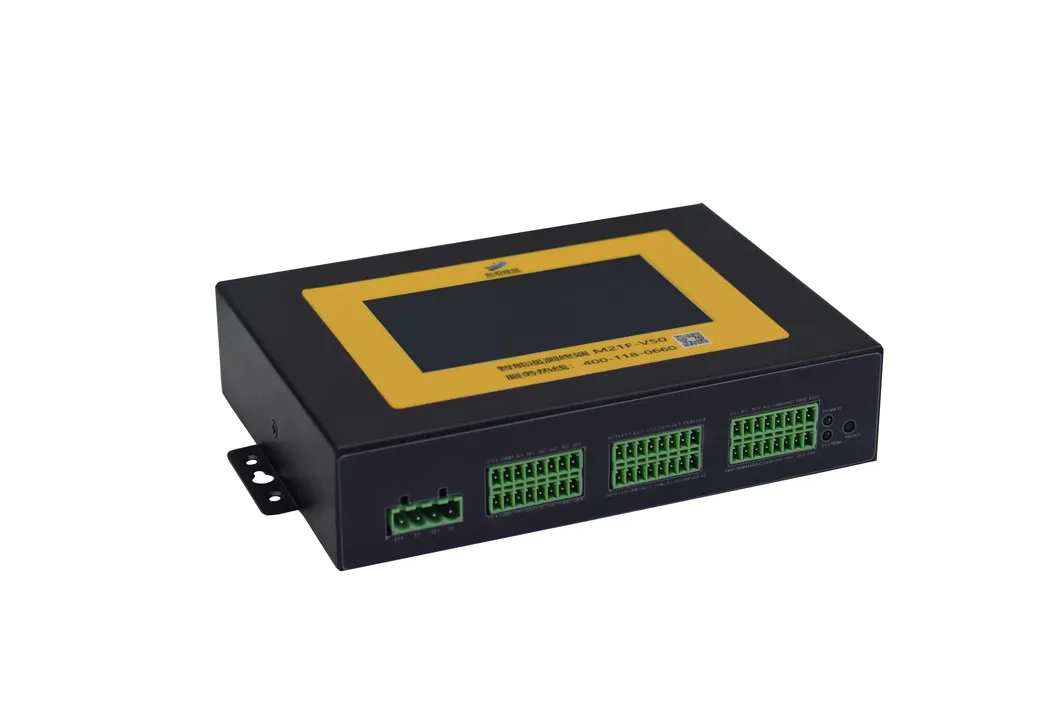

Telemetry Device 5
Telemetry Device 6

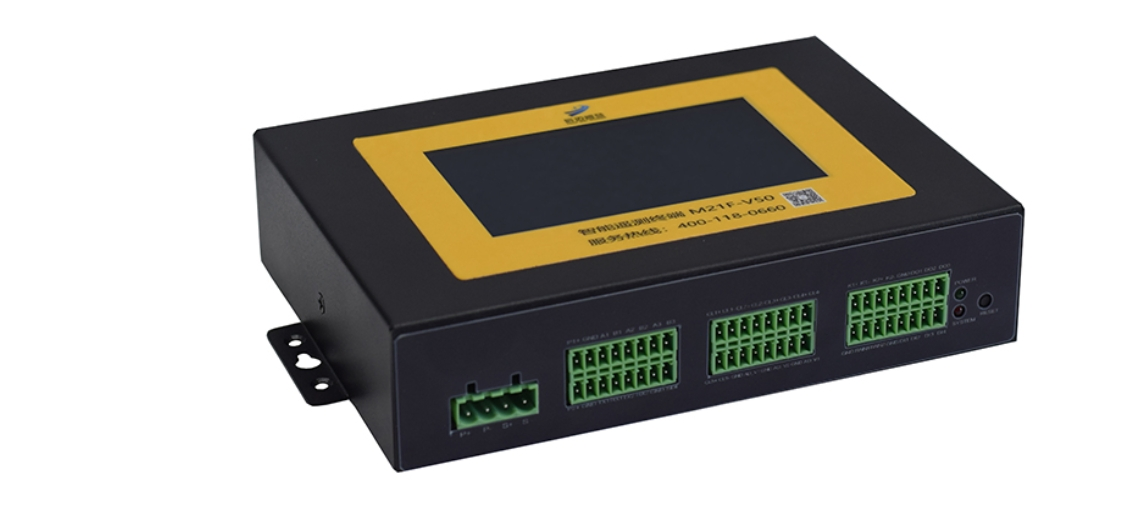

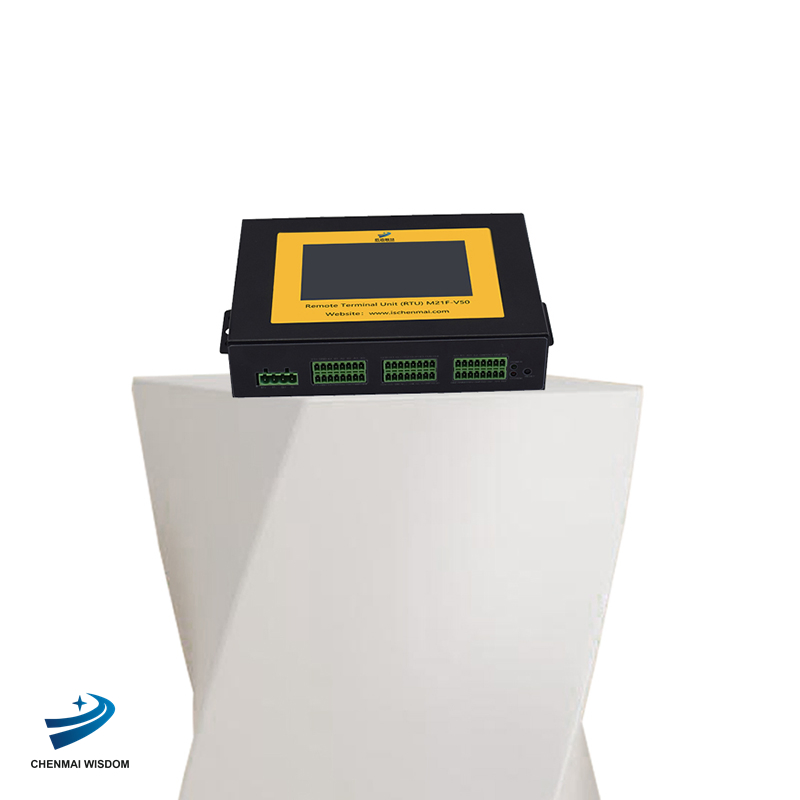

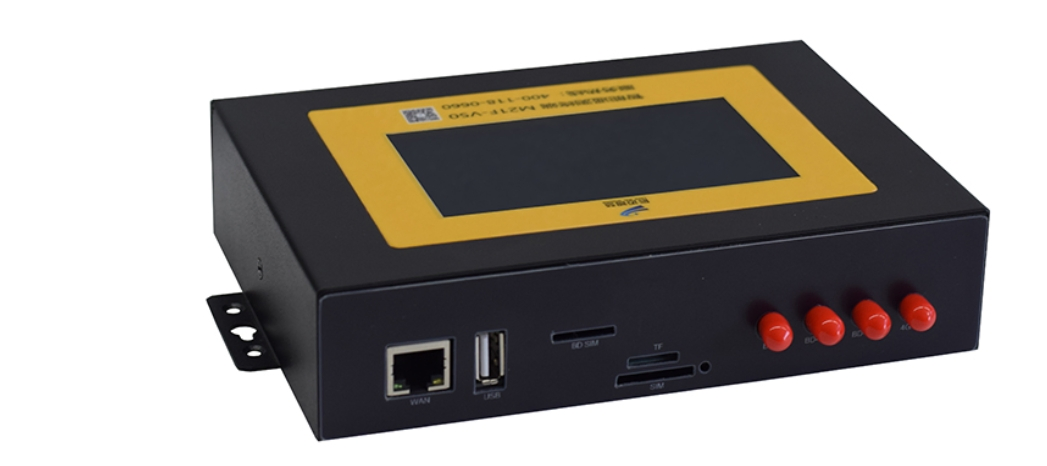

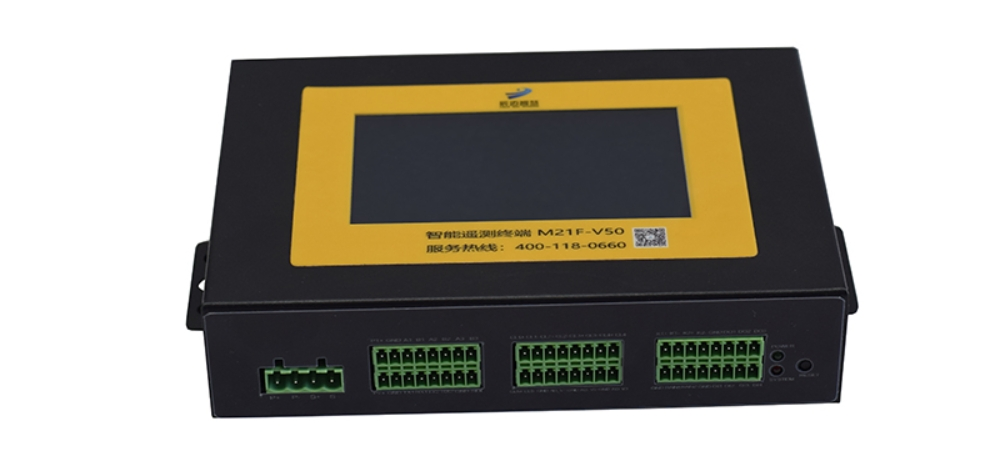

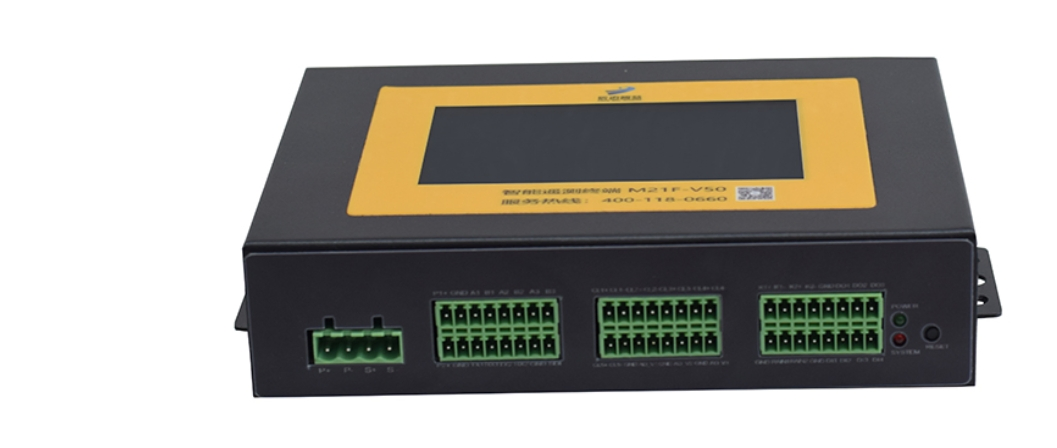

The M21F-V50 Telemetry Terminal integrates the functions of a traditional hydrological telemetry terminal, wireless long-distance transmission via 2G/3G/4G full-network compatibility and NB-IoT short message, and wireless short-distance transmission via LoRa. It delivers comprehensive capabilities including data collection, storage, transmission, display, control, alarm for hydrology, water resources, geological disaster monitoring, meteorology, and other fields.

Equipped with a high-performance industrial-grade 32-bit communication processor and industrial-grade wireless modules, the terminal is supported by an embedded real-time operating system. It provides a complete set of interfaces including a tipping bucket rain gauge interface, RS232, RS485, SDI, wired Ethernet port, 4~20mA and 0~5V analog input, digital input, relay output, and digital output.

Key Features

● Regular data collection and scheduled reporting.
● Triggered additional reporting upon early warnings.
● Local data storage and historical data export.
● Remote query of real-time and historical data.
● Scheduled reporting of device voltage.
● Scheduled and remote image capturing via platform.
● Support for local manual data entry.
● Firmware upgrade via USB/SD card with config retention.

Wireless Parameters

Item Description
Wireless Module Industrial-grade Wireless Module
Standards & Frequency FDD-LTE, TD-LTE, CDMA2000 1xEV-DO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
Theoretical Bandwidth FDD-LTE: Down 100Mbps / Up 50Mbps; WCDMA: Down 42Mbps / Up 5.76Mbps
Transmit Power < 24 dBm
Receive Sensitivity < -109 dBm

Frequently Asked Questions

What networks are supported by the M21F-V50 Telemetry Terminal?
The terminal supports comprehensive network compatibility, including 2G/3G/4G full-network standards, NB-IoT for short messages, and LoRa for wireless short-distance transmission.
What types of interfaces are available for data collection?
It provides a rich set of interfaces including tipping bucket rain gauge interfaces, RS232, RS485, SDI, wired Ethernet, 4~20mA and 0~5V analog inputs, digital inputs/outputs, and relay outputs.
Does the device support local data storage?
Yes, the terminal supports local data storage and allows for local export of historical data, ensuring data security even during network interruptions.
Can the device capture and transmit images?
Absolutely. It supports scheduled image capturing and remote image capturing triggered via the management platform.
What are the primary applications for this terminal?
It is ideal for water conservancy informatization, including hydrology monitoring, water resource management, flash flood disaster warnings, and reservoir/dam safety monitoring.
How can I upgrade the firmware on the M21F-V50?
Firmware can be easily upgraded via a USB flash drive or SD card. The upgrade process retains existing configurations and is fully compatible with legacy versions.
