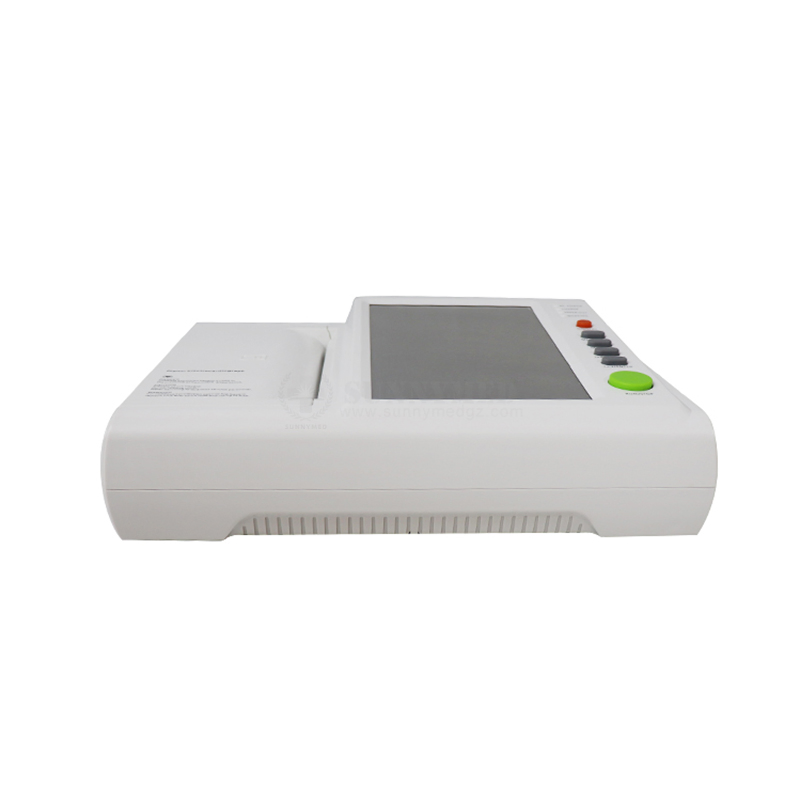

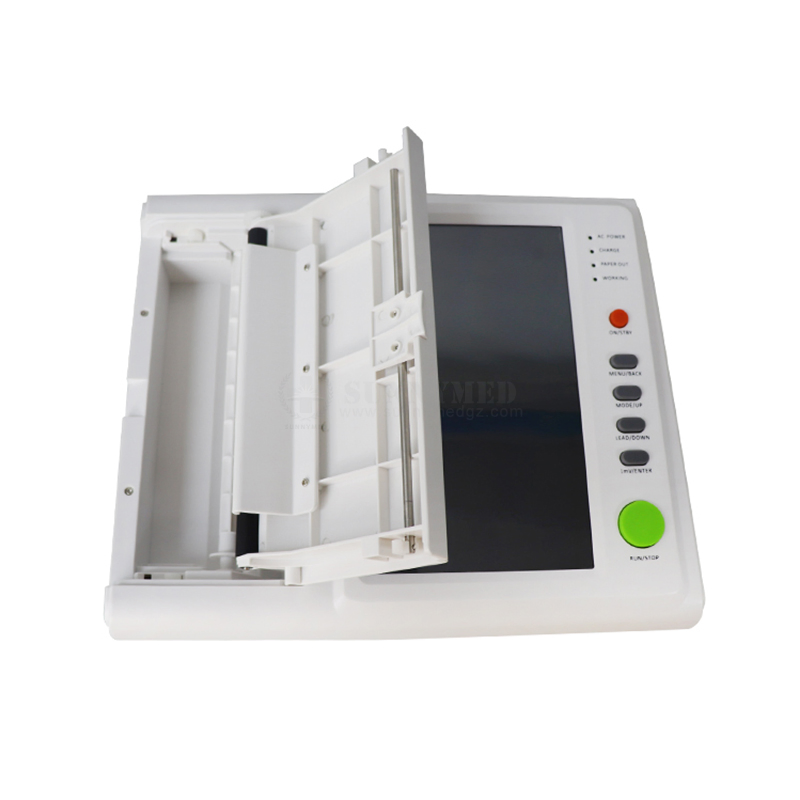

Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
1 / 5
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine
Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine

Sy-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: CE
Send Inquiry

Product Description

Basic Specifications

Model NO. SY-H008
Product Name 12 Channel Portable ECG Machine
Warranty 1 Year
Material Metal, Plastic
Display 10.2'' Color Touch Screen
Usage Clinic / Hospital ICU
Power Supply Plug-in / Built-in rechargeable Li-ion battery (14.8V/4400mAh)
Time Constant >3.2s
Transport Package Carton Box (365mm*306mm*109mm)
Production Capacity 200 Set/Month

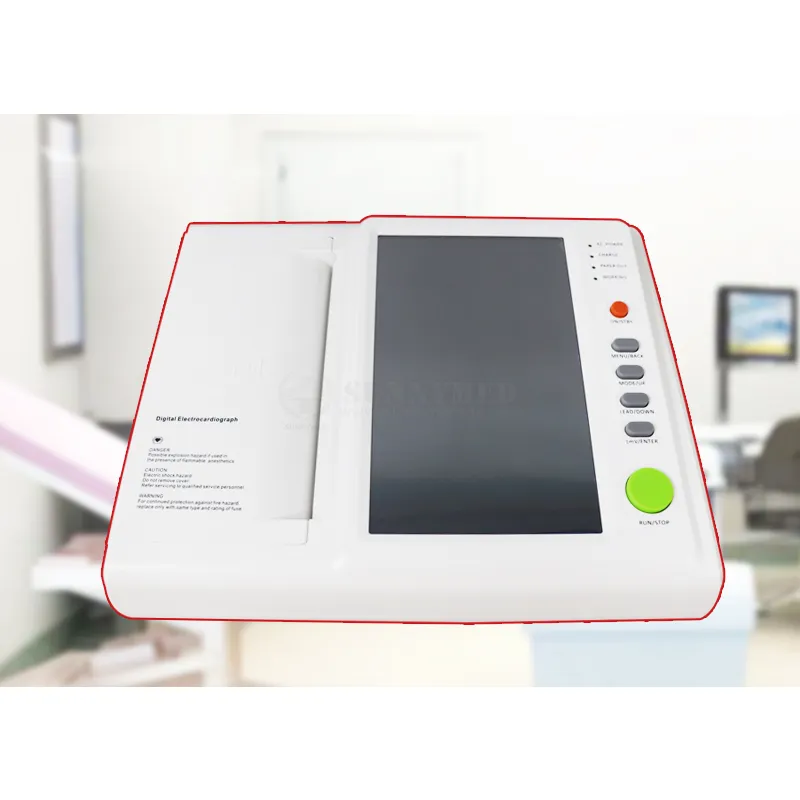

Portable 12 Channel ECG Machine

Key Features & Functionality

SY-H008 Clinical Hospital ICU Medical Equipment Portable 12 Channel ECG Machine

● Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.

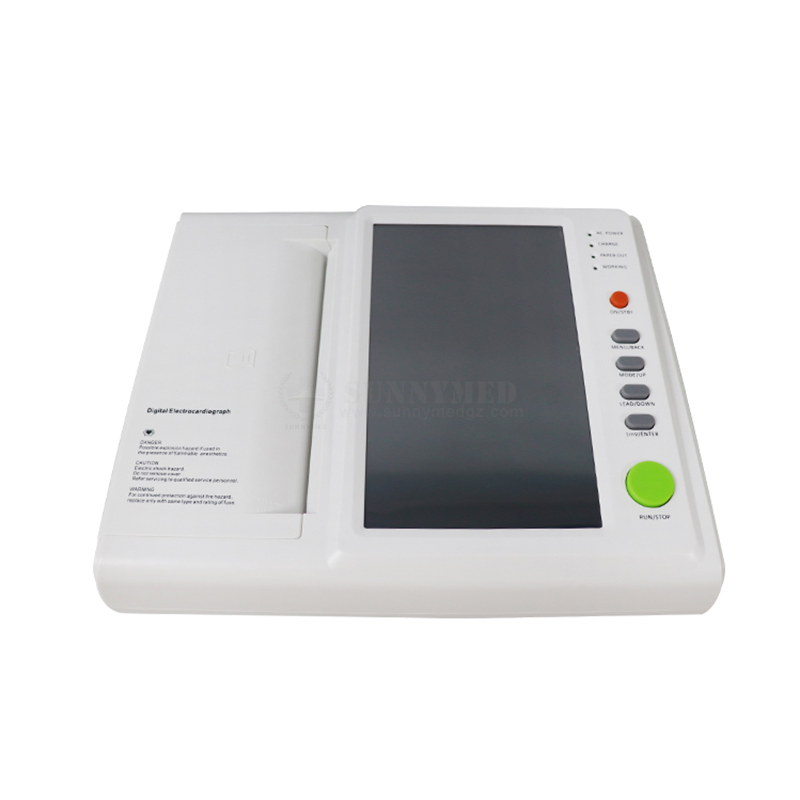

● 10.2'' color touch-screen, supporting both push-button and touch operation.
● Automatic measurement, calculation, analysis, and waveform freezing.
● High resolution thermal sensitive printer (8 dots/mm) with 216mm paper.
● Sensitive filters for ADS, HUM, and EMG for clear signals.
● Internal storage for over 500 ECG reports in built-in flash memory.
● Supports USB flash disk and SD memory for data management.

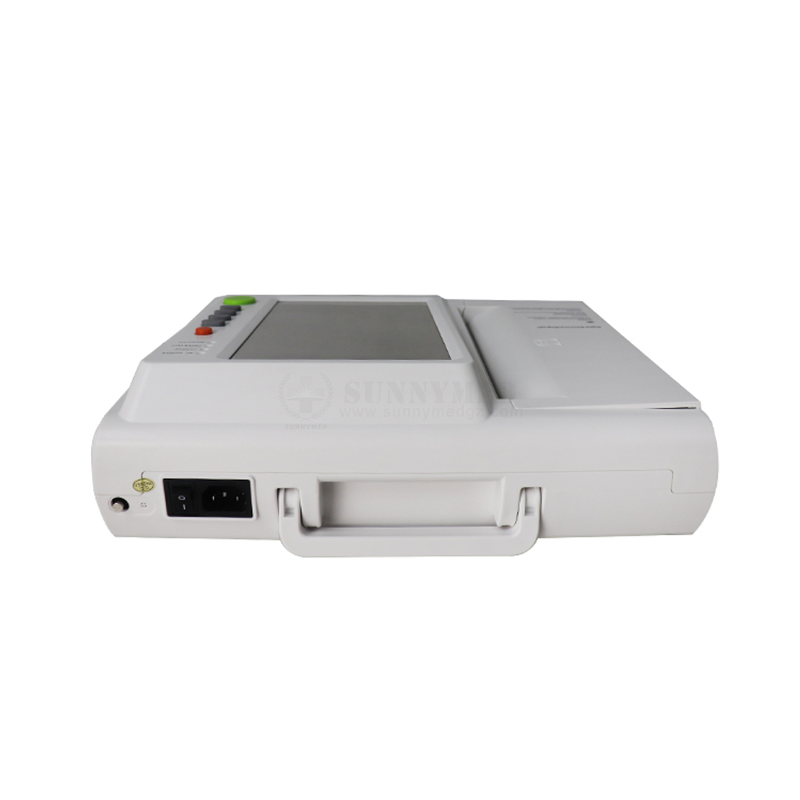

● Portable design with a hidden handle for convenient transportation.
● Sleep mode to save energy and extend LCD life.
● Real-time recording of 12 channel ECG waveform with sensitivity and filter remarks.

Technical Parameters

CMRR ≥ 100dB, with AC Filter Calibrating voltage 1mV± 3%
Input circuit Floating Voltage tolerance ± 500mV
Resolution 12bit/1000Hz Frequent response 0.05Hz~150Hz
Operation mode Manual/Auto Noise level ≤ 15µ Vp-p
Input Impedance > 50MΩ Paper speed 12.5, 25, 50mm/s (± 3%)
Patient current leakage < 10µ A Sensitivity 5, 10, 20mm/mV
ECG Device View 1
ECG Device View 2
ECG Device View 3
ECG Device View 4

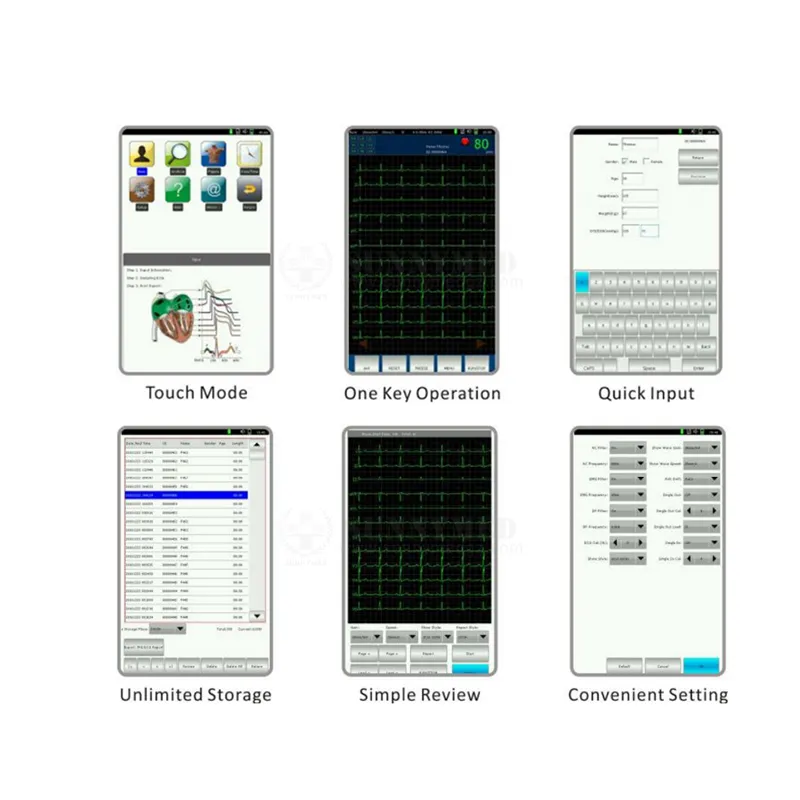

ECG Device View 5
ECG Device View 6
ECG Device View 7
ECG Device View 8
ECG Device View 9
ECG Device View 10
ECG Device View 11

Frequently Asked Questions

Q1: What are the main display features of the SY-H008 ECG machine?
The machine features a large 10.2-inch color touch-screen LCD display that supports simultaneous 12-lead acquisition and full-screen waveform display.
Q2: Can the device be used during power outages?
Yes, it is equipped with a built-in high-capacity rechargeable Li-ion battery (14.8V/4400mAh) and supports AC/DC power conversion for continuous operation.
Q3: How does the auto-diagnostic function benefit clinical use?
The automatic measurement, calculation, and analysis functions help reduce the doctor's workload and improve diagnostic efficiency by providing auto-diagnostic reports.
Q4: What data storage and connectivity options are available?

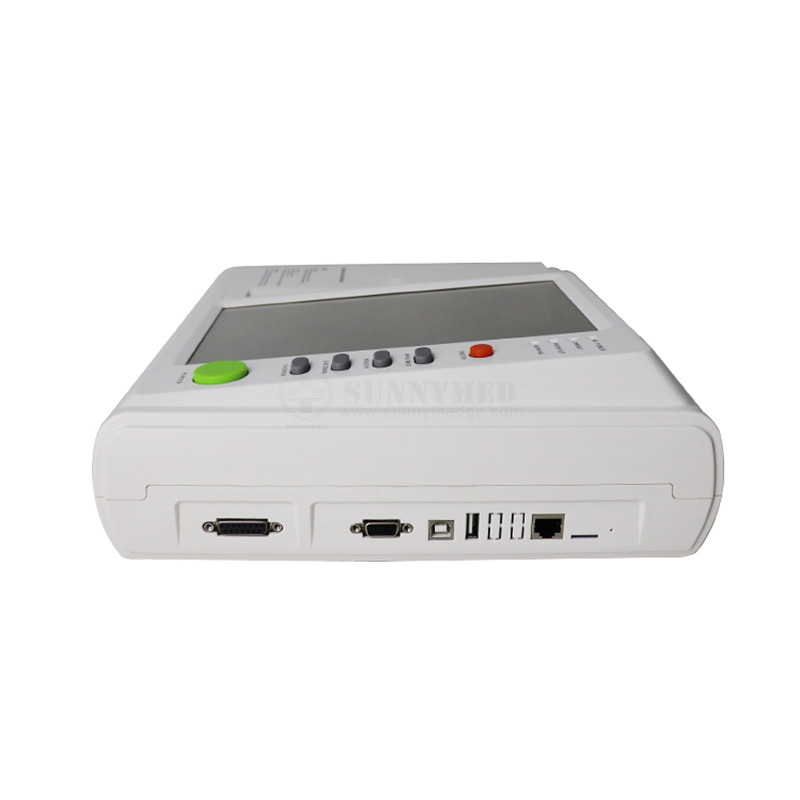

The device can store over 500 reports in its built-in flash memory and supports USB flash disks and SD cards. It also features standard RS232 and USB interfaces for PC connection.
Q5: What kind of printer and paper does this ECG machine use?
It utilizes a high-resolution thermal-array printer (8 dots/mm) that works with 216mm synchronization thermal recording paper.
Q6: Is the device portable enough for different hospital wards?
Yes, it has a modern, lightweight, and compact design with a hidden handle, making it very convenient to carry between clinics and ICU environments.
