Basic Information
Treatment Capacity
30-500kg/Batch
Package Size
200.00cm * 70.00cm * 190.00cm
📝

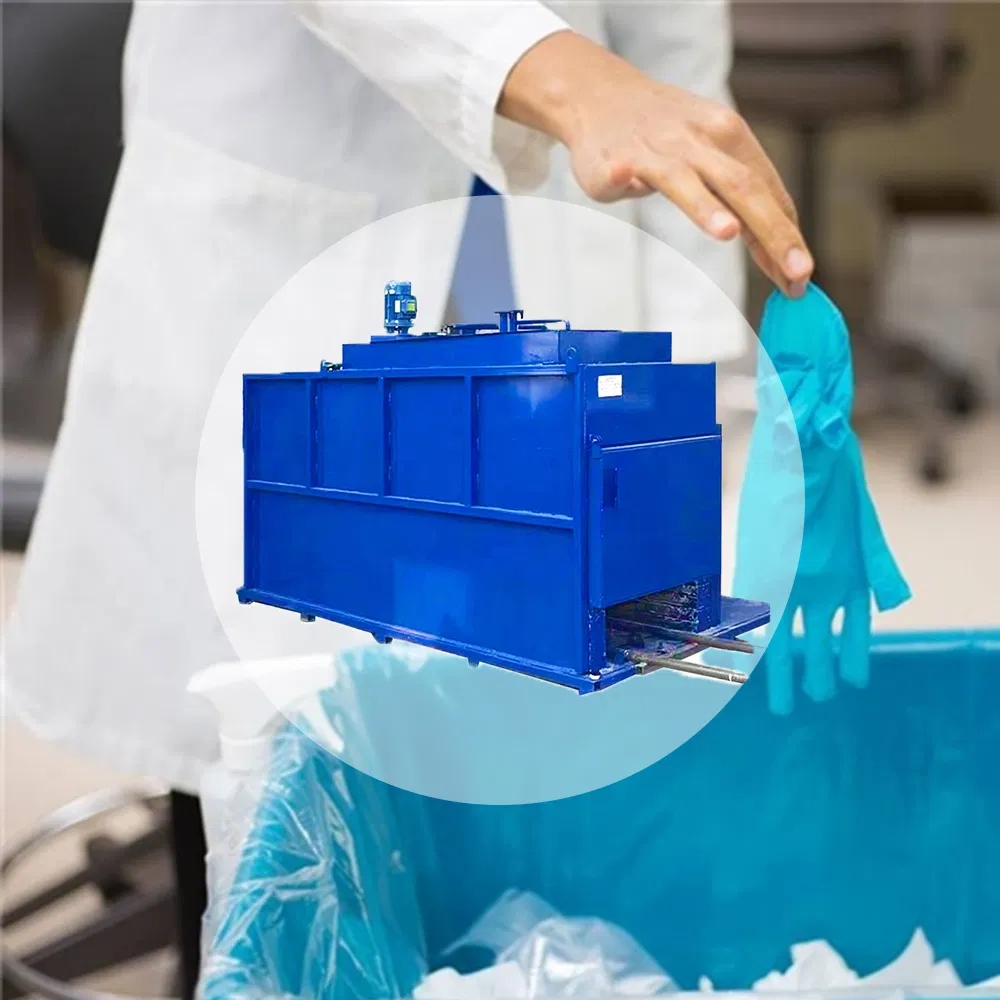

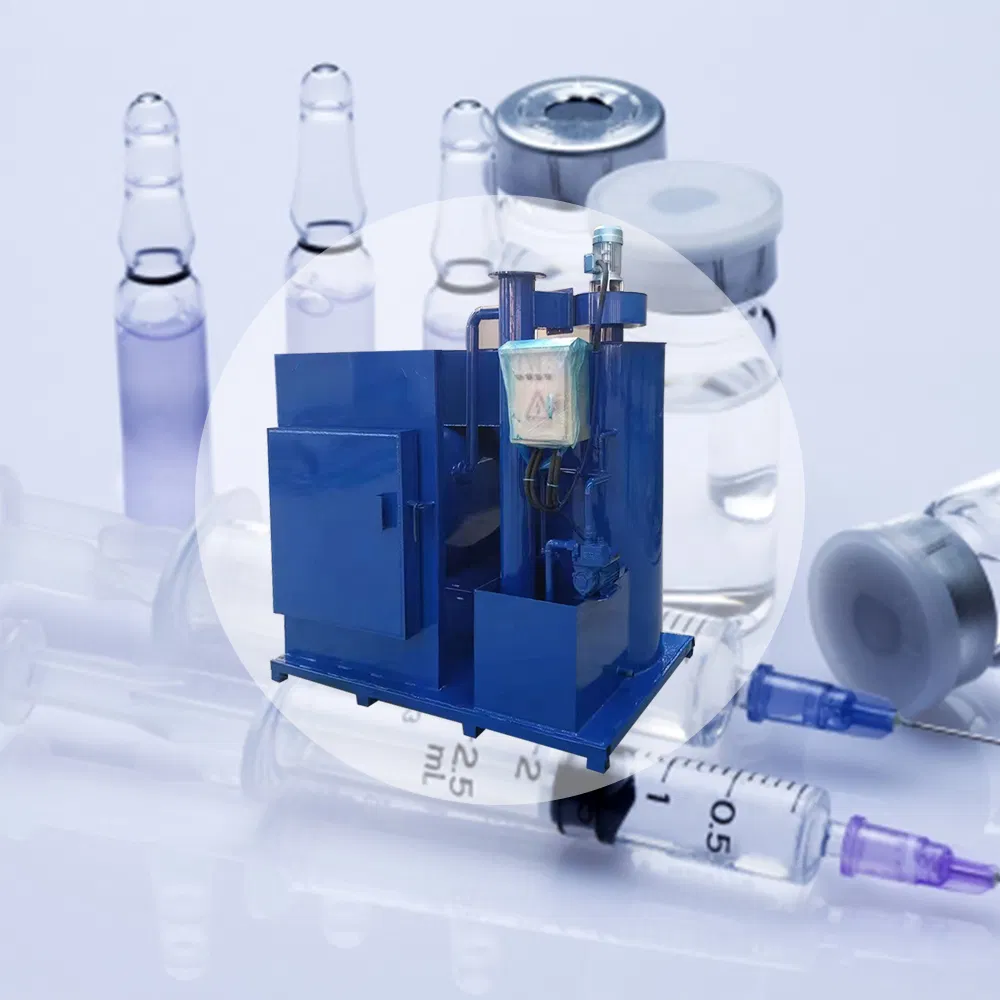

Product Description

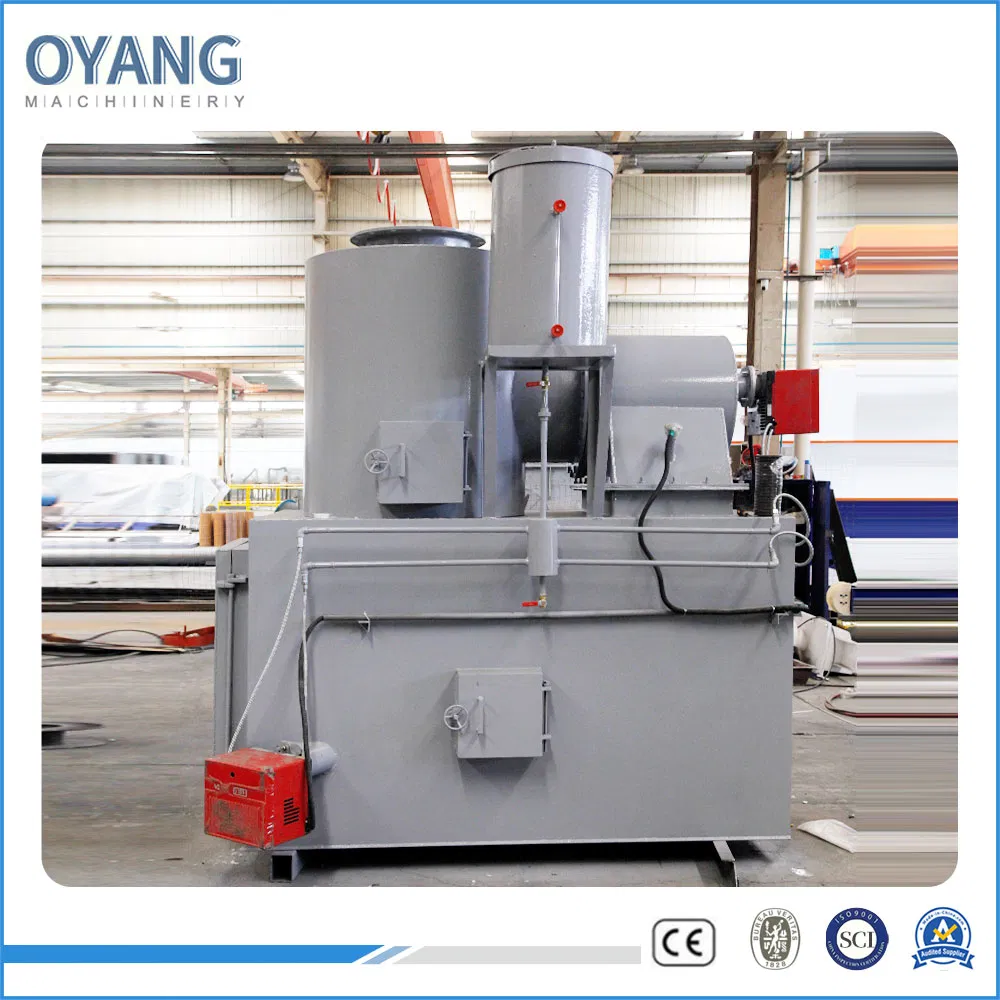

The waste incinerator is advanced equipment designed for effective waste treatment. Waste is processed within the furnace, where exhaust gases enter a secondary combustion chamber. Here, they undergo complete combustion facilitated by forced burners before passing through a spray dust collector. Once purified, the emissions are safely discharged into the atmosphere via the chimney.
This integrated system consists of four primary components: a waste pretreatment system, an incineration system, a flue gas biochemical dust removal system, and a gas generator for ignition. It seamlessly combines automatic ignition, drying, incineration, ash removal, and dust removal under an automated control architecture. It is an essential solution for the harmless treatment of medical, domestic, and animal waste through high-temperature carbonization and disinfection.
⚙️

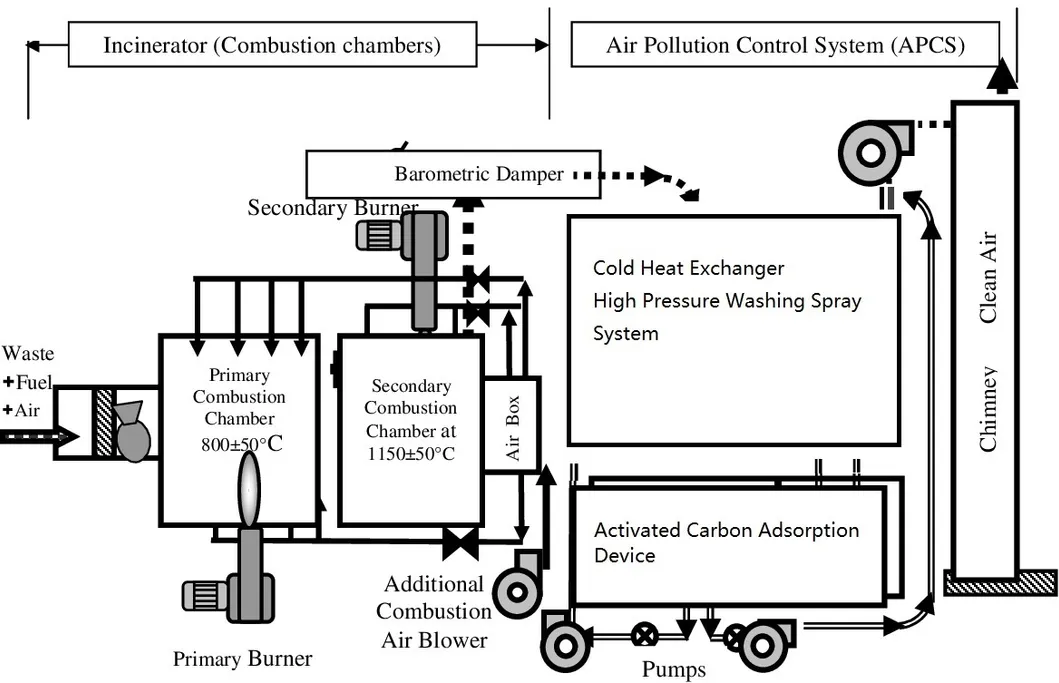

Working Principles
🔹
Fuel-efficient design with no secondary pollution, offering a longer service life than standard furnaces.
🔹
Carbon steel air-guiding jet system ensures seamless inner walls and optimized peroxygen combustion.
🔹
Advanced exhaust system maintains constant negative pressure to prevent backfire, ensuring operational safety.
🔹
High-temperature resistant refractory grid promotes even waste combustion with low maintenance requirements.
🔹
Rain-proof automatic control cabinet equipped with overload protection and residual burning timing devices for maximum reliability.
✅

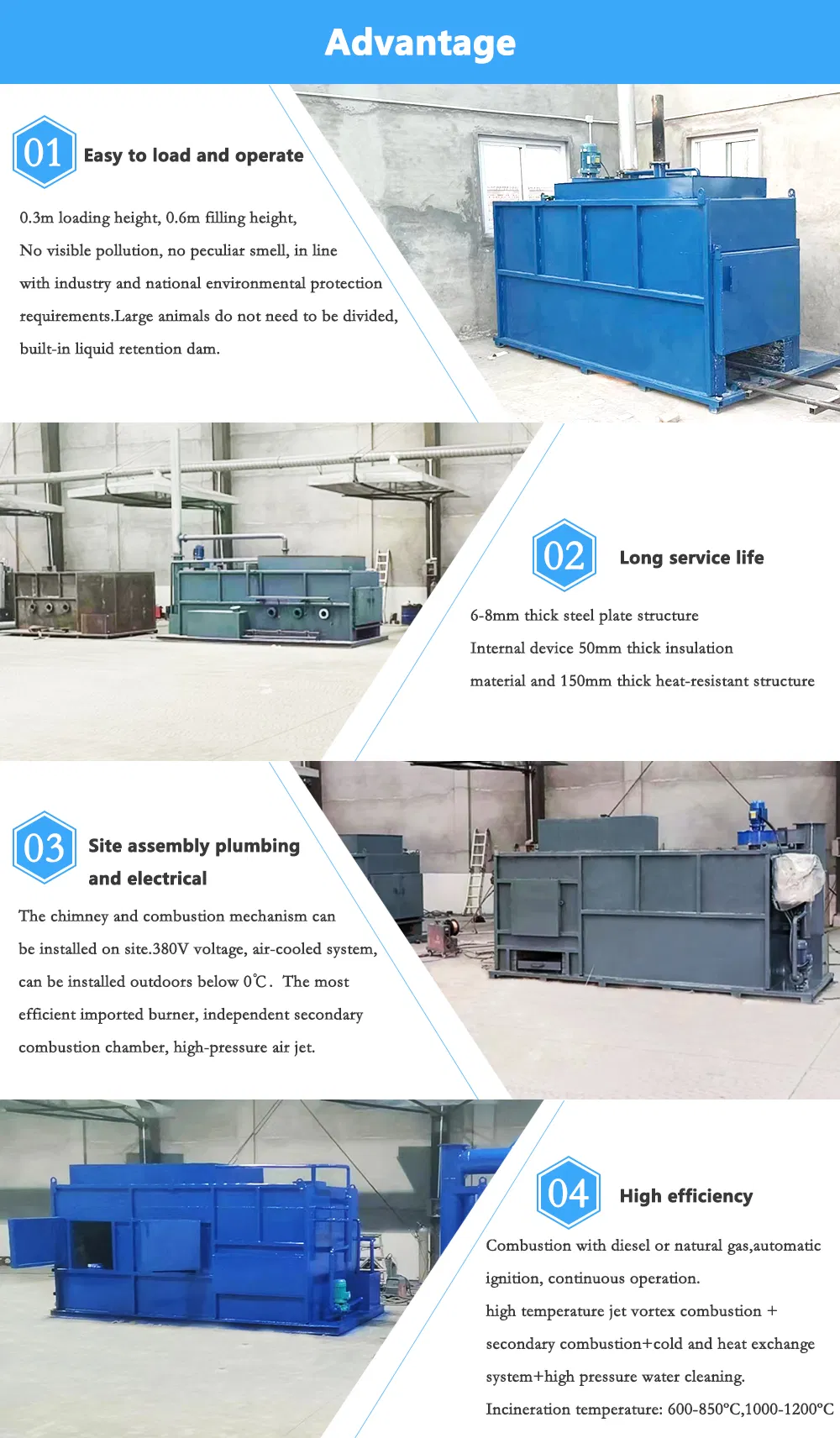

Product Advantage
📋
Product Parameters
| Specifications |
Unit |
WH30 |
WH50 |
WH100 |
WH200 |
WH300 |
WH500 |
| Filling amount (2h/batch) |
kg |
30 |
50 |
100 |
200 |
300 |
500 |
| Main chamber volume |
m³ |
0.08 |
0.13 |
0.24 |
0.66 |
1.41 |
2.86 |
| Fuel consumption |
kg/h |
5 |
6 |
8-12 |
10-15 |
15-20 |
20-25 |
| Gas consumption |
m³/h |
5-6 |
6-7 |
9 |
12 |
15-20 |
20 |
| Size (L*W*H) |
m |
2*0.7*1.9 |
2.2*0.8*1.9 |
2.5*1.5*1.9 |
4*1.55*1.95 |
8*1.7*2.4 |
11*2*2.4 |
| Operating Voltage |
V |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
| Weight |
Ton |
1 |
1.5 |
3 |
5.5 |
6-7 |
9-10 |
📦

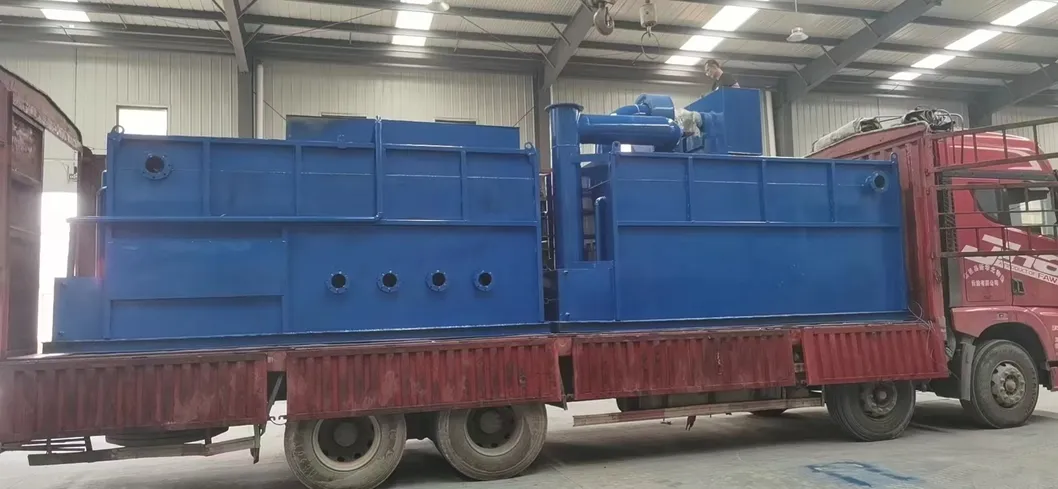

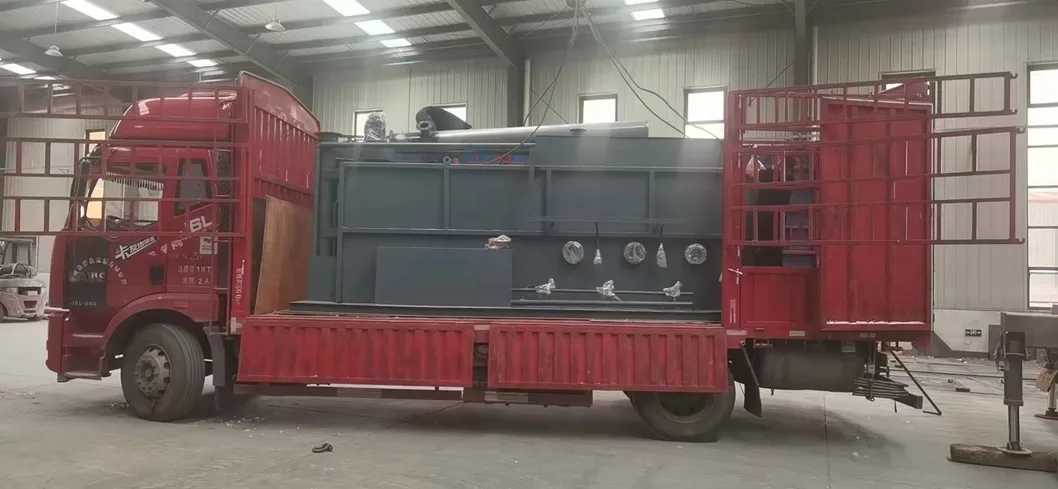

Packaging & Shipping

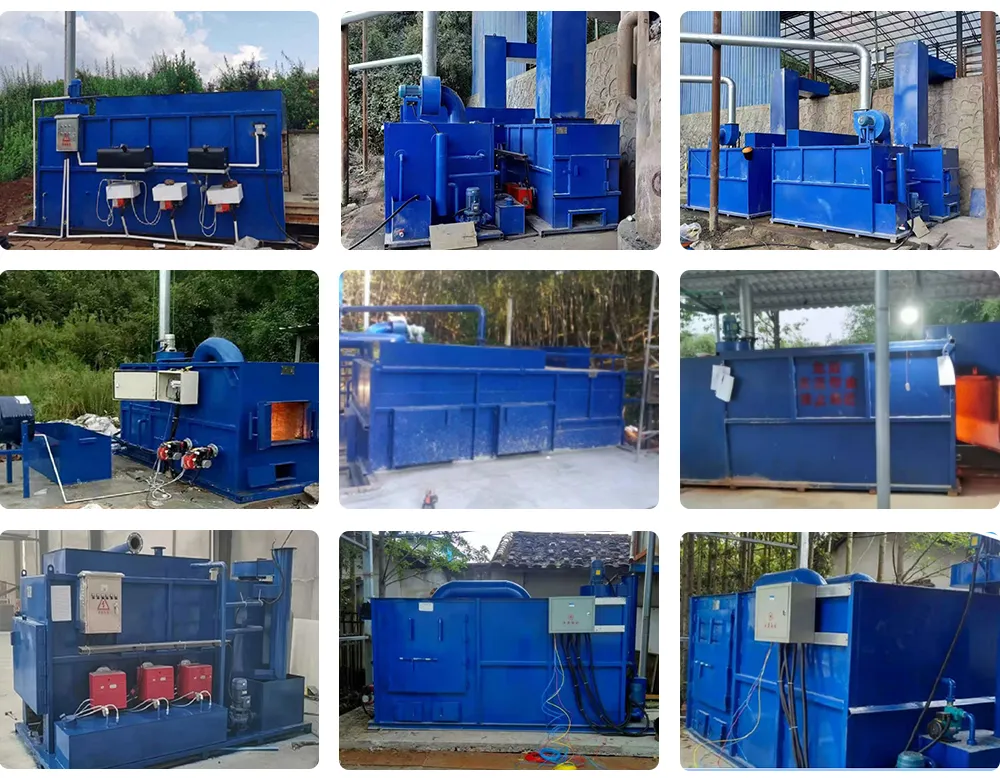

Live Photos:
📜

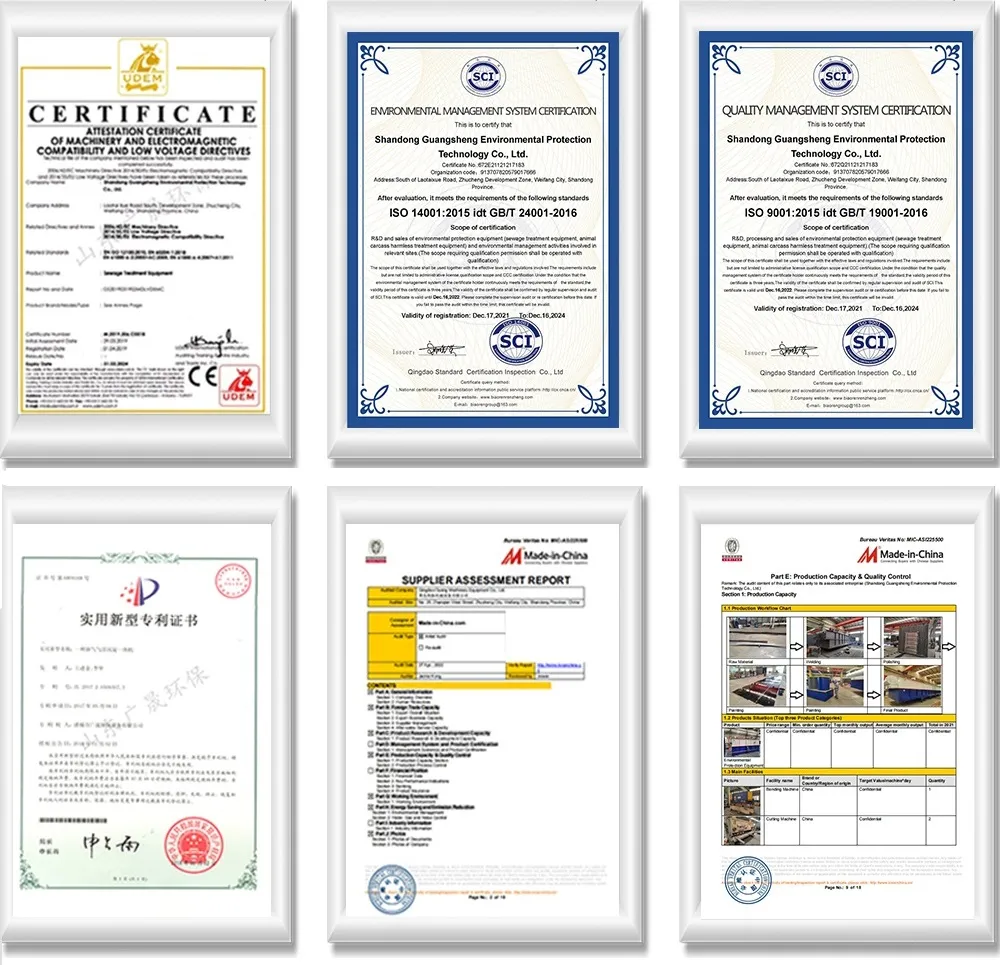

Certifications
❓
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer specializing in the production of waste treatment equipment for more than 10 years.
This is my first time importing; how should I proceed?
Do not worry. We assist with the entire process. We work with professional shipping agents who handle customs clearance and transportation from the destination port to your warehouse.
Can you accept customized orders?
Yes, we have professional engineers who can design and provide customized services based on your specific requirements.
Where is your facility located?
Our manufacturing facility and head offices are located in China. Please contact us for specific visit arrangements.
Do you provide OEM/ODM services?
Yes, we provide both OEM and ODM services to meet various market demands.
Do you offer after-sales support?
Yes, we offer comprehensive after-sales service. Please contact our online sales team for detailed information.
