📊 Basic Info.
Model NO.
CCN-W3702
Transport Package
Standard Export Package
Specification
standard
Origin
China
Production Capacity
500 units/Month

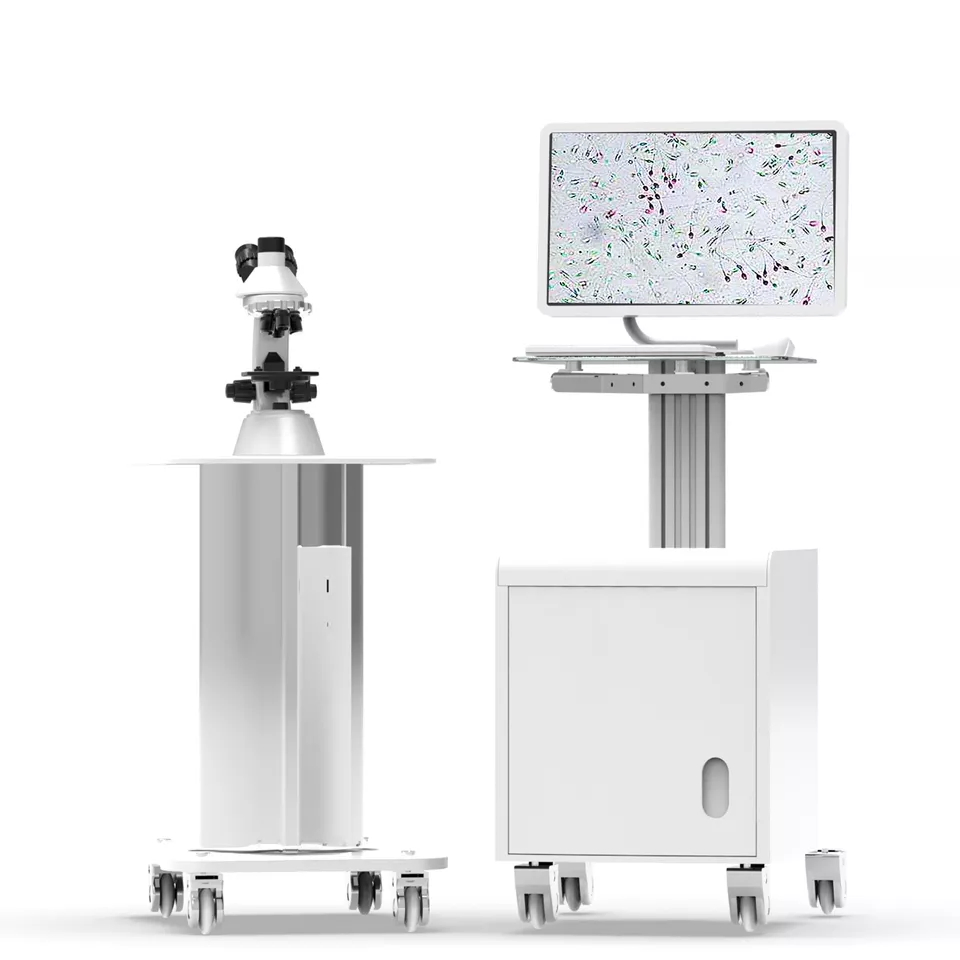

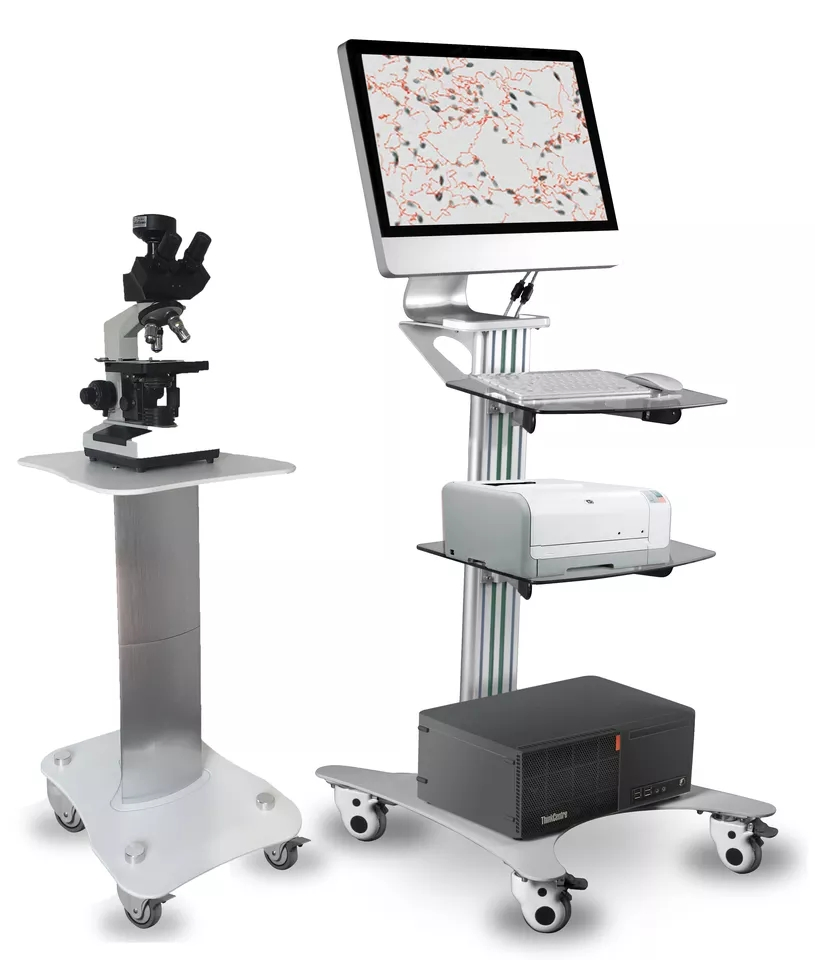

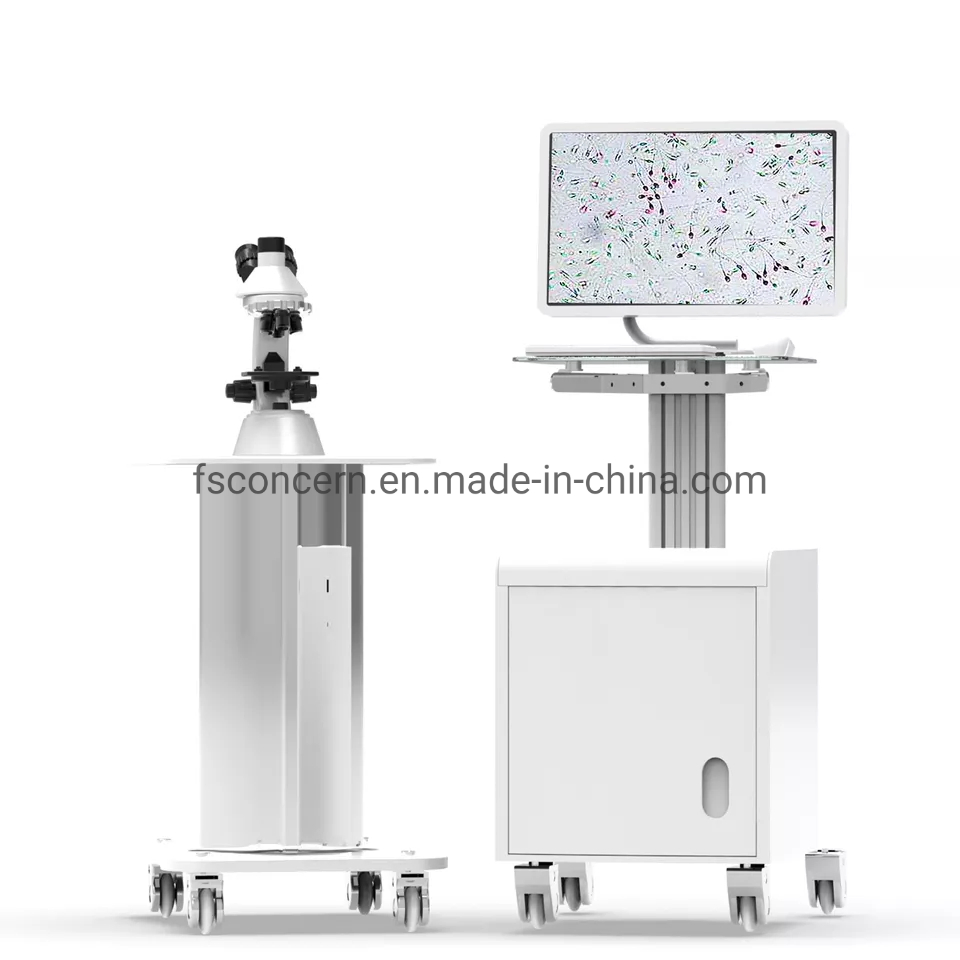

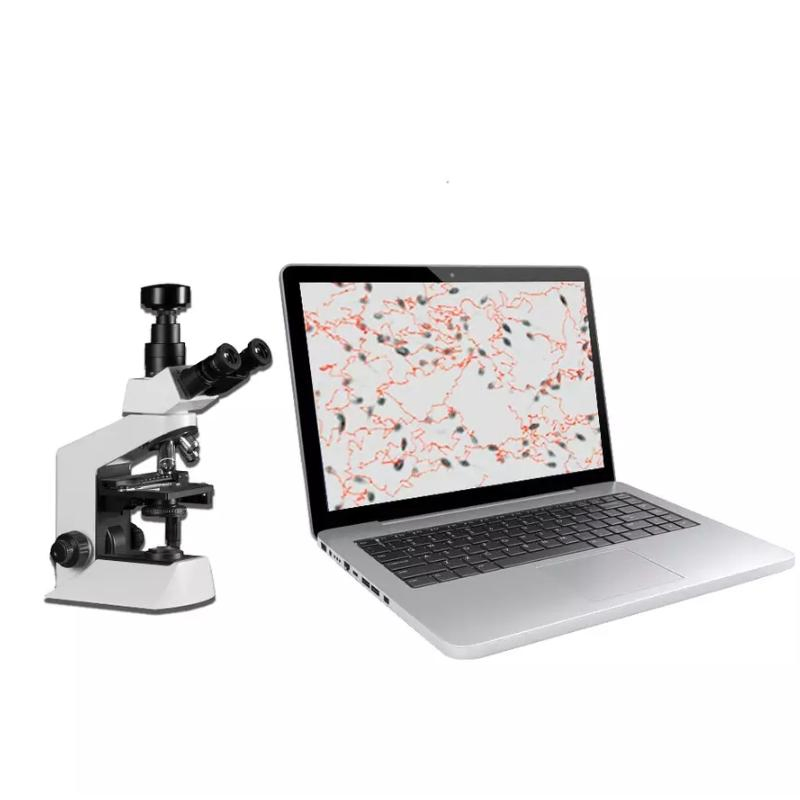

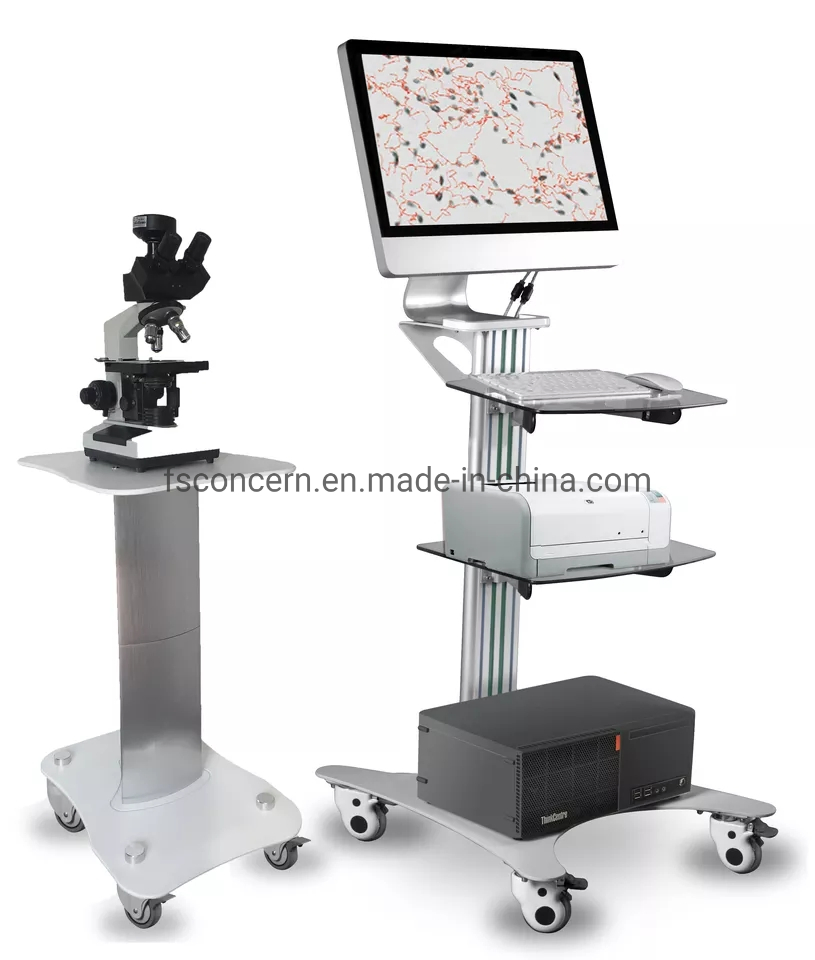

Semenology Sperm Quality Analyzer Clinical Semen Detection Equipment
This high-tech intelligent product is used in modern reproductive medicine, combining computer image processing technology with advanced artificial intelligence. It allows for automatic identification and tracking of sperm movement, performing comprehensive quantitative analysis according to WHO international standards. It provides a vital scientific basis for clinical male fertility testing.
💡 Apparatus Features
Filter out impurities to ensure test accuracy.
Scatheless detection maintains natural motion state and monolayer sampling.
Digital storage for all data and dynamic/static images for easy querying and reporting.
Advanced morphological analysis software with clear, colorful imaging.
🔍 Detection Items
Sperm density, survival rate, and movement distribution curves.
Average speed and total motile sperm count in curvilinear motion.
Rectilinear and average path motion parameters.
Graded speed analysis: A (Rapid), B (Slow), C (Non-traveling), D (Motionless).
Side-way amplitude, whipping frequency, and rectilinear motion rate.
⚙️ Technical Parameters
| Parameter |
Specification |
| Maximum detected sperms | 1000 |
| Detection speed range | 0-180µm/s |
| Frame number of picture | 0-75 |
| Resolution of particle diameter | 0-150µm/s |
| Analysis time | 1-5 seconds or longer |
| Collected images | 1-15 groups |
| Microscope Objective Lens | 10x, 20x, 25x, 40x |
🔬 Microscope Specification
| Viewing Head | Trinocular Head for Video Camera (C Mount) |
| Eyepiece | Wide Field WF10×, P16× |
| Objective | Achromatic 10×, 20×, 40×(S), 100×(S, Oil) |
| Nosepiece | Quadruple Nosepiece |
| Stage | Double Layer Mechanical (140×140mm / 75×50mm) |
| Focusing | Coaxial Coarse & Fine, 0.002mm Fine Division |
| Condenser | Abbe NA 1.25 with Iris Diaphragm & Filter |
| Illumination | S-LED Brightness Adjustable / Plan-concave Mirror |
📸 Camera Specification
| Effective Pixels | 3 Million |
| Chip Size | 1/2" |
| Pixel Size | 3.2μm × 3.2μm |
| Shutter Type | Electronic Shutter |
| Exposure Time | 47μs - 3s |
| Spectral Response | 380 - 650nm |
| A/D Conversion | 8 bit |
💻 System Features
Simple, rational structure with a friendly interface requiring minimal training.
High intelligence with automatic inspection and scaling for data accuracy.
Detects up to 34 items of semen index quickly, reducing labor intensity.
Built-in database for easy inquiry, adjustments, and printing of results.
🏥 Hospital Medical Equipment Categories
| Department |
Equipment Includes |
| X-Ray Room | X-ray machine, film, processor, cassette, lead clothing (gloves, glasses, apron) |
| Ultrasound | B/W 2D, 2D/3D/4D Color Ultrasound |
| Laboratory | Chemistry/Hematology analyzer, ELISA reader, centrifuge, pipette, urine analyzer |
| Operation Room | Anesthesia machine, ventilator, operating lamp, table, ECG, patient monitor, defibrillator, infusion pump |
❓ Frequently Asked Questions
1. How fast is the sperm quality analysis process?
The analysis time is very efficient, typically taking between 1 to 5 seconds, though it can be adjusted for longer periods if needed for specific cases.
2. What is the maximum number of sperms the system can detect at once?
The system can detect a maximum of 1,000 sperms per analysis, providing a statistically significant sample for accuracy.
3. Can the analyzer distinguish between sperm and other impurities?
Yes, the device features advanced filtering technology that identifies and filters out non-sperm impurities to ensure the highest accuracy of the test results.
4. Does the system provide motility classification?
Yes, it classifies sperm motion into four categories: A (rapid forward), B (slow forward), C (non-traveling), and D (motionless/hyperslow).
5. What types of subjective items can be examined with this system?
It allows for the examination of epithelium, hematid, and leucocyte levels, as well as detailed teratosperm analysis (head, tail, and body defects).
6. Is the data stored for future reference?
Yes, all test results, including dynamic and static images, are stored digitally on the system's hard disk for future inquiry, printing, and medical study.
