Pd-Free Power Frequency AC Hipot Test System

1 / 5

Pd-Free Power Frequency AC Hipot Test System

Customization:	Available
After-sales Service:	Onsite and Video Call Remote Guidance
Warranty:	2 Years Free Warranty Long Life Service

Send Inquiry

Product Description

📊 Basic Information

Model NO.

YDW

Max Workpiece Dia.

1200mm

Mass Scope

<900kg

Type

Universal Testing Machine

Max Capacity

<1000KN

Accuracy Grade

0.5

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

LCD

Control

Computer Control

Weight

100-500Kg

Power Source

AC380V

HS Code

9030899090

Production Capacity

100 Units

⚙️ Product Description

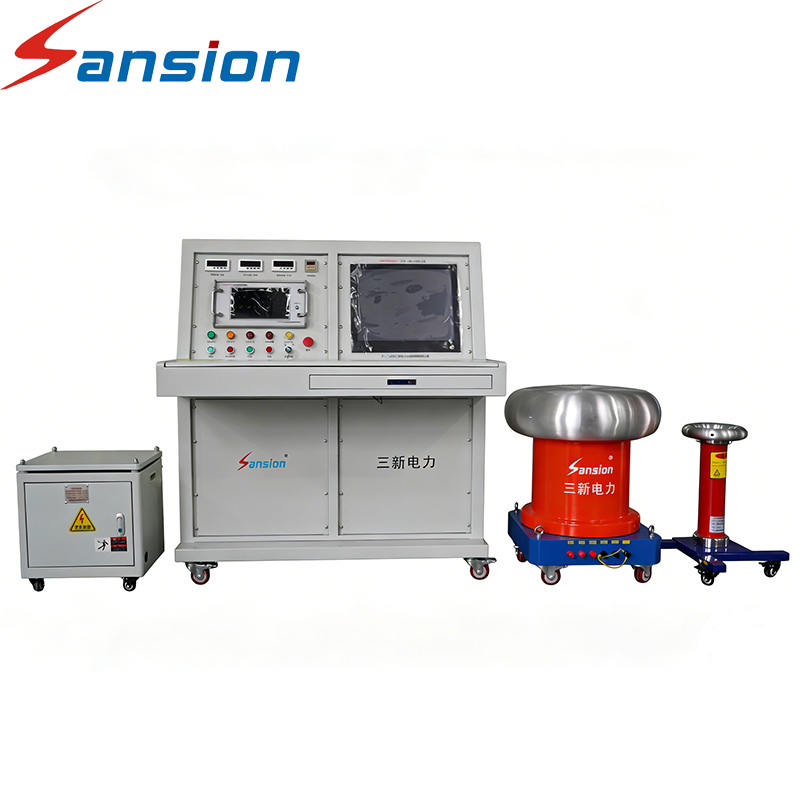

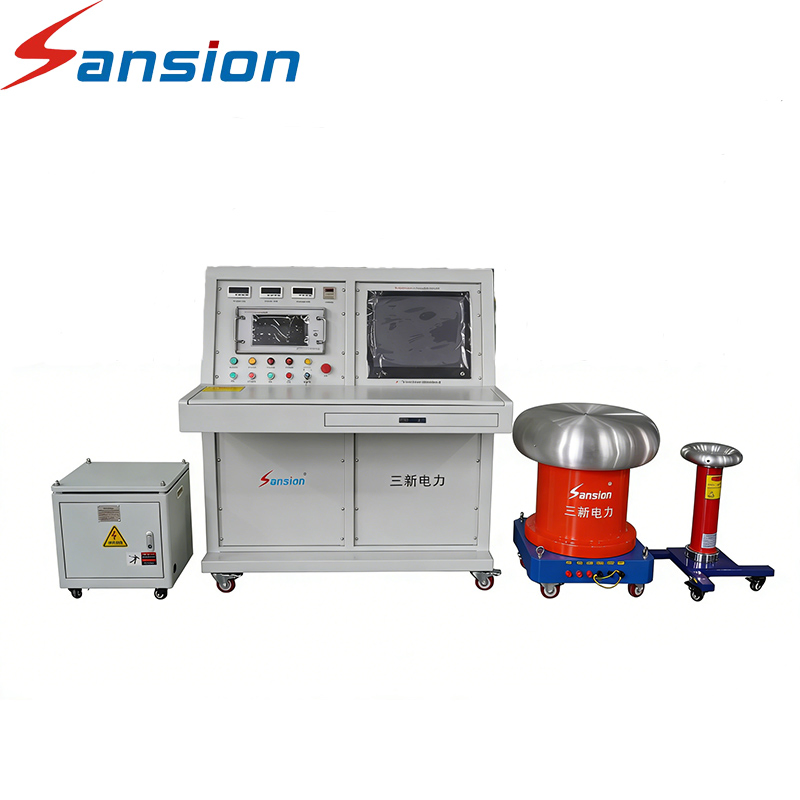

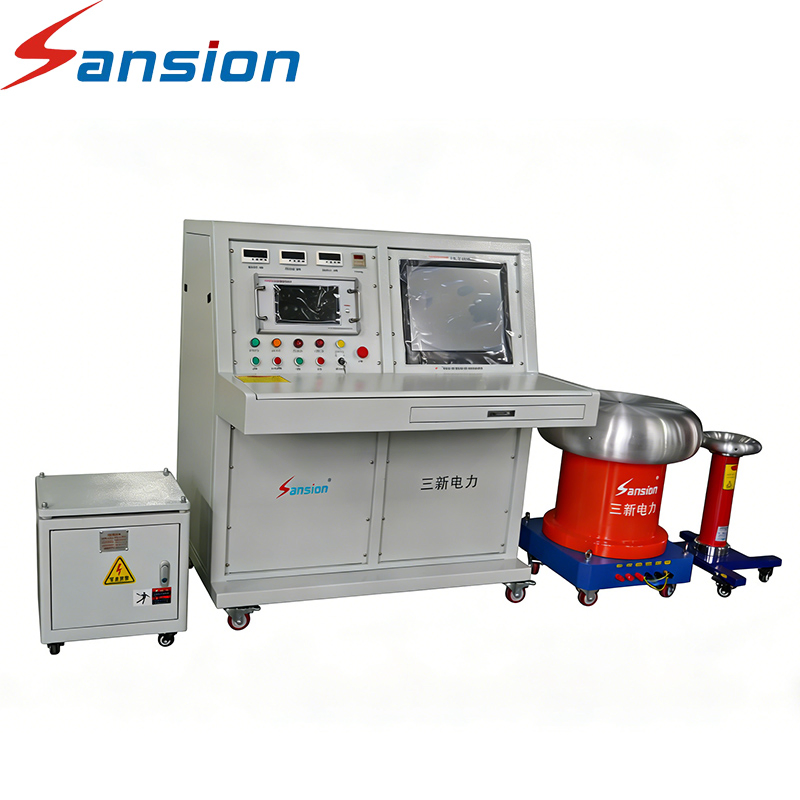

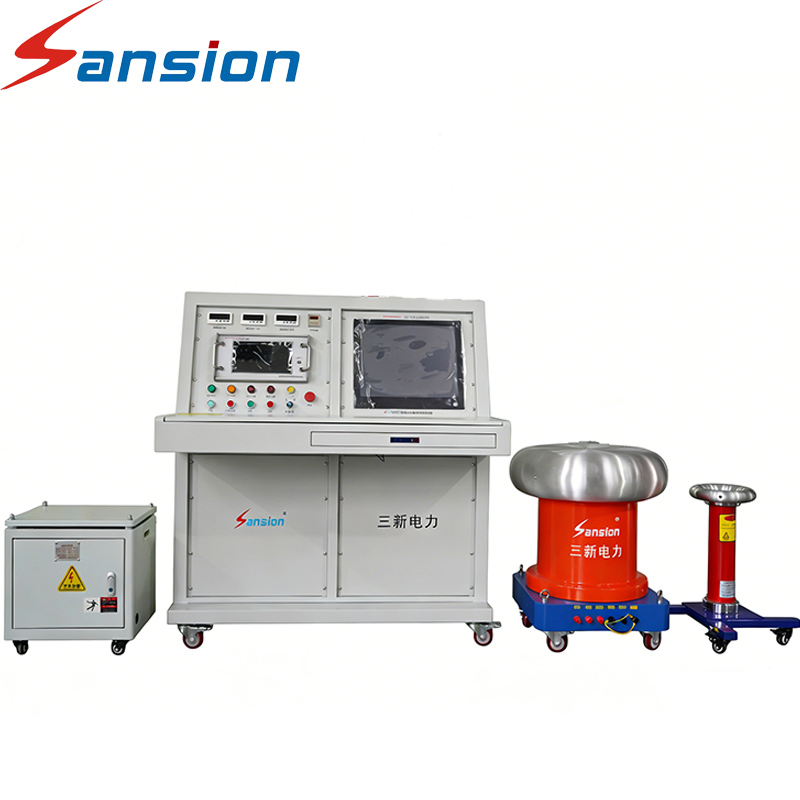

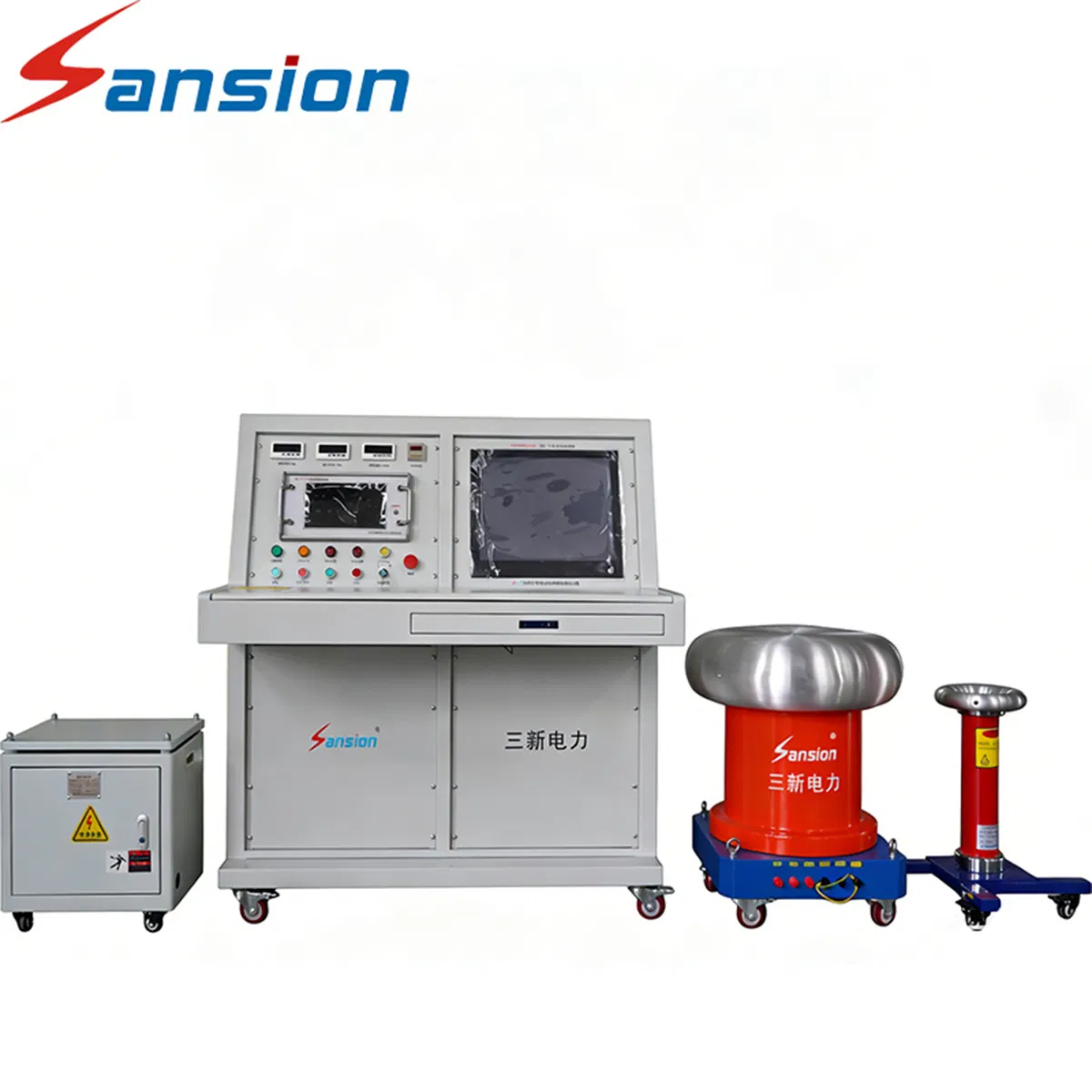

PD-Free Power Frequency AC Hipot Test System

Performance Overview

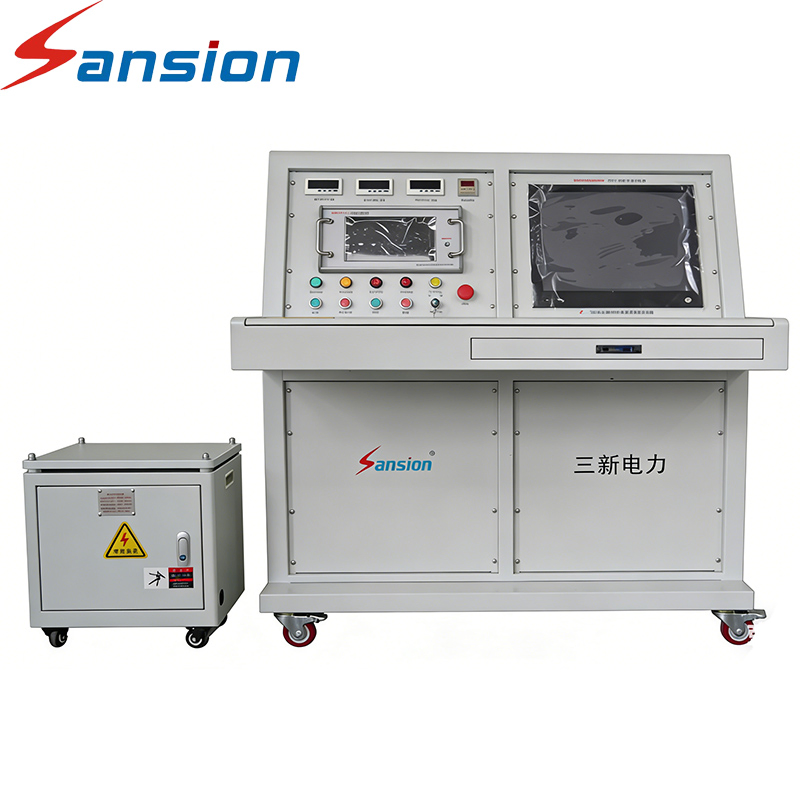

This product is special auxiliary equipment for light testing transformers. The console features convenient use, easy maintenance, excellent performance, and a safe, reliable design. With a durable structure and easy mobility, it is essential equipment for power maintenance departments in power supply enterprises, large factories, metallurgy, power plants, and railways. It adopts advanced micro-processing technology; the entire process can be pre-set, allowing for automated testing without manual intervention.

Key Features

320*240 LCD screen and high-speed thermal printer.
Simultaneous measurement of HV voltage, LV voltage, and LC current with high-precision sensors.
Both Automatic and Manual modes available for flexible operation.
Comprehensive protection: Over-voltage and over-current limits can be manually set.
Zero-starting safety function: Tests only proceed after the voltage returns to zero.
Data storage for up to 8000 sets of data with USB export functionality.
Anti-interference design suitable for complex electromagnetic environments.

📋 Technical Specifications

Parameter Item	Technical Data
Rated Capacity	0-1000KVA
Rated Input Voltage	0.22/0.38/3/6/10KV
Rated Input Current	0-1.25A
Rated Output Voltage	0-800kV
Rated Output Current	0-375A
Measuring Terminal Voltage	100V
Connection Type	II0
Cooling Method	ONAN
Working Duty	100%UN, IN (60min); 70%UN, IN (Continuous)
Frequency	50Hz

🖼️ Professional Showcase

❓ Frequently Asked Questions

What is your business model?

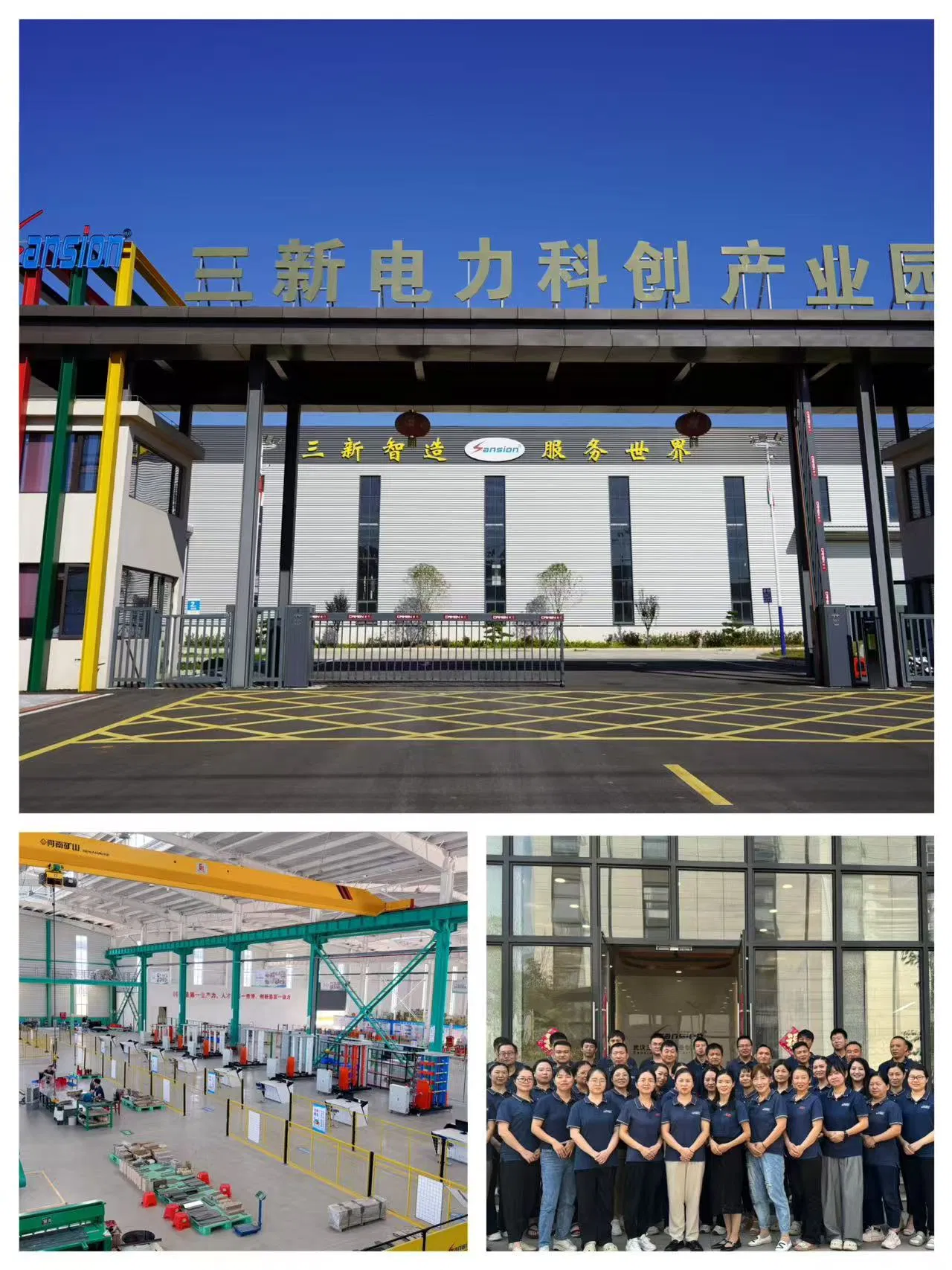

We are a well-established industry and trade enterprise with self-owned production bases. This allows us to control the entire process from R&D and manufacturing to sales and after-service.

Are the products customizable?

Yes, products can be made to order according to the special requirements of customers using the latest technology.

What is the standard delivery time?

The delivery time is usually within 10 working days after the order is confirmed, provided there are no unforeseen circumstances.

How do you ensure product quality?

To ensure high quality, we use a large quantity of imported components. Every product undergoes three rounds of quality inspection before being packed in non-fumigation wooden boxes for export.

What are your after-sales service terms?

We offer a one-year warranty and free consulting services. We provide support via email, video calls, and on-site technical assistance to solve issues promptly.

Do you provide technical training?

Yes, we provide both online and offline technical training tailored to customer needs, covering equipment operation and daily maintenance.
