| Model NO. | LSJ-D04 |
| Certification | CE, ISO |
| Alarm Form | Sound and Light Alarm |
| Accuracy | ±0.1mm |
| Alarm Threshold | 0.1° - 10° |
| Power Supply | Built-in Lithium Battery, 3.7V |
| Alarm Volume | ≥120db |
| Measurement Range | 360° |

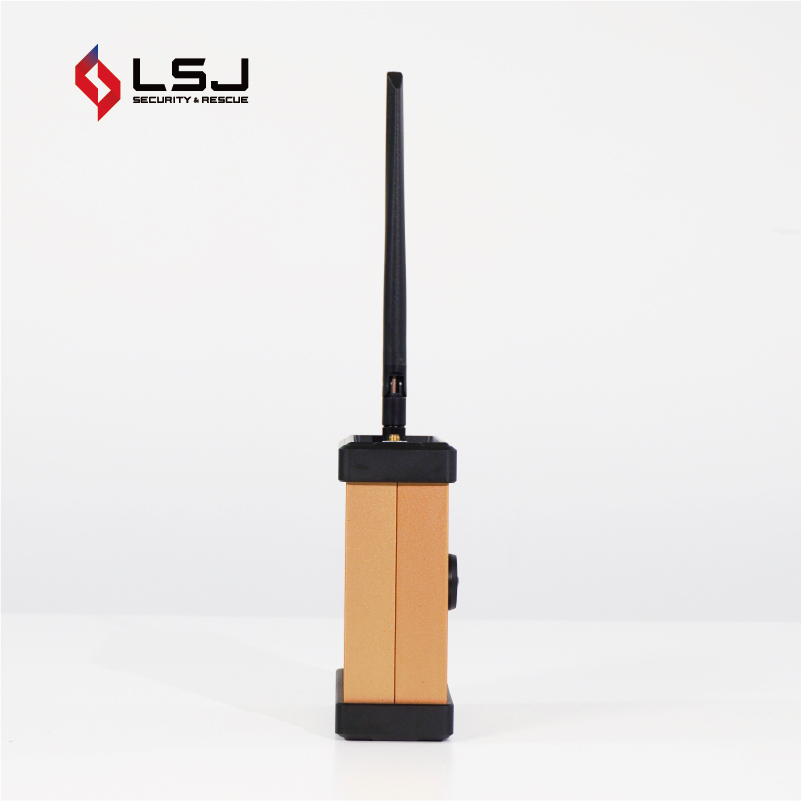

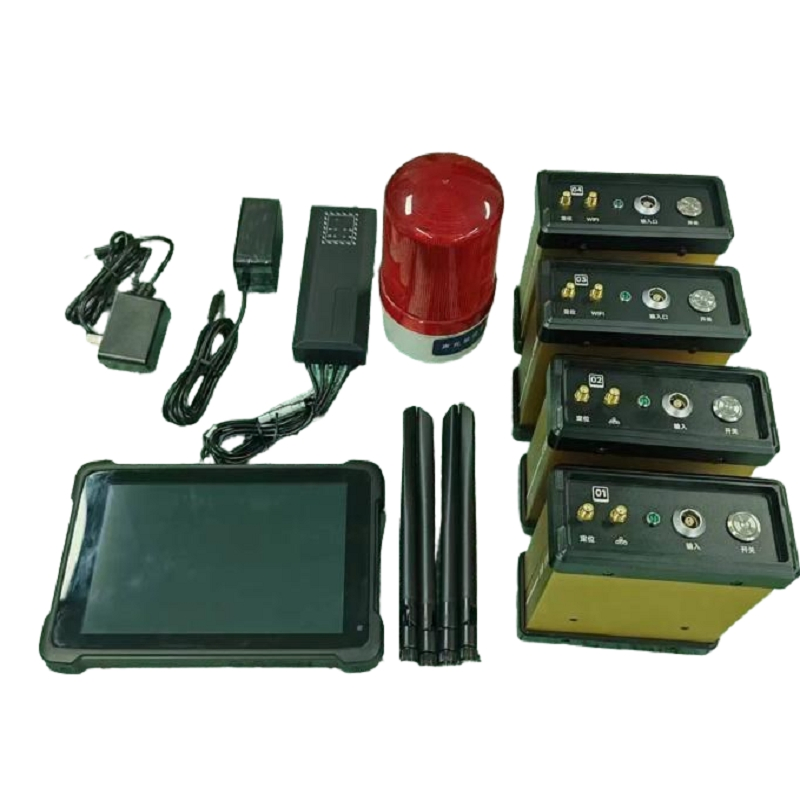

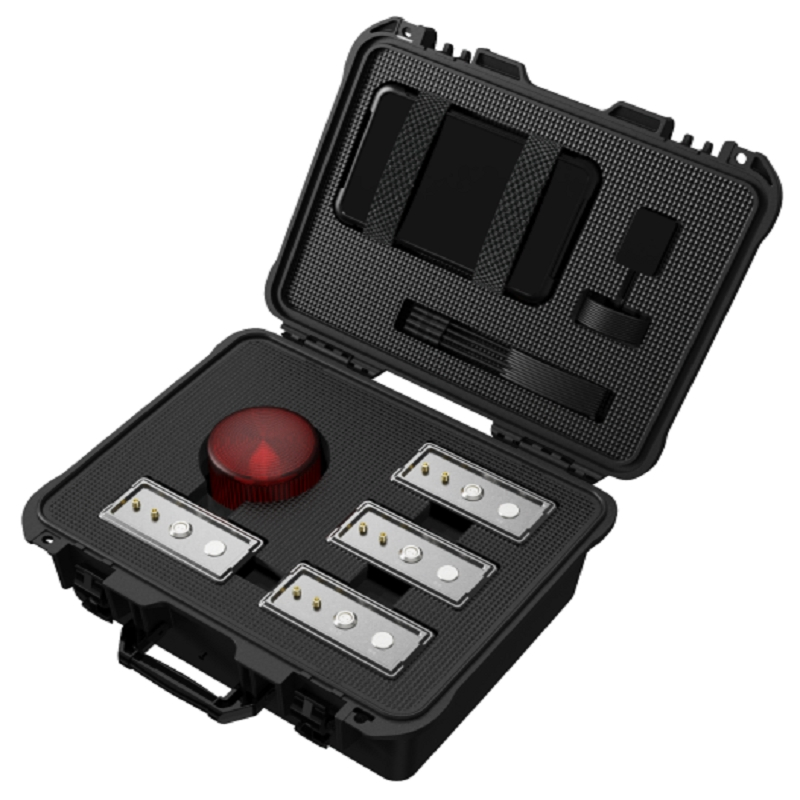

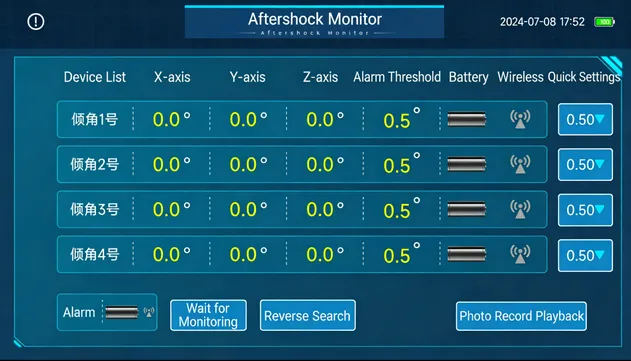

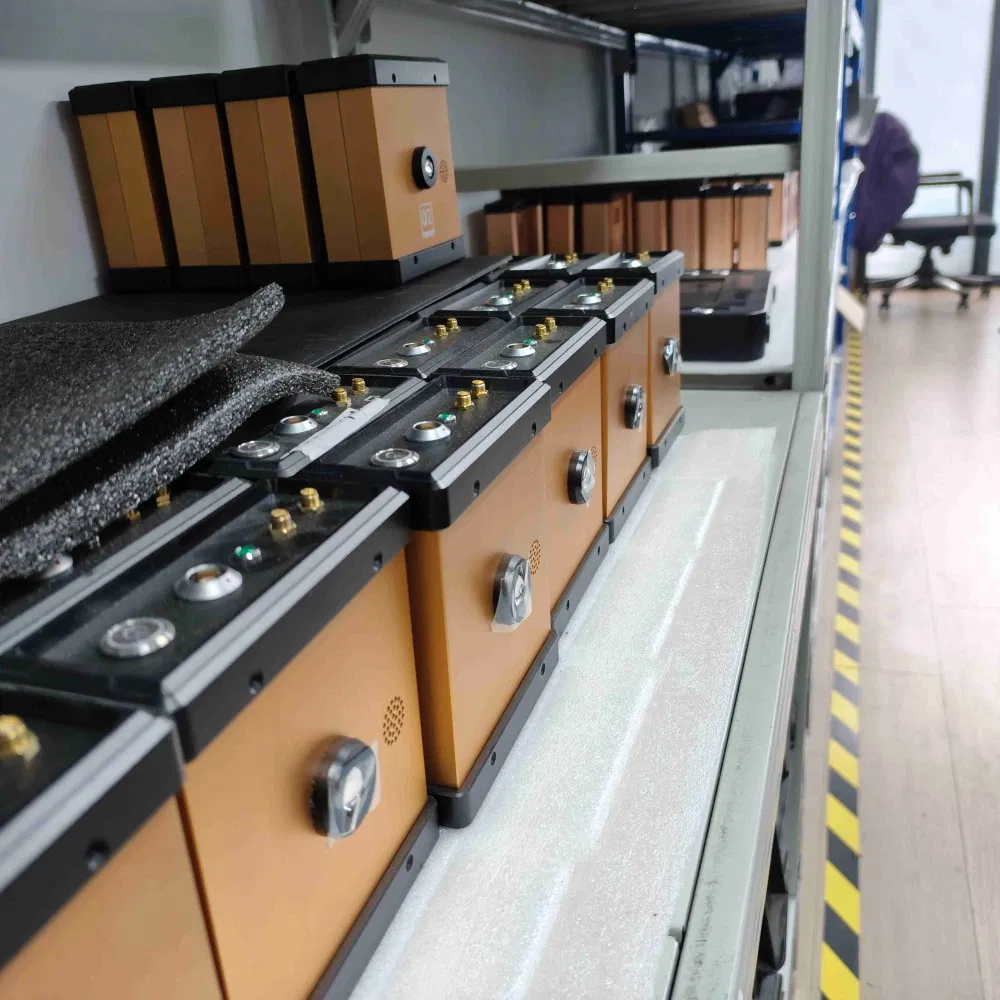

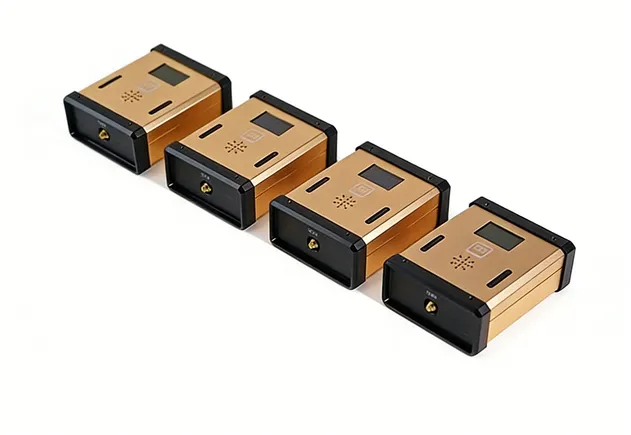

The system consists of inclination monitors, a display and control terminal, and an audible and visual alarm. It is designed to continuously monitor the structural stability of buildings, supporting wireless remote operation and providing immediate audio-visual alerts.
It is highly suitable for emergency rescue sites, including earthquake zones, fire scenes, building collapses, and landslide areas, where real-time monitoring of structural integrity is critical for safety.

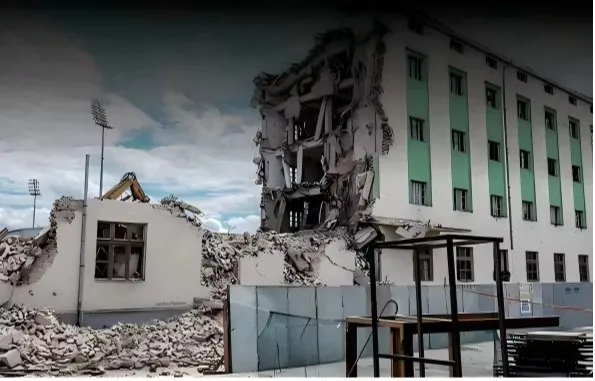

Earthquake Rescue: Before rescue teams enter a site, inclination monitors are deployed around compromised structures. These devices provide real-time monitoring of key structural shifts. If any displacement is detected, high-decibel alarms trigger an immediate evacuation to protect rescue personnel.
| Resolution | 0.01° |
| Angle Range | 360° in three directions |
| Display Screen | 1.8 inches (Monitor) / 8 inches (Terminal) |
| Operating Temp | -20°C to 60°C |
| Operating Time | ≥10 Hours |
| Protection Level | IP65 |
| Terminal System | Android 12 |
We provide comprehensive technical support to ensure equipment readiness. Our services include professional on-site training for setup and rescue applications, joint drill support with local teams, and 24/7 online technical assistance. Regular maintenance and technical updates are provided to keep systems in optimal condition.
