Product Description

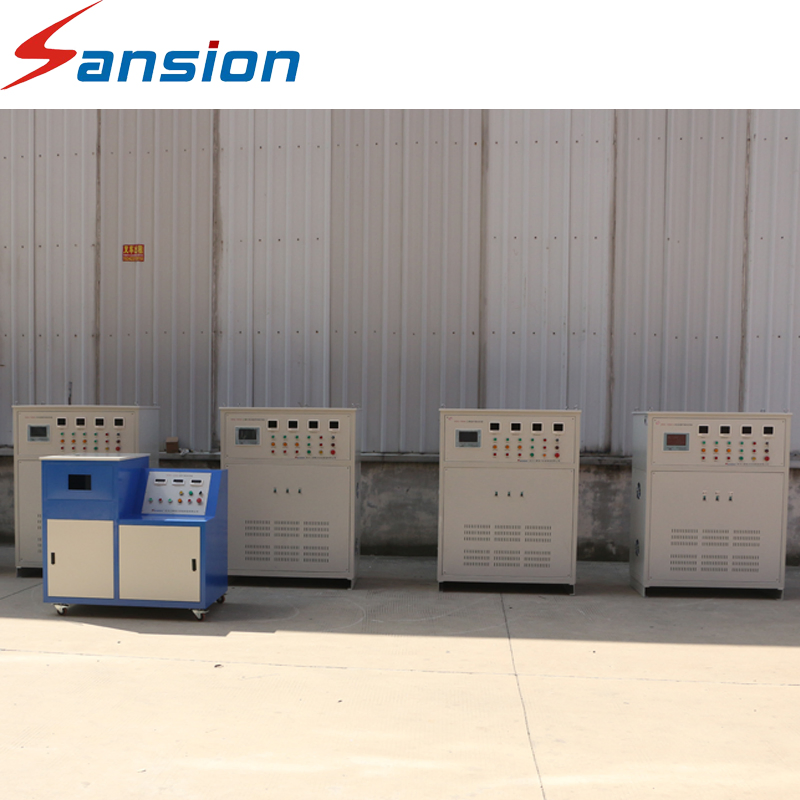

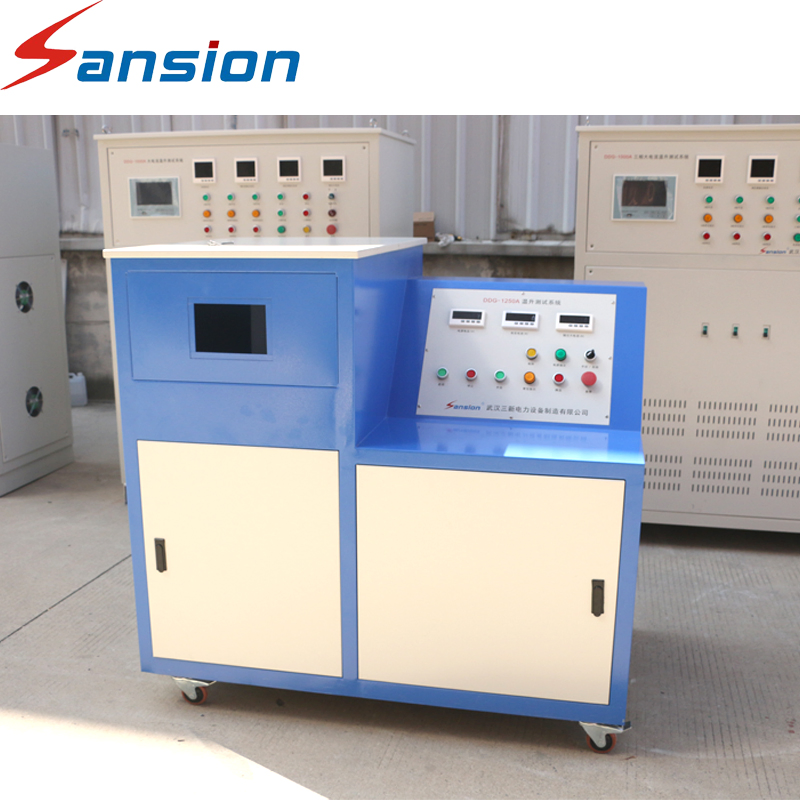

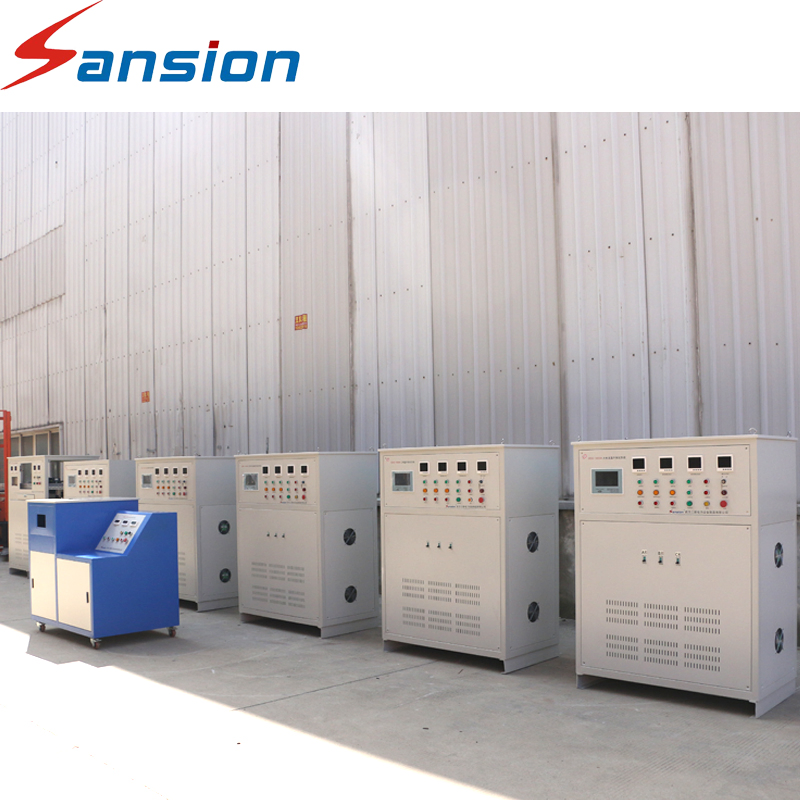

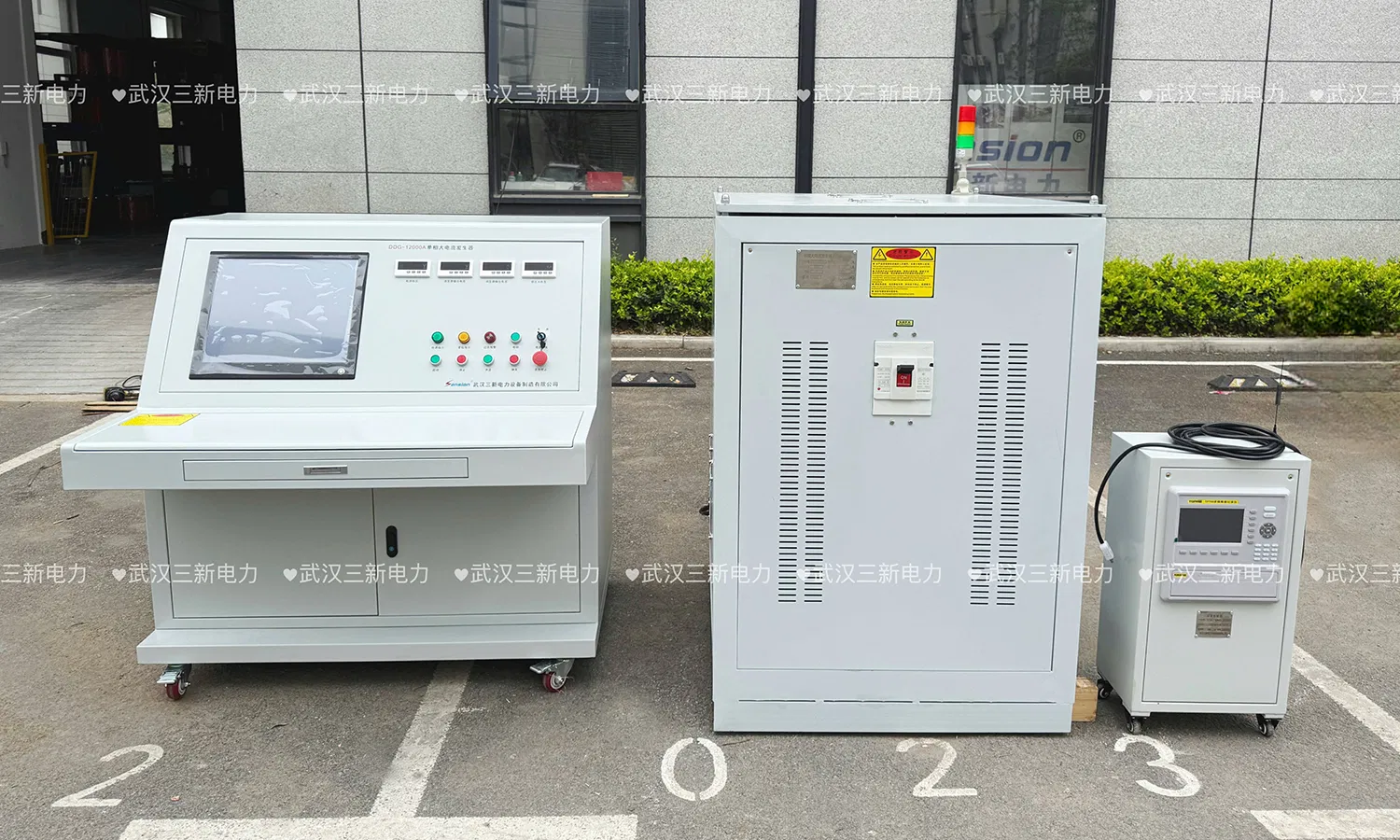

10 kA Heat-Run Primary Injection Test System

General Information

The Primary Current Injection Test Set is suitable for current load tests and temperature rise tests on various circuit breakers, switch gears, CT/PT, and other electrical equipment. This system is widely used in power distribution and industrial mining enterprises for reliable equipment verification.

Key Features

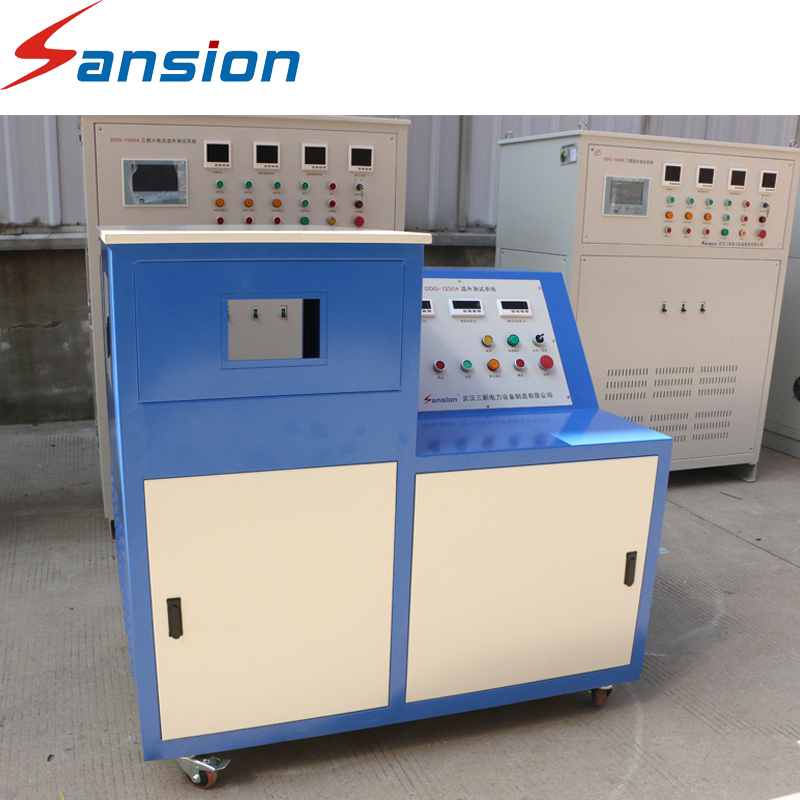

Intuitive Reading: Adopts a digital meter head displaying current, voltage, and temperature factors directly for convenient observation.
Accurate Measurement: High measurement precision ensuring reliable test results.
Advanced Protection: Fully digitized processing for overcurrent protection and timing, enhancing operational safety.
Operating Modes: Supports both manual and automatic operation.
Intelligence: Automatically generates test curves and standard reports.
Current Recovery Tracking: Automatically compensates for circuit impedance changes during heating to maintain set current levels.
Automatic Temperature Rise Test: Software-driven testing without requiring continuous personnel monitoring.
Temperature Inspection: Supports up to 64 temperature inspection channels to generate real-time temperature rise curves.
Switch Protection: Measures action current and time for switchgears and thermal relays via contact or current on/off discrimination.

Technical Specifications

Input: AC two-phase 380V 50Hz
Output: Single-phase 0-20kA AC high current (continuously adjustable, accuracy > 0.2 level)
Waveform: Standard sine wave with ripple factor < 0.3% and THD < 1%
Output Voltage: 10V / 15V / 20V options
Current Stability: 0.2%
Protection: Overcurrent, overvoltage, and overheating protection
Time Measurement: Range 0.01s - 99999.99s, Accuracy 0.001s
Temperature Probe: 12/24/48/64 channels, Range 10-800 ℃

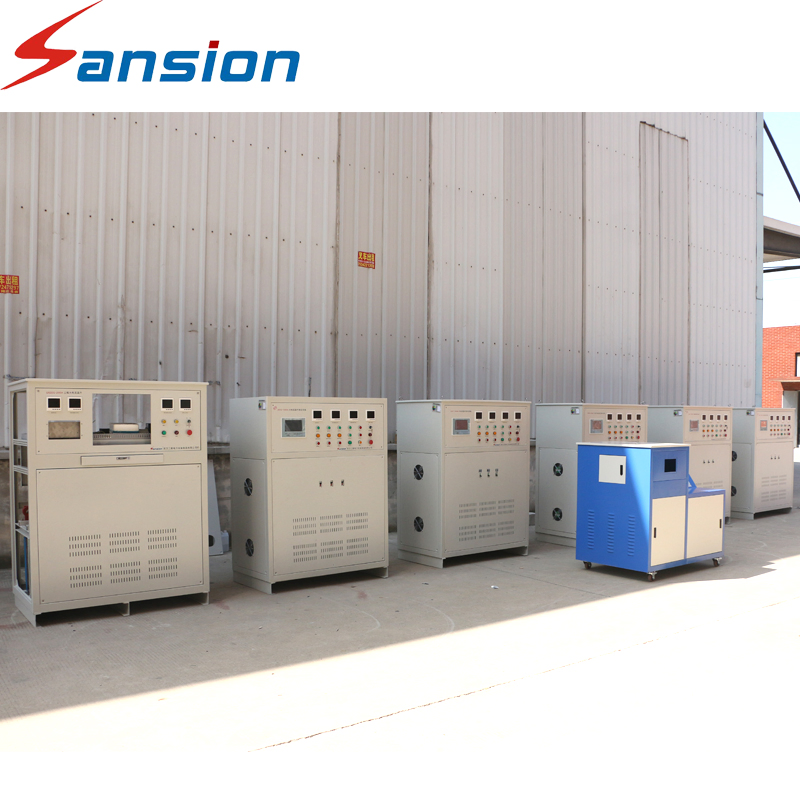

Model	Rated Capacity (KVA)		Rated Input		Rated Output
Model	Regulator	Injector	Current (A)	Voltage (V)	Current (KA)	Voltage (V)
DDG-3/500	3	3	13.6	220	0.5	6
DDG-9/1500A	9	9	40.00	220	1.5	6
DDG-18/3000	18	18	45.00	400	3	6
DDG-24/4000	24	24	60.00	400	4	6
DDG-30/5000	30	30	75.00	400	5	6
DDG-90/15000	90	90	225.00	400	15	6

Customization is available according to detailed technical requirements.
