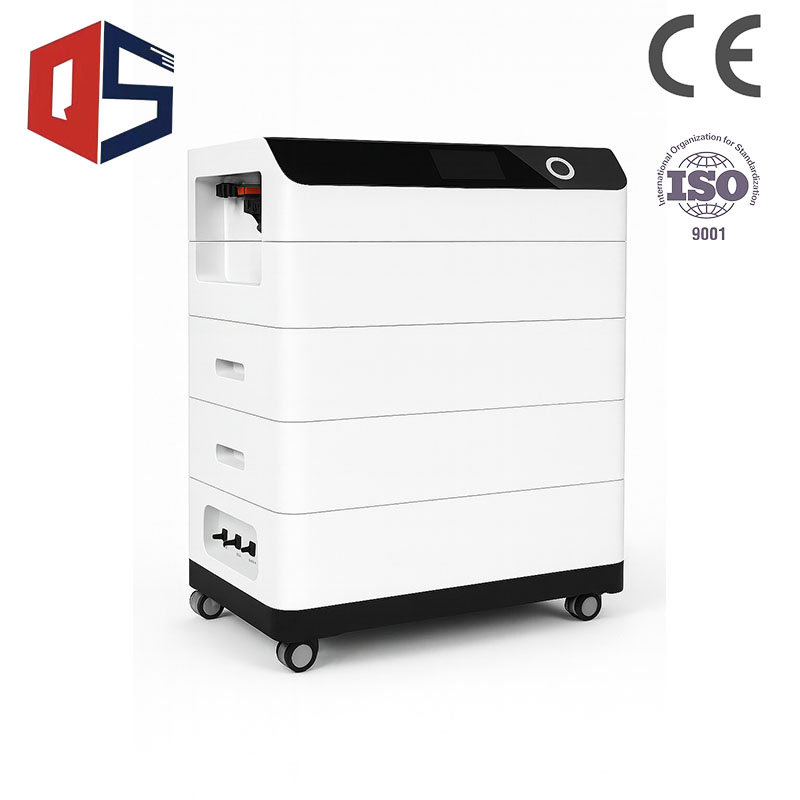

Modular Battery Energy Storage System Platform

Technical Overview

Model

QSCNXT

Warranty

5 Years

Battery Type

LFP Preferred for Safety & Durability

Cycle Life

≥3000 Times

Operating Mode

Grid-Tied/off-Grid Dual-Mode

Protection Class

IP65 or Above

Efficiency

≥96% Discharge Efficiency

Response Time

Millisecond Level

Production Capacity

500 PCS/Year

Product Description

ONE STOP ENERGY SOLUTION

This integrated commercial wind-PV-storage power system combines four core modules: PV/wind power generation, energy storage, intelligent power distribution, and auxiliary safety. Featuring built-in inverters for seamless power conversion, it is ideal for factories, industrial parks, and data centers. Certified to IEC 62619 standards, it ensures stable and reliable whole-process operation.

System Specifications

Products	Description
Solar Panel	Module Power: 415W-730W
Solar Battery	BMS management system

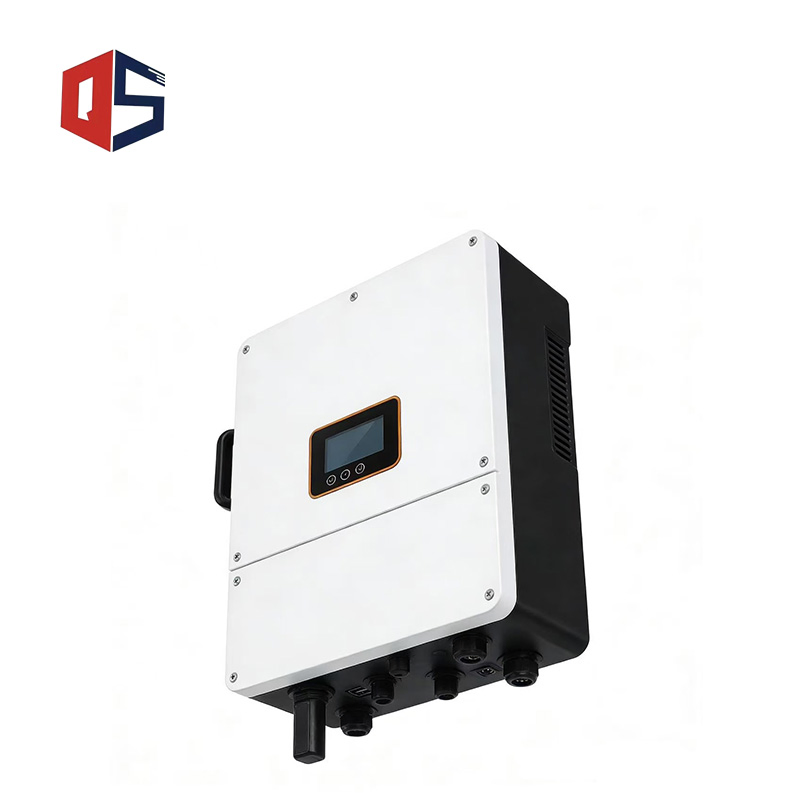

Solar Inverter	Solar: 6KW-80KW
Mounting System	Customized as per your needs
Design Drawings	Layout, Carport Mounting, Electrical Wiring Design
Cables	Full Set, Solar cable 4mm2, 6mm2 and PV connector
Service	Professional PV Engineer, After-sales Service

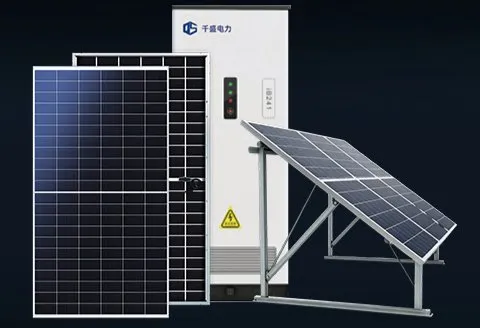

Core Components

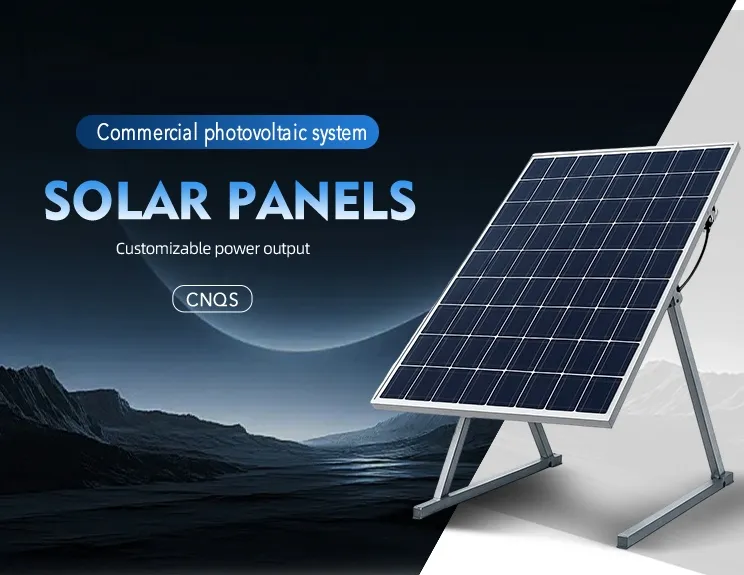

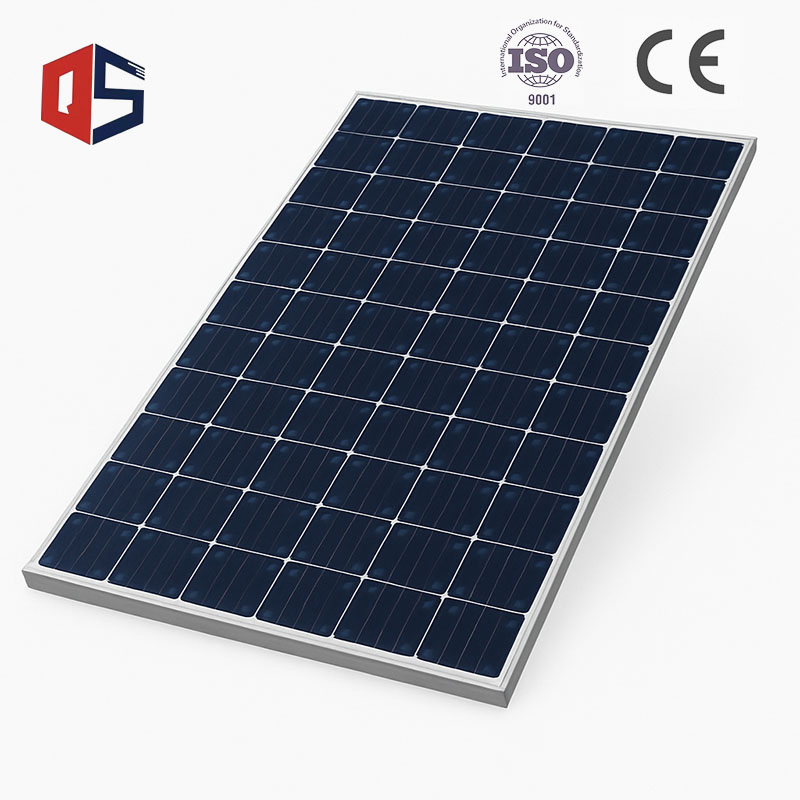

Solar Panels

• Monocrystalline silicon cells, conversion efficiency 23.8%+.

• 3.2mm tempered glass + aluminum alloy frame, IP68 protection.

• Annual attenuation only 0.45% over 25-year lifespan.

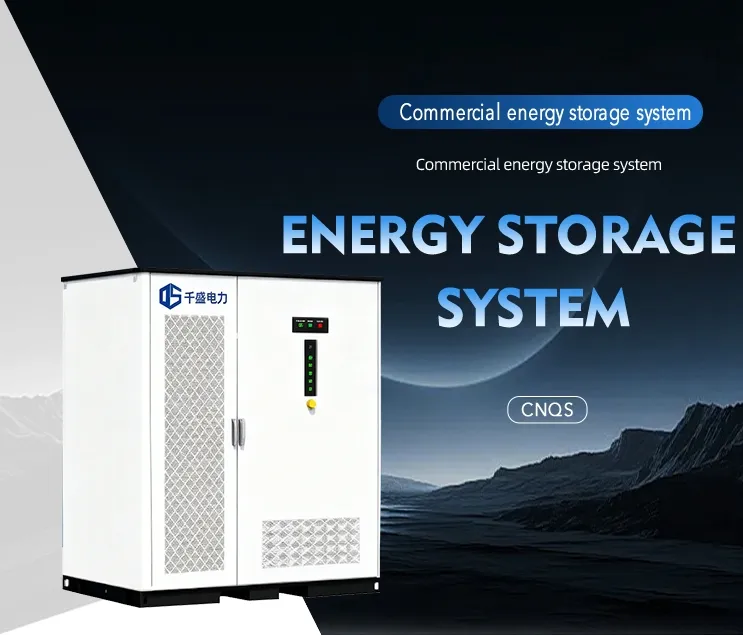

Energy Storage System

• High-rate lithium battery cells, charge-discharge efficiency 95%+.

• IP65 protection rating for outdoor multi-scenario installation.

• Intelligent BMS management with overcharge & over-discharge protection.

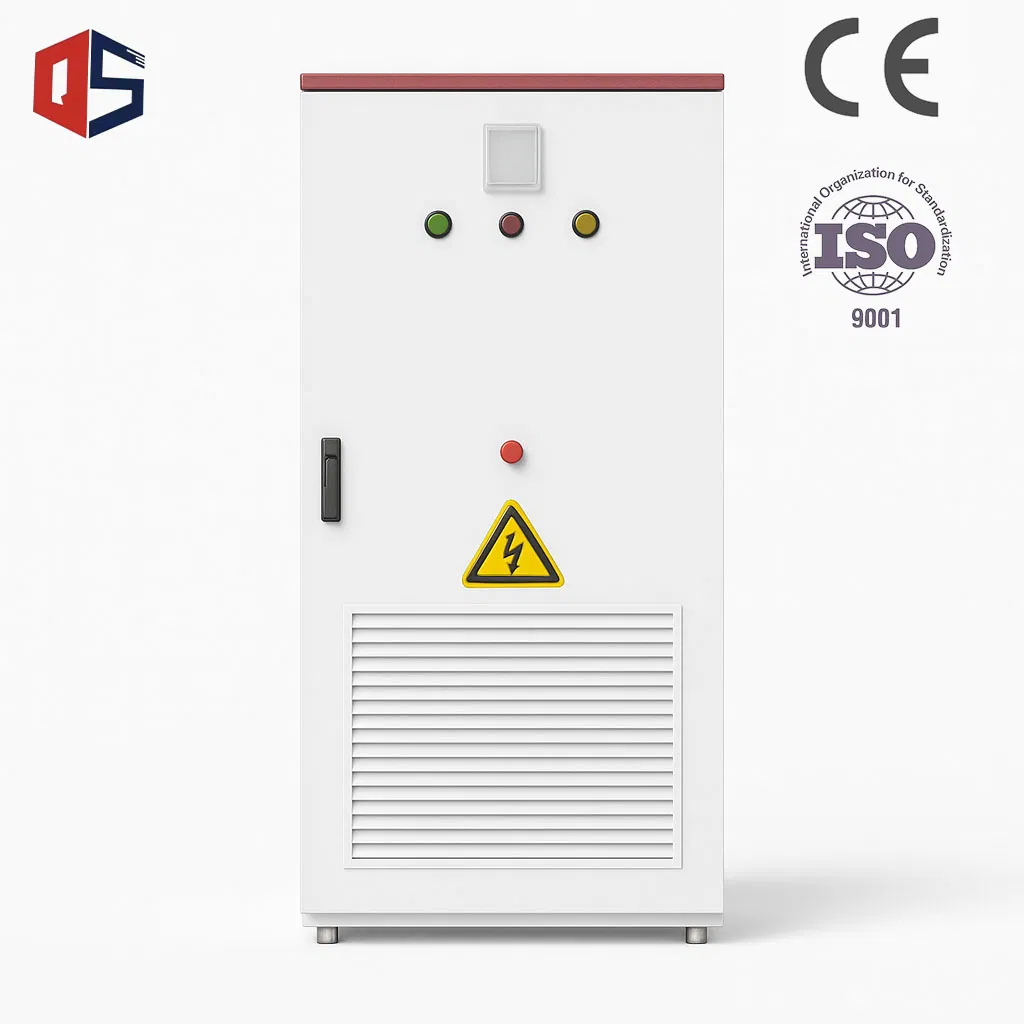

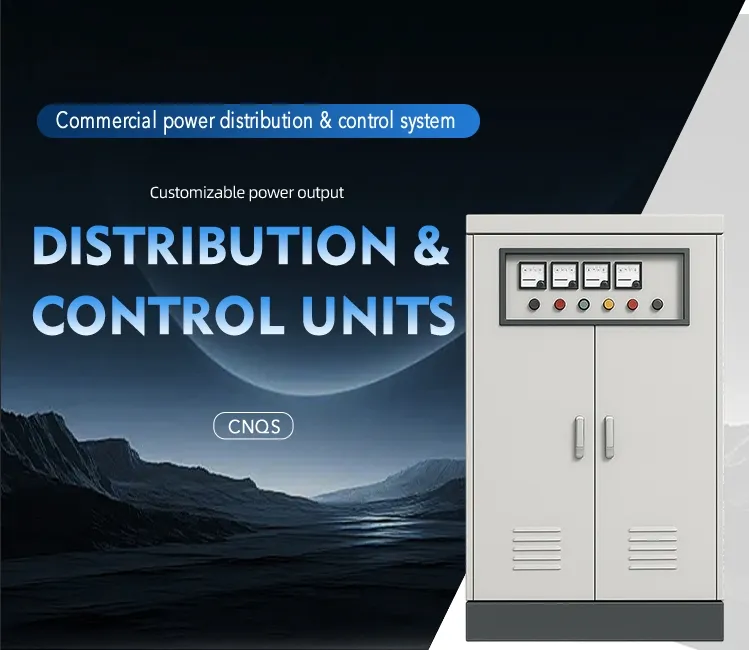

Distribution & Control Units

• Cold-rolled steel plate material, IP54+ protection.

• Intelligent shunt design with overload & short-circuit protection.

• Compliant with IEC/CE international standards, 15+ years service life.

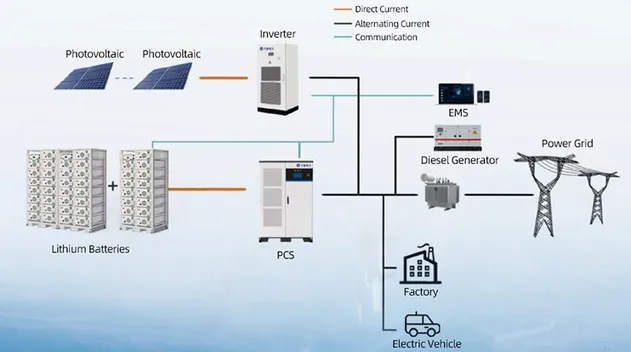

System Details & Installation

Our Commercial & Industrial (C&I) Energy Storage System adapts perfectly to diverse energy scenarios—whether for stable power supply, emergency backup, or cost reduction via TOU tariff arbitrage. It covers the full cycle of PV harvesting, intelligent storage, and distribution.

Packaging & Delivery

Package Size

280cm * 185cm * 205cm

Gross Weight

15,000.00 kg

Package Type

Professional Wooden Box Export Grade

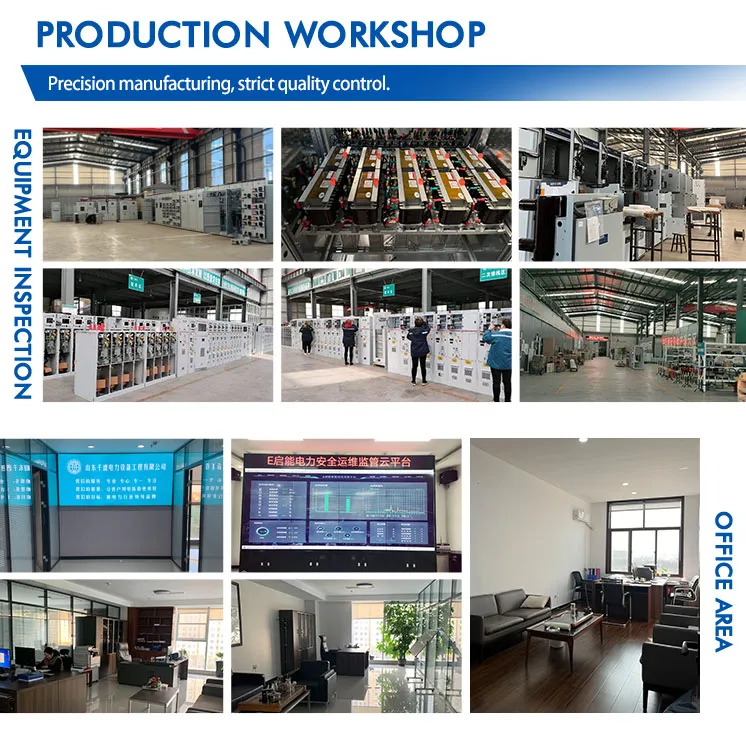

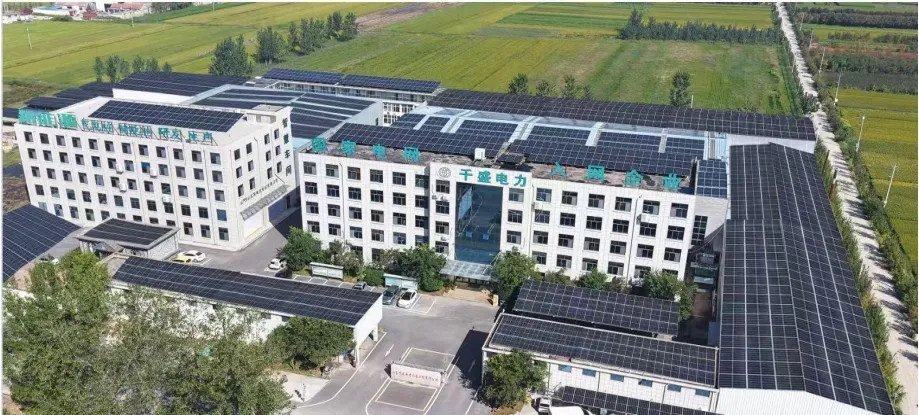

Manufacturing Facility

• Facility covers over 16,000 stere with nearly 100 dedicated staff members.

• Certifications: ISO9001:2000, Environmental Management System, CCC, and CQC.

• Holds Class II General Contracting Qualification for Electric Power Construction.

Tenet: Safe Production, Quality First.

Frequently Asked Questions

1. What working modes does the energy storage system support? It supports three working modes: off-grid, grid-connected, and hybrid power supply. It seamlessly connects to photovoltaic inverters to realize self-consumption, surplus power storage, and grid power supply.

2. What is the expected cycle life of the battery? The system uses LFP cells with a cycle life of ≥6000 times (remaining capacity ≥80%). We provide a 5-year warranty for the battery pack and a 2-year warranty for the entire system.

3. What safety protections are included in the BMS? The BMS includes protection against overcharge, over-discharge, over-temperature, over-current, short-circuits, and cell balancing functions to ensure stable and safe operation.

4. What are the installation requirements for the system? A flat, ventilated indoor or outdoor site is required. We provide complete installation drawings and manuals, supporting both remote commissioning and professional guidance.

5. What is the energy efficiency of the system? The comprehensive charge-discharge efficiency is ≥95%, which represents a leading energy efficiency level in the industry.

6. How is the system maintained for long-term use? Regularly check battery temperatures, clean heat dissipation vents, and avoid exposure to extreme sunlight or pressure. The system is designed for a service life of up to 15+ years.
