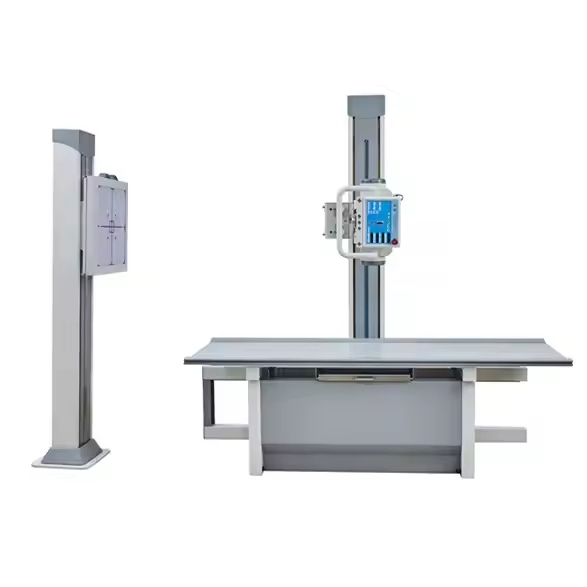

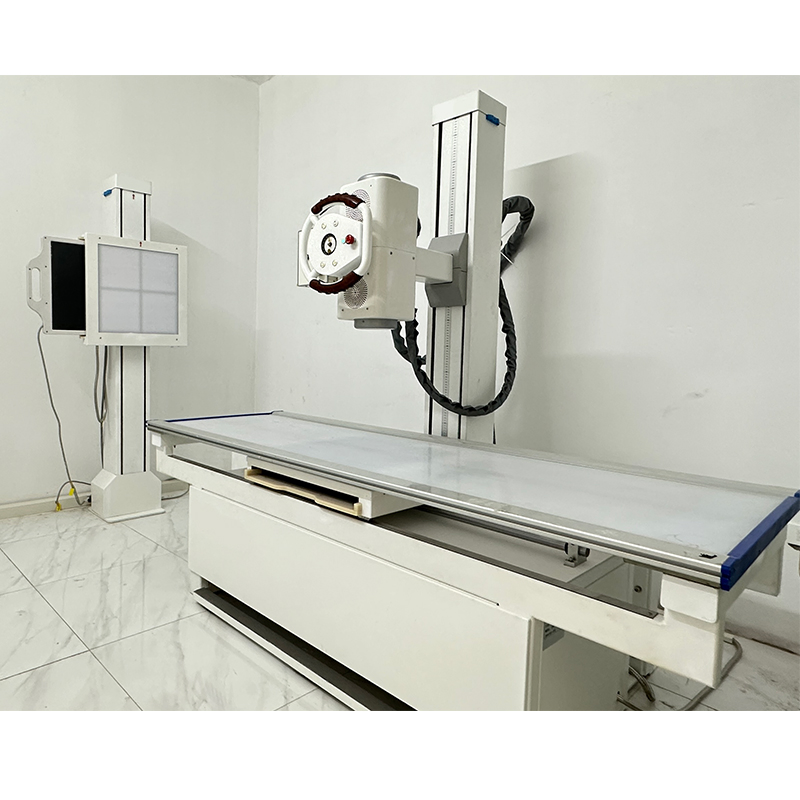

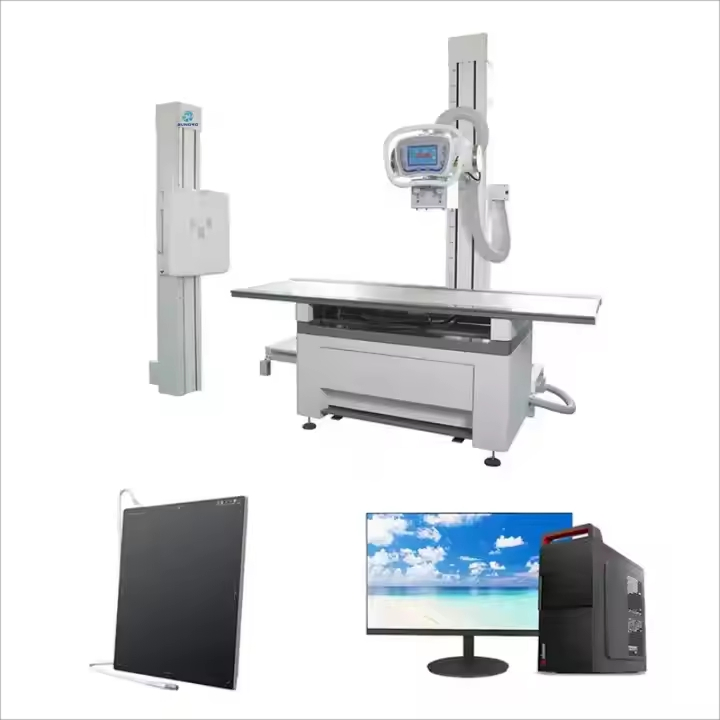

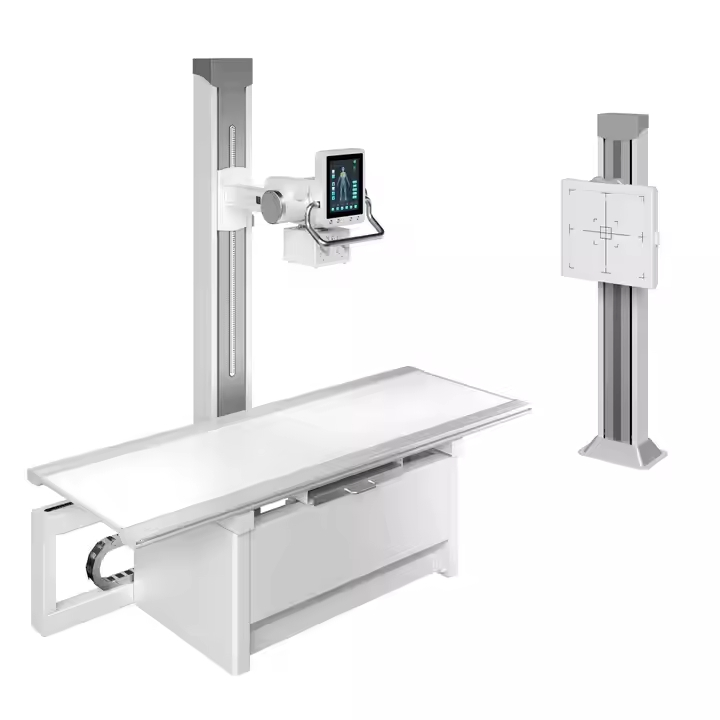

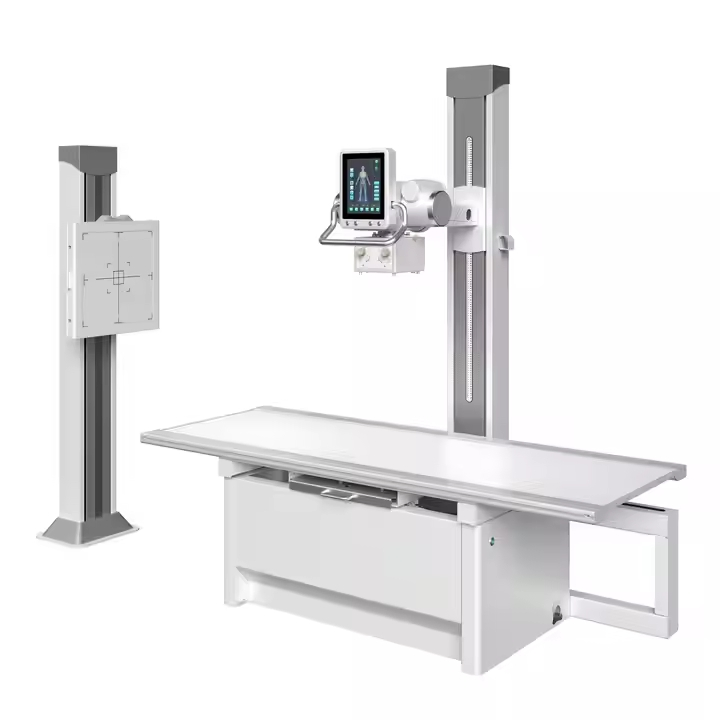

High-Quality Digital X-ray Inspection Equipment for Hospital Clinical Diagnosis

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Information

Model NO.
X-ray equipment
Certification
CE
Application
Radiography Department
Power Source
Electric
Shelf Life
1 year
Tube Voltage
40-125kv
Detector Size
17"*17"
Monitor Type
19-Inch Grayscale Professional Monitor
Transport Package
Wooden Package
Origin
China
Digital X-ray Machine
🔍

Product Description

With high-level design concept, professional manufacturing process and strict inspection process, our equipment reaches excellent quality. While fully meeting your clinical examination needs, it makes clinical work easier and more enjoyable. The 50KW high frequency high voltage generator and high heat capacity x-ray tube provide powerful guarantee for high quality X-ray output. Adhering to the principle of putting images first, ensuring clear images. This machine has rich functions: it can perform high KV photography; remote control physical examination in the compartment; remote maintenance and parameter calibration; powerful image post-processing function.

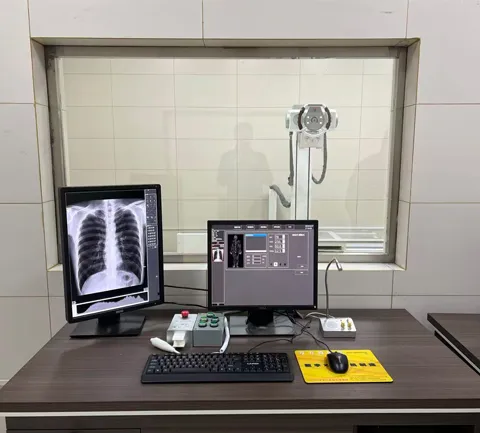

Product Detail 1 Product Detail 2
⚙️

Technical Specification

Part Model Technical Parameters and Performance
High Voltage Generator DTXR-50 Power:32kw/45kw; Tube Current:10-500mA; Tube Voltage:40~150KVP; Remote control support.
X-ray tube E7242X Dual-focus 0.6mm/1.5mm, power 20/46KW, maximum current 500mA, maximum voltage > 125KVP.
Flat Panel Detector CareView1800L Amorphous silicon panel 17*17. Pixel matrix >2816X2816; Imaging area: 430x430mm.
Flat bed SYC-2 Detector longitudinal motion: 1000mm; Lateral movement: 180 mm; Manual electromagnetic lock.
Tube stand ZJ-1 Up/down movement: ≥900mm; Longitudinal movement: ≥1800mm.
Image Station Picke-DR DICOM 3.0 standard, image enhancement, sharpening, transmission and printing.

Product Performance

Generator

High Frequency High Voltage Generator

  • Power 50kw, to meet photography and fluoroscopic examination needs.
  • Tube current: 10mA~500mA.
  • Phototube voltage: 40kv~125kv.
  • Code fault prompts for quick diagnosis.

Flat Panel Detector & Imaging

Equipped with advanced amorphous silicon panel technology for high brightness and clear digital imaging. Designed for durability and precision clinical results.

Detector
X-ray tube

High-Capacity X-ray Tube

Imported quality tube ensuring stable radiation output, energy saving, and long service life for heavy-duty hospital environments.

🖼️

Product Display

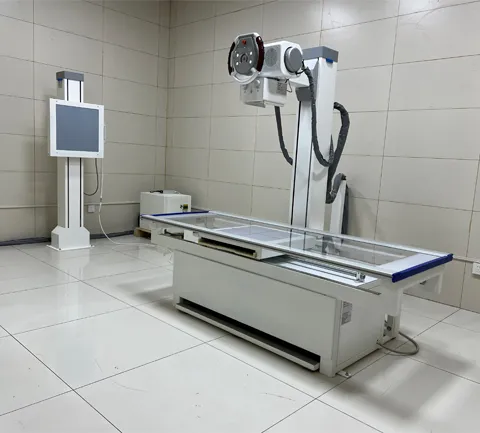

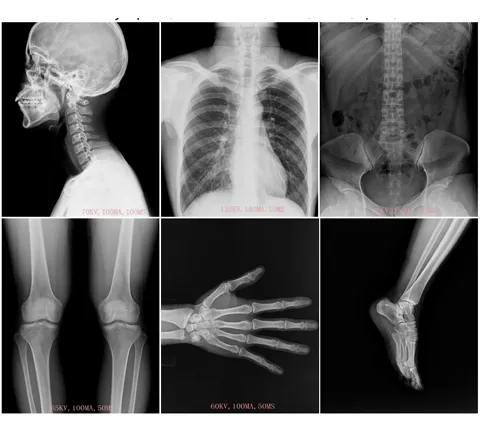

Display 1 Display 2 Display 3

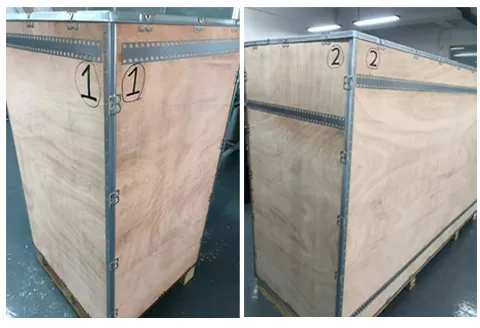

Display 4 Display 5
🏢

About Our Manufacturer

We are a high-tech enterprise focusing on the research, development, production and sales of medical equipment and protective products. Our company has strong technology and R&D capabilities, holding ISO9001 and ISO14001 international certifications. We provide the best products, services, and reputation, having made brilliant achievements in medical fields. We have completed many large-scale and complex production supporting services and exported to 46 international countries and regions including North America, Europe, and Southeast Asia.
Factory Overview
Production Facility

Frequently Asked Questions

1 Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in medical X-ray equipment.
2 How long is the delivery time?
The delivery time is usually around 7-10 days depending on the order size and customization.
3 What are your payment terms?
We accept TT (Telegraphic Transfer), LC (Letter of Credit), and DP (Documents against Payment).
4 What documents do you provide for shipping?
Usually, we provide the Commercial Invoice, Packing List, Bill of Lading, and COA. We can also accommodate special market requirements.
5 Does the equipment come with a warranty?
Yes, the standard shelf life and quality guarantee for our Digital X-ray Machine is 1 year.
6 Is technical support available remotely?
Yes, our system supports DICOM 3.0 and can be directly connected to remote consultation and maintenance systems for fault diagnosis.
