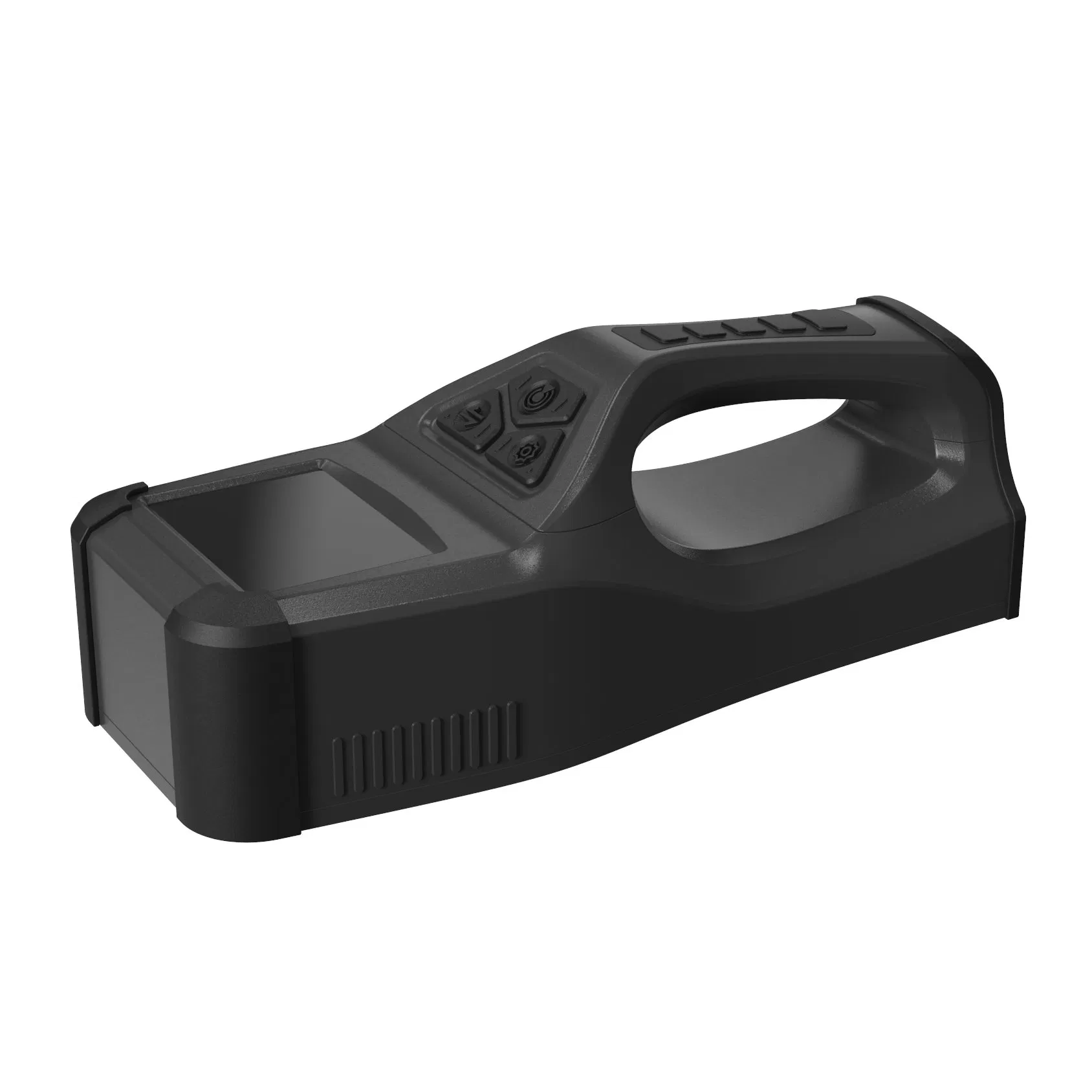

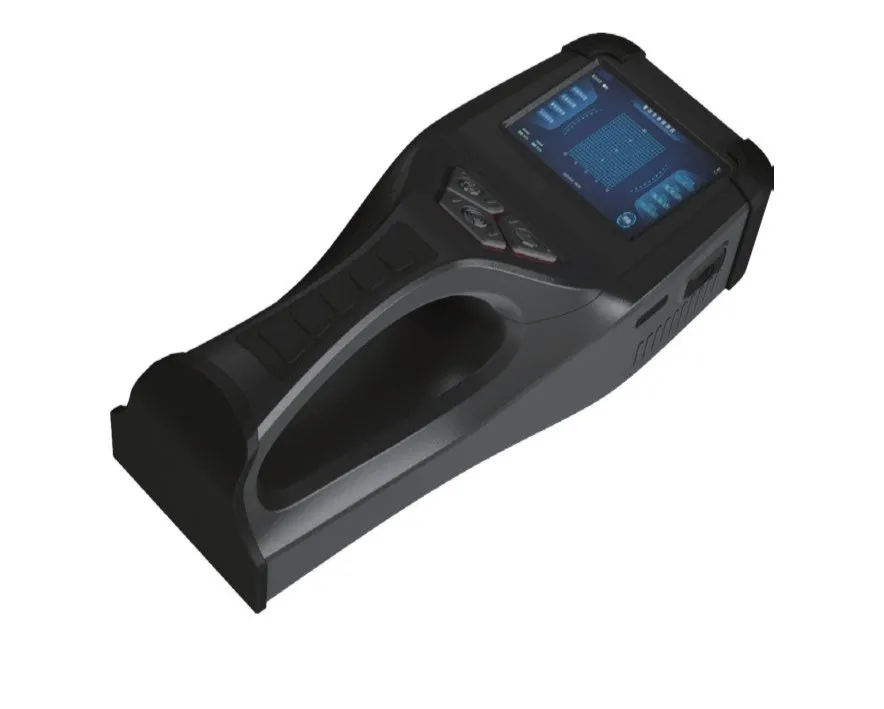

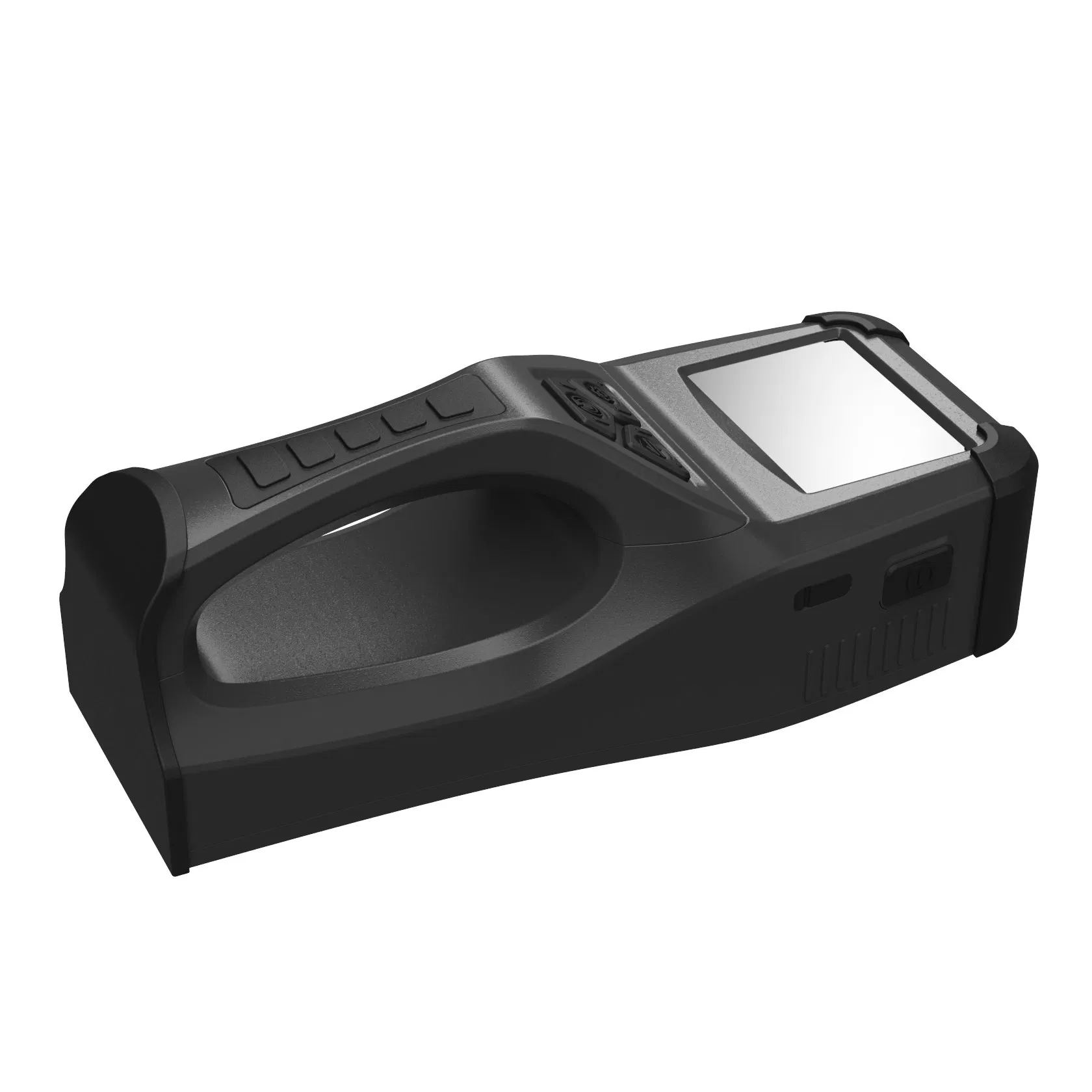

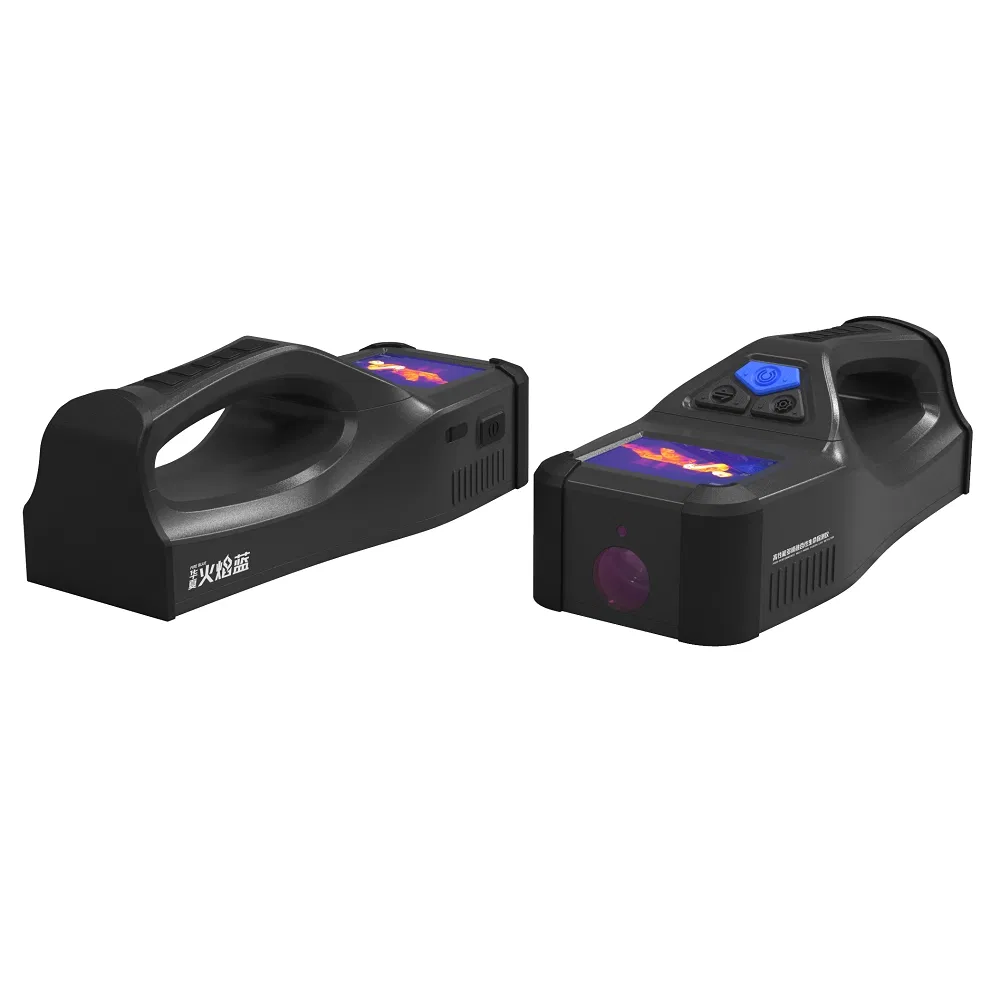

This is an emergency life-search and rescue equipment that uses radar life-detection technology to sense signs of life. It can quickly conduct detection at disaster scenes. The electromagnetic waves emitted by the radar can penetrate materials such as boards, concrete, and rubble, detecting the breathing or slight movements of living beings, searching for the vital signs of buried people, and quickly locking onto search and rescue targets.

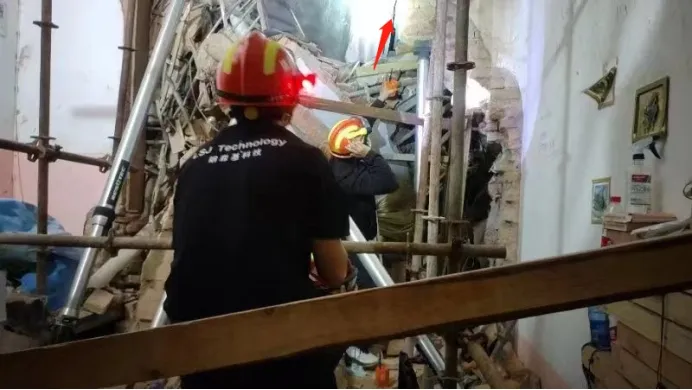

After an earthquake, a large number of buildings collapse. When rescuers arrive at the disaster scene, they first check for trapped lives under ruins. When rescuing the trapped, first place the radar life detector in the area and it can continuously emit electromagnetic wave signals to scan the space.

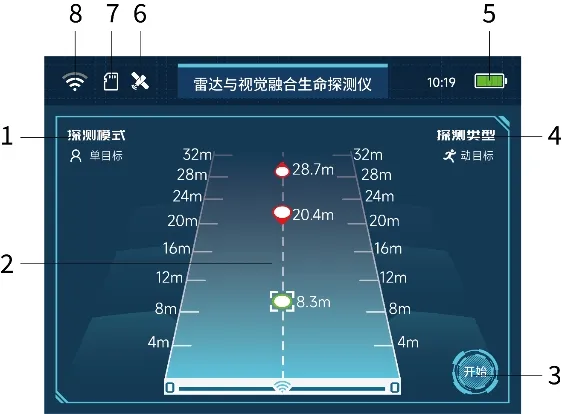

If there is life activity such as human breathing or movement, the positioning coordinates of the trapped person will be displayed on the handheld terminal. It is suitable for searching for trapped people in natural disasters such as earthquakes, mudslides, and landslides, as well as in accidents such as building collapses.
| Horizontal Detection Angle | 90° |
| Target Positioning Error | ≤0.5m |
| Detectable Targets | ≥2 (moving or stationary) |
| Detection Environments | Ruins, air, through-wall, snow, wood (5 modes) |
| Detection Sensitivity | High, medium, low (3 modes) |
| Radar Host Weight | 1.6kg |
| Power Supply | Built-in lithium battery |
| Display Screen | 3.5 inch OLED liquid-crystal display |
| Storage | Standard 64GB memory (expandable) |
| Working Time | ≥5h |
| Temperature Range | -20°C to 60°C (Working) / -40°C to 70°C (Storage) |
We provide comprehensive and reliable after-sales service to ensure the long-term performance of our radar systems. Our offerings include on-site training by professional technical teams, joint training with local rescue squads, and 24/7 online technical assistance.

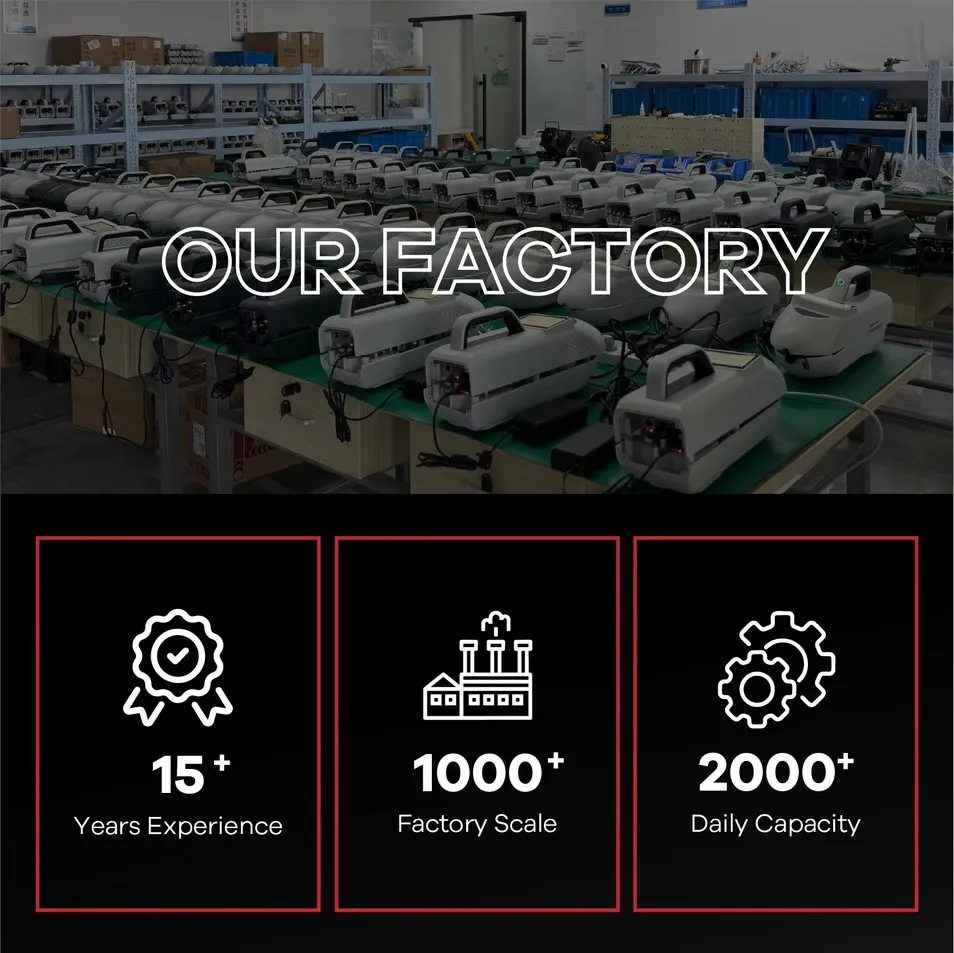

Established in 2010, the manufacturer specializes in advanced detection instruments including Radar Life Detectors, Thermal Imagers, and Seismic Detectors. We focus on technological excellence and customized solutions for global firefighting and emergency rescue needs.
