Medical Equipment Yste-Fia100 Fluorescence Immunoassay Analyzer Immunoassay Analyzer Machine

1 / 5

Medical Equipment Yste-Fia100 Fluorescence Immunoassay Analyzer Immunoassay Analyzer Machine

Customization:	Available
Certification:	CE, ISO13485
Application:	Medical

Send Inquiry

Product Description

Medical Fluorescence Immunoassay Analyzer

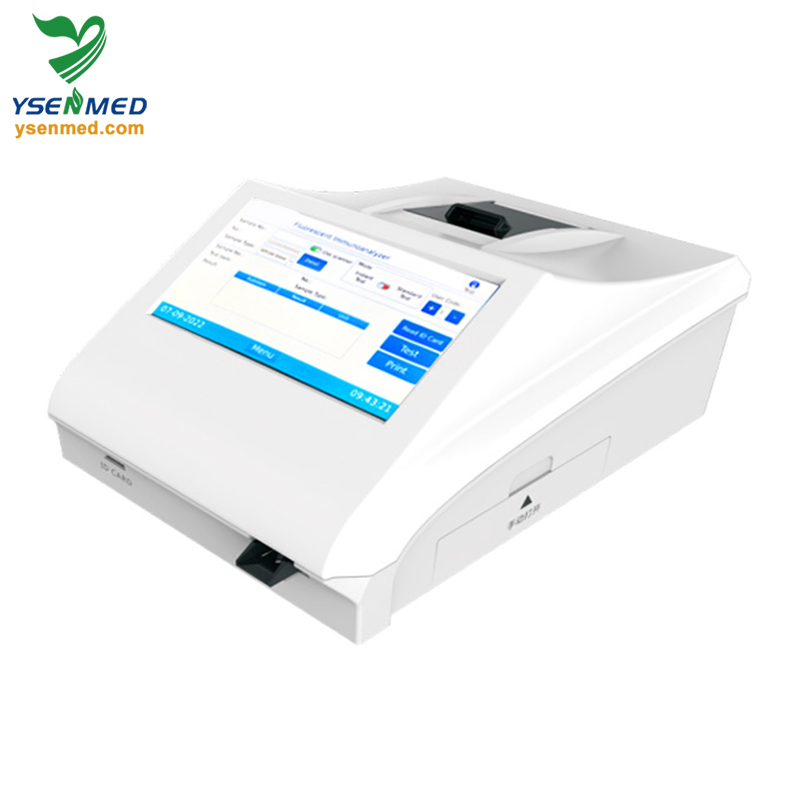

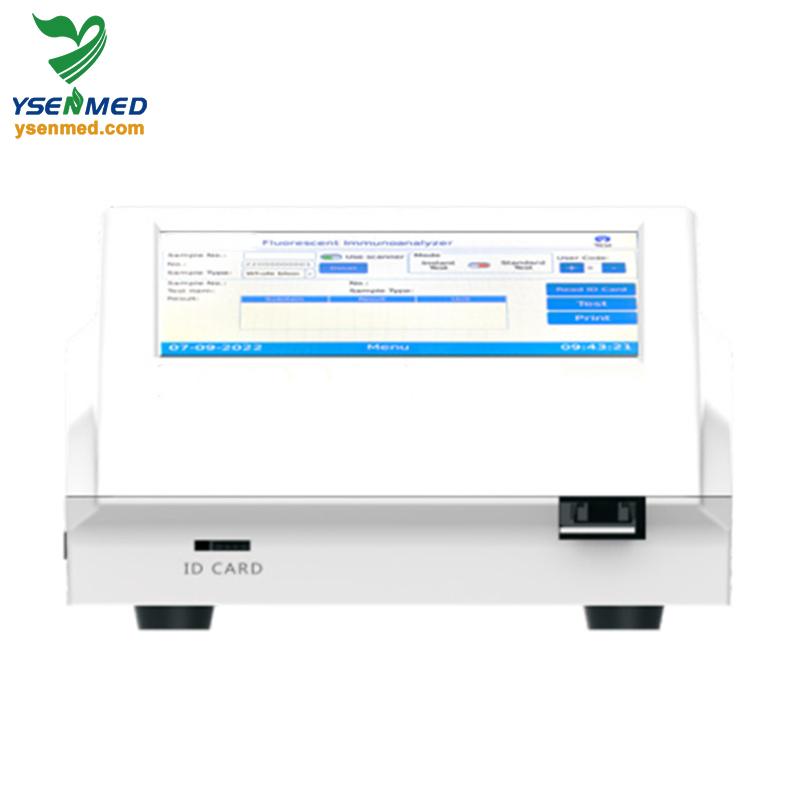

Fluorescence Immunoassay Analyzer Front View

Fluorescence Immunoassay Analyzer Side View

This analyzer adopts a leading flow system design and whole machine topology design, making it highly intensive. As one of the current "mini" fluorescence immunoassay analyzers, it is small in size yet offers excellent performance. It provides an optimal solution for primary clinical needs with many performance indicators leading the industry level.

Basic Specifications

Detection Channel1

Excitation SourceLED

Testing Speed<10s / Test

Display7-Inch Color Touch Screen

Sample TypeSerum, Plasma, Whole Blood, Urine

InterfaceRS232, USB, Ethernet Port

Warranty1 Year

Dimensions455*325*245 mm

Key Features

● Portability: Compact design, easy to carry for various medical environments.
● System Integration: Can be connected to code scanners and LIS/HIS systems.
● Efficiency: Automatic printing of test results; detection time as fast as 8 seconds/test.
● Flexibility: Supports multiple items in one card; allows random sample insertion for instant testing.
● Dual Modes: Provides both instant test and standard test operation modes.

Technical Parameters

Model	YSTE-FIA100
Wavelength	Excitation λ0=365nm, Detection λ1=615nm
Repeatability	CV≤5%
Stability	σ≤±8%
Linear Correlation	(r)≥0.98
Accuracy	Δn≤±8%
Language	Chinese, English (Others customizable)
Printer	Built-in thermal printer
Power Supply	100~240V 50/60Hz
Net Weight	3 kg

Applications

Suitable for clinical diagnosis in disease control medical treatment, health examination centers, scientific research institutions, laboratories, food hygiene safety testing, blood product companies, and central blood stations.

Frequently Asked Questions

Q1: What sample types can this analyzer process? A: The analyzer is compatible with serum, plasma, whole blood, and urine samples.

Q2: How long does a single test take? A: The testing speed is very efficient, typically taking less than 10 seconds per test, with some items reaching 8 seconds.

Q3: Can it be connected to hospital laboratory systems? A: Yes, the device supports connectivity to LIS (Laboratory Information System) and HIS (Hospital Information System) via RS232, USB, or Ethernet.

Q4: Does the device include a printer? A: Yes, it features a built-in thermal printer for automatic result output.

Q5: Is the interface easy to use for international users? A: Absolutely. It features a 7-inch color touch screen and supports English, Chinese, and other customizable languages.

Q6: What is the warranty period for this equipment? A: The product comes with a standard 1-year warranty.
