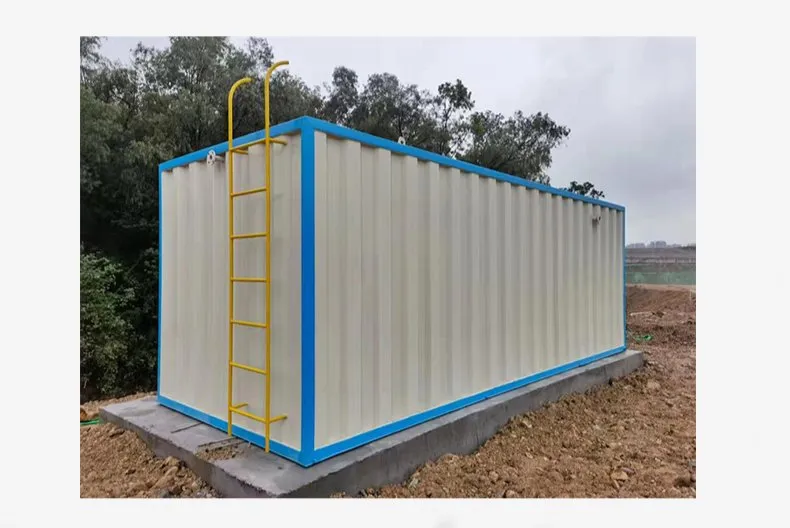

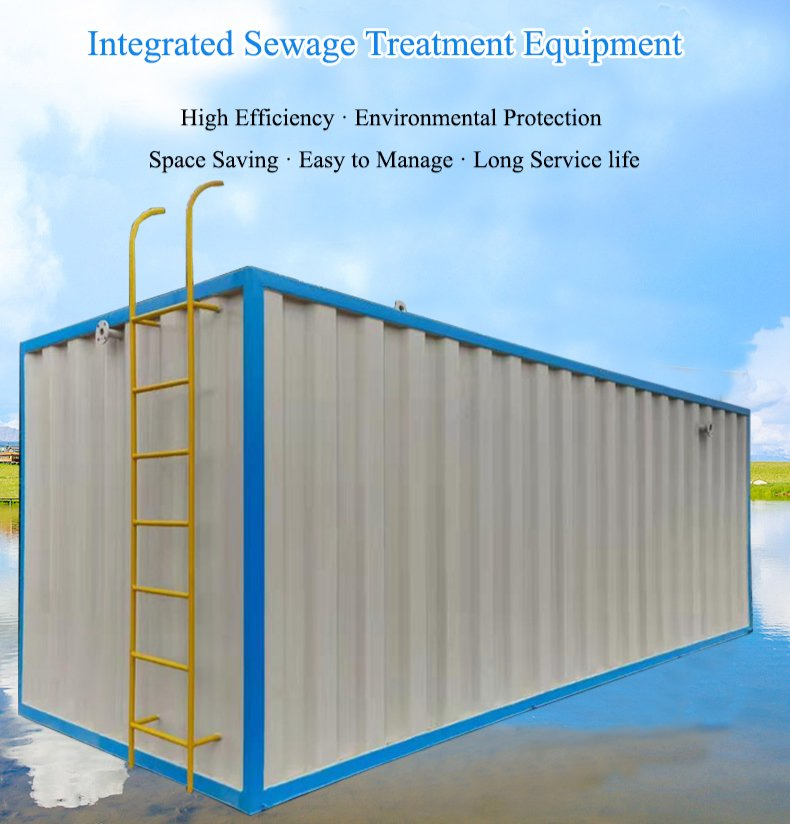

Integrated wastewater treatment equipment is designed for efficient treatment of domestic sewage and organic industrial wastewater. The system combines biological treatment, sedimentation, filtration, and disinfection into one compact structure, making it suitable for decentralized and space-limited projects.
The equipment can be customized with different treatment technologies such as AO, AAO, MBBR, and MBR according to wastewater characteristics and discharge standards. It is widely used in hotels, hospitals, residential communities, camps, schools, rural areas, and small industrial facilities.

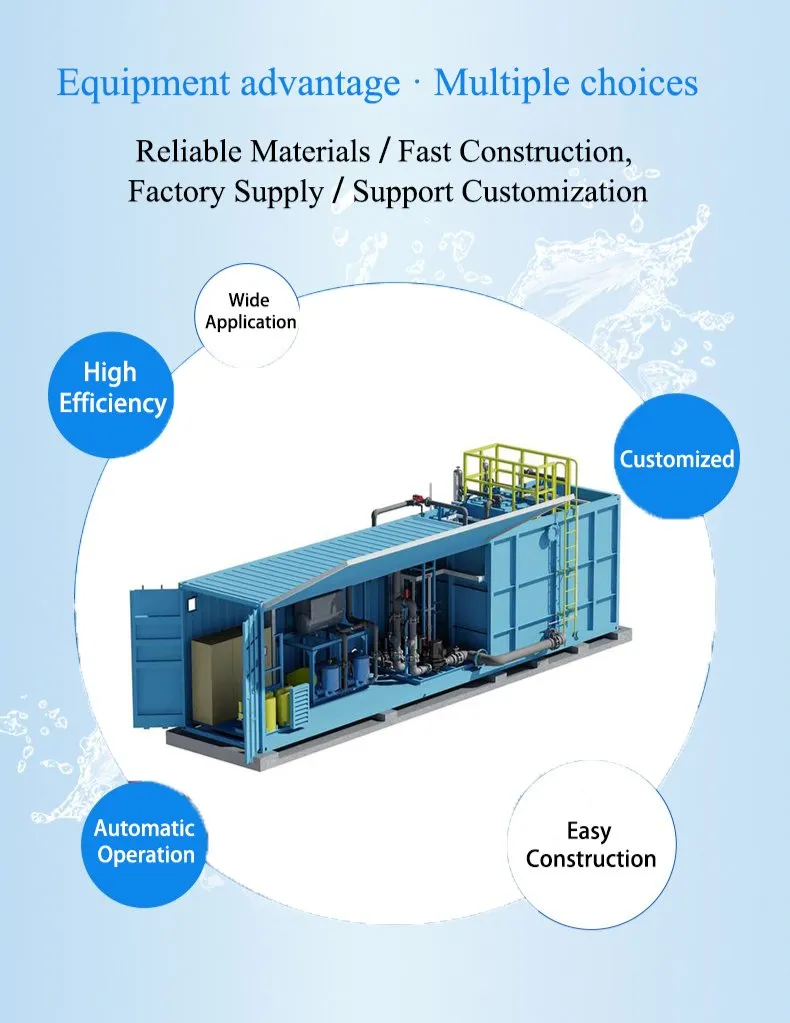

Our integrated sewage treatment systems feature automatic operation, stable treatment performance, compact installation, and low maintenance requirements. The modular design simplifies transportation, installation, and commissioning for overseas projects.

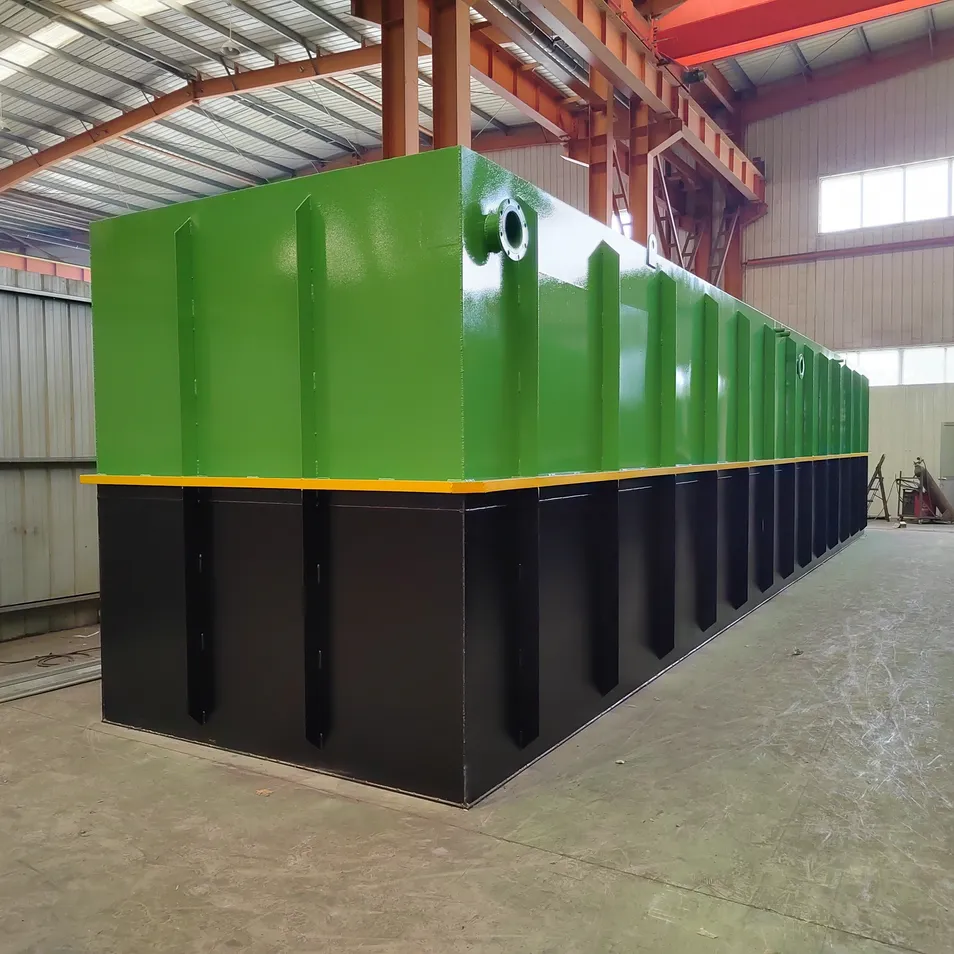

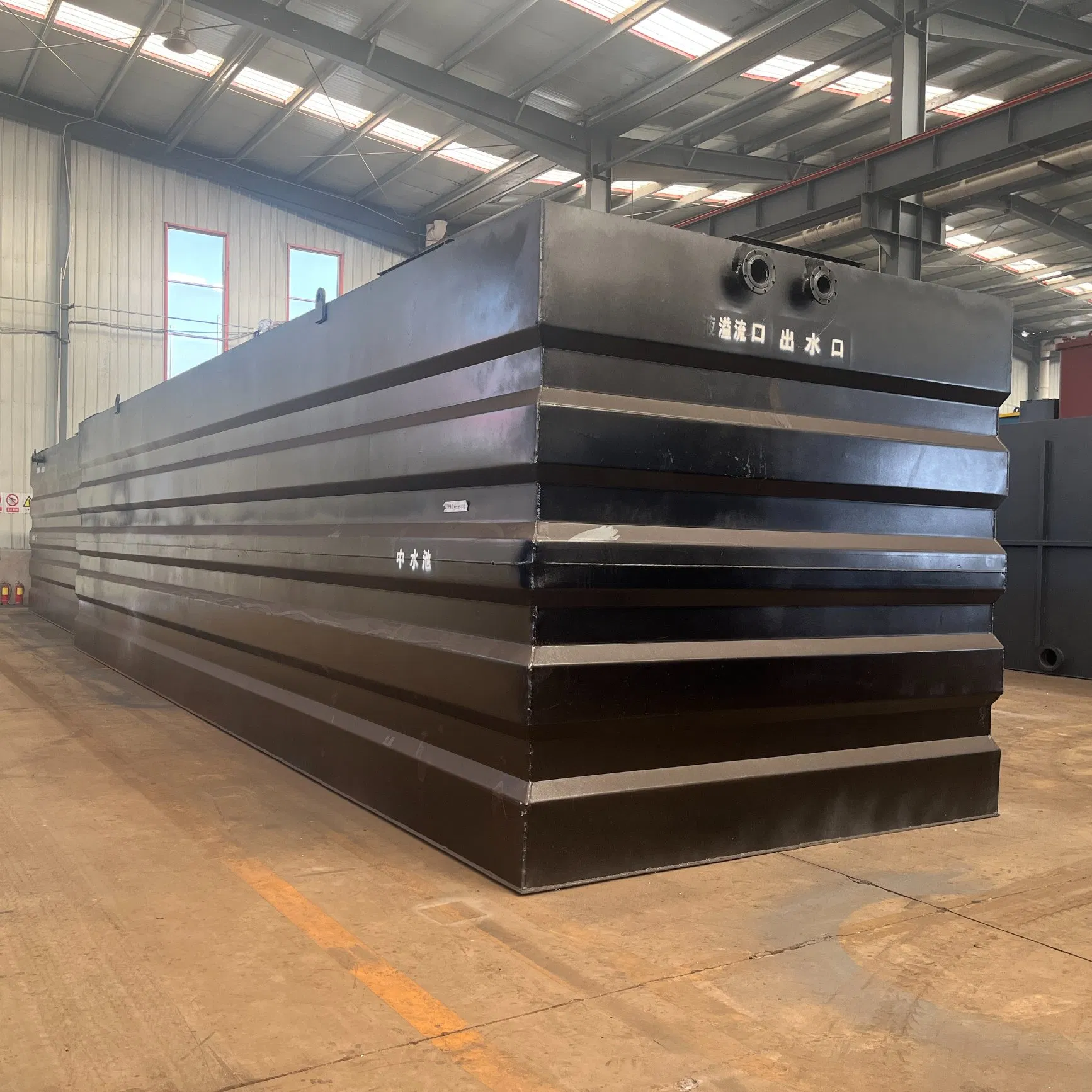

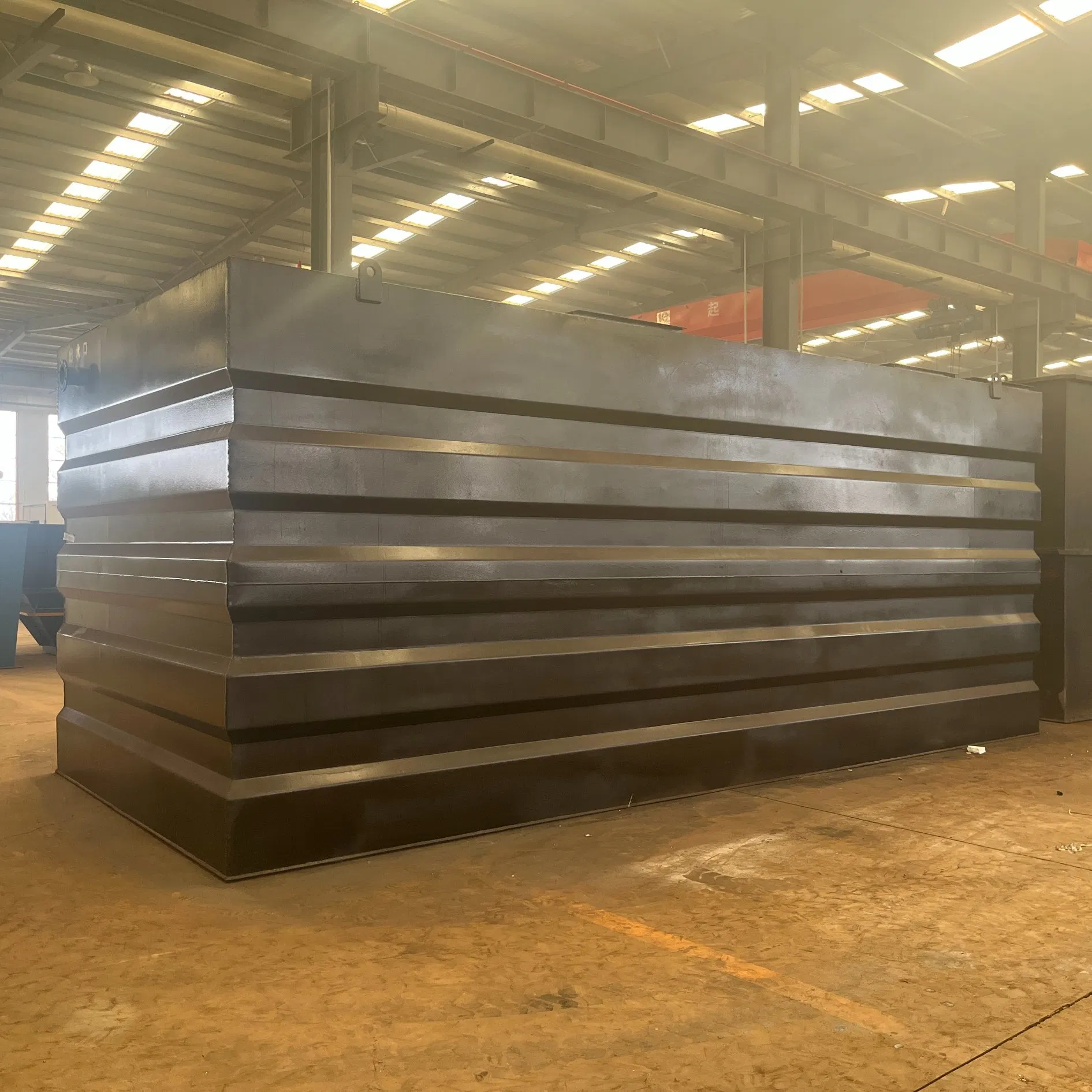

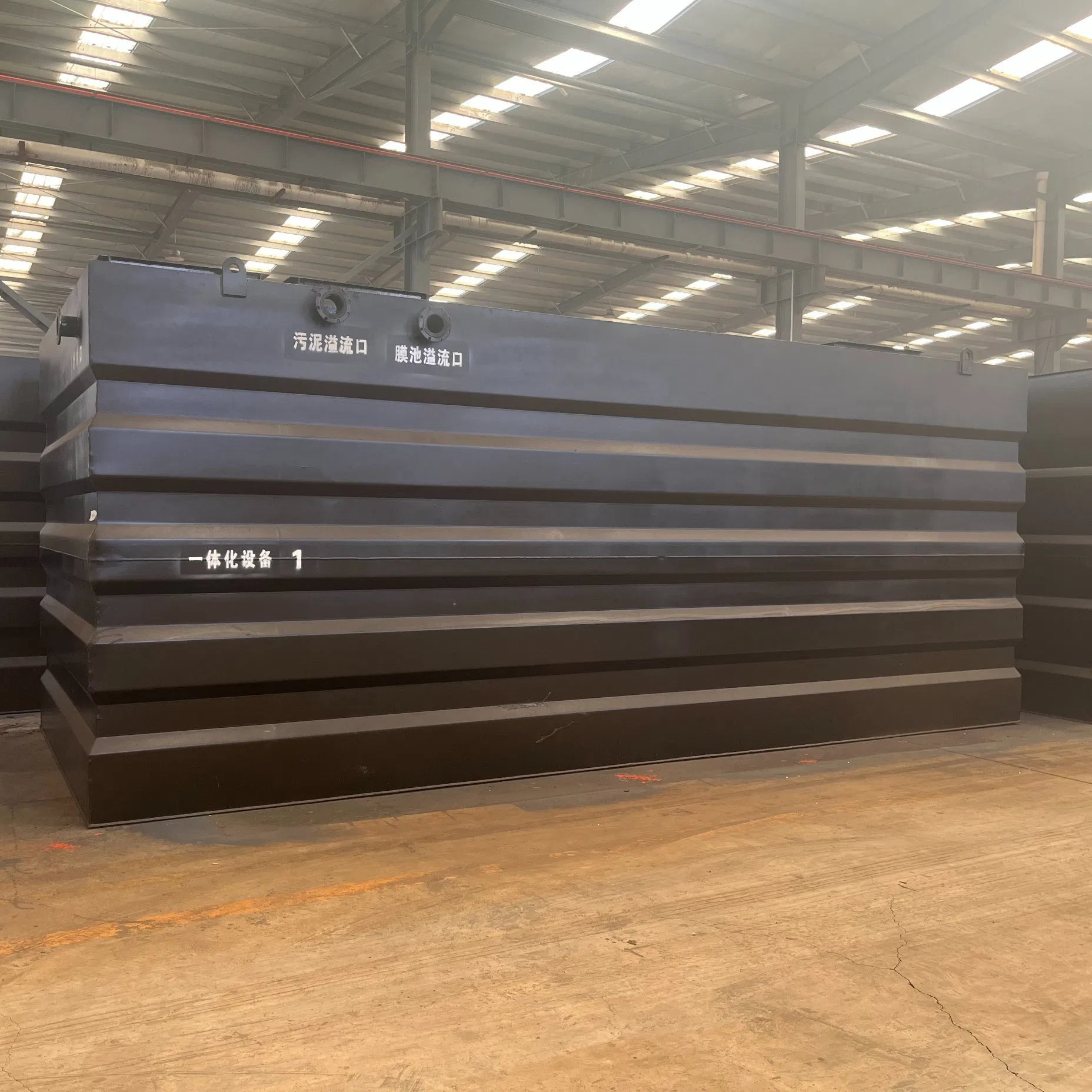

Product Name: Integrated sewage treatment equipment

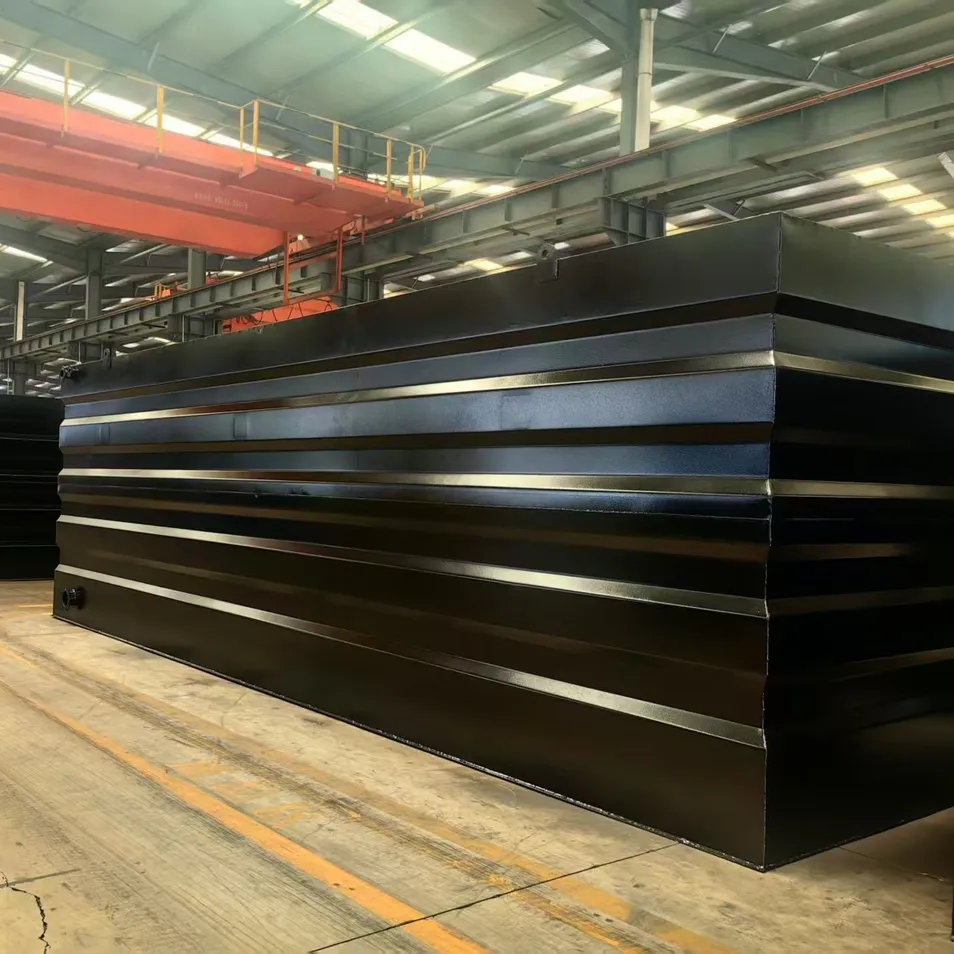

Product Material: Carbon steel, Stainless steel, fiberglass
Product Specifications: Complete specifications, can be customized
Treatment Water Quality: life/hospital/breeding/slaughter/industry/highway/car wash/plasticparticle cleaning/cosmetics/food factory/aquatic products
Treatment Process: AO, AAO, AO+MBR, MBBR and other processes

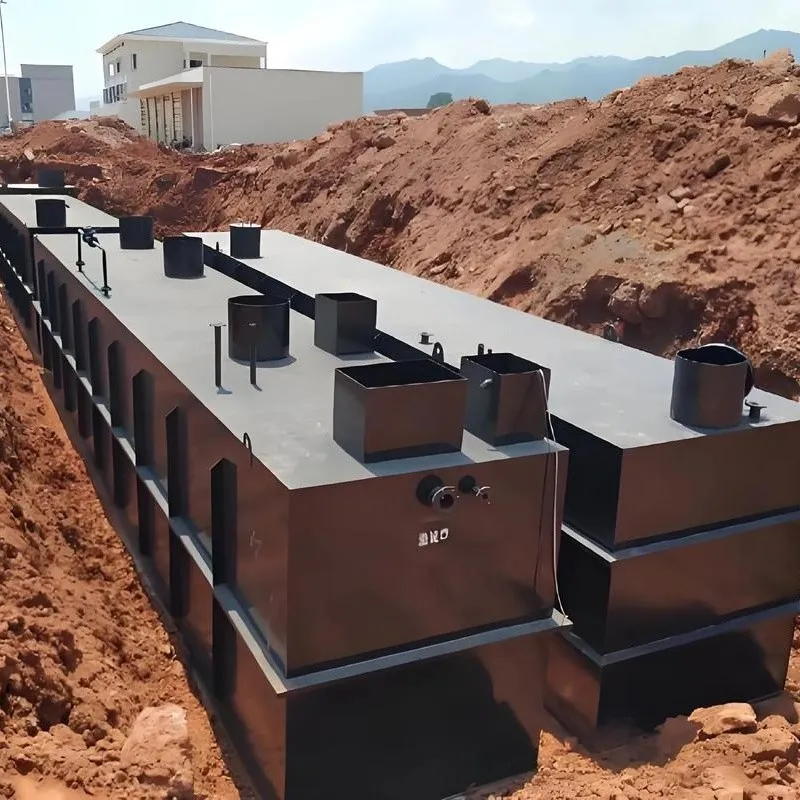

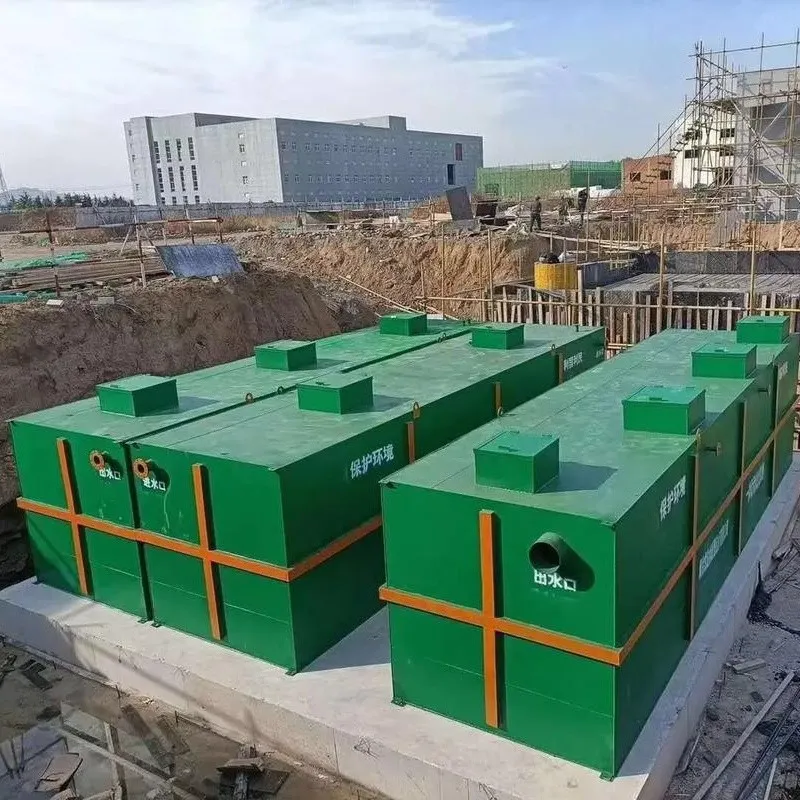

Disposal Method: Can be placed ground/underground
Treatment Volume: 10-5000m3/h, Design according to project conditions

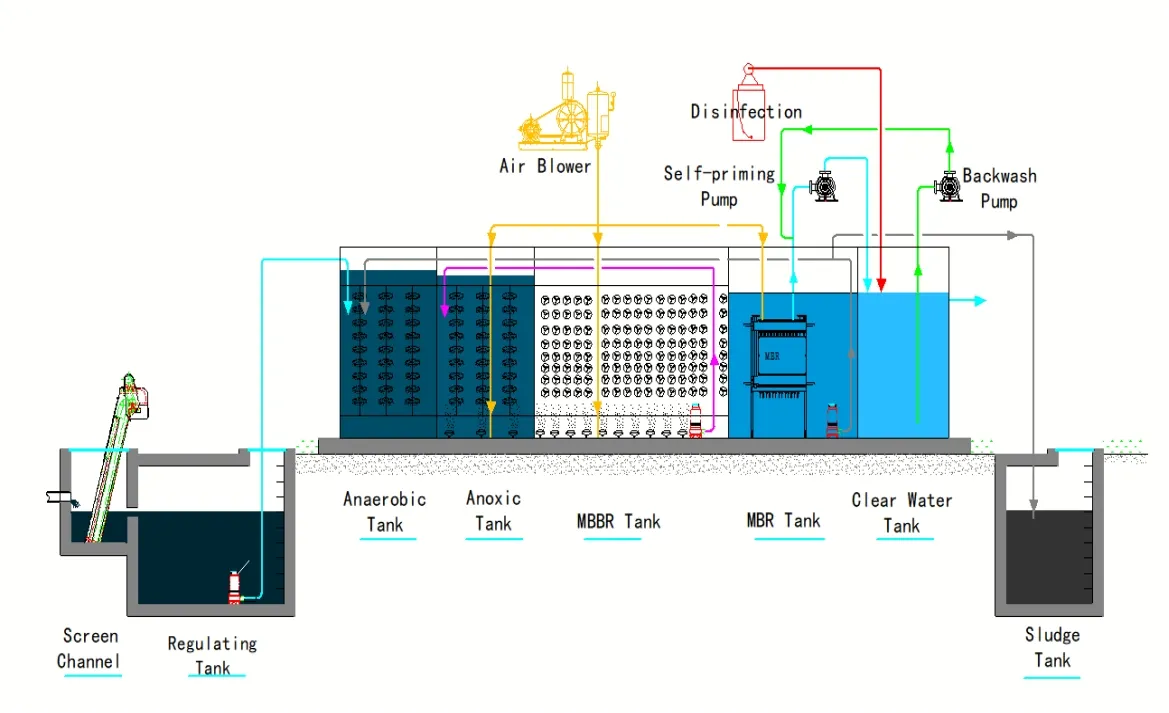

The wastewater first enters the equalization tank, where water quality and flow are balanced. After equalization, it flows into the anaerobic and anoxic zones for organic decomposition and nitrogen removal. The subsequent aerobic tank with MBBR bio-media provides a large surface area for microbial growth. The MBR membrane section then separates activated sludge and treated water through membrane filtration. Finally, treated water enters the clean water tank for disinfection before discharge.
| Item | NS-1 | NS-2 | NS-3 | NS-4 | NS-5 | NS-6 | NS-7 | NS-8 | |
| Capacity(m3/h) | 1 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | |
| Primary settling tank | 1.8 | 5.5 | 9 | 14 | 18 | 27 | 36 | 50 | |
| Contact oxidation tank(m3) | 5 | 14.5 | 24 | 36 | 44 | 63 | 83 | 130 | |
| Secondary settling tank load | 1.2 | 1.3 | 1.3 | 1.3 | 1.2 | 1.2 | 1.5 | 1.5 | |
| Disinfection tank (m3) | 0.6 | 1.8 | 2.8 | 4 | 5.5 | 8 | 10 | 15 | |

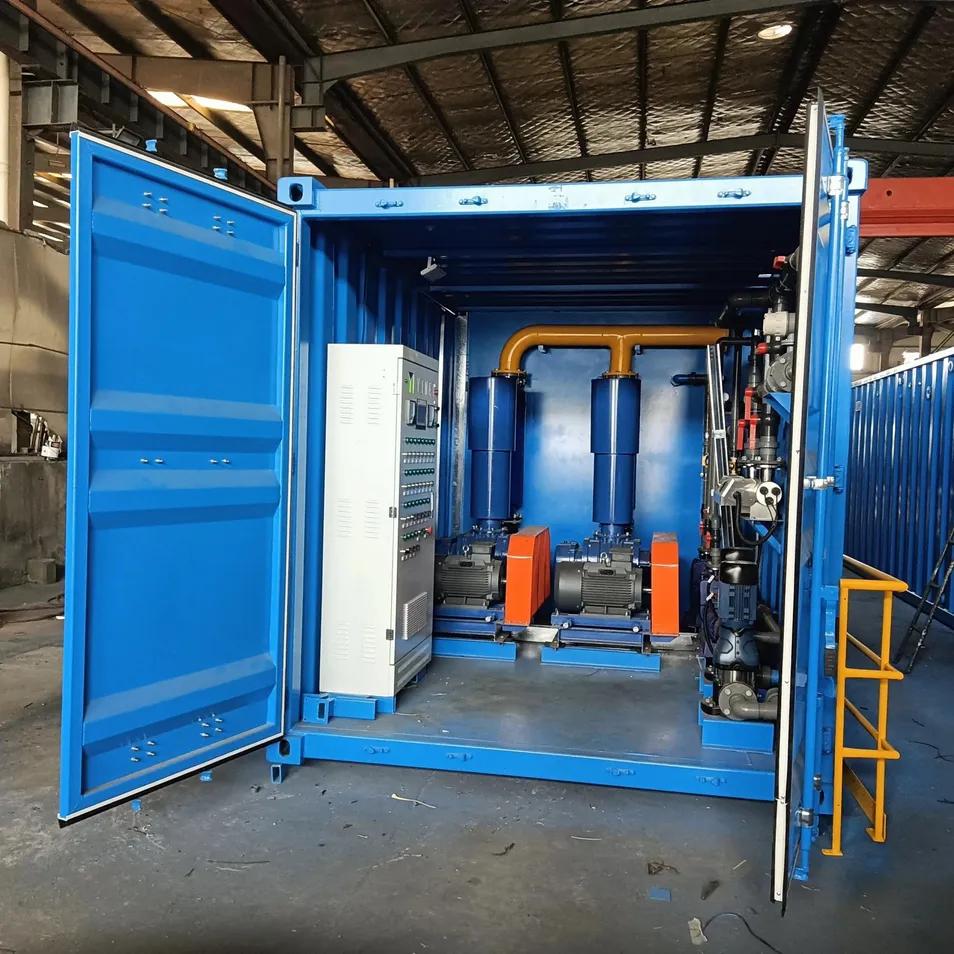

| Air Blower | Model | HC-25IS | HC-30IS | HC-50C | HC-50IS | HC-60IS | HC-80IS | HC-100IS | HC-110IS |
| Total Weight(t) | 5.5 | 6.5 | 8 | 11 | 17 | 20 | 21 | 29 | |
| Occupy area(m2) | 6 | 14 | 20 | 30 | 50 | 65 | 75 | 115 | |
We are a professional manufacturer specializing in environmental protection equipment and water treatment solutions. Our focus is providing practical, reliable, and cost-effective systems for industrial, commercial, and municipal projects worldwide.
Our expertise includes integrated wastewater treatment, MBR/MBBR systems, dissolved air flotation, sludge treatment, and reverse osmosis purification systems. We provide technical consultation, process design, equipment manufacturing, and installation guidance for customers across diverse industries including healthcare, pharmaceuticals, and food production.
