Automated High-Current Temperature Rise Test System

Send Inquiry

Product Description

ℹ️ General Information

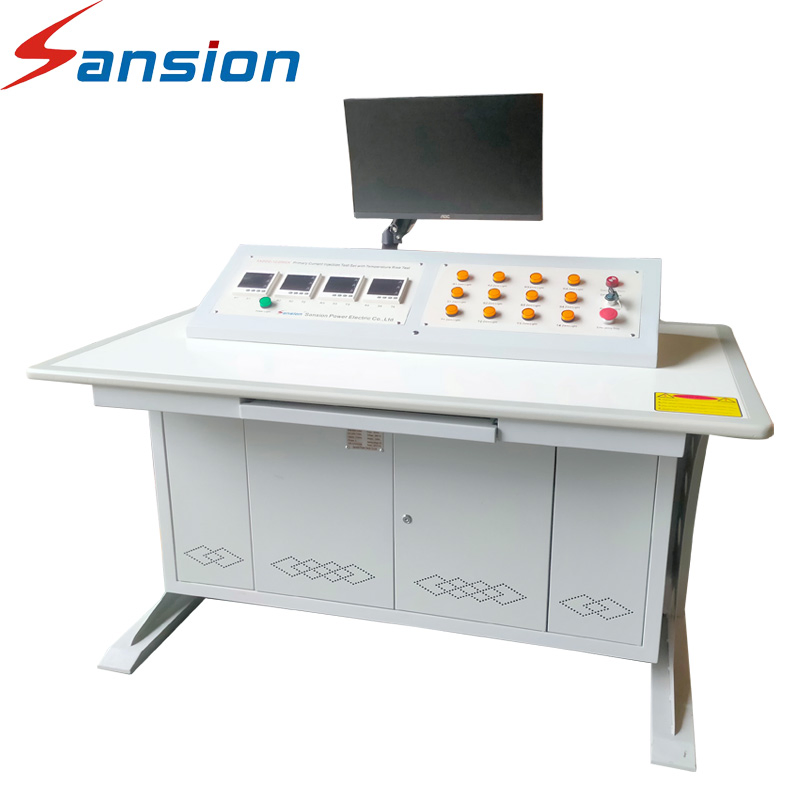

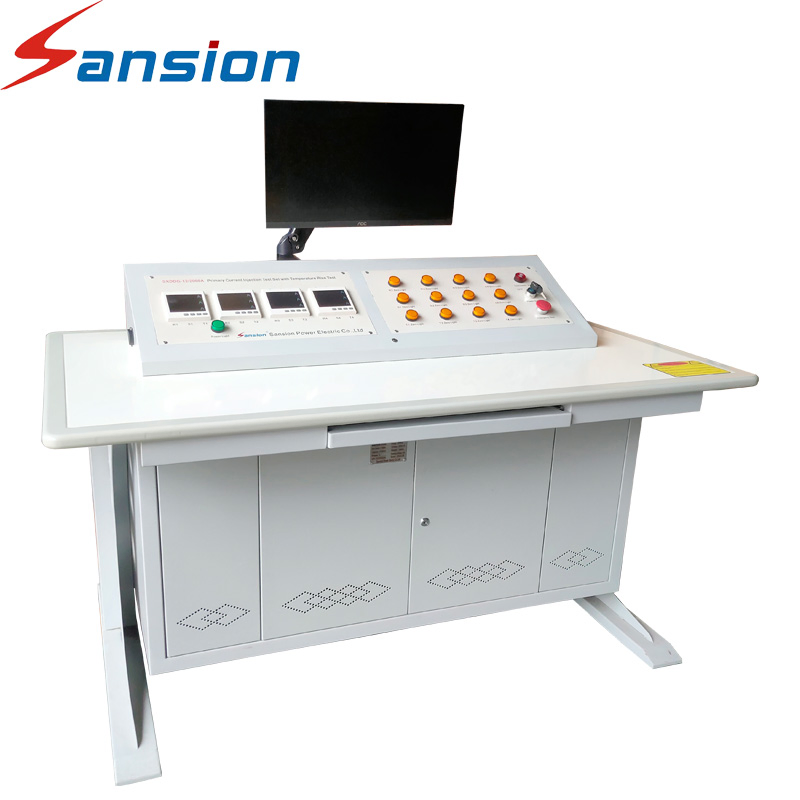

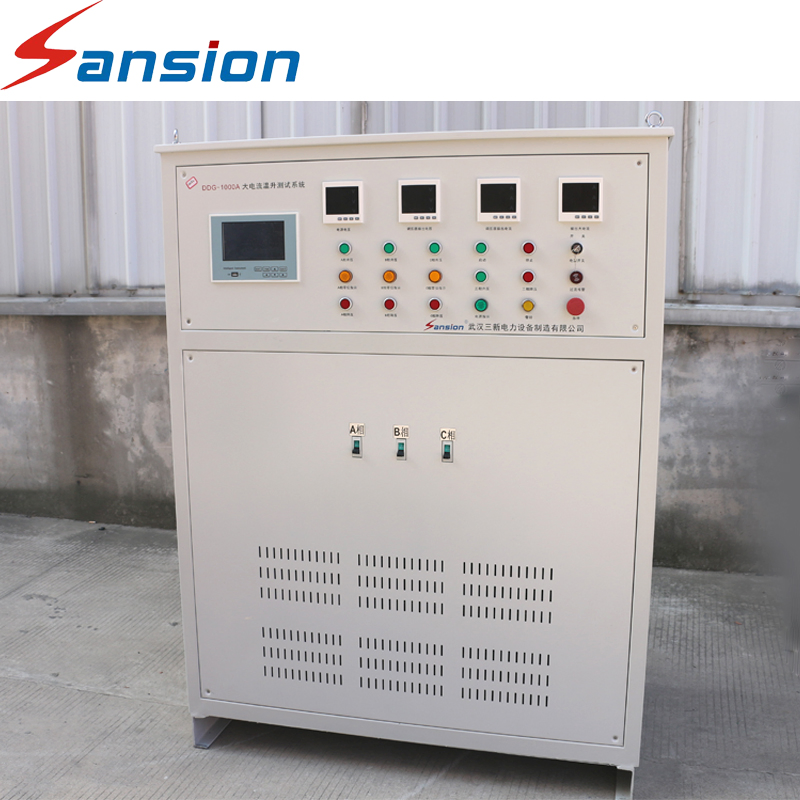

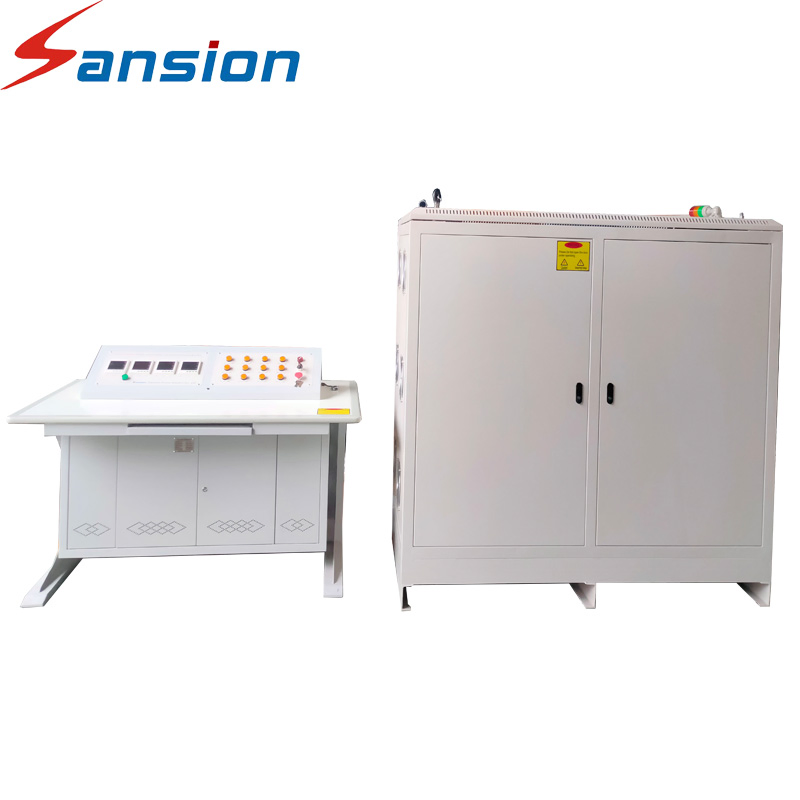

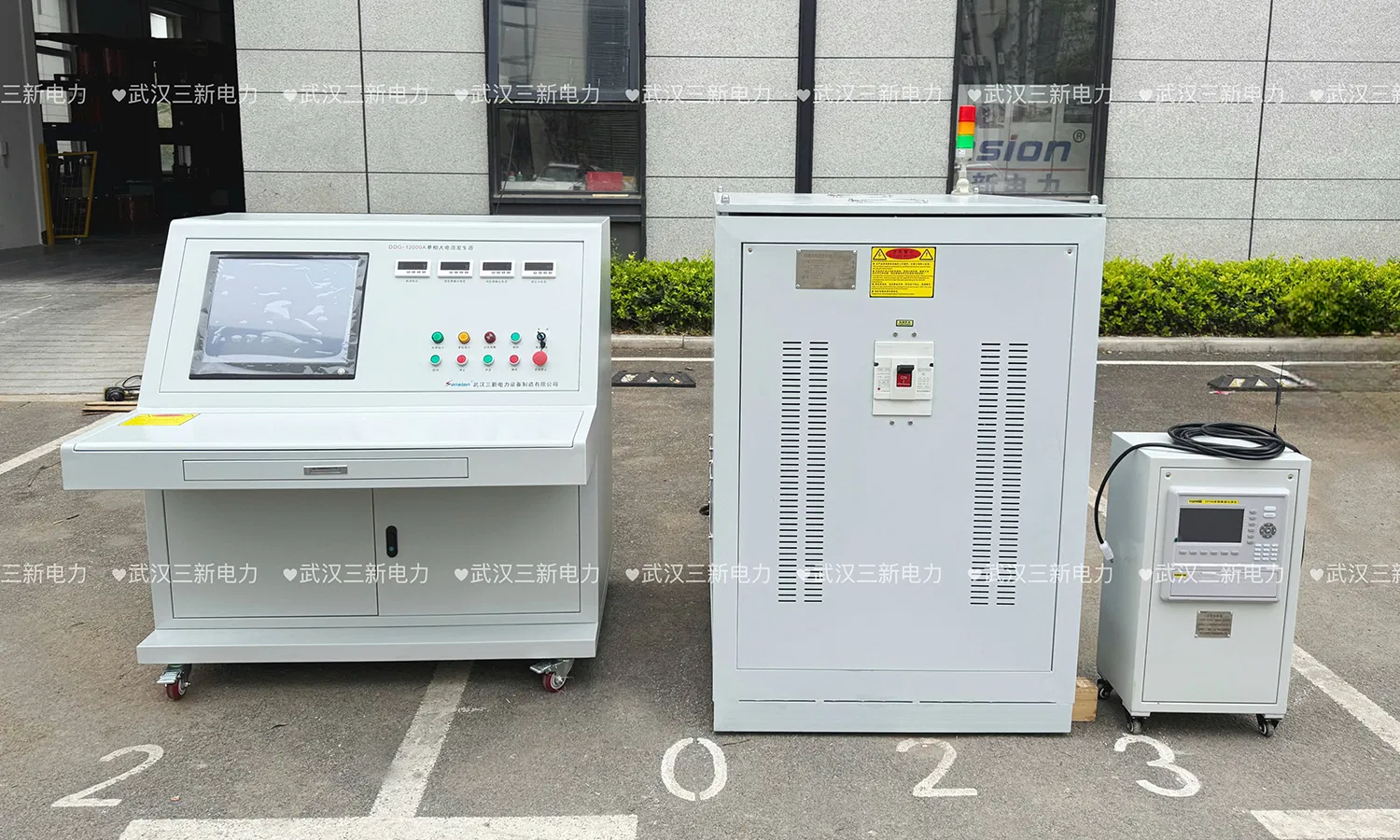

DDG Series Primary Current Injection Test Set is suitable for current load tests and temperature rise tests on various circuit breakers, switch gears, CT/PT, and other electrical equipment. This system is widely utilized in power divisions and industrial mining enterprises for reliable performance validation.

🚀 Key Features

✓

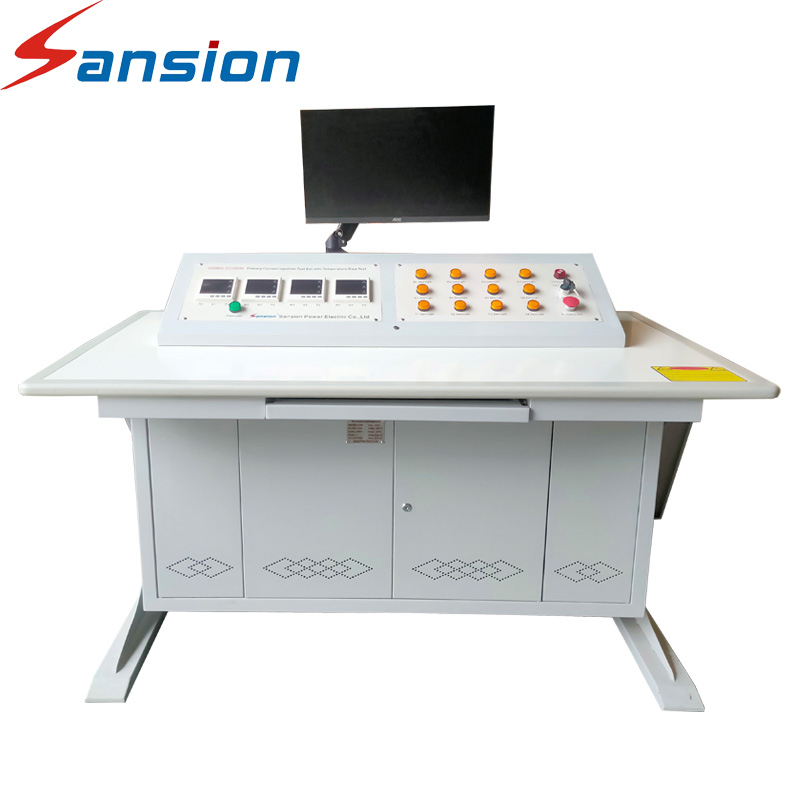

Intuitive Reading: Digital meter head directly displays test values of current, voltage, and temperature factors.

✓

Accurate Measurement: High measurement precision ensuring reliable test values for critical diagnostics.

✓

Digital Protection: Fully digitized processing for overcurrent protection settings and timing.

✓

Dual Operating Modes: Supports both manual and automatic operation for versatile testing environments.

✓

Intelligence: Automatically generates performance curves and standard test reports.

✓

Current Recovery Tracking: Automatically compensates for circuit impedance changes to maintain set current levels.

✓

Temperature Inspection: Up to 64 channels available to record temperature and generate rise curves automatically.

📊 Technical Specifications

🔹 Input: AC two-phase 380V 50Hz
🔹 Output Range: Single-phase 0-20kA AC high current (Smoothly adjustable)
🔹 Waveform: Standard sine wave with THD < 1% and ripple factor < 0.3%
🔹 Opening Voltage: 10V / 15V / 20V options
🔹 Accuracy: Current stability 0.2%
🔹 Time Measurement: 0.01S - 99999.99S with 0.001S accuracy
🔹 Temperature Range: 10-800 ℃

Model	Rated Capacity (KVA)		Rated Input		Rated Output
Model	Regulator	Injector	Current (A)	Voltage (V)	Current (KA)	Voltage (V)
DDG-3/500	3	3	13.6	220	0.5	6
DDG-9/1500A	9	9	40.0	220	1.5	6
DDG-18/3000	18	18	45.0	400	3	6
DDG-24/4000	24	24	60.0	400	4	6
DDG-30/5000	30	30	75.0	400	5	6
DDG-90/15000	90	90	225.0	400	15	6

* Custom designs are available based on detailed technical requirements.

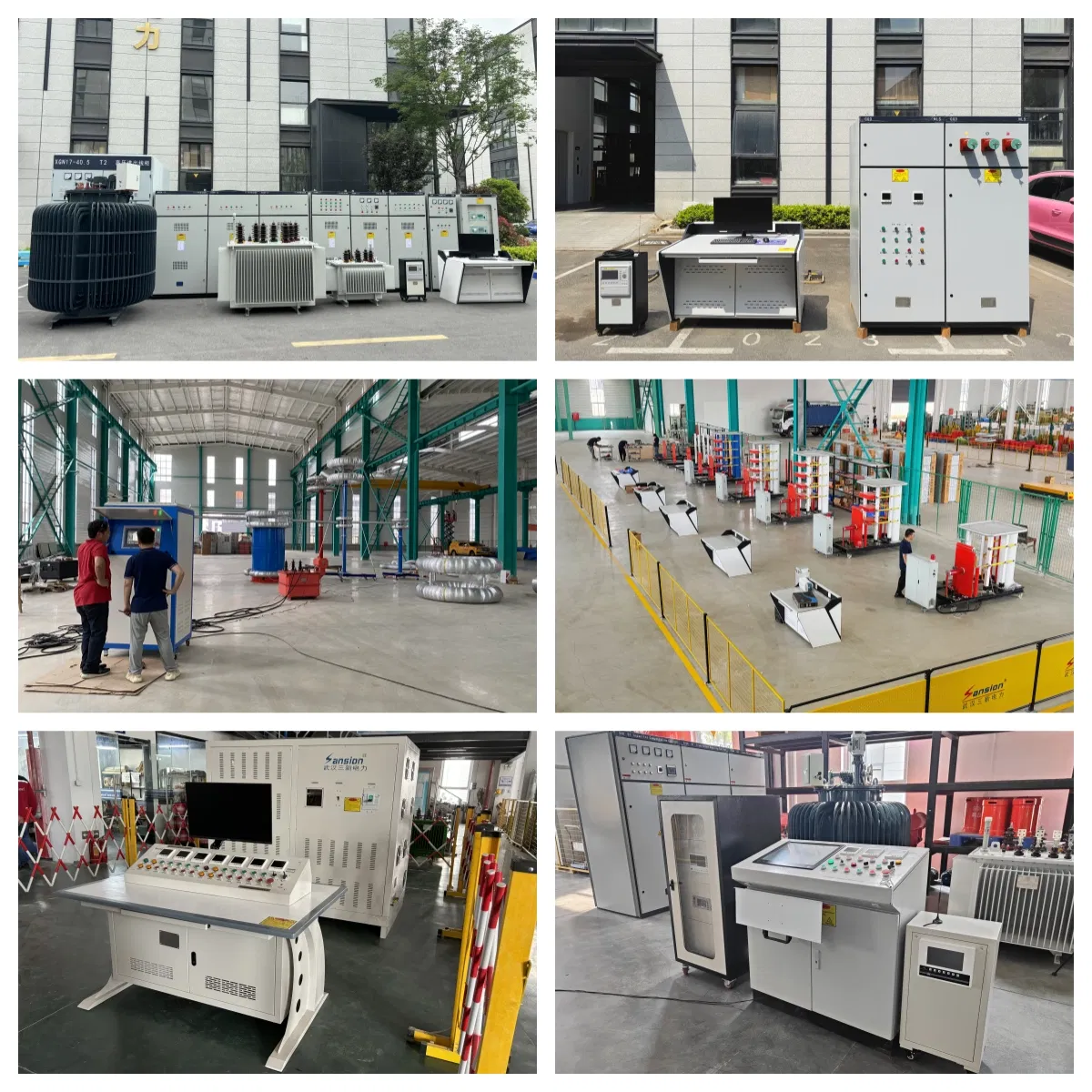

🏭 Production & Quality Control

📜 Certifications & Packing

👥 Global Reach

❓ Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?

A: We are an industrial and trade enterprise with our own factory. We have over 20 years of production experience with reliable production lines, test rooms, and R&D centers.

Q2: Can the equipment be customized and what is the lead time?

A: Yes, equipment can be custom-made according to special technical requirements. The delivery time is usually within 10 working days under normal conditions.

Q3: How is the quality of the products guaranteed?

A: We use high-quality imported components. Each product undergoes three stages of quality inspection before being packed in non-fumigation wooden boxes for export.

Q4: What after-sales services do you provide?

A: We offer a one-year warranty and free consulting services. Support is provided through email, video calls, and on-site technical assistance to solve issues promptly.

Q5: Which regions do you export to?

A: Our products have been successfully exported to the United States, France, Brazil, Australia, Russia, Saudi Arabia, Indonesia, and many other countries worldwide.

Q6: What standards do the products conform to?

A: All products strictly conform to international IEC standards and relevant state standards, and the facility is ISO9001 certified.
