Auto Transformer Test Bench Power Transformer Test System

1 / 5

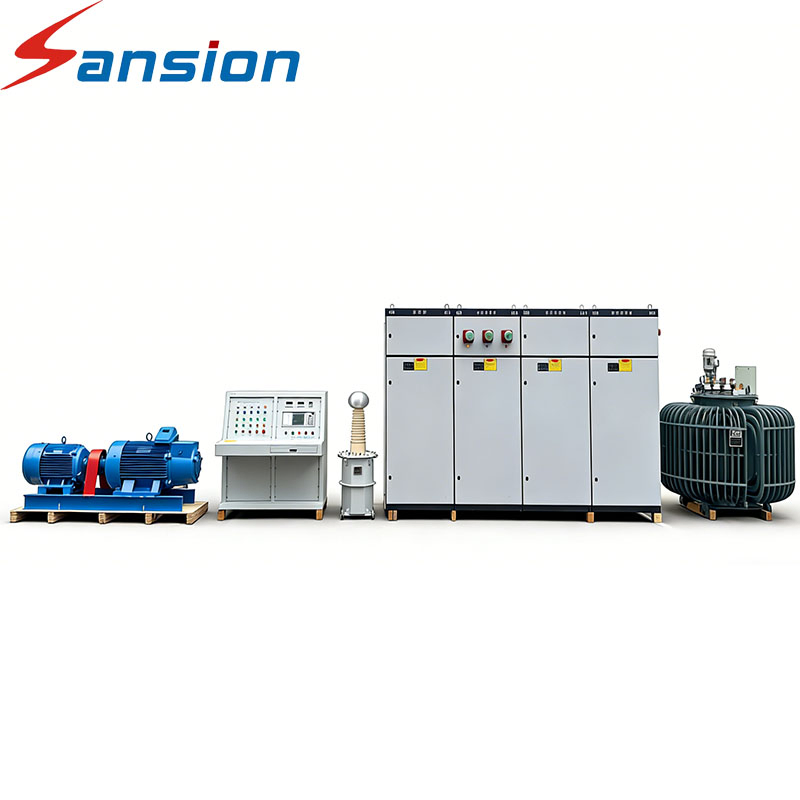

Auto Transformer Test Bench Power Transformer Test System

Customization:	Available
After-sales Service:	Onsite and Video Call Remote Guidance
Warranty:	2 Years Free Warranty Long Life Service

Send Inquiry

Product Description

Basic Information

Model NO.

SXBZ-I

Workpiece Max Dia.

2000mm

Mass Scope

1000kg

Type

Strength Testing Machine

Accuracy Grade

0.5

Load Way

Electronic Load

Display

Digital

Control

Manual/Auto Customized

Feature

Automatic Testing

Feature 2

High Precision

Transport

Plywood Case

Specification

ISO9001 SGS

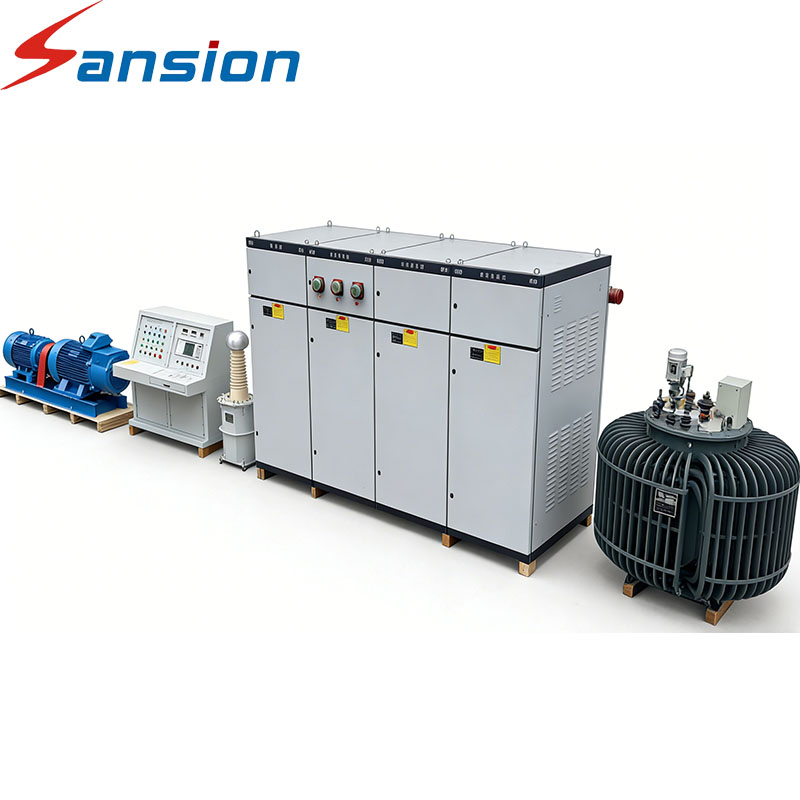

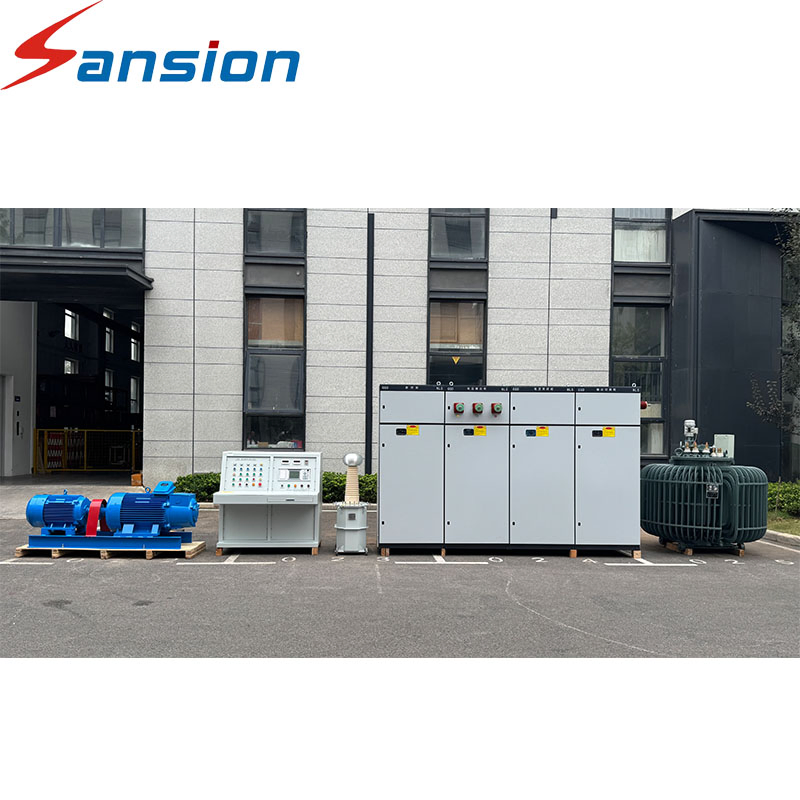

Auto Transformer Test Bench System

Performance Overview: The transformer comprehensive testing bench conforms to international standards. It is primarily designed to test the load and no-load characteristics of power operating or distributing transformers. Additional testing capabilities include power frequency withstand voltage, induced withstand voltage, temperature rising, partial discharge, and turn ratio programs.

The system utilizes an advanced single-chip microcomputer for synchronized data sampling, effectively eliminating errors common in manual reading of voltage, current, and power.

Key Features

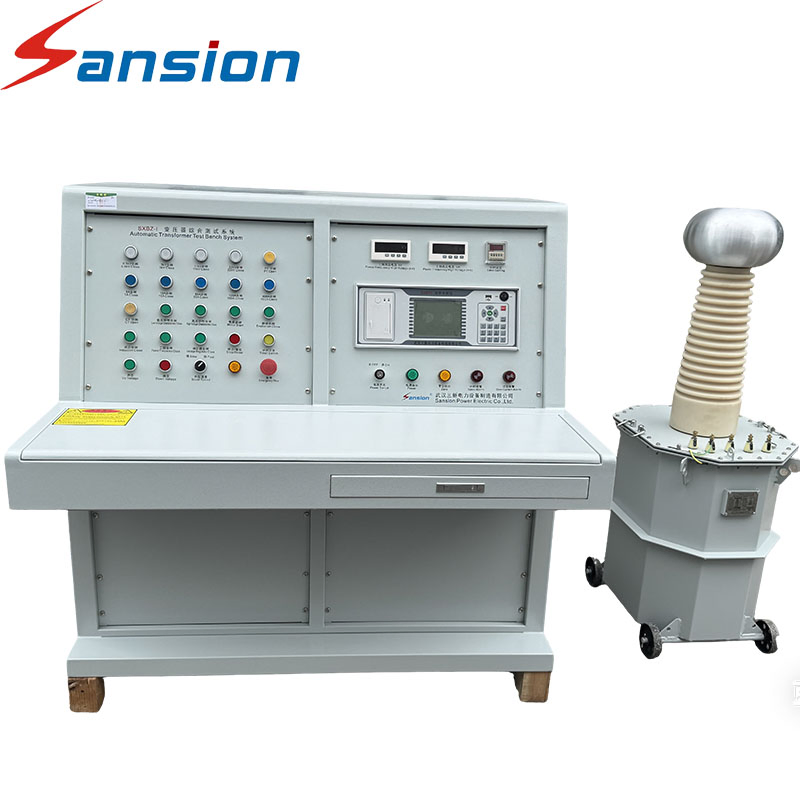

Large backlit LCD screen with an intuitive, easy-to-operate interface.
Comprehensive testing: No-load loss, load loss, DC resistance, TTR, and AC hipot.
Dual display options: High-accuracy digital meters or direct reading pointer meters.
Integrated safety: Sound and light alarms for voltage withstand testing with precise timing.

Technical Parameters

Project	Measuring Range	Relative Error
Voltage	0.1 ~ 600V	±(0.2% reading +0.1% range)
Current	0.1 ~ 200A	±(0.2% reading +0.1% range)
Power	U * I	±(0.2% reading +0.1% range)
Power Factor	0.1 ~ 0.9999	0.1kV
Power Supply	AC220V ± 10%, 50Hz ± 2%
Environment	Temp: 0~40ºC \| Humidity: 30%~90%

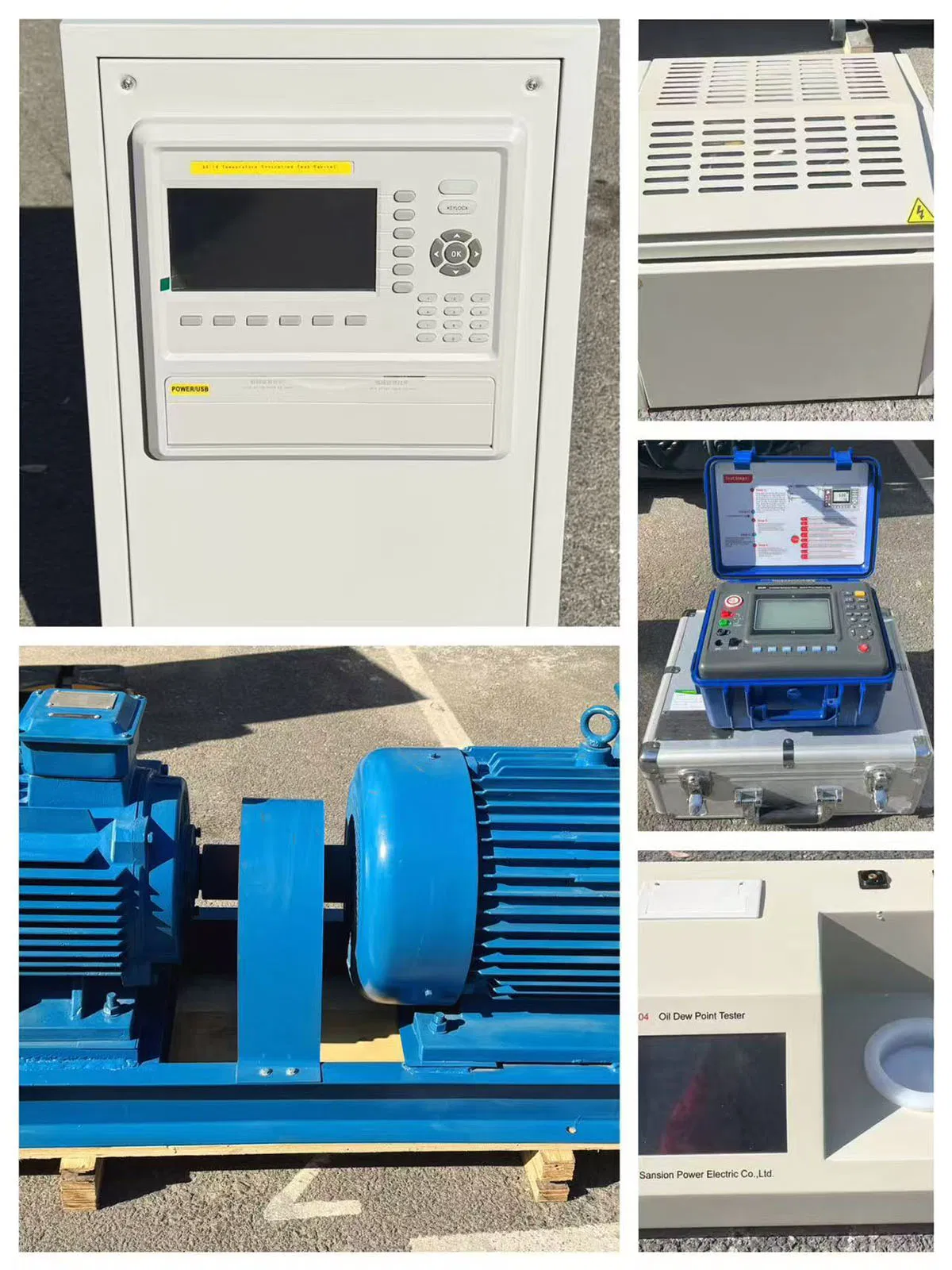

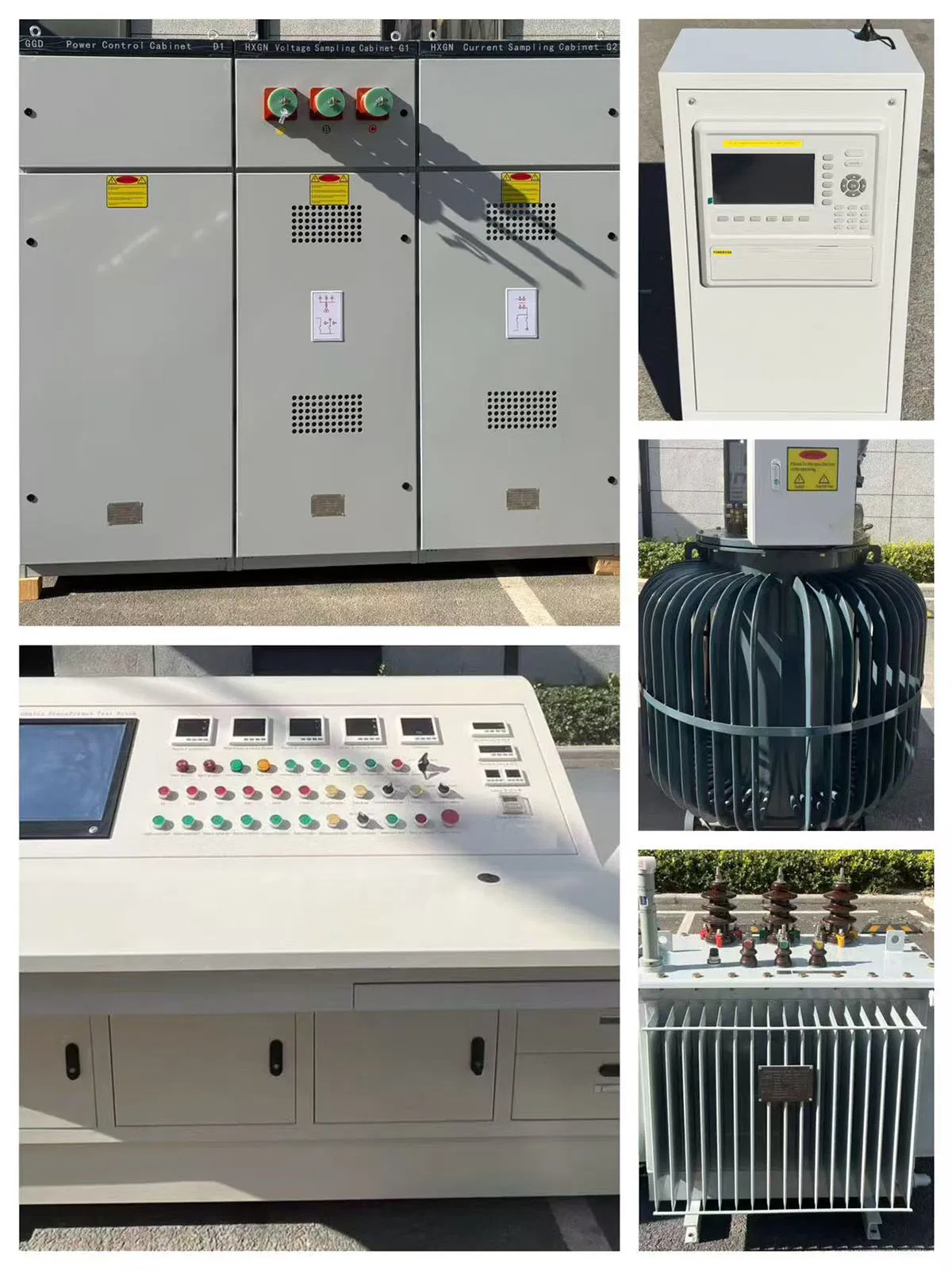

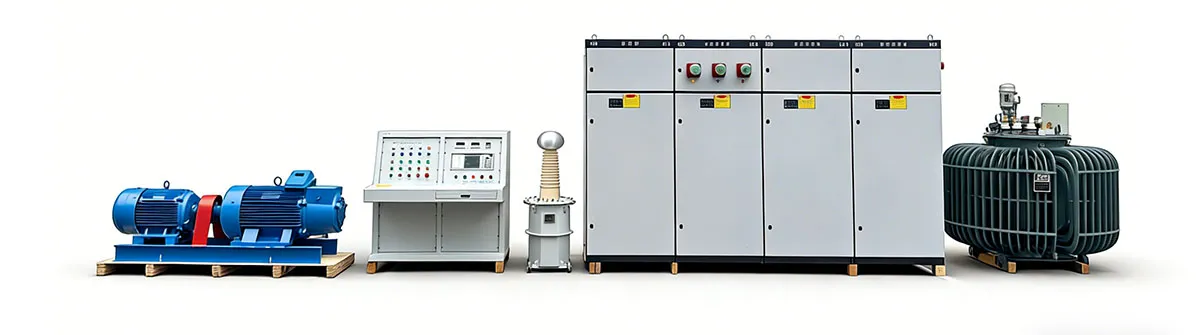

Product Details & Exhibition

Company Strength & Certifications

Frequently Asked Questions

Q1: What is your company's business model?

A: We are a well-established industry and trade enterprise with our own production bases. This allows us to control the entire process from production to sales, backed by 20 years of experience in the power equipment sector.

Q2: Are products available in stock and can they be customized?

A: Products can be made to order according to specific customer requirements using the latest technology. Typically, the delivery time is within 10 working days for standard customized orders.

Q3: How is the quality of the equipment guaranteed?

A: We use high-quality imported components extensively. Every product undergoes three rounds of quality inspection before being shipped in standardized non-fumigation wooden boxes for export.

Q4: What after-sales support do you provide?

A: We offer free consulting services and a one-year warranty. Support is provided via email, video calls, or on-site technical visits to ensure any issues are resolved promptly.

Q5: Can you provide technical training?

A: Yes, we provide both online and offline technical training tailored to your needs, covering equipment operation and daily maintenance. We respond to all service requests within 24 hours.

Q6: What standards do your products conform to?

A: All products strictly conform to international IEC standards and relevant state standards, and our factory has obtained ISO9001 quality system certification.
